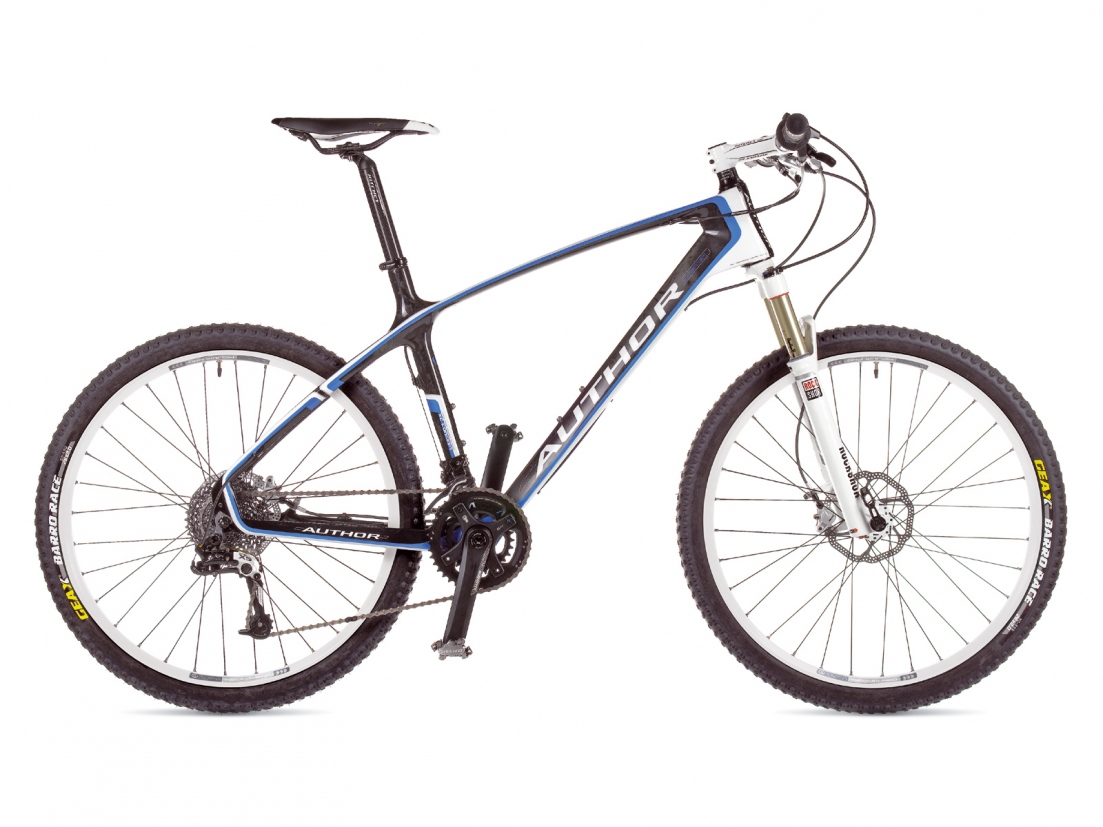

AUTHOR Bicycle Master 2013
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5"
FrameAUTHOR B carbon monocoque 26"
Front forkROCK SHOX SID RLT air, remote lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" taper
Chain WheelSRAM S1400 42-28 teeth 170 / 175 mm cranks
BBPartsSRAM BB30 Press Fit
Front derailleurSRAM X9 (34.9)
Rear derailleurSRAM X9-T2
ShiftersSRAM X0 GripShift (20)
Free wheelSRAM PG-1050 12-36 (10)
ChainSRAM PC-1051
HubsAUTHOR Helium / Xenon Disc 15 mm thru axle 32 holes
BrakesAVID Elixir 7 disc hydraulic (6" rotors)
Brakes leversAVID Elixir 7
RimsAUTHOR Helium Pro 32 holes
Spokesblack stainless steel 2.0 mm triple butted
TiresGEAX Barro Race Kevlar 26" x 2.00"
PedalsSHIMANO M540 clipless
HandlebarRITCHEY WCS 0 mm 580 mm
GripsSRAM X0 GripShift
StemRITCHEY WCS C-260
Seat postRITCHEY Pro Carbon 2B (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Tundra II
Speed20
Weight9,9 Kg / 19"

Geometry and sizes

Size 16" 17,5" 19" 20,5"
Min. figure [cm] 150 162 172 183
Max. figure [cm] 165 175 185 197
S/T c-t [mm] 412 456 486 526
S/T c-c [mm] 0 0 0 0
T/T h [mm] 575 590 605 620
T/T a [mm] 555 569 581 594
H/T [mm] 115 120 130 140
C/S [mm] 420 420 420 420
W/B [mm] 1055 1072 1082 1098
S/T ang. [°] 73.5 73.5 73 73
H/T ang. [°] 70.5 70.5 70.5 70.5
F/L [mm] 476 476 476 476
B/B drop [mm] 30 30 30 30
B/B width [mm] 0 0 0 0
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 38 38 38 38
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Master 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
