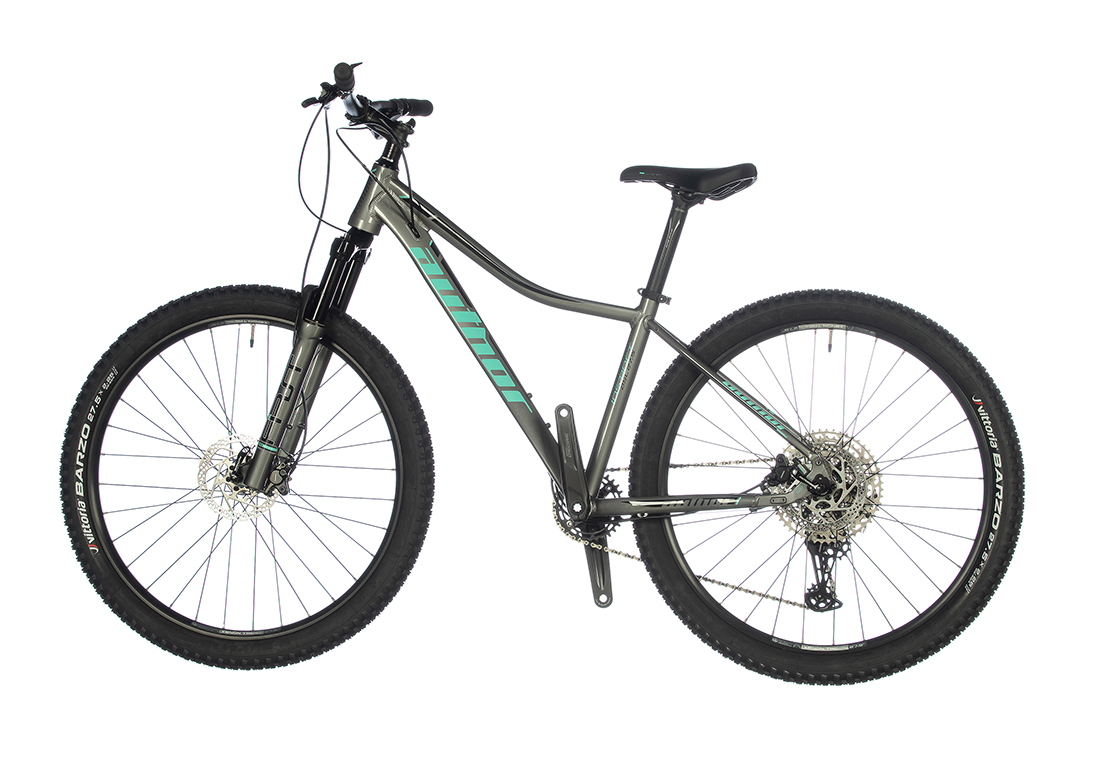

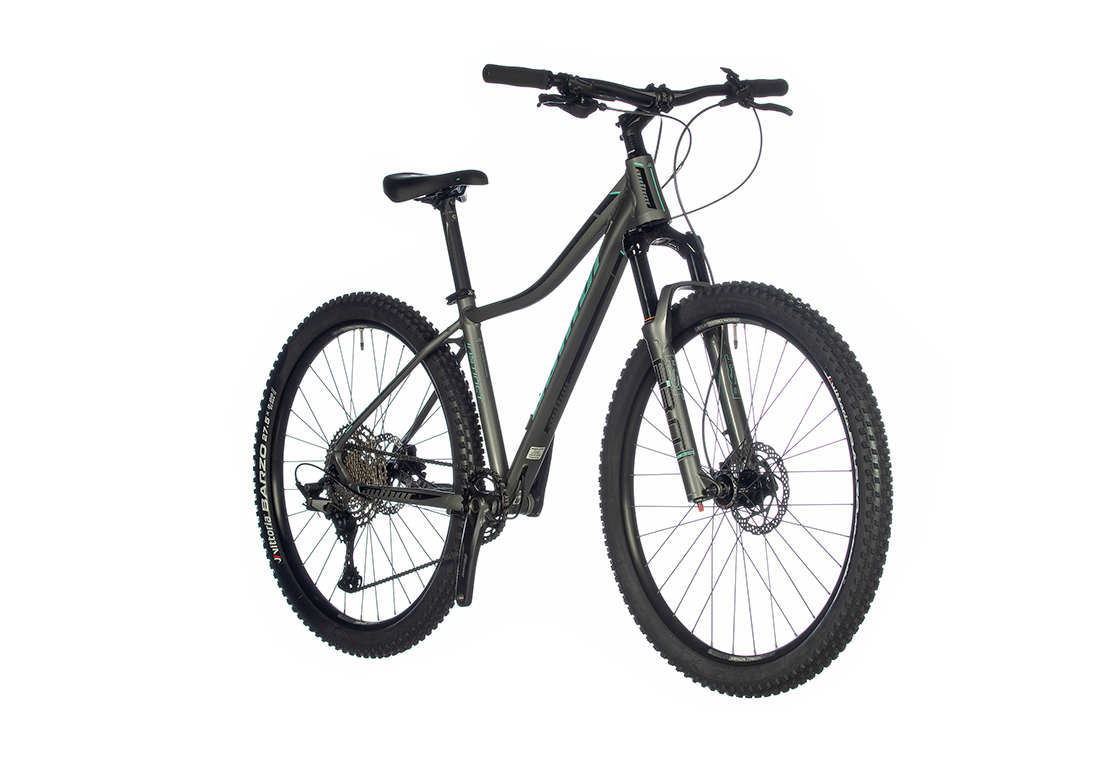

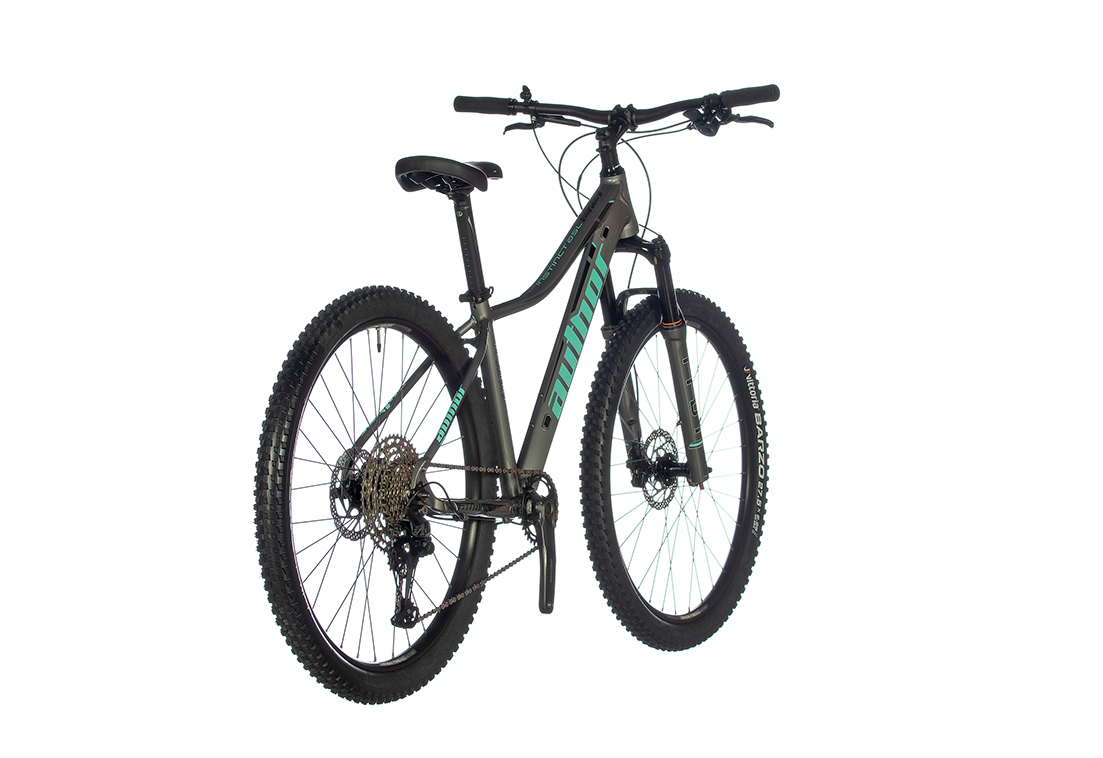

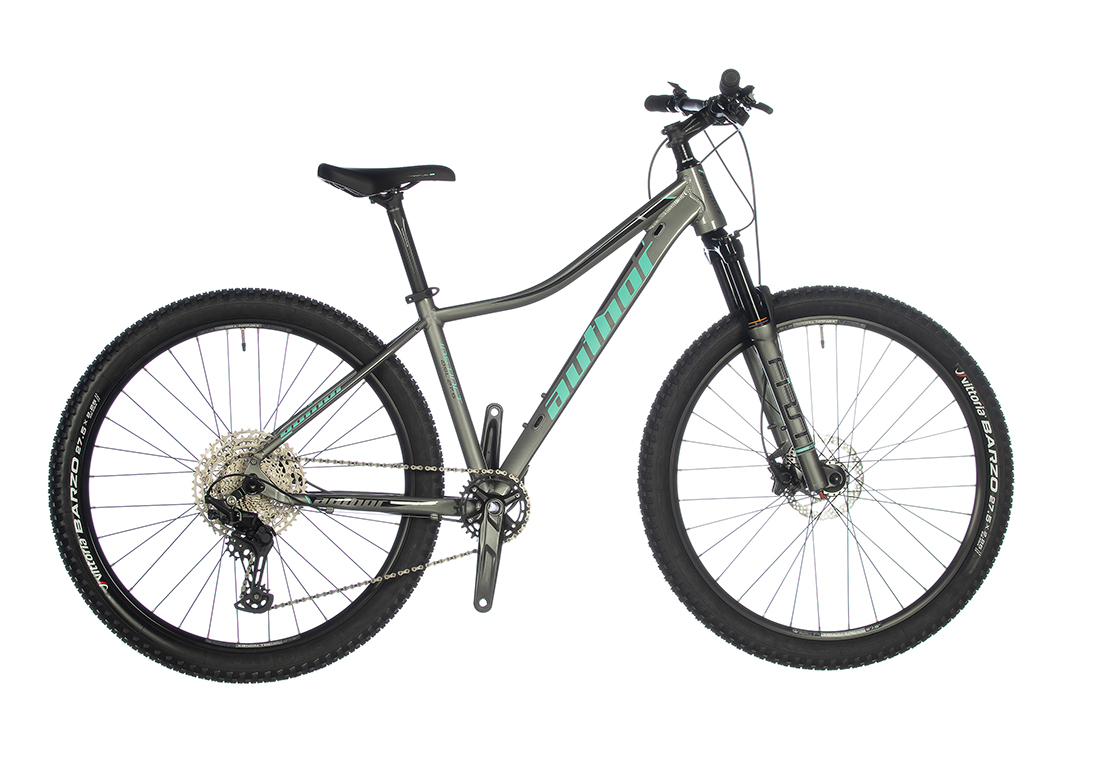

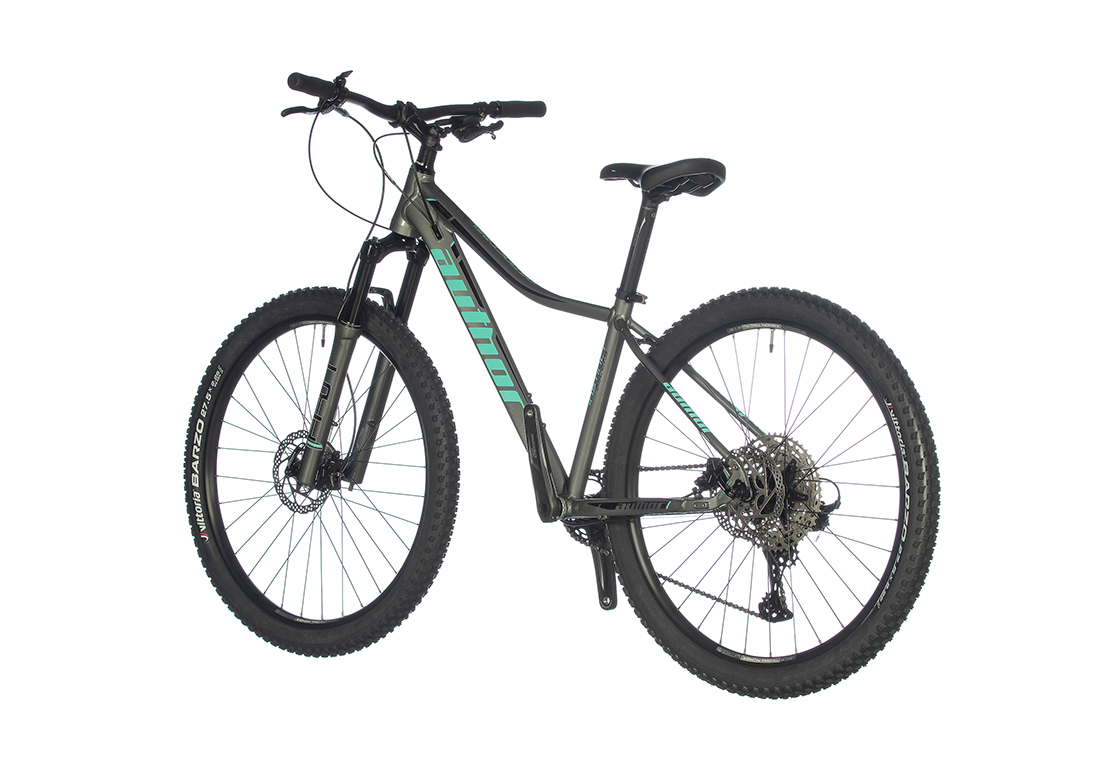

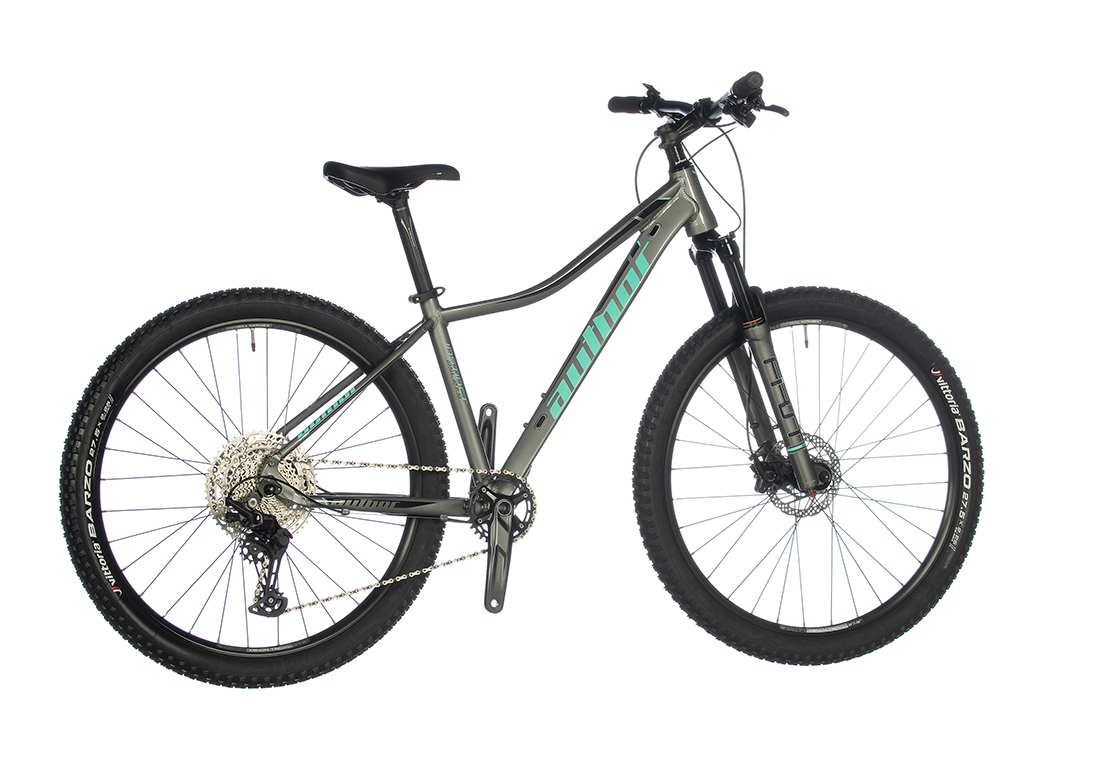

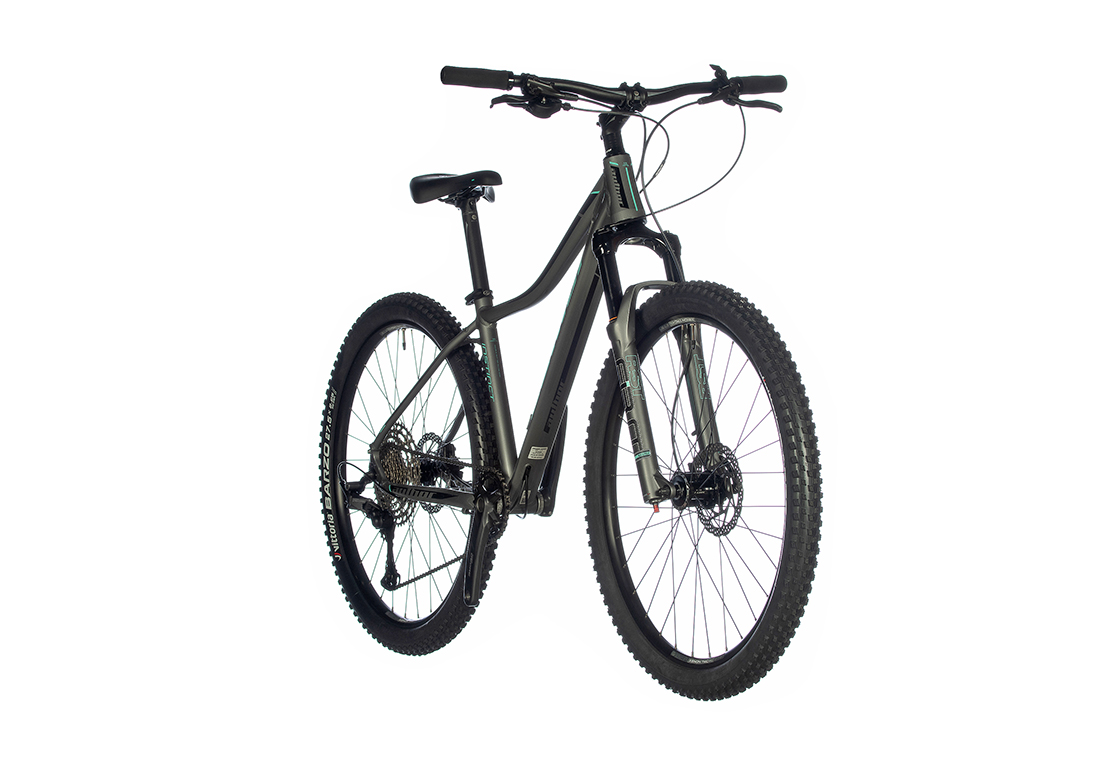

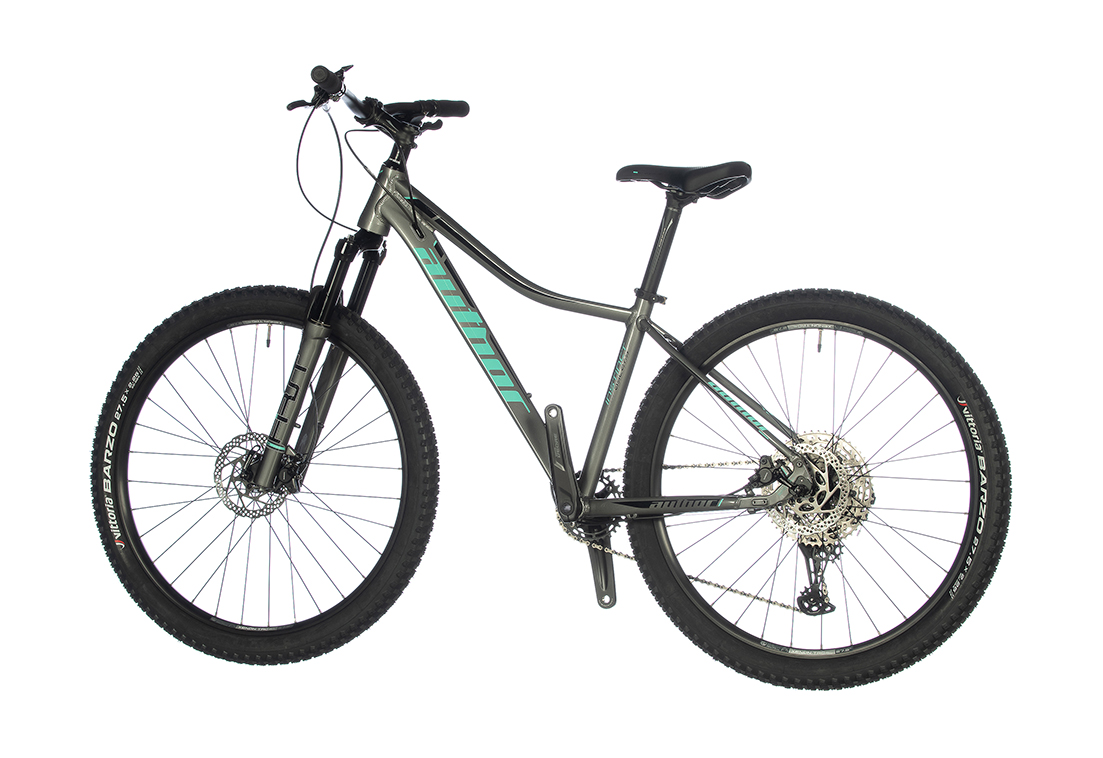

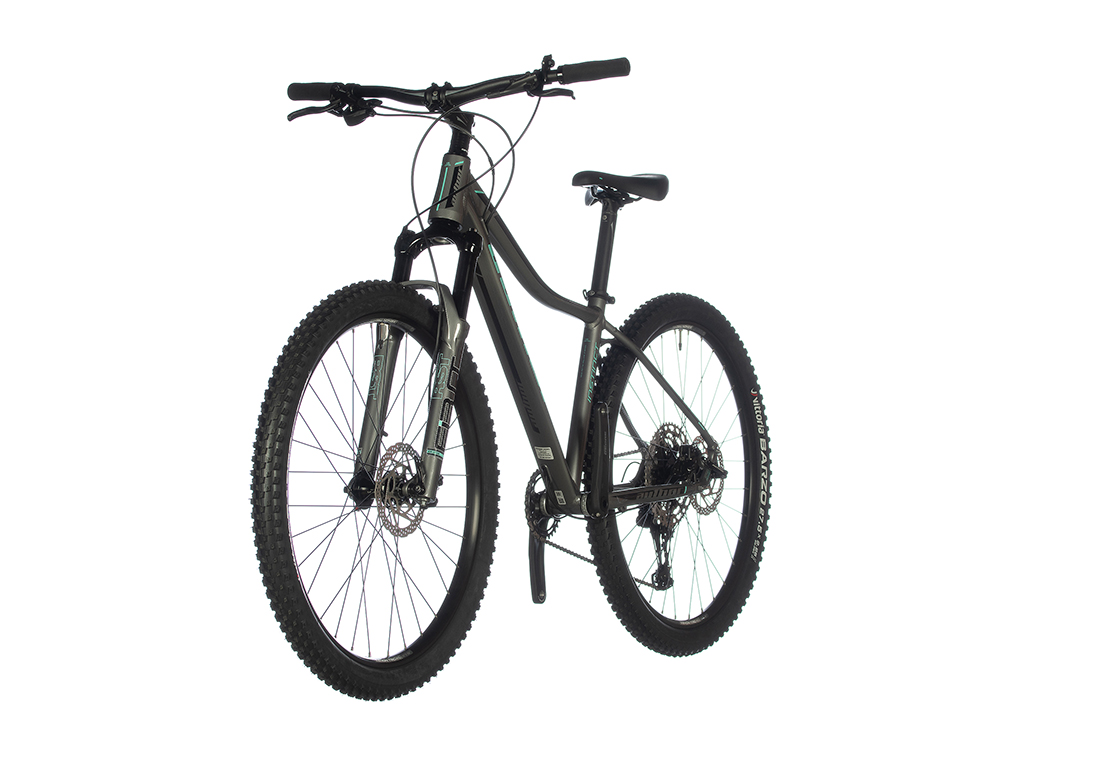

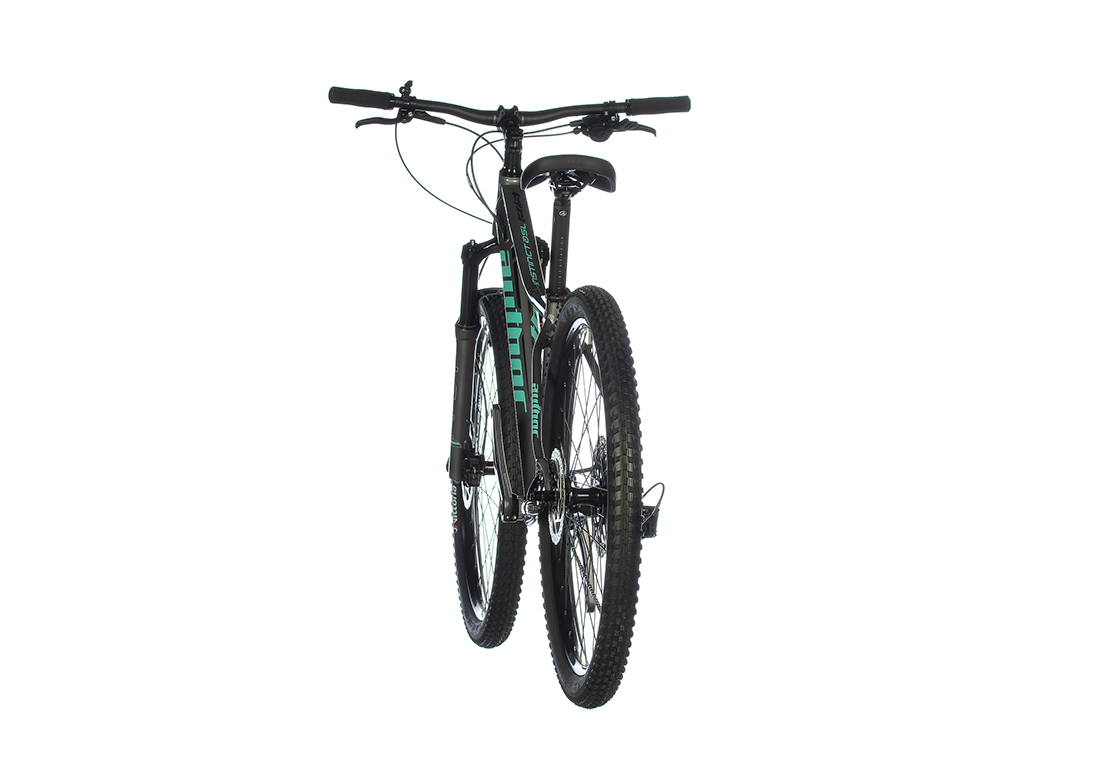

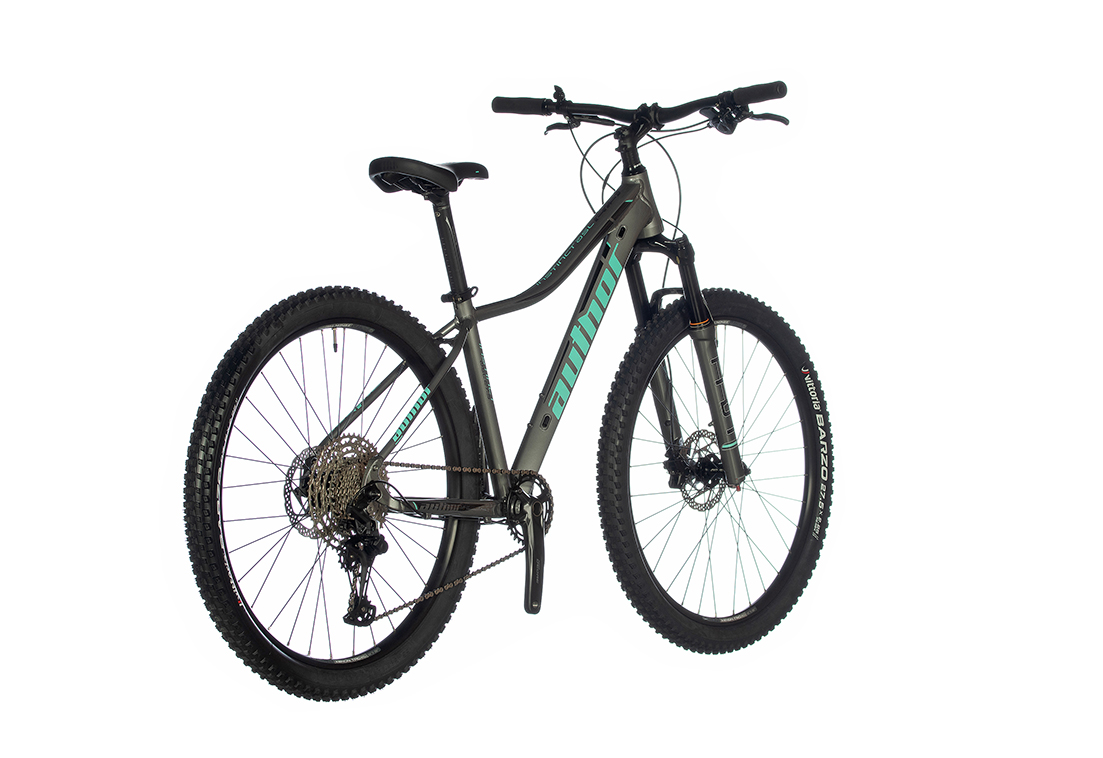

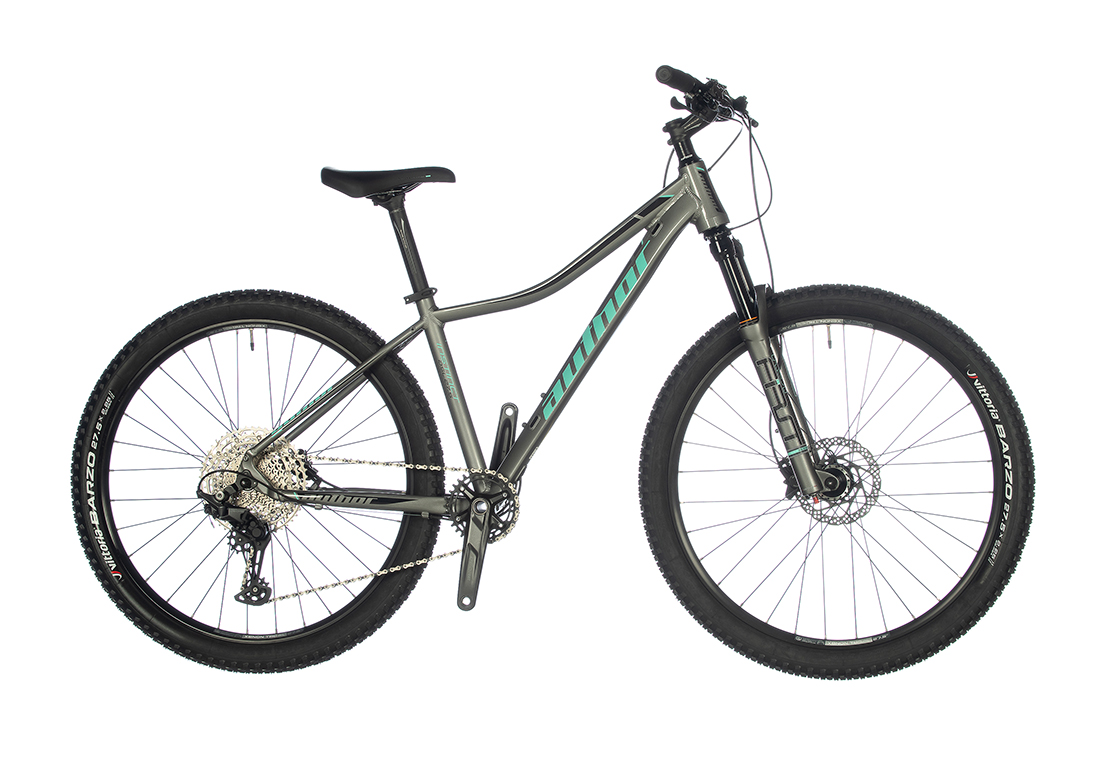

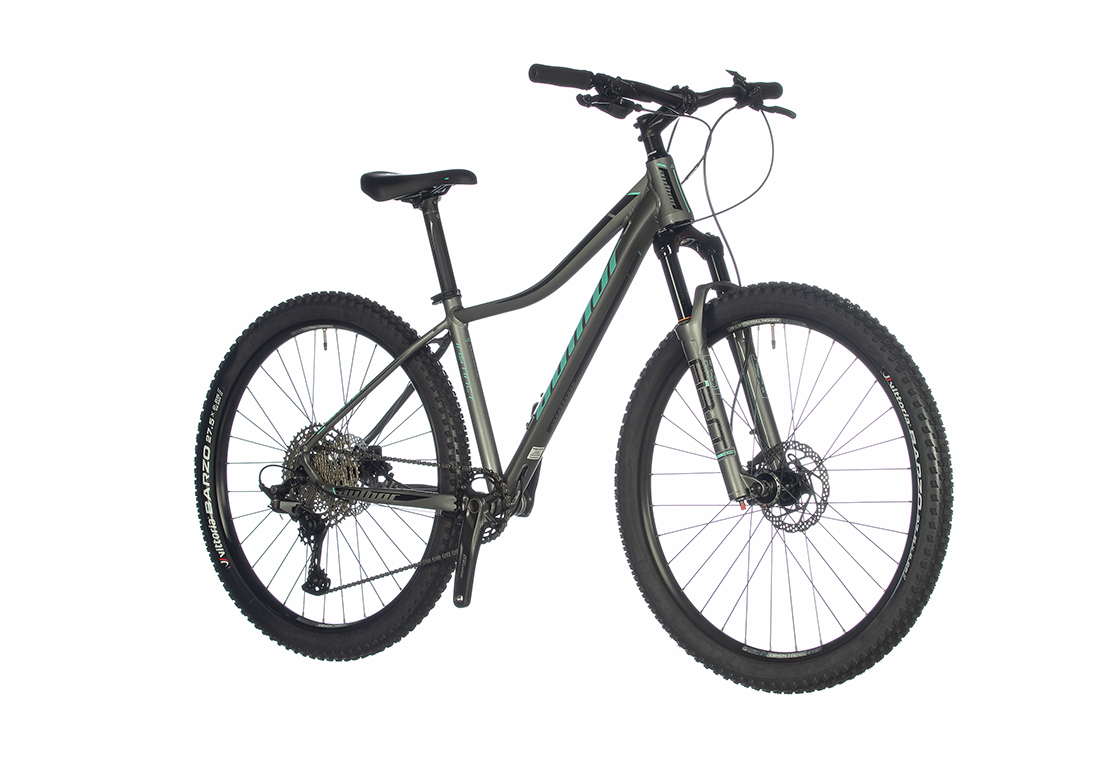

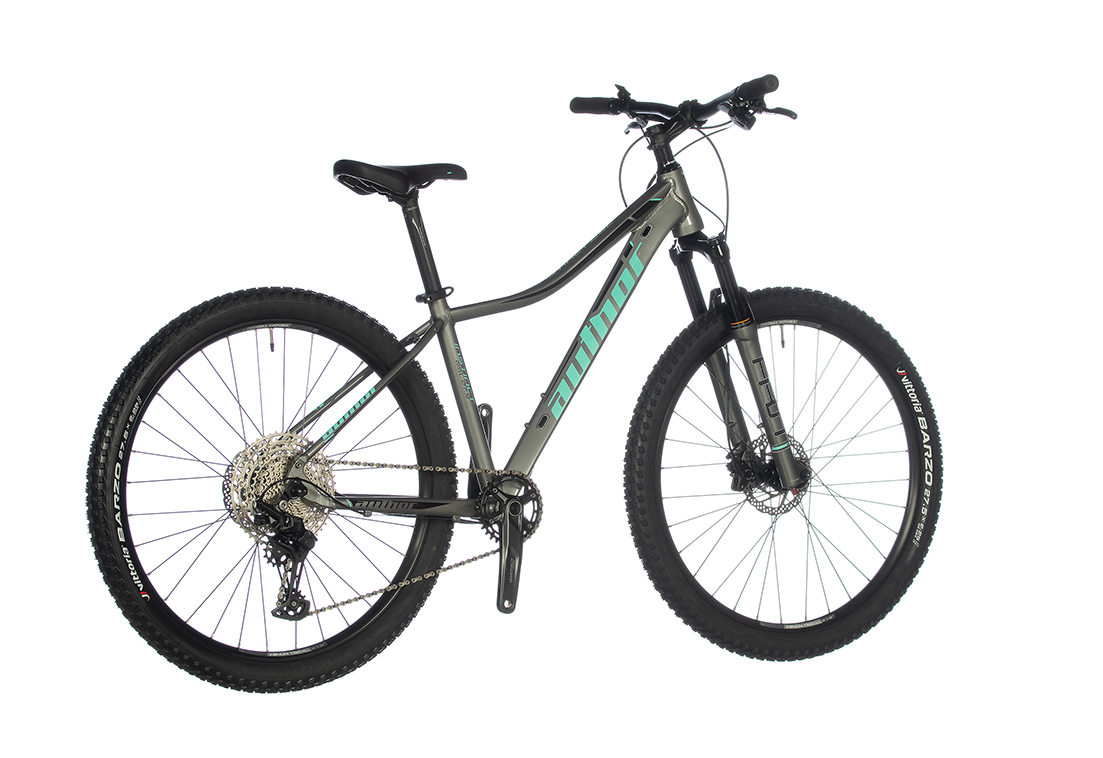

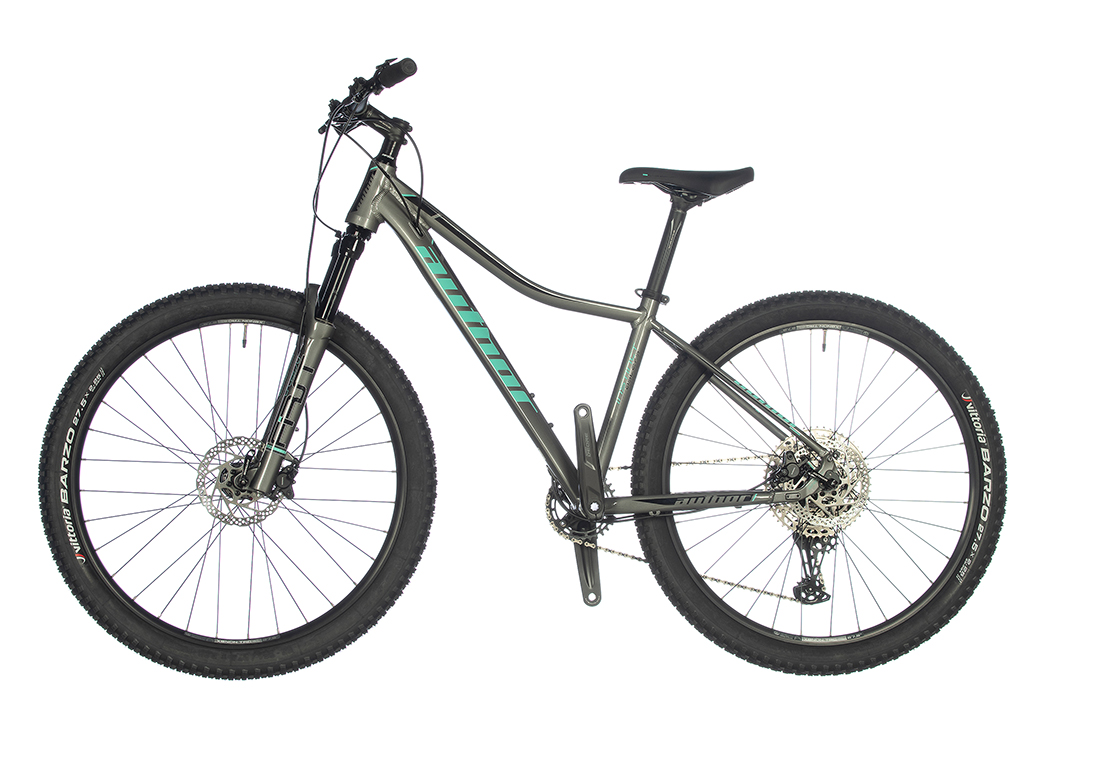

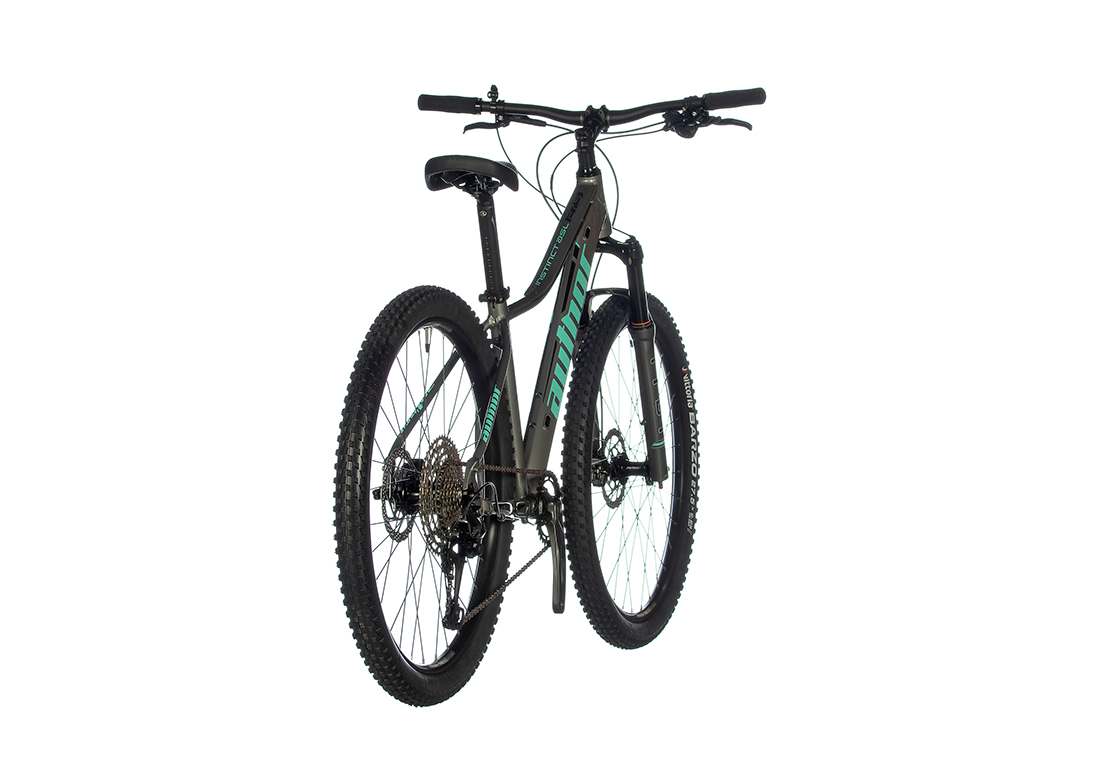

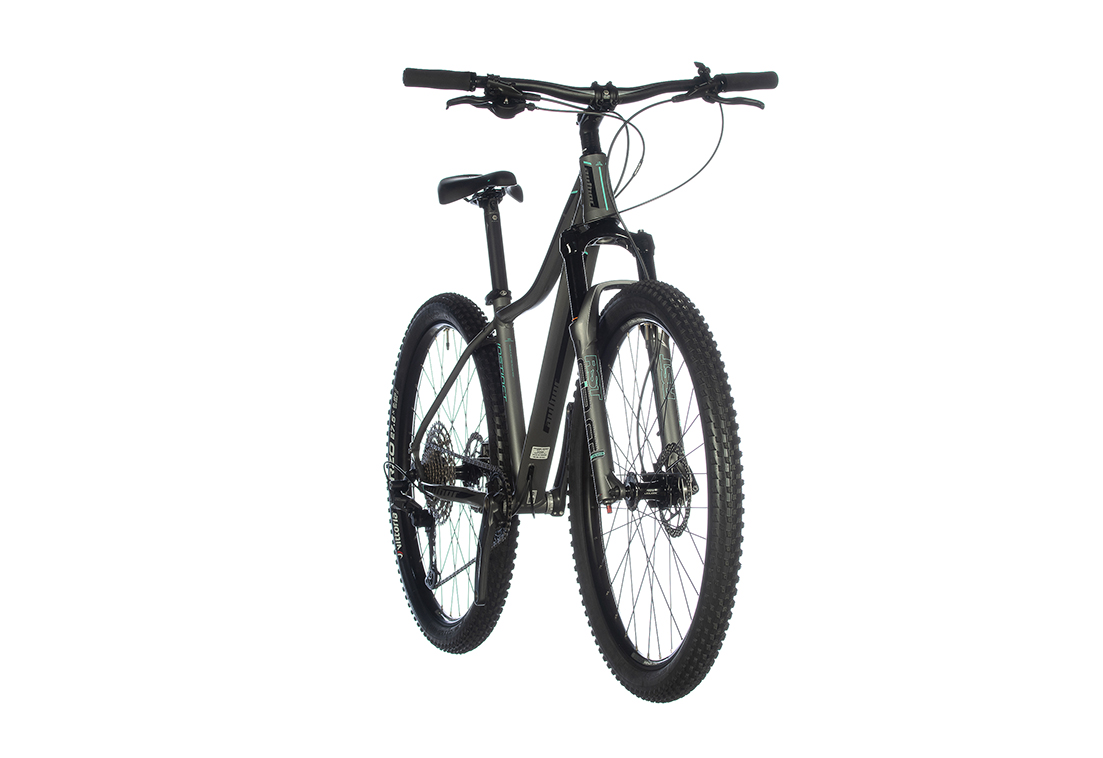

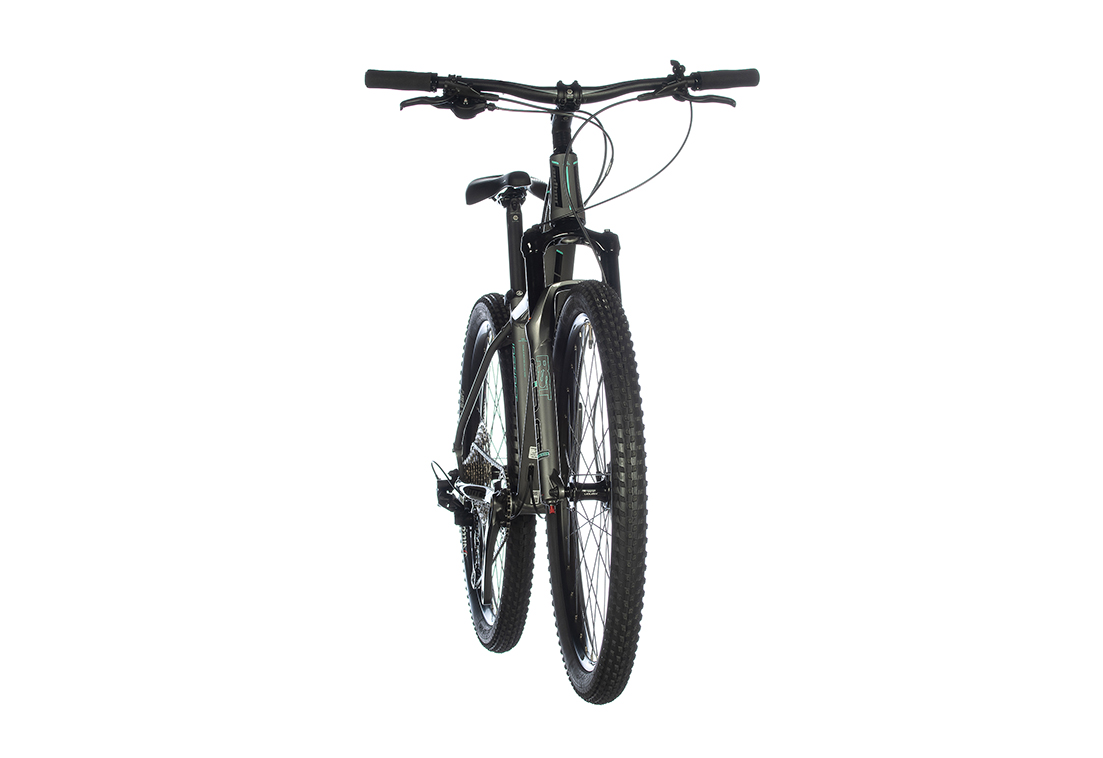

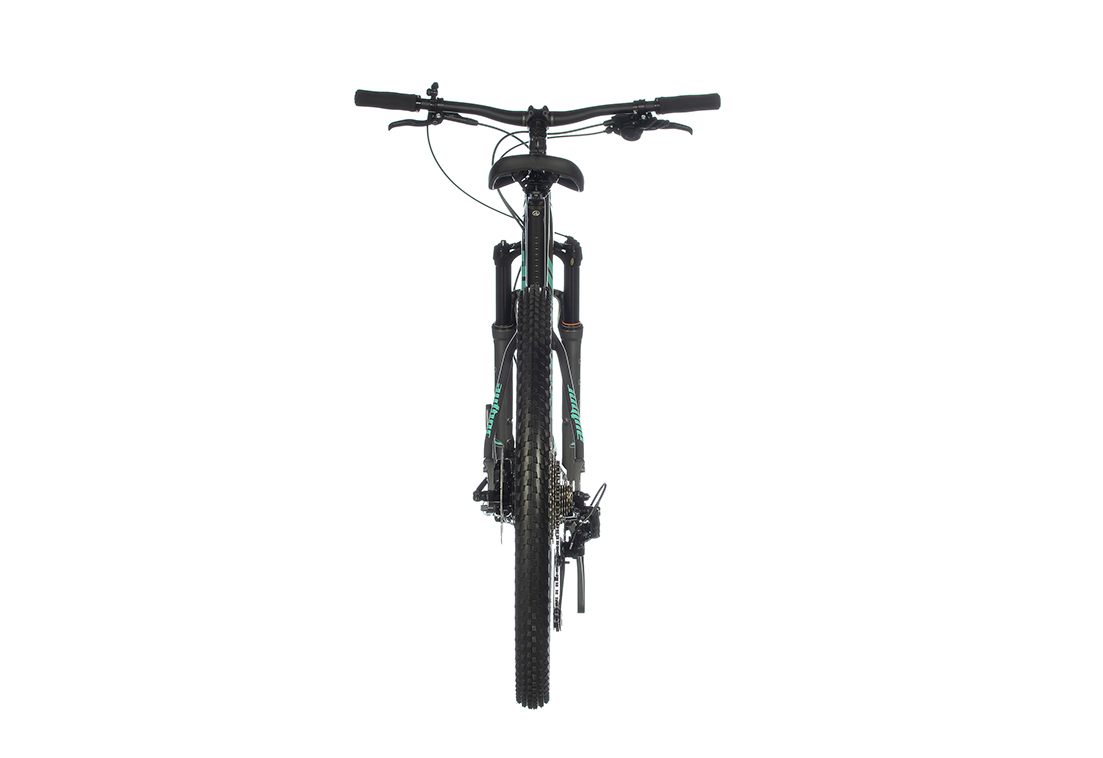

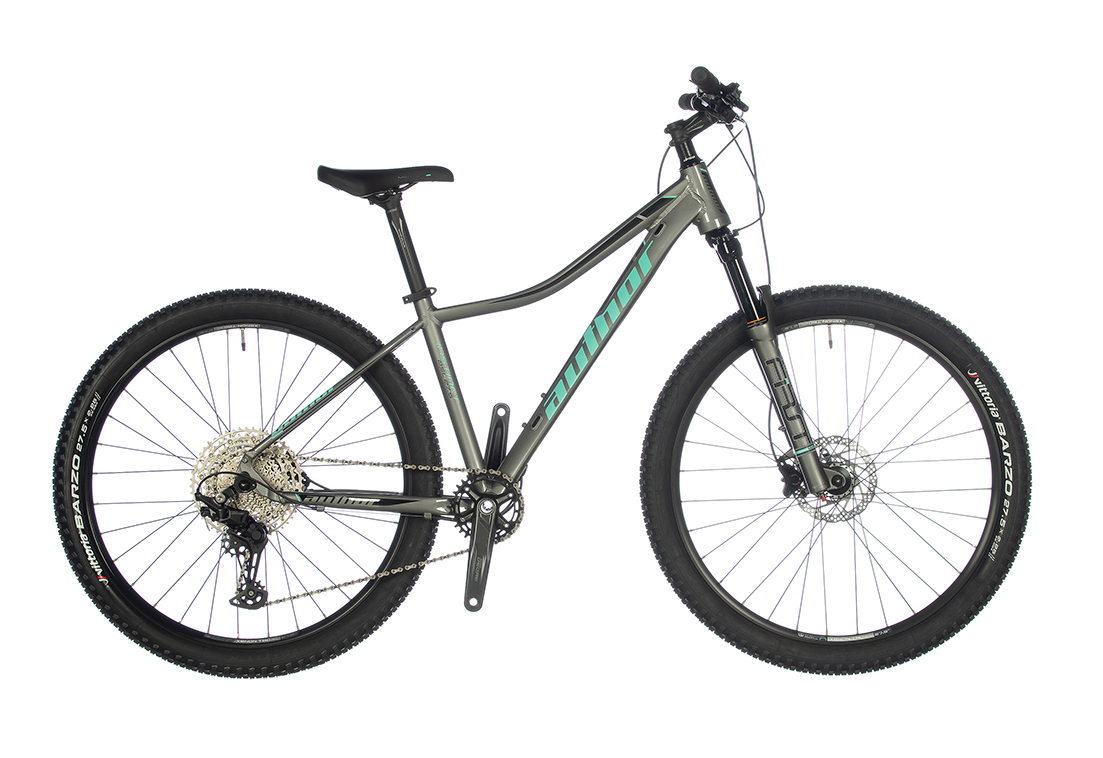

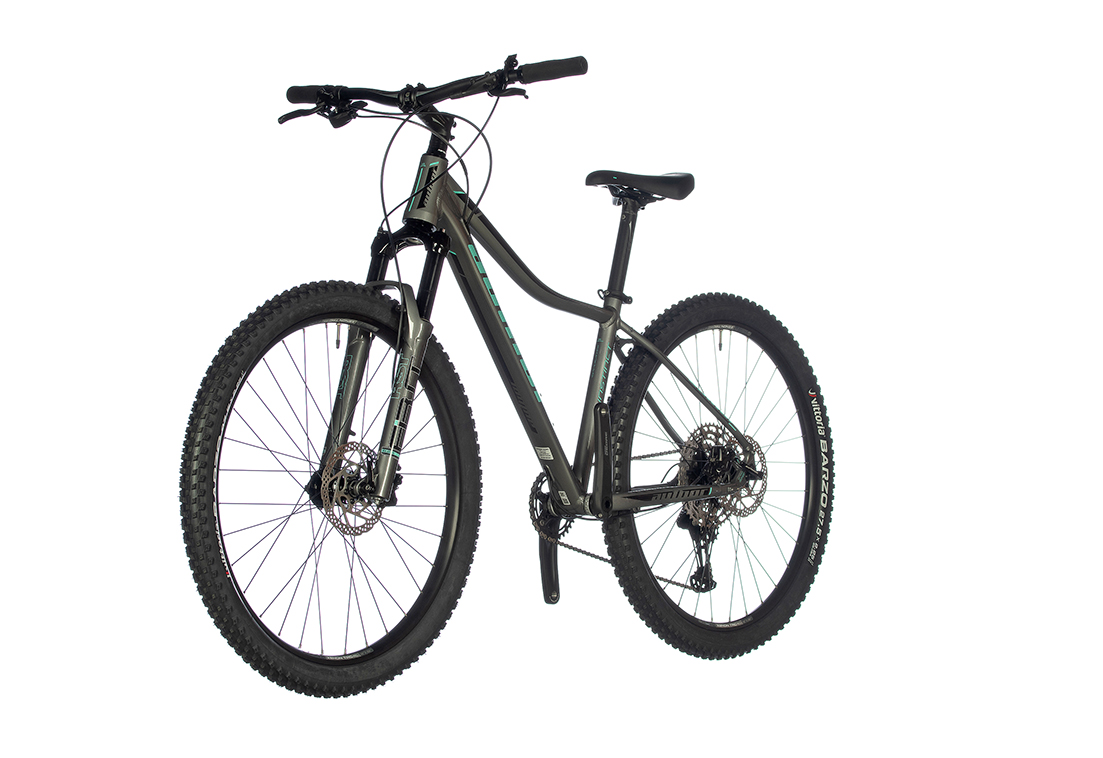

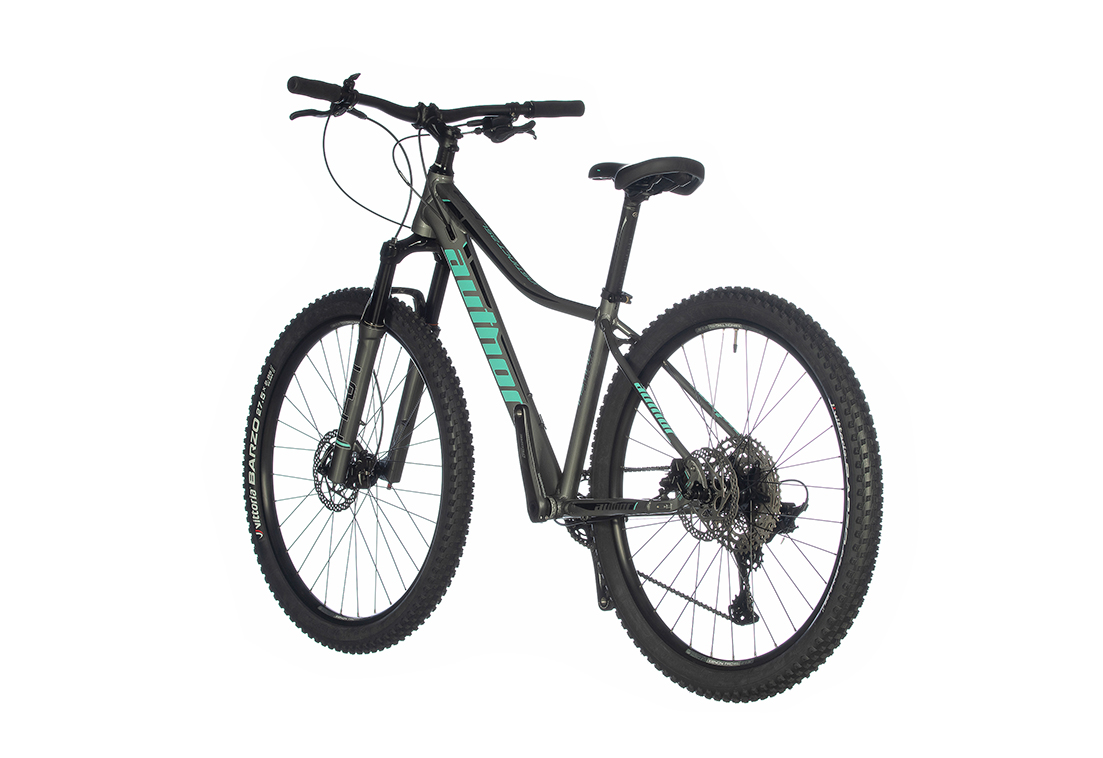

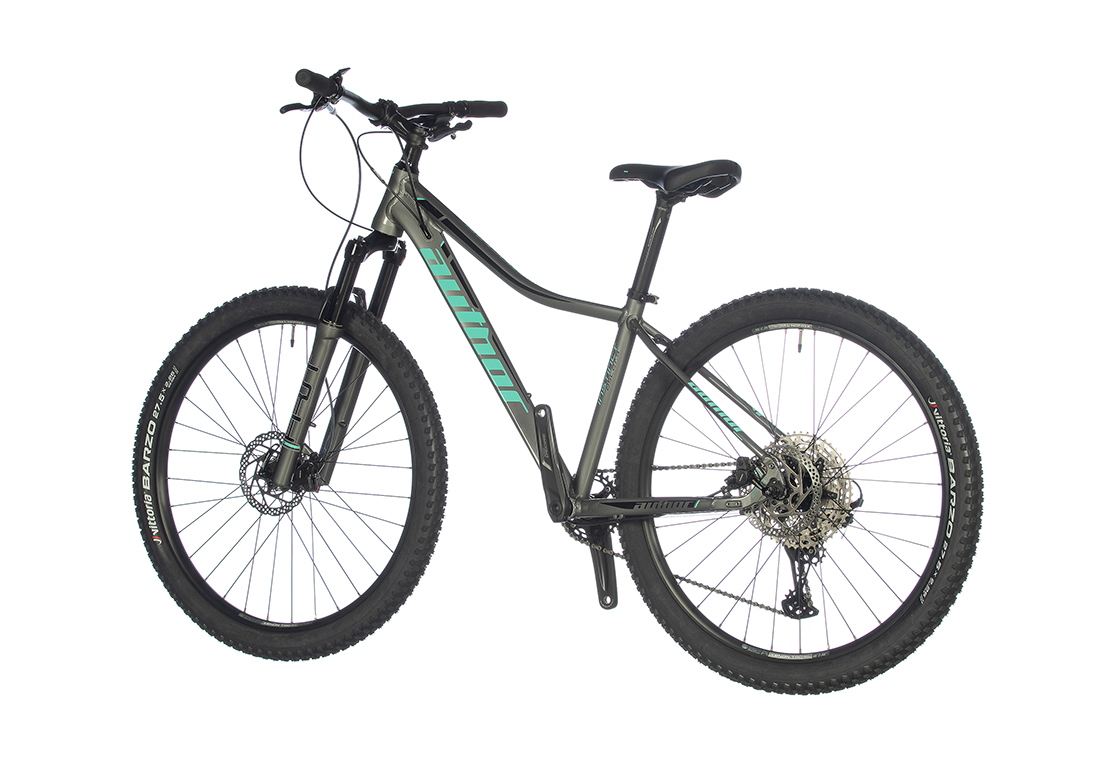

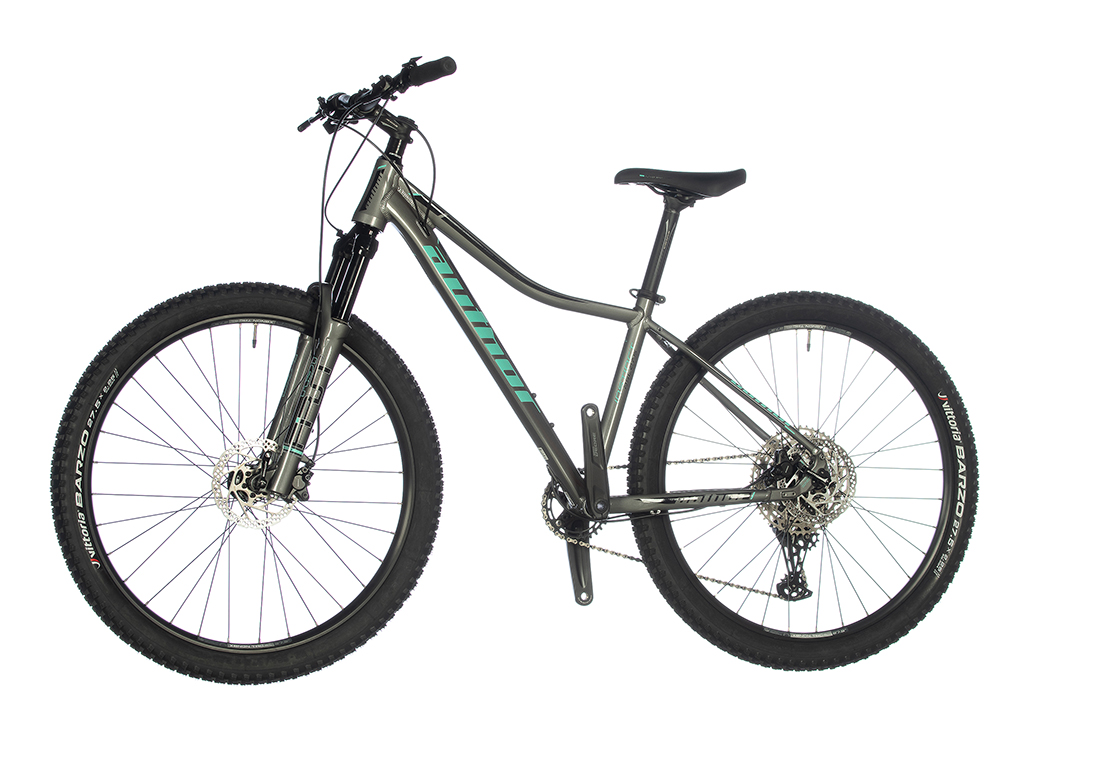

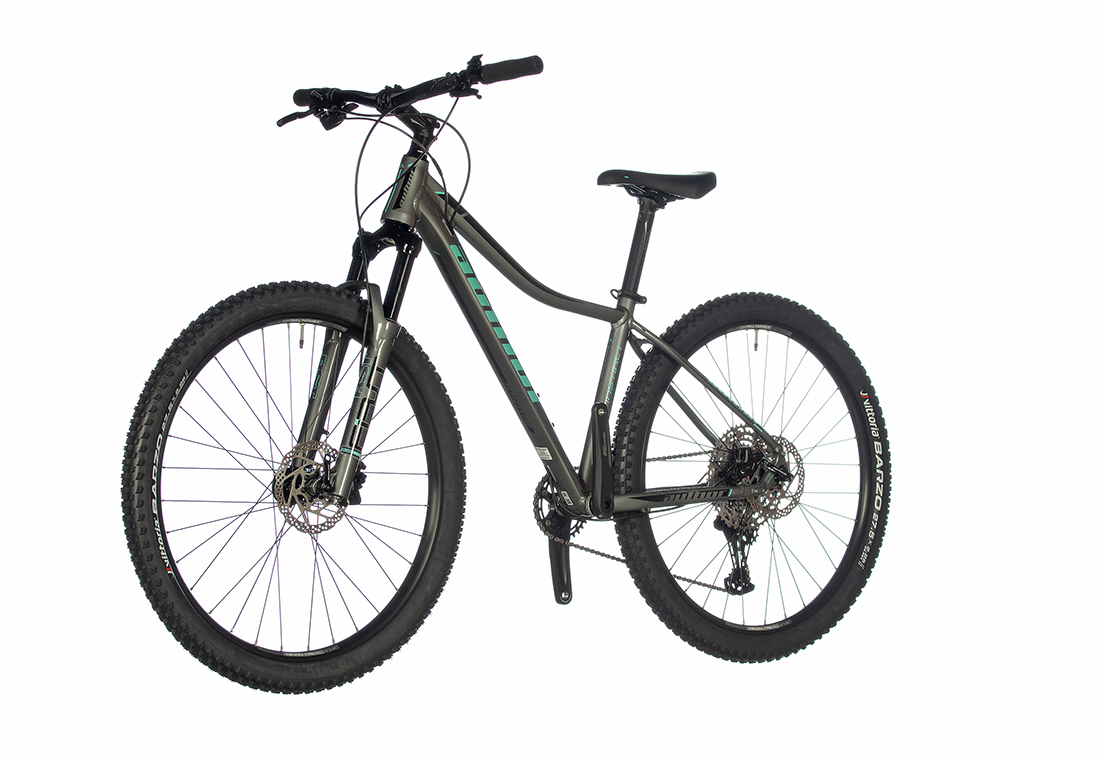

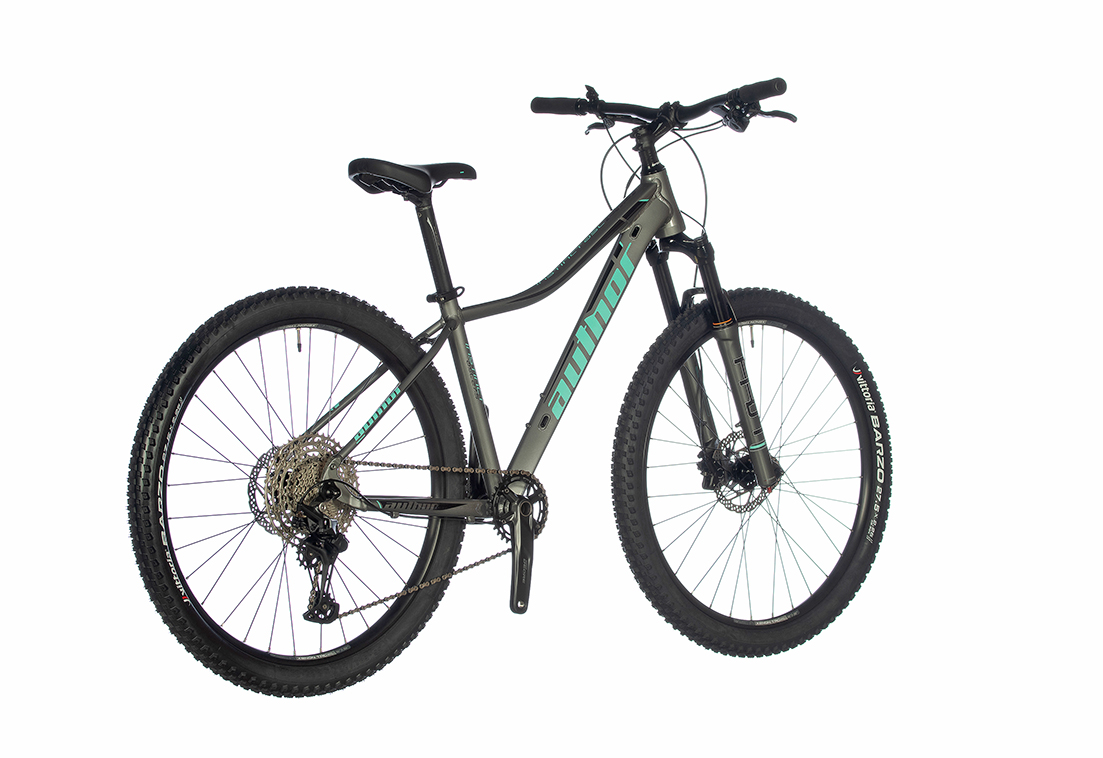

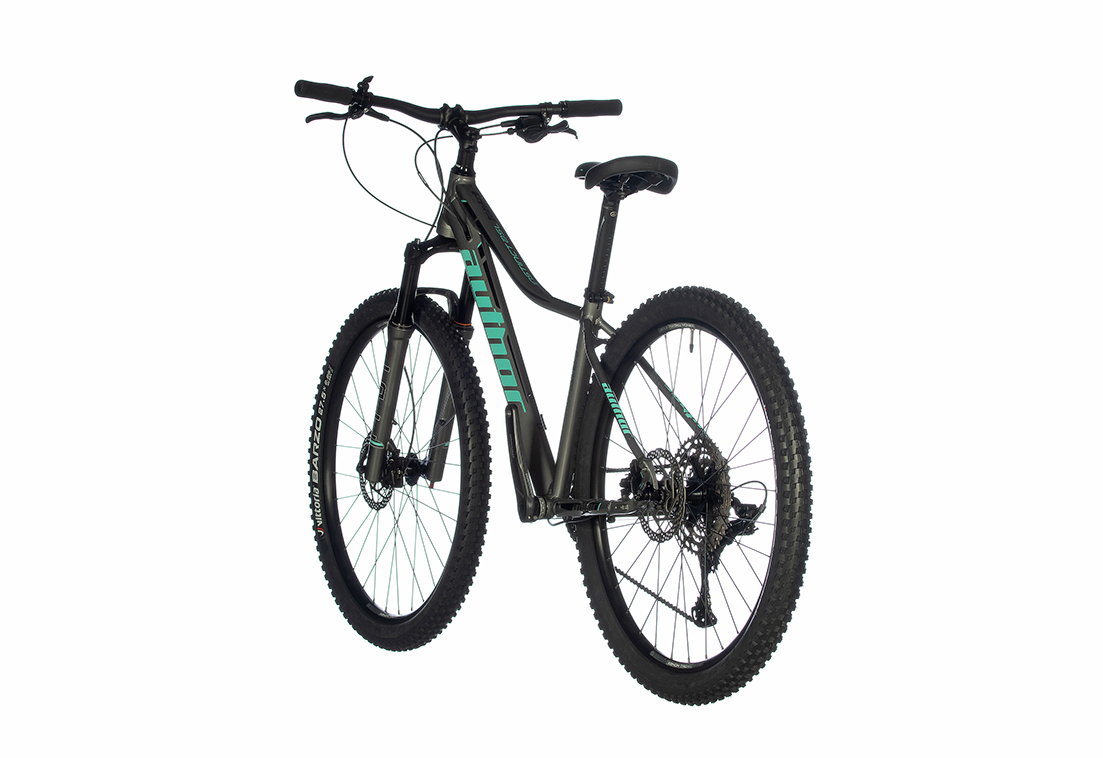

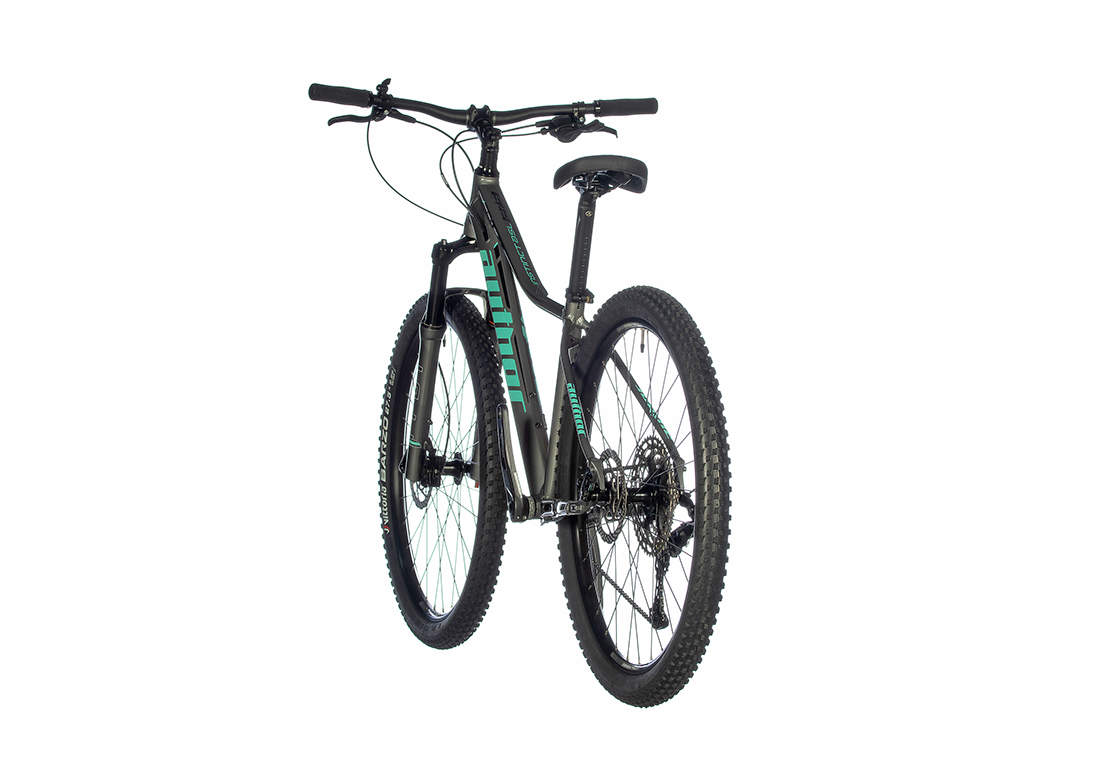

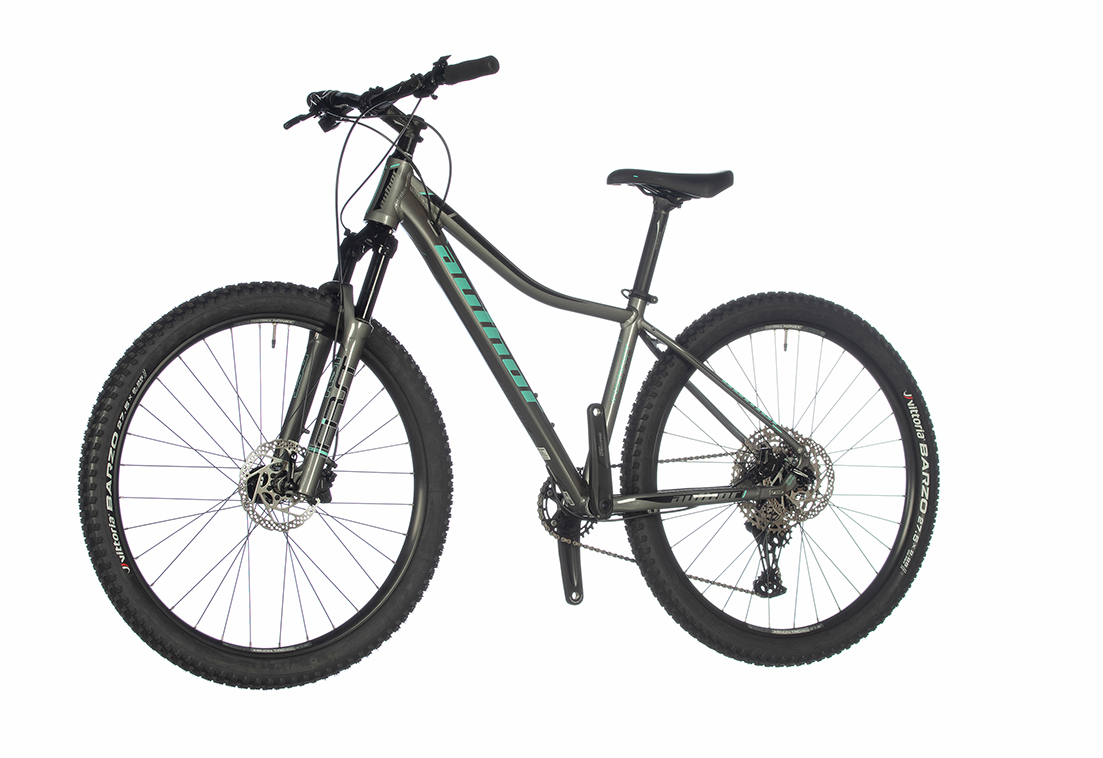

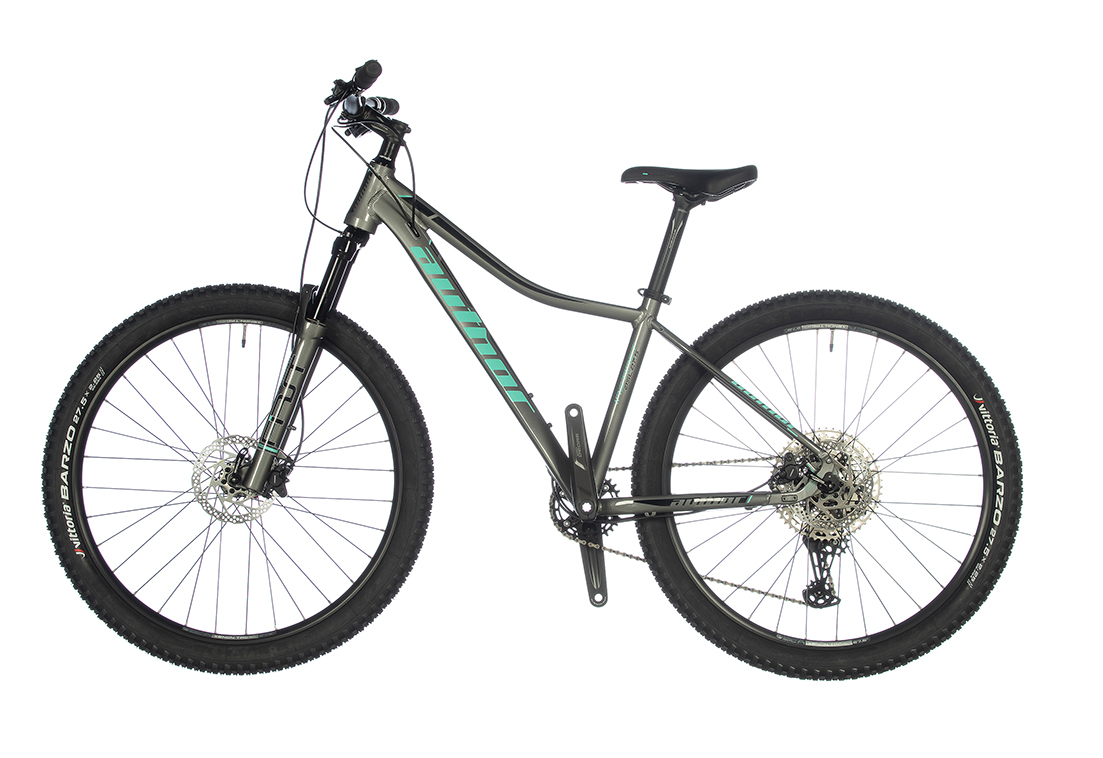

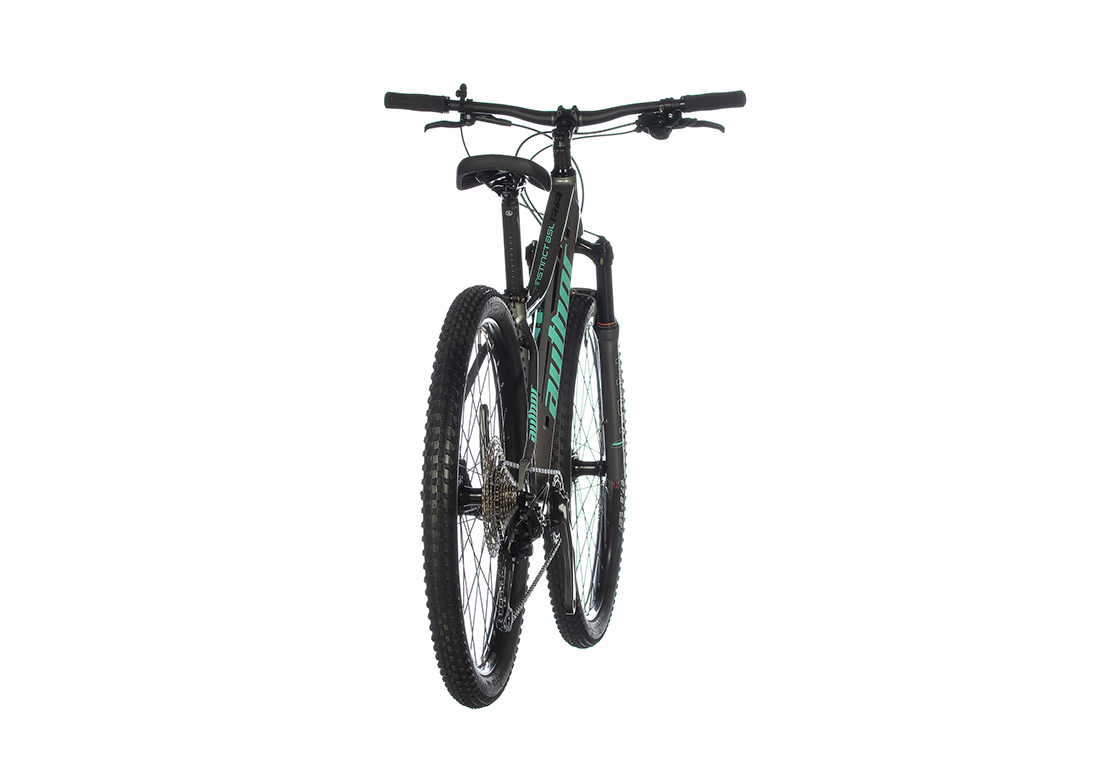

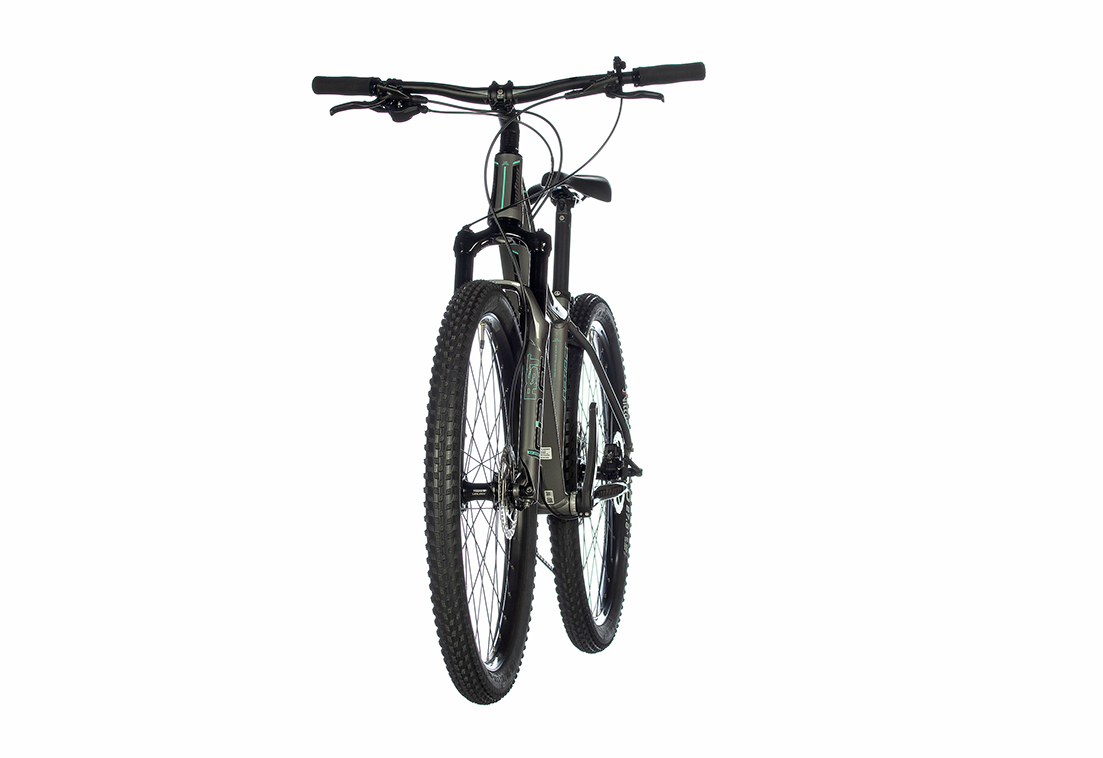

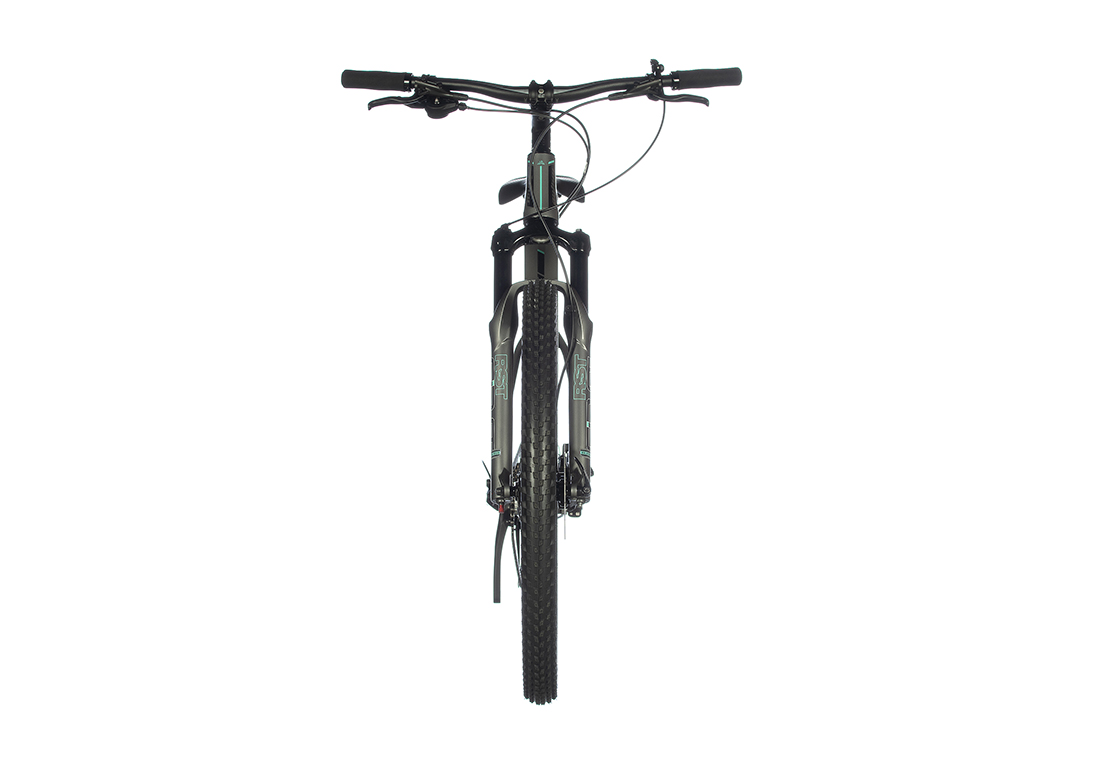

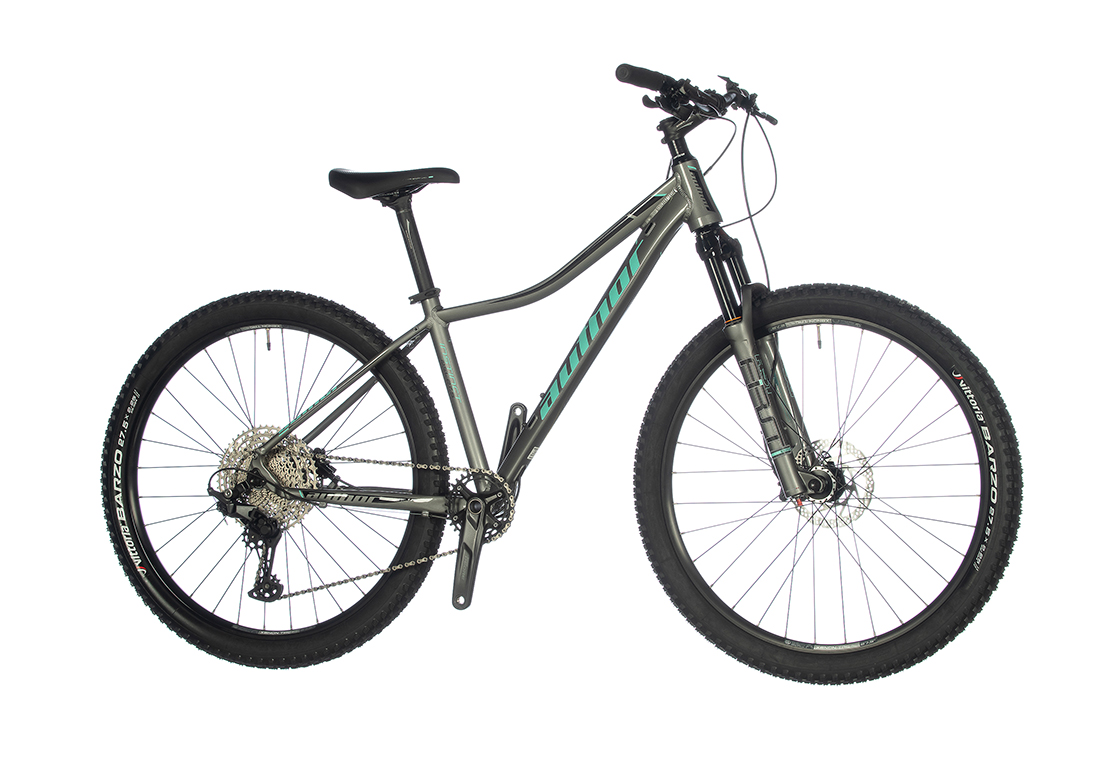

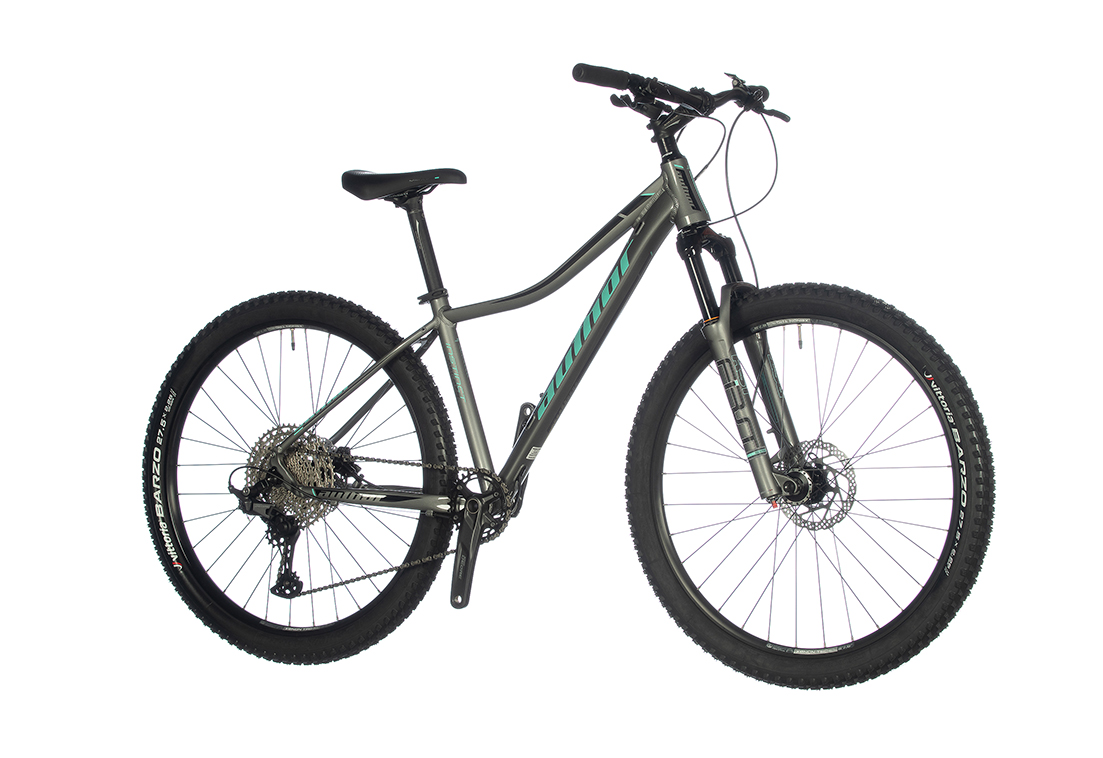

AUTHOR Instinct 27,5 ASL 2021-22
instinctasl aut5213 viewde
instinctasl aut5214 viewde
instinctasl aut5215 viewde
instinctasl aut5208 viewde
instinctasl aut5209 viewde
instinctasl aut5210 viewde
instinctasl aut5211 viewde
instinctasl aut5212 viewde
AUTHOR Instinct 27,5 ASL 2021-22instinctasl aut5213 viewdeinstinctasl aut5214 viewdeinstinctasl aut5215 viewdeinstinctasl aut5208 viewdeinstinctasl aut5209 viewdeinstinctasl aut5210 viewdeinstinctasl aut5211 viewdeinstinctasl aut5212 viewde
  » Bicycles » ladies » mtb 27.5 ladies
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Instinct 27,5 ASL 2021-22Archivní model 2021-22

Colour variants
Alloy hydroformed double butted 27.5" ASL frameRST F1RST 27.5 AIR TRL fork, remote controlSHIMANO ALIVIO hydraulic disc brakes
other models
Interested in other model`s year?

Technical specification

Size16", 18"
Framedouble butted hydroformed alloy 6061 27.5" (ASL)
Front forkRST F1RST 27.5 15 TRL air, remote lock out (100 mm)
Head partsFSA Integrated 1.5" tapered
Chain WheelSHIMANO M5100-1 32 teeth 170 / 175 mm cranks
BBPartsSHIMANO BB-52 BB unit
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (11)
Free wheelSHIMANO CS-M5100-11 11-51 (11)
ChainKMC X11
HubsAUTHOR Xenon 32 holes
BrakesSHIMANO BR-MT400 disc hydraulic (6" rotors)
Brakes leversSHIMANO BL MT400
RimsAUTHOR Xenon TRC 27.5 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo foldable 27.5" × 2.25"
HandlebarAUTHOR 9° 660 / 680 mm
GripsAUTHOR GripLock foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Fenix
Speed11
Weight11,9 kg / 16"

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 168
Max. figure [cm] 158 170 185
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 541 545 563
H/T [mm] 110 120 130
C/S [mm] 435 435 435
W/B [mm] 1043 1064 1090
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 362 375 397
Stack [mm] 599 606 615
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Instinct 27,5 ASL 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

silver / green16" = UA#42935801   18" = UA#42935802
