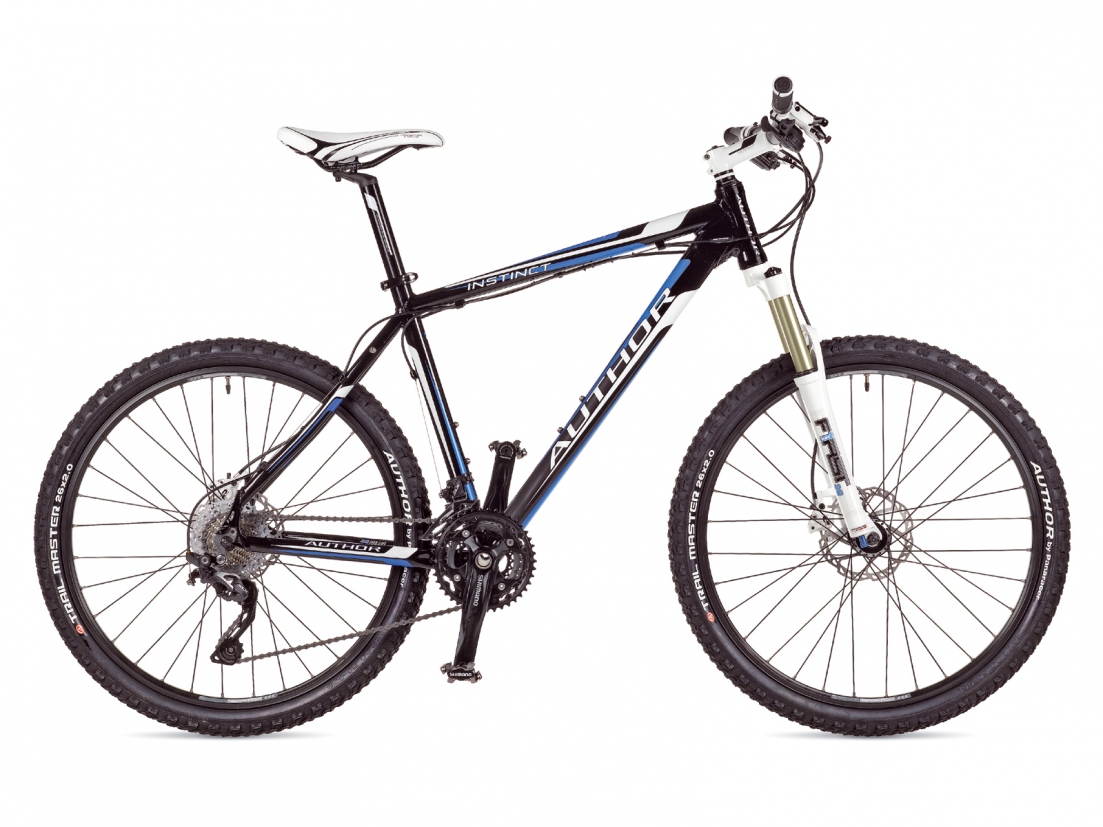

AUTHOR Bicycle Instinct 2013
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"
Frametriple butted alloy 6061 26"
Front forkRST F1RST 30 Air air, lock out (100 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSHIMANO M552-10 42-32-24 teeth 170 / 175 mm cranks
BBPartsSHIMANO M552-10 BB unit
Front derailleurSHIMANO SLX (34.9)
Rear derailleurSHIMANO SLX
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG-81-10 11-36 (10)
ChainSHIMANO HG-74
HubsAUTHOR Xenon Disc 32 holes
BrakesTEKTRO Auriga Pro WH disc hydraulic (6" rotors)
Brakes leversTEKTRO Auriga Pro WH
RimsAUTHOR Neon Pro 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR Trail Master 26" x 2.00"
PedalsSHIMANO M520 clipless
HandlebarAUTHOR 15 mm 620 / 640 mm
GripsAUTHOR GripLock
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Navigator
Speed30
Weight12,1 Kg / 19"

Geometry and sizes

Size 15" 17" 19" 21" 23"
Min. figure [cm] 150 160 170 182 192
Max. figure [cm] 162 172 183 195 205
S/T c-t [mm] 381 432 483 533 584
S/T c-c [mm] 0 0 0 0 0
T/T h [mm] 567 580 591 603 617
T/T a [mm] 552 558 566 580 601
H/T [mm] 120 125 130 135 140
C/S [mm] 420 420 420 420 420
W/B [mm] 1035 1049 1060 1072 1086
S/T ang. [°] 73 73 73 73 73
H/T ang. [°] 71 71 71 71 71
F/L [mm] 480 480 480 480 480
B/B drop [mm] 38 38 38 38 38
B/B width [mm] 0 0 0 0 0
Reach [mm] 0 0 0 0 0
Stack [mm] 0 0 0 0 0
F/R [mm] 38 38 38 38 38
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Instinct 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
