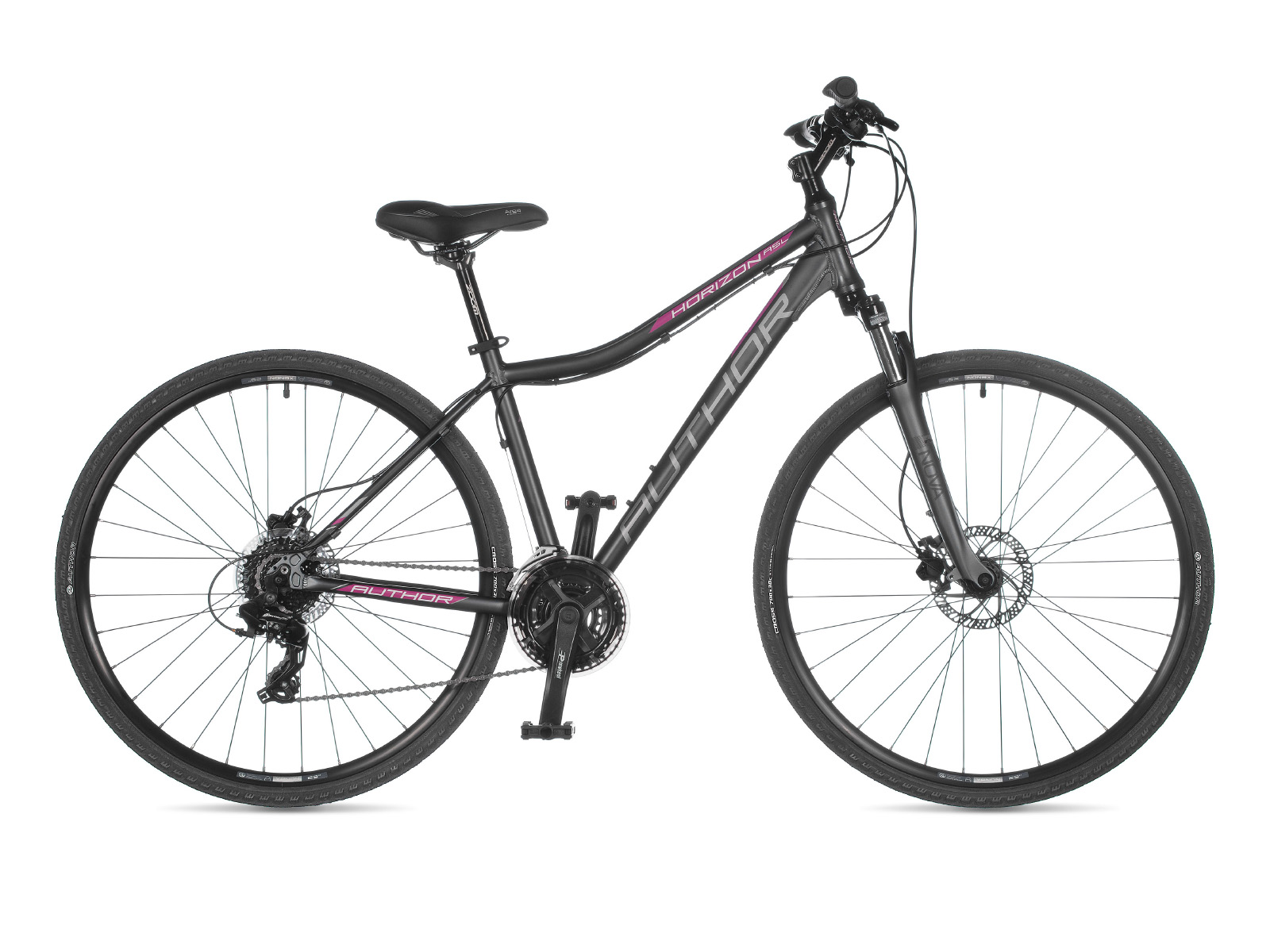

Horizon ASL 2023-24

~~Colour variants~~

Alloy lady frameSuspension fork RST Nova MLComponents SHIMANO Tourney / AceraComfort grip AUTHOR ErgoGripTires AUTHOR Cross 700 × 38cTEKTRO disc hydraulic brakeComfort saddle AUTHOR Area

~~Buy now~~special price 12 990 Kč

original price ~~15 990 Kč~~

Technical specification

Size	15", 17", 19"

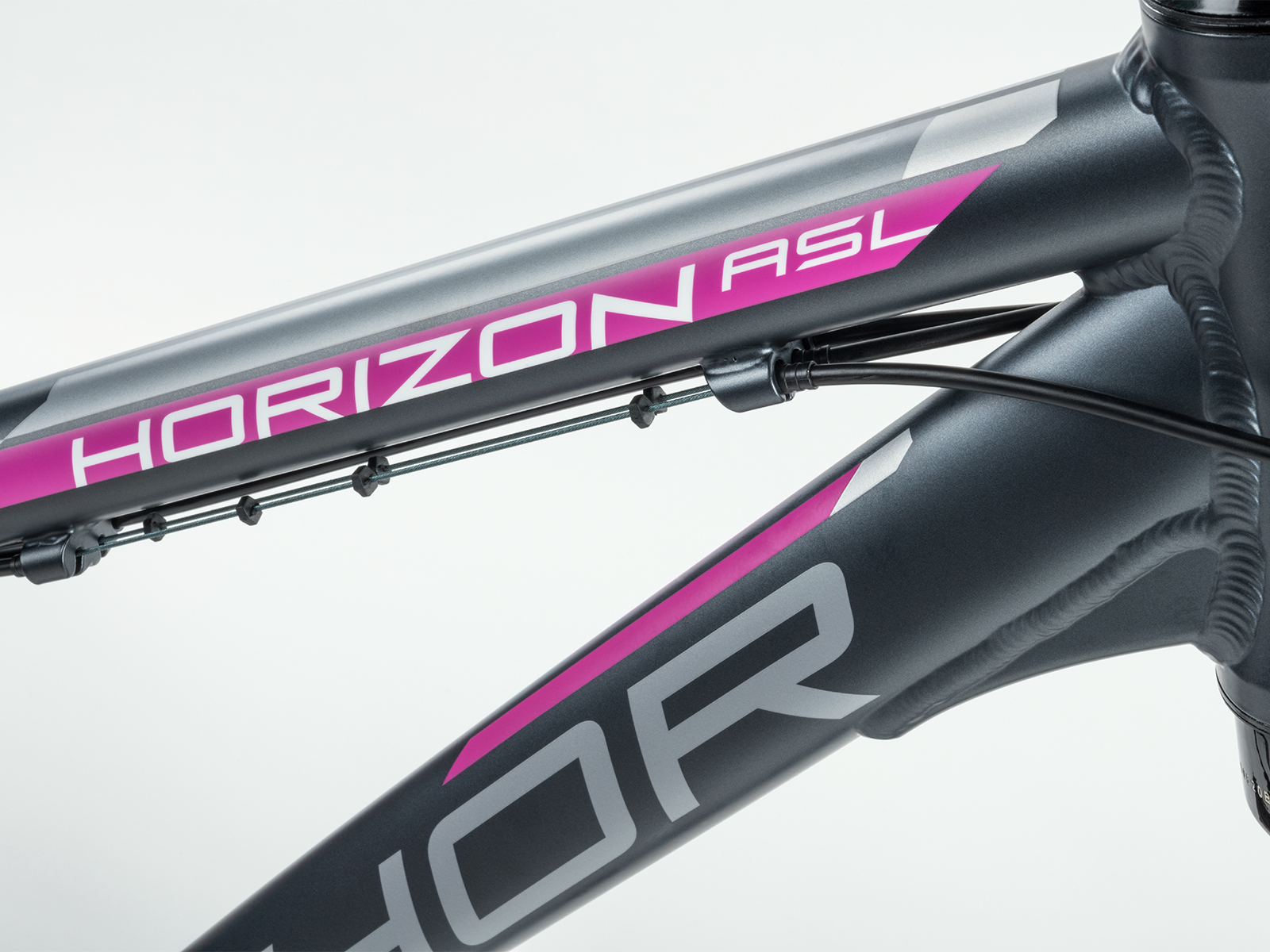

Frame	alloy 6061 (ASL)
Front fork	RST Nova ML lock out (60 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL, 42-34-24 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO TY700 (31.8)
Rear derailleur	SHIMANO TX800
Shifters	SHIMANO Acera (24)
Free wheel	SHIMANO HG200-8, 12-32 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes

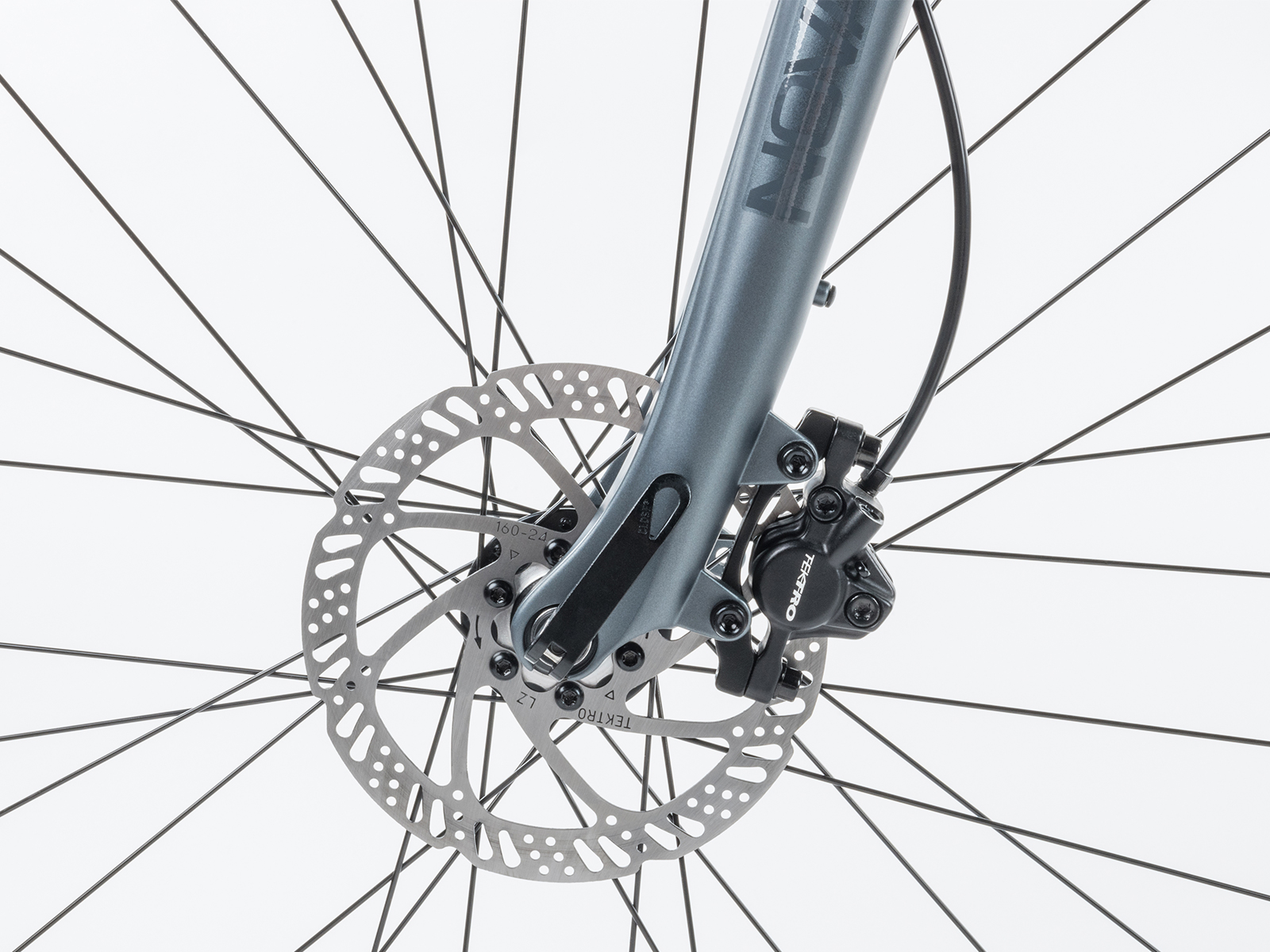

Brakes	TEKTRO HD-T275, disc hydraulic (6" rotors)
Brakes levers	SHIMANO

Rims	AUTHOR Xenon 29, 32 holes
Spokes	black steel

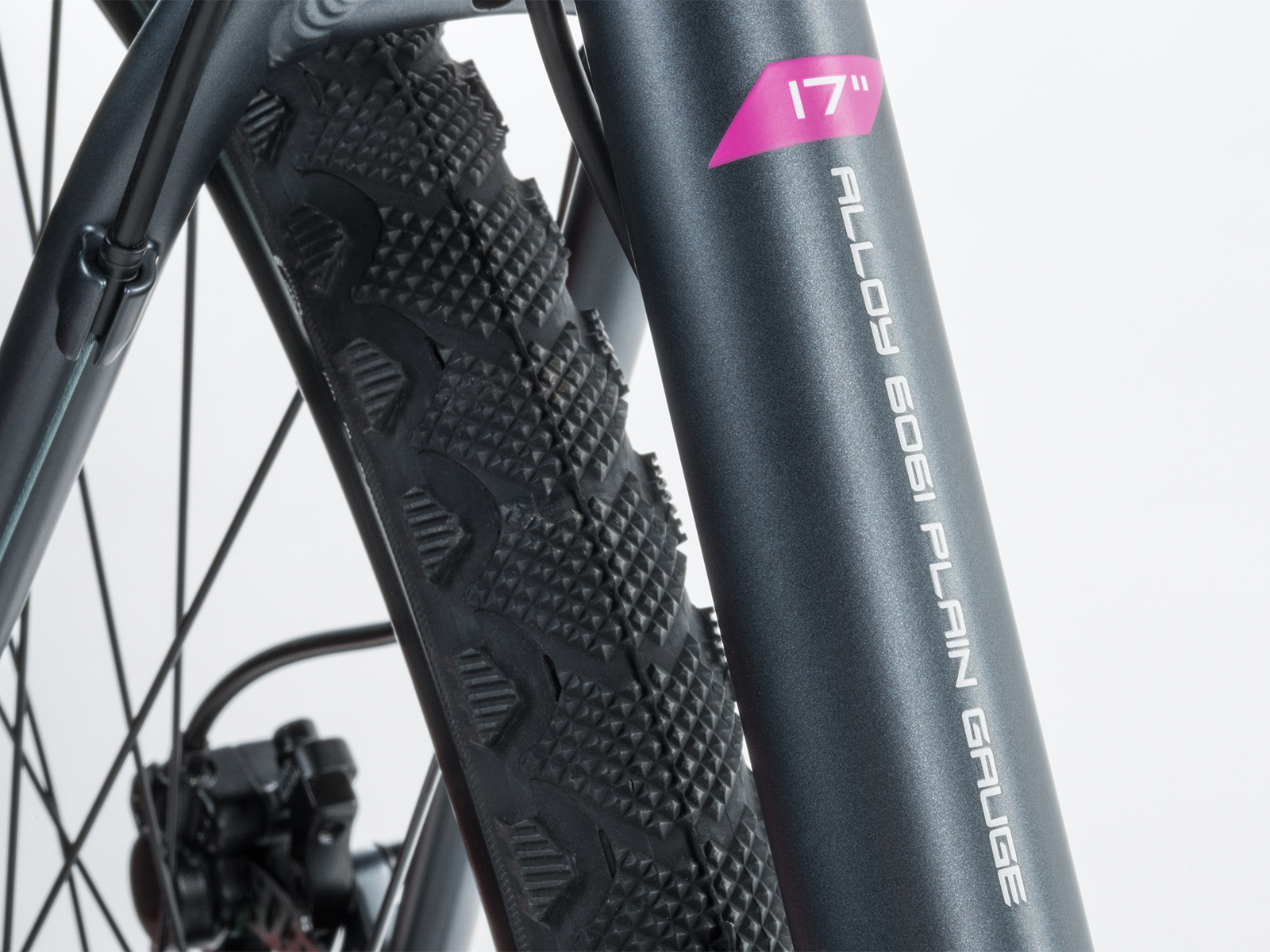

Tires	AUTHOR Cross 700 × 38c
Pedals	AUTHOR Non Slip plastic
Handlebar	steel, 20 mm, 660 / 680 mm
Grips	AUTHOR ErgoGrip
Stem	ZOOM alloy
Seat post	ZOOM alloy (27.2)
Seat clamp	AUTHOR (31.8)

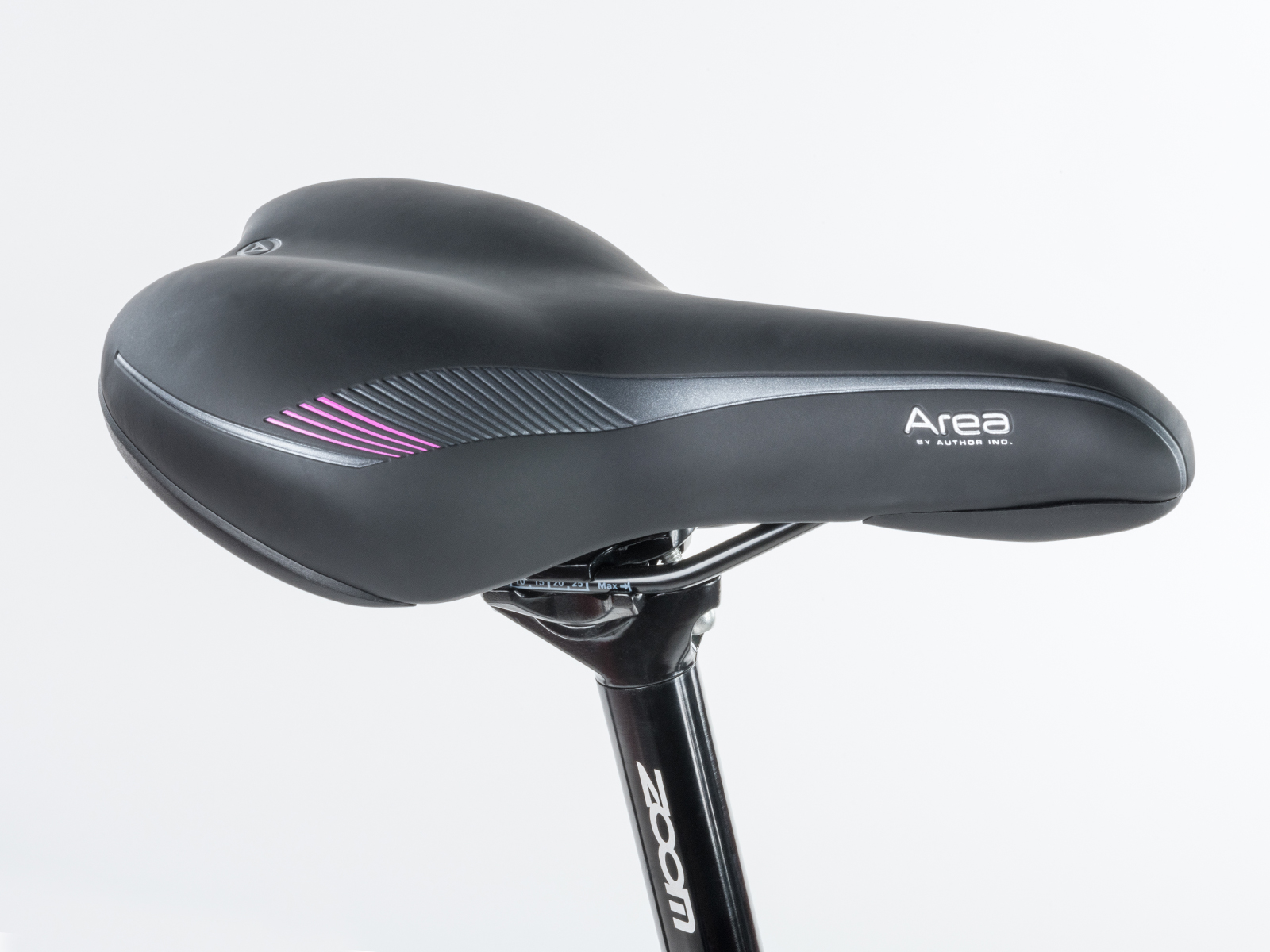

Saddle	AUTHOR Area
Speed	24
Weight	14,1 kg / 17"

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	550	570	590
T/T a ~~[mm]~~	545	554	568
H/T ~~[mm]~~	130	140	150
C/S ~~[mm]~~	440	440	440
W/B ~~[mm]~~	1054	1075	1095
S/T ang. ~~[°]~~	73.5	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5	70.5
F/L ~~[mm]~~	470	470	470
B/B drop ~~[mm]~~	60	60	60
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	0	0	0
Stack ~~[mm]~~	0	0	0
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		15"	13 stores				4294810125
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ OtroKolo, s.r.o.		in stock	buy now	Otrokovice	775575822, info@otrokolo.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		17"	21 stores				4294810225
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Bike Sport		order	order now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ AXIT bike sport		in stock	buy now	Náchod	491 426 020, axit@axit.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	20 stores				4294810325
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ AXIT bike sport		in stock	buy now	Náchod	491 426 020, axit@axit.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Sedláček s.r.o.		order	order now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		17"	20 stores				4294811225
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ bikee.cz		in stock	buy now	Kutná Hora	327 513 119, cyklo@autocombi.cz	map
	▪ AXIT bike sport		in stock	buy now	Náchod	491 426 020, axit@axit.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ OtroKolo, s.r.o.		in stock	buy now	Otrokovice	775575822, info@otrokolo.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	18 stores				4294811325
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ Bike Sport		order	order now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		order	order now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ Štěrba BIKE		in stock	buy now	Praha 4	241 741 961, info@sterbabike.cz	map
	▪ Velo Fiala		order	order now	Praha 6	725 729 111, tomas@velofiala.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Viavelo		order	order now	Praha 8 - Kobylisy	777 700 150, sipal.ivan@seznam.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

1/4

299 KčR244The Author saddle bag A-R244 is the universal bag with the one main compartment and one flat pocket. ... more »

425 KčR281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/2

175 KčAKS-06S CKick Stand Author for direct frame fixation. Adjustable for size 14"- 29", Material AL6061-T6 / ... more »

450 KčAKS-09A CKick Stand Author for direct frame fixation. Adjustable for size 24"- 29", Material AL6061-T6. ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/3

695 KčACR-16-AluA tough rear rack AUTHOR ACR-16-Alu. Equipped with adjustable legs to fit most 24” to 29” wheel ... more »

750 KčACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

	grey-matt / pink	15" = UA#4294810125 17" = UA#4294810225 19" = UA#4294810325

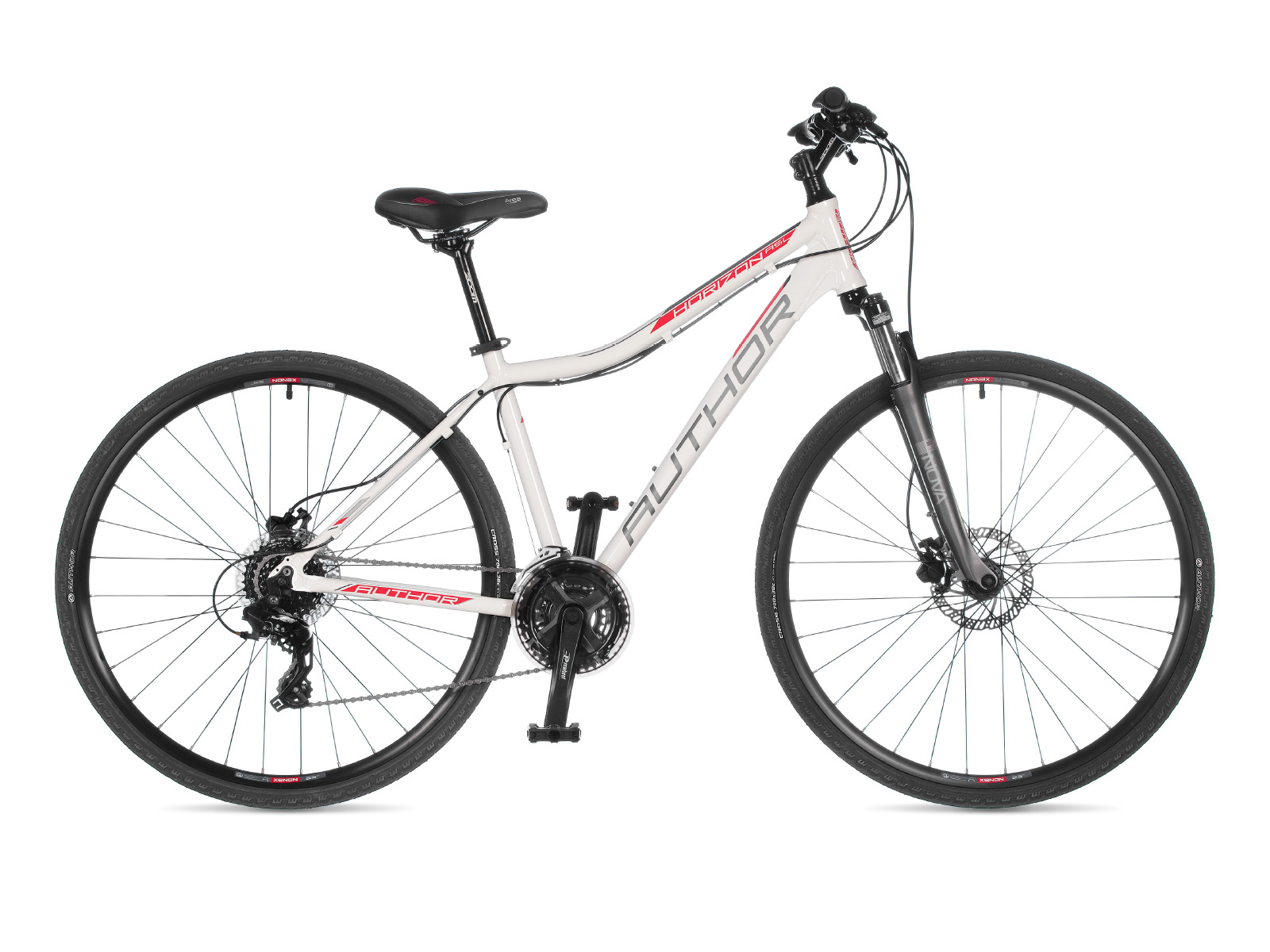

	white / silver / red	17" = UA#4294811225 19" = UA#4294811325
