  » Bicycles » junior » junior 20

Energy 20 2023-24

Colour variants
Wheel size 20"Recommended for height 115-135 cmWeight 10,3 kgSHIMANO Revoshift components, 6 speedV brake TEKTROQuality tire AUTHOR Speed Master 20" × 1.75"Height adjustable handlebar position
Buy nowspecial price 6 990 Kč
original price  7 990 Kč
 The 20-inch bike AUTHOR Energy will support the little rider on first longer trips. Firm steel frame, easy-to-operate brakes and Shimano Revoshift shifting. Wherever you go, your rider will enjoy the journey to the fullest.
other models
Interested in other model`s year?

Technical specification

Size10"
Framehi-ten 20"
Front forkhi-ten
Head partsVP COMP 1"
Chain WheelPROWHEEL, 36 teeth, 127 mm cranks
BBPartsVP COMP
Rear derailleurSHIMANO TY200
ShiftersSHIMANO Revoshift (6)
Free wheelSHIMANO MF-TZ510-6, 14-28 (6)
ChainKMC Z6
Hubssteel, 20 holes
BrakesTEKTRO V
Brakes leversTEKTRO alloy
Rimsalloy, 20 holes
Spokessteel
TiresAUTHOR Speed Master 20" × 1.75"
Pedalsplastic
Handlebarsteel, 20 mm, 540 mm
GripsAUTHOR kratton rubber
Stemalloy
Seat poststeel (25.4)
Seat clampAUTHOR (28.6)
SaddleAUTHOR Pilot
Speed6
Weight10,6 kg / 10"

Geometry and sizes

Size 10"
Min. figure [cm] 115
Max. figure [cm] 135
S/T c-t [mm] 254
S/T c-c [mm] 0
T/T h [mm] 435
T/T a [mm] 419
H/T [mm] 90
C/S [mm] 360
W/B [mm] 835
S/T ang. [°] 73
H/T ang. [°] 72
F/L [mm] 316
B/B drop [mm] 10
B/B width [mm] 68
Reach [mm] 0
Stack [mm] 0
F/R [mm] 35
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Energy 20 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
10"8 stores4294240125
 ▪   DOMINO STORE CZ,s.r.o.in stockbuy nowČeský Těšín602 546 780, dominosport@dominosport.czmap
 ▪   bikee.czin stockbuy nowKutná Hora327 513 119, cyklo@autocombi.czmap
 ▪   Kola Škýz s.r.o.in stockbuy nowLetohrad465622189map
 ▪   Dům sportu Stratílek, s.r.o.in stockbuy nowLitomyšl606 613 399, cyklo@stratilek.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Štěrba BIKEin stockbuy nowPraha 4241 741 961, info@sterbabike.czmap
 ▪   Sedláček s.r.o. in stockbuy nowPříbram 1318 621 473, info@cyklosport-sedlacek.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
⟲  In other storesin 2 daysdealers
10"7 stores4294241125
 ▪   DOMINO STORE CZ,s.r.o.in stockbuy nowČeský Těšín602 546 780, dominosport@dominosport.czmap
 ▪   Kola Škýz s.r.o.in stockbuy nowLetohrad465622189map
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   OtroKolo, s.r.o.in stockbuy nowOtrokovice775575822, info@otrokolo.czmap
 ▪   Štěrba BIKEin stockbuy nowPraha 4241 741 961, info@sterbabike.czmap
 ▪   Sedláček s.r.o. in stockbuy nowPříbram 1318 621 473, info@cyklosport-sedlacek.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

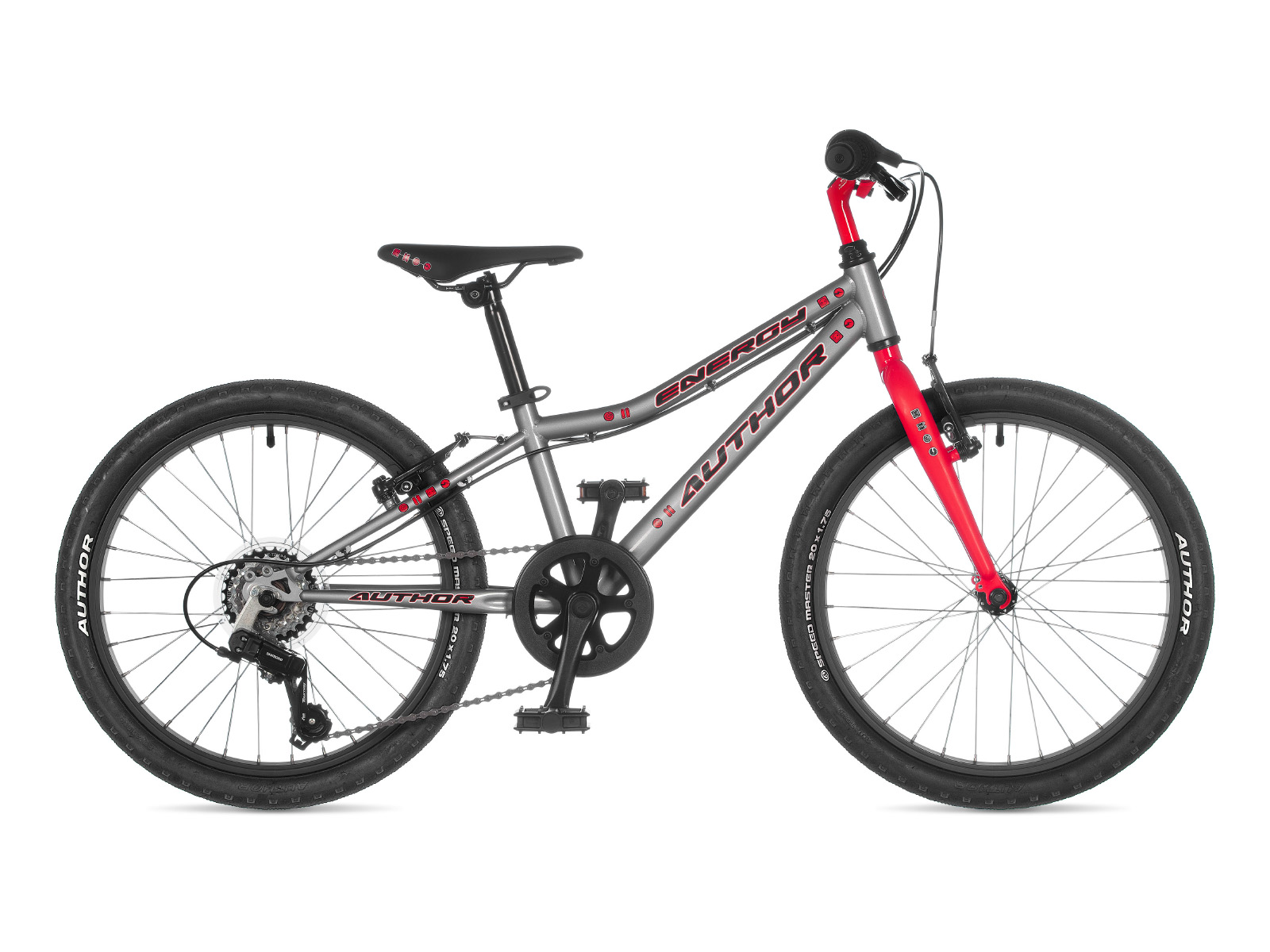

silver / red10" = UA#4294240125

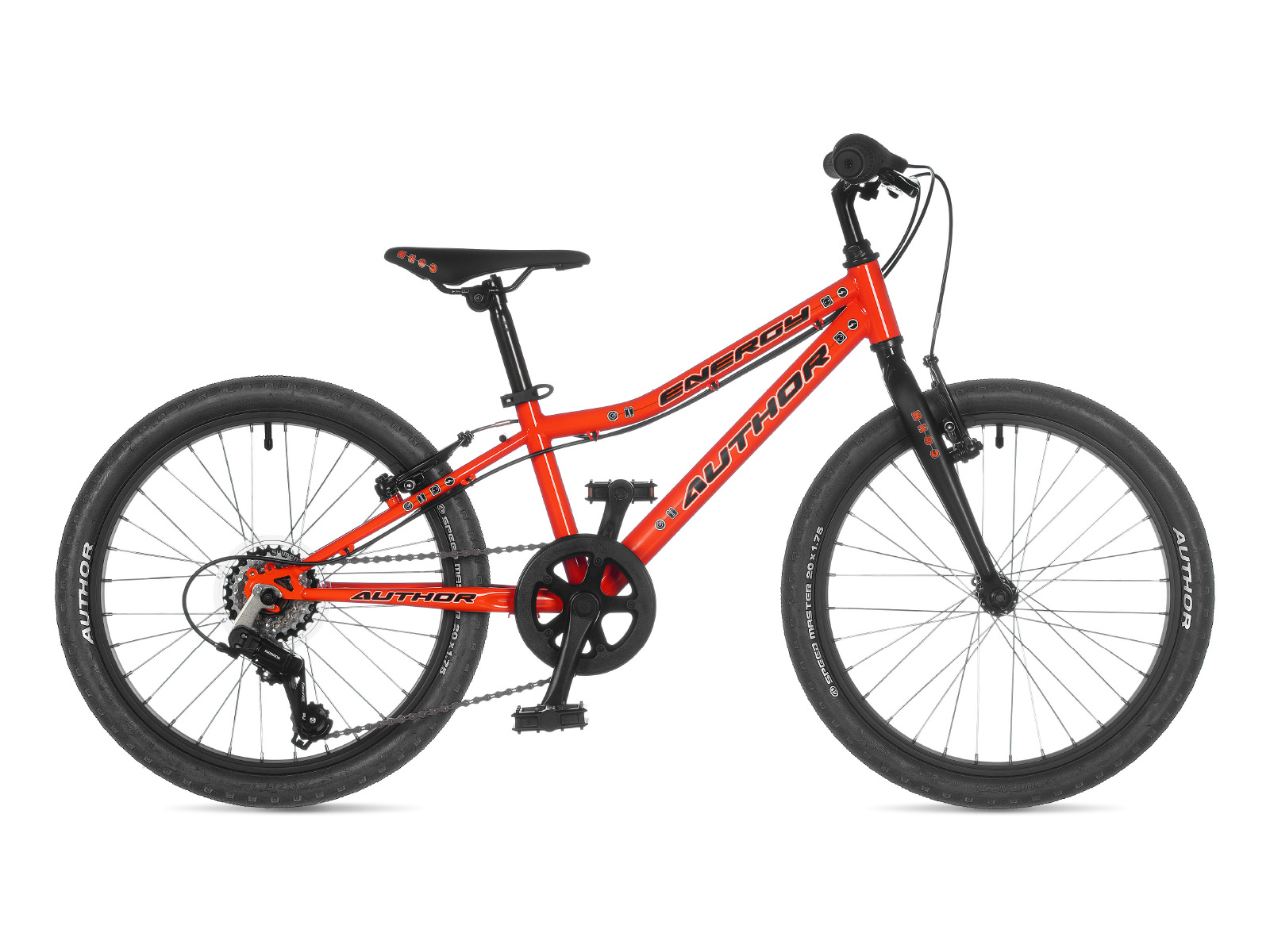

orange / black10" = UA#4294241125
