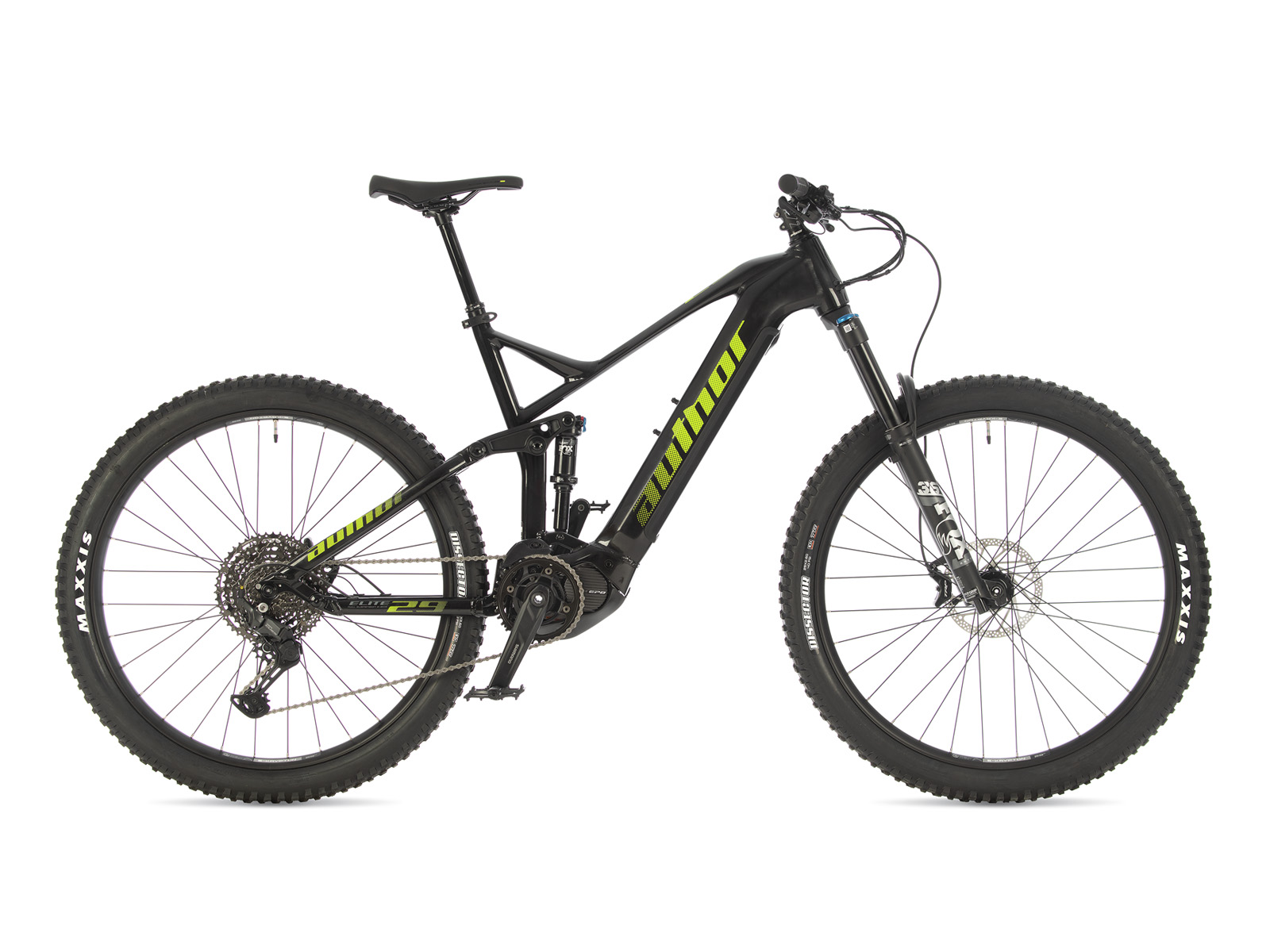

Elite 29 2025

~~Colour variants~~

New motor SHIMANO STEPS EP801 – 85 NmHigh capacity battery SHIMANO EN806 – 630 WhNew SHIMANO e-group CUES for e-bikesAir fork and shock FOX FLOAT e-tune/travel 150/150 mmE-LINKGLIDE cassette 11-50, 11 speedTires MAXXIS Dissector EXO, TR, 29 × 2.604 piston caliper TRP Slate EVO

# 18"# 20"# black # green

other models

Technical specification

Size	18", 20"
Frame	alloyl 6061 29" suspension (integrated battery), air shock FOX DPS Perfomance Float 205 / 57.5 mm (rear travel 150 mm)
Front fork	FOX 34 Rhythm Float, air, lock out, 15 mm thru axle, 1.5" tapered steerer (150 mm)
Engine	SHIMANO Steps E-P801, 250 W
Battery	SHIMANO E-806 Li-Ion, 36 V, 17,5 Ah, 630 Wh
Display	SHIMANO Steps E-P600, LCD
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SHIMANO Steps E-M600, 38 teeth, 170 / 175 mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO Cues 6000
Shifters	SHIMANO Cues 6000 (11)
Free wheel	SHIMANO CS-LG400-11, 11-50 (11)
Chain	KMC eGlide
Hubs	QUANDO, 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	TRP Slate EVO, 4-piston disc hydraulic (7" rotors)

Brakes levers	TRP Slate EVO
Rims	AUTHOR E-Krypton 29, 32 holes
Spokes	black stainless steel 2.2 mm
Tires	MAXXIS Dissector aramid 29" × 2.60"
Pedals	HT platform
Handlebar	RITCHEY MTN Rizer Trail WCS, 15 mm, 760 / 780 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY MTN Trail
Seat post	KIND SHOCK RAGEi, suspension, travel 125 mm / 150 mm (30.9)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR E-Mode
Speed	11
Weight	26,4 kg / 20"

Geometry and sizes

Size	18"	20"
Min. figure ~~[cm]~~	170	180
Max. figure ~~[cm]~~	180	190
S/T c-t ~~[mm]~~	457	508
S/T c-c ~~[mm]~~	0	0
T/T h ~~[mm]~~	605	635
T/T a ~~[mm]~~	569	596
H/T ~~[mm]~~	130	130
C/S ~~[mm]~~	469	469
W/B ~~[mm]~~	1230	1261
S/T ang. ~~[°]~~	74	74
H/T ang. ~~[°]~~	66	66
F/L ~~[mm]~~	564	564
B/B drop ~~[mm]~~	15	15
B/B width ~~[mm]~~	0	0
Reach ~~[mm]~~	437	465
Stack ~~[mm]~~	628	633
F/R ~~[mm]~~	51	51
Handlebars ~~[mm]~~	0	0
Stem ~~[mm]~~	0	0
Cranks ~~[mm]~~	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Download

Product options

black / lime

18" = UA#42961302 20" = UA#42961303
