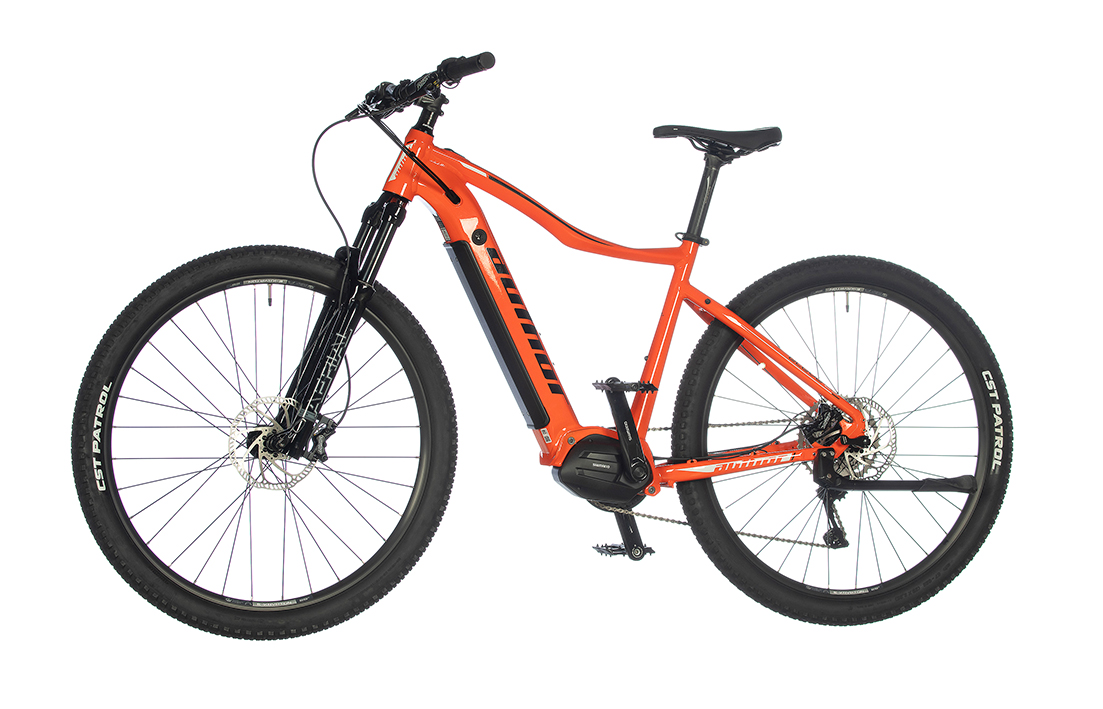

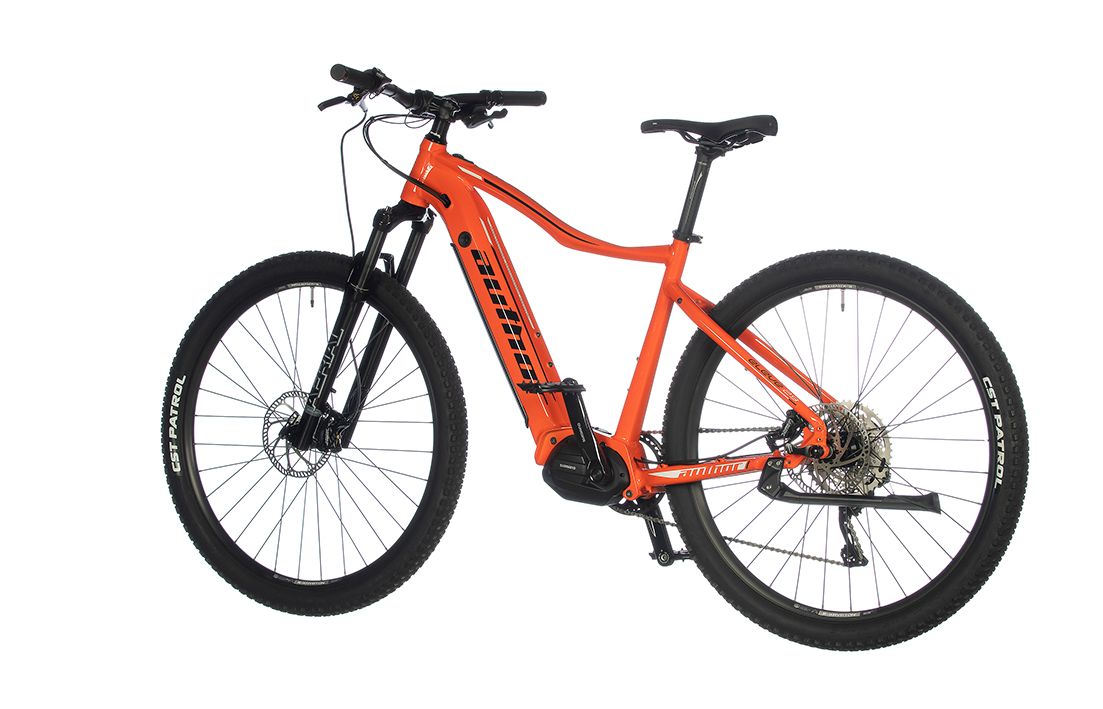

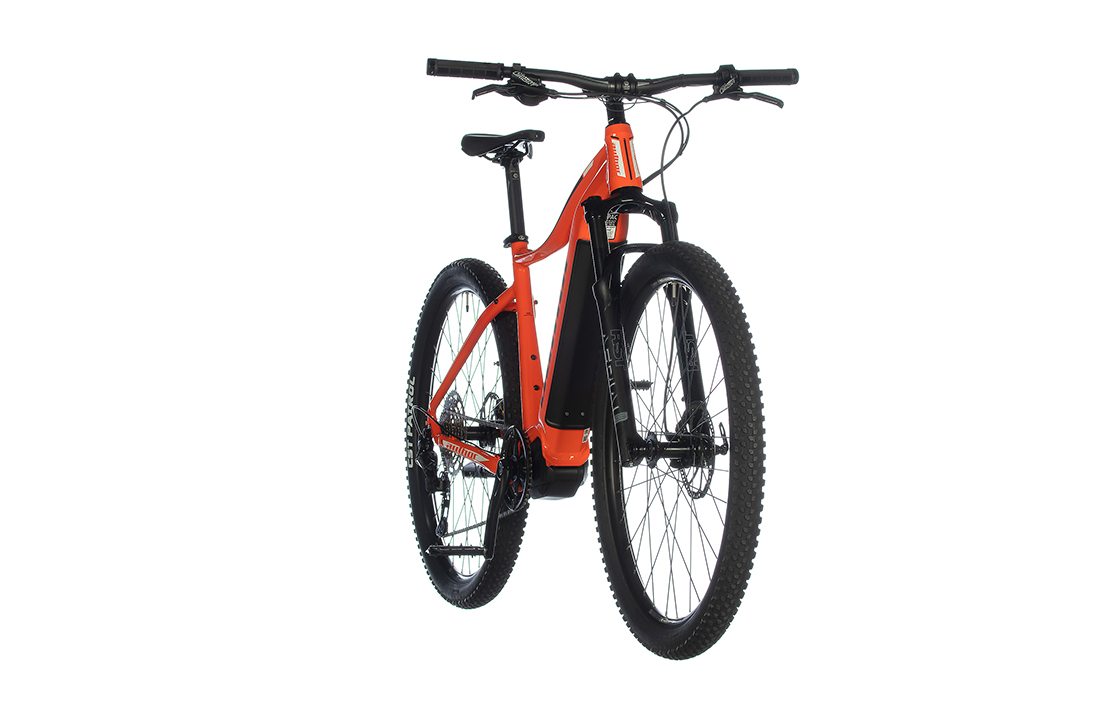

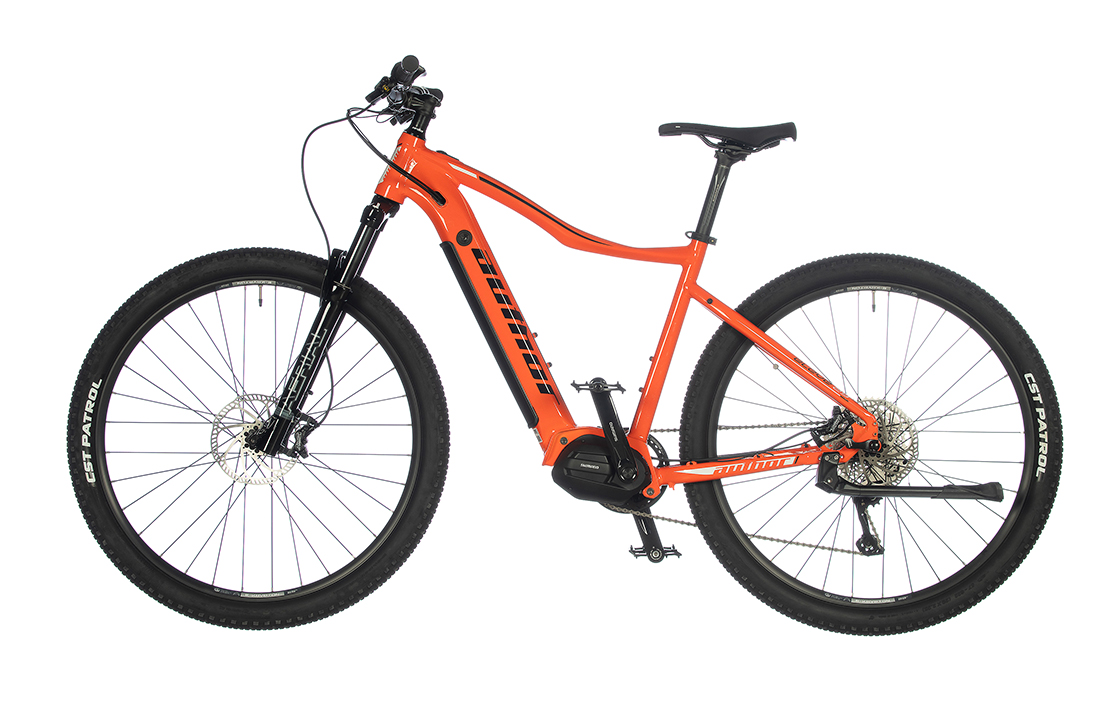

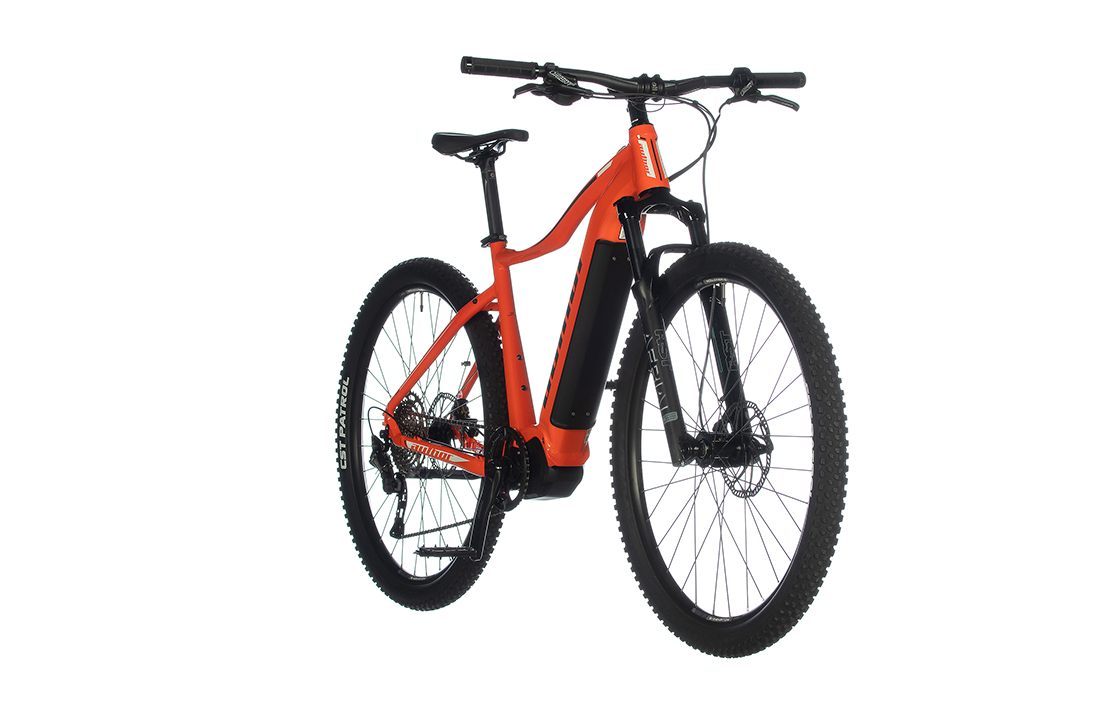

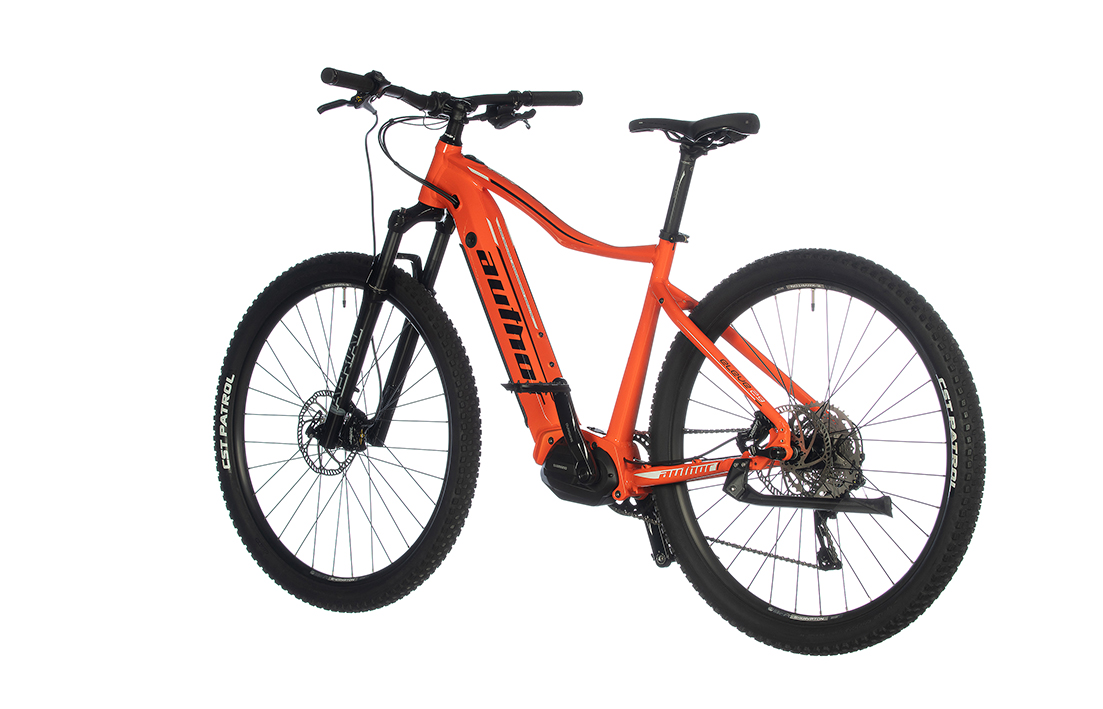

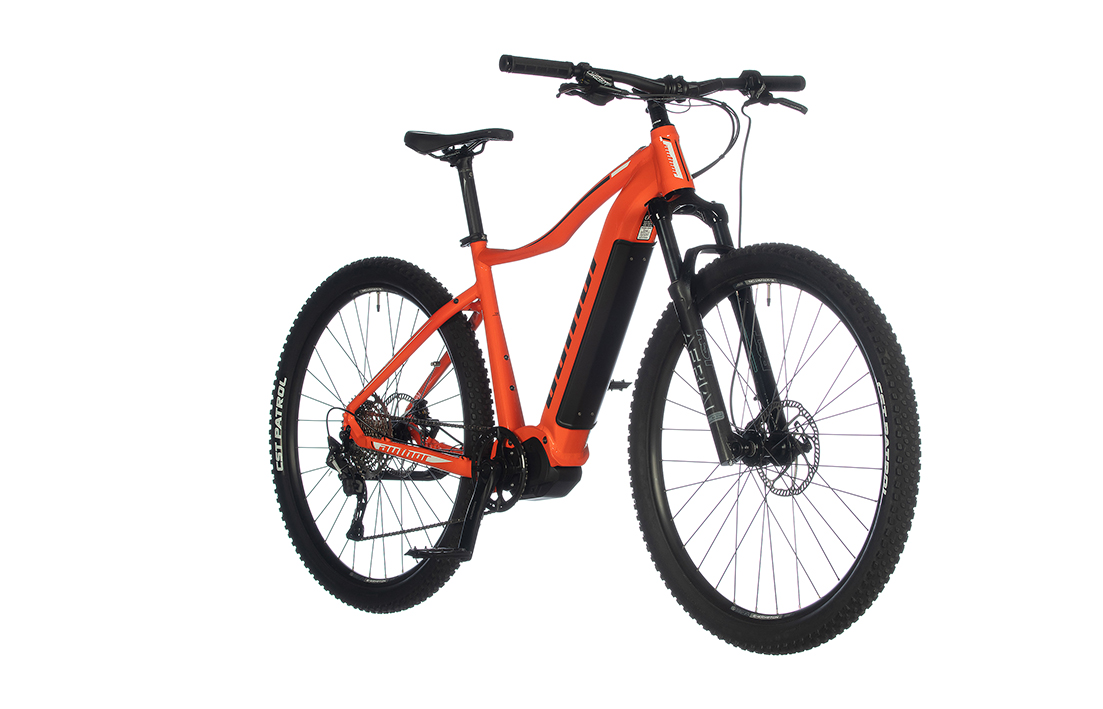

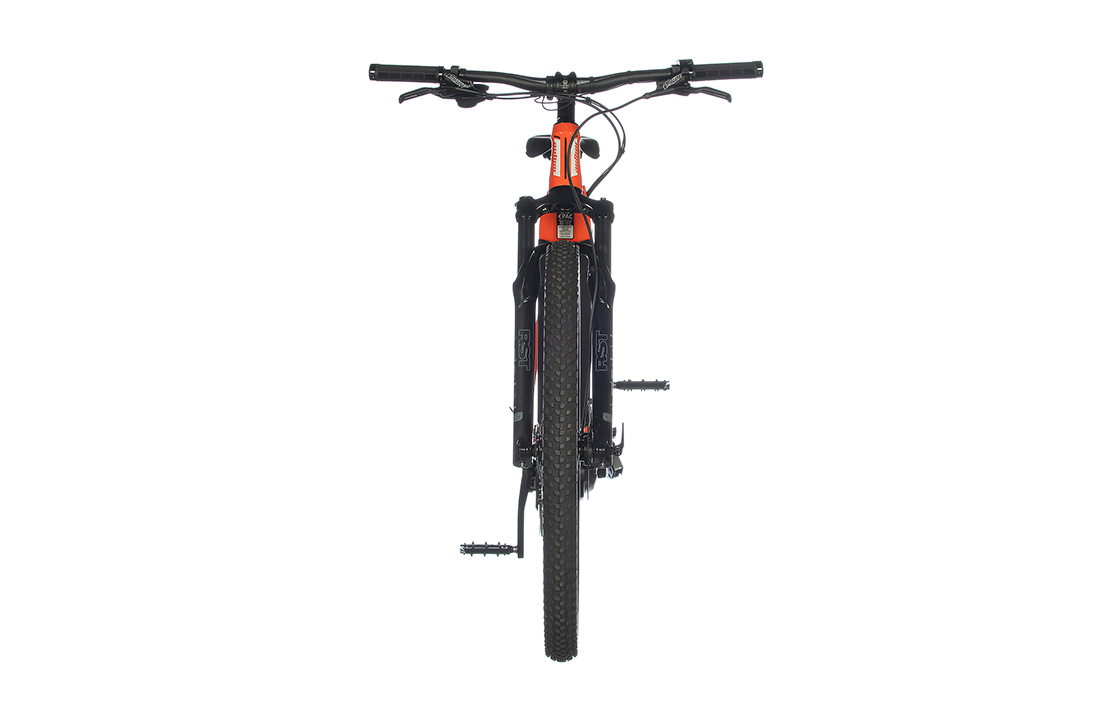

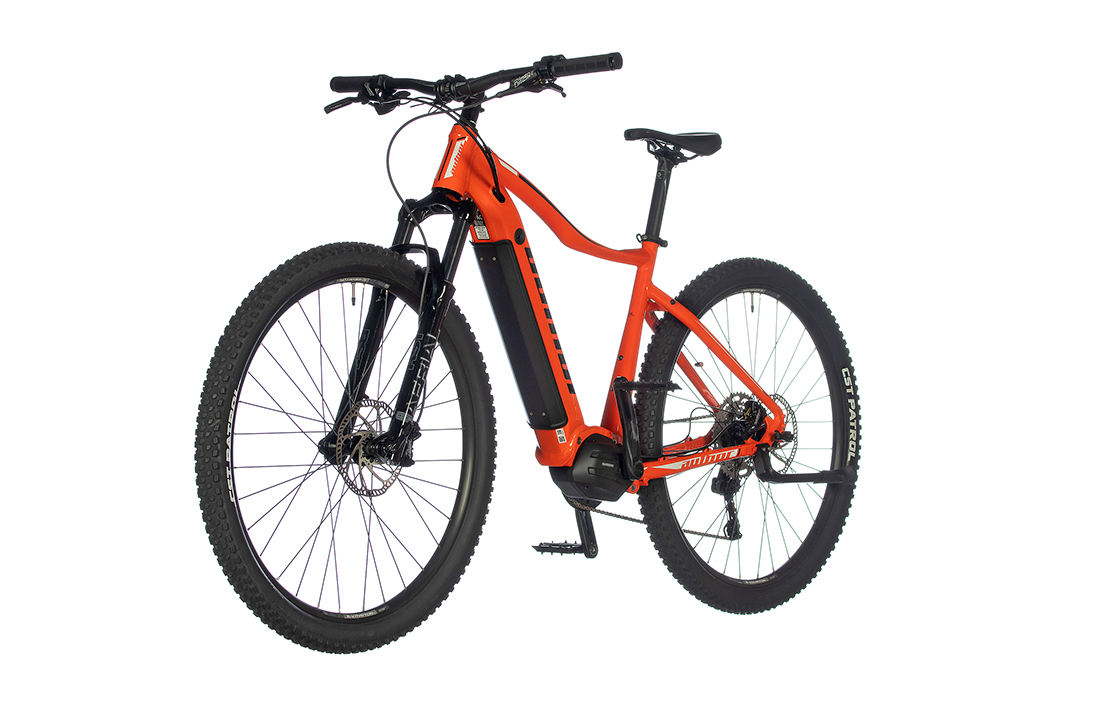

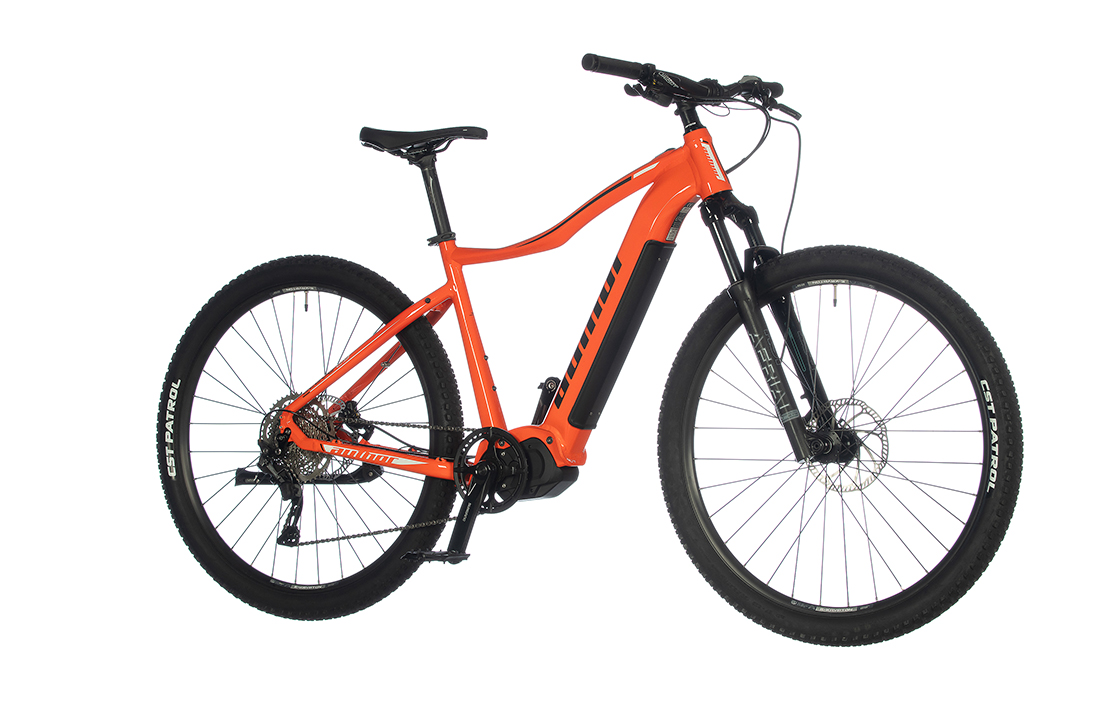

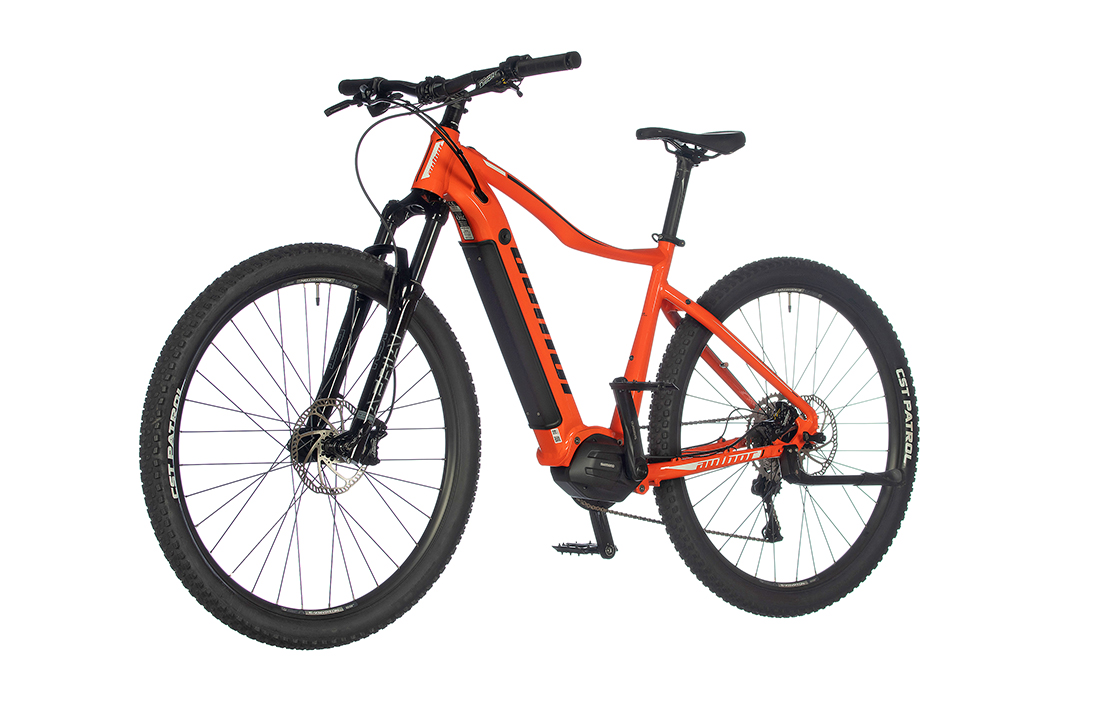

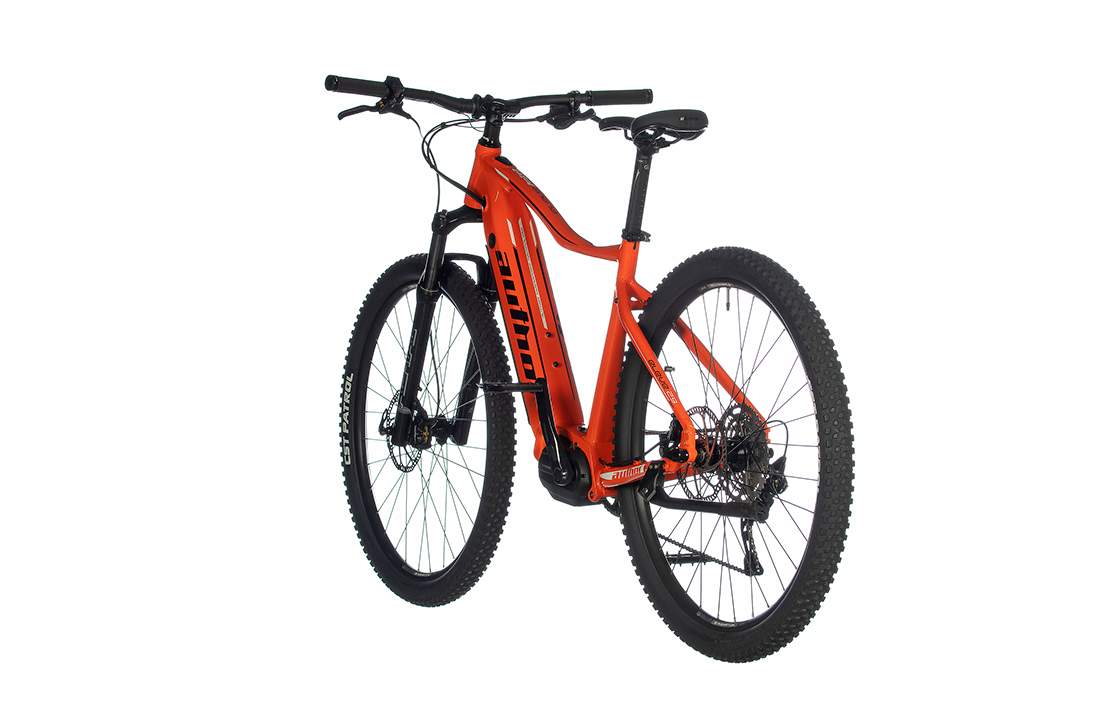

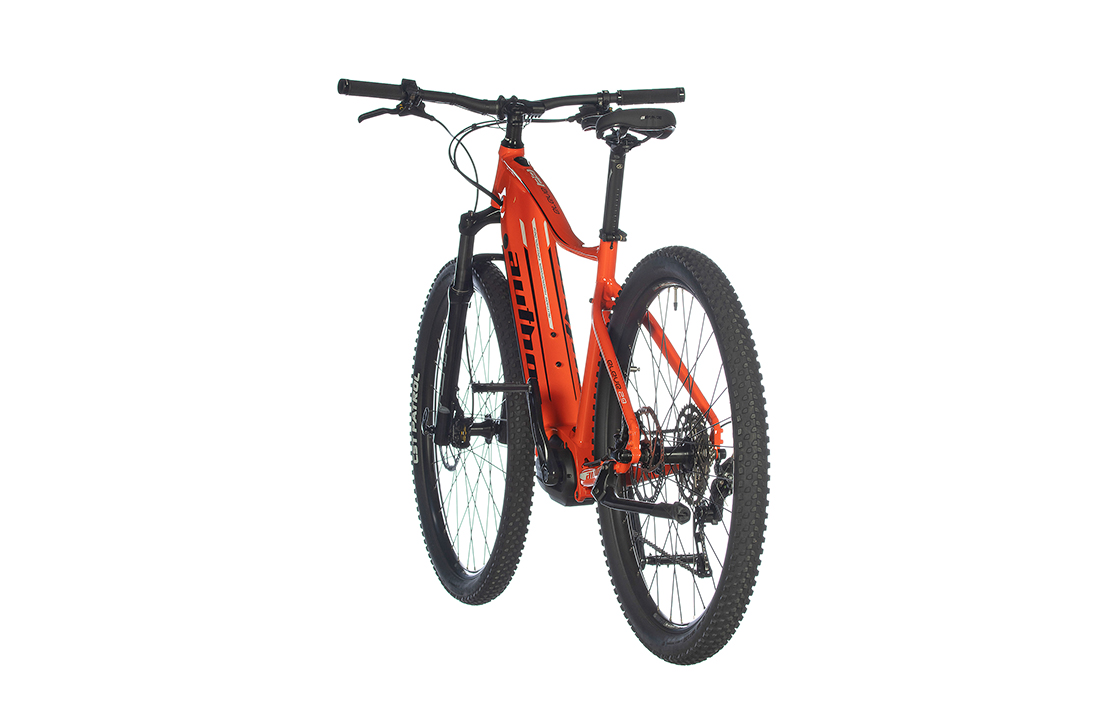

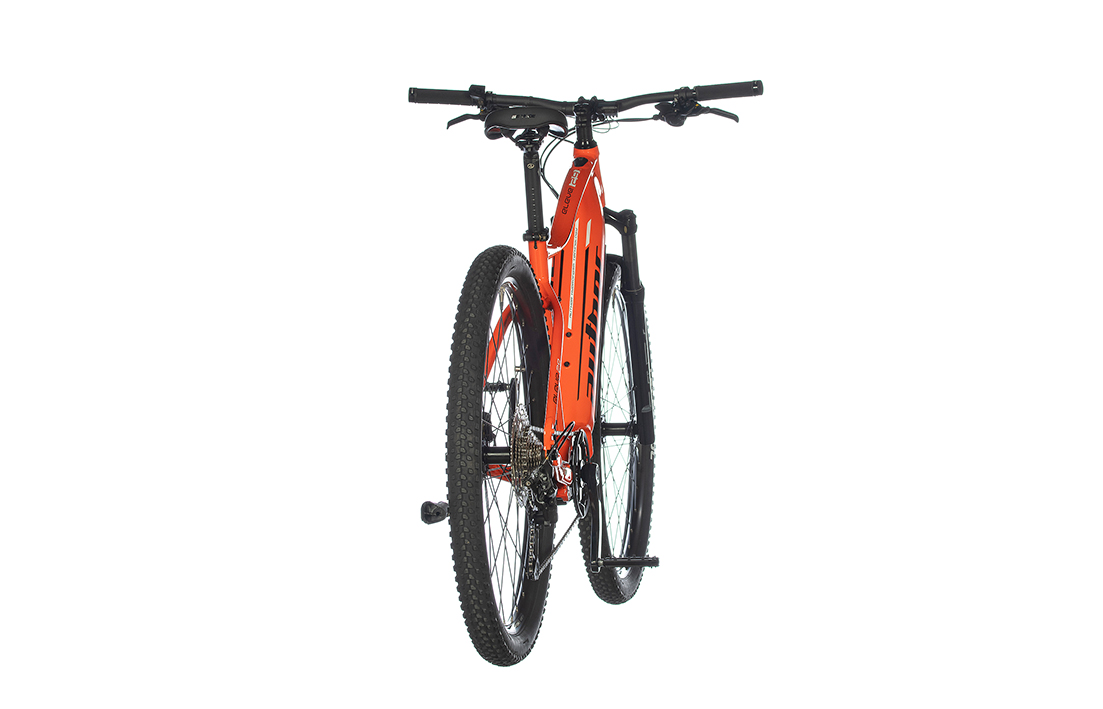

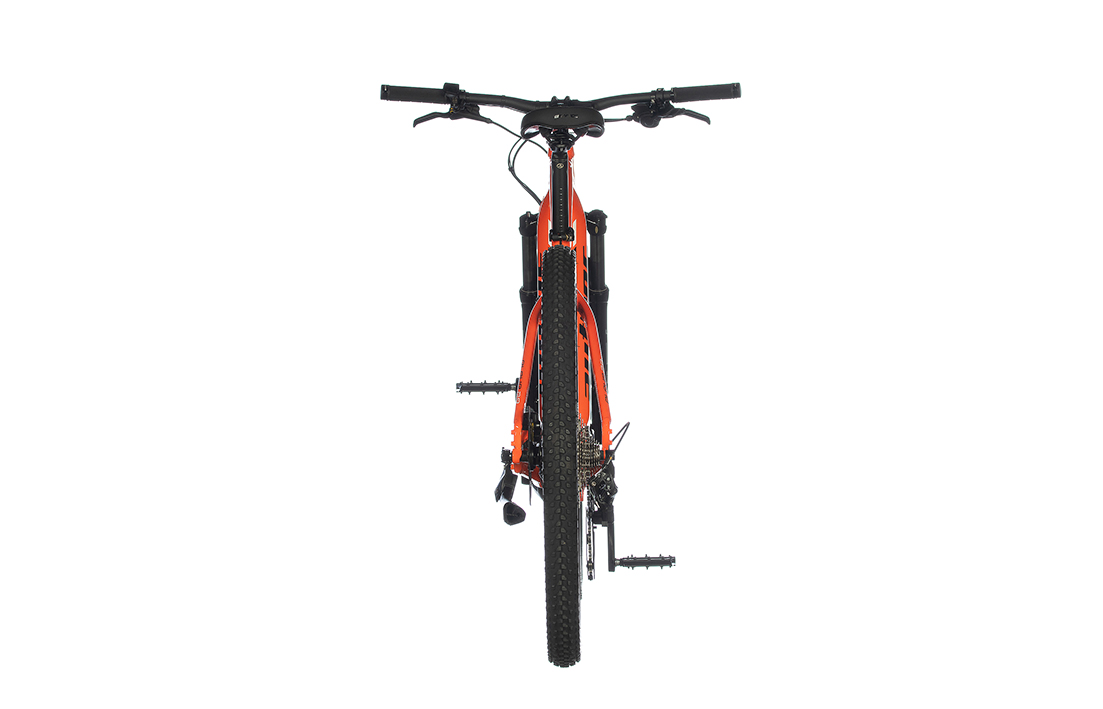

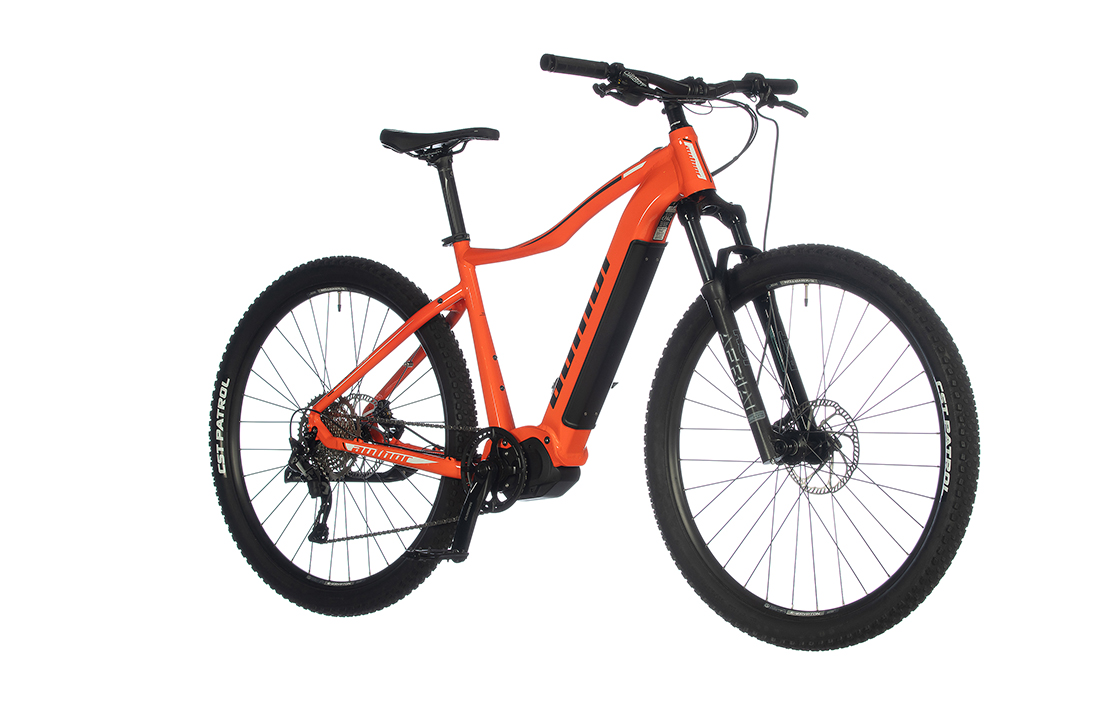

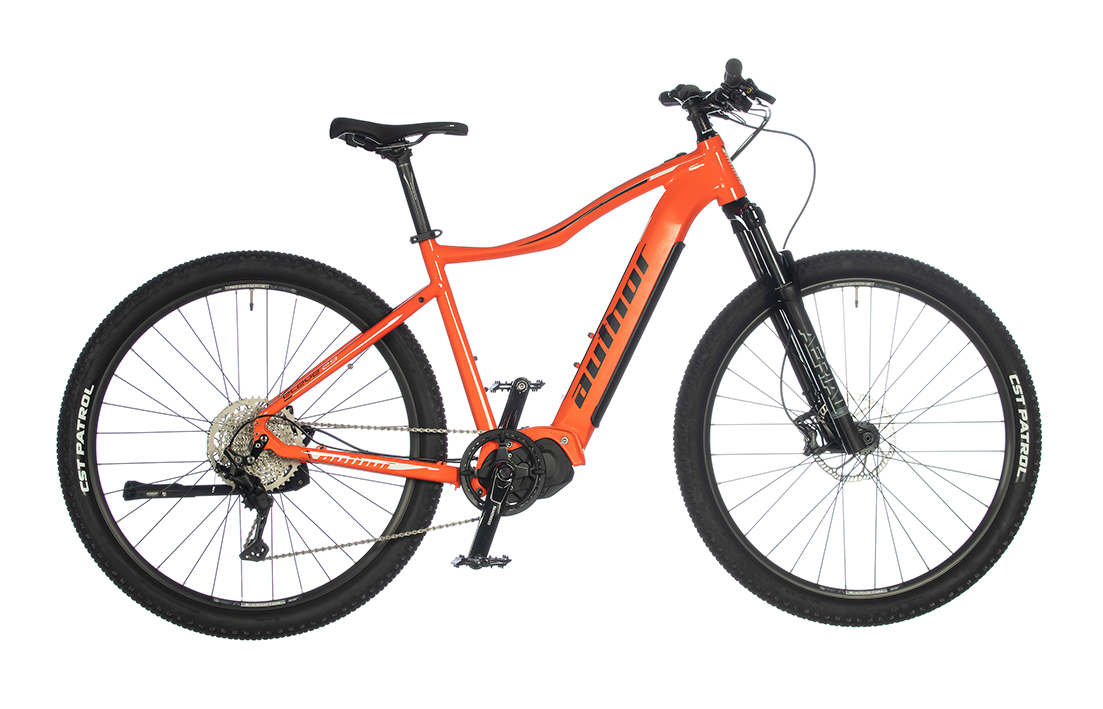

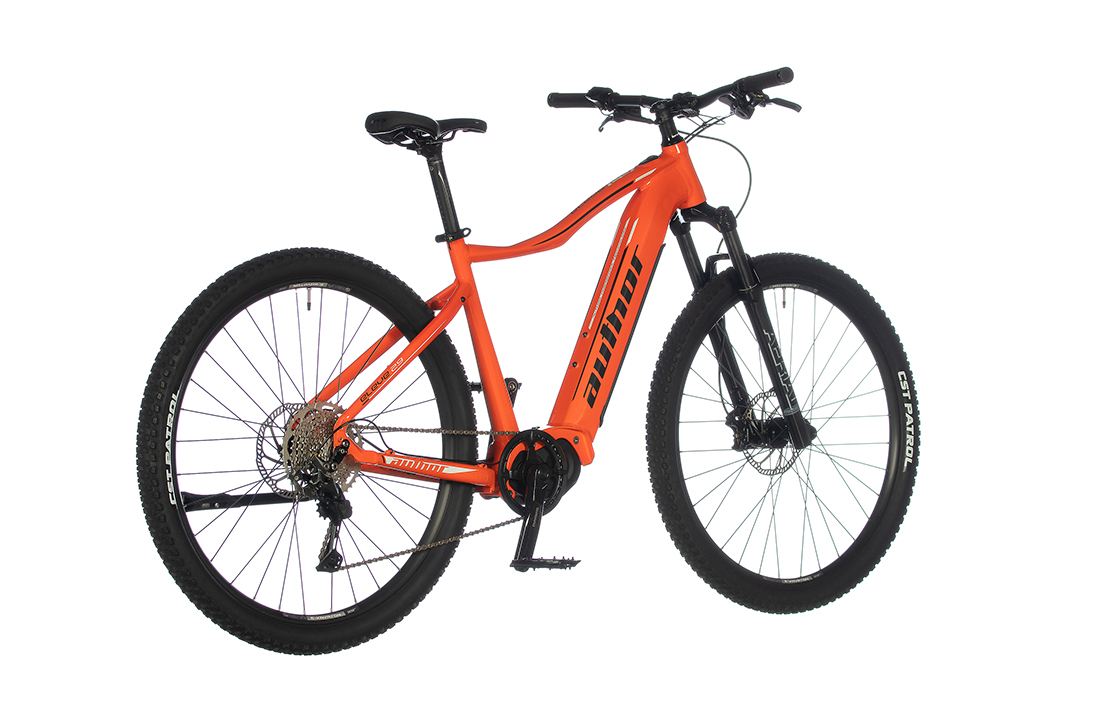

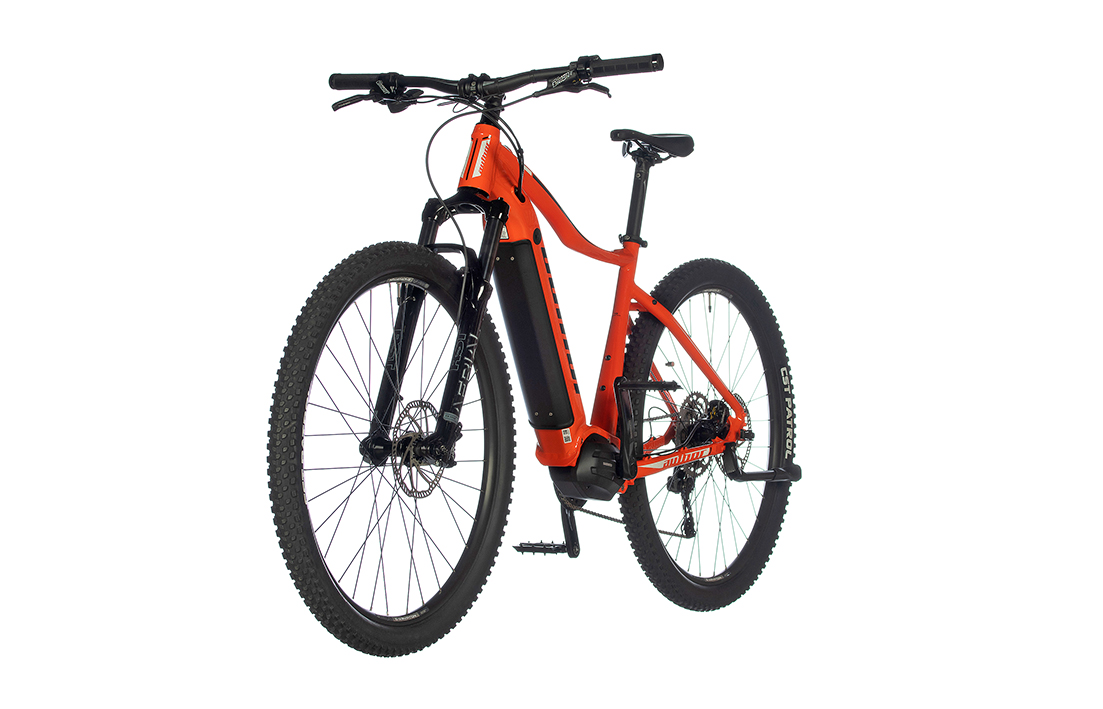

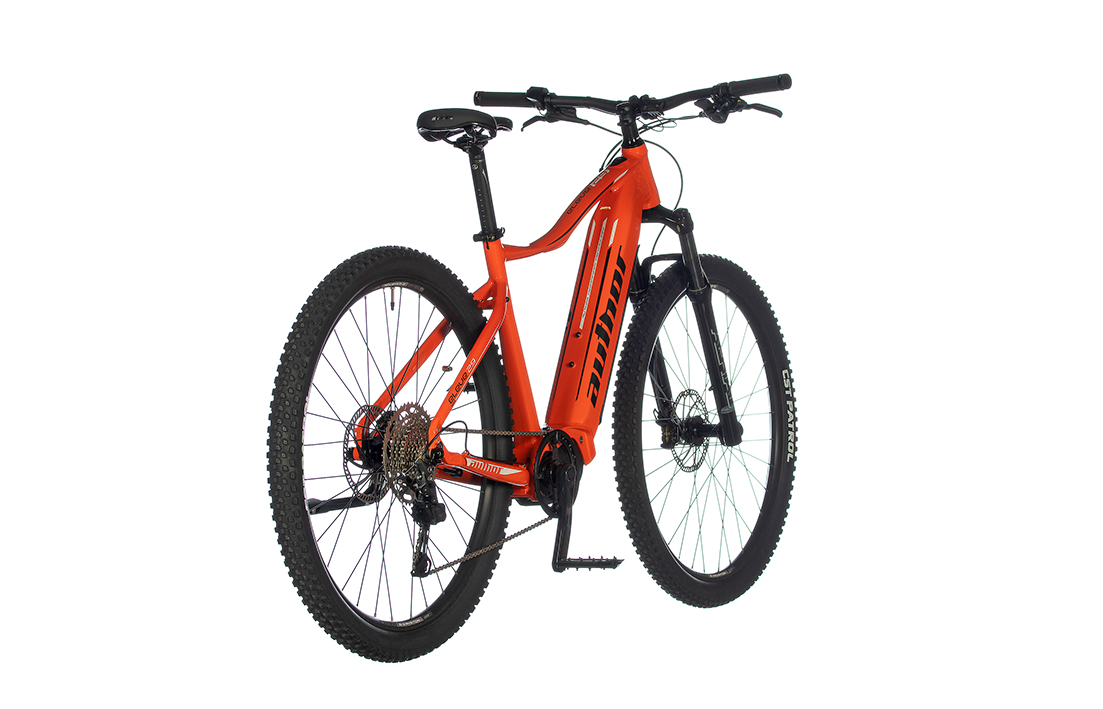

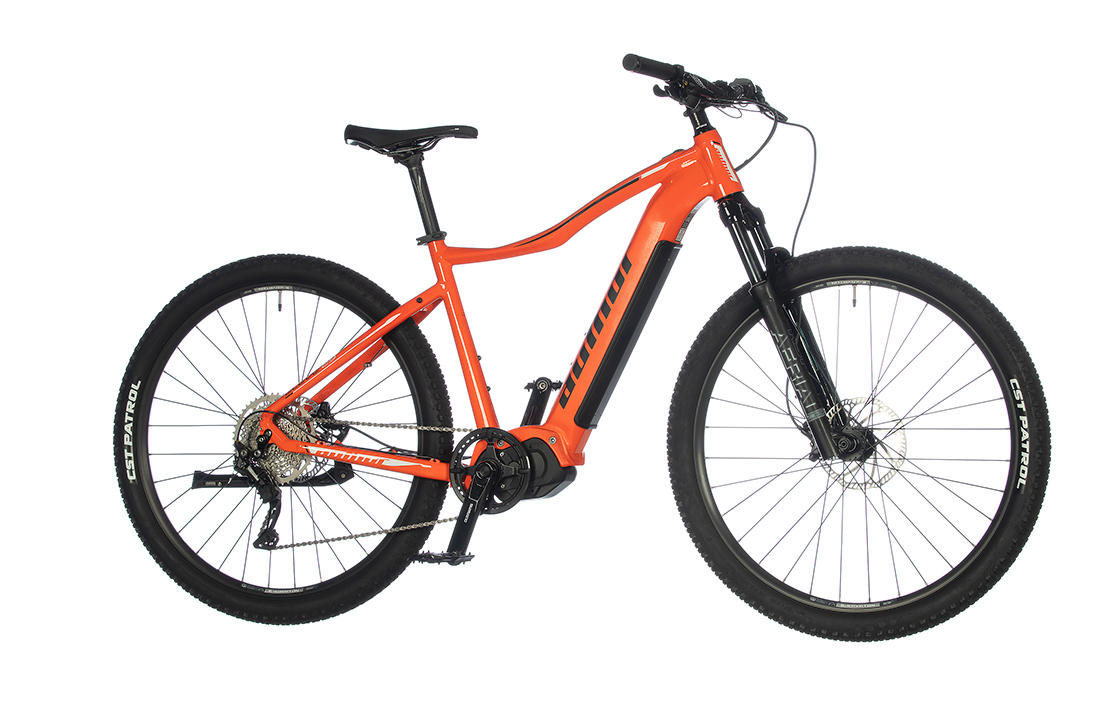

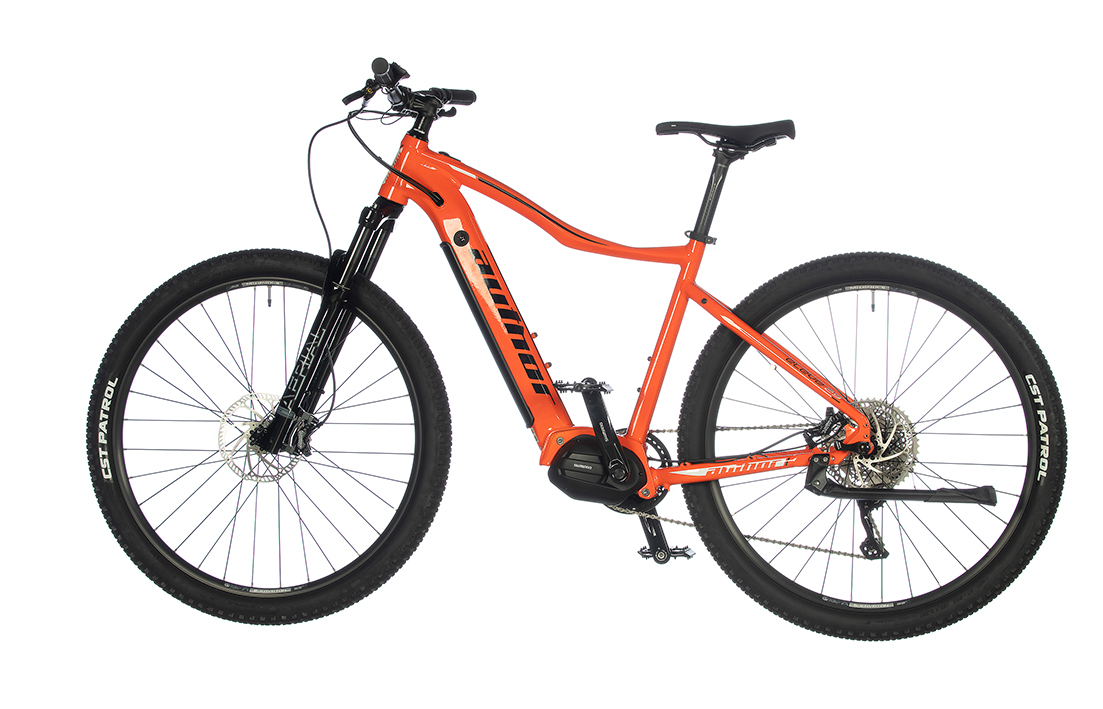

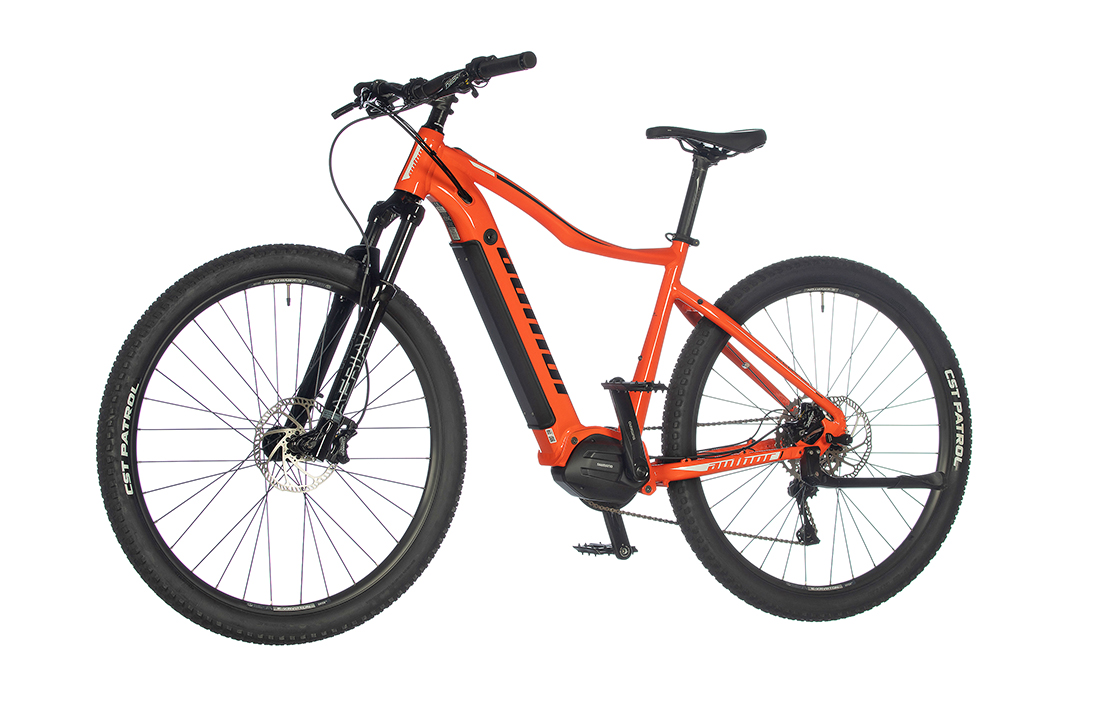

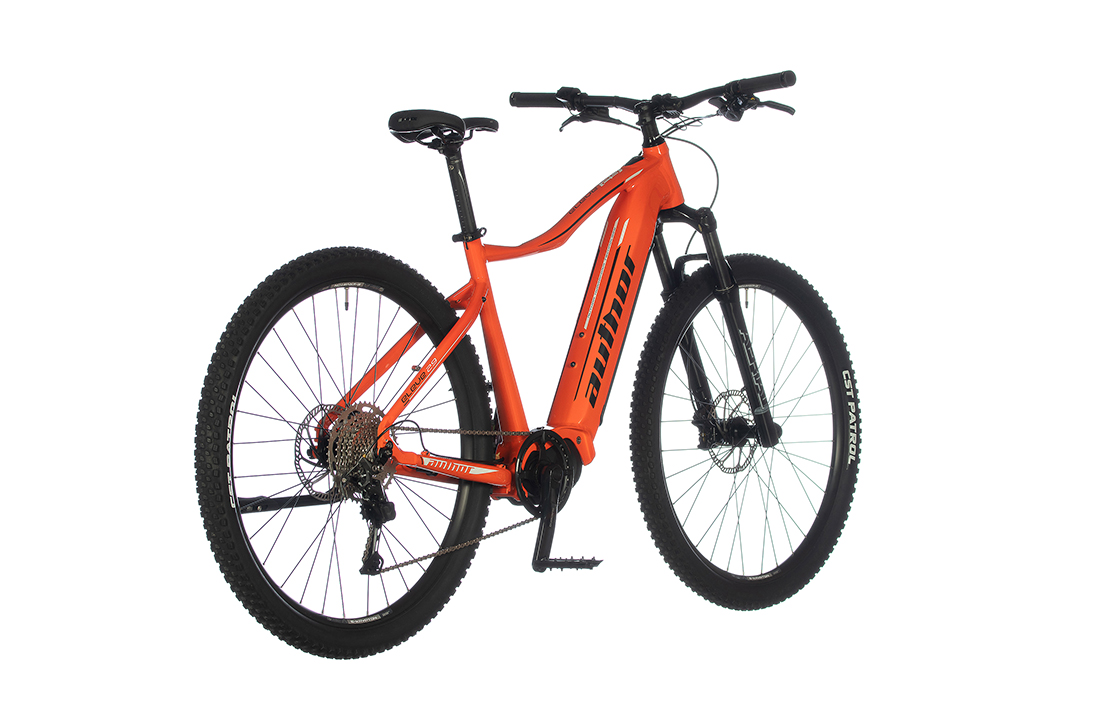

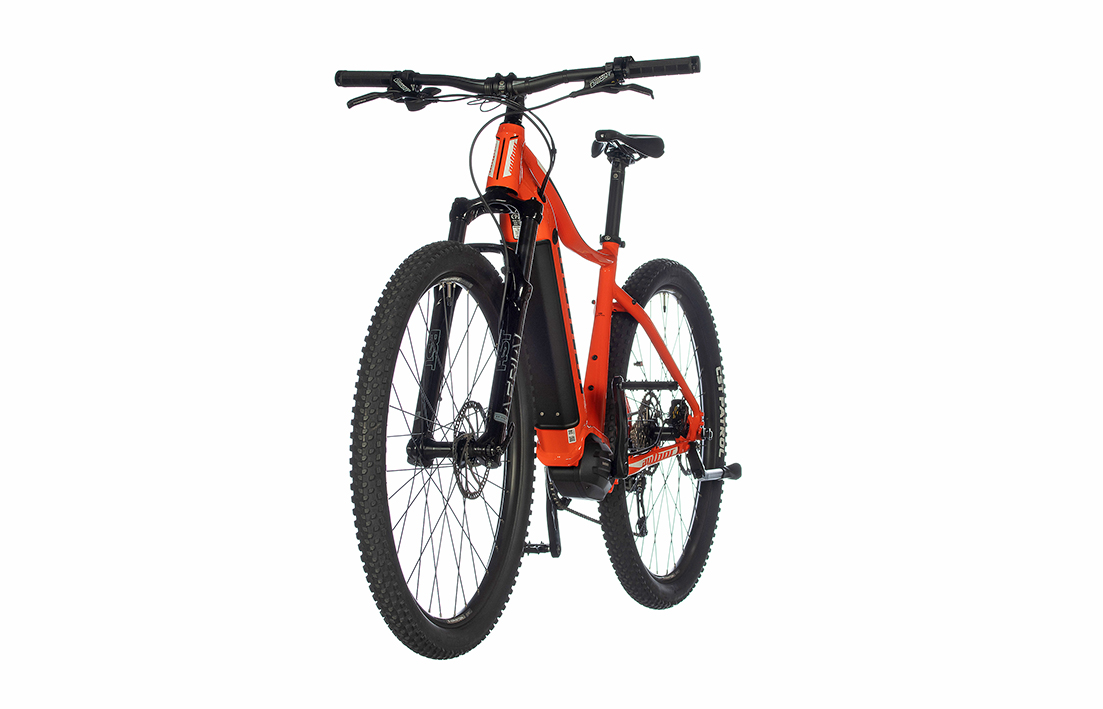

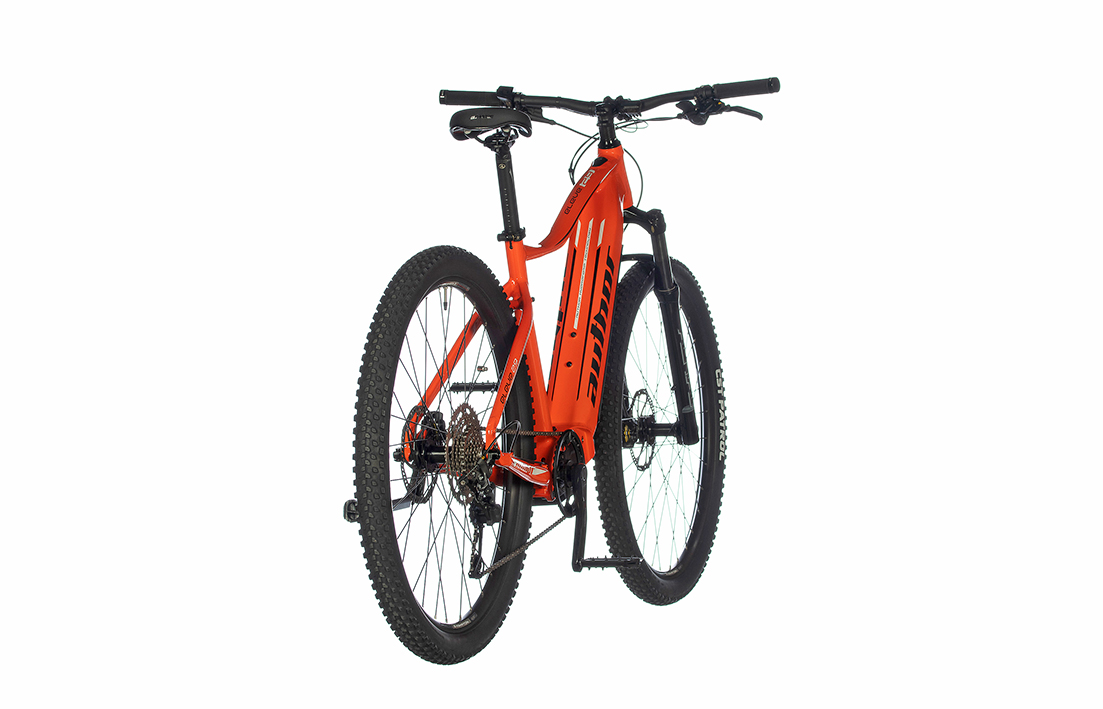

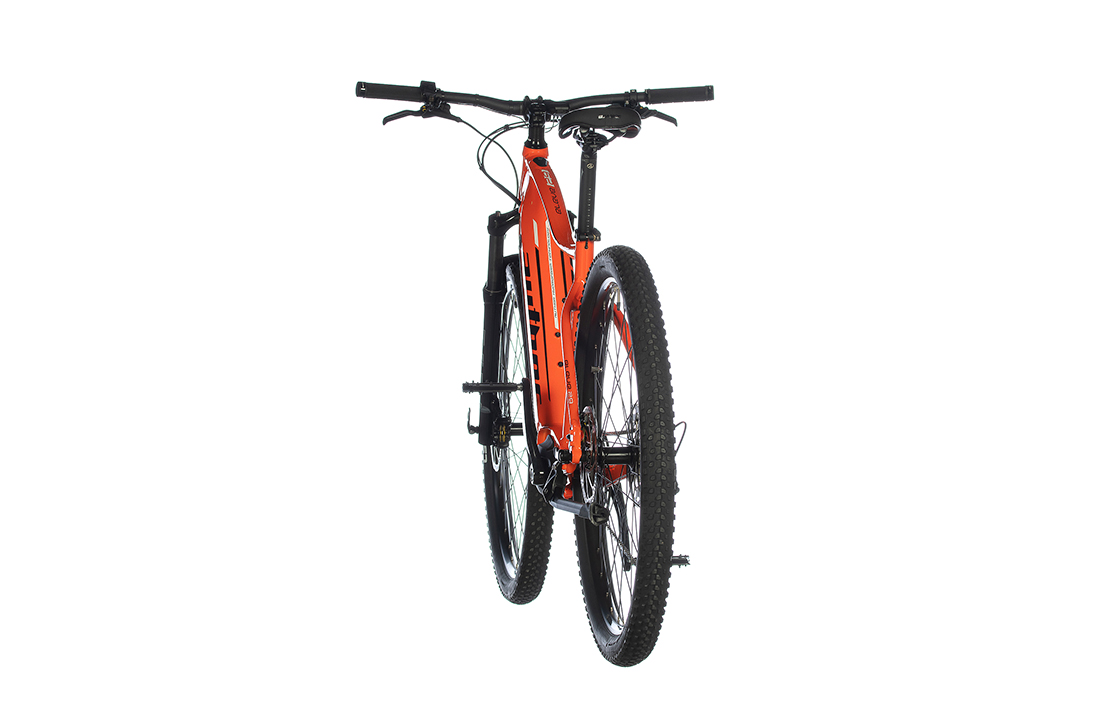

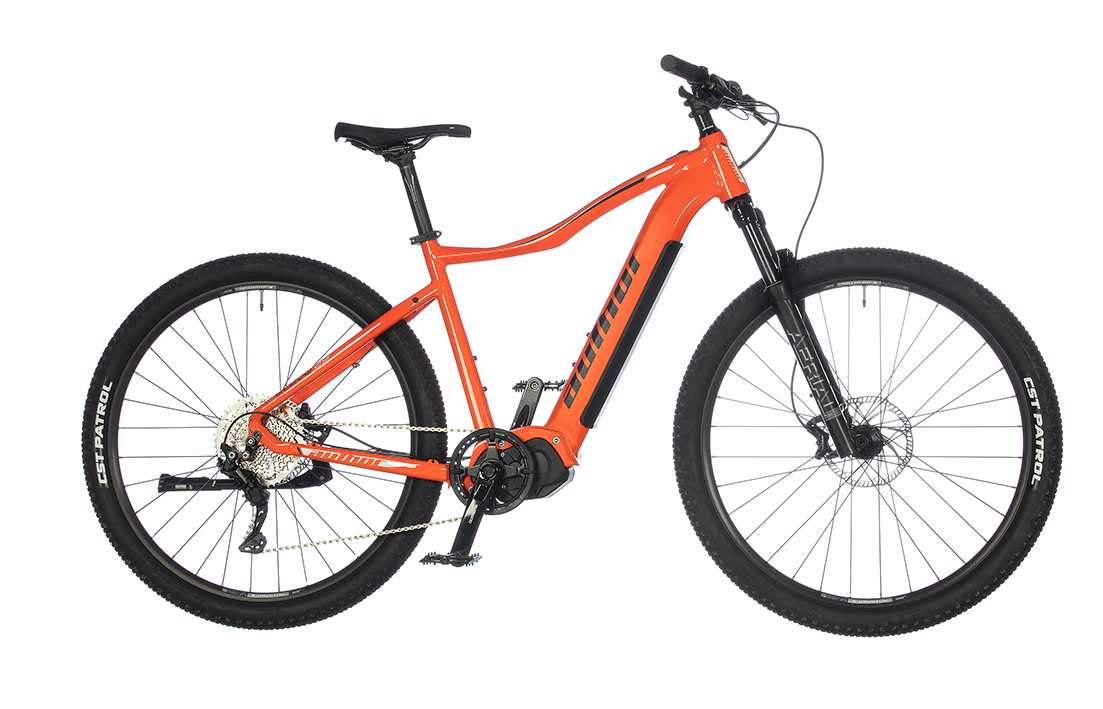

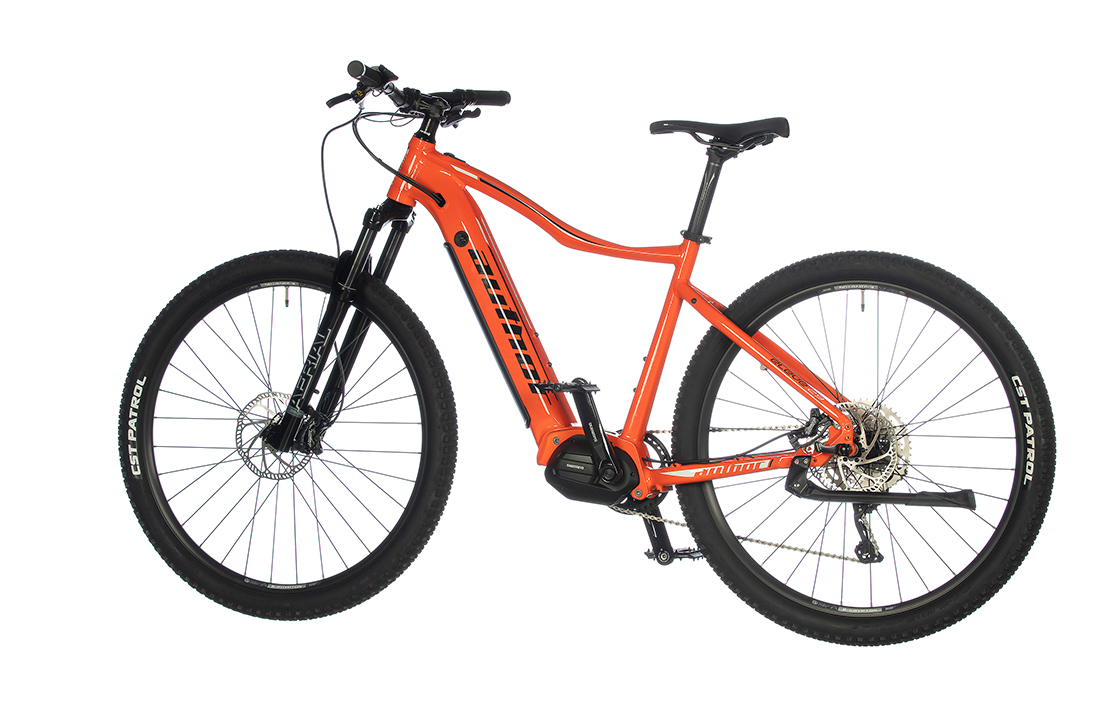

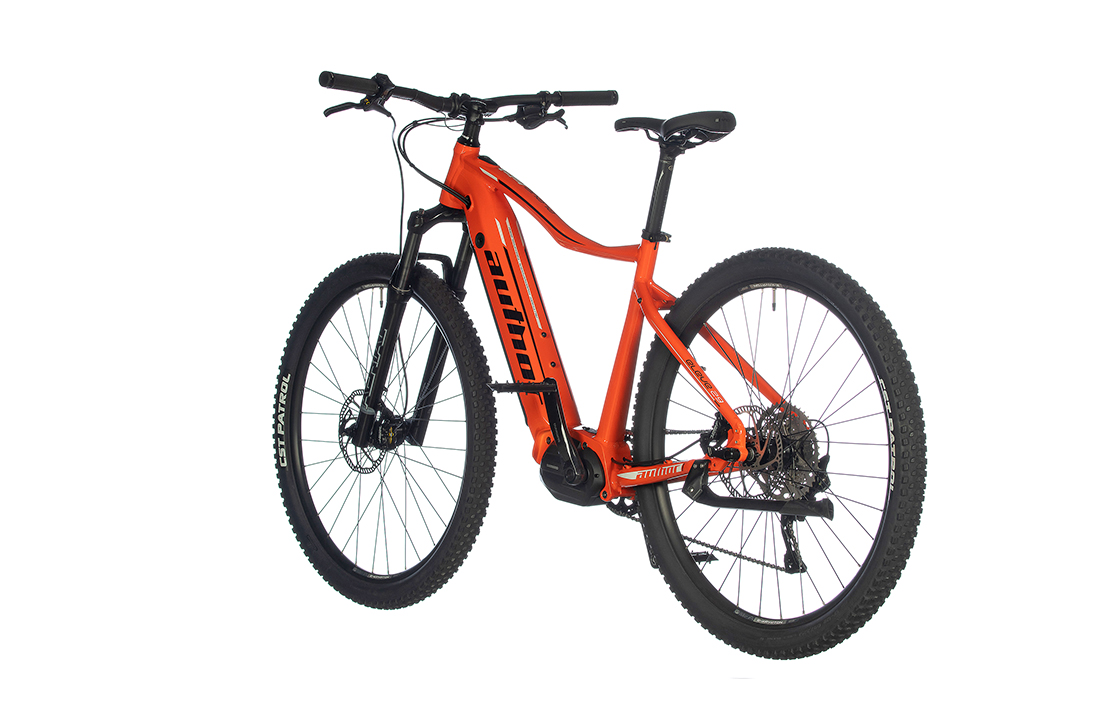

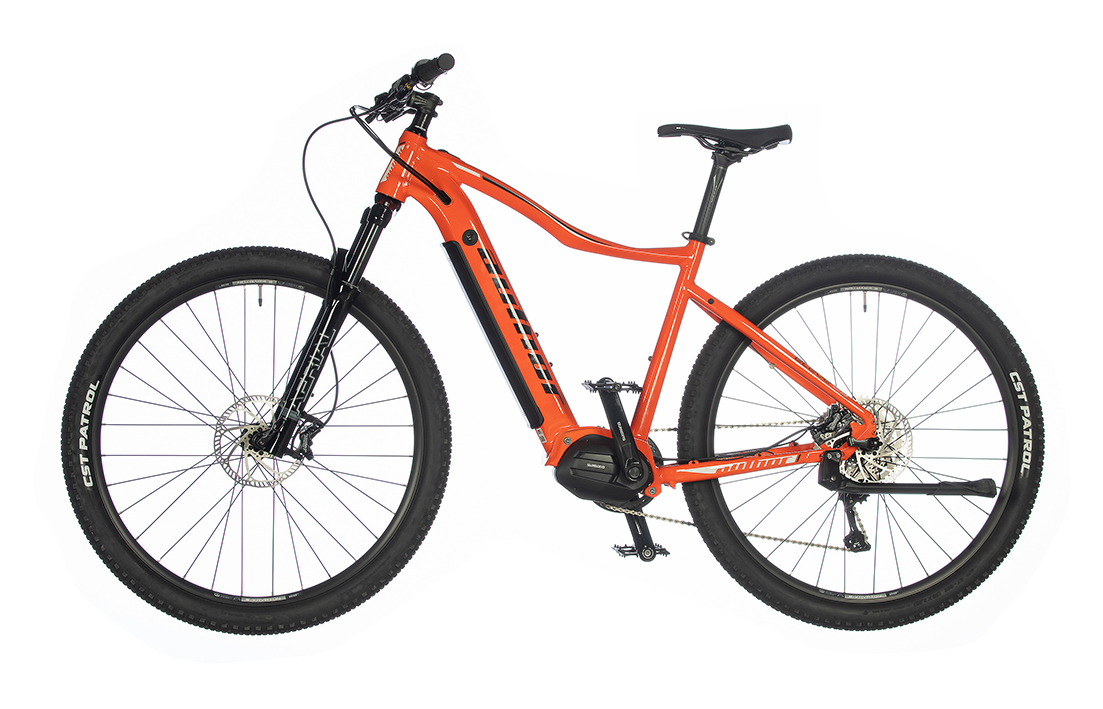

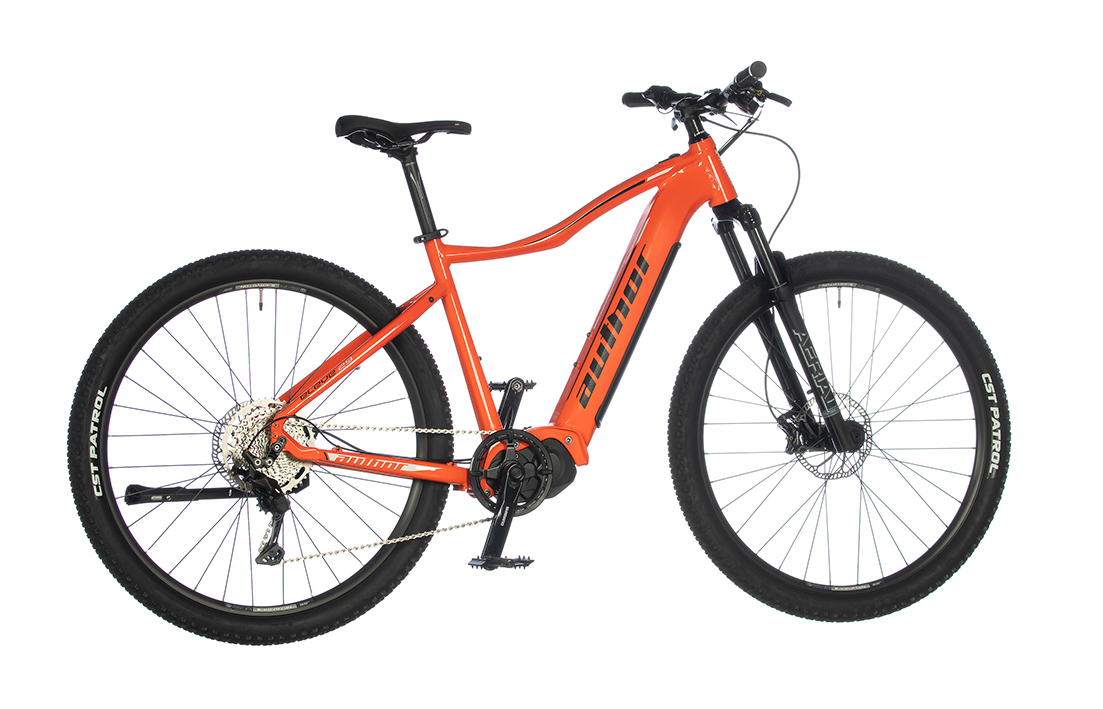

AUTHOR Eleve 29 2021-22

Technical specification

Size	17", 19". 21"
Frame	double butted hydroformed alloy 6061 29" (integrated battery)
Front fork	RST Aerial 110-15 TnL air, lock out 15 mm thru axle boost 1.5" tapered column (100 mm)
Engine	SHIMANO Steps E-5000, 250 W
Battery	SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
Display	SHIMANO Steps E-7000, LCD
Head parts	AUTHOR Integrated 1,5"
Chain Wheel	SHIMANO Steps E-5010 38 teeth 170 / 175 mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (10)
Free wheel	SHIMANO CS-M4100-10 11-46 (10)
Chain	KMC e10T
Hubs	QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	TEKTRO Orion disc hydraulic (7" rotors)

Brakes levers	TEKTRO Orion
Rims	AUTHOR E-Krypton 29 32 holes
Spokes	black stainless steel 2.2 mm
Tires	CST Patrol 29" × 2.25"
Pedals	HT platform
Handlebar	AUTHOR 15 mm 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (30.9)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR E-Mode
Speed	10
Weight	22,4 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	533
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	579	596	614
H/T ~~[mm]~~	120	130	135
C/S ~~[mm]~~	475	475	475
W/B ~~[mm]~~	1165	1186	1206
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	68	68	68
F/L ~~[mm]~~	520	520	520
B/B drop ~~[mm]~~	58	58	58
B/B width ~~[mm]~~	0	0	0
Reach ~~[mm]~~	406	423	442
Stack ~~[mm]~~	635	644	649
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	5 stores				42939502
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ Velo Vít Sport		in stock	buy now	Kostelec nad Orlicí	494 321 123, prodejna@kolakostelec.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	7 stores				42939503
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Ramala s.r.o.		in stock	buy now	Domažlice	379 725 198, domazlice@ramala.cz	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ Velo Vít Sport		in stock	buy now	Kostelec nad Orlicí	494 321 123, prodejna@kolakostelec.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	⟲ In other stores		in 2 days				dealers
		17"	3 stores				42939512
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	2 stores				42939513
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ AXIT bike sport		in stock	buy now	Náchod	491 426 020, axit@axit.cz	map
	⟲ In other stores		in 2 days				dealers
		21"	2 stores				42939514
	▪ AXIT bike sport		in stock	buy now	Náchod	491 426 020, axit@axit.cz	map
	▪ Has bike v. o. s.		in stock	buy now	Šumperk	777 574 571, hasbike@seznam.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

299 KčL&R35 X7Bottle cage Author ABC-35, easy bottle removing from side direction (left or right according the fix ... more »

1/2

199 KčL&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

1/3

375 KčR213 X9The Author saddle bag A-R213 is the universal bag with the one main compartment and one net pocket. ... more »

1/4

299 KčR244The Author saddle bag A-R244 is the universal bag with the one main compartment and one flat pocket. ... more »

1/5

595 Kč ~~695 Kč~~ R282 MPPThe AUTHOR A-R282 MPP ensures your camera is at hand in any situation. It provides easy, hassle-free ... more »

1/7

350 KčS188 TPN X7The Author saddle bag A-S188 is the easy bag with expandable main compartment. Designed for long sat ... more »

1/2

499 KčAKS-670 R18 E-bikeLightweight and high performing kick Stand Author for frame dropout fixation AUTHOR IS-R18. For whee ... more »

750 KčACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

250 KčX-FlapX-Flap is the new rear mudguard . The mounting system features a big plastic clamp, that can be easi ... more »

	silver-matt / lime	17" = UA#42939502 19" = UA#42939503 21" = UA#42939504

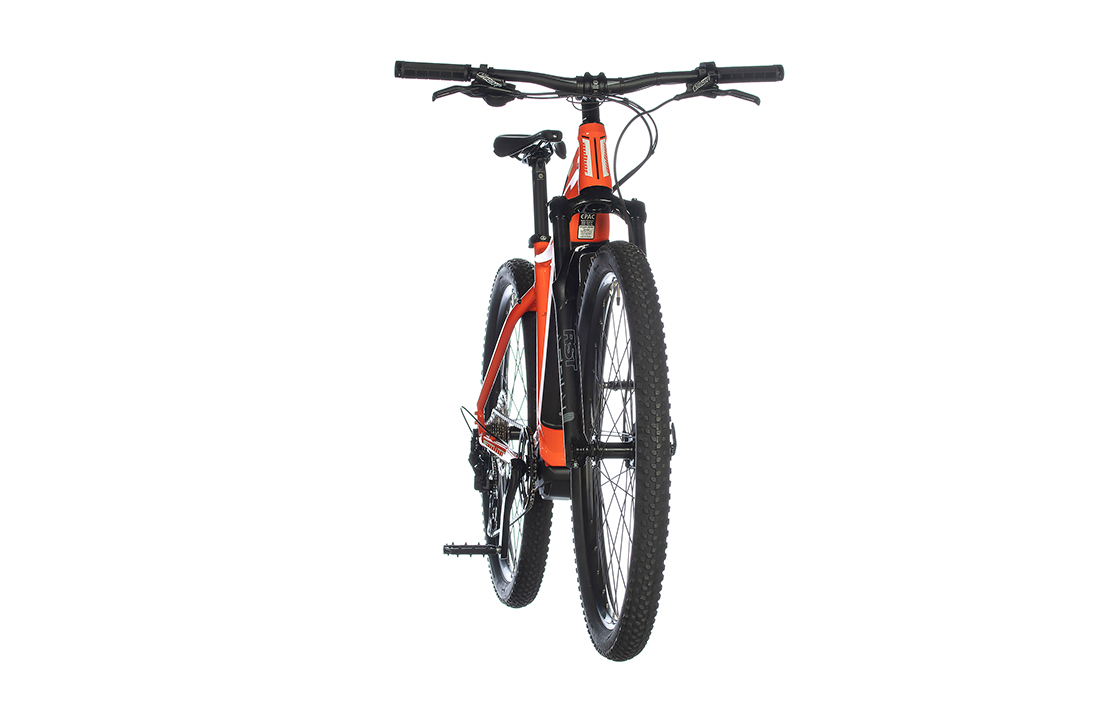

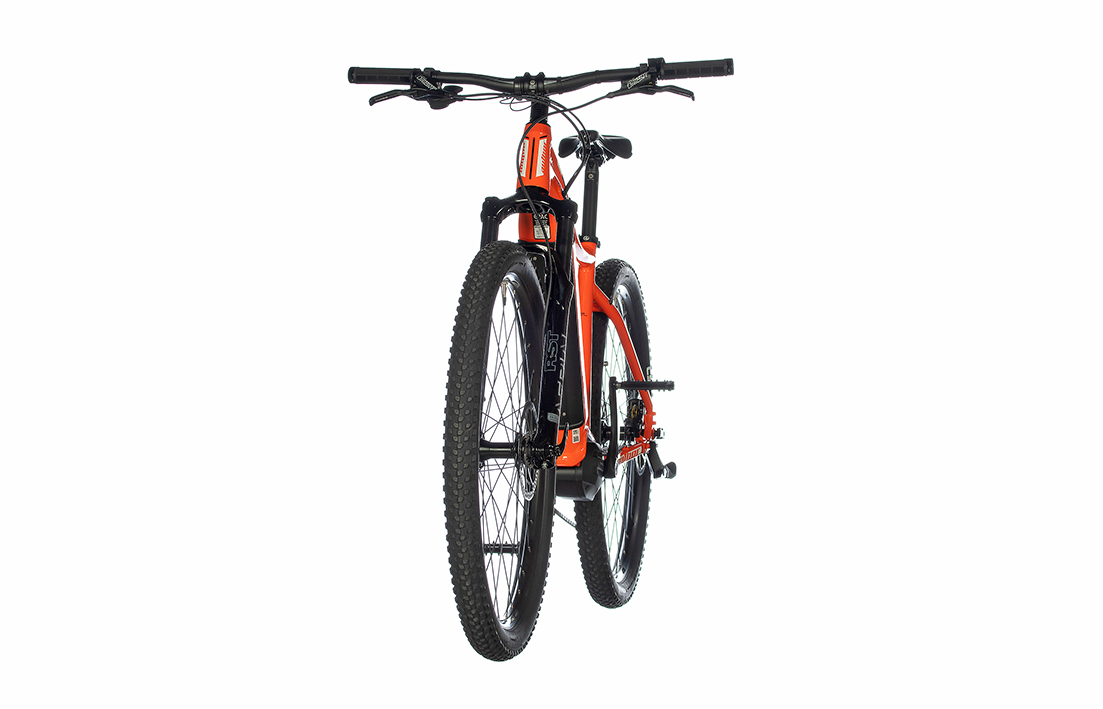

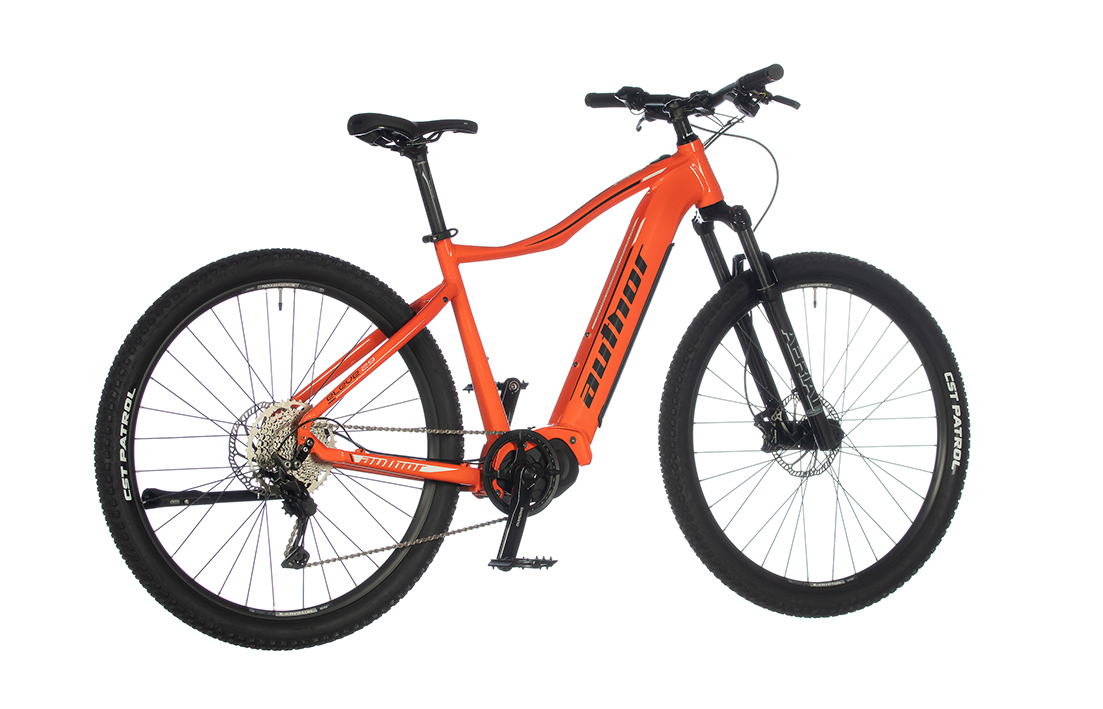

	orange / black	17" = UA#42939512 19" = UA#42939513 21" = UA#42939514
