Elevation 29 2025Archivní model 2023-24

~~Colour variants~~

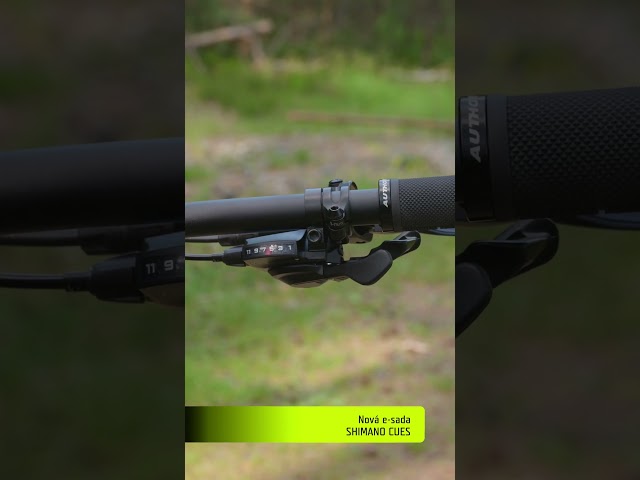

New motor SHIMANO STEPS EP6 – 85 NmHigh capacity battery SHIMANO EN806 – 630 WhNew SHIMANO e-group CUES for e-bikesNew synoptic display EN610Air fork RST FIRST 110-15, travel 100mmE-LINKGLIDE cassette 11-50, 11 speedErgonomic saddle E-Mode

special price 65 990 Kč

original price ~~86 990 Kč~~ SOLD OUT

other models

Interested in other model`s year?

2018 2019 2020 2021-22 2023-24 2025 2026

Technical specification

Size	17", 19", 21"
Frame	double butted hydroformed alloy 6061 29" (integrated battery)
Front fork	RST F1RST 110-15 Air, air, lock out, 15 mm thru axle boost, 1.5" tapered steerer (100 mm)
Engine	SHIMANO Steps EP-600, 250 W
Battery	SHIMANO EN806 Li-Ion, 36 V, 17,5 Ah, 630 Wh
Display	SHIMANO Steps EN610, LCD
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SHIMANO Steps EN-600, 38 teeth, 170 / 175 mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO Cues 6000
Shifters	SHIMANO Cues 6000 (11)
Free wheel	SHIMANO CS-LG400-11, 11-50 (11)
Chain	KMC eGlide
Hubs	QUANDO, 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	TRP Slate EVO, 4-piston disc hydraulic (7" rotors)

Brakes levers	TRP Slate EVO
Rims	AUTHOR E-Krypton 29, 32 holes
Spokes	black stainless steel 2.2 mm
Tires	VITTORIA Barzo G2.0 aramid 29" × 2.25"
Pedals	HT platform
Handlebar	AUTHOR, 15 mm, 740 / 760 mm
Grips	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (30.9)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR E-Mode
Speed	11
Weight	23,8 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	533
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	600	620	640
T/T a ~~[mm]~~	579	596	614
H/T ~~[mm]~~	120	130	135
C/S ~~[mm]~~	475	475	475
W/B ~~[mm]~~	1165	1186	1206
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	68	68	68
F/L ~~[mm]~~	520	520	520
B/B drop ~~[mm]~~	58	58	58
B/B width ~~[mm]~~	0	0	0
Reach ~~[mm]~~	406	423	442
Stack ~~[mm]~~	635	644	649
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Download

Product options

	yellow	17" = UA#4296110223 19" = UA#4296110323 21" = UA#4296110423
	grey / red	17" = UA#4296111223 19" = UA#4296111323 21" = UA#4296111423
