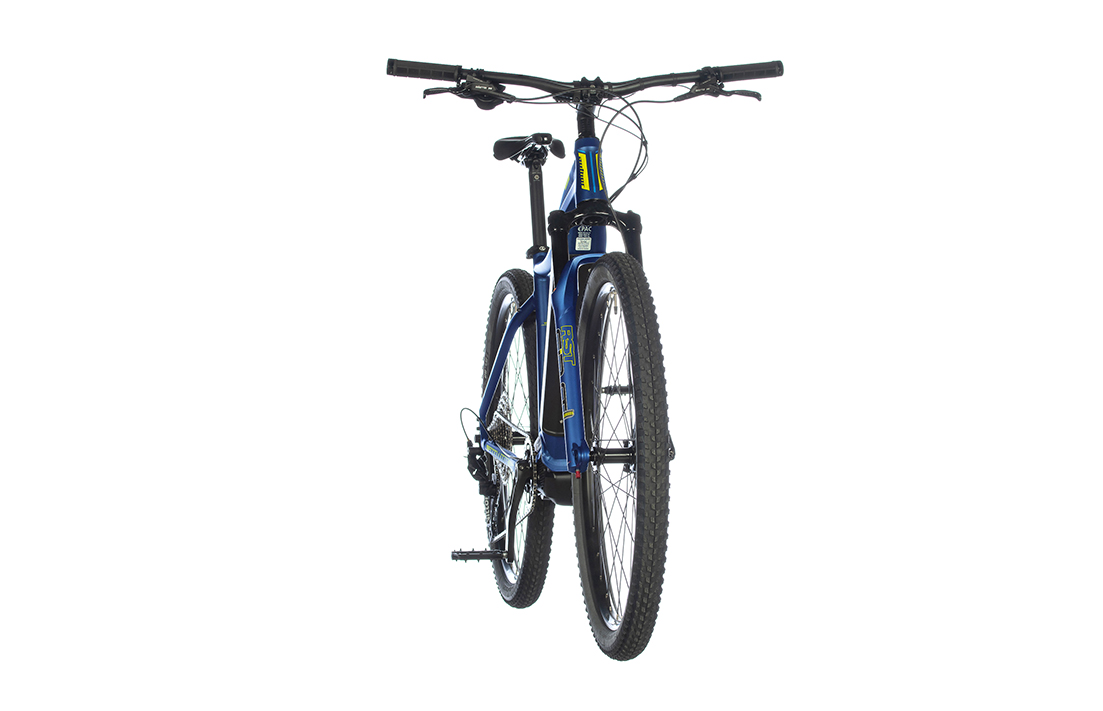

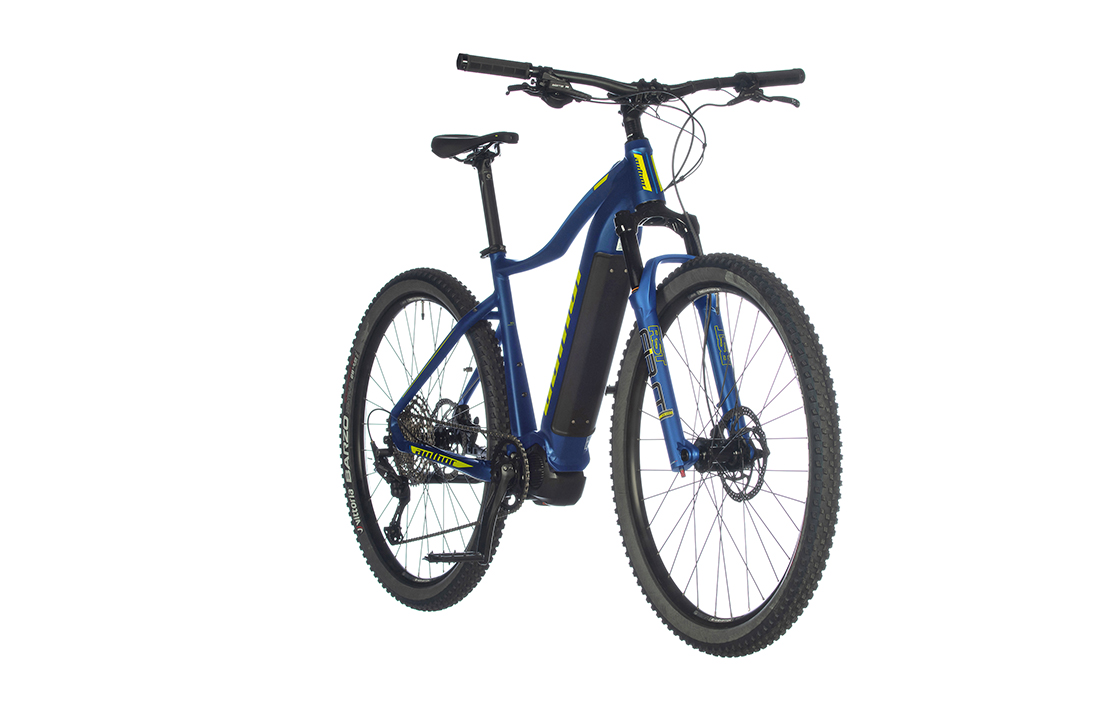

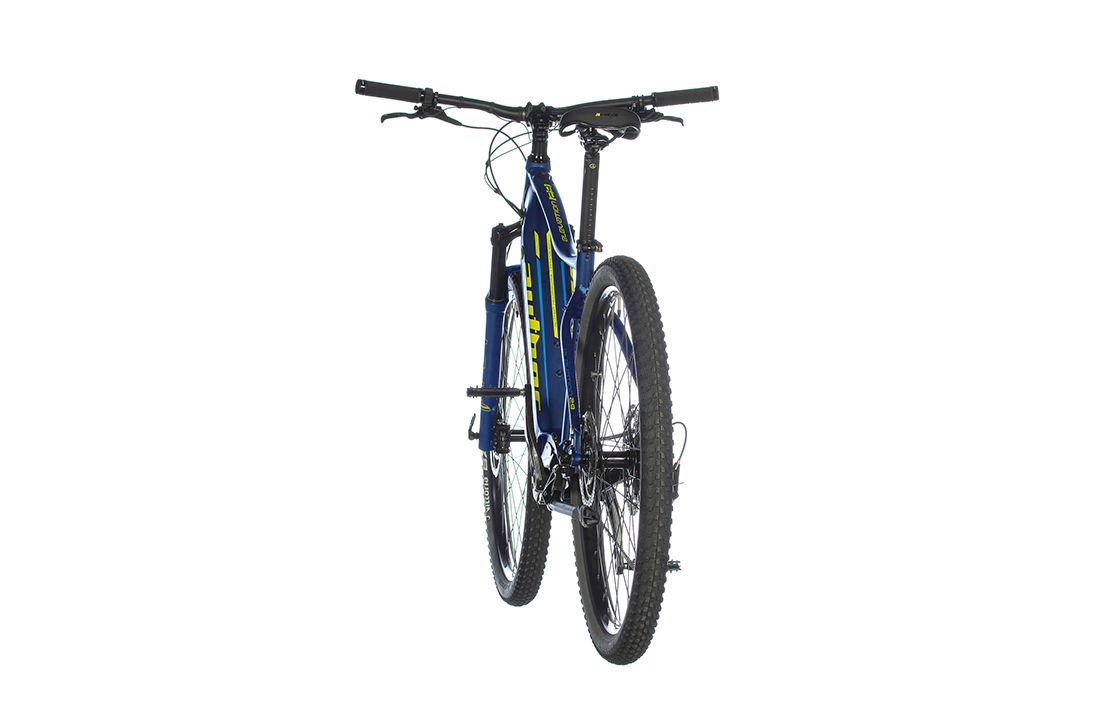

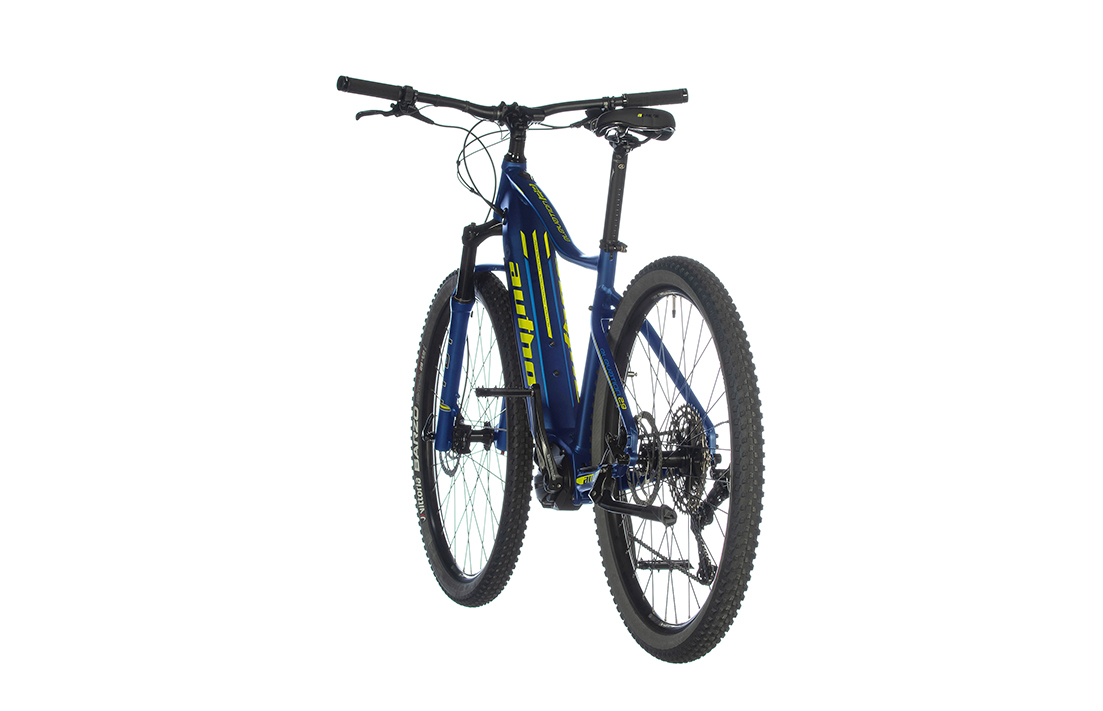

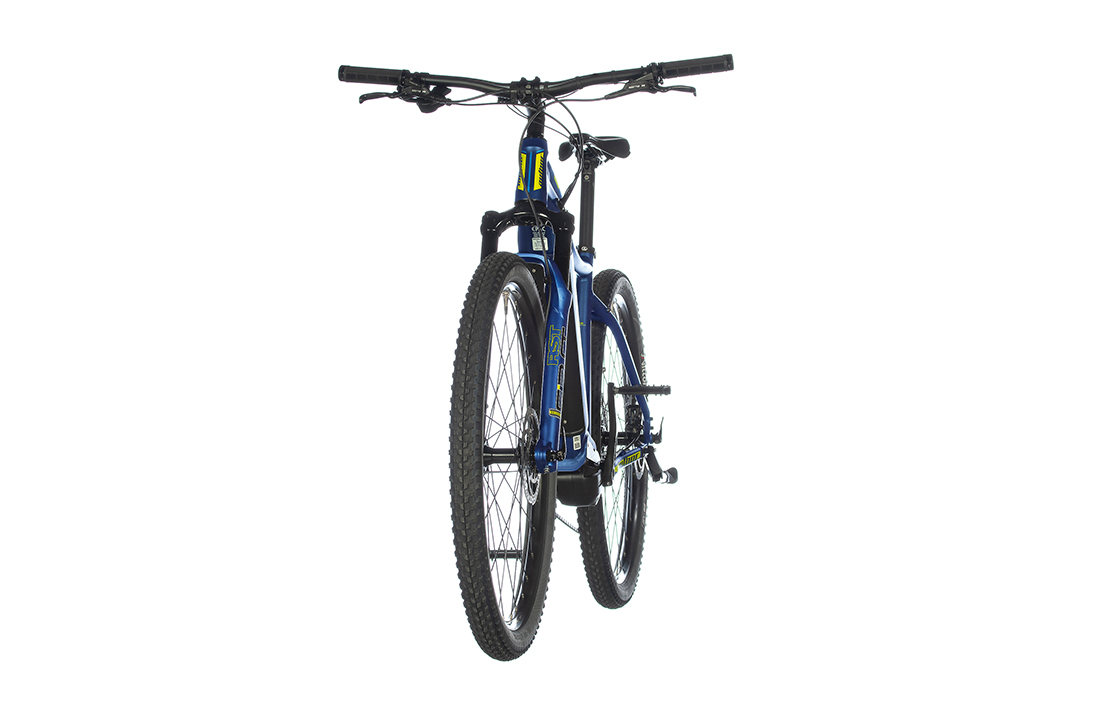

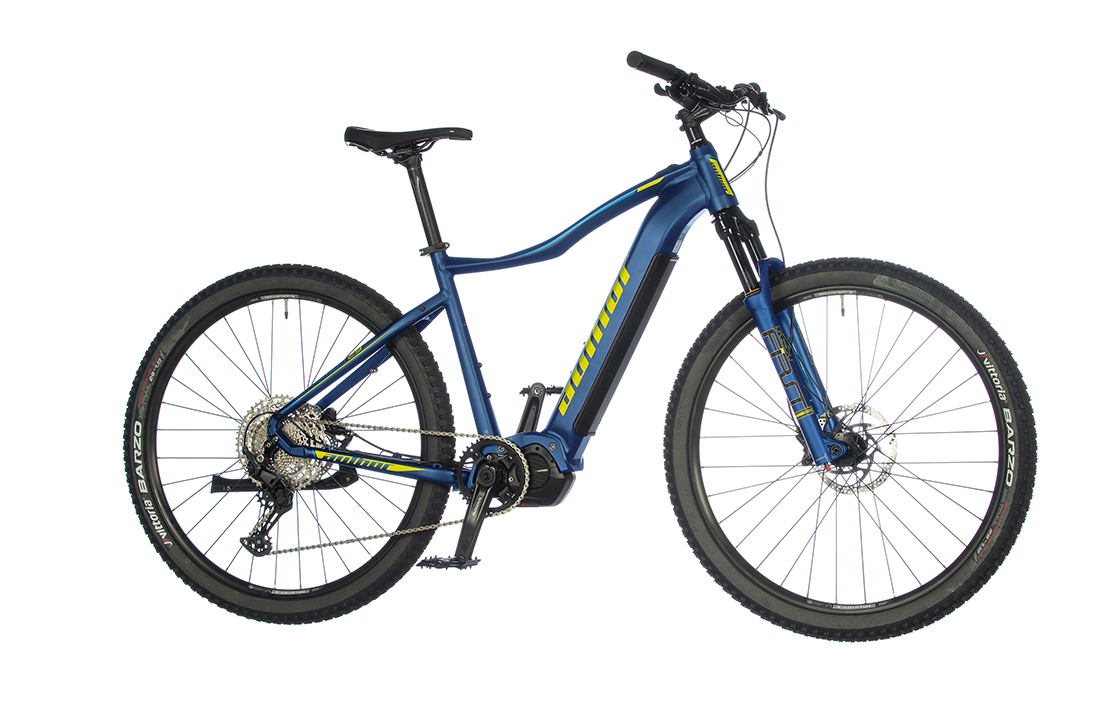

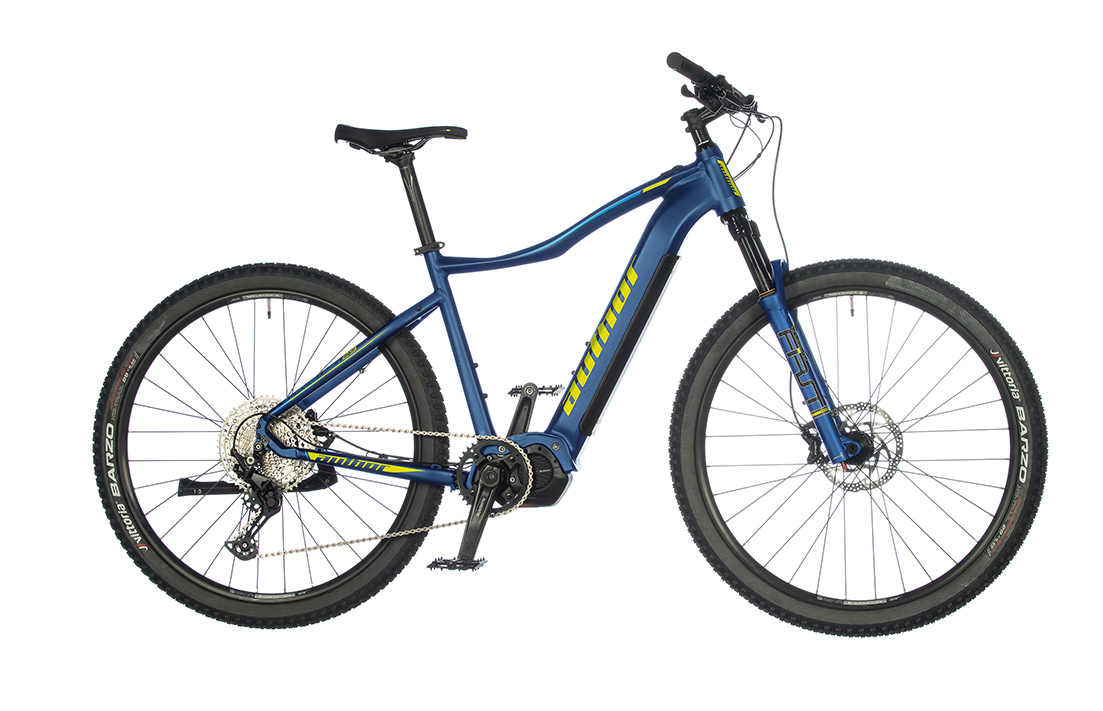

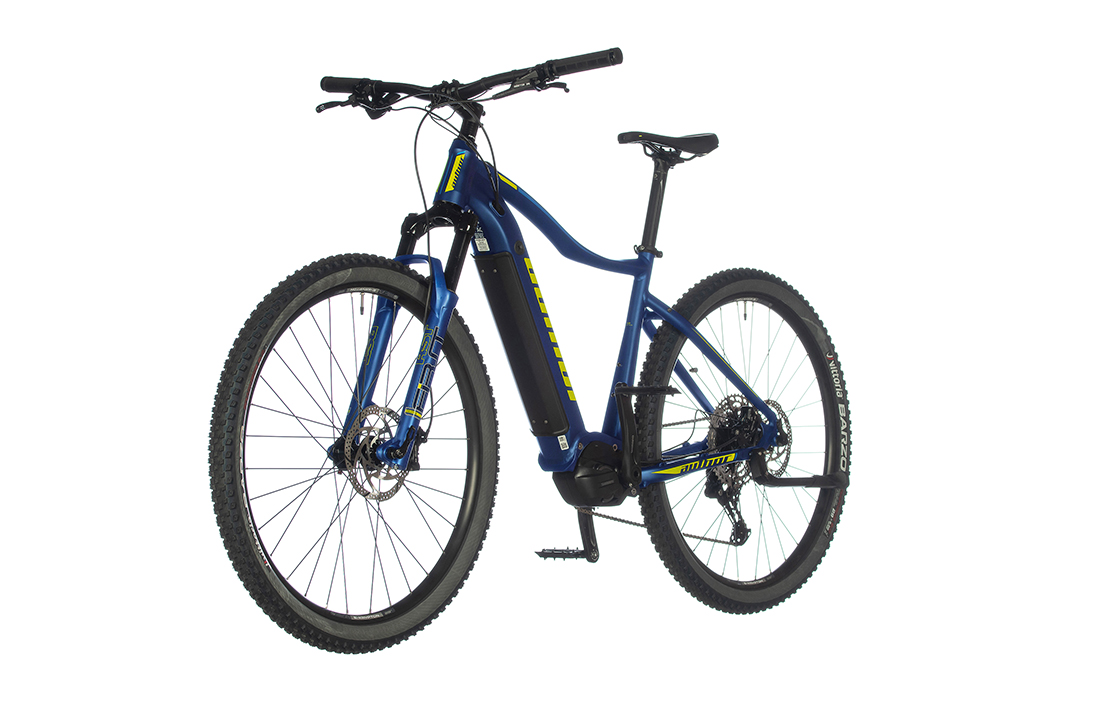

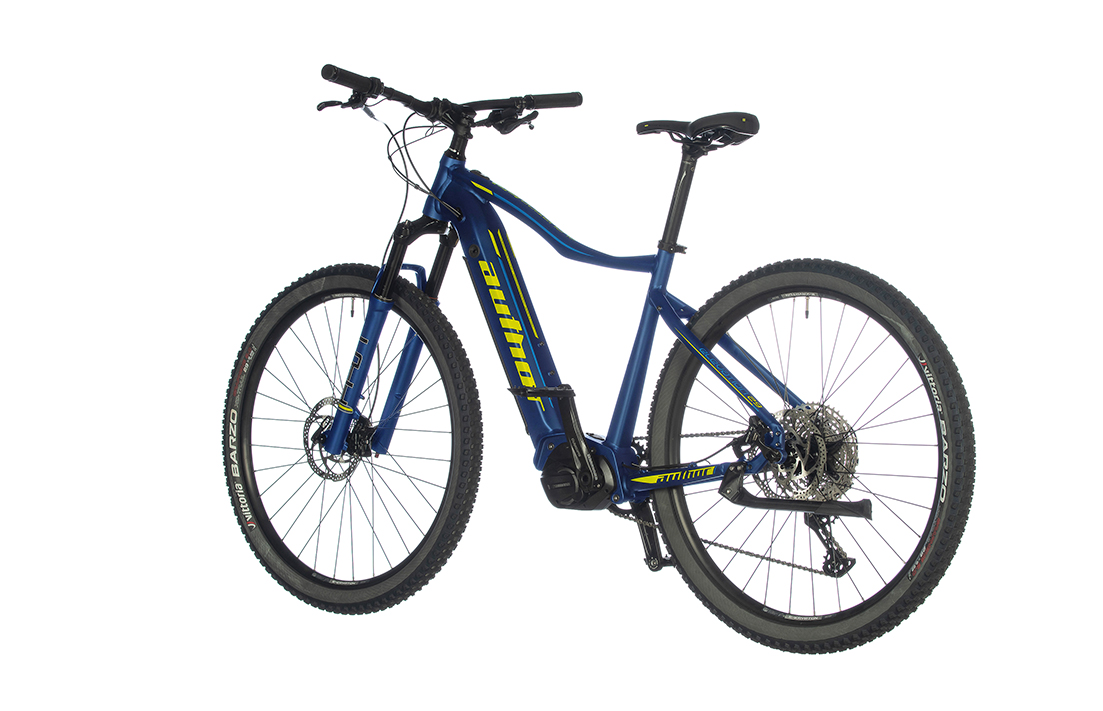

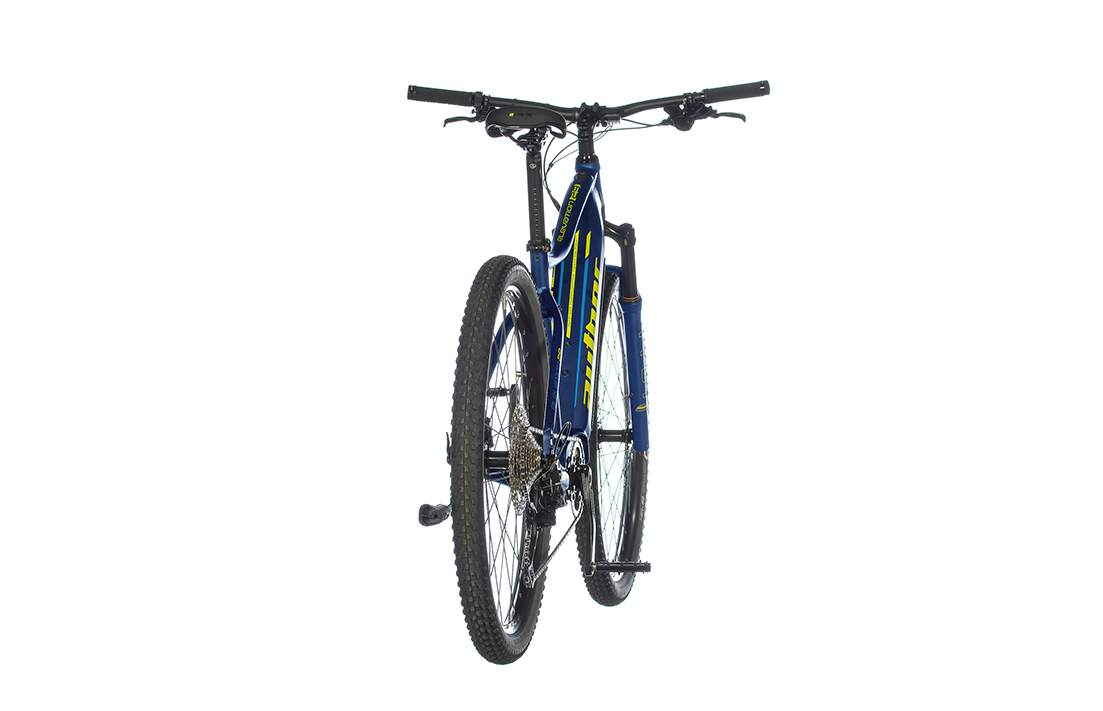

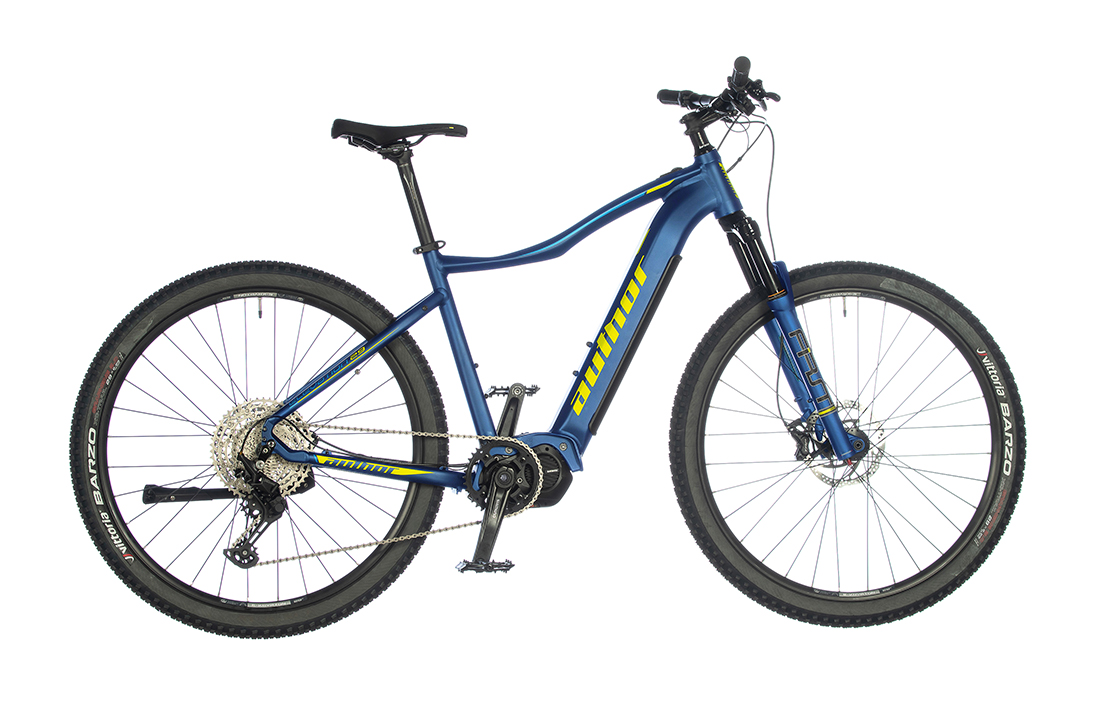

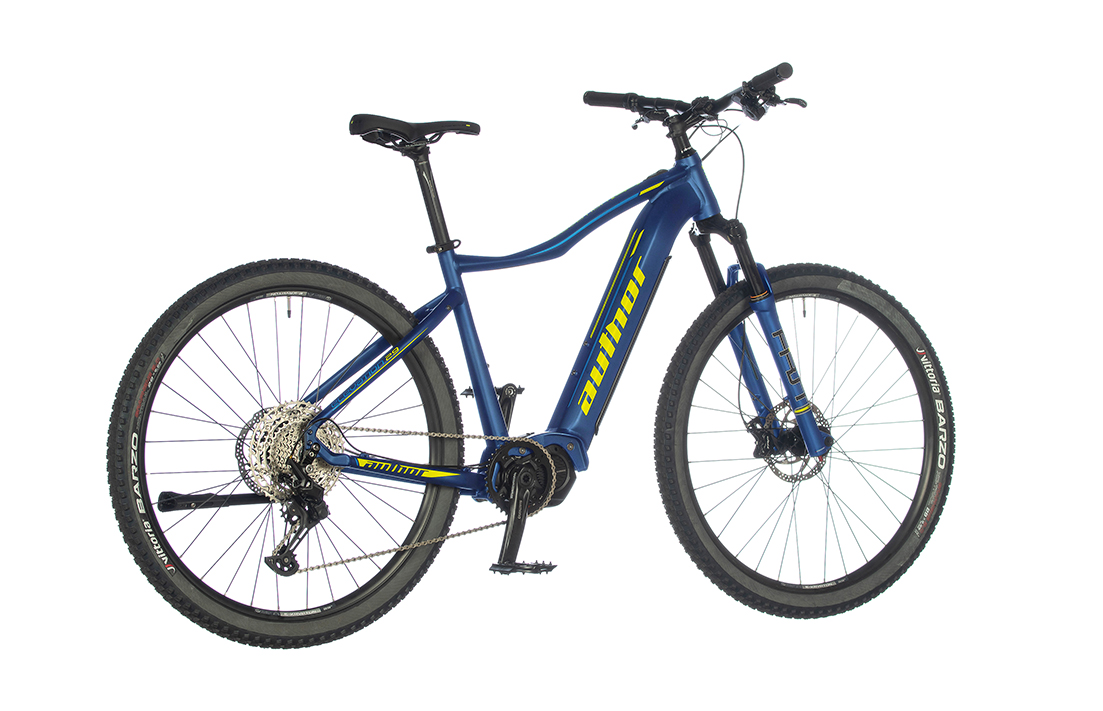

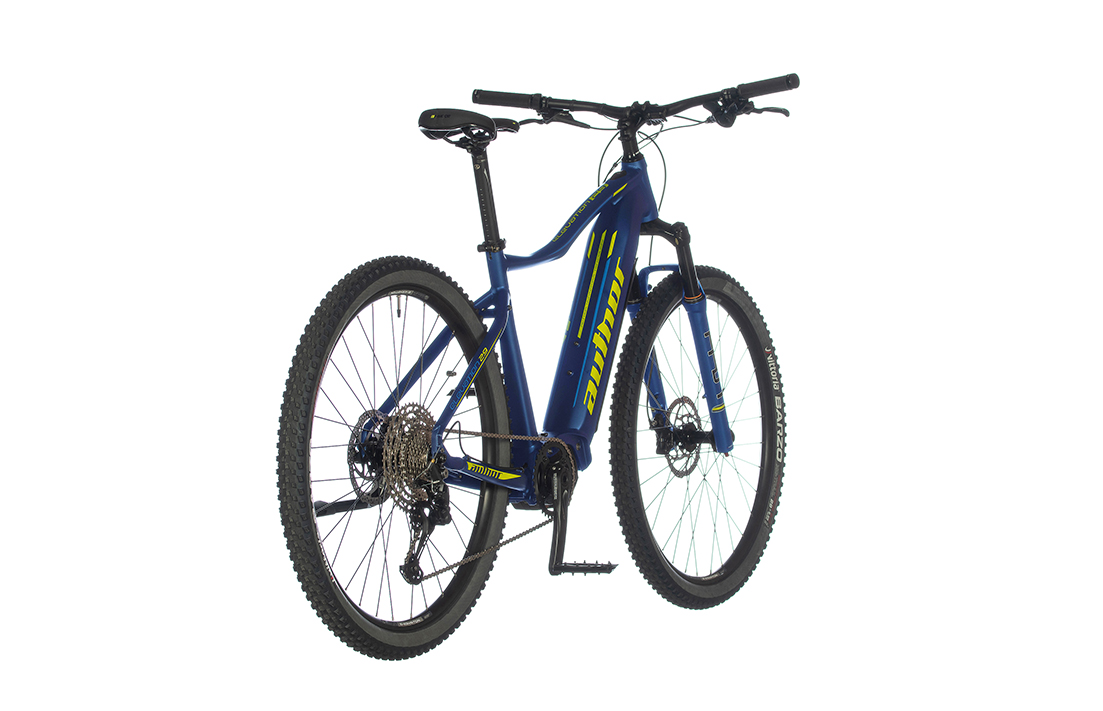

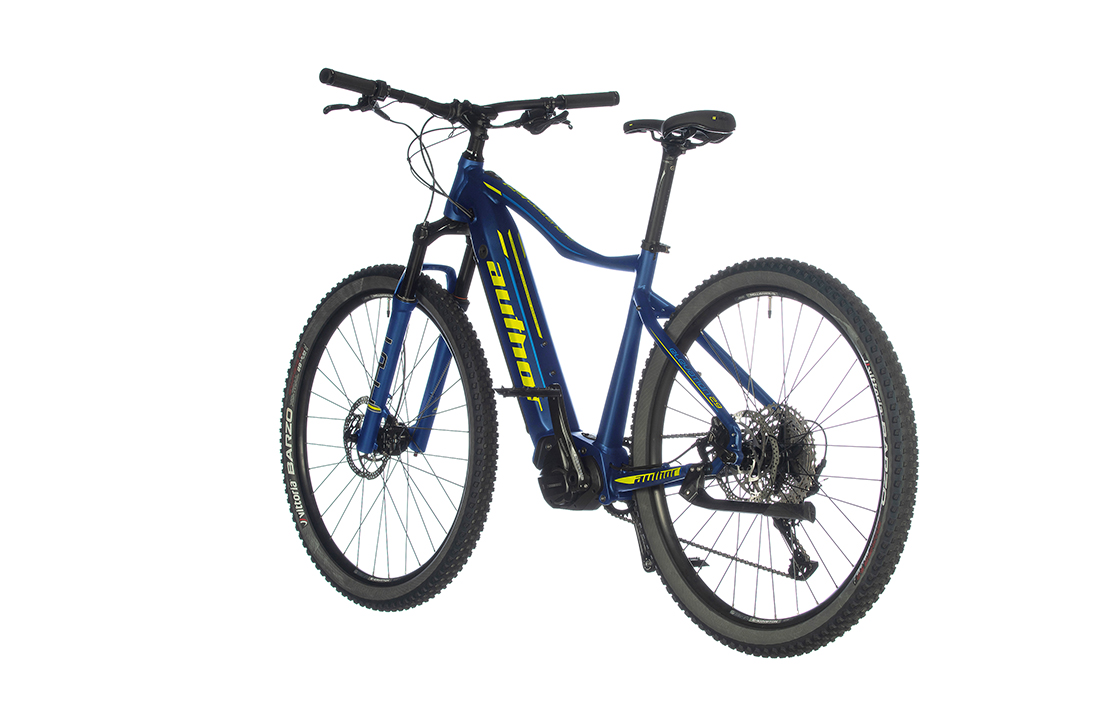

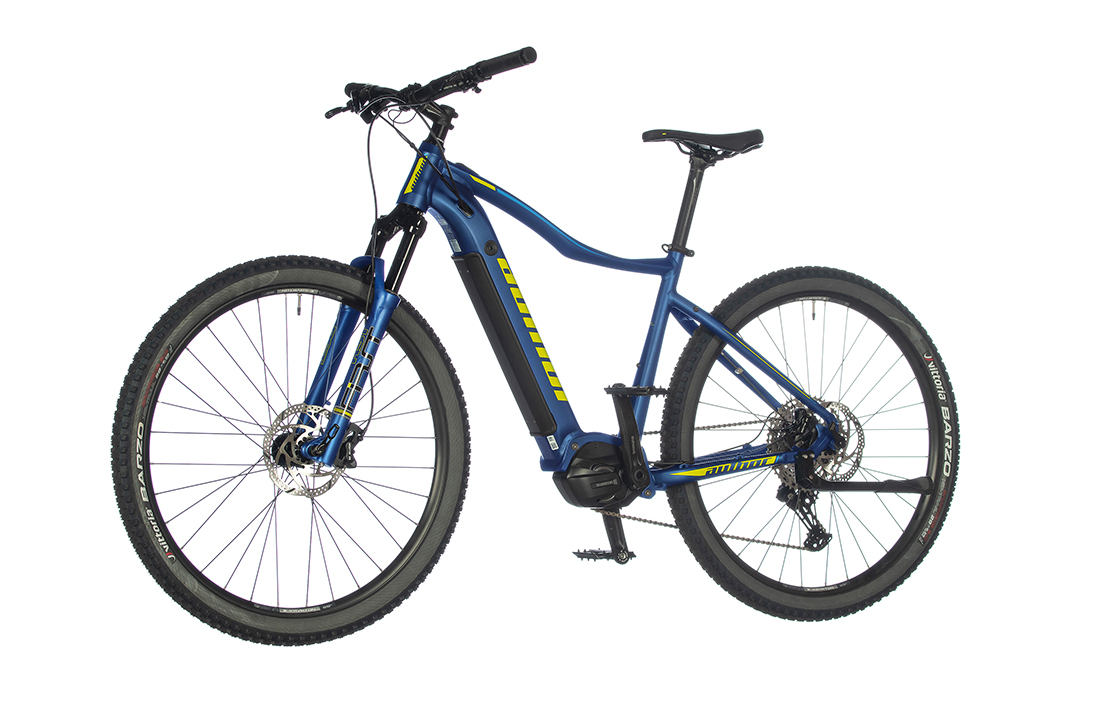

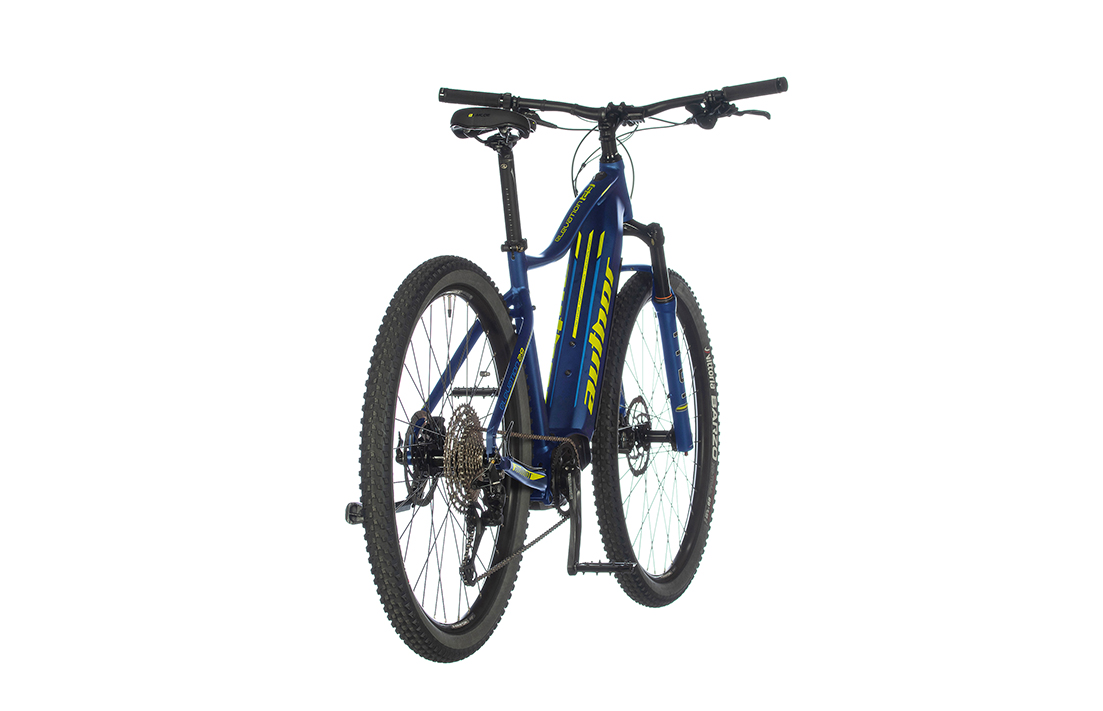

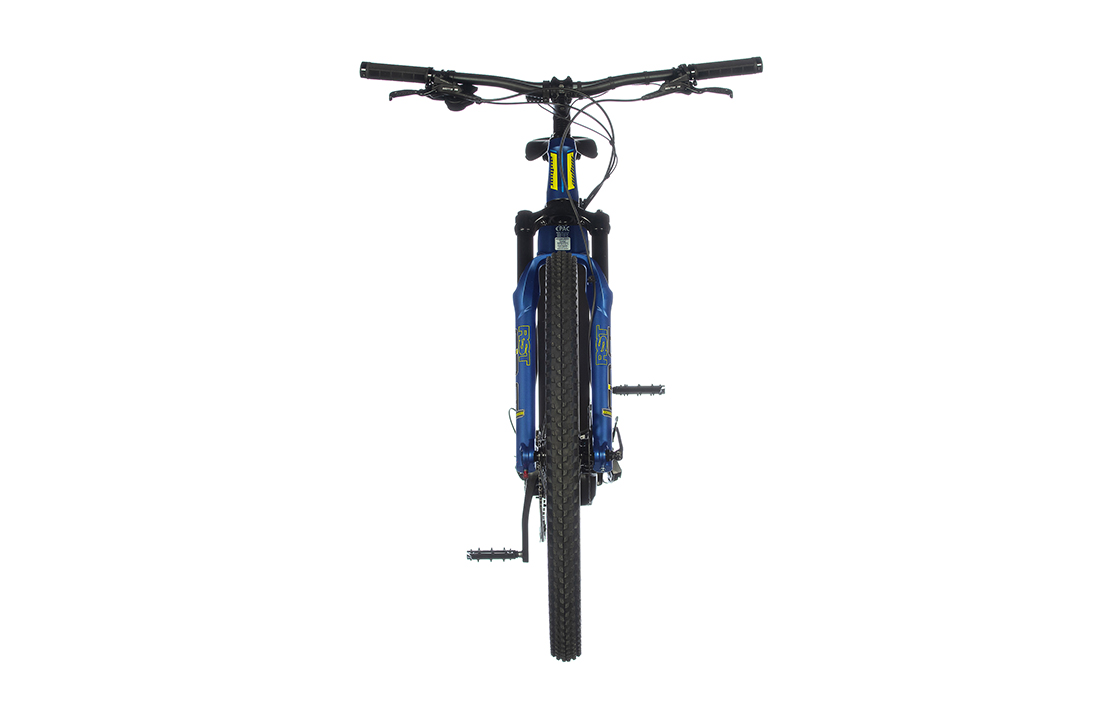

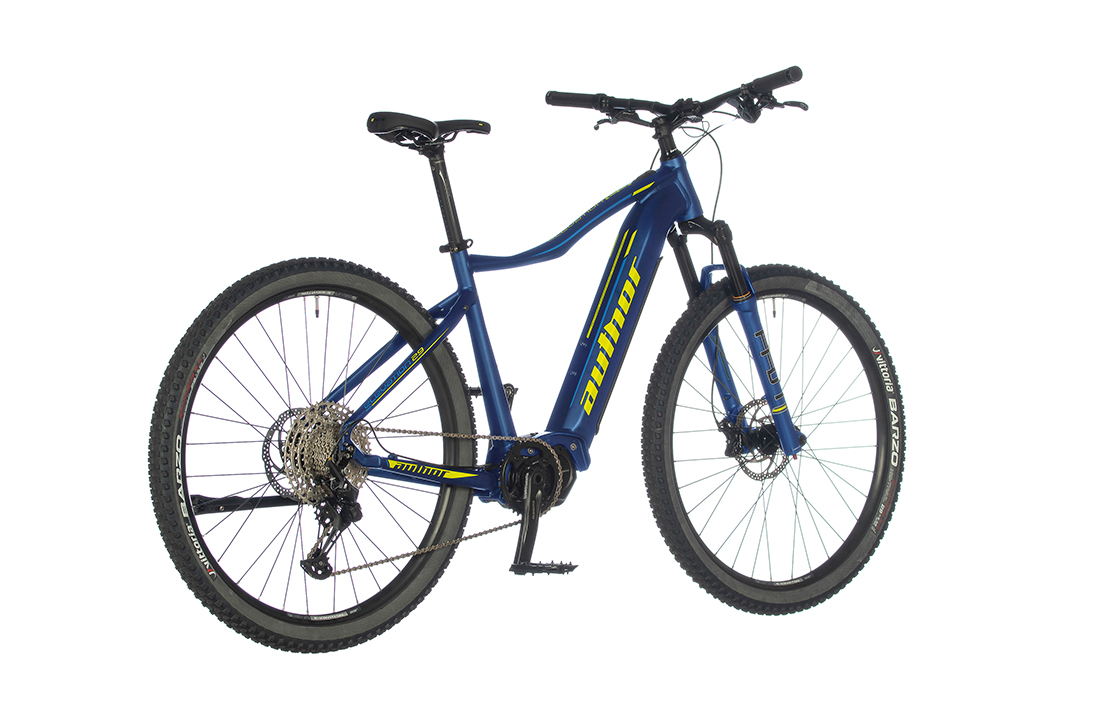

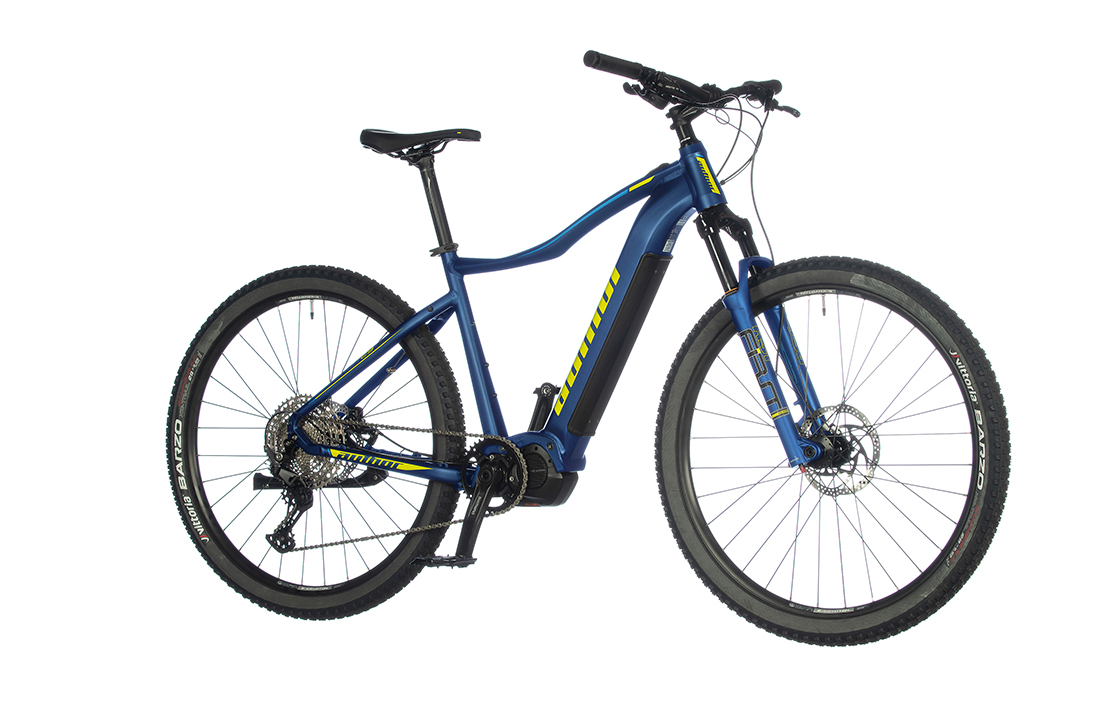

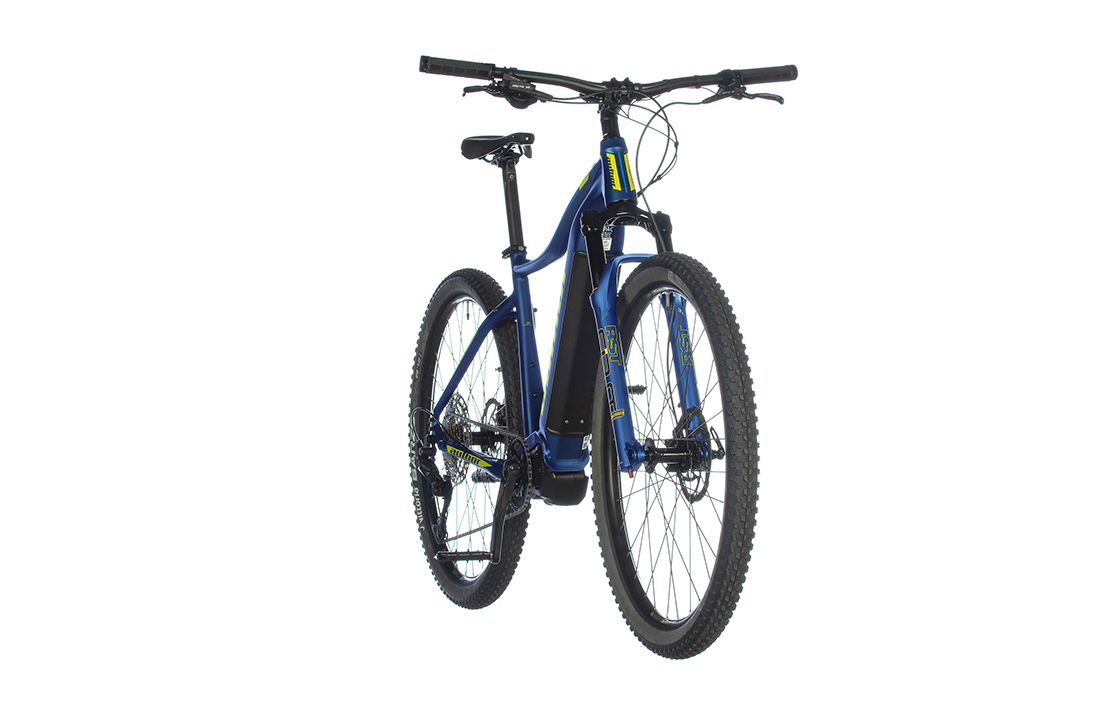

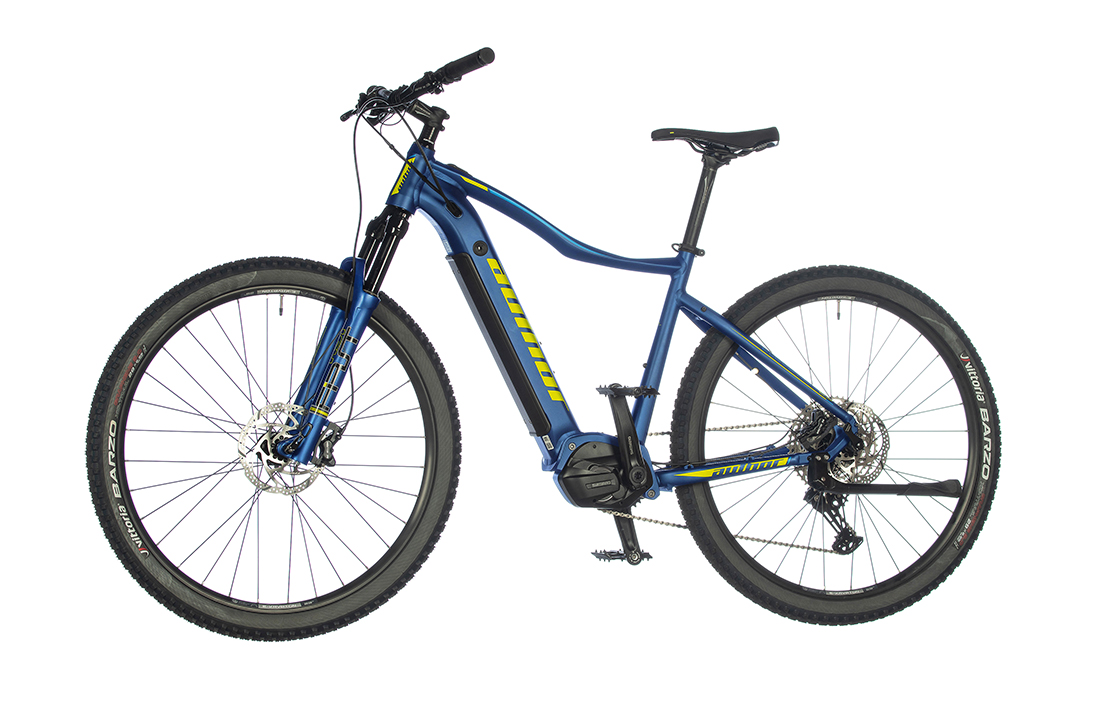

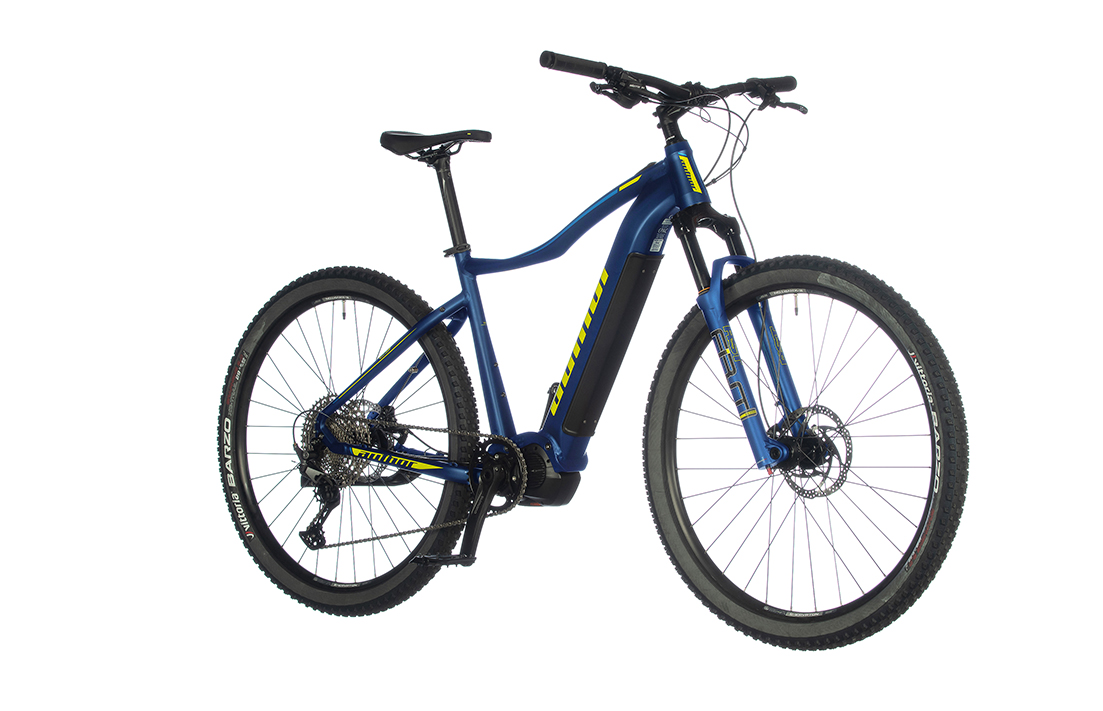

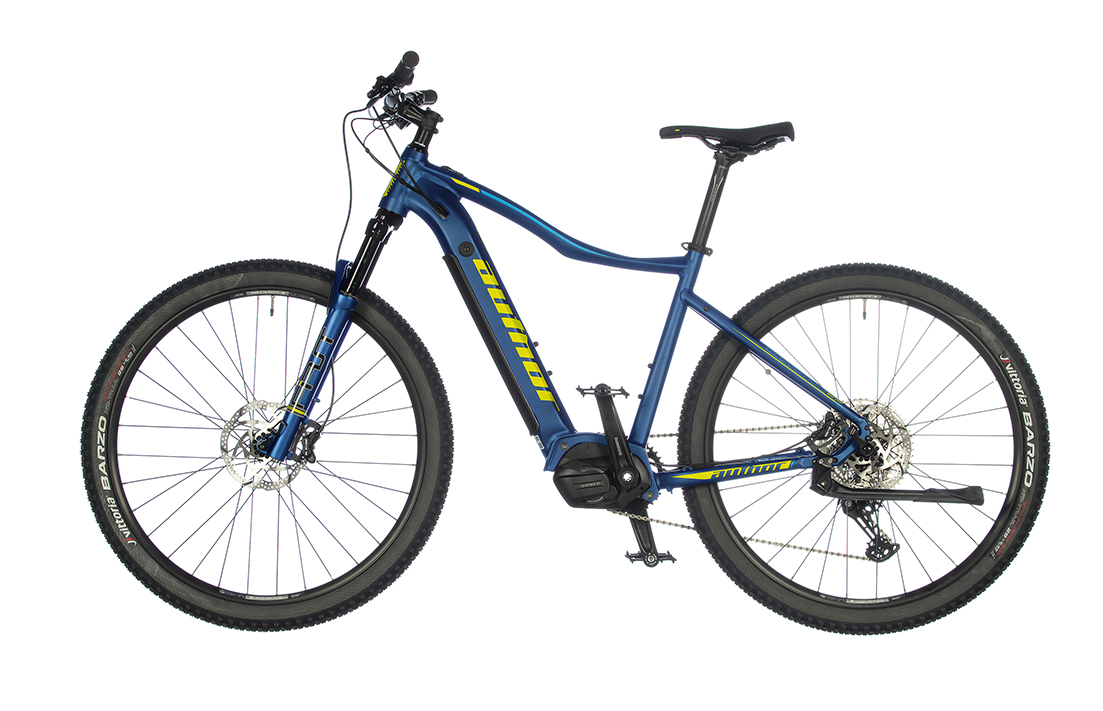

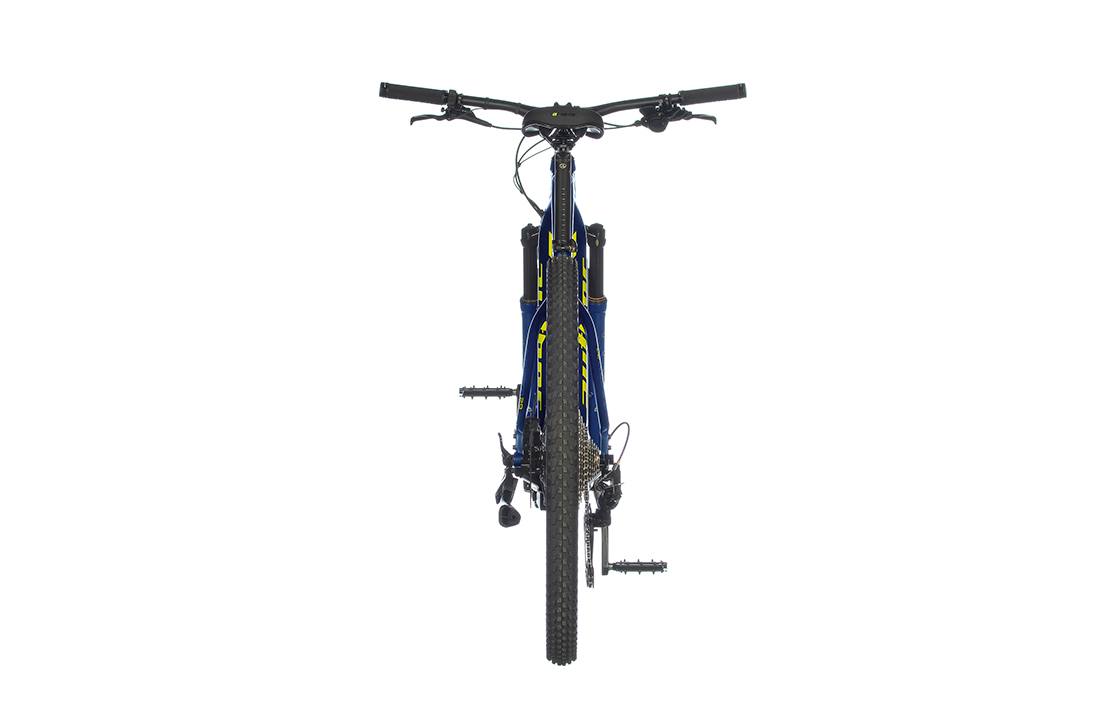

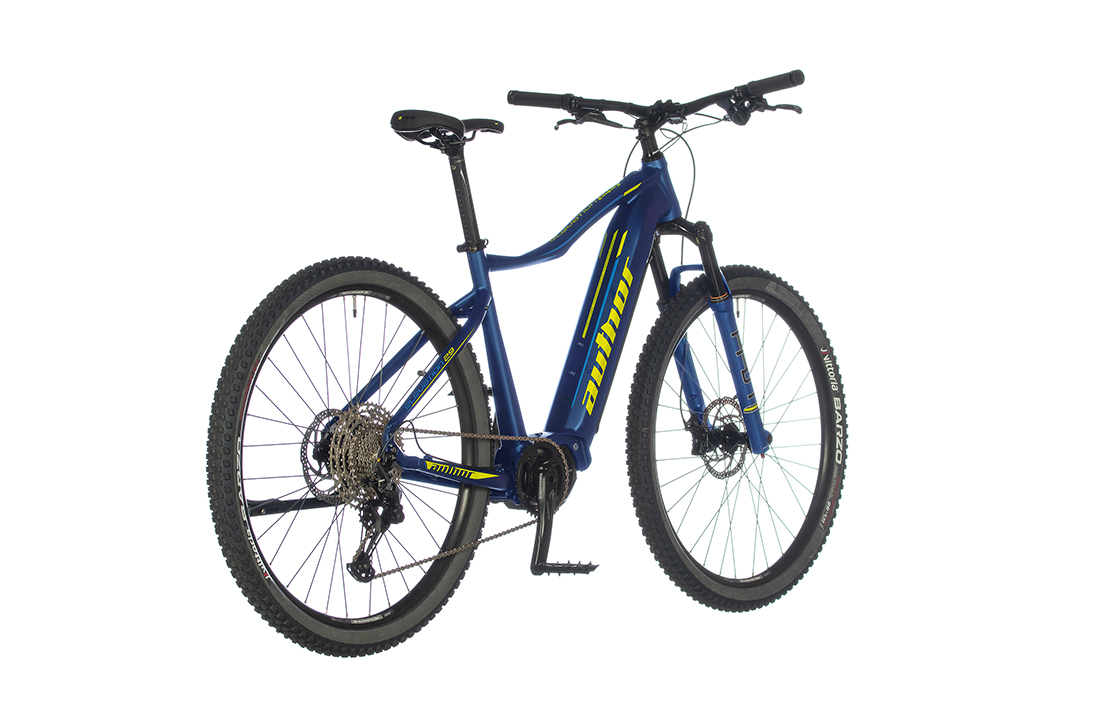

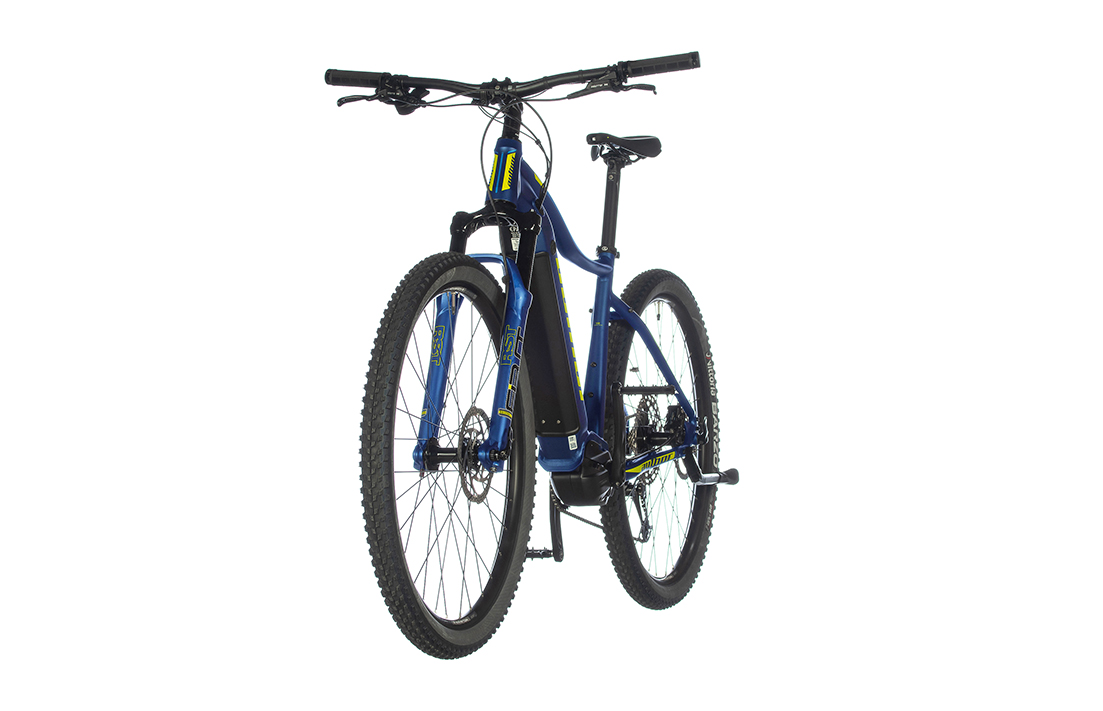

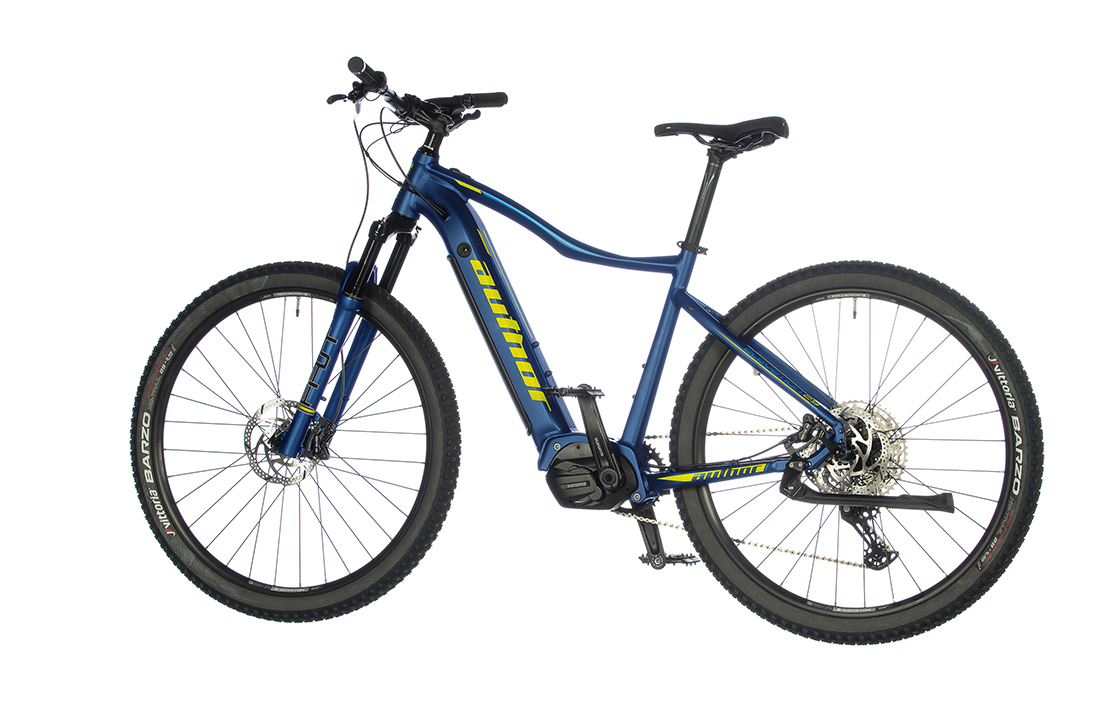

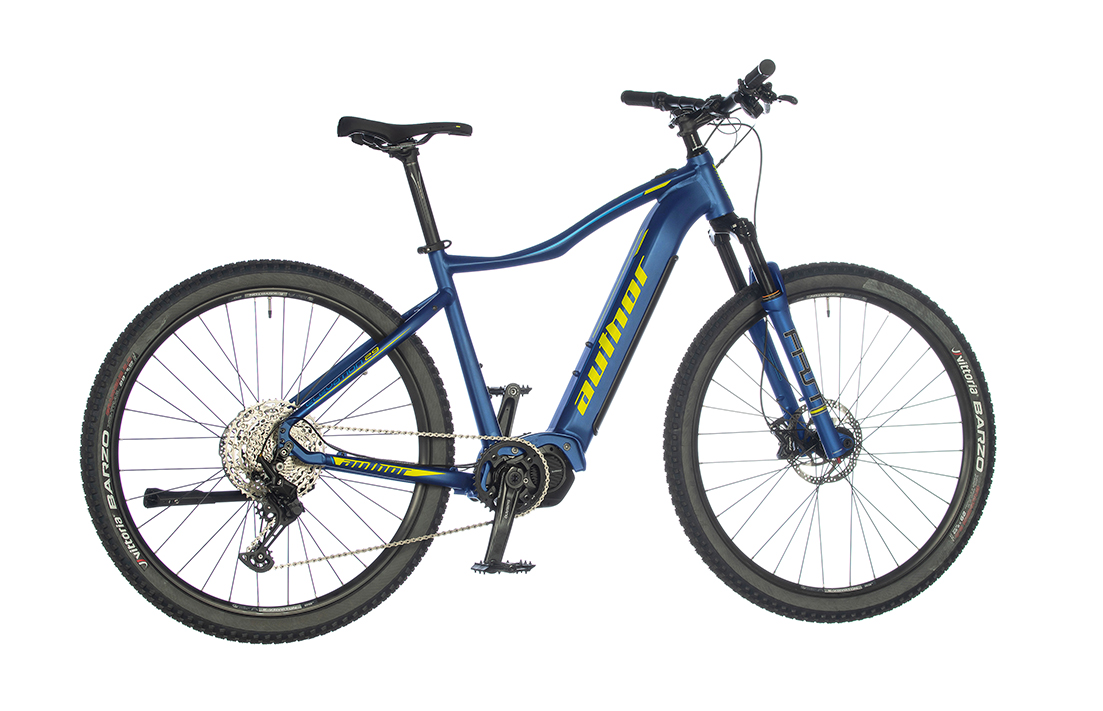

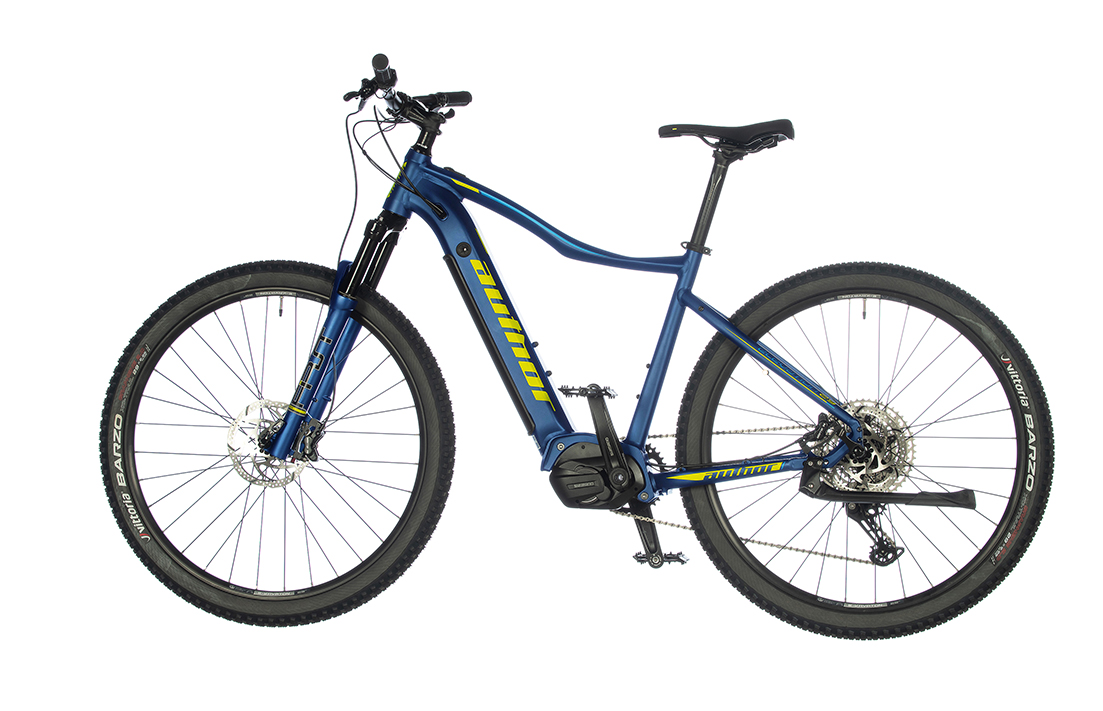

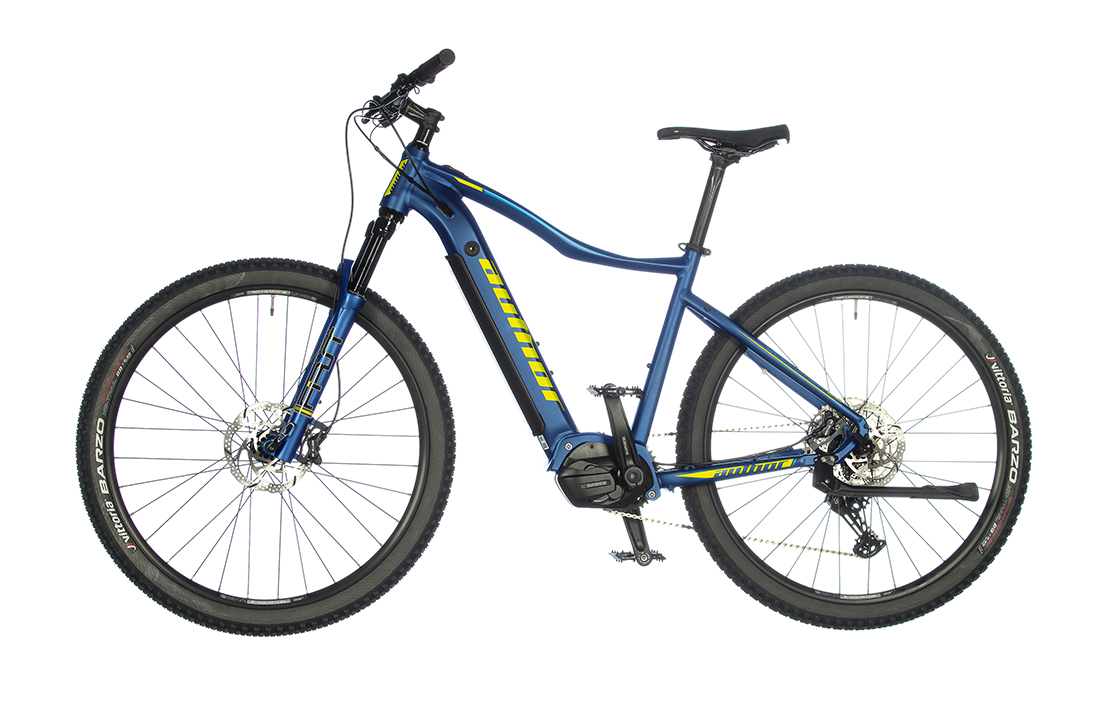

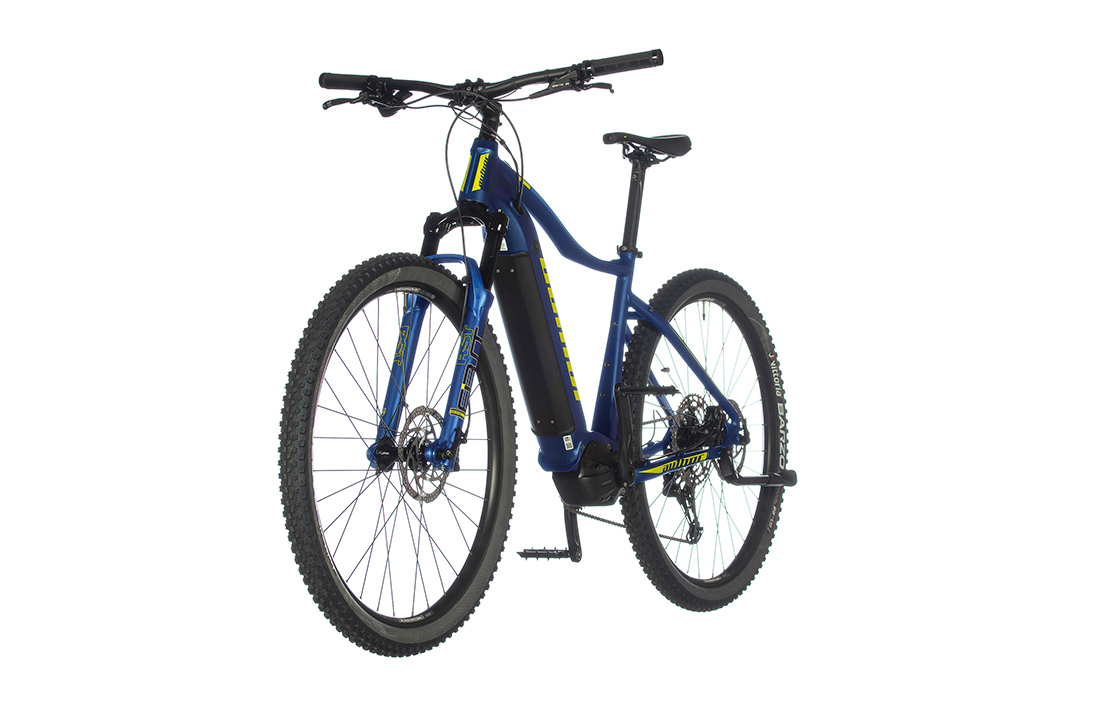

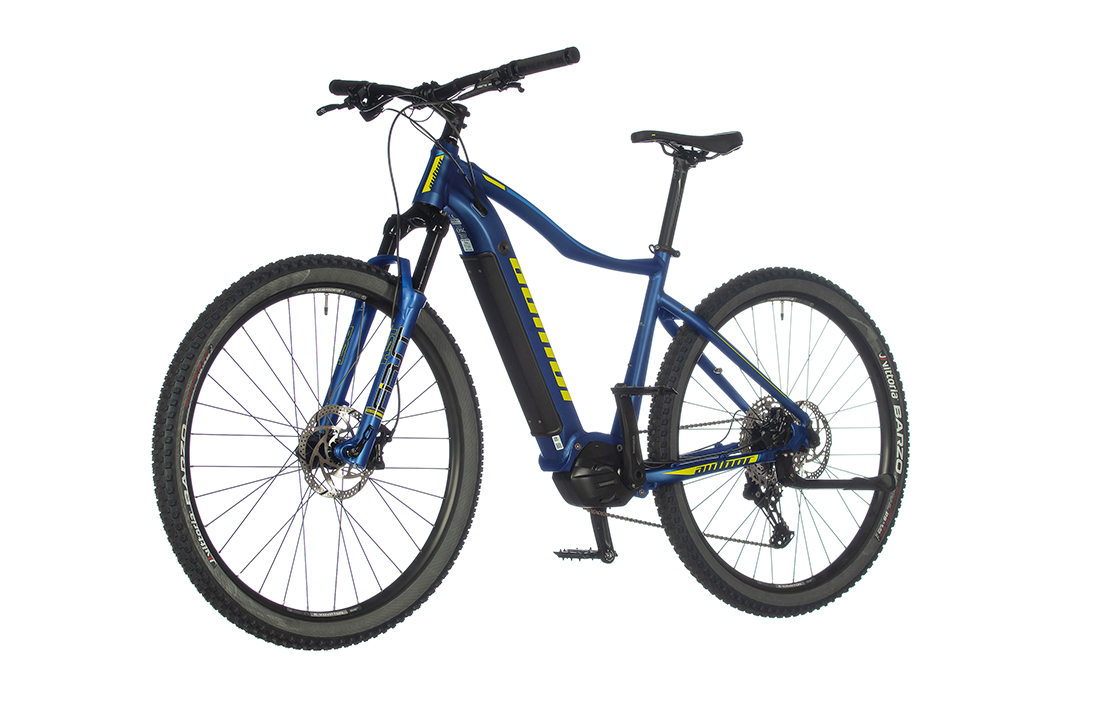

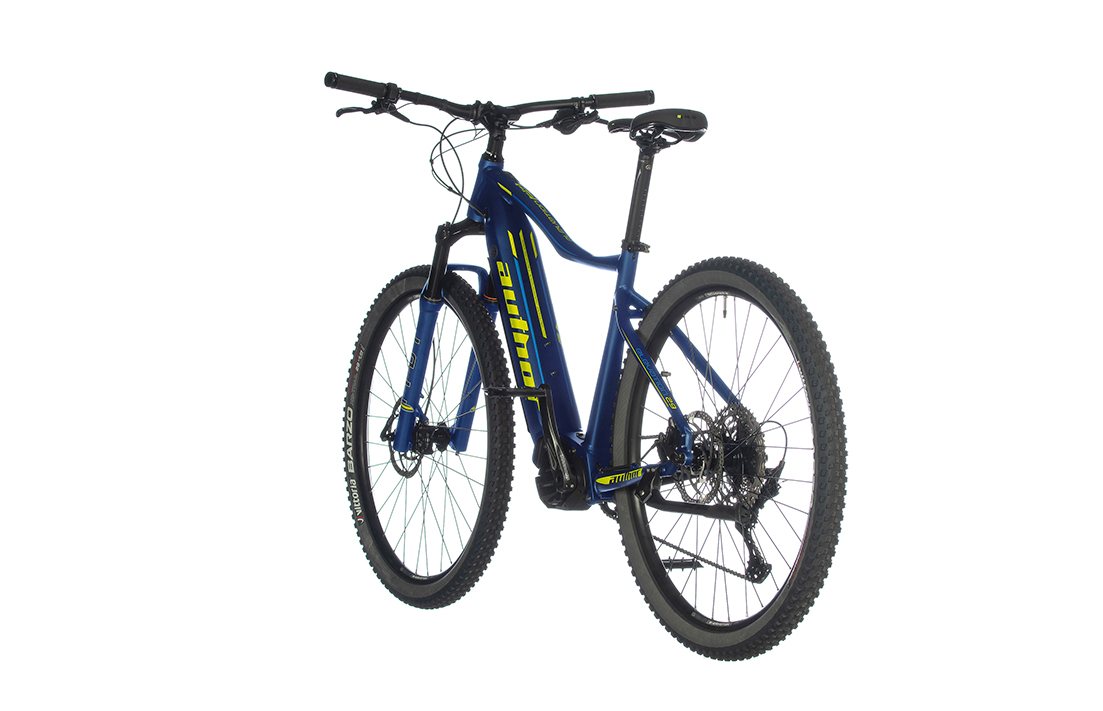

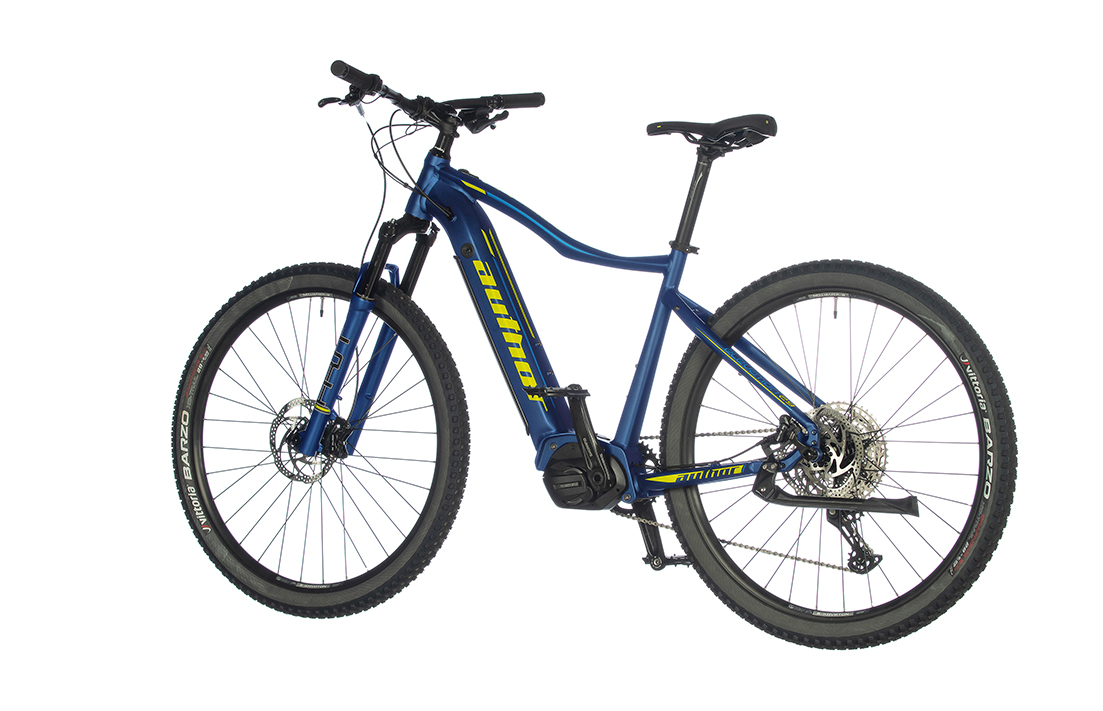

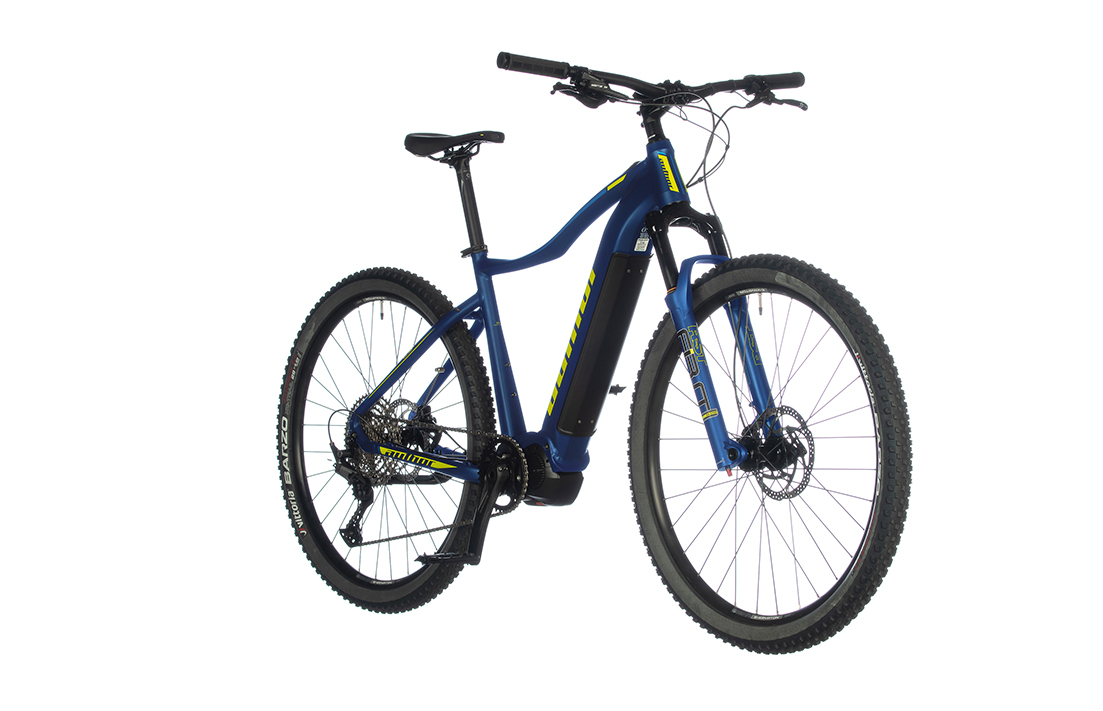

AUTHOR Elevation 29 2021-22

Technical specification

Size	17", 19", 21"
Frame	double butted hydroformed alloy 6061 29" (integrated battery)
Front fork	RST F1RST 110-15 Air TnL air, lock out 15 mm thru axle boost, 1.5" tapered column (100 mm)
Engine	SHIMANO Steps E-7000, 250 W
Battery	SHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
Display	SHIMANO Steps E-7000, LCD
Head parts	AUTHOR Integrated 1,5"
Chain Wheel	SHIMANO Steps E-8000 38 teeth 170 / 175 mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (11)
Free wheel	SHIMANO CS-M5100-11 11-51 (11)
Chain	KMC e11T
Hubs	QUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
Brakes	TRP Slate T4 disc hydraulic (7" rotors)

Geometry and sizes

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		17"	2 stores				42939902
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		in stock	buy now	Holešov	603 373 886, sportcyklo@gmail.com	map
	⟲ In other stores		in 2 days				dealers
		21"	2 stores				42939904
	▪ Bike Sport		in stock	buy now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	⟲ In other stores		in 2 days				dealers
		17"	1 shop				42939912
	▪ Flystork		in stock	buy now	Třebíč	530 513 203, obchod@flystork.cz	map
	⟲ In other stores		in 2 days				dealers
		19"	1 shop				42939913
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

299 KčL&R35 X7Bottle cage Author ABC-35, easy bottle removing from side direction (left or right according the fix ... more »

1/2

199 KčL&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

1/3

375 KčR213 X9The Author saddle bag A-R213 is the universal bag with the one main compartment and one net pocket. ... more »

1/4

299 KčR244The Author saddle bag A-R244 is the universal bag with the one main compartment and one flat pocket. ... more »

1/5

595 Kč ~~695 Kč~~ R282 MPPThe AUTHOR A-R282 MPP ensures your camera is at hand in any situation. It provides easy, hassle-free ... more »

1/7

350 KčS188 TPN X7The Author saddle bag A-S188 is the easy bag with expandable main compartment. Designed for long sat ... more »

1/2

499 KčAKS-670 R18 E-bikeLightweight and high performing kick Stand Author for frame dropout fixation AUTHOR IS-R18. For whee ... more »

750 KčACR-20N-AluCarrier Author Expedition for extreme load and conditions, made from AL6061 tubes d.10mm - light wei ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

250 KčX-FlapX-Flap is the new rear mudguard . The mounting system features a big plastic clamp, that can be easi ... more »

	black / yellow-neon	17" = UA#42939902 19" = UA#42939903 21" = UA#42939904
	blue-matt / lime	17" = UA#42939912 19" = UA#42939913 21" = UA#42939914

AUTHOR Elevation 29 2021-22Archivní model 2021-22
