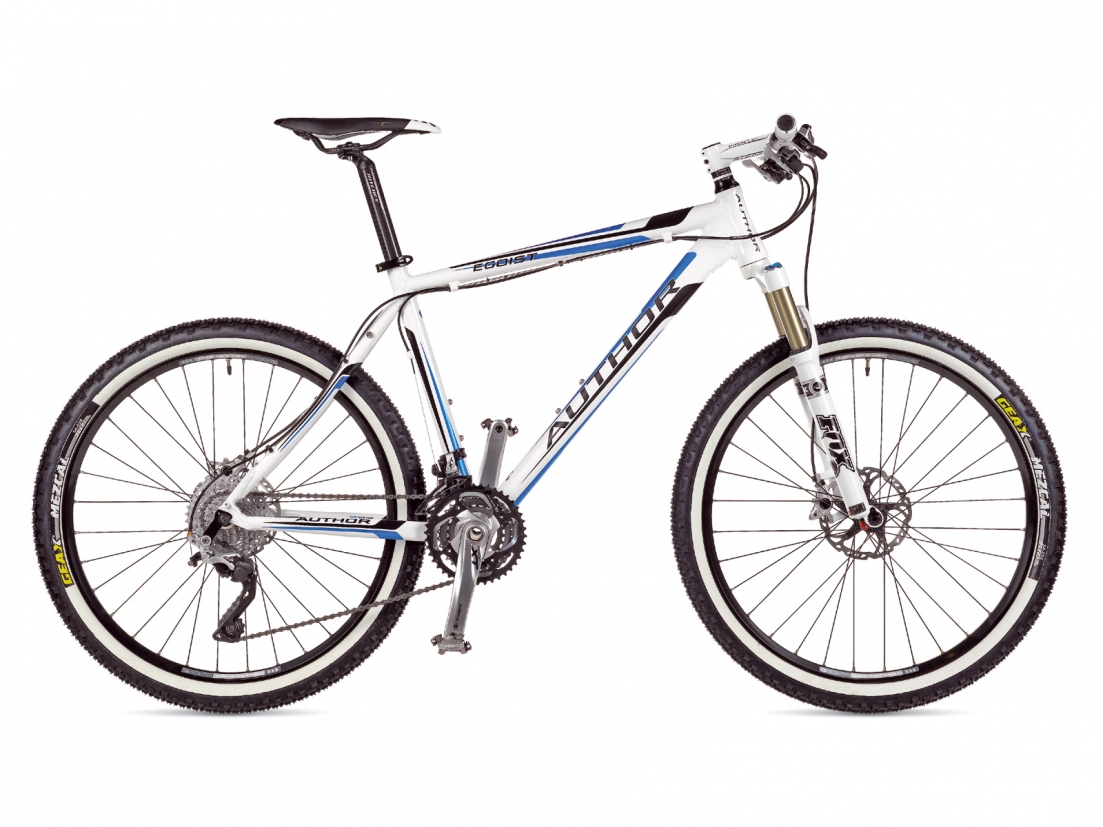

AUTHOR Egoist 2013Archivní model 2013

SOLD OUT

other models

Interested in other model`s year?

2008 2009 2010 2011 2012 2013

Technical specification

Size	16", 17.5", 19", 20.5", 22"
Frame	triple butted alloy 6069 26"
Front fork	FOX 32 Float 26 CTD Fit 100 air, lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head parts	FSA Orbit 1.5B 1.5" taper
Chain Wheel	SHIMANO XT-10 42-32-24 teeth 170 / 175 mm cranks
BBParts	SHIMANO XT-10 BB unit
Front derailleur	SHIMANO XT (34.9)
Rear derailleur	SHIMANO XT
Shifters	SHIMANO XT (30)
Free wheel	SHIMANO M771-10 11-36 (10)
Chain	SHIMANO HG-74
Hubs	SHIMANO XT disc 15 mm thru axle 32 holes
Brakes	SHIMANO XT disc hydraulic (6" rotors)
Brakes levers	SHIMANO XT

Rims	AUTHOR Helium Pro 32 holes
Spokes	black stainless steel 2.0 mm triple butted
Tires	GEAX Mezcal Kevlar White Black 26" x 2.10"
Pedals	SHIMANO M540 clipless
Handlebar	RITCHEY Pro 0 mm 580 / 600 mm
Grips	AUTHOR GripLock
Stem	RITCHEY WCS C-260
Seat post	RITCHEY Pro Carbon 2B (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	FIZIK Tundra II
Speed	30
Weight	10,9 Kg / 19"

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
