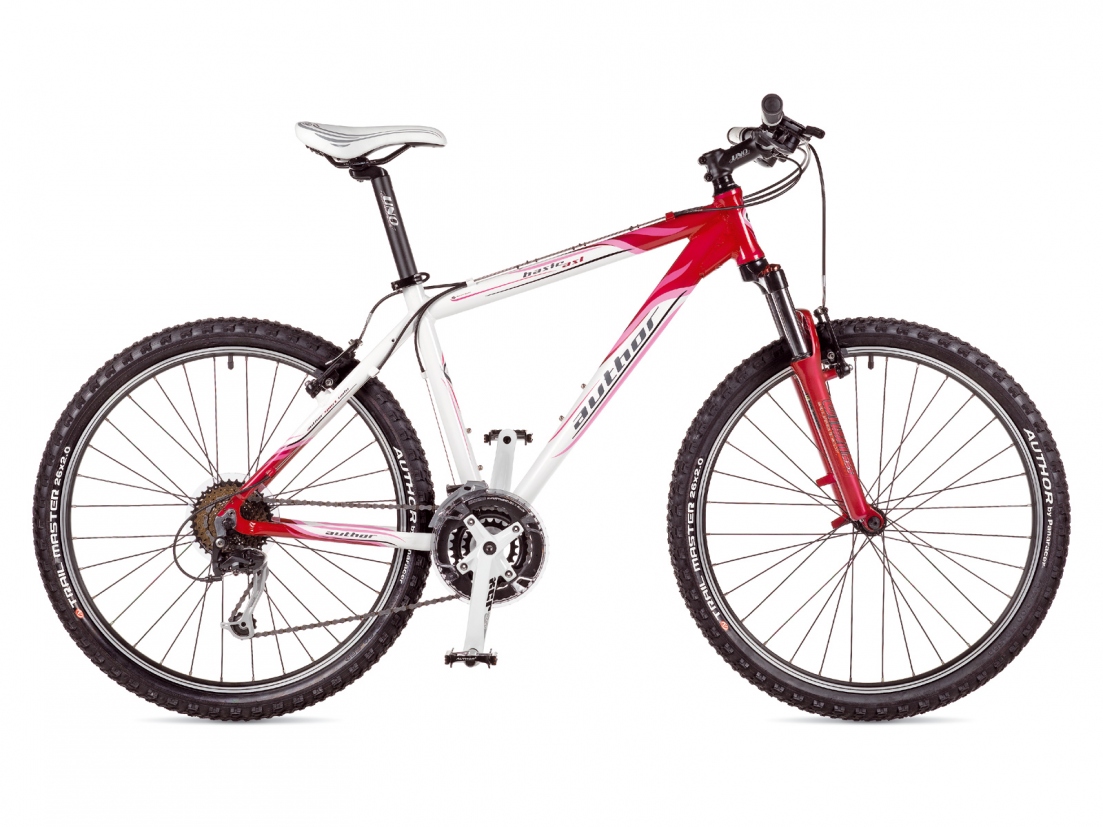

AUTHOR Bicycle Basic ASL 2013
Interested in other model`s year?

Technical specification

Size16", 18", 20"
Framealloy 6061 26" (ASL)
Front forkRST Gila TnL oil, lock out (80 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSUNTOUR XCM-T414 44-32-22 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO Acera (34.9)
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Acera (27)
Free wheelSHIMANO HG-20-9 11-32 (9)
ChainSHIMANO HG-53
HubsQUANDO 32 holes
BrakesTEKTRO 837AL
Brakes leversSHIMANO Acera
RimsAUTHOR Xenon black 32 holes
Spokesblack steel
TiresAUTHOR Trail Master 26" x 2.00"
PedalsAUTHOR alloy
HandlebarKALLOY 15 mm 620 mm
GripsAUTHOR high density foam
StemKALLOY alloy
Seat postKALLOY alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Sport Lady
Speed27
Weight13,1 Kg / 18"

Geometry and sizes

Size 16" 18" 20"
Min. figure [cm] 148 160 173
Max. figure [cm] 162 175 185
S/T c-t [mm] 406 457 508
S/T c-c [mm] 0 0 0
T/T h [mm] 531 565 580
T/T a [mm] 517 543 561
H/T [mm] 115 120 125
C/S [mm] 425 425 425
W/B [mm] 1023 1051 1067
S/T ang. [°] 74 73.5 73.5
H/T ang. [°] 70 70 70
F/L [mm] 456 456 456
B/B drop [mm] 44 44 44
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 38 38 38
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Basic ASL 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
