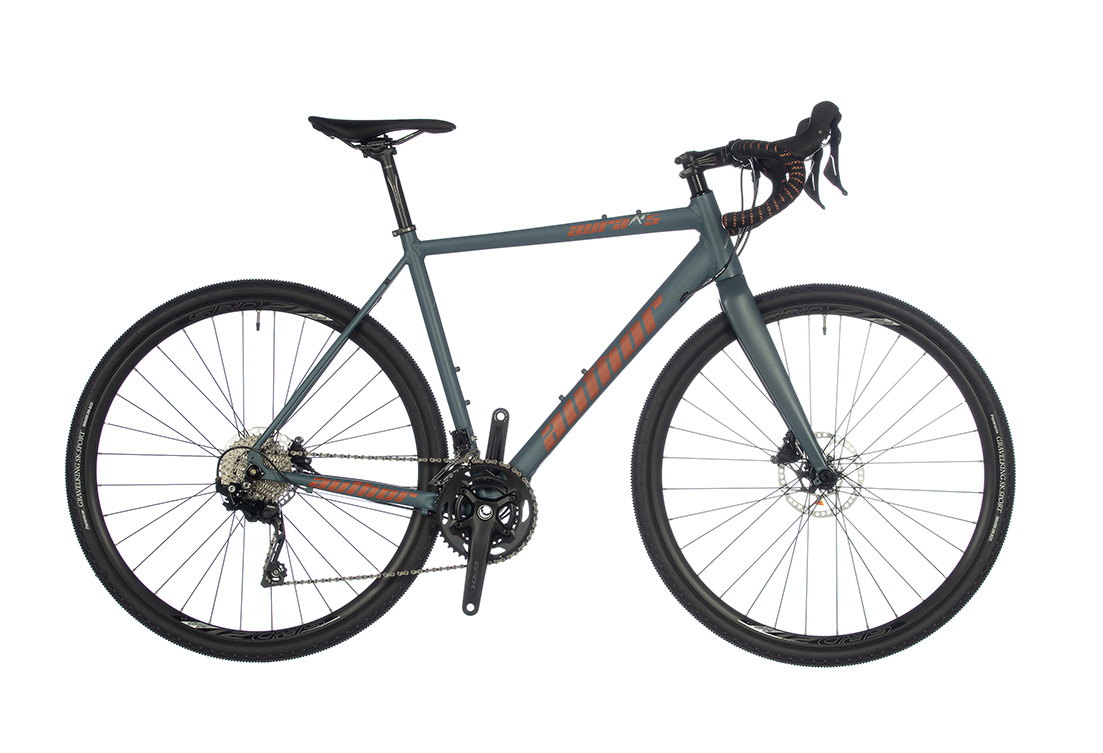

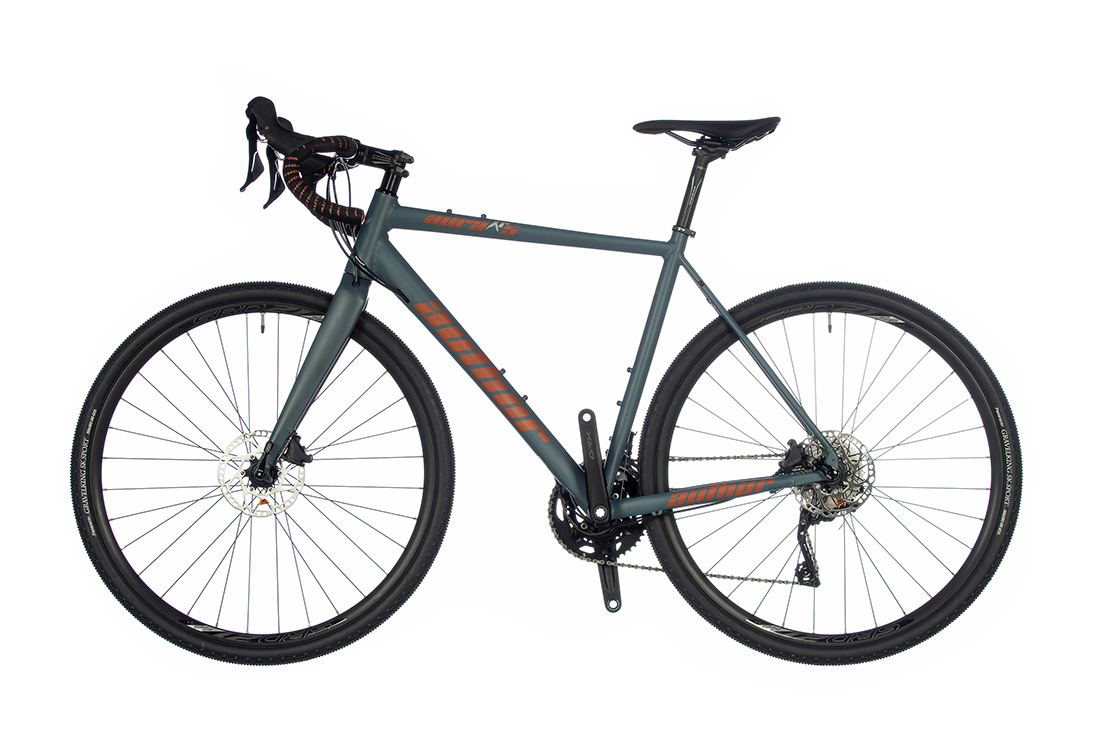

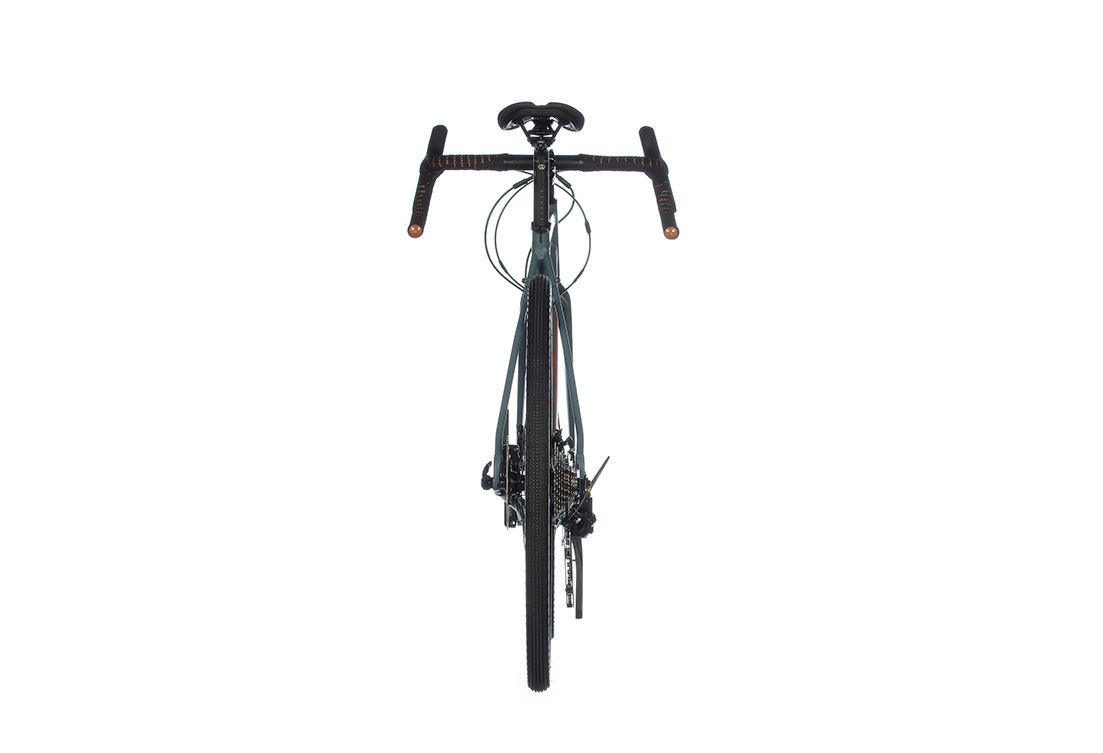

AUTHOR Aura XR5 2021-22
aura xr5 aut5462 viewde
aura xr5 aut5463 viewde
aura xr5 aut5464 viewde
aura xr5 aut5465 viewde
aura xr5 aut5466 viewde
aura xr5 aut5467 viewde
aura xr5 aut5468 viewde
aura xr5 aut5469 viewde
aura xr5 aut5470 viewde
aura xr5 aut5471 viewde
AUTHOR Aura XR5 2021-22aura xr5 aut5462 viewdeaura xr5 aut5463 viewdeaura xr5 aut5464 viewdeaura xr5 aut5465 viewdeaura xr5 aut5466 viewdeaura xr5 aut5467 viewdeaura xr5 aut5468 viewdeaura xr5 aut5469 viewdeaura xr5 aut5470 viewdeaura xr5 aut5471 viewde
  » Bicycles » gravel » bike models

AUTHOR Aura XR5 2021-22Archivní model 2021-22

Colour variants
Alloy hydroformed triple butted frame, carbon forkSHIMANO GRX 400, 20 speed, compact chainwheelPANARACER GRAVEL KING SK SPORT foldable tires
other models
Interested in other model`s year?

Technical specification

Size500, 520, 540, 560, 580 mm
Frametriple butted alloy 6061
Front forkAUTHOR carbon legs, alloy steerer 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelSHIMANO GRX 600 46-30 teeth 172.5 / 175 mm cranks
BBPartsSHIMANO BB-RS500 BB unit
Front derailleurSHIMANO GRX 400
Rear derailleurSHIMANO GRX 400
ShiftersSHIMANO GRX 400 (20)
Free wheelSHIMANO HG500-10 11-34 (10)
ChainKMC X10
HubsSHIMANO Road Disc 12 × 100 mm thru front axle 12 × 142 mm rear thru axle 32 holes
BrakesSHIMANO GRX 400 disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 400
RimsJALCO SRD 21 32 holes
Spokesblack stainless steel 2.0 mm
TiresPANARACER Gravel King SK Sport aramid 700 × 38c
HandlebarPROMAX 420 / 440 / 460 mm
TapesAUTHOR suede / gel
StemAUTHOR
Seat postAUTHOR (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Guru CR
Speed20
Weight10,6 kg / 54 cm

Geometry and sizes

Size 480 500 520 540 560 580
Min. figure [cm] 152 160 168 176 183 190
Max. figure [cm] 162 170 178 185 193 205
S/T c-t [mm] 480 500 520 540 560 580
S/T c-c [mm] 440 460 480 500 520 540
T/T h [mm] 515 530 545 560 580 595
T/T a [mm] 502 518 532 546 563 576
H/T [mm] 100 120 140 160 180 200
C/S [mm] 425 425 425 425 425 425
W/B [mm] 1002 1014 1020 1031 1042 1046
S/T ang. [°] 75 74.5 74 73.5 73 72.5
H/T ang. [°] 70.5 70.5 71 71 71.5 72
F/L [mm] 400 400 400 400 400 400
B/B drop [mm] 71 70 70 69 68 68
B/B width [mm] 0 0 0 0 0 0
Reach [mm] 373 378 382 386 395 397
Stack [mm] 530 548 568 586 606 627
F/R [mm] 45 45 45 45 45 45
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Aura XR5 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

grey-matt50 = UA#42941402   52 = UA#42941403   54 = UA#42941404   56 = UA#42941405   58 = UA#42941406
