  » Bicycles » cross » cross 29

Airline 2023-24Archivní model 2023-24

Colour variants
1
Tripple butted alloy frameLock out fork RST ViV Air TnlHydraulic disc brakes TEKTROSHIMANO Deore components, 30 speedAUTHOR Speed Master 29" × 1.75" tiresAUTHOR Microtech ErgoGrip comfortable gripsAUTHOR Sphere Gel saddle
Buy nowprice 28 990 Kč
other models

Technical specification

Size18", 20", 22"

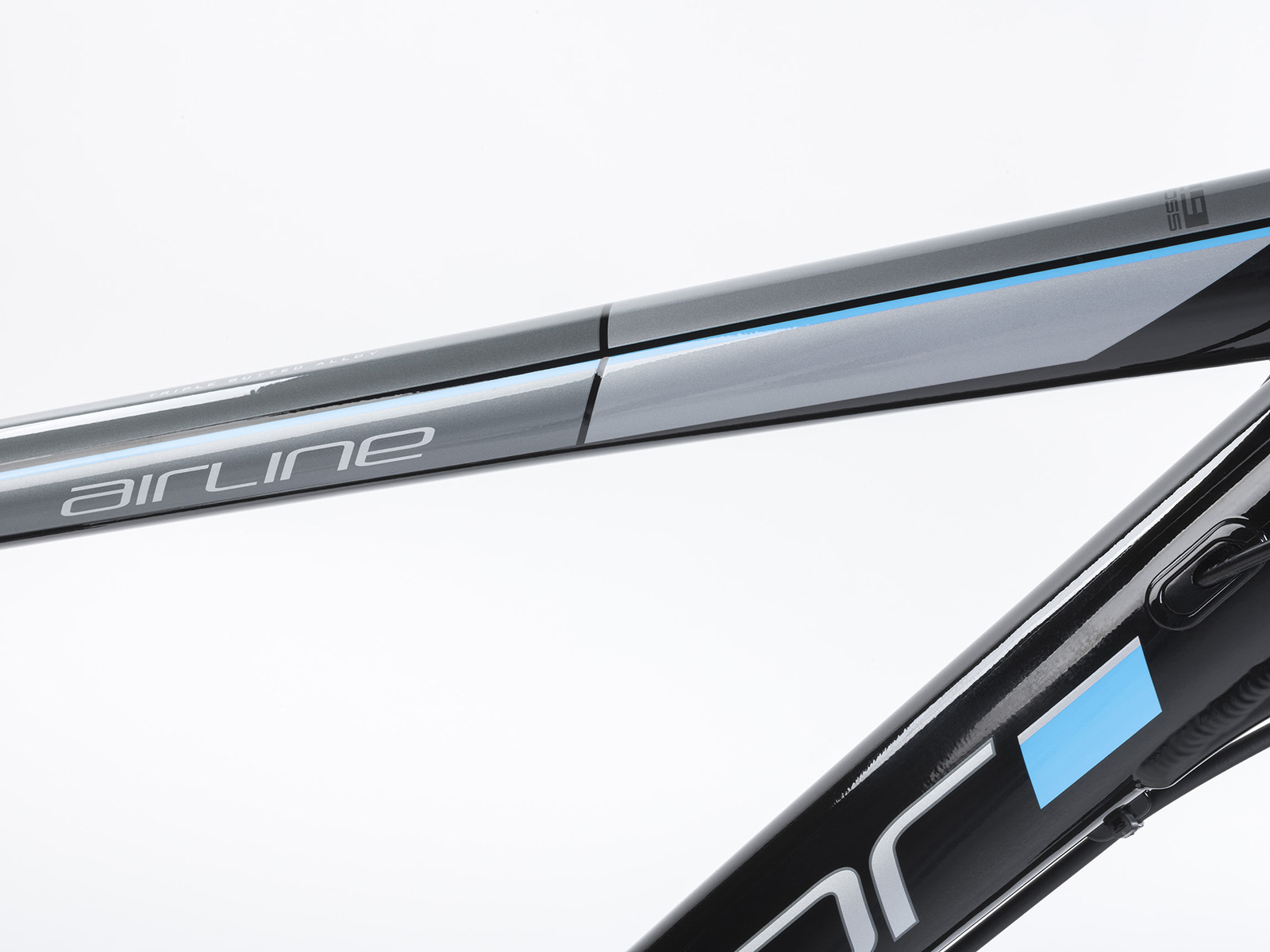

Frametriple butted alloy 6061 29"

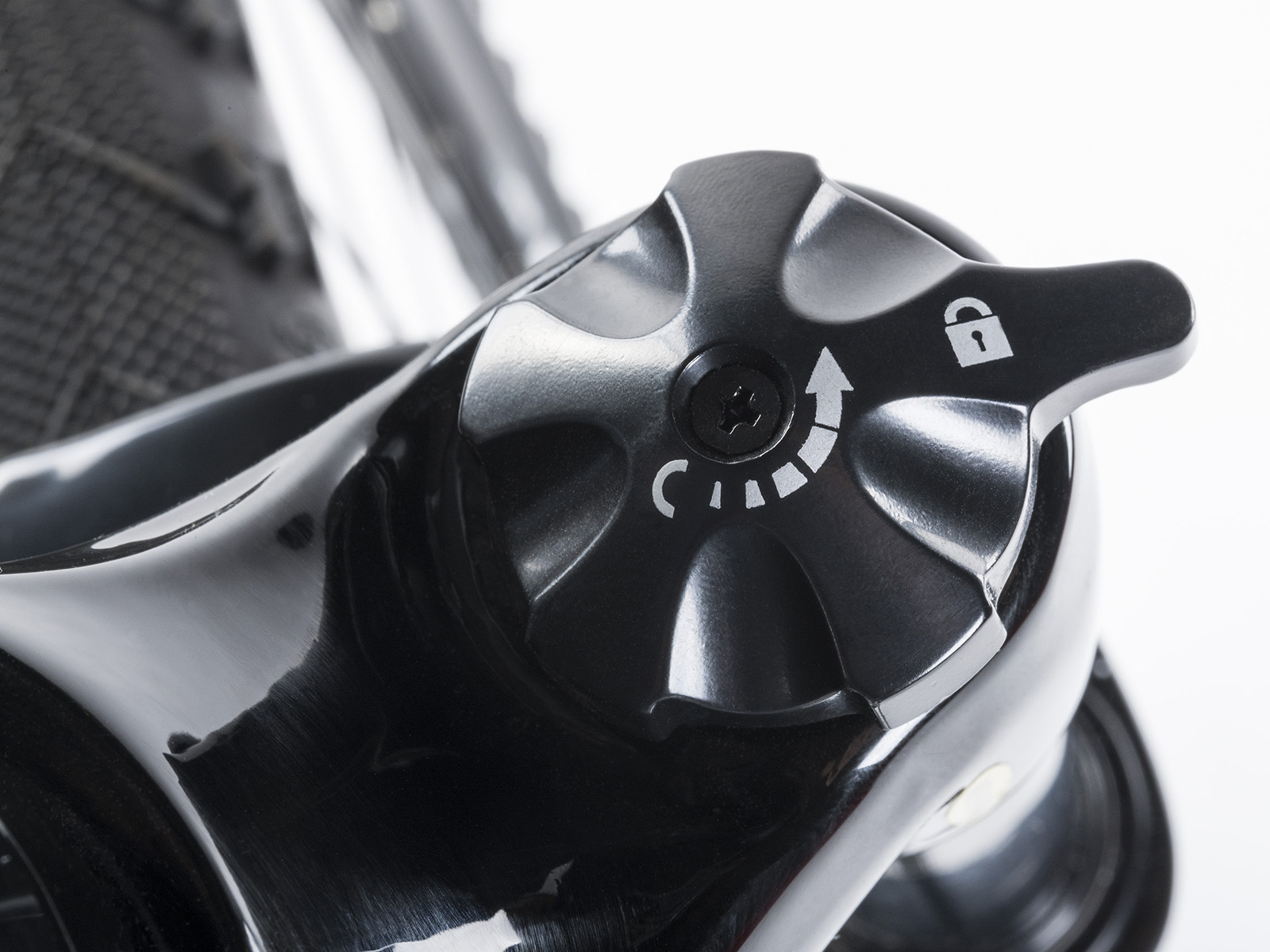

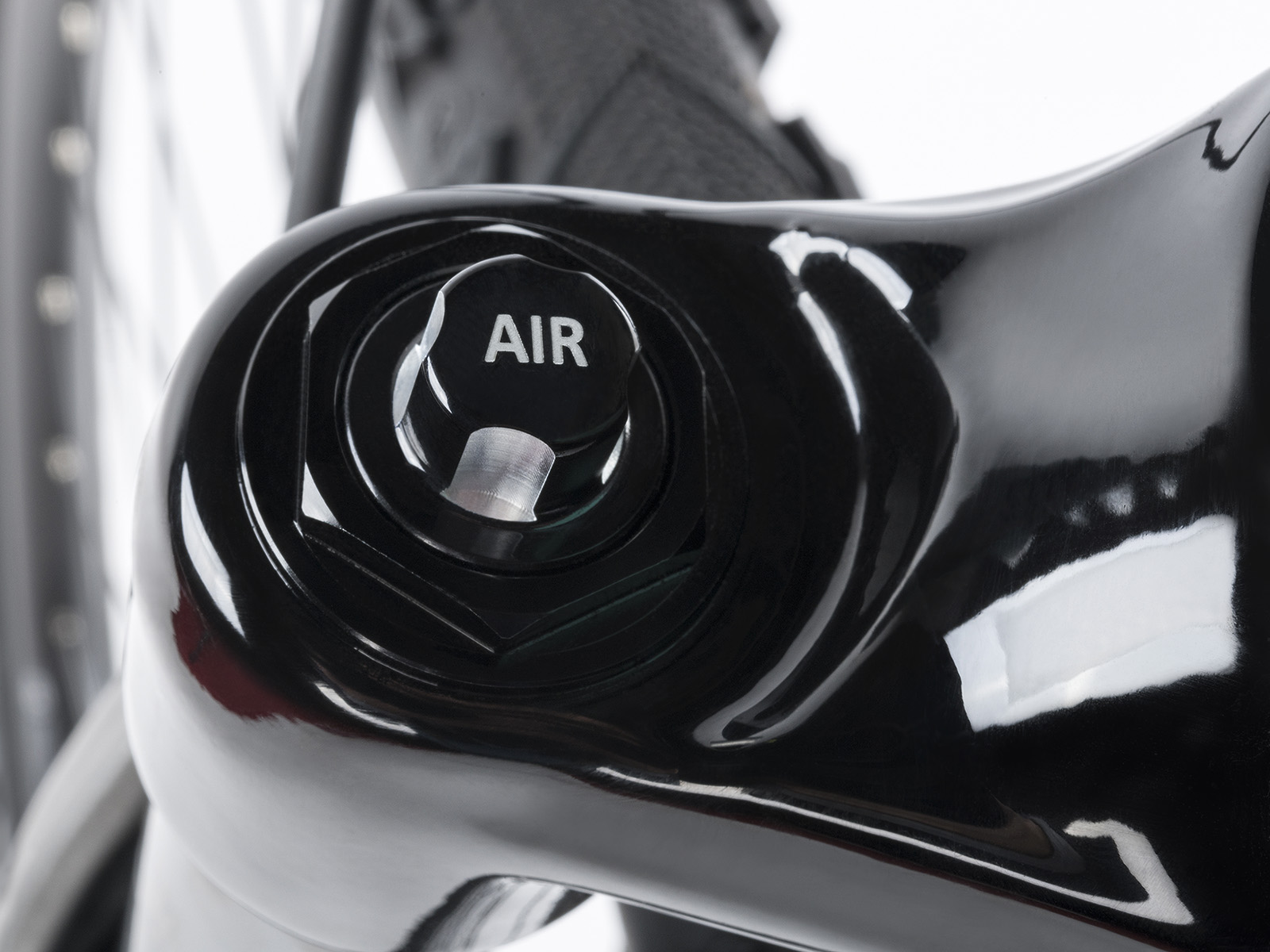

Front forkRST Viv Air TnL air, lock out (80 mm)
Head partsPRESTINE Integrated 1-1/8"

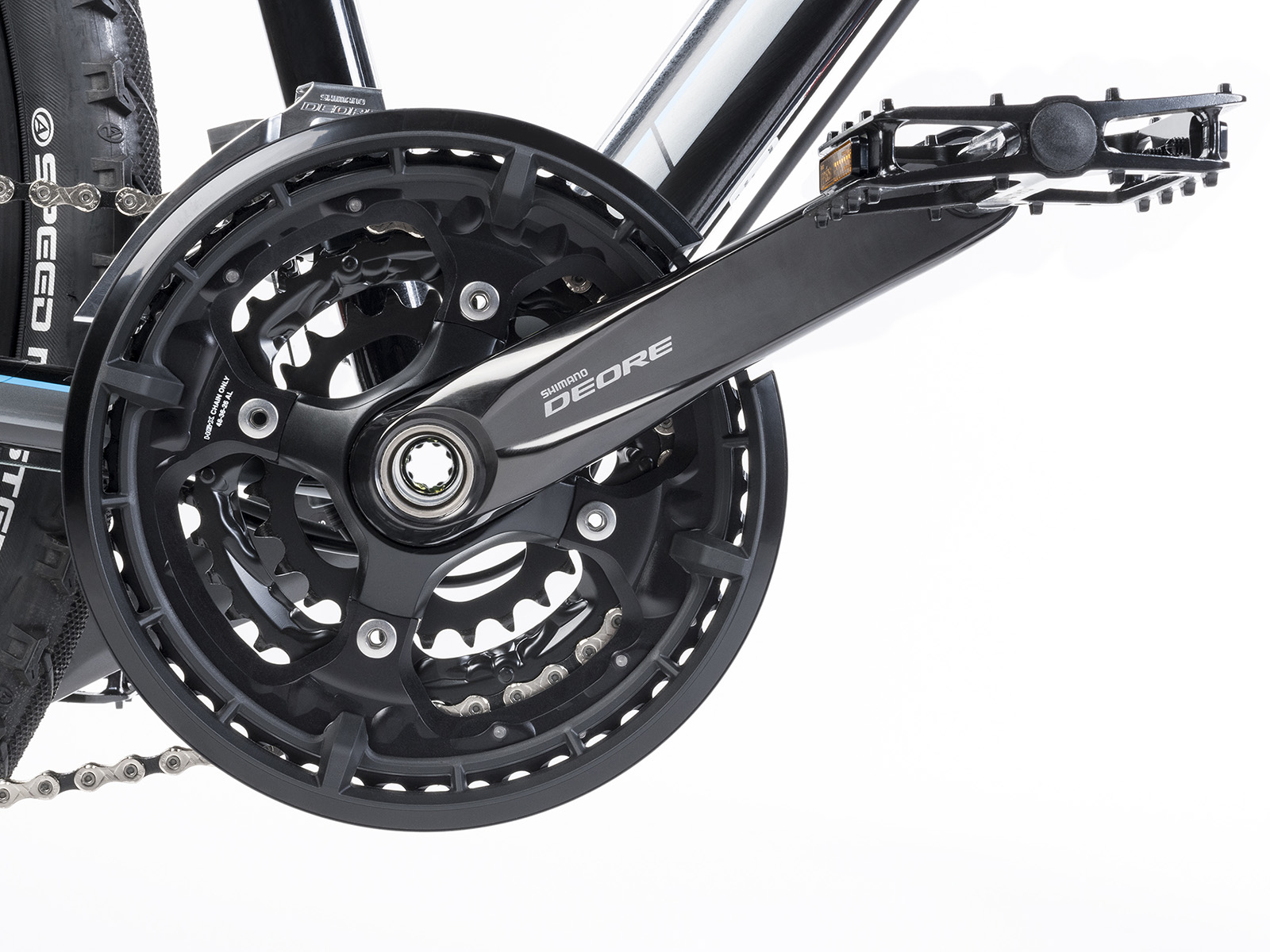

Chain WheelSHIMANO Deore, 48-36-26 teeth, 170 / 175 mm cranks
BBPartsSHIMANO BB-52, BB unit
Front derailleurSHIMANO Deore (31.8)

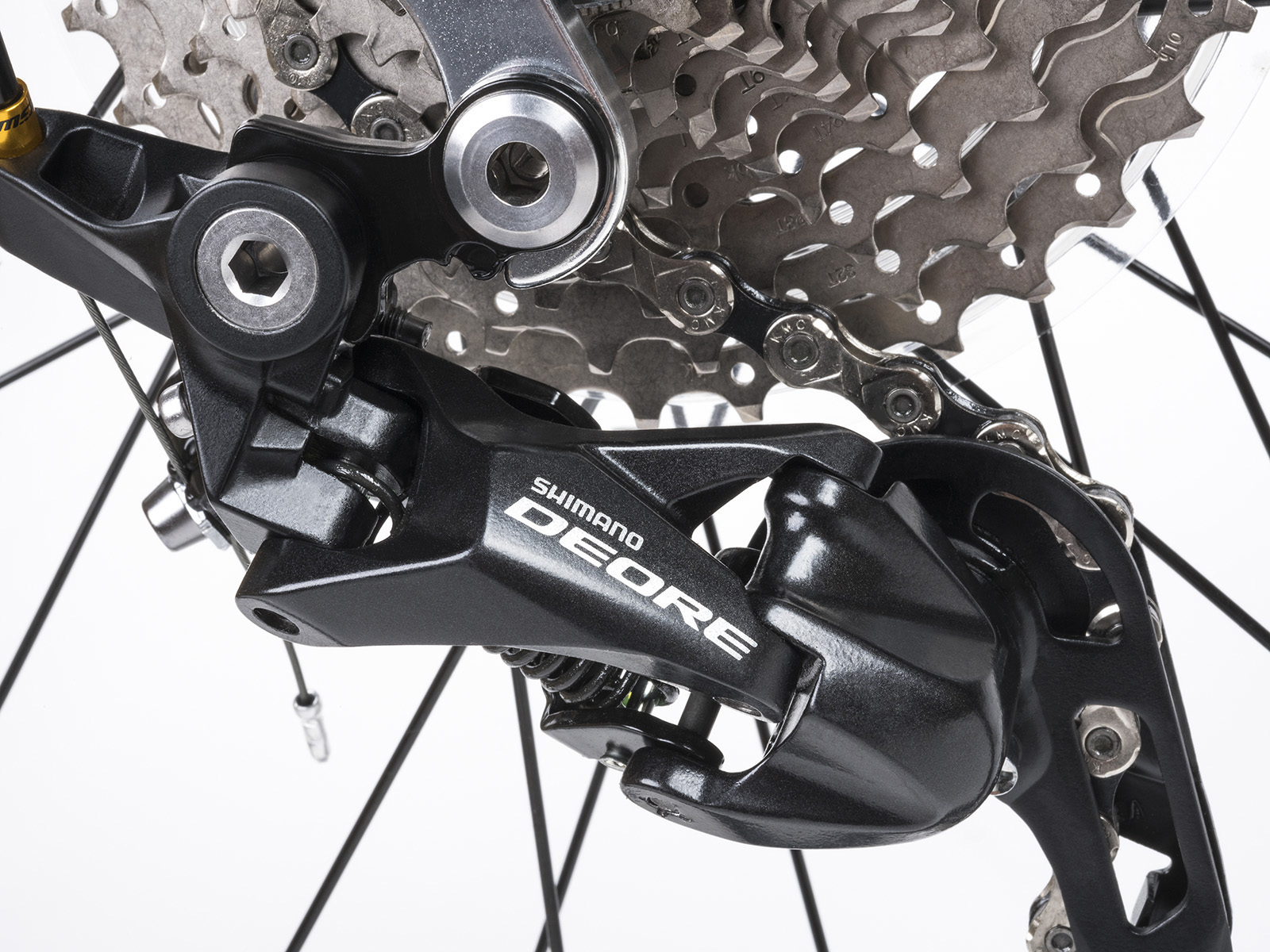

Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (30)
Free wheelSHIMANO HG50-10, 11-36 (10)
ChainKMC X10
HubsAUTHOR Radon, 32 holes

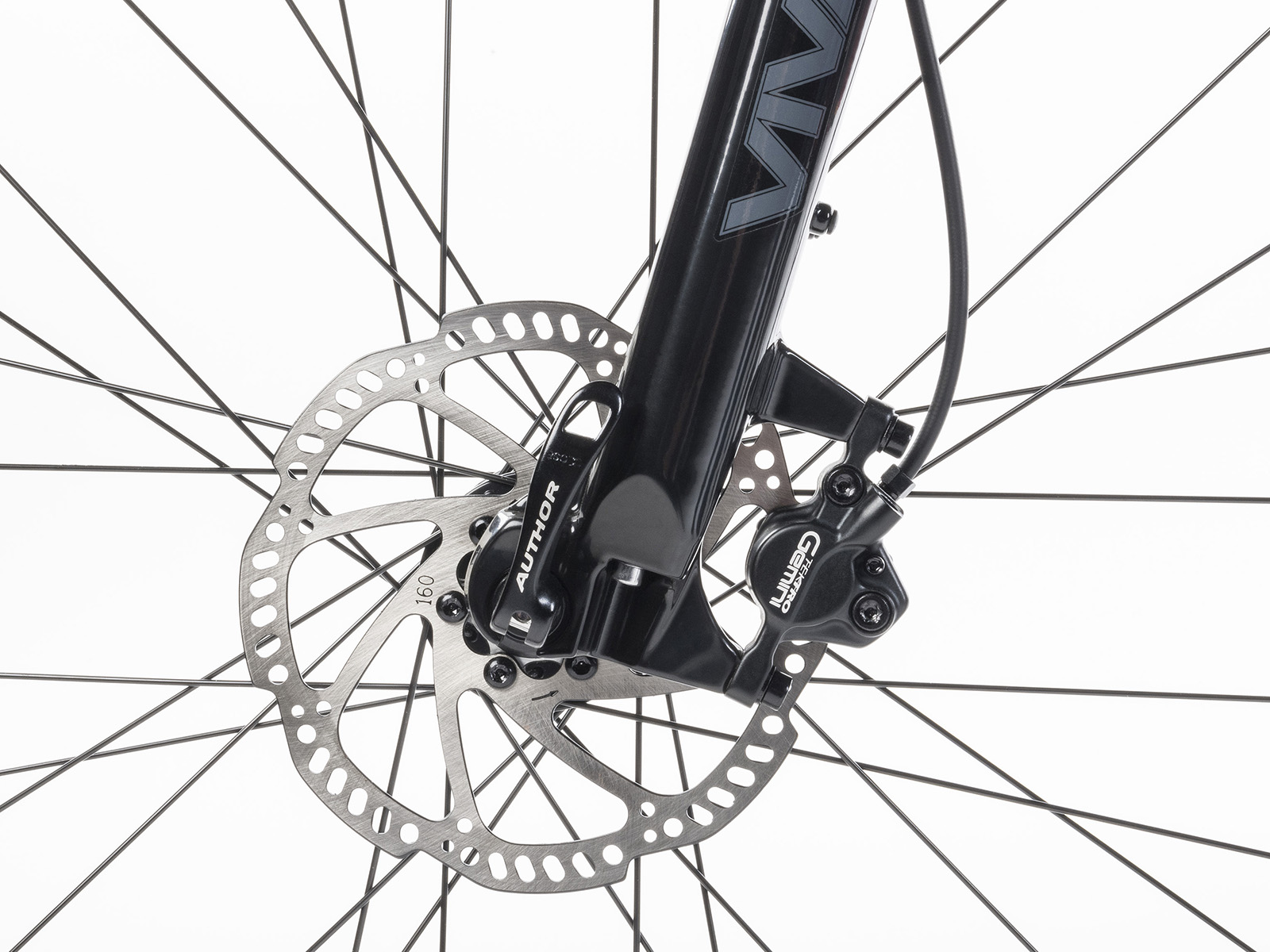

BrakesTEKTRO HD-T530, disc hydraulic (6" rotors)

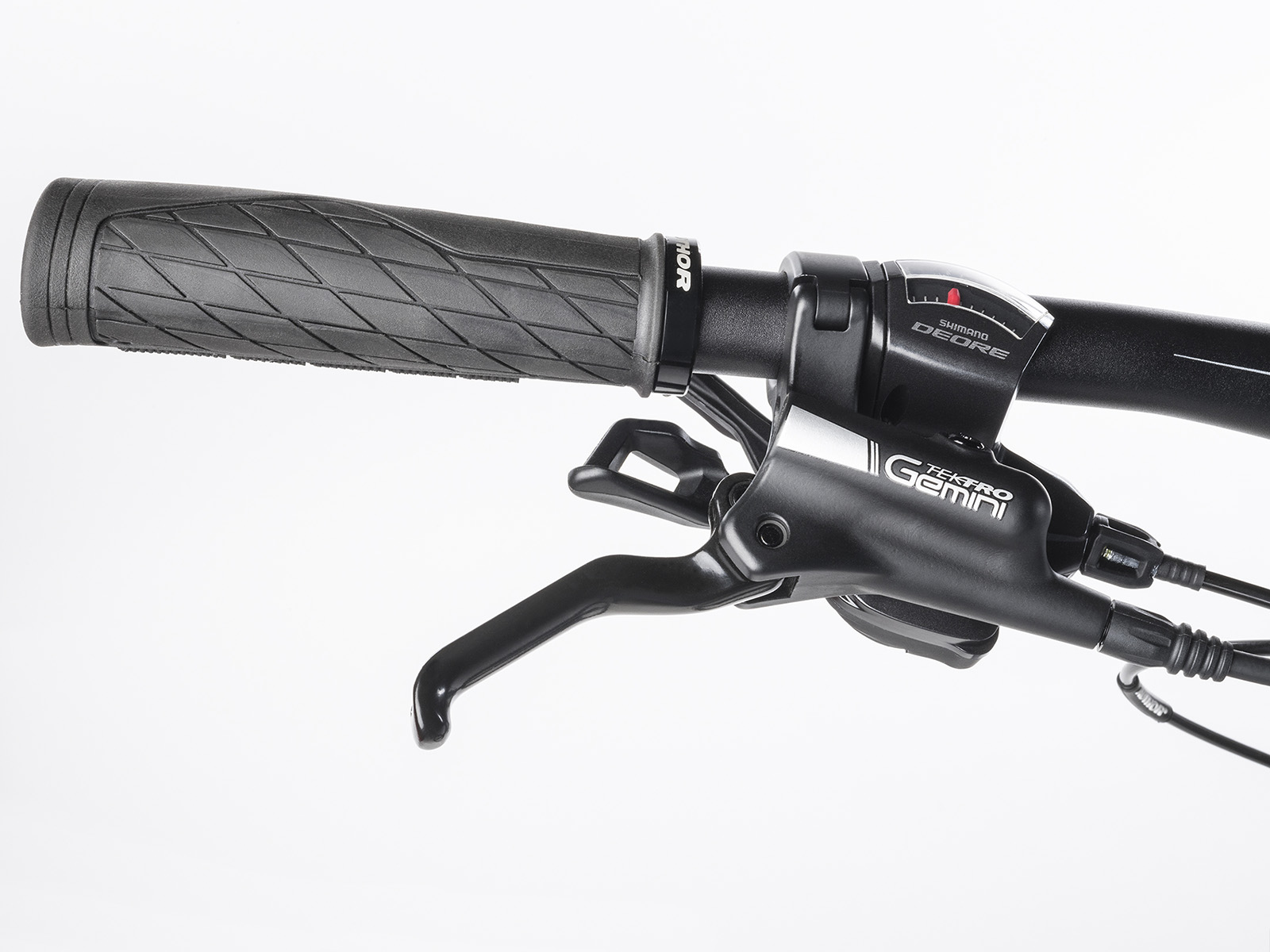

Brakes leversTEKTRO HD-T530
RimsAUTHOR Xenon 29, 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR Speed Master 29" × 1.75"

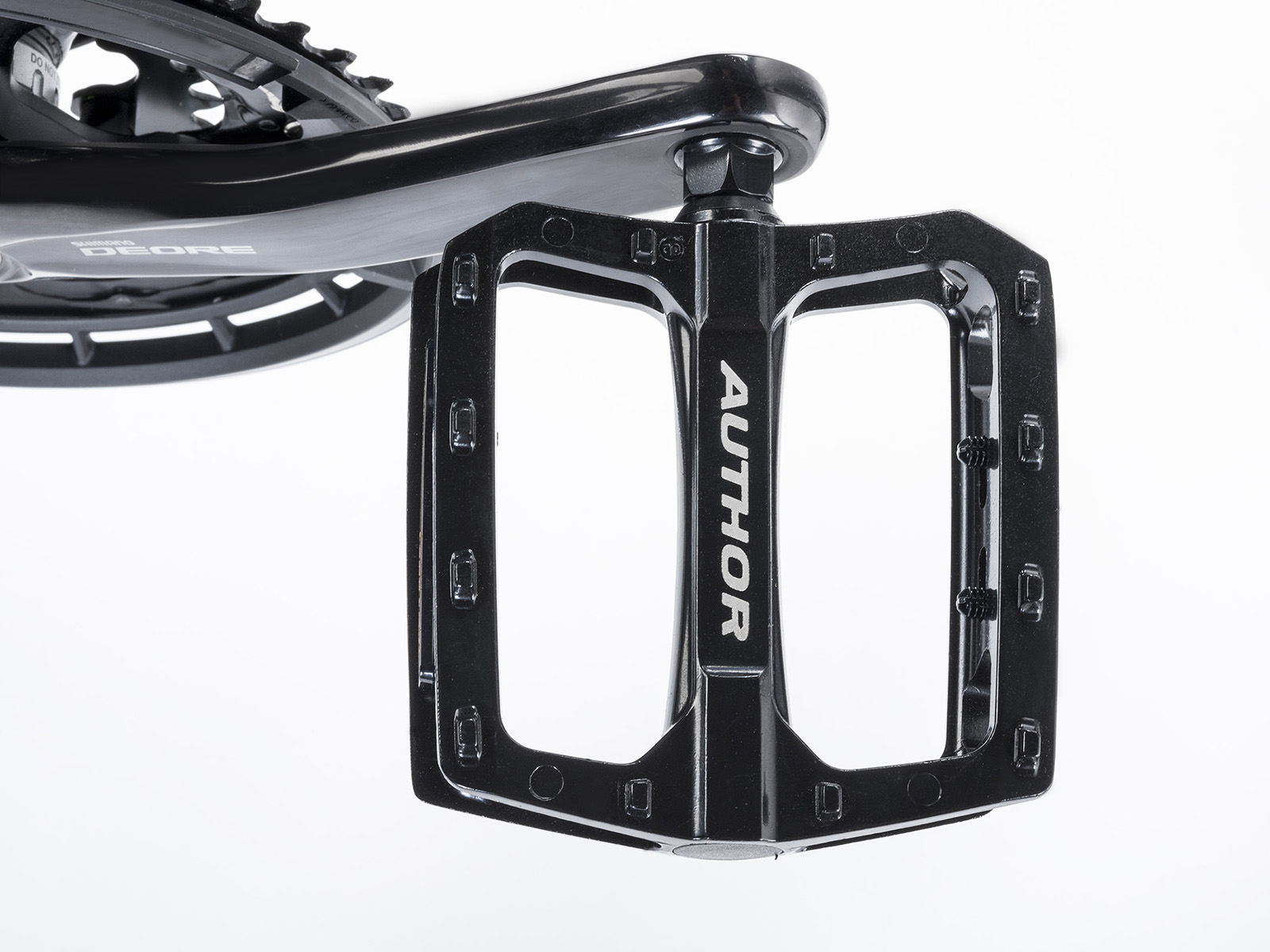

PedalsAUTHOR alloy
HandlebarAUTHOR 15 mm, 660 / 680 mm

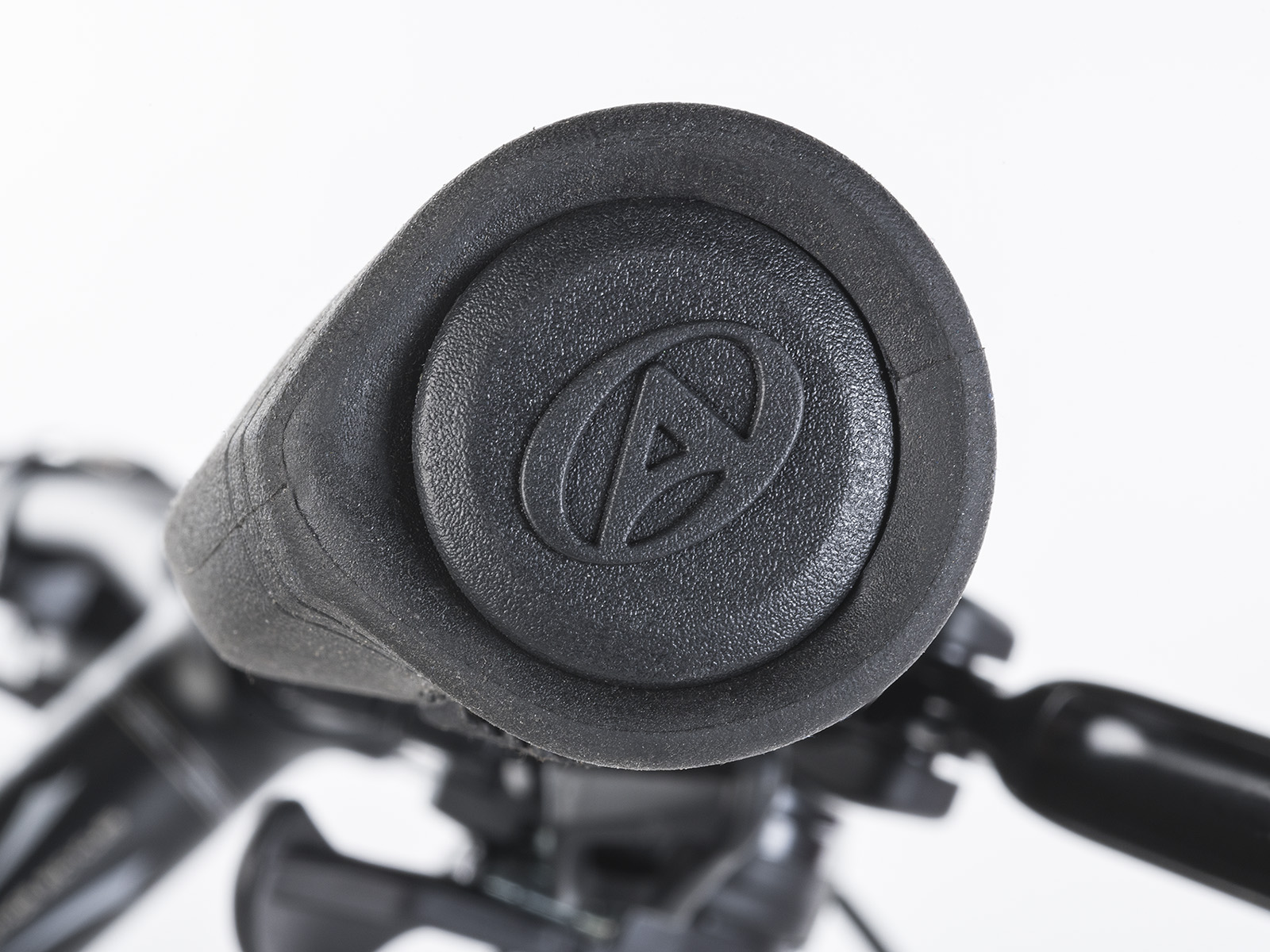

GripsAUTHOR Microtech ErgoGrip
StemAUTHOR alloy
Seat postAUTHOR alloy (27.2)
Seat clampAUTHOR (31.8)

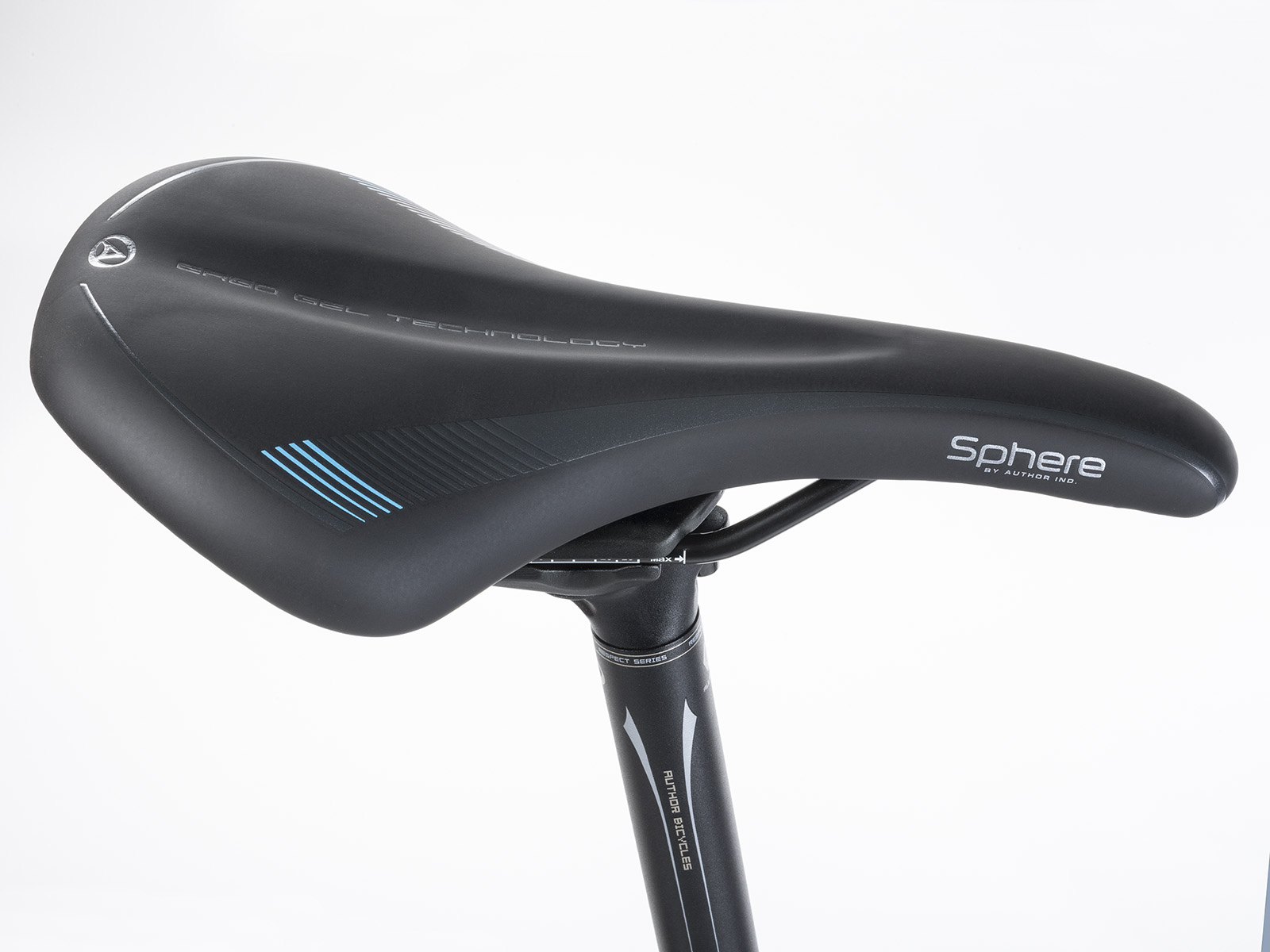

SaddleAUTHOR Sphere Gel
Speed30
Weight13,4 kg / 20"

Geometry and sizes

Size 16" 18" 20" 22"
Min. figure [cm] 150 165 175 185
Max. figure [cm] 168 178 188 200
S/T c-t [mm] 406 457 508 559
S/T c-c [mm] 0 0 0 0
T/T h [mm] 560 580 600 620
T/T a [mm] 540 556 574 595
H/T [mm] 110 130 150 160
C/S [mm] 450 450 450 450
W/B [mm] 1055 1076 1097 1117
S/T ang. [°] 73 73 73 73
H/T ang. [°] 71 71 71 71
F/L [mm] 490 490 490 490
B/B drop [mm] 60 60 60 60
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Airline 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
18"1 shop42949102
 ▪   Flystorkin stockbuy nowTřebíč530 513 203, obchod@flystork.czmap
22"1 shop42949104
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

black / blue18" = UA#42949102   20" = UA#42949103   22" = UA#42949104
