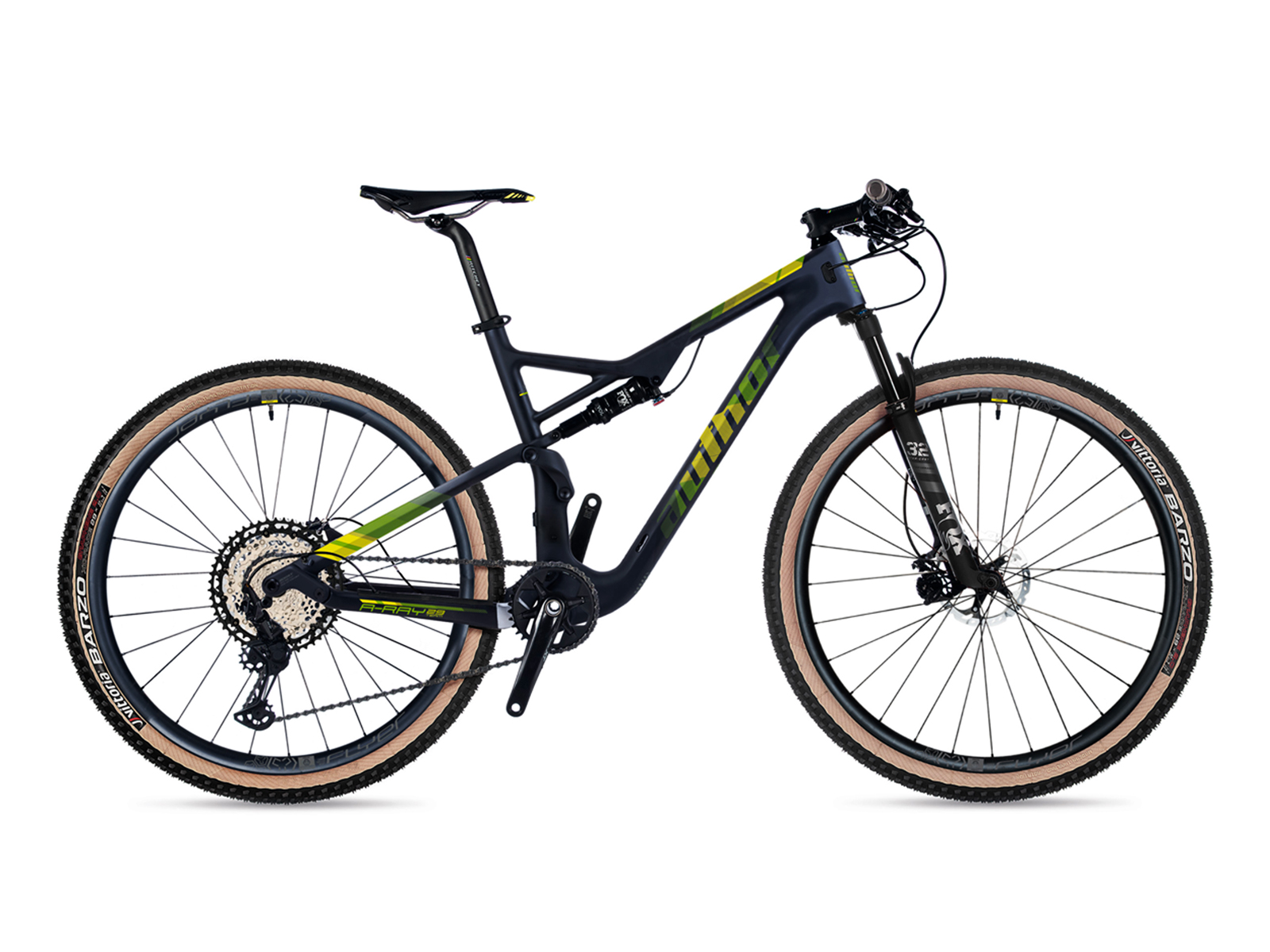

A-Ray 29 Team 2023-24

Colour variants
1
AUTHOR High Modulus Carbon monocoque full suspension frameFOX 32 Float 110-15 air fork, remote lock outCarbon wheel set AUTHOR Flyer Carbon 29 TRSHIMANO XT drive train, 12 speedRear shock FOX Float DPSHydraulic disc brakes SHIMANO XTRITCHEY WCS cockpit
Buy nowspecial price 139 990 Kč
original price  154 990 Kč
Add to compareadditional accessories
other models
A-Ray 29 Team139 990
Interested in other model`s year?

Technical specification

Size17.5", 19", 21"

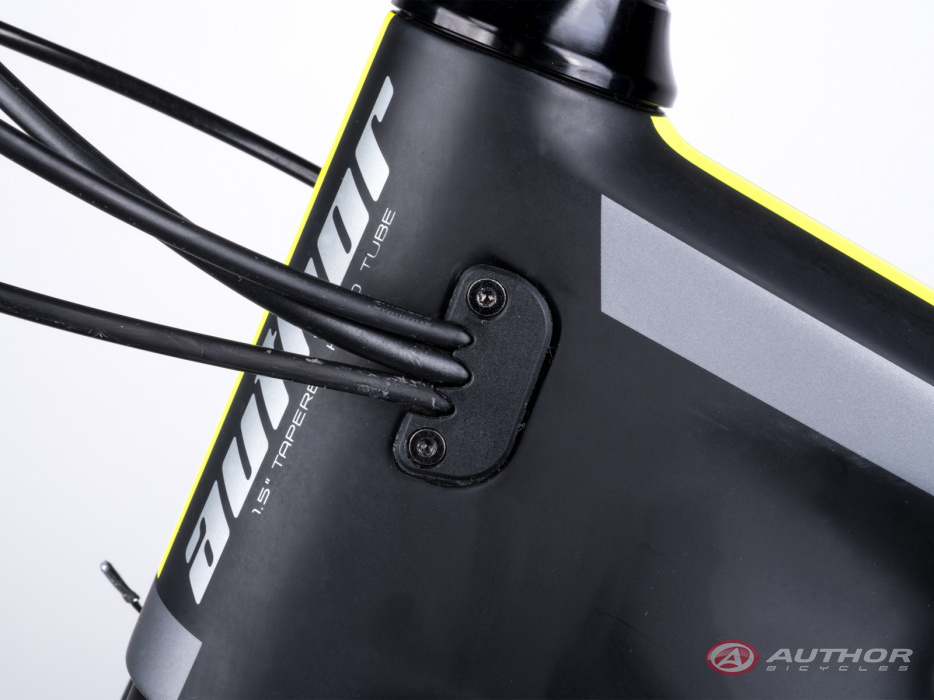

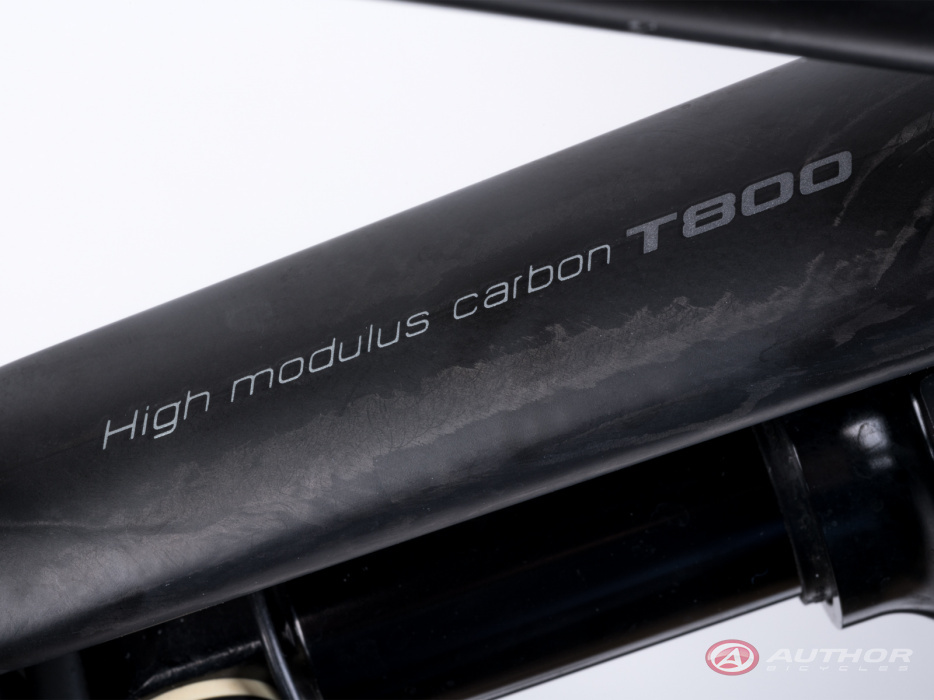

FrameAUTHOR karbon Toray T700 / T800 / M40 monocoque MTB 29 FSX

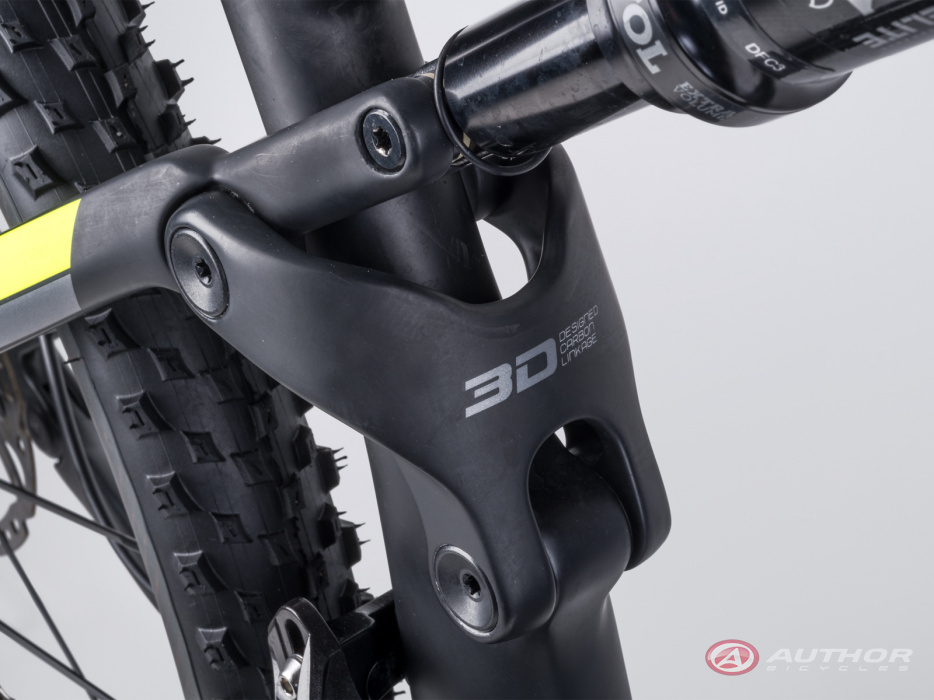

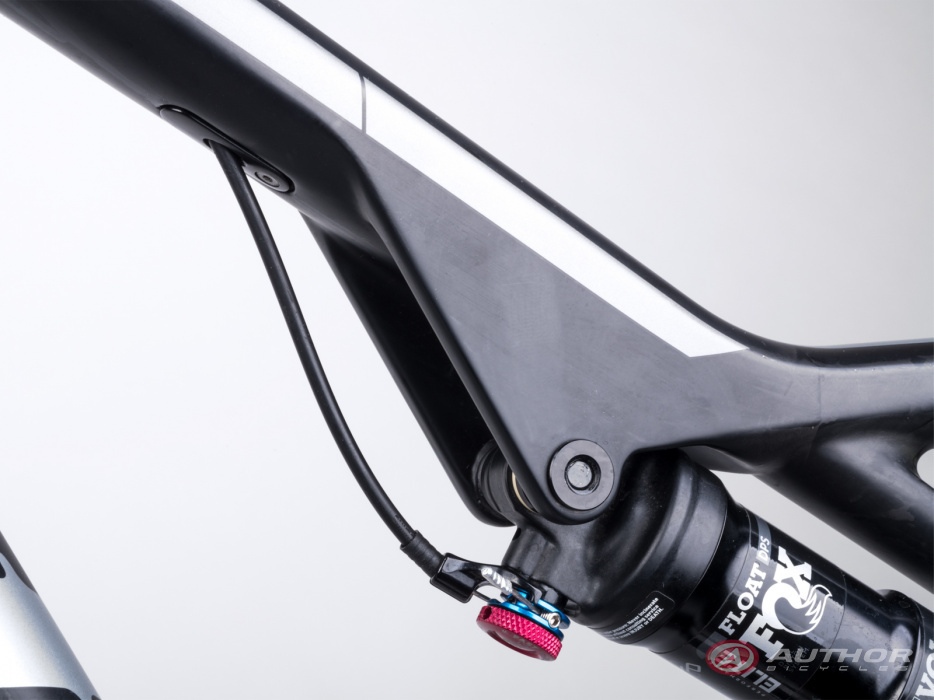

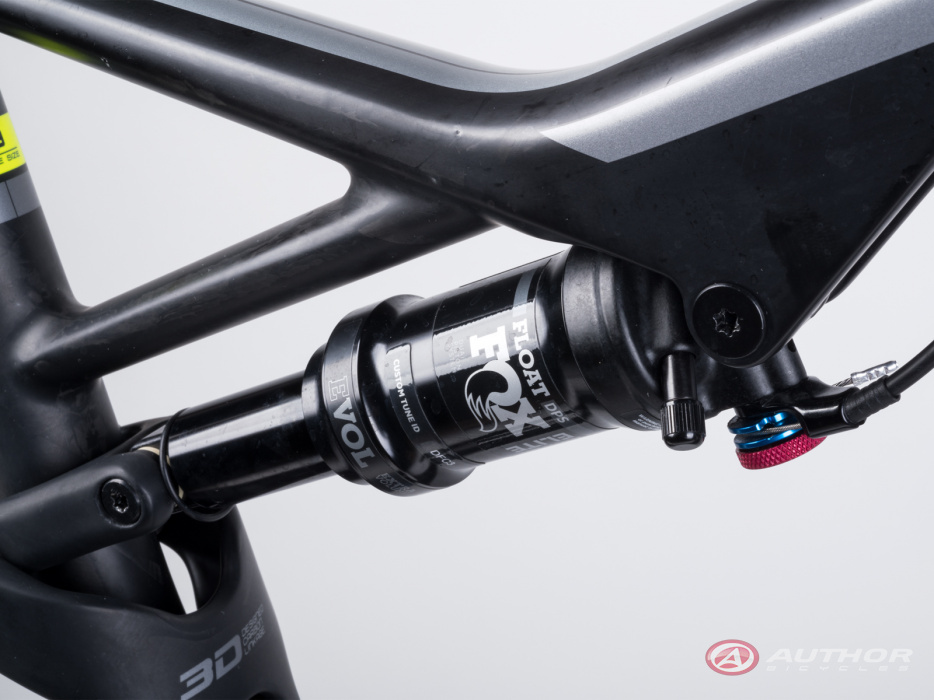

Shockerair shocker FOX Float DPS 184 / 44 mm (rear travel 100 mm)

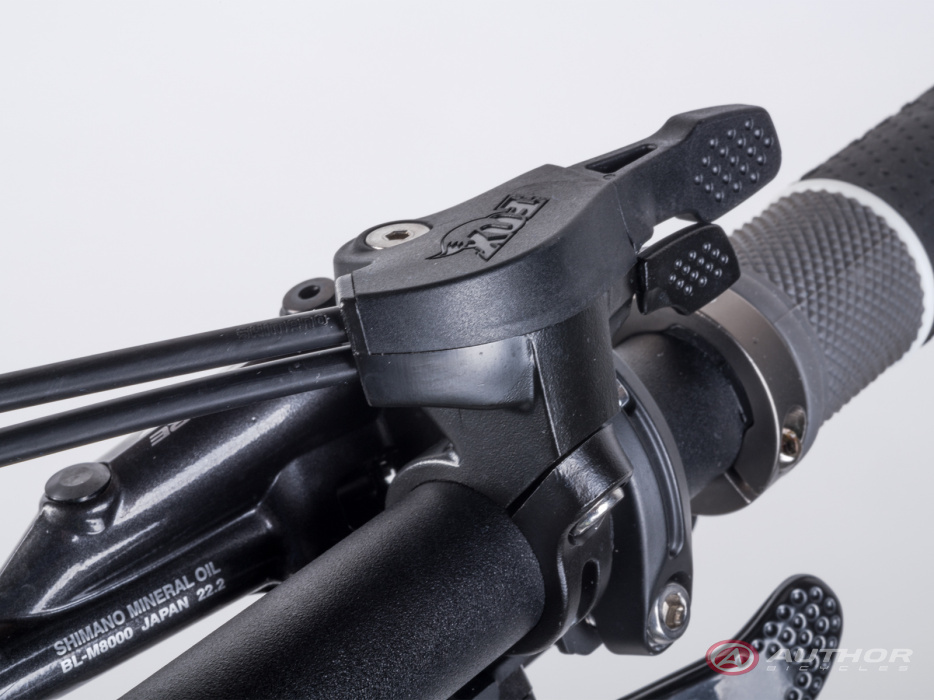

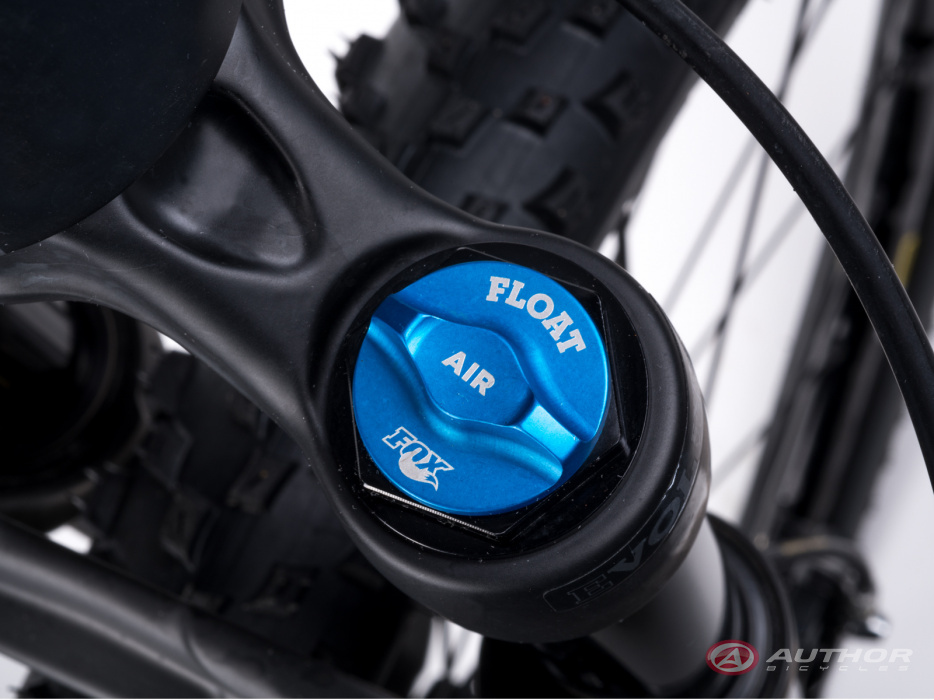

Front forkFOX 32 Float SC 29 100 Remote air, lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelSHIMANO XT, 34 teeth, 170 / 175 mm cranks
BBPartsSHIMANO BB-MT800 PF
Rear derailleurSHIMANO XT
ShiftersSHIMANO XT (12)
Free wheelSHIMANO CS-M7100, 10-51 (12)
ChainSHIMANO M7100
HubsAUTHOR Flyer Carbon 29 TR wheel set, 28 holes, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle

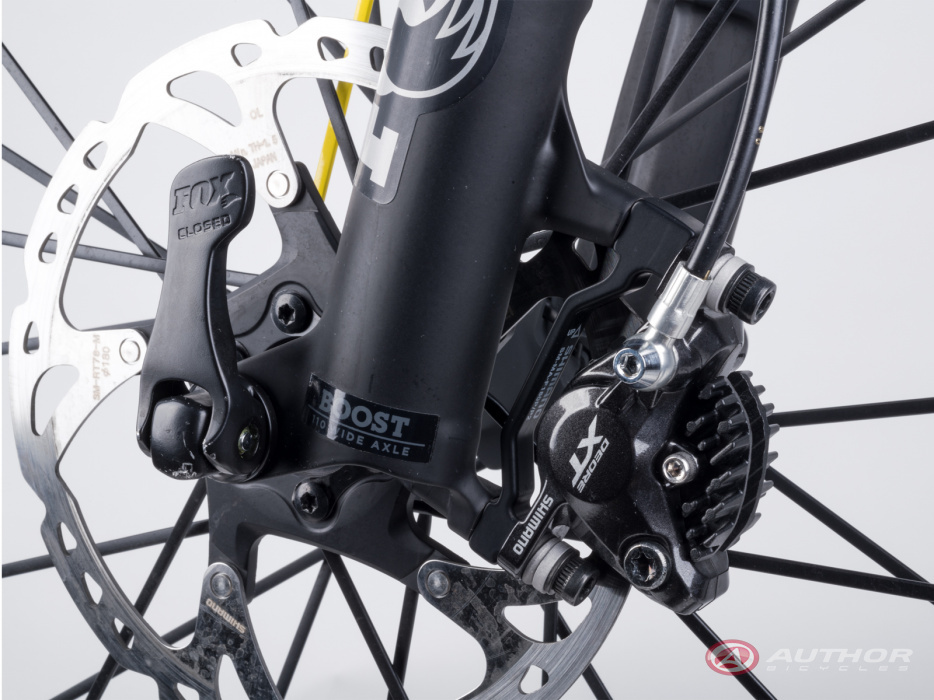

BrakesSHIMANO XT, disc hydraulic (7" rotors)
Brakes leversSHIMANO XT
RimsAUTHOR Flyer Carbon 29 TR wheel set, 28 holes
SpokesSAPIM
TiresVITTORIA Barzo TLR aramid 29" × 2.10" tubeless ready
HandlebarRITCHEY MTN WCS 2 × 9, 9°, 700 / 720 mm
GripsAUTHOR Pro Lock
StemRITCHEY WCS C220
Seat postRITCHEY WCS Carbon (31.6)
Seat clampAUTHOR (34.9)

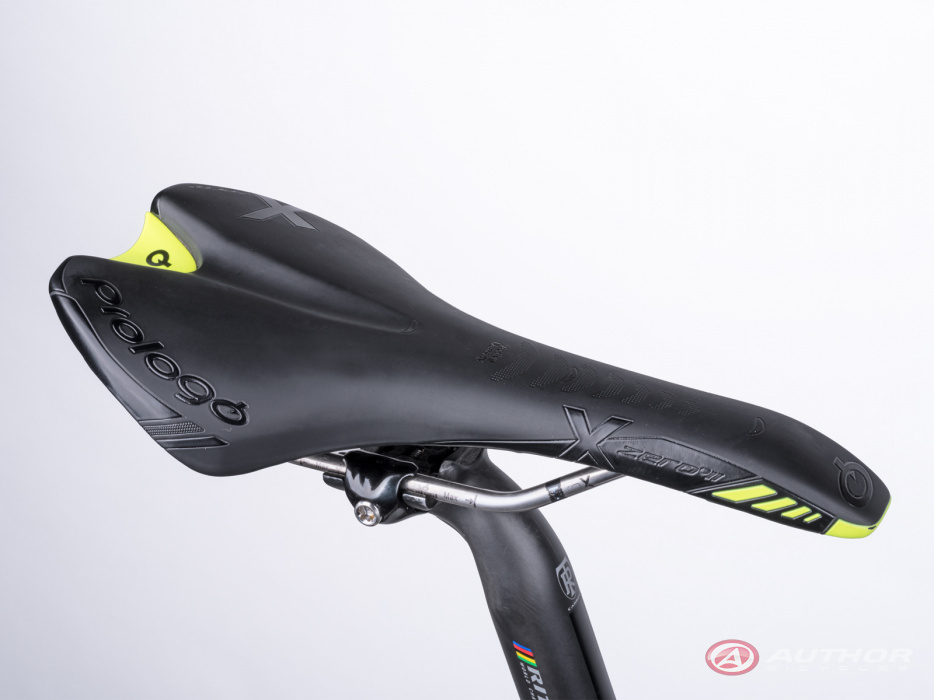

SaddlePROLOGO X Zero II Tirox
Speed12
Weight10,5 kg / 19"

Geometry and sizes

Size 17,5" 19" 21"
Min. figure [cm] 167 175 184
Max. figure [cm] 177 186 198
S/T c-t [mm] 445 483 533
S/T c-c [mm] 0 0 0
T/T h [mm] 580 600 630
T/T a [mm] 548 563 586
H/T [mm] 105 115 125
C/S [mm] 440 440 440
W/B [mm] 1120 1141 1172
S/T ang. [°] 74.5 74.5 74.5
H/T ang. [°] 68.8 68.8 68.8
F/L [mm] 501 501 501
B/B drop [mm] 45 45 45
B/B width [mm] 92 92 92
Reach [mm] 416 433 461
Stack [mm] 591 601 610
F/R [mm] 51 51 51
Handlebars [mm] 700 700 700
Stem [mm] 80 90 100
Cranks [mm] 175 175 175
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
A-Ray 29 Team 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
