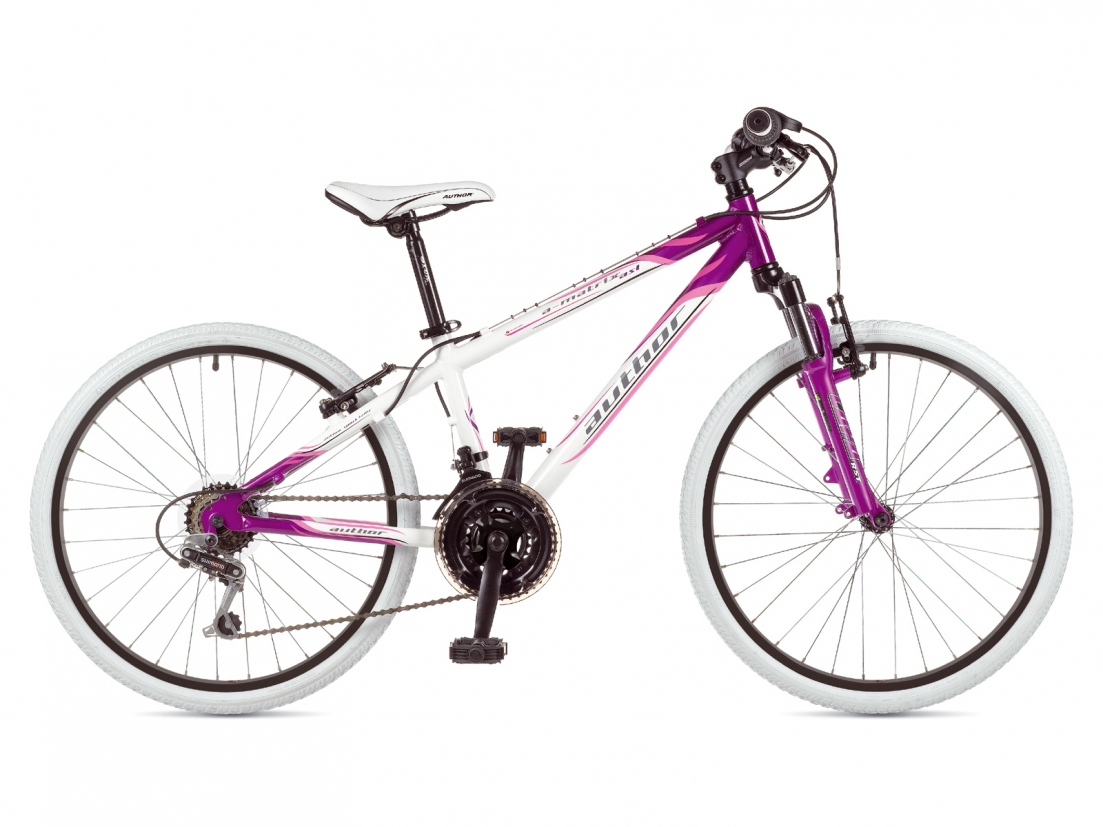

AUTHOR Bicycle A-Matrix ASL 2013
Interested in other model`s year?

Technical specification

Size13"
Framealloy 7005 24" (ASL)
Front forkRST Capa T 24 (50 mm)
Head partsPRESTINE 1-1/8"
Chain WheelPROWHEEL 42-34-24 teeth 152 mm cranks
BBPartsVP COMP.
Front derailleurSHIMANO TZ30 (31.8)
Rear derailleurSHIMANO TY21
ShiftersSHIMANO Revoshift (18)
Free wheelSHIMANO MF-TZ20 14-28 (6)
ChainKMC Z33
HubsQUANDO 32 holes
BrakesTEKTRO 855AL
Brakes leversTEKTRO plastic / alloy
Rimsalloy 32 holes
Spokessteel
Tires24" x 1.75"
Pedalsresin
HandlebarKALIN steel 20 mm 580 mm
GripsAUTHOR kratton rubber
Stemalloy
Seat postKALIN steel (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR
Speed18
Weight12,6 Kg / 13"

Geometry and sizes

Size 13"
Min. figure [cm] 125
Max. figure [cm] 150
S/T c-t [mm] 330
S/T c-c [mm] 0
T/T h [mm] 512
T/T a [mm] 500
H/T [mm] 105
C/S [mm] 415
W/B [mm] 975
S/T ang. [°] 73
H/T ang. [°] 71
F/L [mm] 414
B/B drop [mm] 25
B/B width [mm] 0
Reach [mm] 0
Stack [mm] 0
F/R [mm] 35
Handlebars [mm] 0
Stem [mm] 0
Cranks [mm] 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR A-Matrix ASL 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
