A-Matrix 26 D 2025

Technical specification

Size	13.5"
Frame	alloy 6061 26"
Front fork	RST Capa T 26 (80 mm)
Head parts	PRESTINE 1-1/8"
Chain Wheel	PROWHEEL, 32 teeth, 152 mm cranks
BBParts	VP COMP, cartridge
Rear derailleur	SHIMANO Acera
Shifters	SHIMANO Acera (8)
Free wheel	SHIMANO CS-HG400-8, 11-40 (8)
Chain	KMC Z8.3
Hubs	QUANDO Disc, 32 holes
Brakes	TEKTRO, disc mechanical (6" rotors)
Brakes levers	TEKTRO alloy

Rims	alloy, 32 holes
Spokes	black steel
Tires	AUTHOR Speed Master, 26" × 2.00"
Pedals	plastic
Handlebar	steel, 20 mm 620 mm
Stem	alloy
Seat post	alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR
Speed	8
Weight	12,7 kg / 13,5"

Geometry and sizes

Size	13,5"
Min. figure ~~[cm]~~	130
Max. figure ~~[cm]~~	150
S/T c-t ~~[mm]~~	343
S/T c-c ~~[mm]~~	0
T/T h ~~[mm]~~	526
T/T a ~~[mm]~~	518
H/T ~~[mm]~~	100
C/S ~~[mm]~~	425
W/B ~~[mm]~~	1022
S/T ang. ~~[°]~~	73.5
H/T ang. ~~[°]~~	69.5
F/L ~~[mm]~~	471
B/B drop ~~[mm]~~	30
B/B width ~~[mm]~~	68
Reach ~~[mm]~~	363
Stack ~~[mm]~~	551
F/R ~~[mm]~~	38
Handlebars ~~[mm]~~	0
Stem ~~[mm]~~	0
Cranks ~~[mm]~~	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

	Colour variant	Size	In stores	Purchase	City	Contacts on seller	Model code
		13,5"	20 stores				42954201
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ DOMINO STORE CZ,s.r.o.		in stock	buy now	Český Těšín	602 546 780, dominosport@dominosport.cz	map
	▪ Bike Sport		order	order now	Chrudim	608 430 492, info@bike-sport-shop.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ Cyklosport Kerda		order	order now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CykloCentrum Mladá Boleslav		in stock	buy now	Mladá Boleslav	725 121 447, boleslav@cyklocentrum.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		in stock	buy now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	▪ ZAF Velo Sport		in stock	buy now	Velké Pavlovice	776 820 690, velo@zaf.cz	map
	⟲ In other stores		in 2 days				dealers
		13,5"	18 stores				42954211
	▪ Bike Servis FRODL		in stock	buy now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		in stock	buy now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	▪ ZAF Velo Sport		in stock	buy now	Velké Pavlovice	776 820 690, velo@zaf.cz	map
	⟲ In other stores		in 2 days				dealers
		13,5"	21 stores				42954221
	▪ CykloCentrum Brno		in stock	buy now	Brno	702 144 752, brno@cyklocentrum.cz	map
	▪ Bike Servis FRODL		order	order now	Čáslav	603 510 347, mpbike@seznam.cz	map
	▪ CykloCentrum České Budějovice		in stock	buy now	České Budějovice	725 121 449, budejovice@cyklocentrum.cz	map
	▪ DOMINO STORE CZ,s.r.o.		in stock	buy now	Český Těšín	602 546 780, dominosport@dominosport.cz	map
	▪ CykloCentrum Havlíčkův Brod		in stock	buy now	Havlíčkův Brod	725 121 448, brod@cyklocentrum.cz	map
	▪ SPORT CYKLO s.r.o.		order	order now	Holešov	603 373 886, sportcyklo@gmail.com	map
	▪ Cyklo sport Stratílek		in stock	buy now	Hradec Králové	601 379 902, cyklohk@stratilek.cz	map
	▪ CEMOS		in stock	buy now	Kaznějov	777 668 339, obchod@cemos.cz	map
	▪ Cyklosport Kerda		in stock	buy now	Liberec 10	602 411 149 , cyklosport@kerda.cz	map
	▪ Dům sportu Stratílek, s.r.o.		in stock	buy now	Litomyšl	606 613 399, cyklo@stratilek.cz	map
	▪ CYKLOSPORT H&F		order	order now	Opava 1	777 330 072, info@cyklosporthf.cz	map
	▪ Kola Pešek		order	order now	Pardubice - Staré Čívice	733 706 797, info@kolapesek.cz	map
	▪ Ramala s.r.o.		order	order now	Plzeň	377 322 435, plzen@ramala.cz	map
	▪ KOLA ŠILHAVÝ s.r.o.		in stock	buy now	Plzeň	602 495 439, silhavy@silhavy-ramala.cz	map
	▪ CykloCentrum Praha Holešovice		in stock	buy now	Praha 7	725 085 309, holesovice@cyklocentrum.cz	map
	▪ CykloCentrum ESHOP		order	order now	Praha 7	725 085 309, info@cyklocentrum.cz	map
	▪ Sedláček s.r.o.		in stock	buy now	Příbram 1	318 621 473, info@cyklosport-sedlacek.cz	map
	▪ Jízdní kola Rezek - Rezková		order	order now	Rakovník	313 517 417, jizdnikola.rezek@tiscali.cz	map
	▪ Pavel Brabec		in stock	buy now	Rumburk	602 112 875, brabec.pavel@gmail.com	map
	▪ Flystork		order	order now	Třebíč	530 513 203, obchod@flystork.cz	map
	▪ ZAF Velo Sport		in stock	buy now	Velké Pavlovice	776 820 690, velo@zaf.cz	map
	⟲ In other stores		in 2 days				dealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

additional accessories

1/3

250 KčABC-37Bottle cage, Light AL 6061T bottle cage, strong construction with universal mount, bottle removing f ... more »

1/2

199 KčL&R05Bottle cage AUTHOR ABC-L&R05 designed for easy bottle removing from side direction. It is lightweigh ... more »

425 KčR281 F GSBFrame bag, universal velcro attachment for fixation in front frame triangle (on most of types of fra ... more »

1/4

299 KčS381 TPN X7The Author saddle bag A-S381 is the easy bag with the one main compartment. Designed for long satisf ... more »

1/2

399 KčS381 QF9 X7The Author saddle bag A-S381 is the easy bag with the Quick Fix 9 bracket for easy click ON/OFF and ... more »

1/2

550 KčAKS-500 RKick Stand Author for rear fork fixation. Adjustable for wheel diameter 24"-29". Material AL606 ... more »

1/2

399 KčAKS-530 RSAlloy kick stand designed for direct rear fork down tube fixation (tube profile 22 - 32 mm), recomen ... more »

1/2

325 KčAXP-810-UniRear mudguard AUTHOR, for seat post tube mounting, easy insertion/ slide out, fabric plastic. For si ... more »

1/5

299 KčX-BowRear mudguard AUTHOR, modern shorter mudguards with universal bracket, fabric plastic. Weight 163g. more »

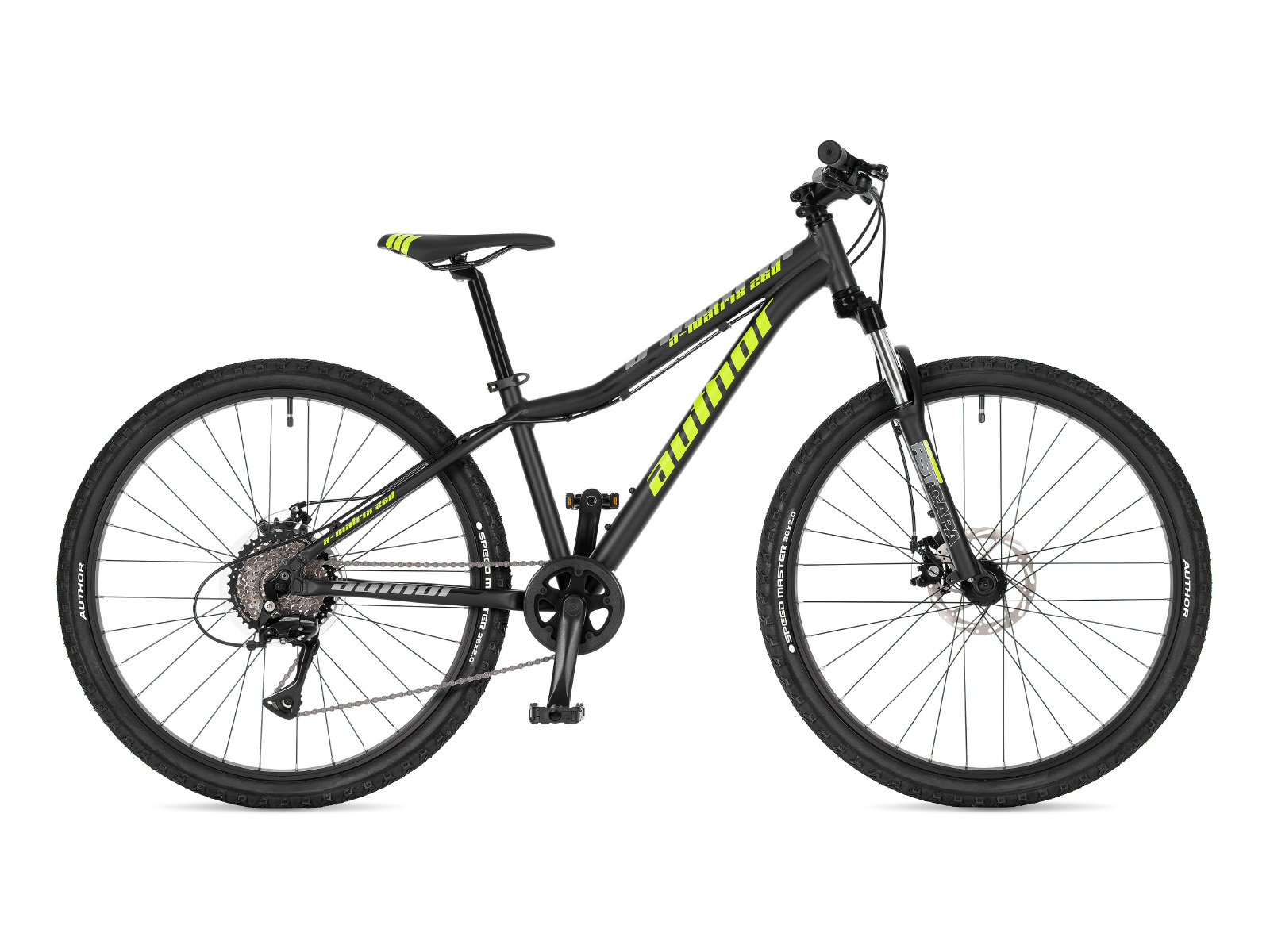

	black-matt / lime	13,5" = UA#42954201

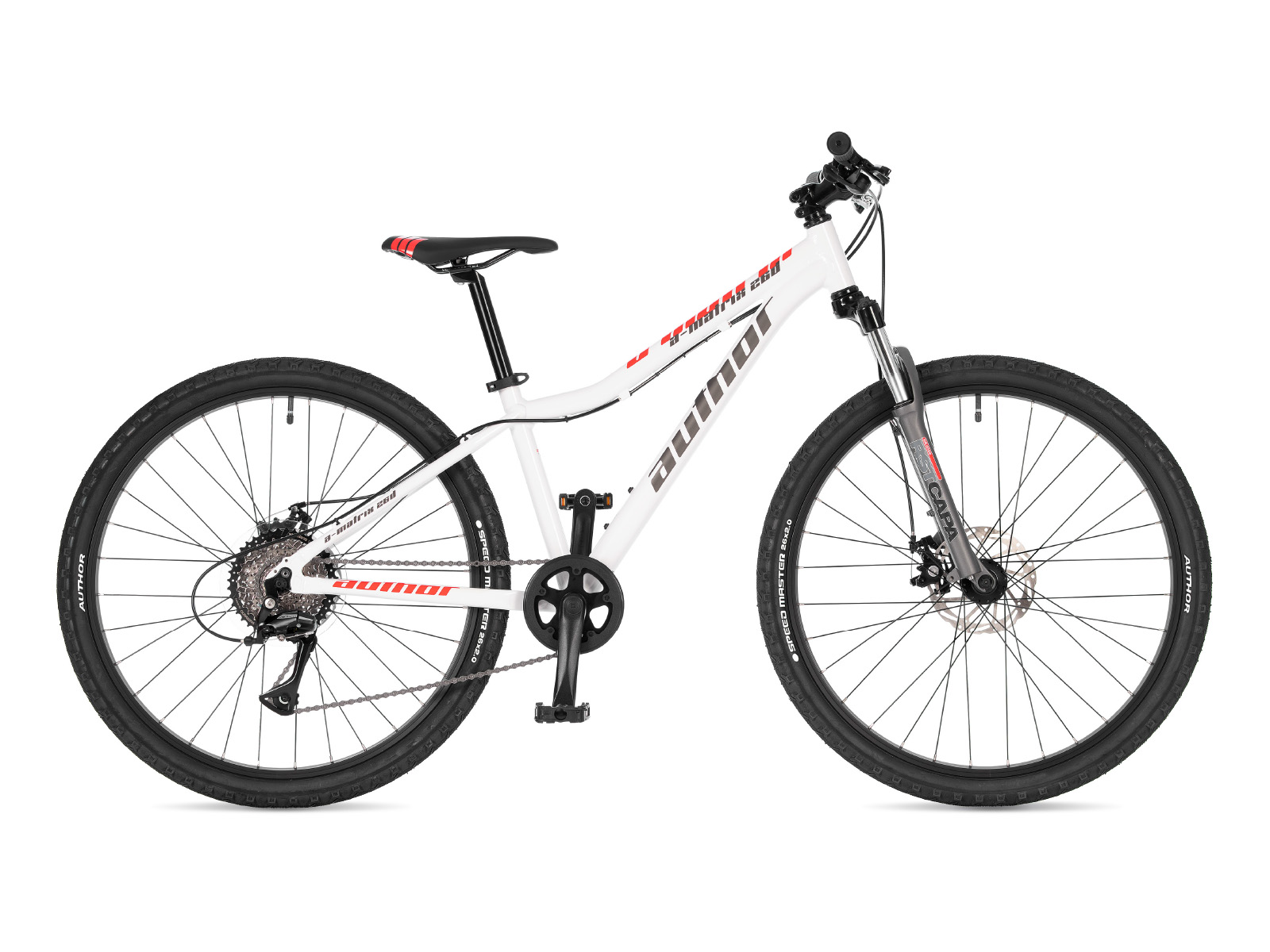

	white / silver / red	13,5" = UA#42954211

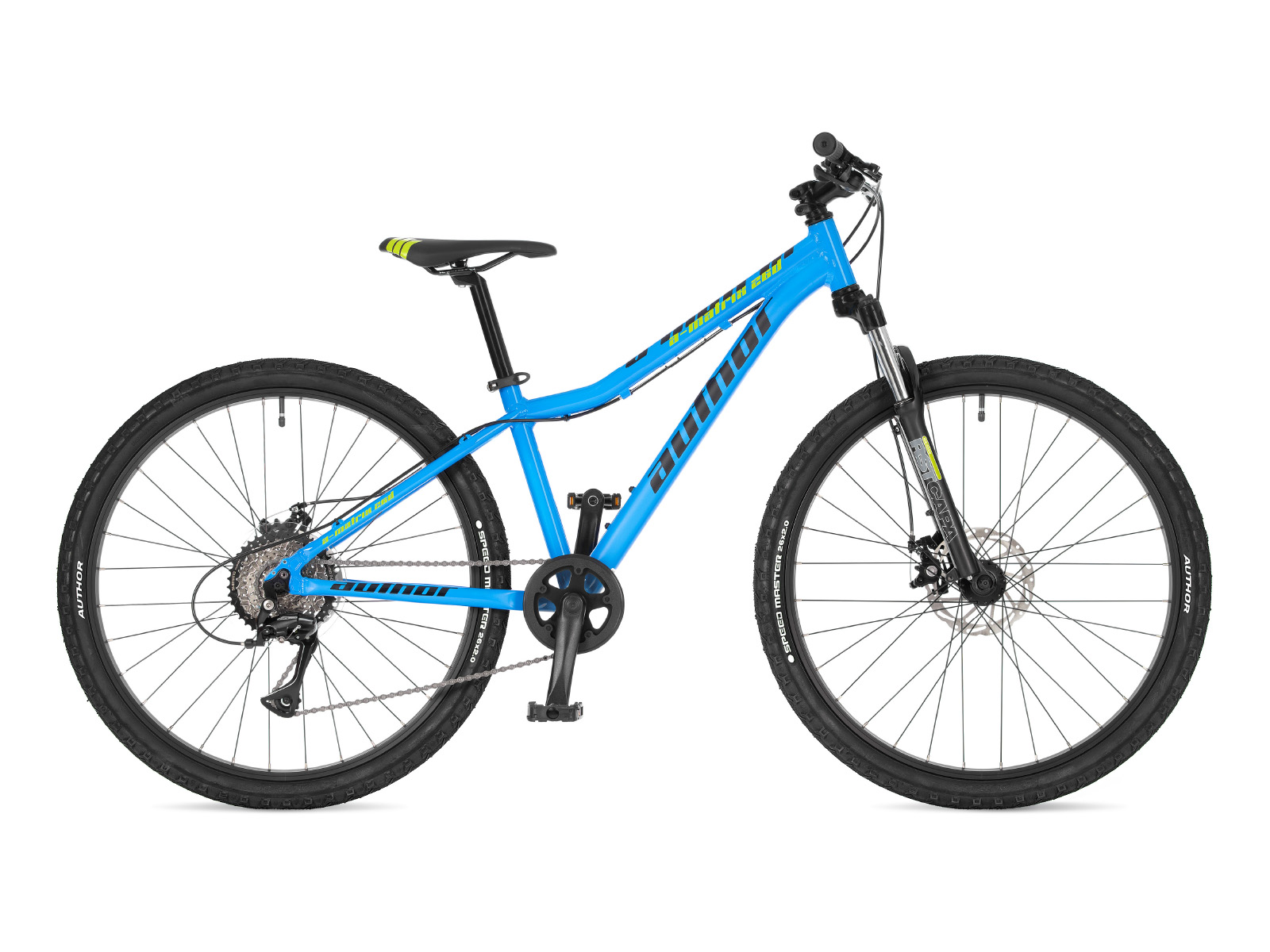

	blue / black / lime	13,5" = UA#42954221
