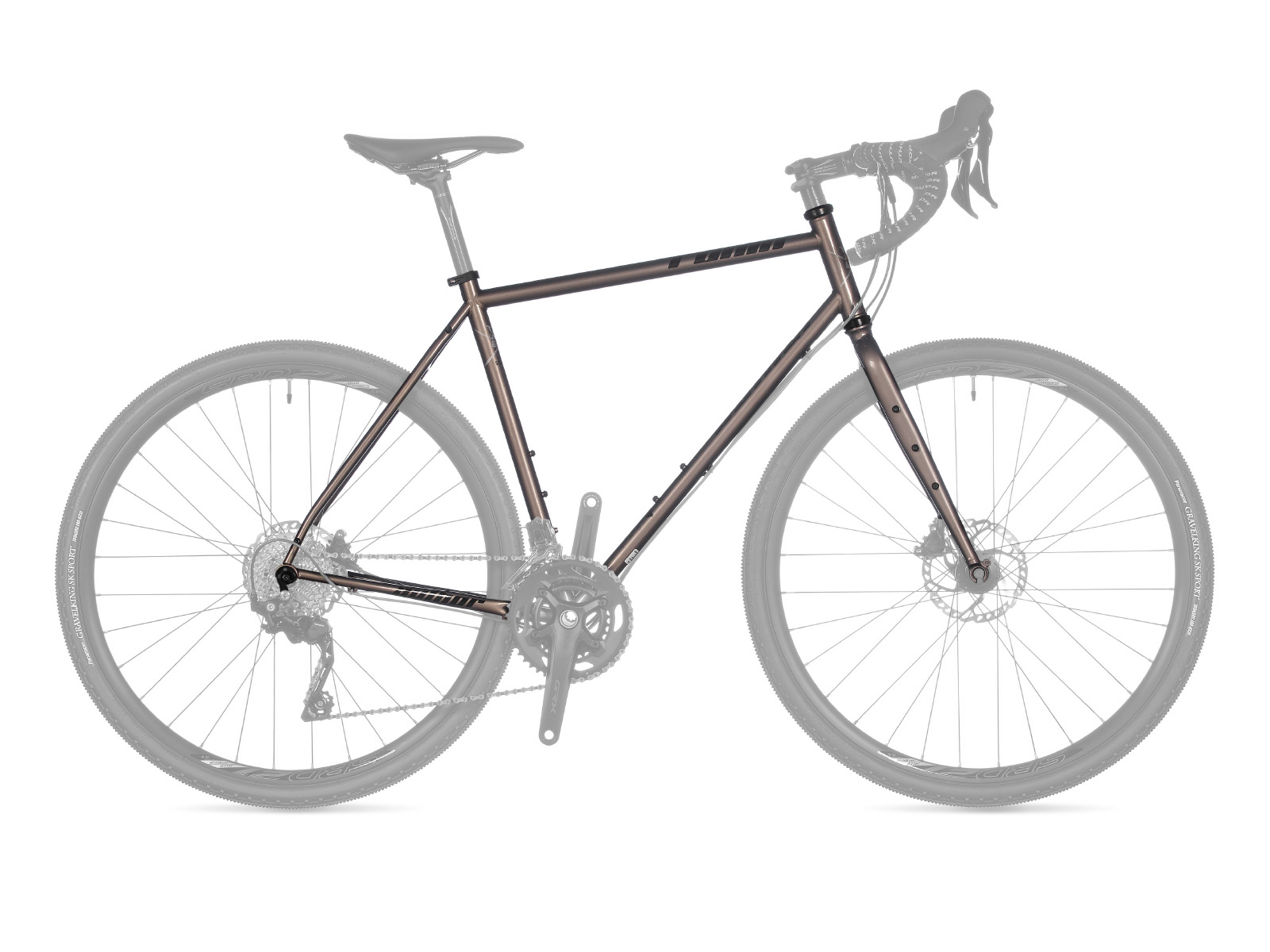

Frame+fork Ronin 2023-24

~~Colour variants~~

Triple butted cromoly frameCromoly rigid forkSize 50, 52, 54, 56, 58

~~Buy now~~special price 9 990 Kč

original price ~~14 990 Kč~~

ONLY frame set!
Frame set contain tripple butted chrommoly frame itself, chrommoly fork with standardized „anything cage“ mount WBB, Head set 1,1 / 8", 6 × 5 mm black alloy spacers, seat clamp and RD hanger.
Drop In head set, seat post 27,2 mm.
Frame weight 2.119 g, fork 1.270 g.

other models

Interested in other model`s year?

2023-24 2025 2026

Technical specification

Size	500, 520, 540, 560, 580 mm
Frame	triple butted cromoly

Front fork	cromoly 700C

Geometry and sizes

Size	500	520	540	560	580
Min. figure ~~[cm]~~	160	168	176	186	193
Max. figure ~~[cm]~~	170	178	188	195	205
S/T c-t ~~[mm]~~	500	520	540	560	580
S/T c-c ~~[mm]~~	460	480	500	520	540
T/T h ~~[mm]~~	530	545	560	580	595
T/T a ~~[mm]~~	515	529	542	560	573
H/T ~~[mm]~~	120	140	160	180	200
C/S ~~[mm]~~	425	425	425	425	425
W/B ~~[mm]~~	1015	1021	1032	1042	1046
S/T ang. ~~[°]~~	74.5	74	73.5	73	72.5
H/T ang. ~~[°]~~	70.5	71	71	71.5	72
F/L ~~[mm]~~	408	408	408	408	408
B/B drop ~~[mm]~~	70	70	69	68	68
B/B width ~~[mm]~~	68	68	68	68	68
Reach ~~[mm]~~	374	378	382	390	393
Stack ~~[mm]~~	562	583	601	617	642
F/R ~~[mm]~~	45	45	45	45	45
Handlebars ~~[mm]~~	0	0	0	0	0
Stem ~~[mm]~~	0	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
