AUTHOR ZENITH  2012
  » Bicycles » cross

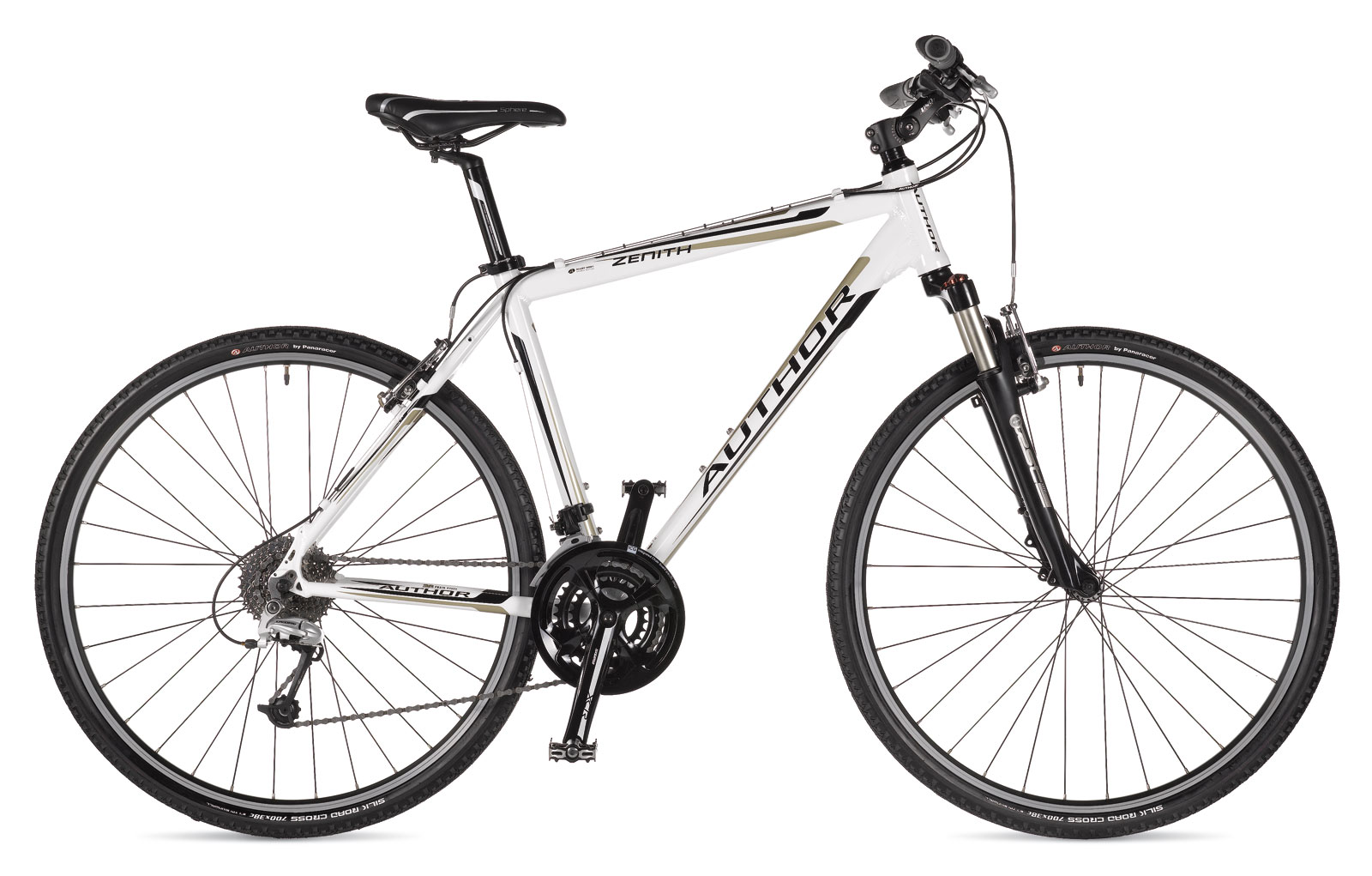

AUTHOR Zenith 2012Archivní model 2012

SOLD OUT
Interested in other model`s year?

Technical specification

Size16", 18", 20", 22", 24"
Framedouble butted alloy 6061 700c
Front forkRST Vita TnL oil, lock out (60 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSUNTOUR XCR-V3-T418 48-36-26 teeth 170 / 175 mm cranks
BBPartsSHIMANO UN-26
Front derailleurSHIMANO Alivio (34.9)
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (27)
Free wheelSHIMANO HG-50-9 11-34 (9)
ChainSHIMANO HG-53
HubsAUTHOR 32 holes
BrakesTEKTRO 857AL
Brakes leversTEKTRO CL-530
RimsAUTHOR Xenon Cross black 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR PANARACER Silk Road Cross 700 x 38c
PedalsAUTHOR alloy
HandlebarAUTHOR 20 mm 620 / 640 mm
GripsAUTHOR ErgoGrip
StemUNO adjustable
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Sphere Gel
Speed27
Weight13,4 Kg / 20"

Geometry and sizes

Size 16" 18" 20" 22" 24"
Min. figure [cm] 150 164 174 184 194
Max. figure [cm] 166 176 186 196 205
S/T c-t [mm] 406 457 508 559 610
S/T c-c [mm] 0 0 0 0 0
T/T h [mm] 553 560 583 605 616
T/T a [mm] 534 537 559 583 602
H/T [mm] 120 130 145 160 175
C/S [mm] 440 440 440 440 440
W/B [mm] 1046 1054 1077 1100 1111
S/T ang. [°] 73 73 73 73 73
H/T ang. [°] 71 71 71 71 71
F/L [mm] 470 470 470 470 470
B/B drop [mm] 45 45 45 45 45
B/B width [mm] 0 0 0 0 0
Reach [mm] 0 0 0 0 0
Stack [mm] 0 0 0 0 0
F/R [mm] 46 46 46 46 46
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Zenith 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
