  » Bicycles » city » bike models

VoyageArchivní model 2025

Colour variants
Design city bikeAlloy frameComponents SHIMANO Nexus, 3 speedFull chaincoverStem ZOOM adjustablePedals AUTHOR Non AlloyComfort saddle AUTHOR King Sofa
special price 9 990 Kč
original price  16 990 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size18", 20", 22"
Framealloy 6061 700c
Front forkhi-ten
Head partsVP COMP 1-1/8"

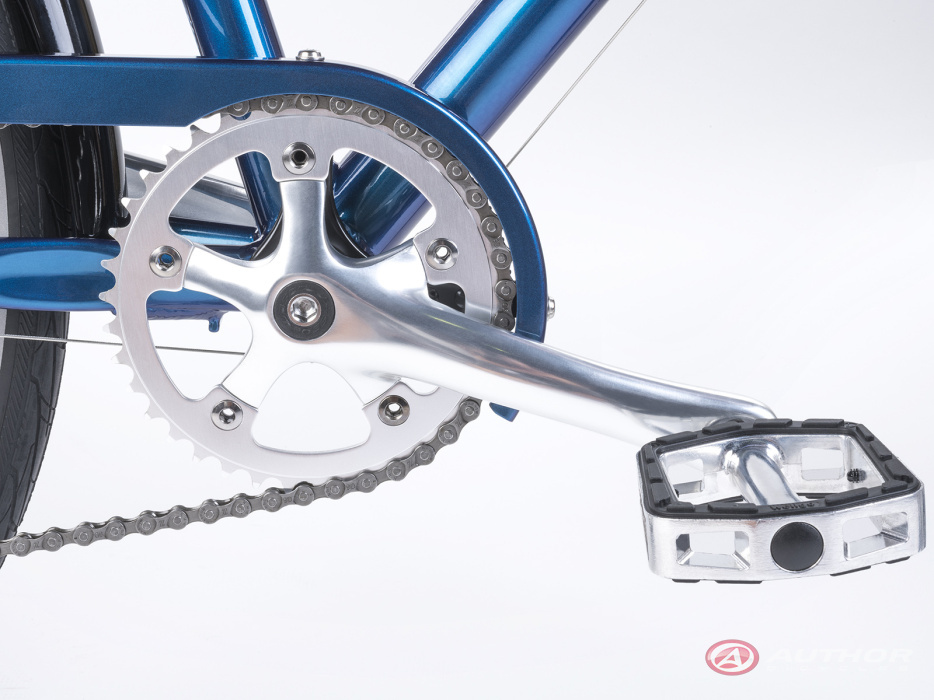

Chain WheelLASCO, 38 teeth, 170 mm cranks
BBPartsVP COMP, cartridge
Rear derailleurSHIMANO Nexus 3

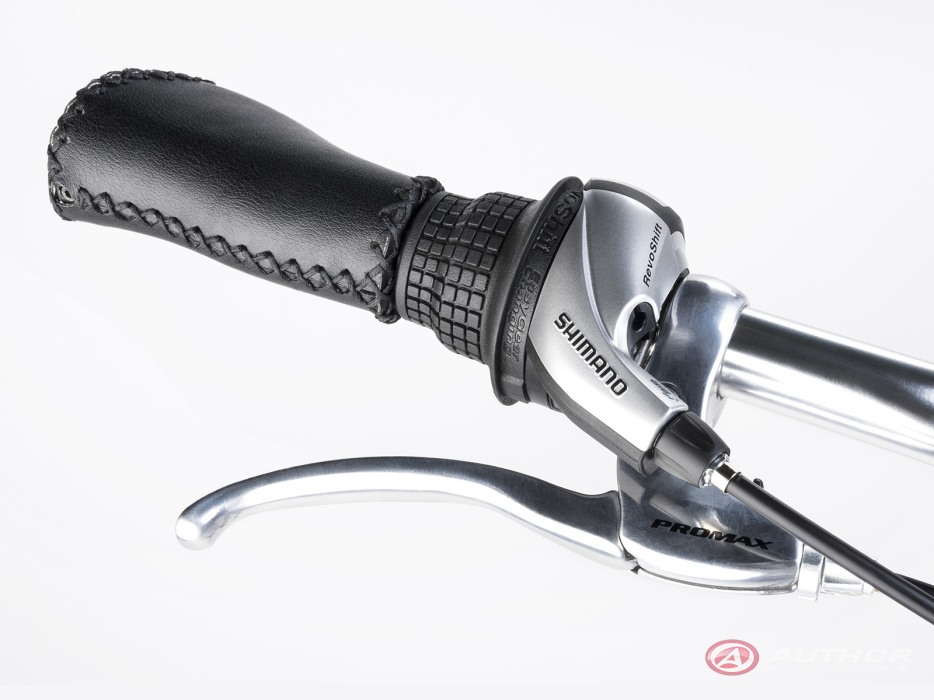

ShiftersSHIMANO Nexus 3 (3)
Free wheelSHIMANO Nexus 3
ChainKMC Z1
HubsQUANDO, 32 holes
BrakesPROMAX V
Brakes leversPROMAX alloy
Rimsaloy, 32 holes
Spokessteel 2.0 mm
TiresCST Sensamo Speed 700 × 35c
PedalsWELLGO Non Slip alloy
Handlebaralloy, 30 mm, 610 mm
Gripsvinyl

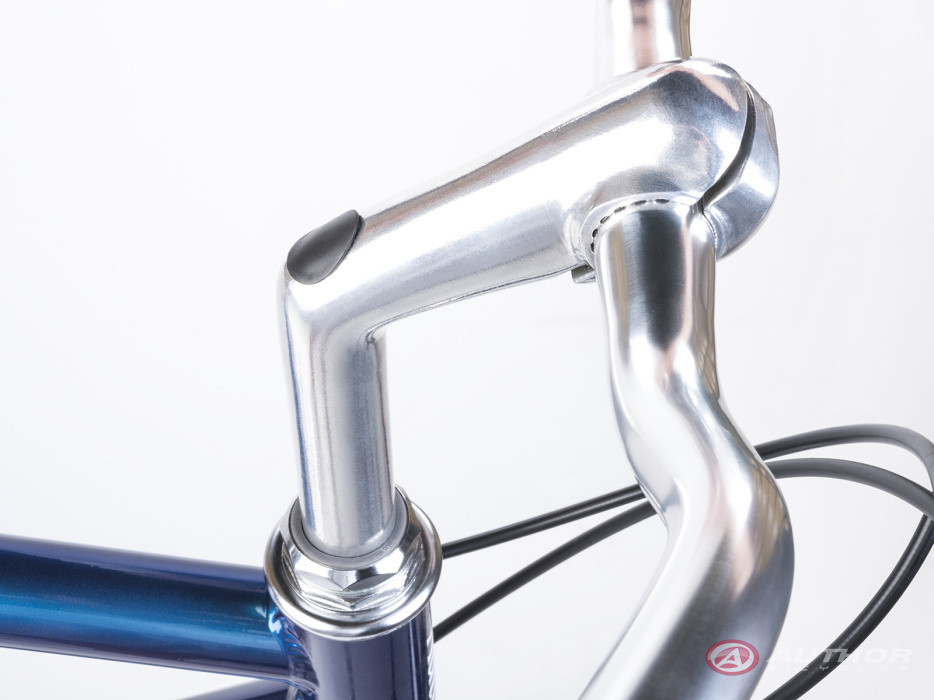

Stemalloy
Seat postalloy (27.2)
Seat clampalloy (31.8)

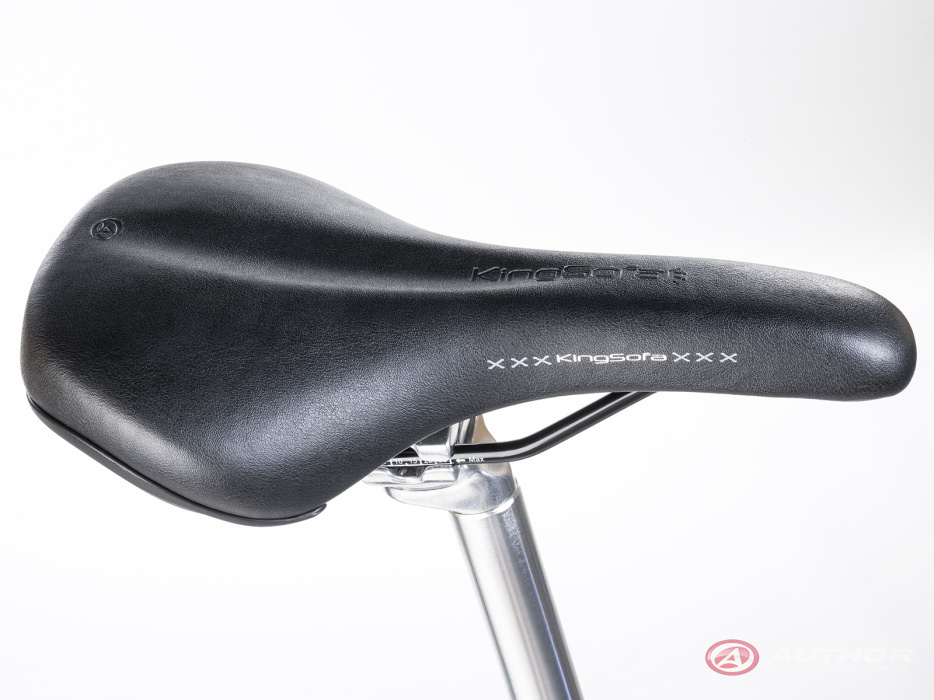

SaddleAUTHOR King Sofa
Speed3
Weight13 kg / 20"

Geometry and sizes

Size 18" 20" 22"
Min. figure [cm] 163 172 183
Max. figure [cm] 175 185 200
S/T c-t [mm] 457 508 559
S/T c-c [mm] 0 0 0
T/T h [mm] 520 555 620
T/T a [mm] 512 542 586
H/T [mm] 125 130 140
C/S [mm] 445 445 445
W/B [mm] 1064 1072 1100
S/T ang. [°] 75 75 75
H/T ang. [°] 71 71 71
F/L [mm] 423 423 423
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 45 45 45
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Voyage

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

green18" = UA#4294970225   20" = UA#4294970325   22" = UA#4294970425
silver / blue18" = UA#4294971225   20" = UA#4294971325   22" = UA#4294971425
