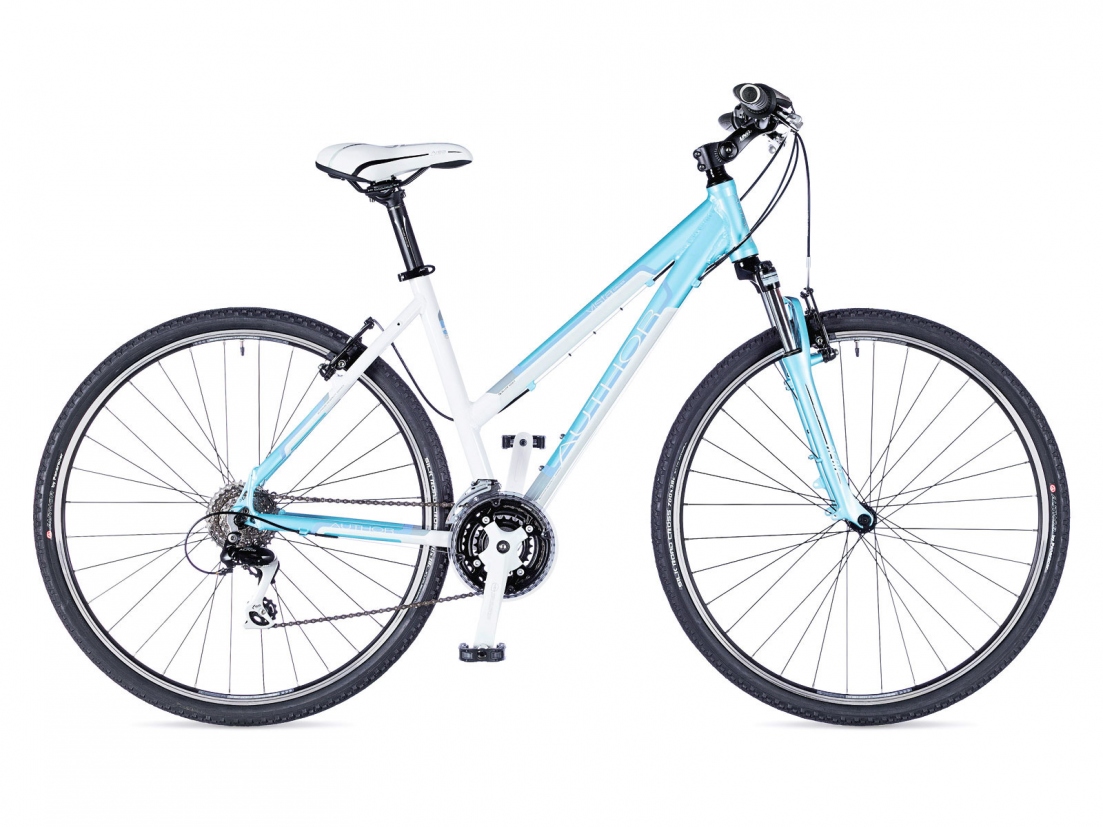

Technical specification

Size17", 19"
Framealloy 6061 700c (L)
Front forkRST Neon ML lock out (60 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSUNTOUR NEX-T102 42-34-24 teeth 170 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO M191 (34.9)
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Revoshift (24)
Free wheelSHIMANO HG-41-8 11-32 (8)
ChainSHIMANO HG-50
HubsQUANDO 32 holes
BrakesTEKTRO 857AL
Brakes leversTEKTRO CL-530
RimsAUTHOR Xenon Cross black 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR PANARACER Silk Road Cross 700 x 38c
PedalsAUTHOR Non Slip alloy
HandlebarAUTHOR 20 mm 620 mm
GripsAUTHOR ErgoGrip
StemUNO adjustable
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Area Gel
Speed24
Weight12,9 kg / 19"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 155 167
Max. figure [cm] 169 182
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 553 565
T/T a [mm] 578 593
H/T [mm] 125 140
C/S [mm] 445 445
W/B [mm] 1051 1064
S/T ang. [°] 73 73
H/T ang. [°] 71 71
F/L [mm] 470 470
B/B drop [mm] 50 50
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 48 48
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
