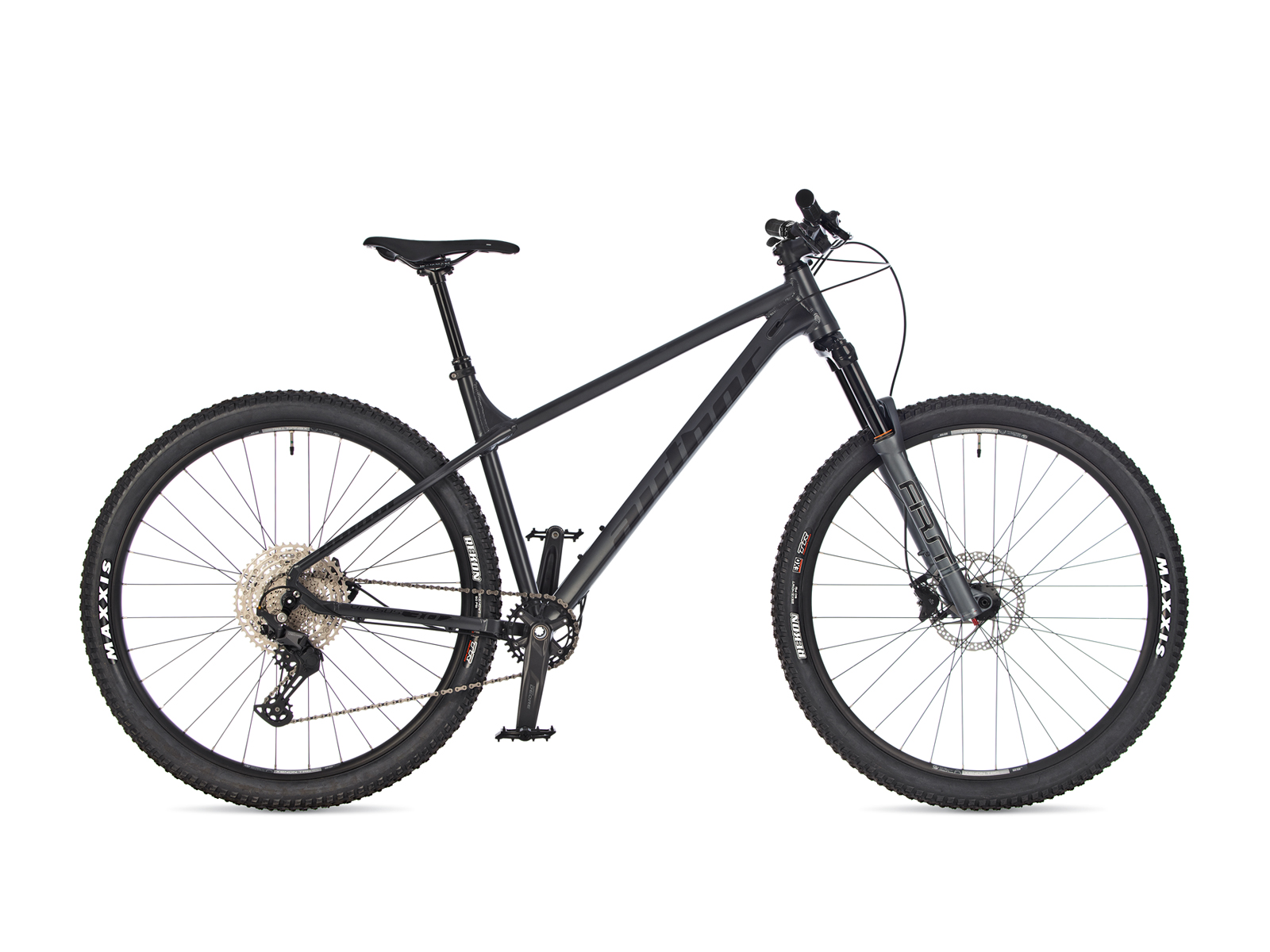

Versus 29 3.0 2023-24

~~Colour variants~~

Hydroformed alloy frame with modern downcountry geometryFork RST F1RST 110-15 TRL, travel 120 mmComponents SHIMANO Deore 1 × 11 M5100 11-51Dropper seatpos KIND SHOCK RageiUniversal tires MAXXIS Rekon 29" × 2.40"SHIMANO disc hydraulic brakeQuality HT platform pedals

~~Buy now~~special price 34 990 Kč

original price ~~37 990 Kč~~

Technical specification

Size	17", 19", 21"

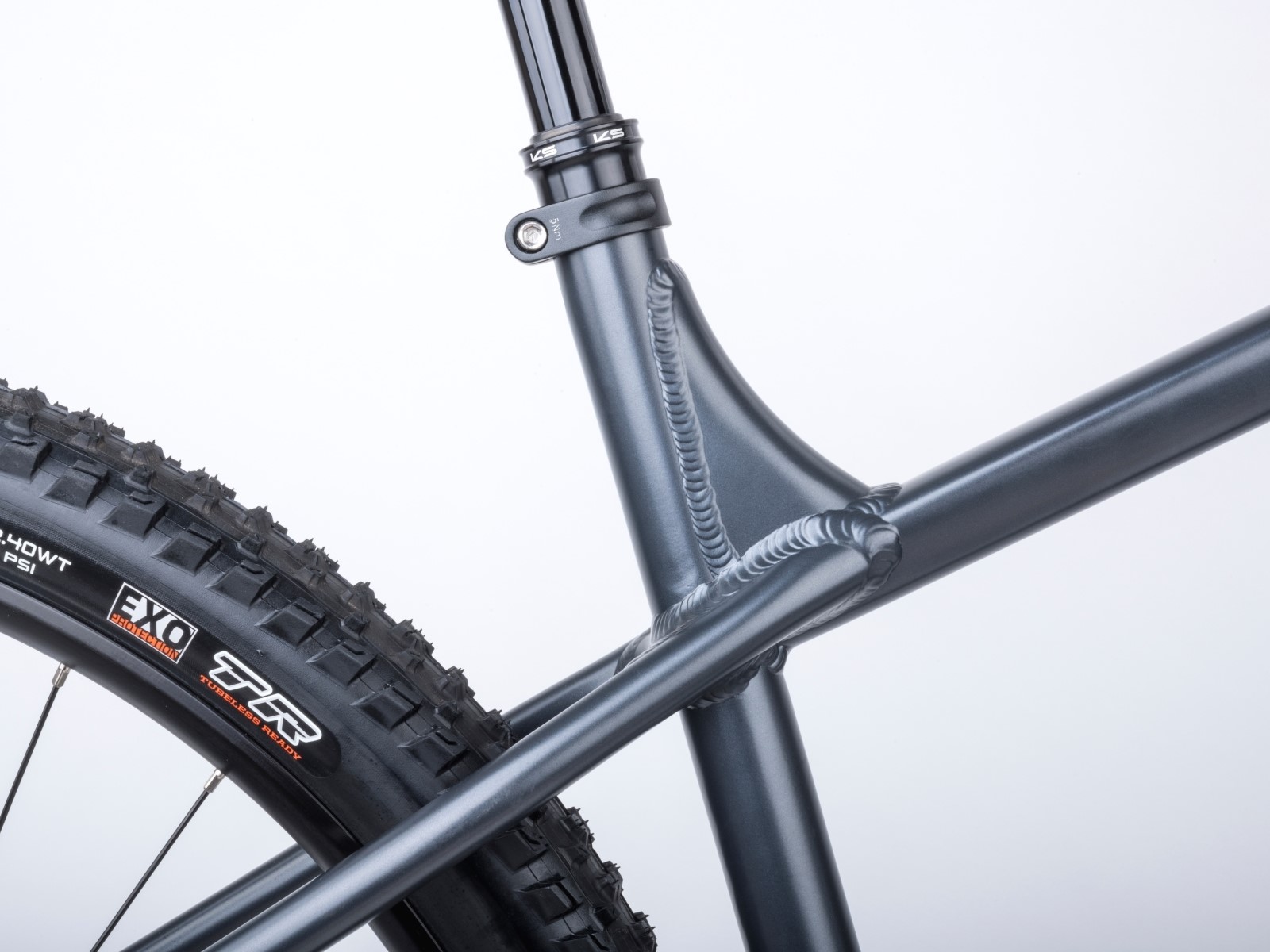

Frame	double butted hydroformed dural 6061 29"

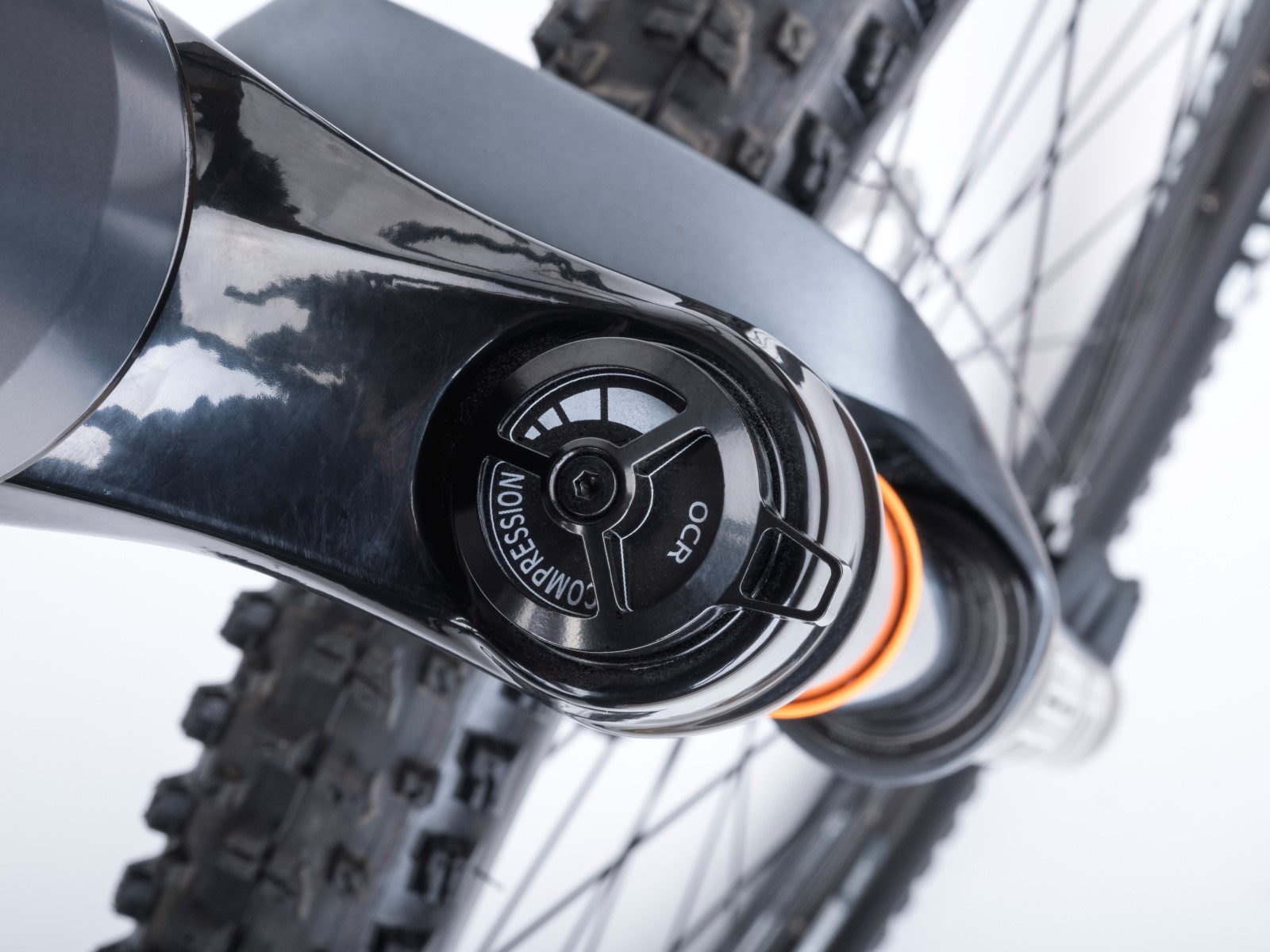

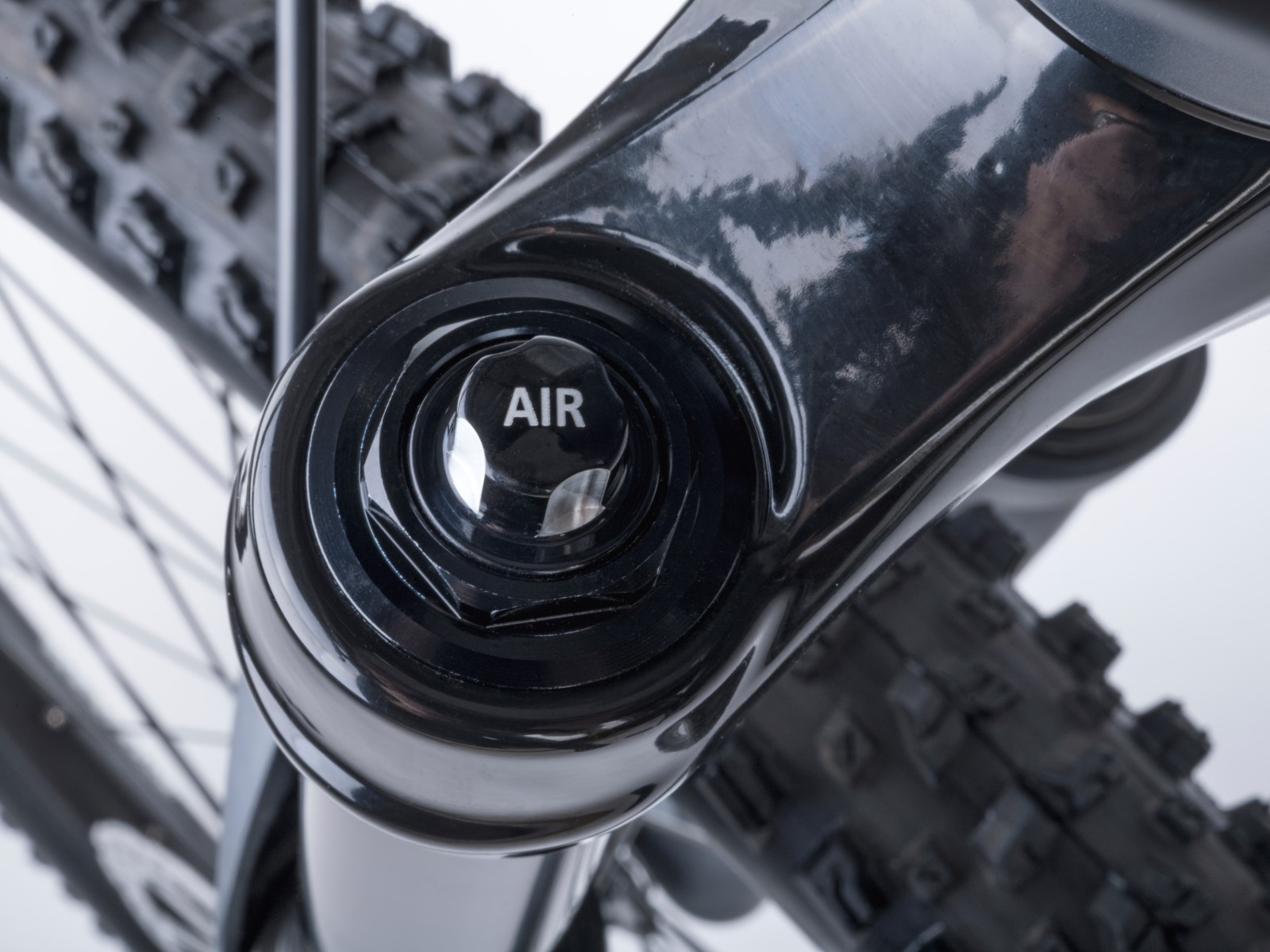

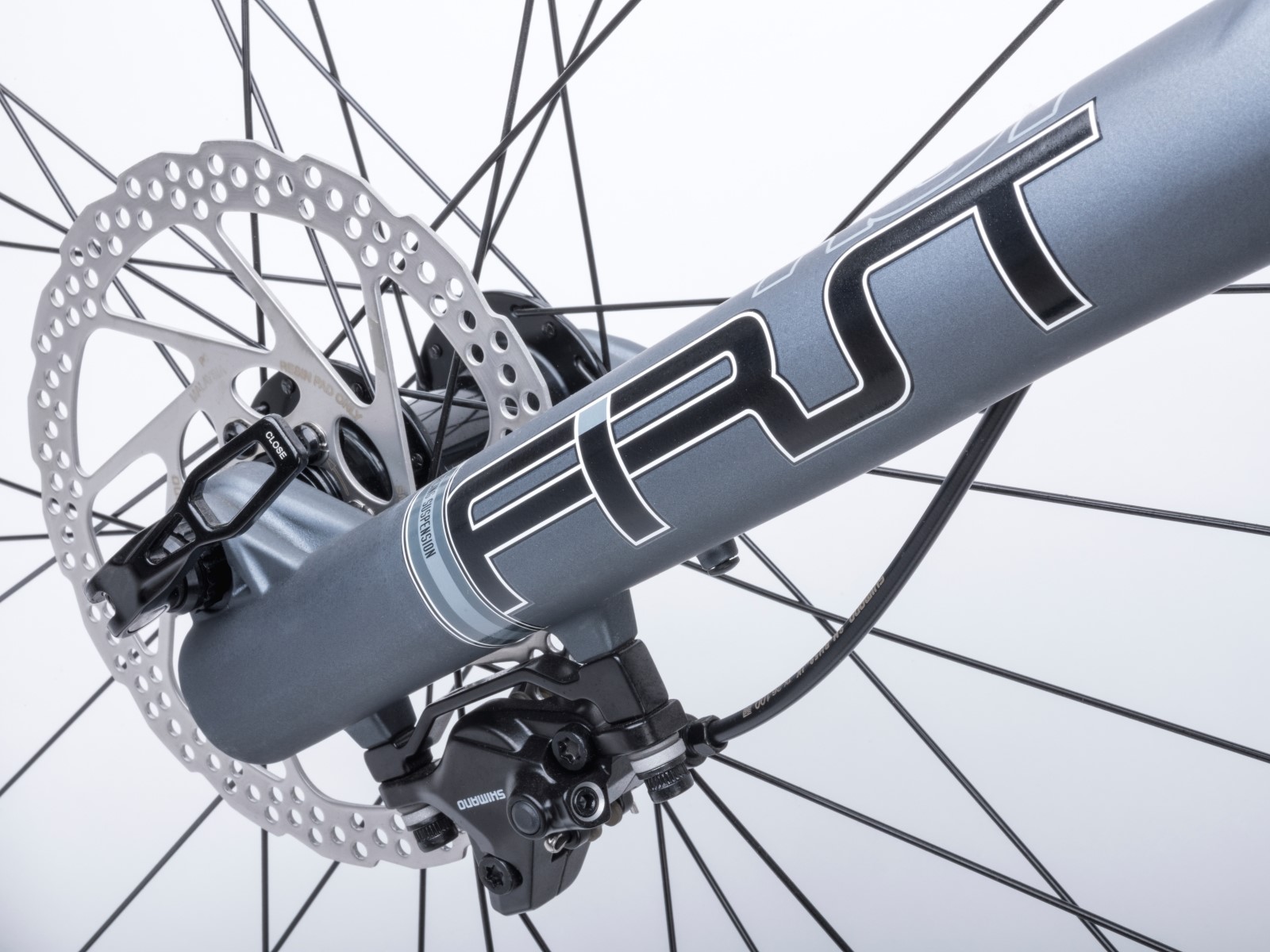

Front fork	RST F1RST 110-15 Air TRL air, lock out, 15 mm thru axle 1.5" tapered steerer (120 mm)
Head parts	PRESTINE Integrated 1.5" tapered

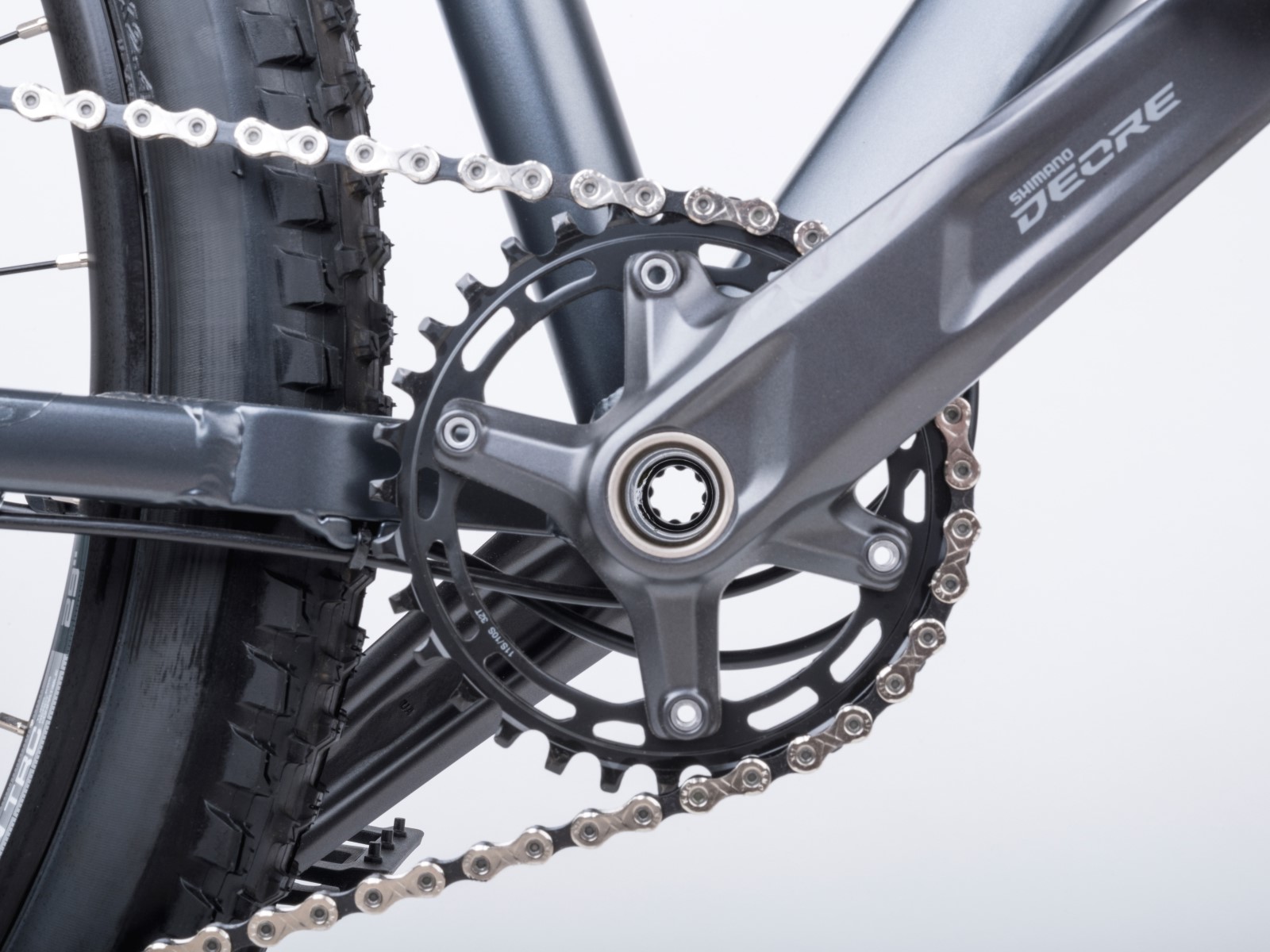

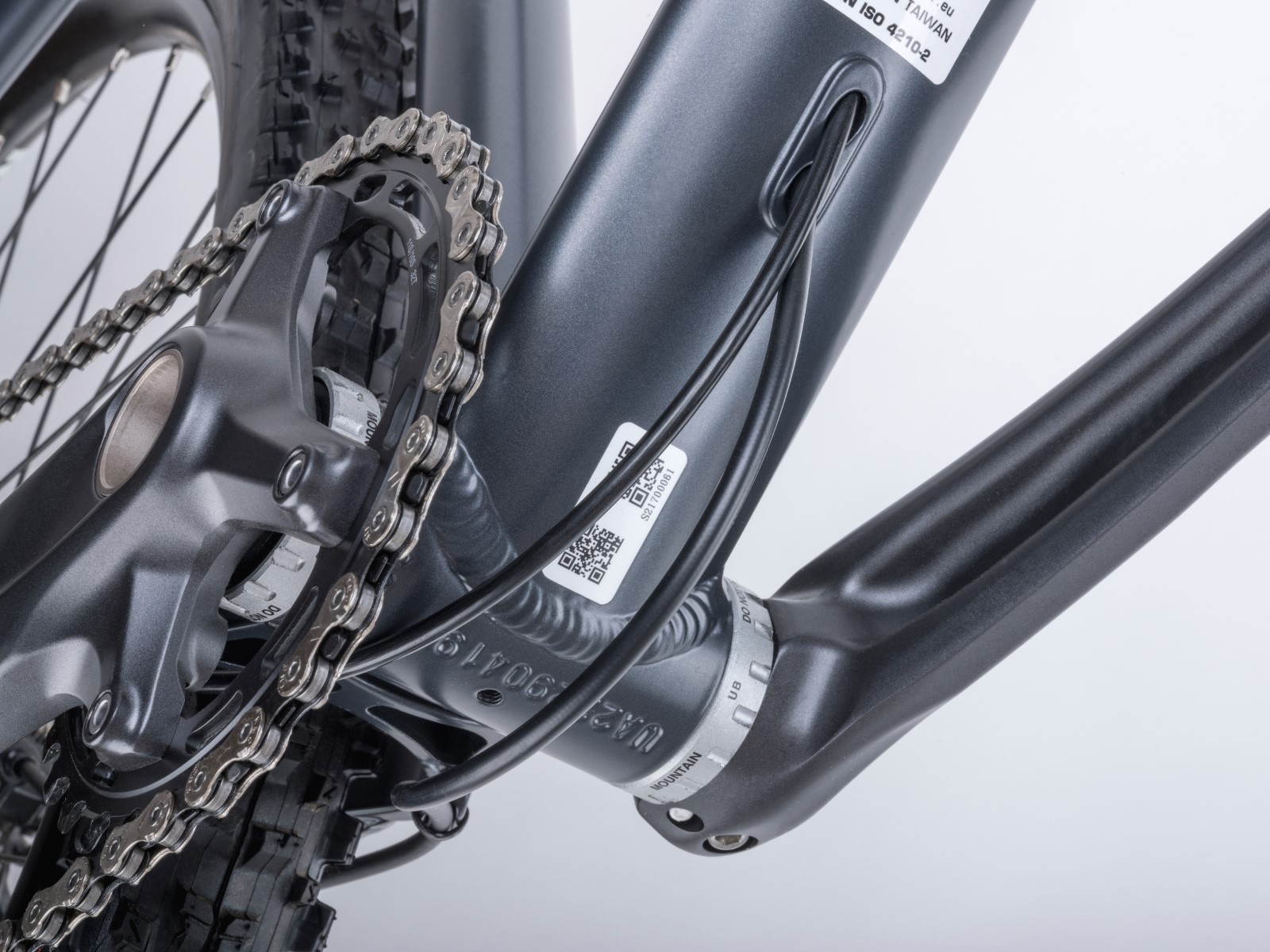

Chain Wheel	SHIMANO M5100-1, 32 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-52, BB unit

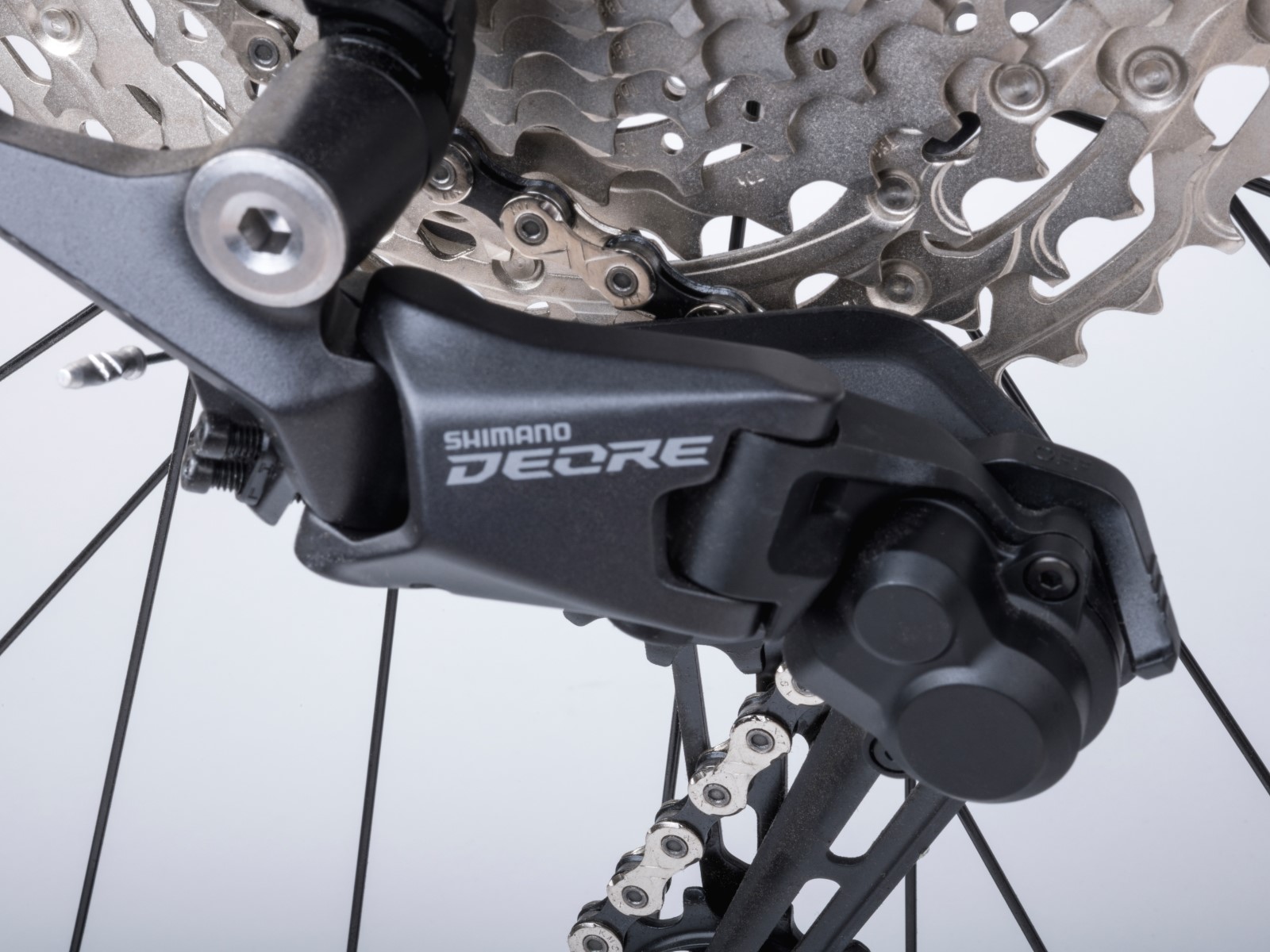

Rear derailleur	SHIMANO Deore
Shifters	SHIMANO Deore (11)
Free wheel	SHIMANO CS-LG400-11, 11-51 (11)
Chain	KMC X11
Hubs	QUANDO 15 / AUTHOR Krypton Boost 12, 15 × 110 mm thru front axle, 12 × 148 mm thru rear axle, 32 holes

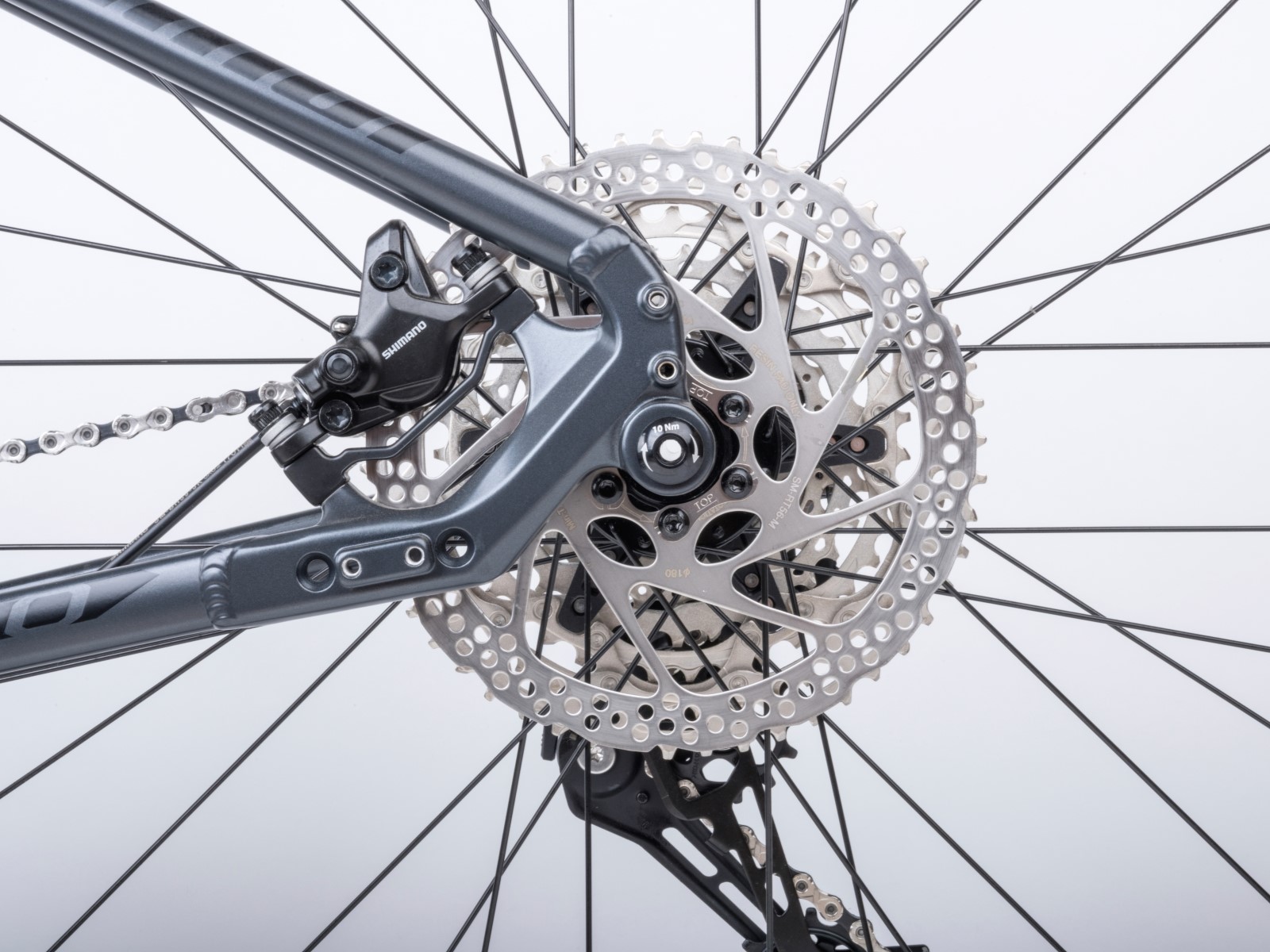

Brakes	SHIMANO BR-MT410, disc hydraulic (7" rotors)

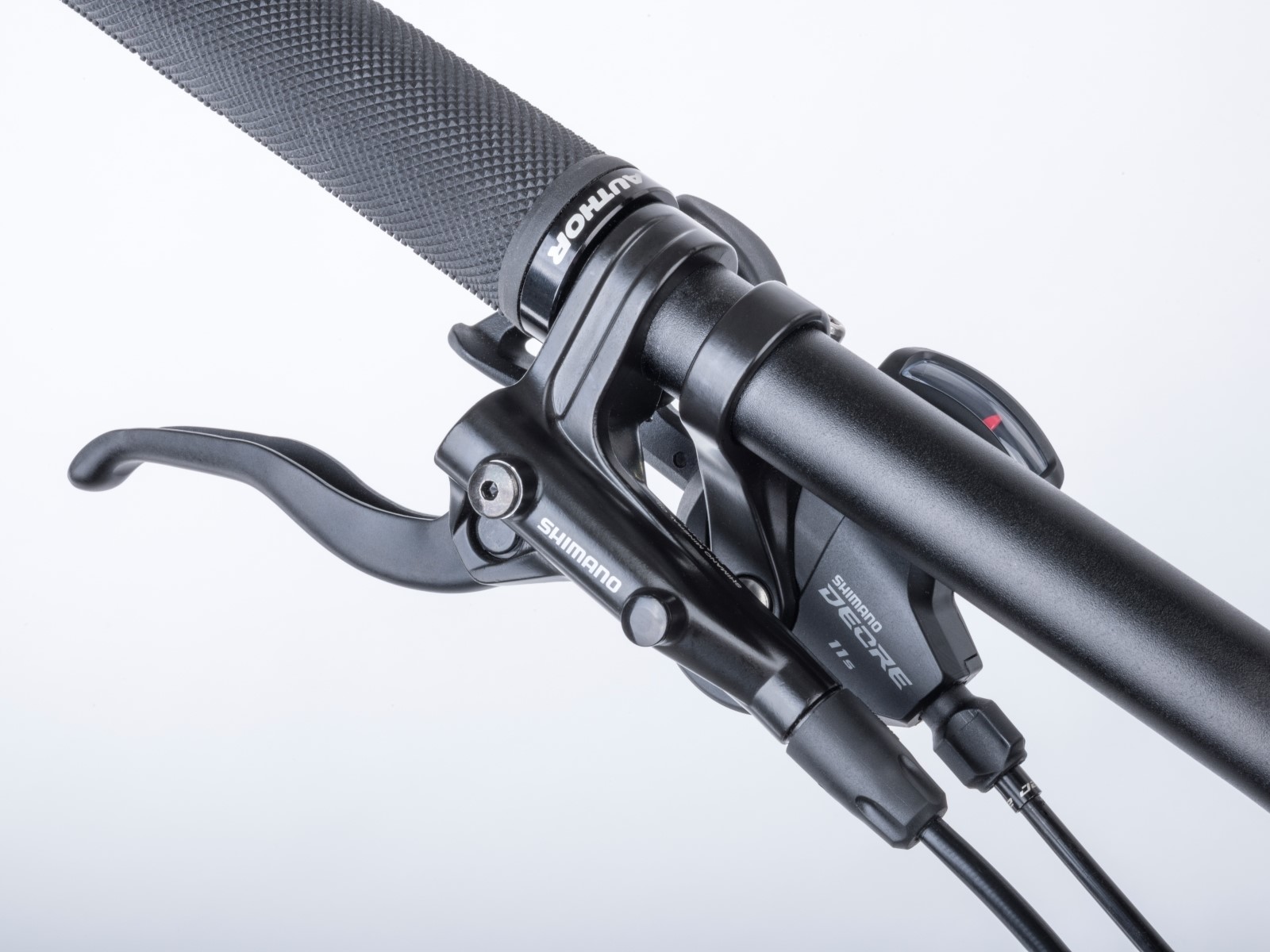

Brakes levers	SHIMANO BL MT401

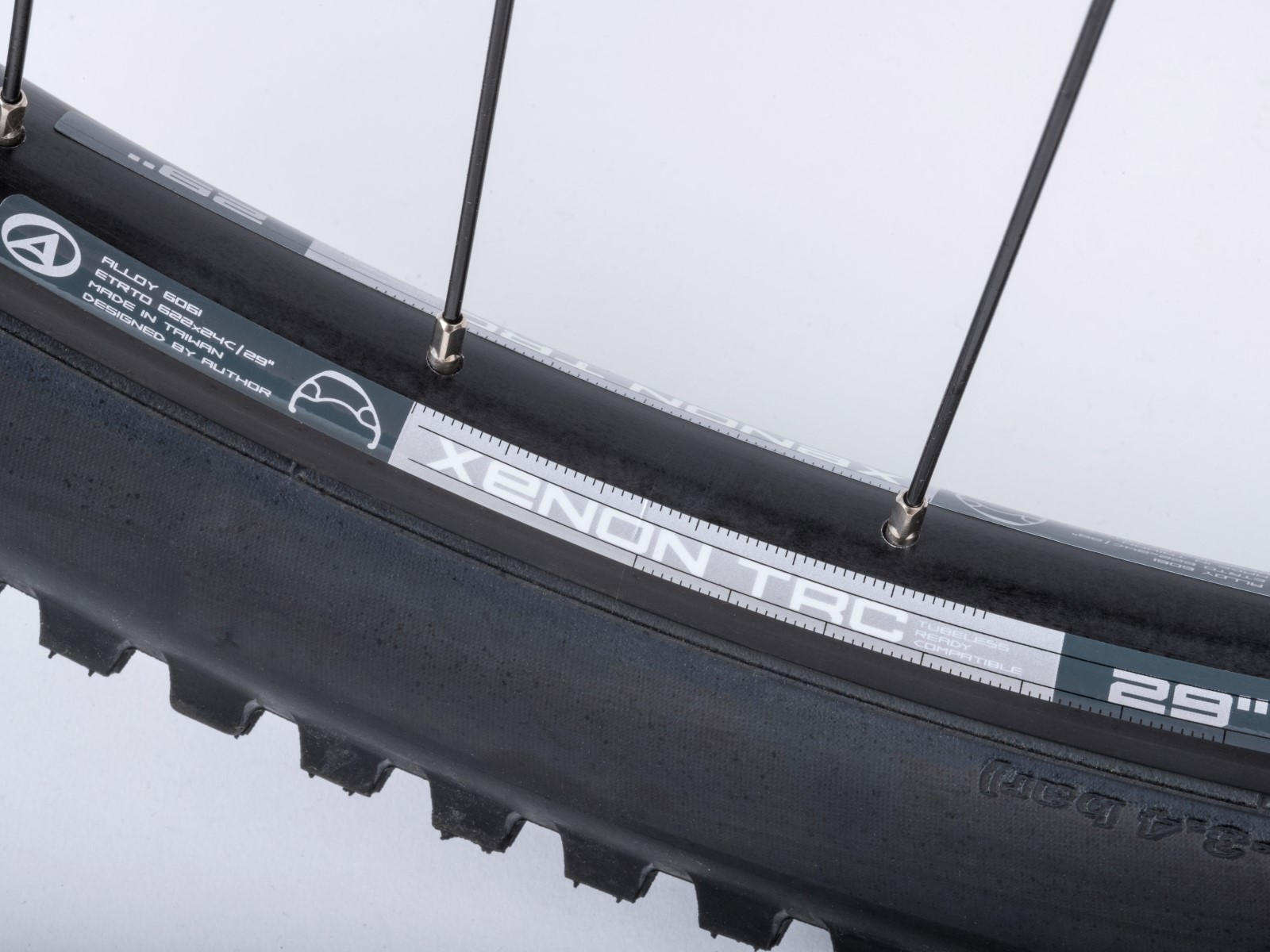

Rims	AUTHOR Xenon TRC 29, 32 holes
Spokes	black stainless steel 2.0 mm

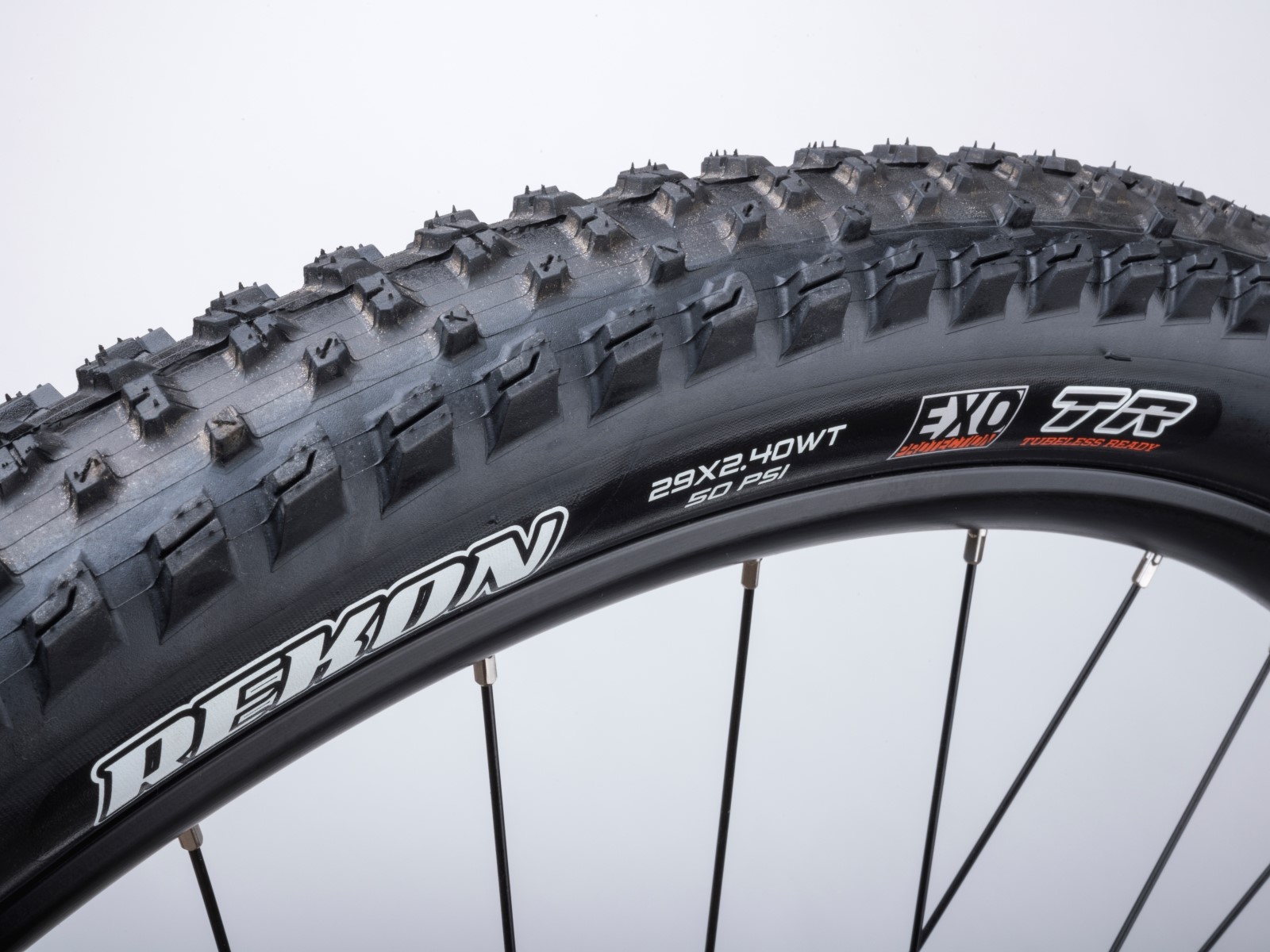

Tires	MAXXIS Rekon aramid 29" × 2.40"

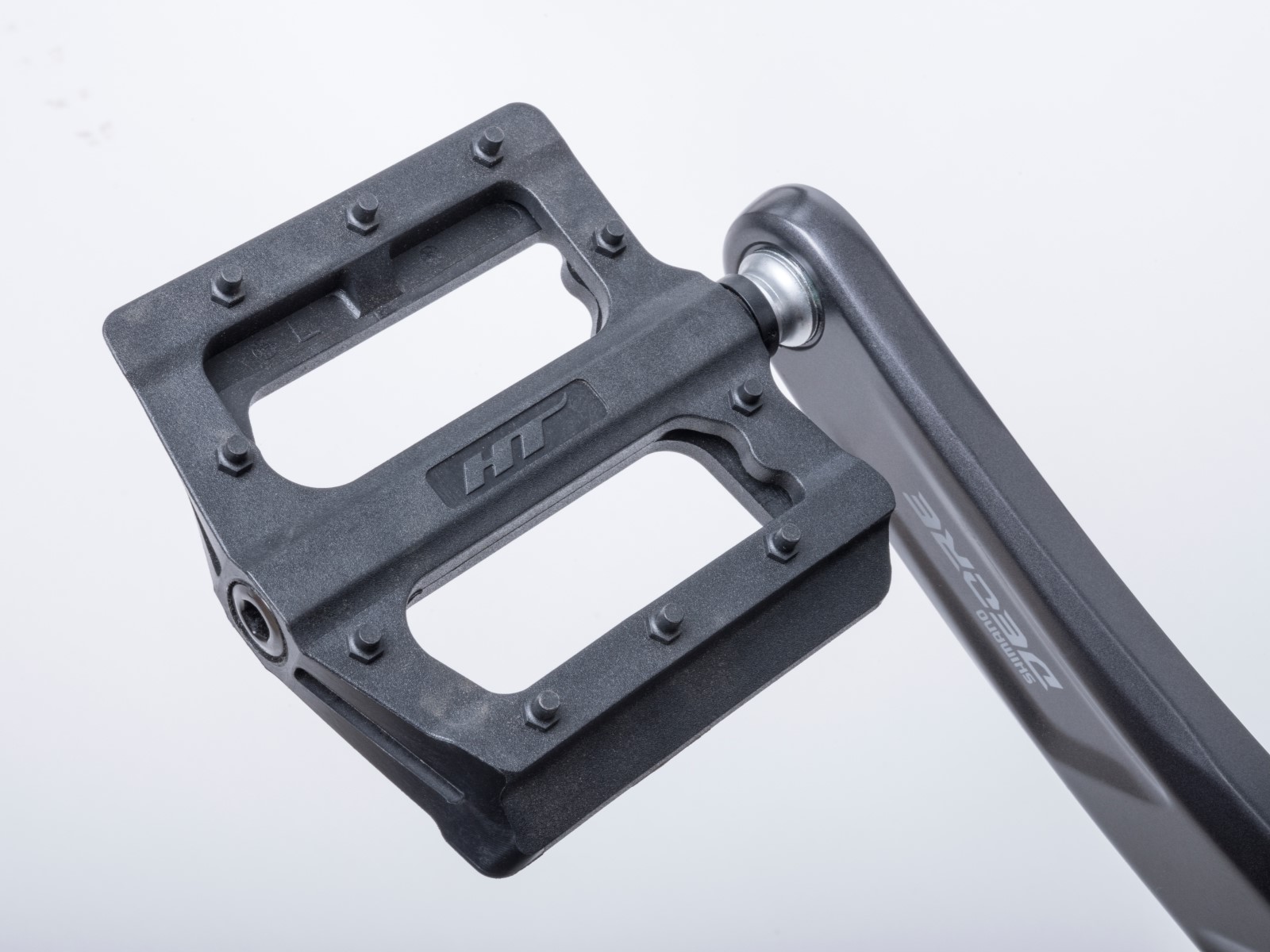

Pedals	HT platform
Handlebar	rise 15 mm, 9°, 740 / 760 mm
Grips	AUTHOR Pro Lock
Stem	alloy

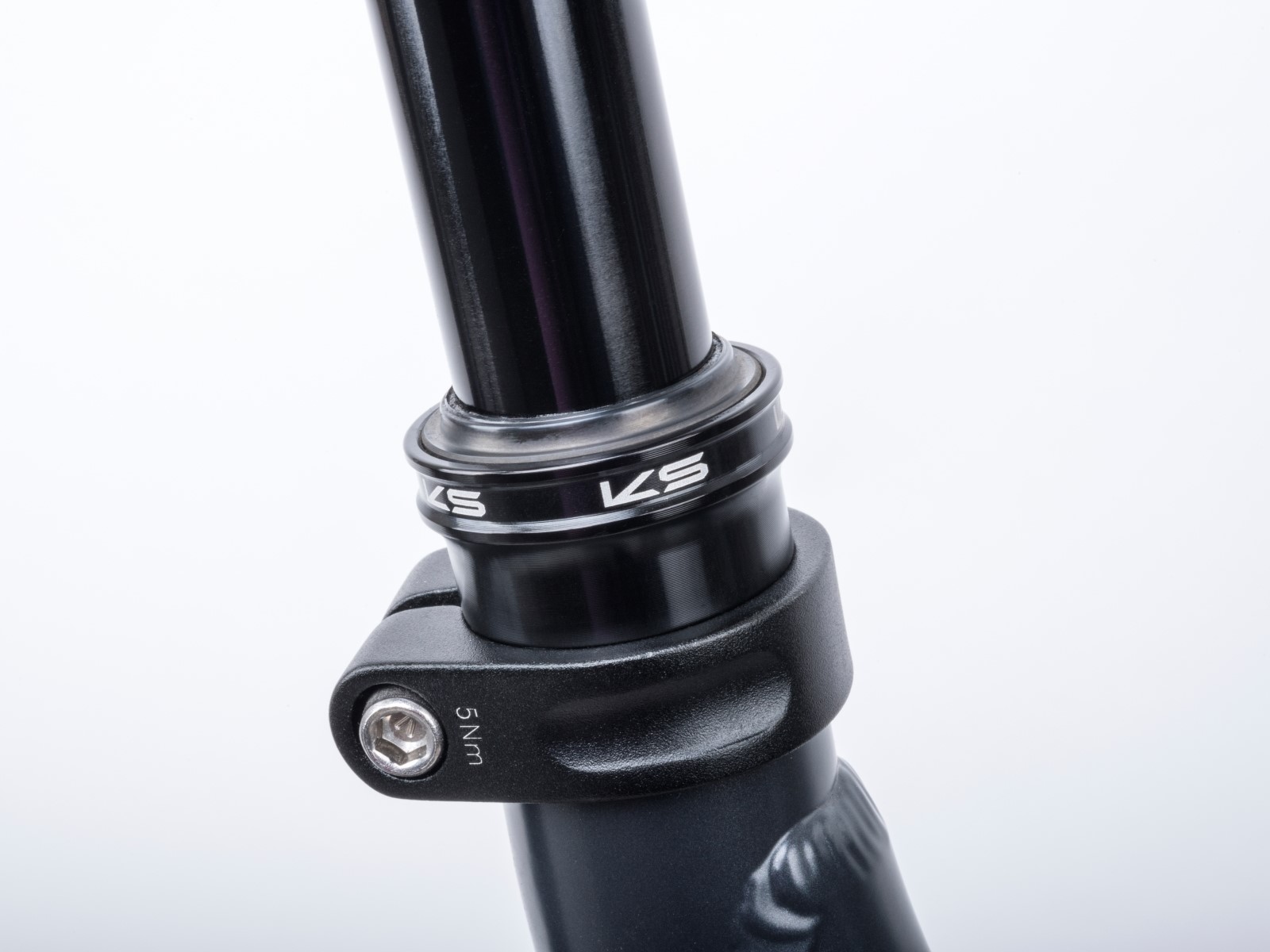

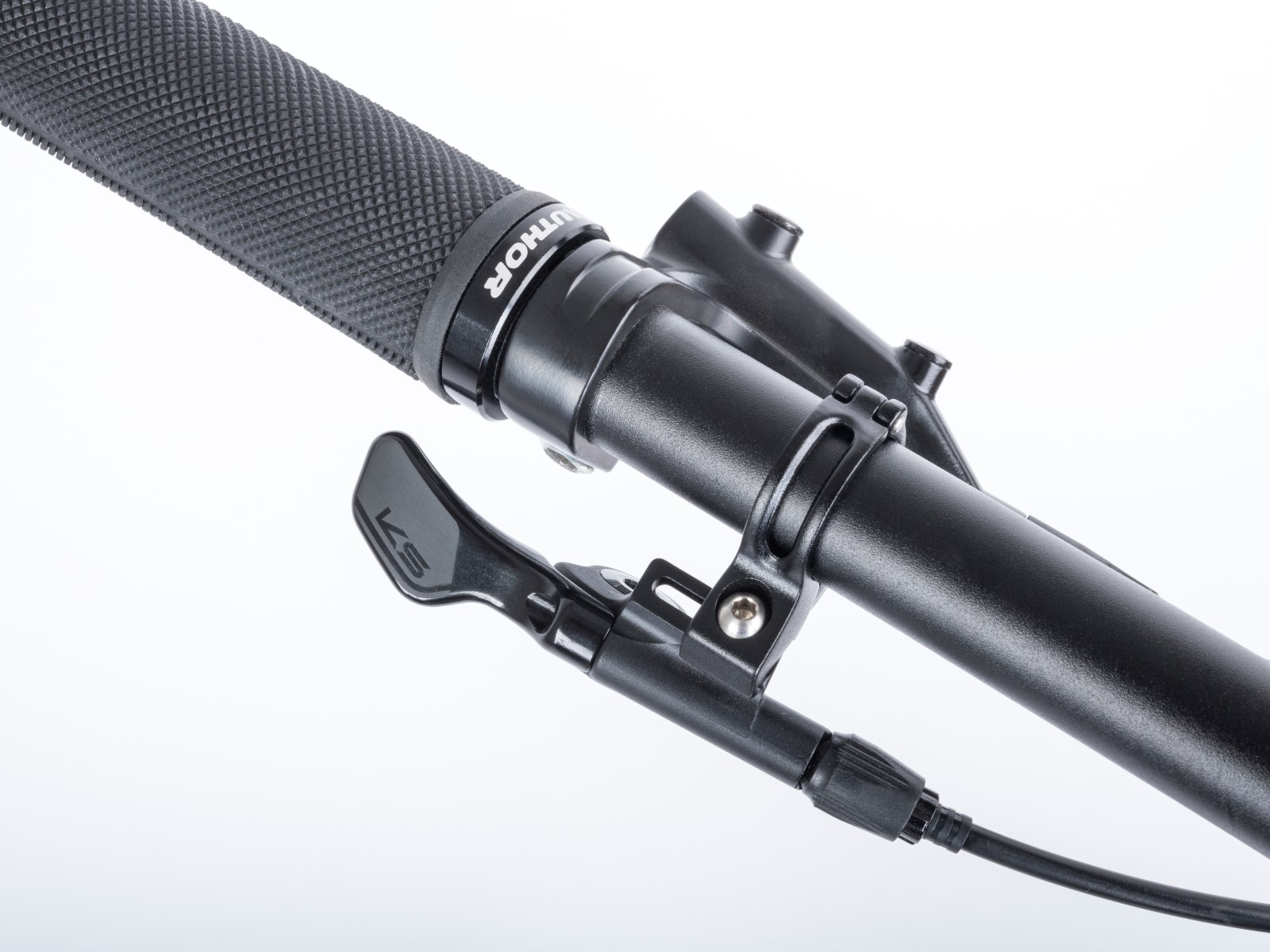

Seat post	KIND SHOCK Ragei adjustable (125 / 150 mm) (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	AUTHOR Patriot
Speed	11
Weight	14,2 kg / 19"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	168	178	188
Max. figure ~~[cm]~~	179	189	202
S/T c-t ~~[mm]~~	432	483	533
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	616	644	670
T/T a ~~[mm]~~	621	633	650
H/T ~~[mm]~~	115	125	130
C/S ~~[mm]~~	440	440	440
W/B ~~[mm]~~	1182	1213	1240
S/T ang. ~~[°]~~	74	74	74
H/T ang. ~~[°]~~	66	66	66
F/L ~~[mm]~~	535	535	535
B/B drop ~~[mm]~~	55	55	55
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	435	460	485
Stack ~~[mm]~~	632	641	645
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
