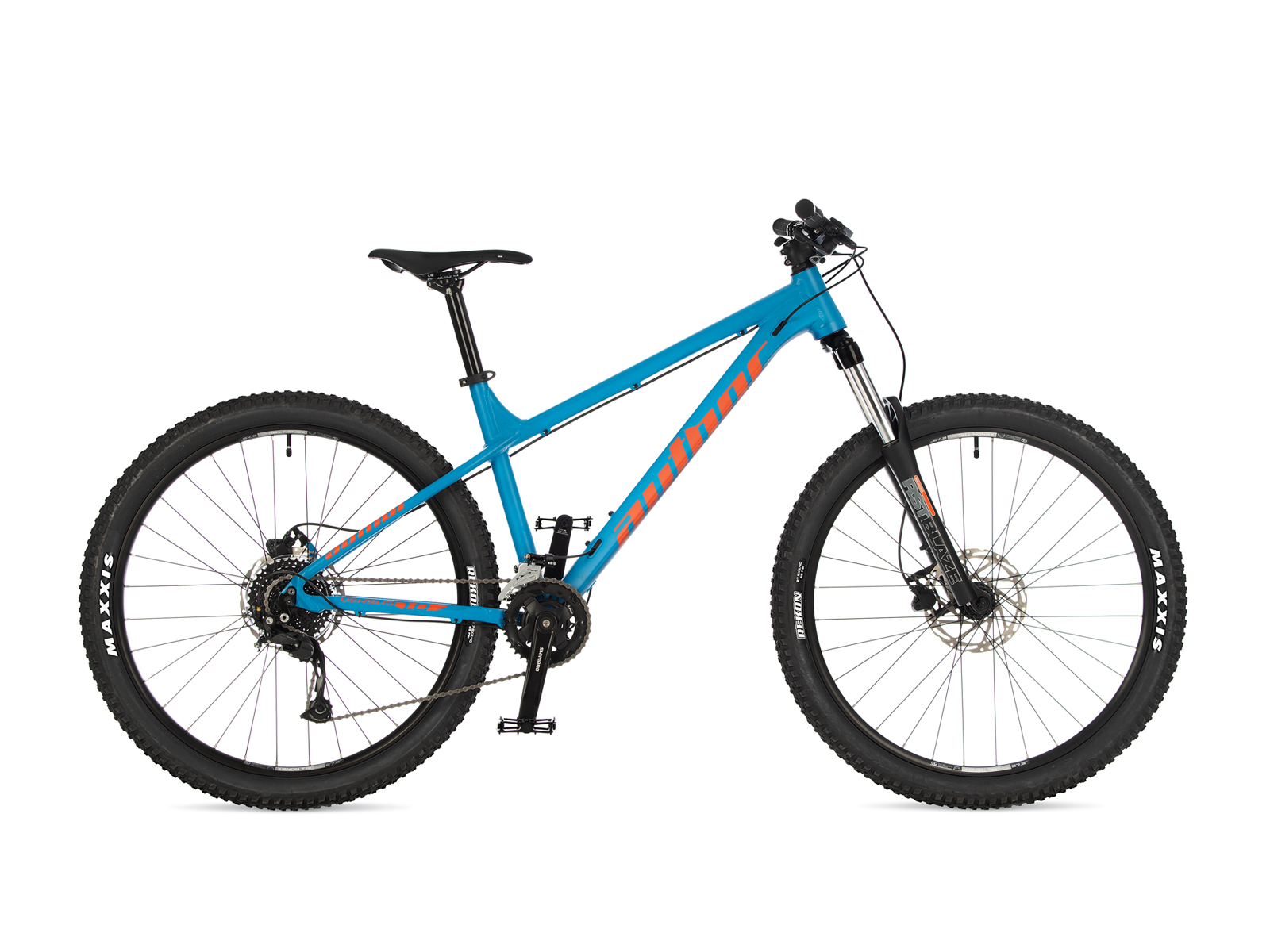

Versus 27,5 1.0 2023-24

~~Colour variants~~

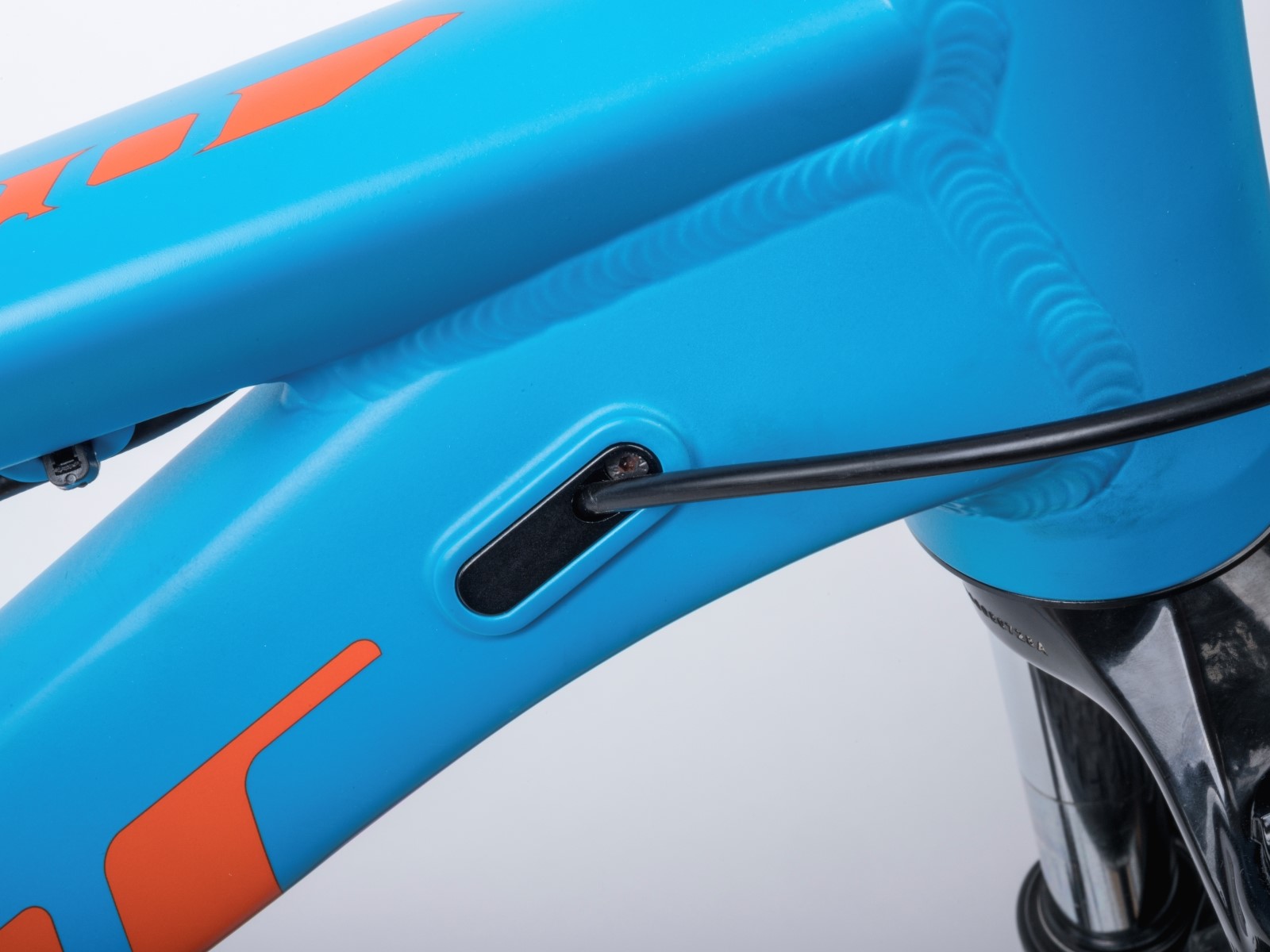

Hydroformed alloy frame with modern downcountry geometryFork RST Blaze 27.5 TnL, travel 120 mmComponents SHIMANO AlivioFrom size 15", recommended for height 145 cmUniversal tires MAXXIS Rekon 27.5" × 2.40"TEKTRO disc hydraulic brakeReady for the integrated guide of the drop seatpost.

~~Buy now~~special price 19 990 Kč

original price ~~21 990 Kč~~

Technical specification

Size	15", 17", 19"

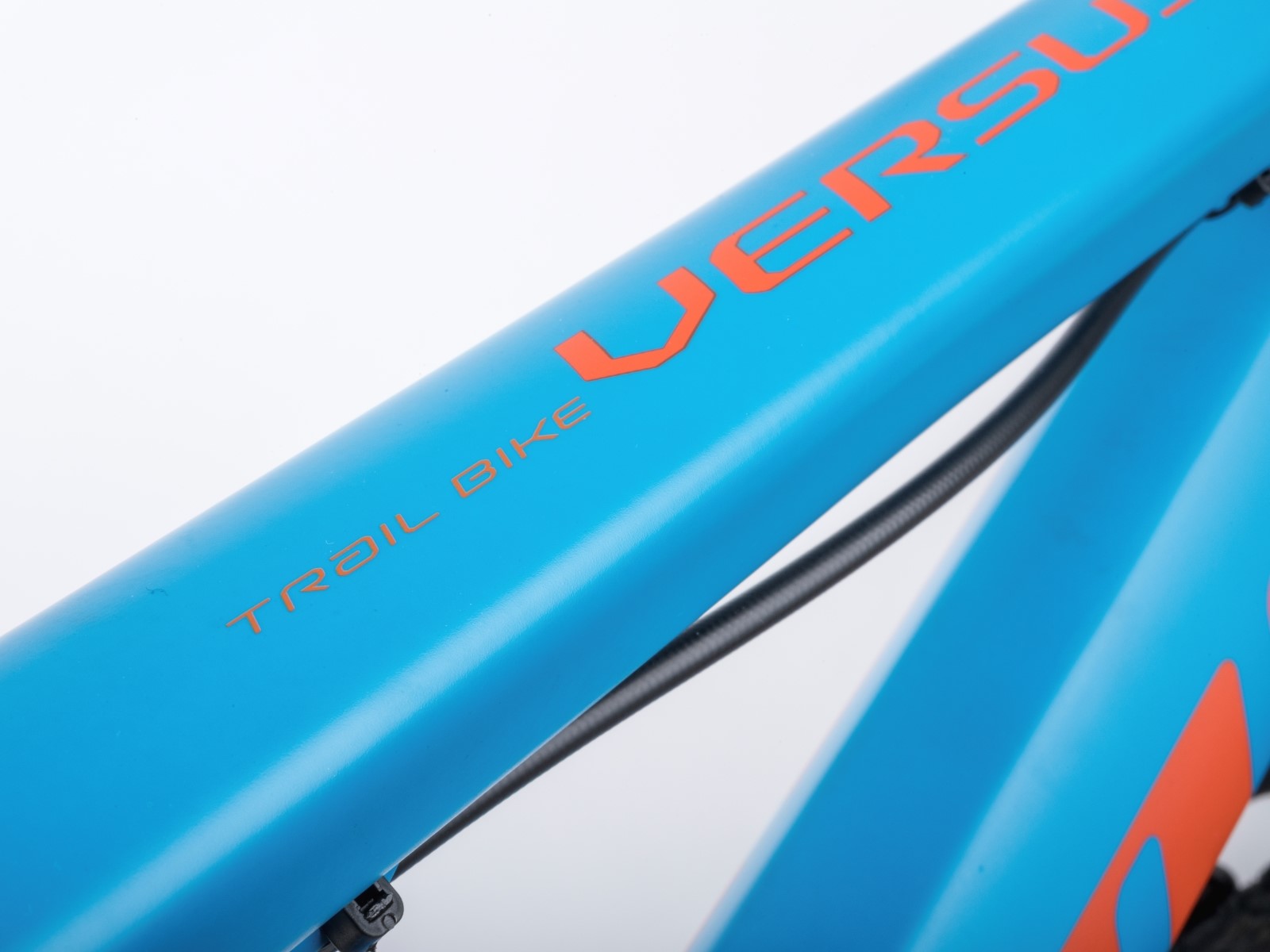

Frame	hydroformed alloy 6061 27.5"

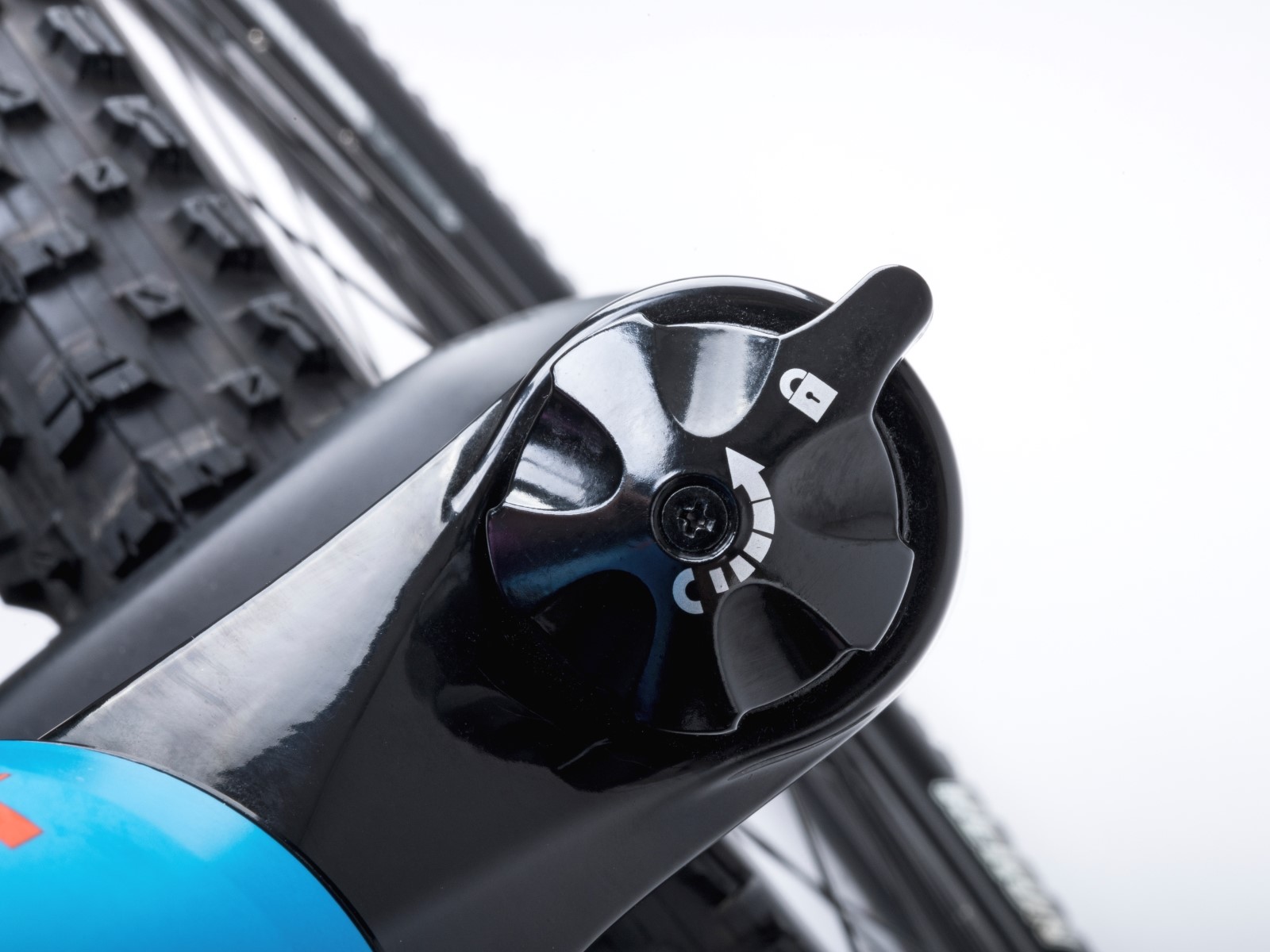

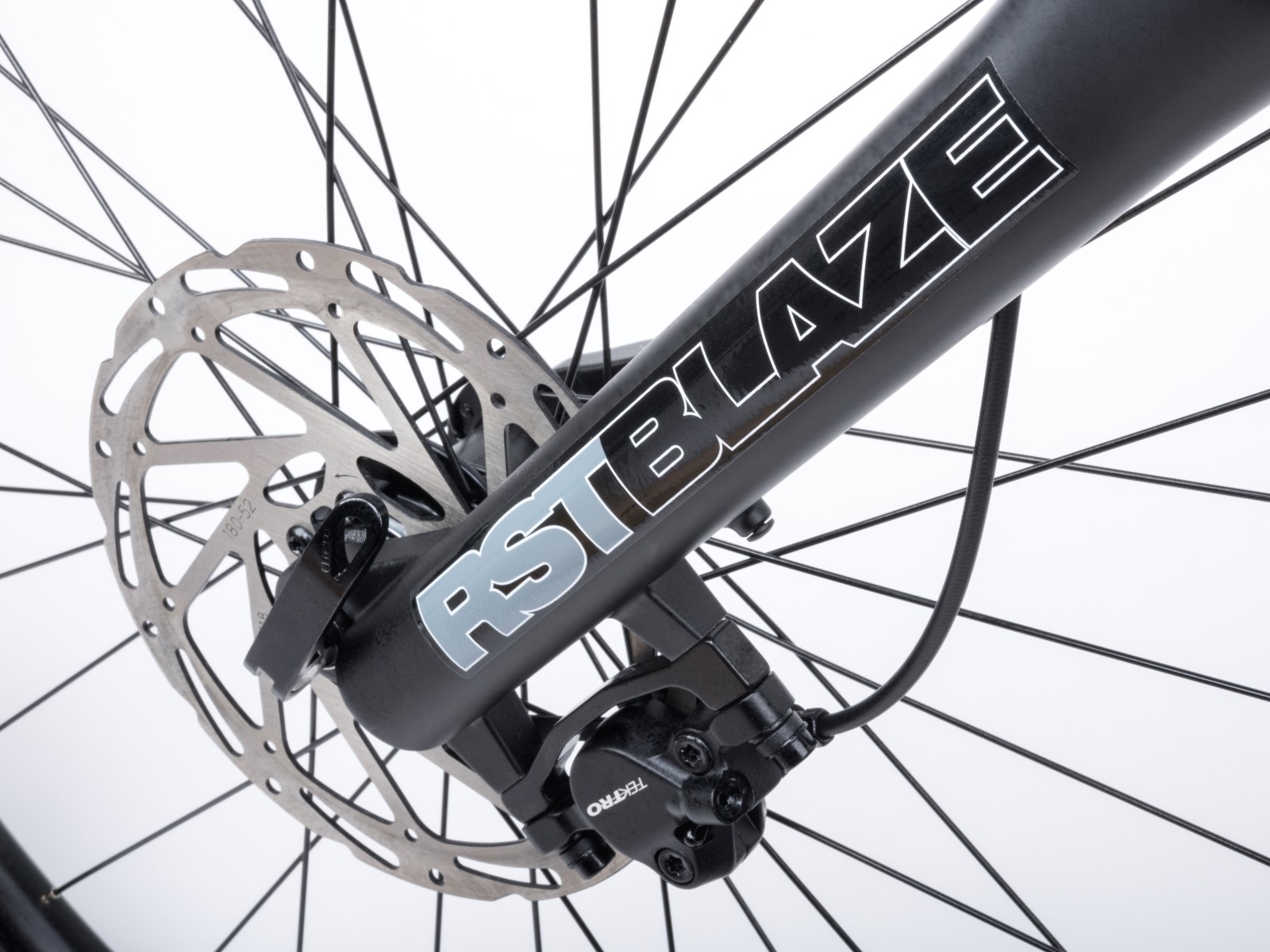

Front fork	RST Blaze 27.5 TnL oil, lock out (120 mm)
Head parts	PRESTINE Integrated 1-1/8"

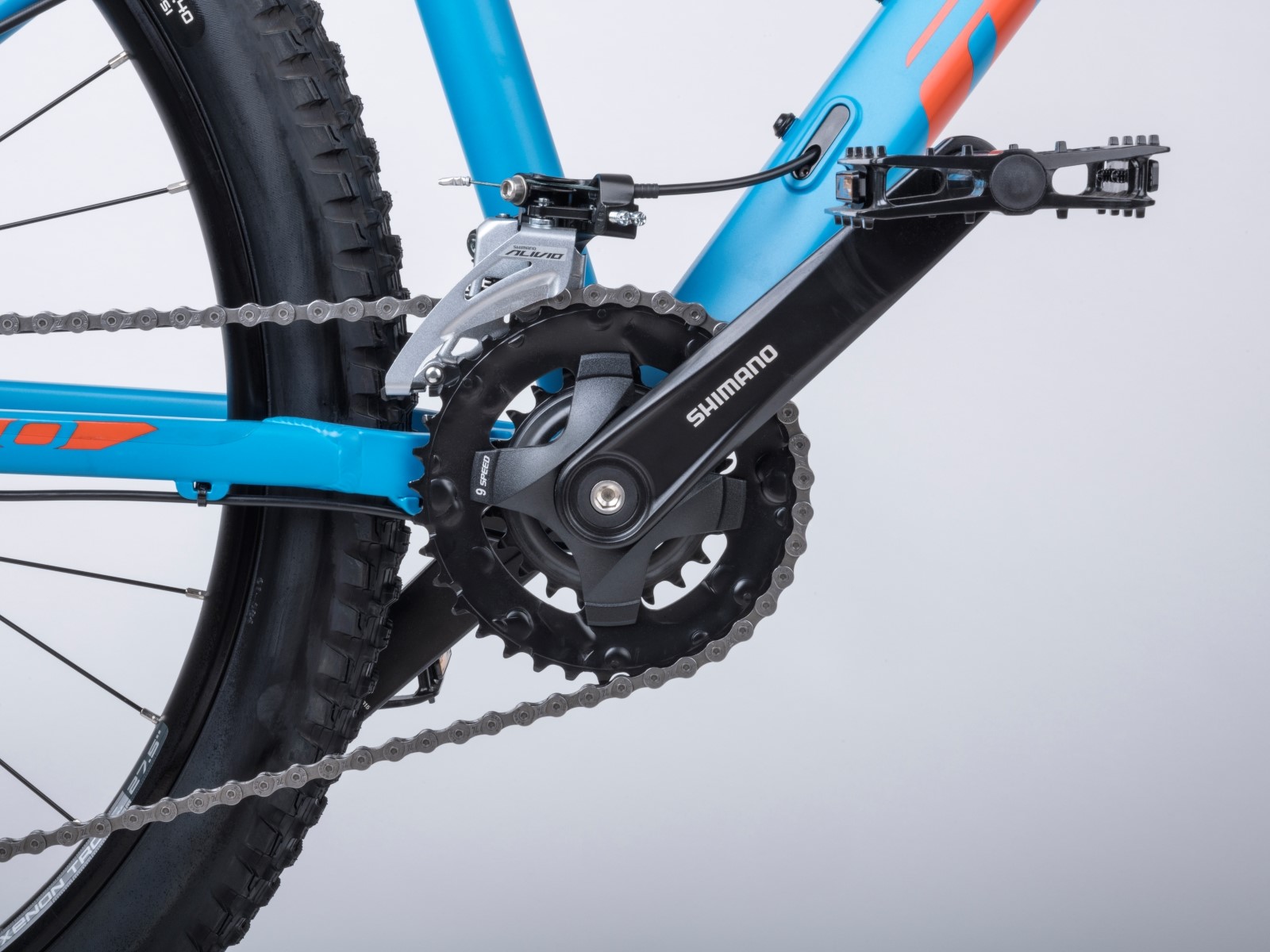

Chain Wheel	SHIMANO MT101-2, 36-22 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-UN101, cartridge
Front derailleur	SHIMANO Alivio (34.9)

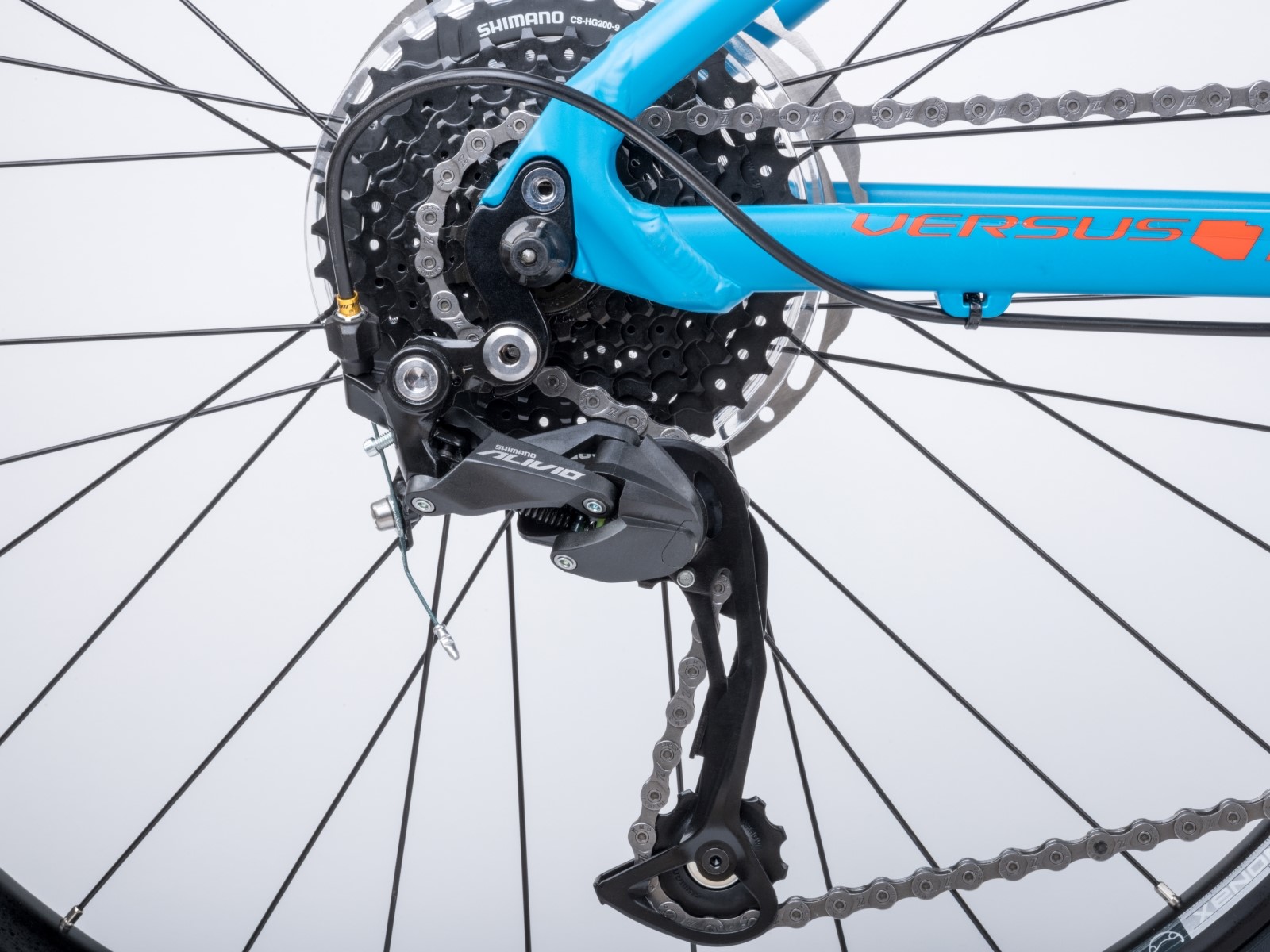

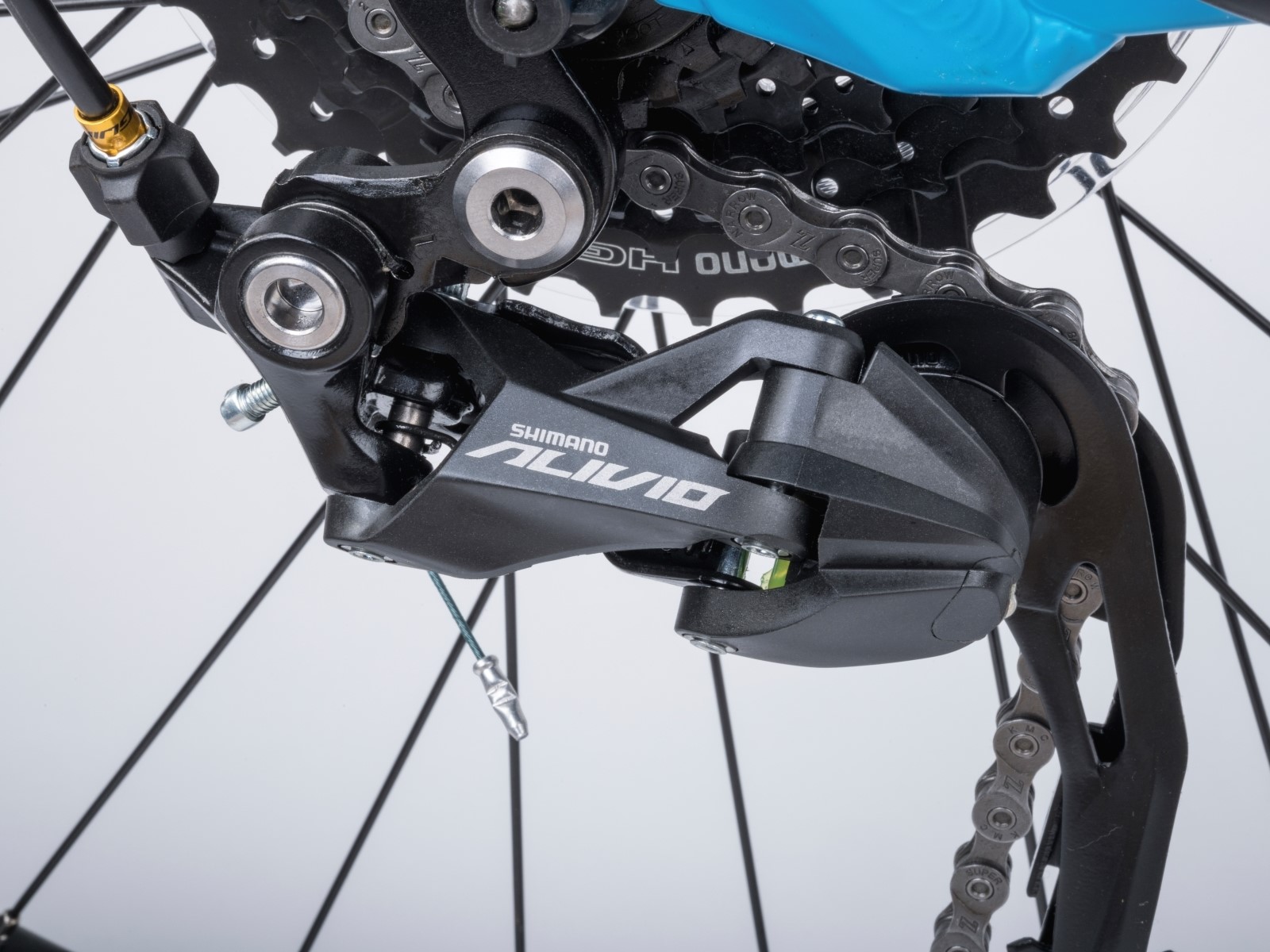

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (18)
Free wheel	SHIMANO CS-HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

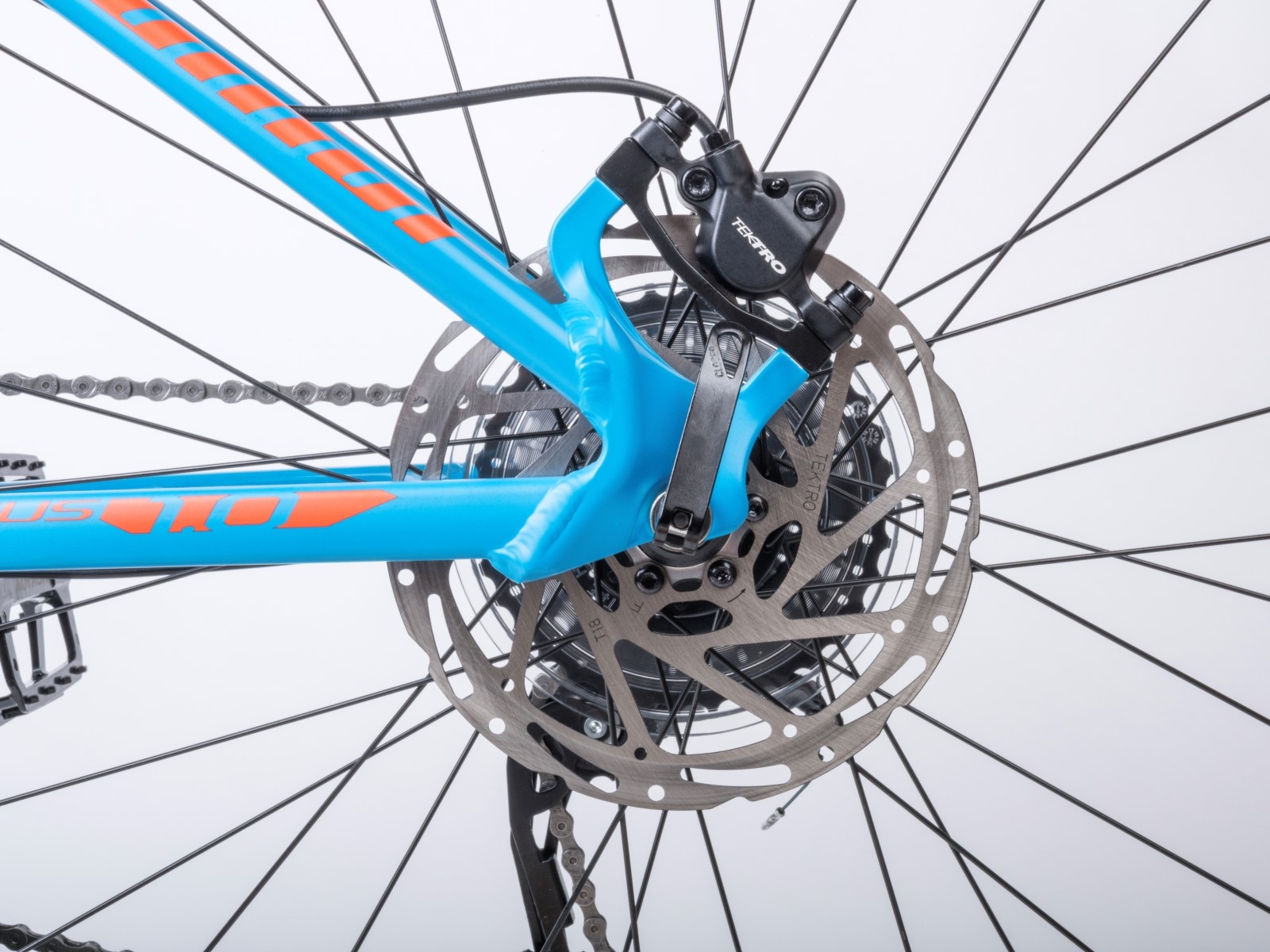

Brakes	TEKTRO HD-M280, disc hydraulic (7" rotors)

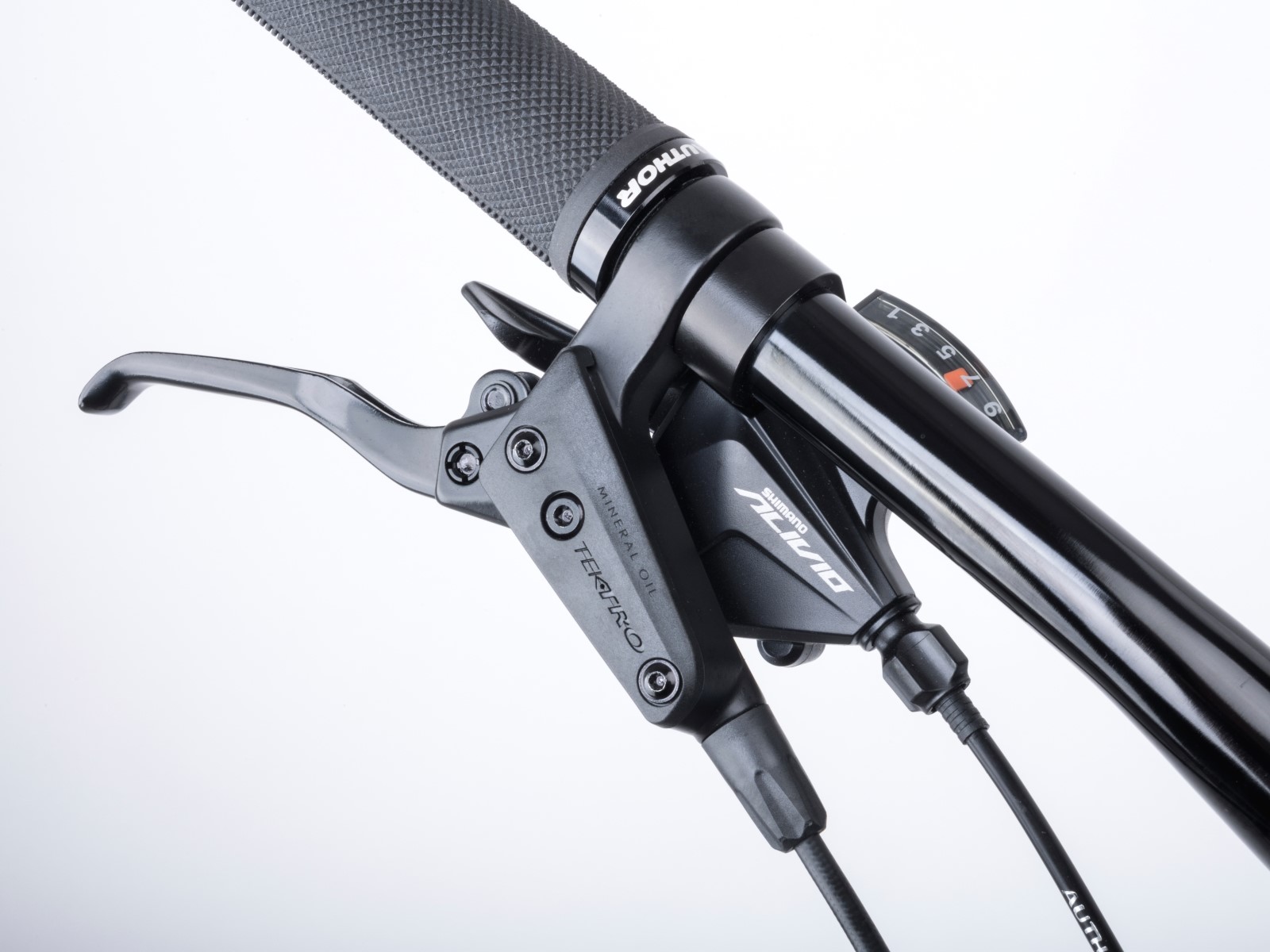

Brakes levers	TEKTRO HD-M280

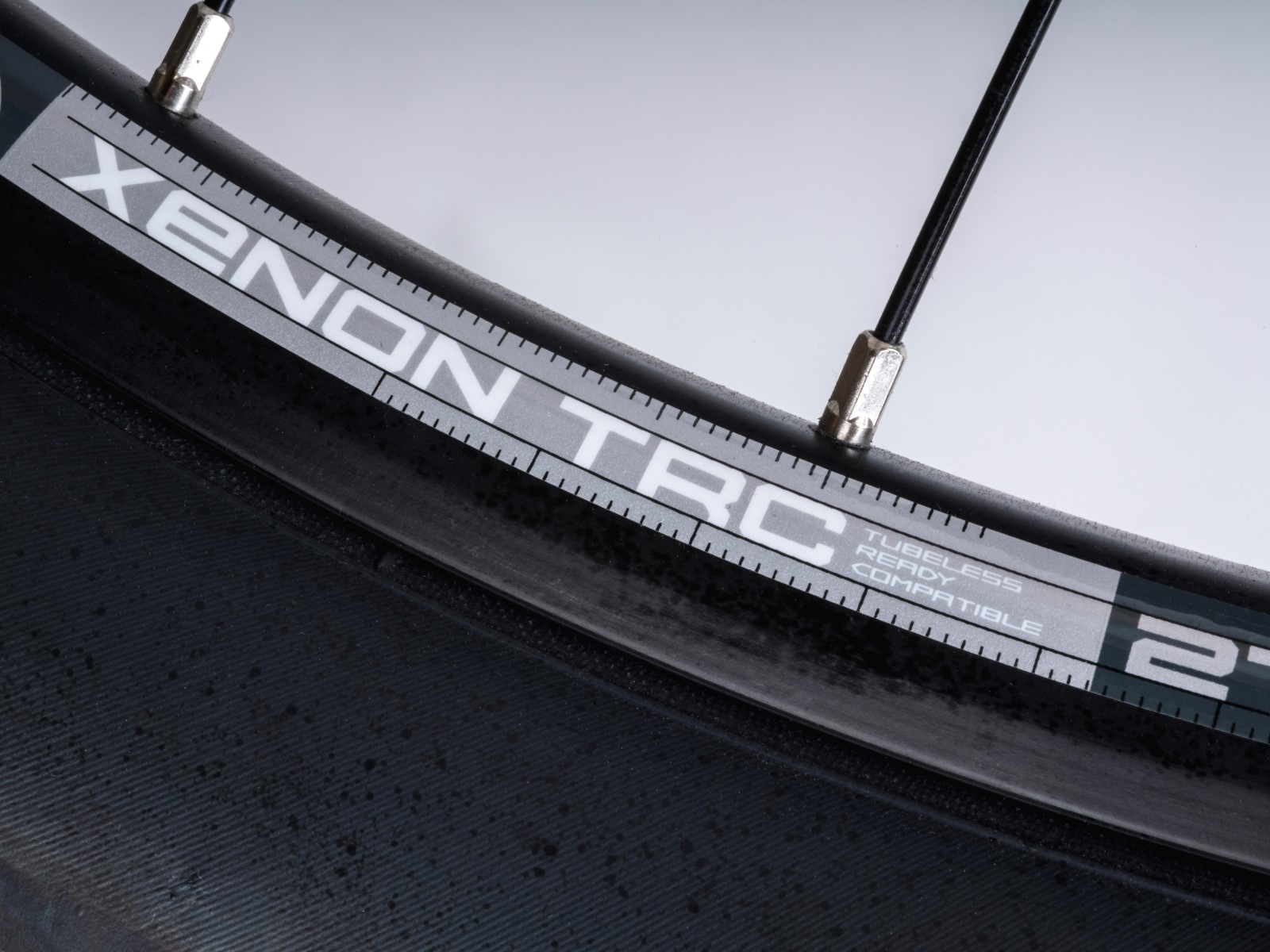

Rims	AUTHOR Xenon TRC 27.5, 32 holes
Spokes	black steel

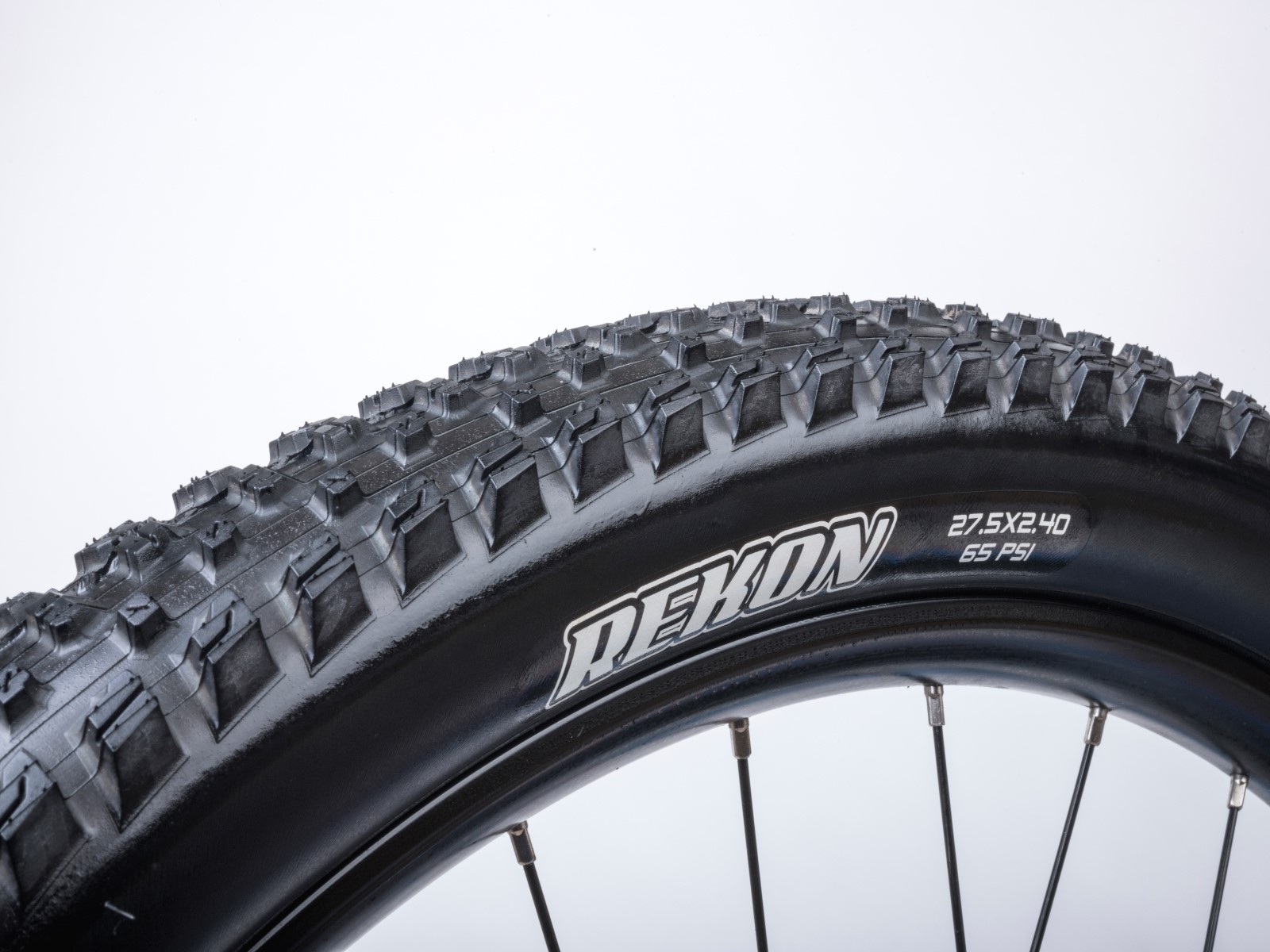

Tires	MAXXIS Rekon 27.5" × 2.40"

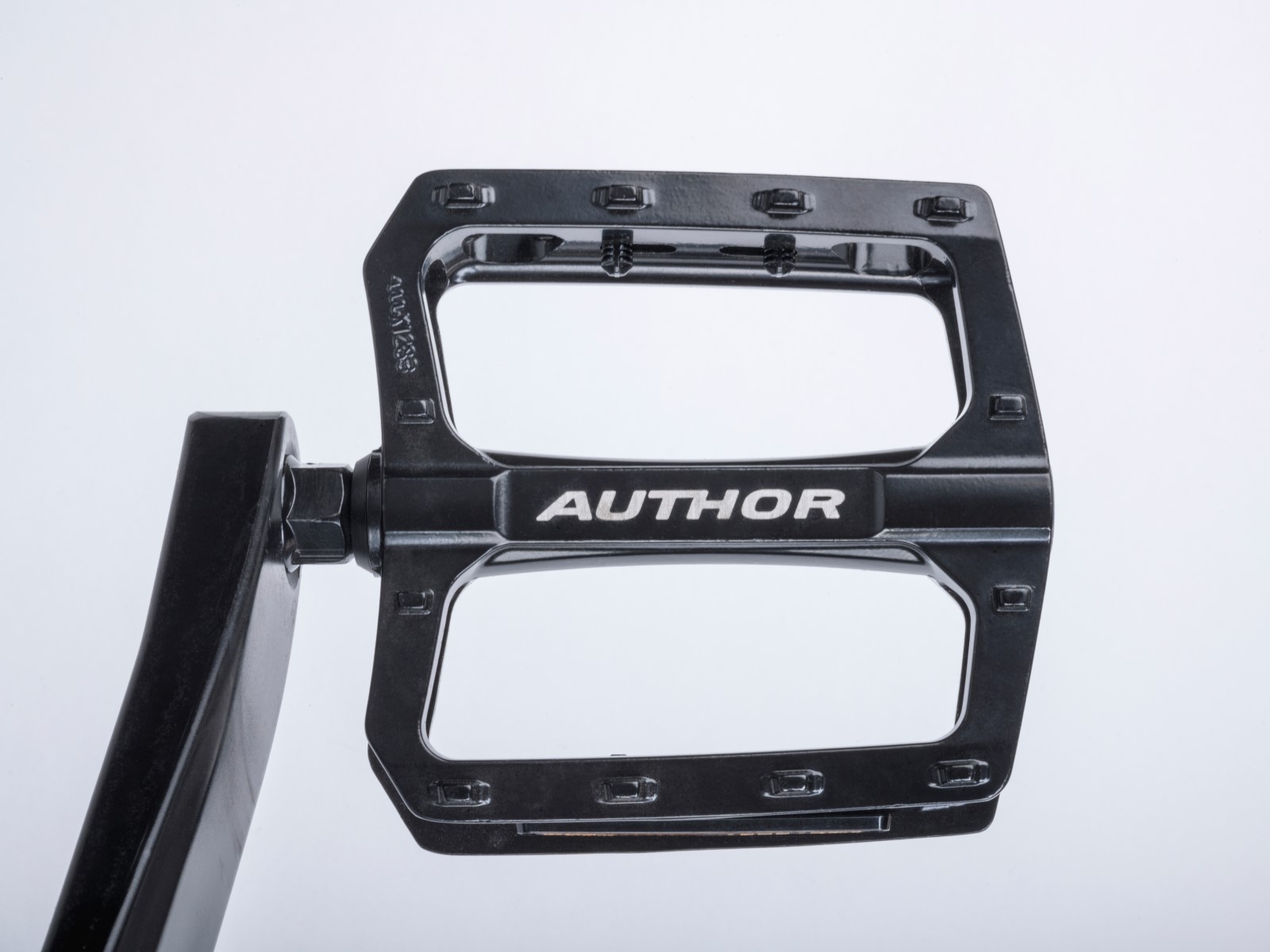

Pedals	AUTHOR dural
Handlebar	rise 25 mm, 9°, 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	alloy
Seat post	alloy (31.6)
Seat clamp	AUTHOR (34.9)

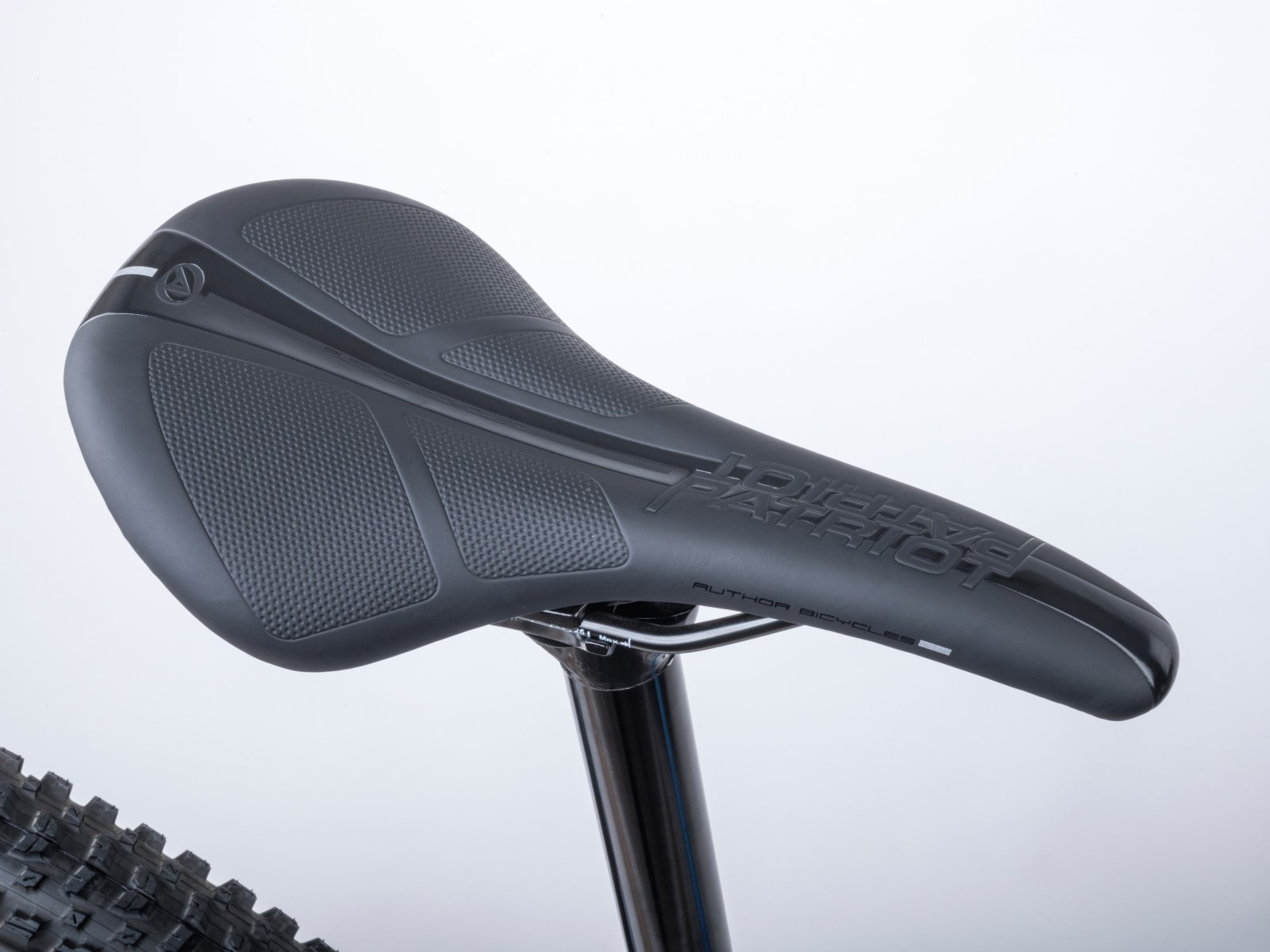

Saddle	AUTHOR Patriot
Speed	18
Weight	15,0 kg / 17"

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	586	610	630
T/T a ~~[mm]~~	595	601	610
H/T ~~[mm]~~	115	115	120
C/S ~~[mm]~~	430	430	430
W/B ~~[mm]~~	1142	1165	1186
S/T ang. ~~[°]~~	74	74	74
H/T ang. ~~[°]~~	66	66	66
F/L ~~[mm]~~	515	515	515
B/B drop ~~[mm]~~	35	35	35
B/B width ~~[mm]~~	73	73	73
Reach ~~[mm]~~	415	439	458
Stack ~~[mm]~~	596	596	601
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
