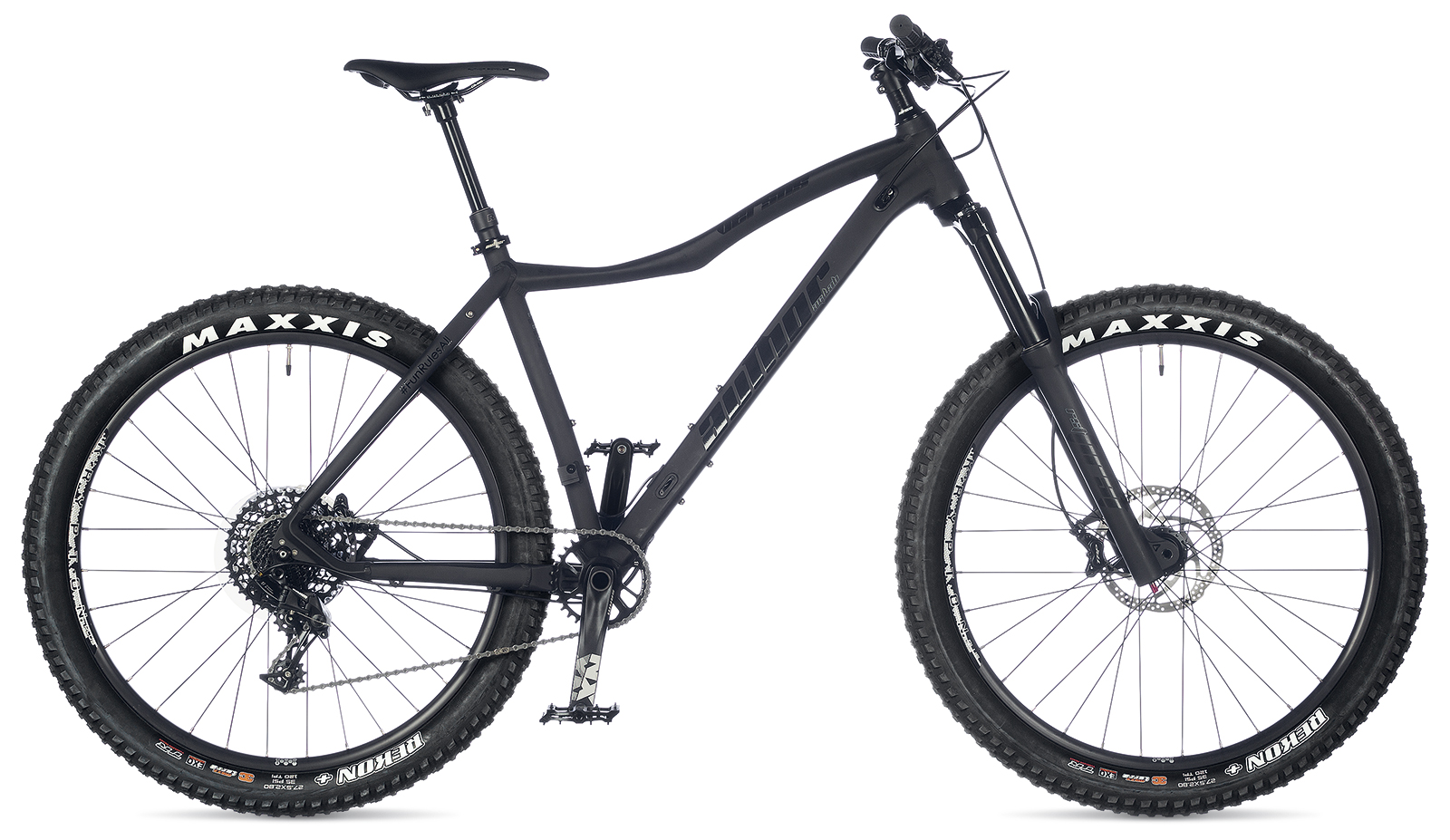

AUTHOR Versus 2017Archivní model 2017

~~Colour variants~~

Double butted alloy frameRST F1RST 27.5 + air lock out forkSRAM NX-1 groupset

price 26 990 Kč

SOLD OUT

Interested in other model`s year?

2017 2018

Technical specification

Size	15", 17", 19", 21"
Frame	hydroform double butted alloy 27.5"
Front fork	RST F1RST 27.5+, air, lock out, 15mm thru axle, 1.5" tapered steerer, 140mm
Head parts	PRESTINE 1.5" tapered
Chain Wheel	SRAM NX-1, 32 teeth, 170 / 175mm cranks
BBParts	Prestine BB 86/ 92
Rear derailleur	SRAM NX-1
Shifters	SRAM NX-1 (11)
Free wheel	SRAM PG1130, 11-42 teeth, 11 speed
Chain	SRAM CN-1100
Hubs	AUTHOR Xenon 15+ / Krypton 12+, Boost 15 x 110mm front thru axle, Boost 12 x 148mm rear thru axle, 32 holes
Brakes	TRP Slate 4 disc hydraulic (7" rotors)
Brakes levers	TRP Slate 4

Rims	AUTHOR Krypton Plus 27.5 32 holes
Spokes	black stainless steel 2.0mm
Tires	MAXXIS Rekon+ kevlar 27.5" x 2.80" tubeless ready
Pedals	HT platform
Handlebar	AG Lab alloy 15mm/760mm
Grips	AG Lab GripLock
Stem	AG Lab alloy
Seat post	RST Elev 8 remote control adjustable (30.9)
Seat clamp	AG Lab (34.9)
Saddle	AUTHOR Patriot
Speed	11
Weight	14,8 kg / 19"

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

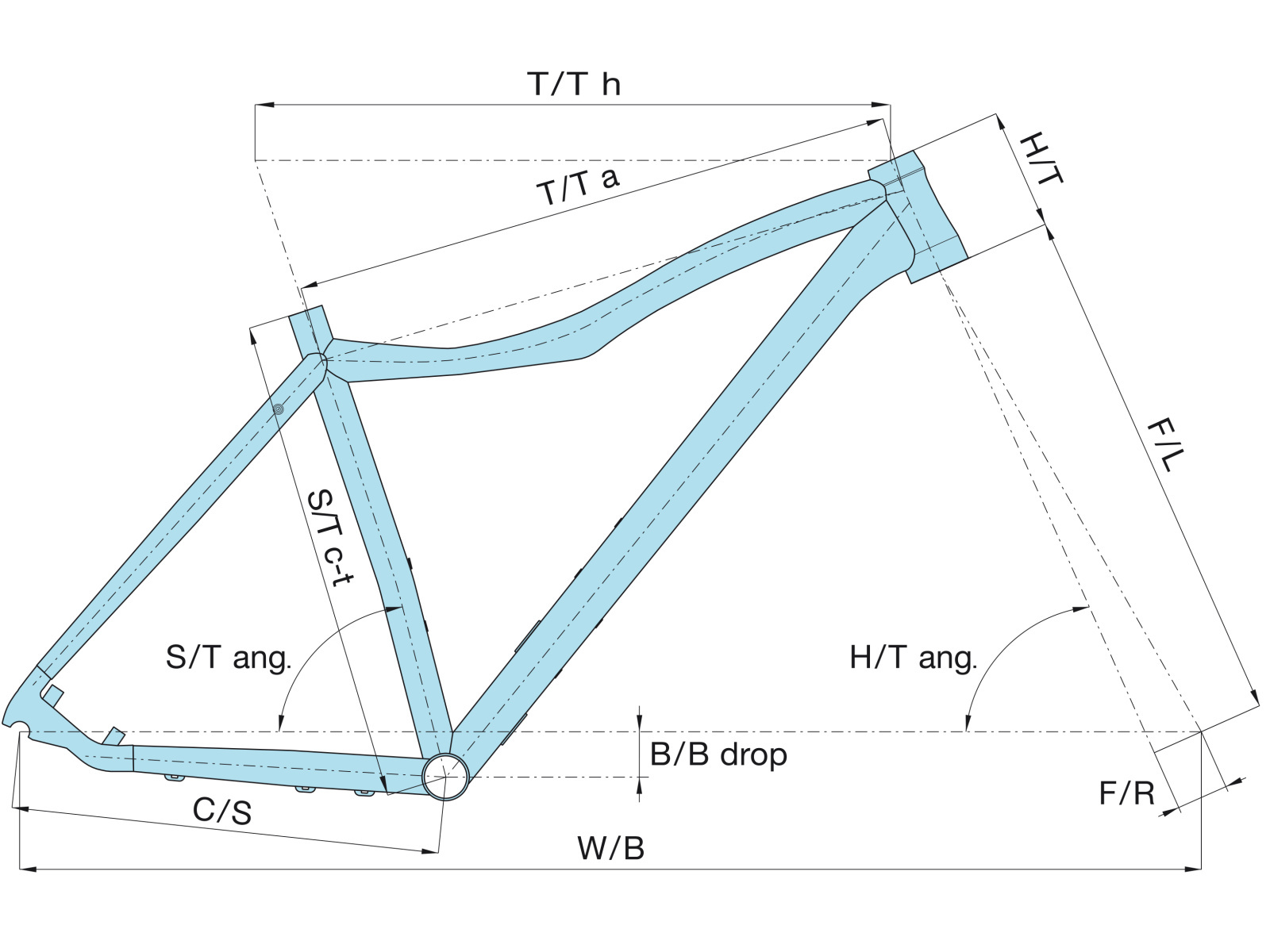

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

black-matt

15" = UA#42882701 17" = UA#42882702 19" = UA#42882703 21" = UA#42882704
