AUTHOR Solution 27,5 ASL 2023-24
AUTHOR Solution 27,5 ASL 2023-24
solution 27-5 asl foto1 viewde
solution 27-5 asl foto2 viewde
solution 27-5 asl foto3 viewde
solution 27-5 asl foto4 viewde
solution 27-5 asl foto5 viewde
AUTHOR Solution 27,5 ASL 2023-24AUTHOR Solution 27,5 ASL 2023-24solution 27-5 asl foto1 viewdesolution 27-5 asl foto2 viewdesolution 27-5 asl foto3 viewdesolution 27-5 asl foto4 viewdesolution 27-5 asl foto5 viewde
  » Bicycles » ladies » mtb 27.5
  » Bicycles » mountain bike » mtb 27.5

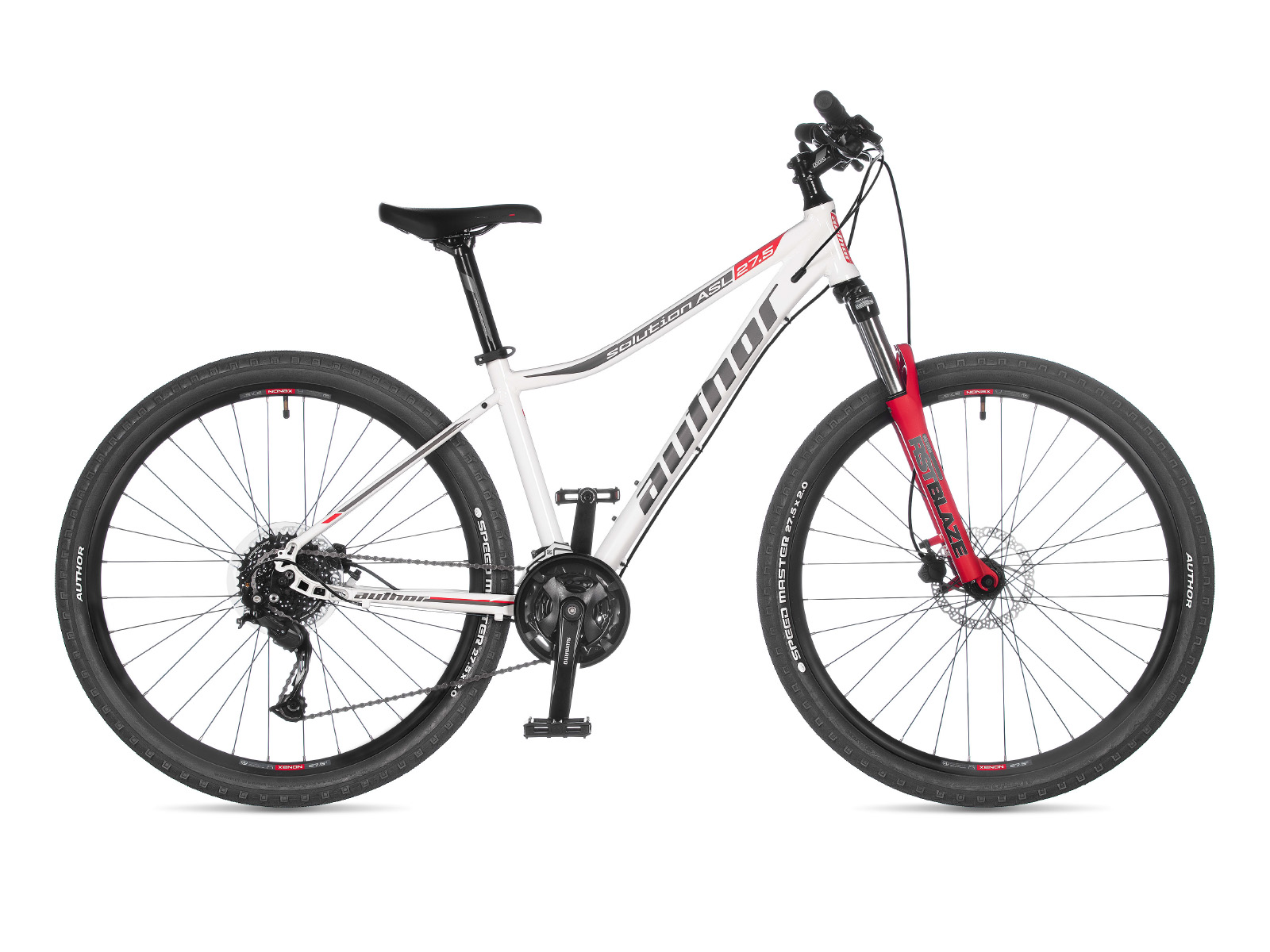

Solution 27,5 ASL 2023-24Archivní model 2025

Colour variants
Wheel size 27,5"Alloy ASL frame with internal cable routingNew SHIMANO components ALIVIO, 27 speedSuspension fork RST Blaze 27.5 with lockQuality tire AUTHOR Speed Master 29" × 2.00"TEKTRO disc hydraulic brakeComfort saddle AUTHOR Fenix
Buy nowspecial price 10 990 Kč
original price  18 990 Kč
Add to compareadditional accessories
other models
Traction23 990Traction ASL22 990Kinetic20 990Kinetic ASL20 990Ultrasonic 27,520 990Sonic 27,519 990A-Matrix 27,5D14 990Limit 27,512 990
Interested in other model`s year?

Technical specification

Size14", 16", 18"

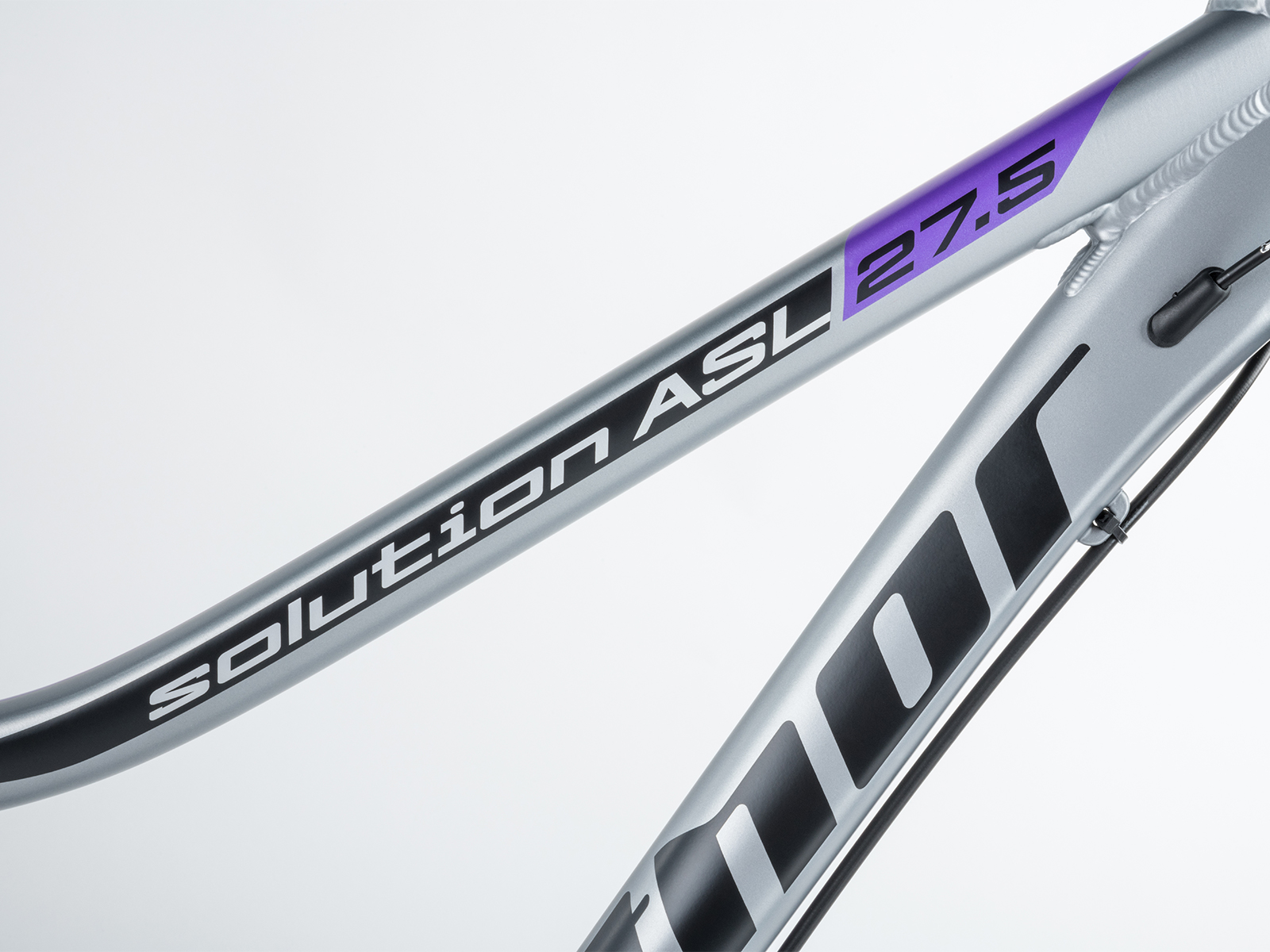

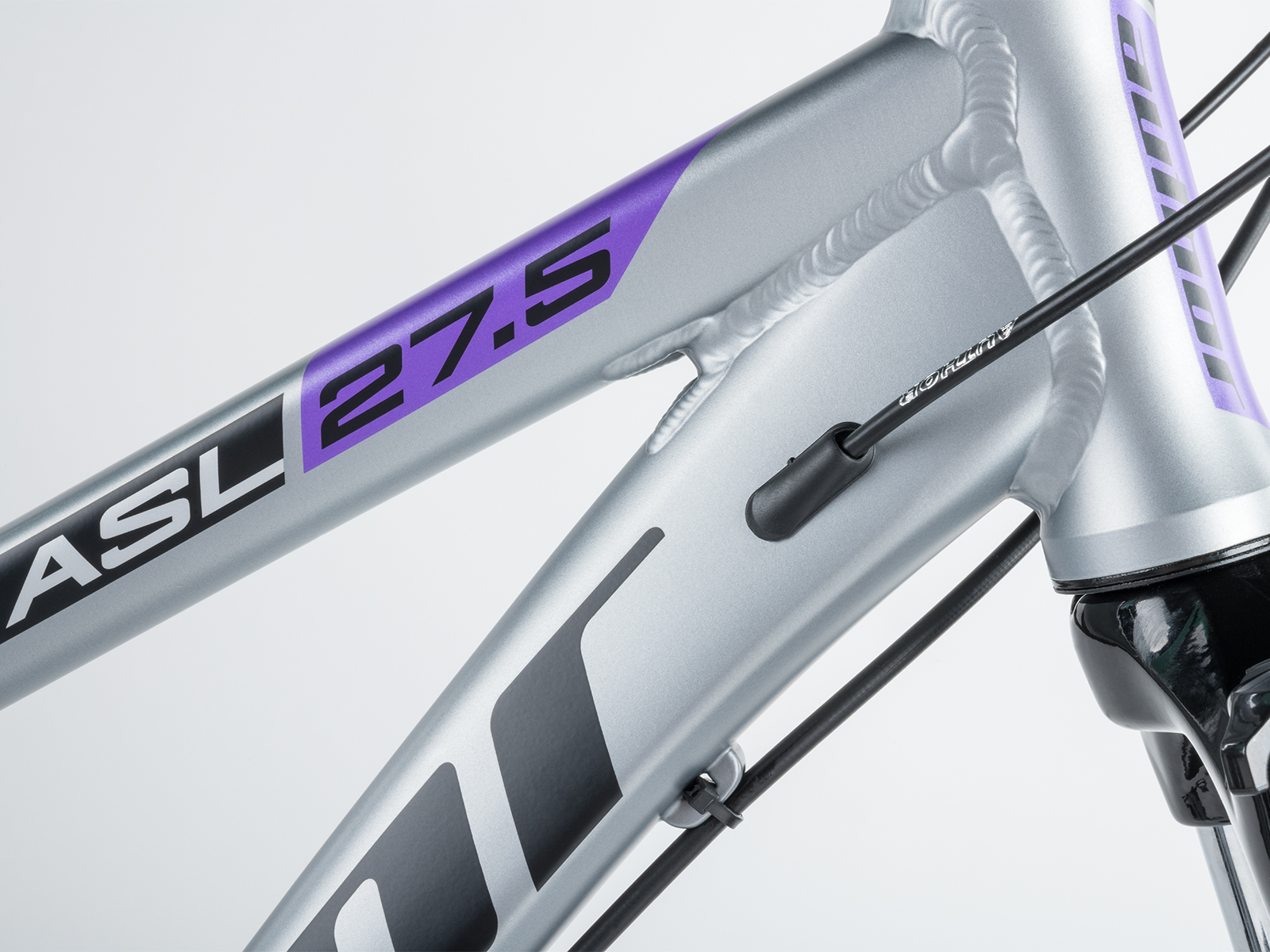

Framealloy 6061 27.5" (ASL)
Front forkRST Blaze 27.5 ML, lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"

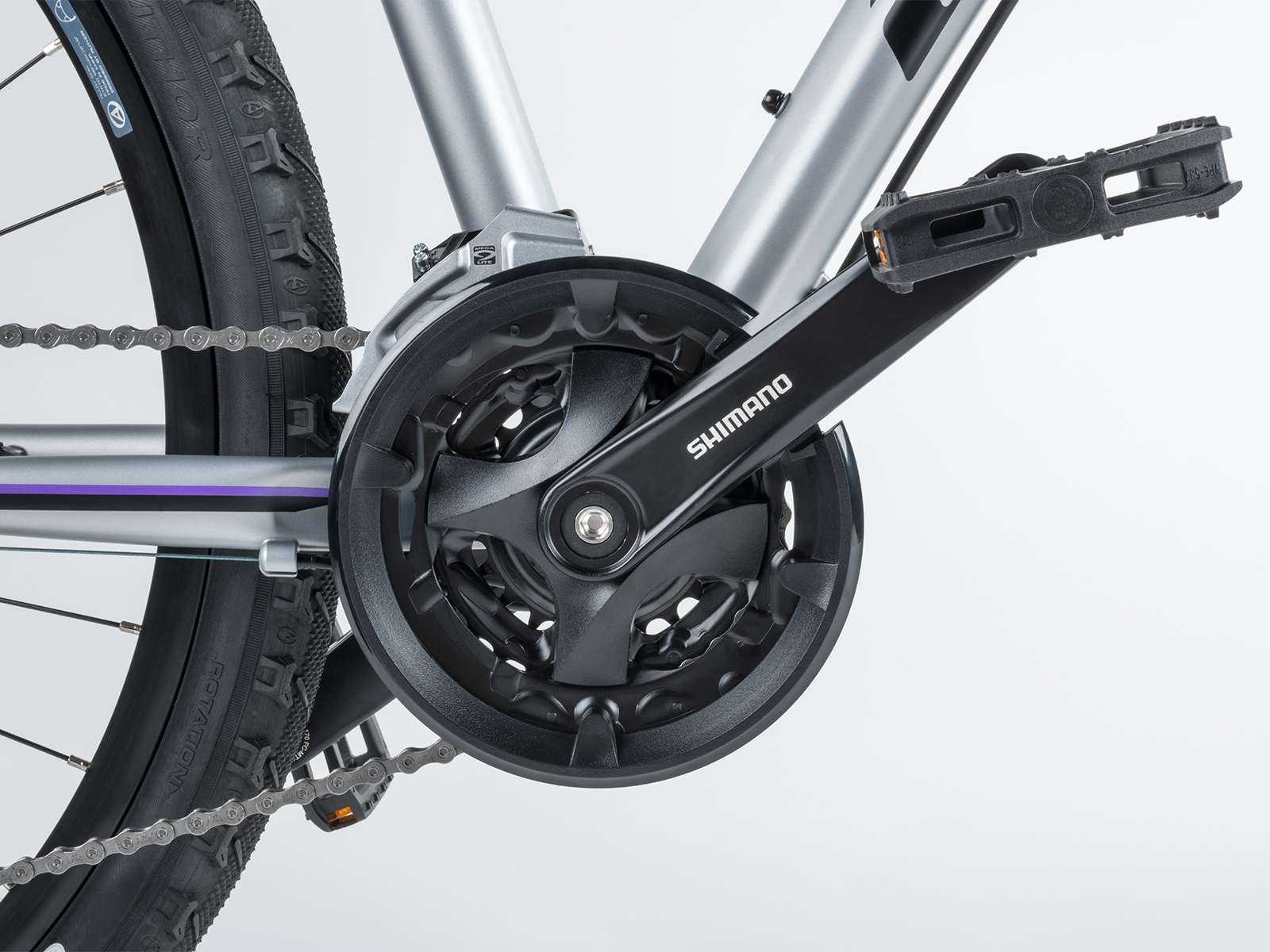

Chain WheelSHIMANO MT101, 40-30-22 teeth, 170 mm cranks
BBPartsSHIMANO BB-UN101, cartridge
Front derailleurSHIMANO Altus (34.9)

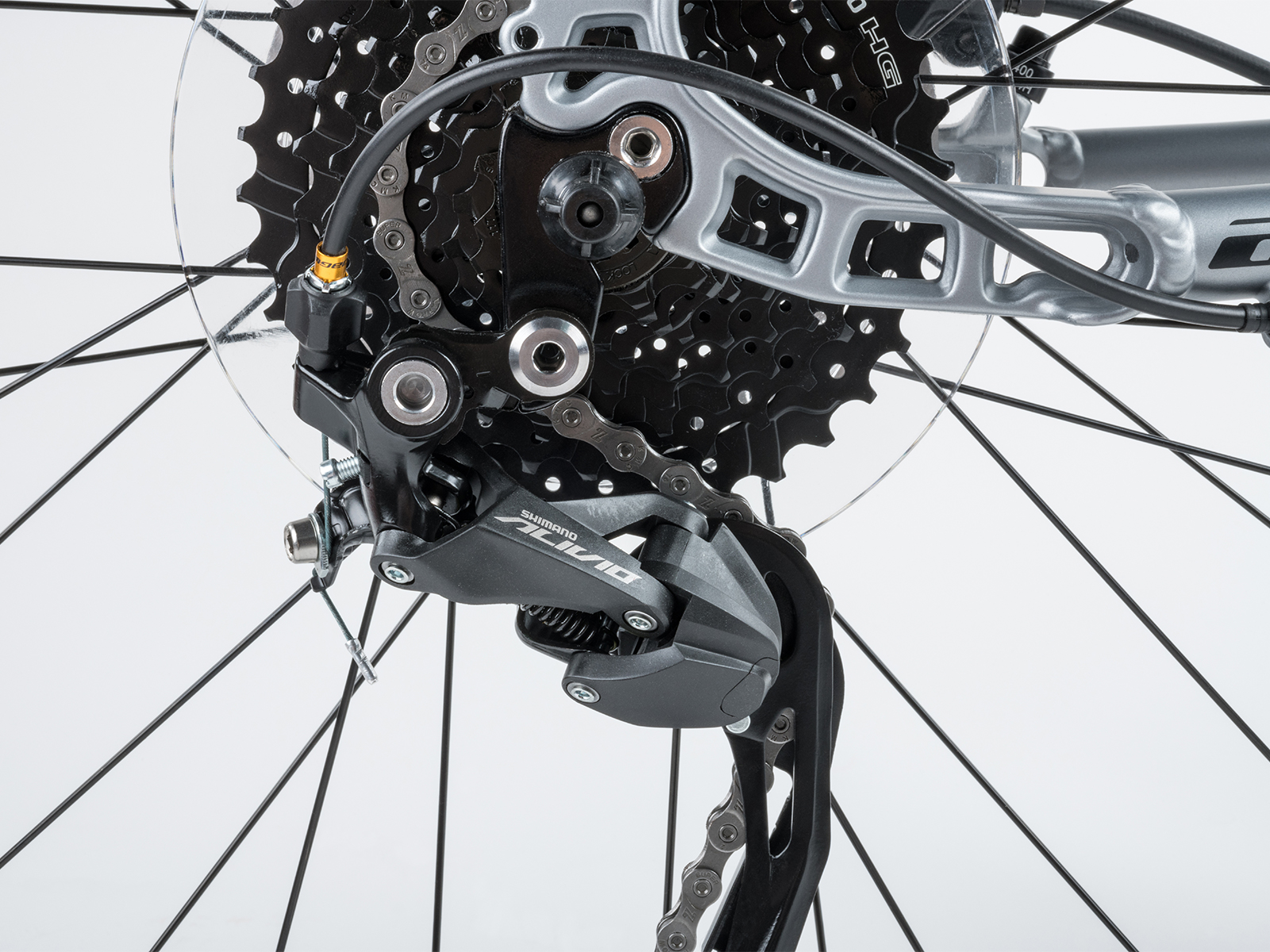

Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (27)
Free wheelSHIMANO HG200-9, 11-36 (9)
ChainKMC Z9
HubsQUANDO Disc, 32 holes
BrakesTEKTRO HD-M280, disc hydraulic (6" rotors)
Brakes leversTEKTRO HD-M280
RimsAUTHOR Xenon 27.5, 32 holes
Spokesblack steel
TiresAUTHOR Speed Master 27.5" × 2.00"
Pedalsplastic
HandlebarAUTHOR rise 25 mm, 9°, 640 / 660 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)

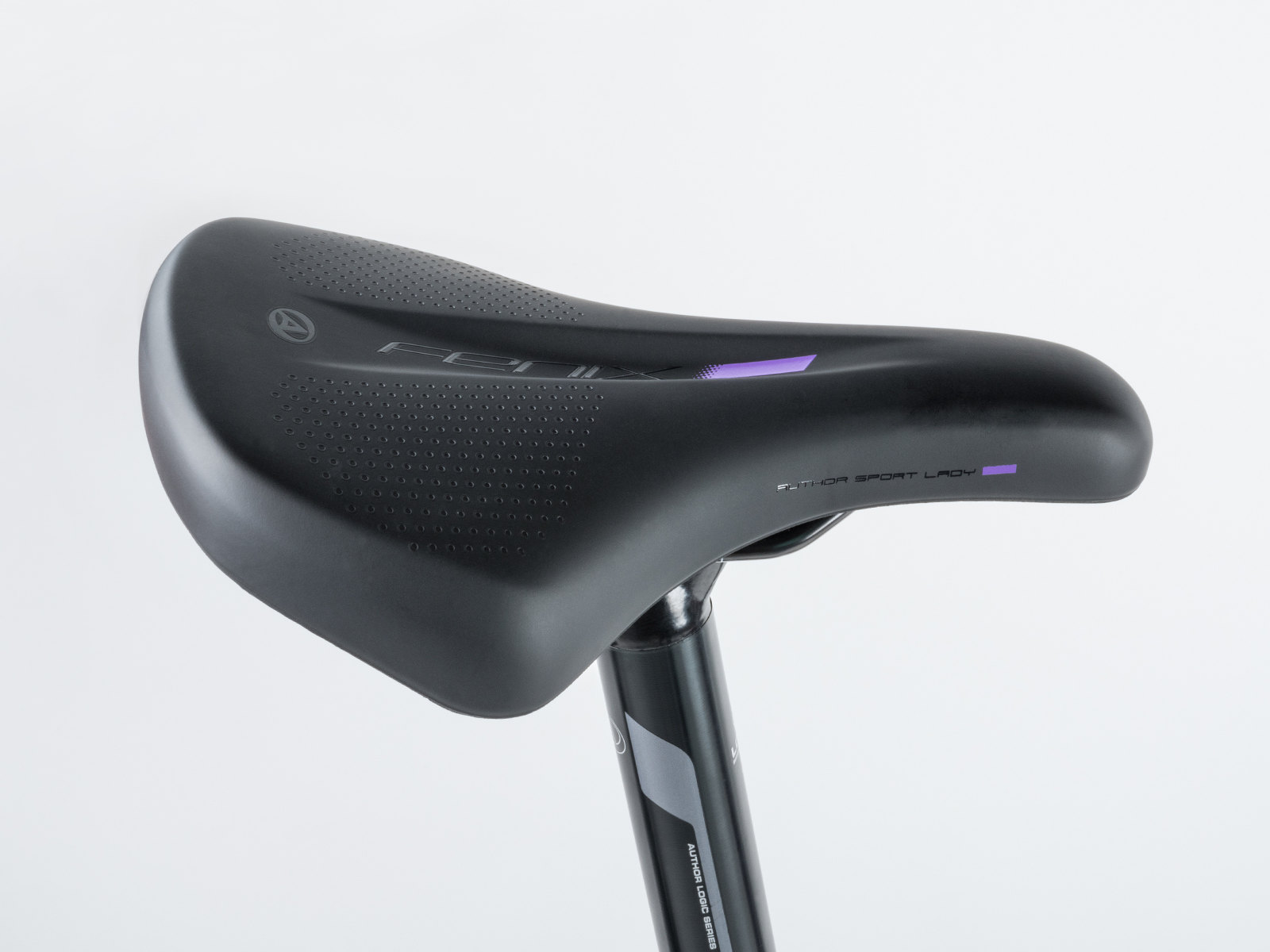

SaddleAUTHOR Fenix
Speed27
Weight14,2 kg / 16"

Geometry and sizes

Size 14" 16" 18"
Min. figure [cm] 140 155 168
Max. figure [cm] 158 170 185
S/T c-t [mm] 356 406 457
S/T c-c [mm] 0 0 0
T/T h [mm] 545 560 585
T/T a [mm] 542 546 563
H/T [mm] 110 120 130
C/S [mm] 435 435 435
W/B [mm] 1043 1064 1080
S/T ang. [°] 73 73 73
H/T ang. [°] 70 69.5 69.5
F/L [mm] 495 495 495
B/B drop [mm] 45 45 45
B/B width [mm] 68 68 68
Reach [mm] 361 374 396
Stack [mm] 602 609 619
F/R [mm] 44 44 44
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Solution 27,5 ASL 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
14"1 shop4294520025
 ▪   Kola Škýz s.r.o.in stockbuy nowLetohrad732 199 220, obchod@kola-skyz.czmap
16"1 shop4294520125
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
18"5 stores4294520225
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   Cyklotech Jana Hlaváčováin stockbuy nowKarviná - Mizerov774 544 311, info@cyklotech.czmap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Pavel Brabecin stockbuy nowRumburk602 112 875, brabec.pavel@gmail.commap
16"1 shop4294521125
 ▪   ZAF Velo Sportin stockbuy nowVelké Pavlovice776 820 690, velo@zaf.czmap
18"4 stores4294521225
 ▪   Bike Servis FRODLin stockbuy nowČáslav603 510 347, mpbike@seznam.czmap
 ▪   CEMOSin stockbuy nowKaznějov777 668 339, obchod@cemos.czmap
 ▪   AXIT bike sportin stockbuy nowNáchod491 426 020, axit@axit.czmap
 ▪   Jízdní kola Rezek - Rezkováin stockbuy nowRakovník313 517 417, jizdnikola.rezek@tiscali.czmap
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.
