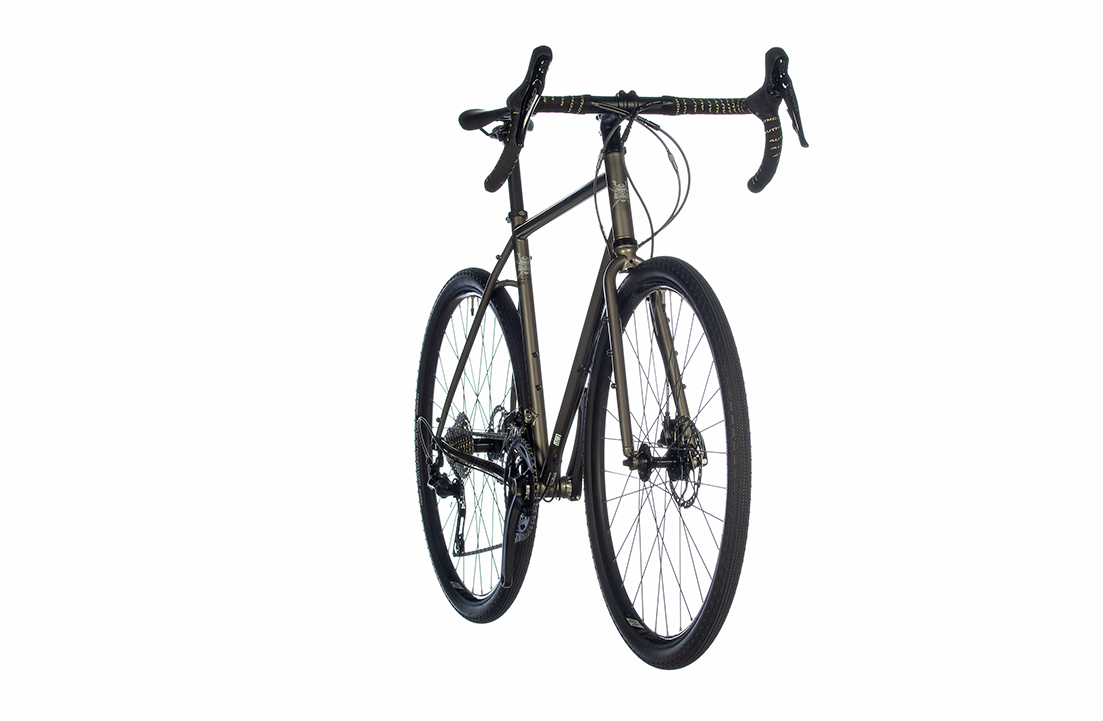

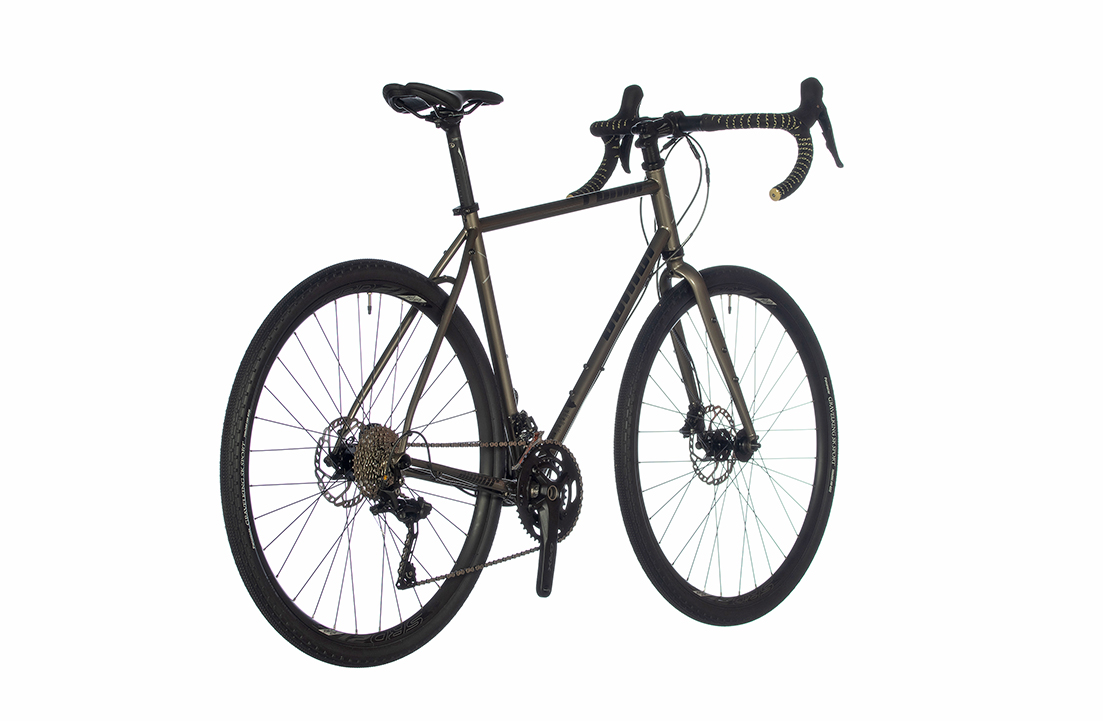

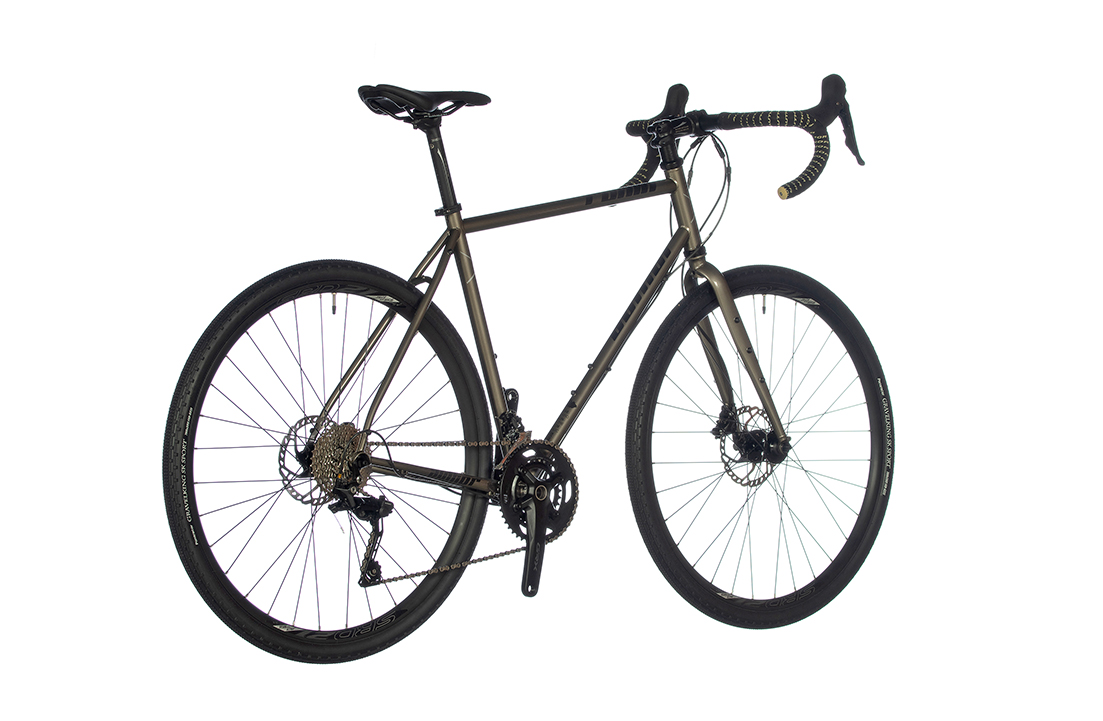

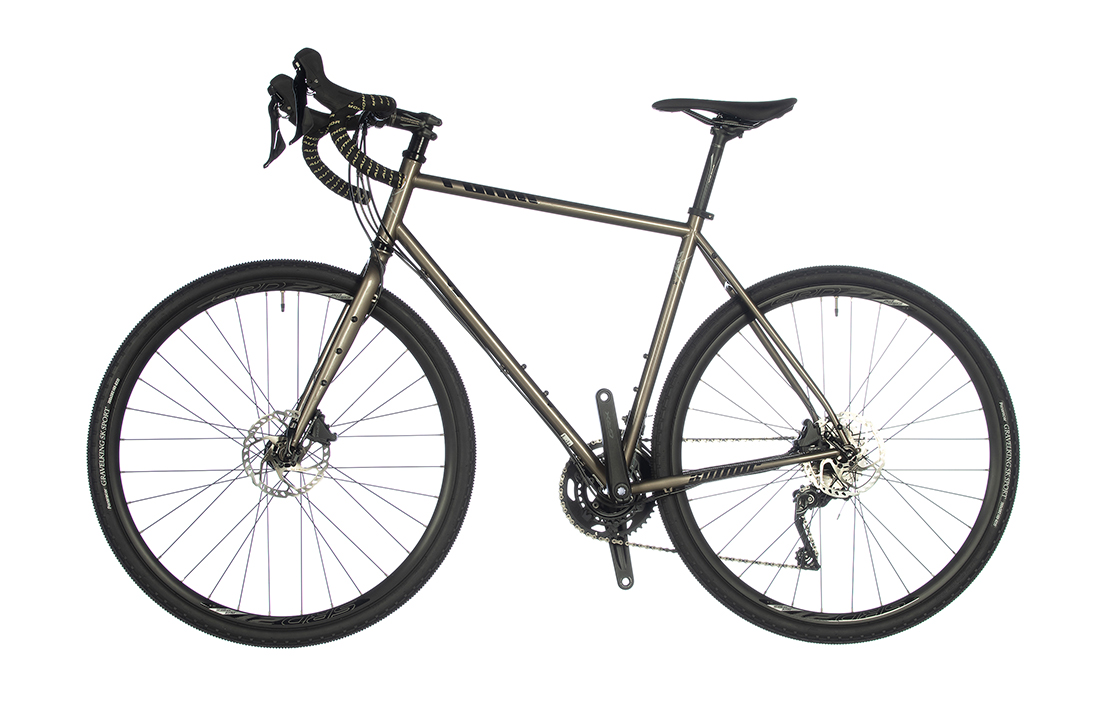

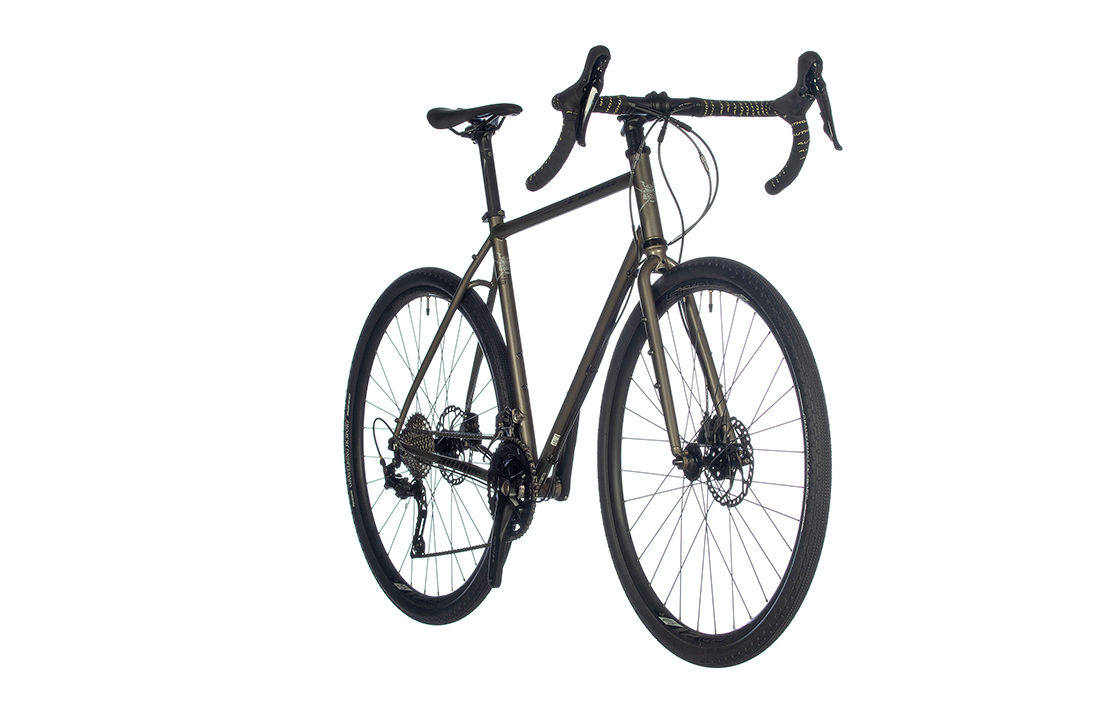

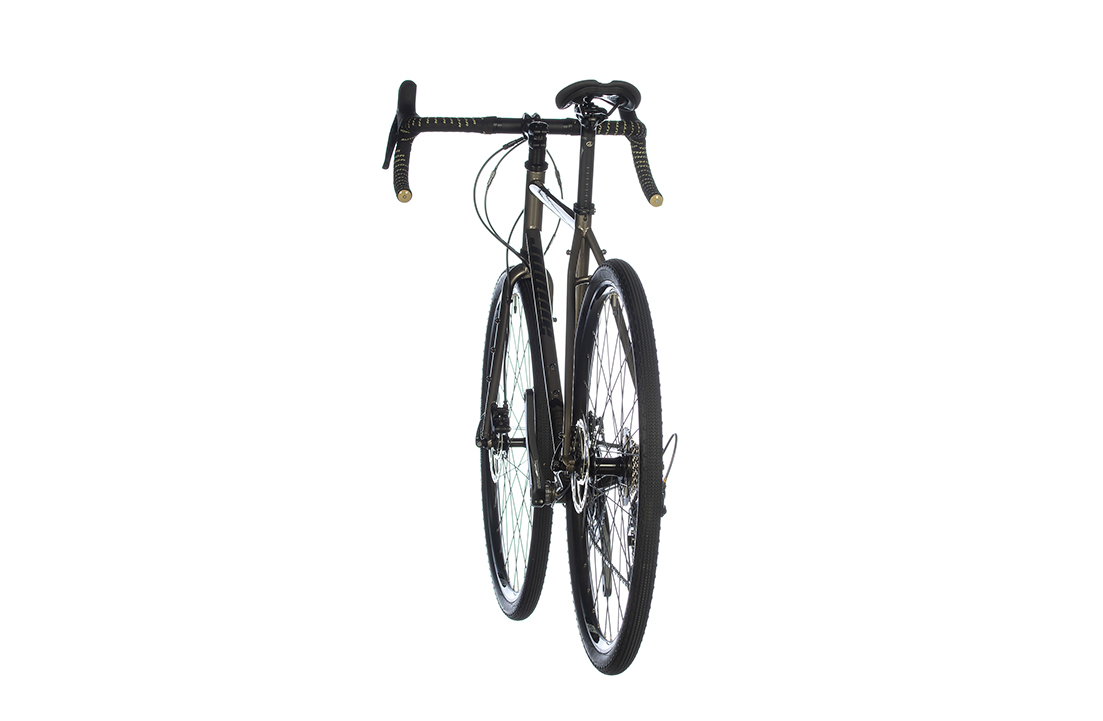

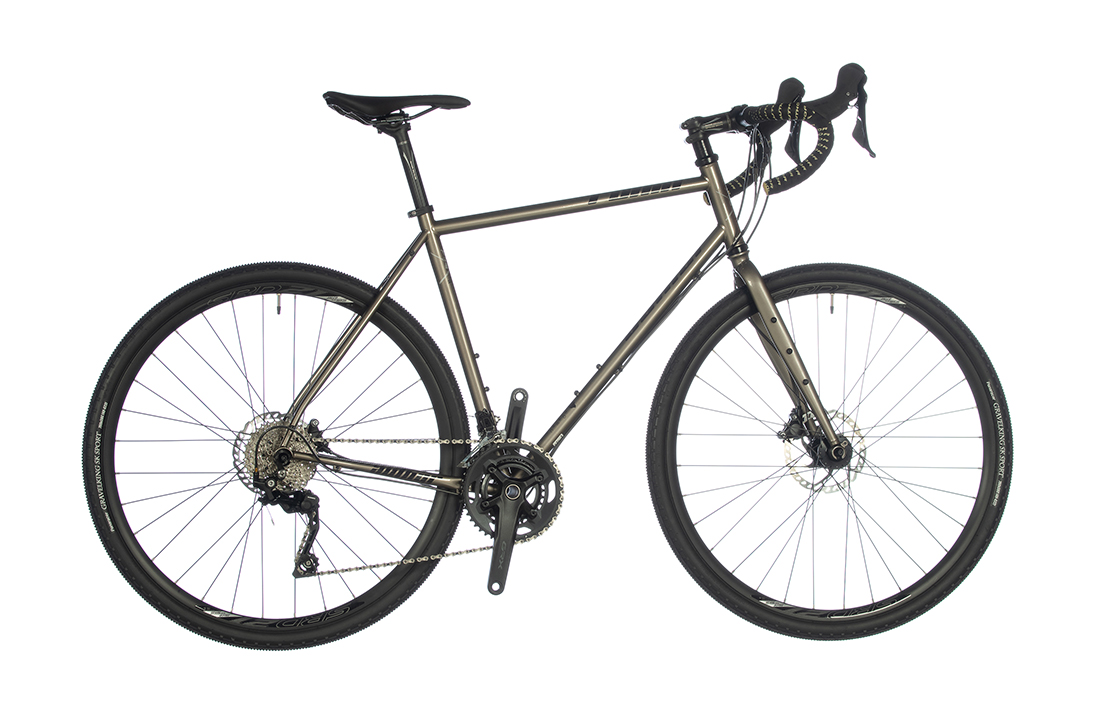

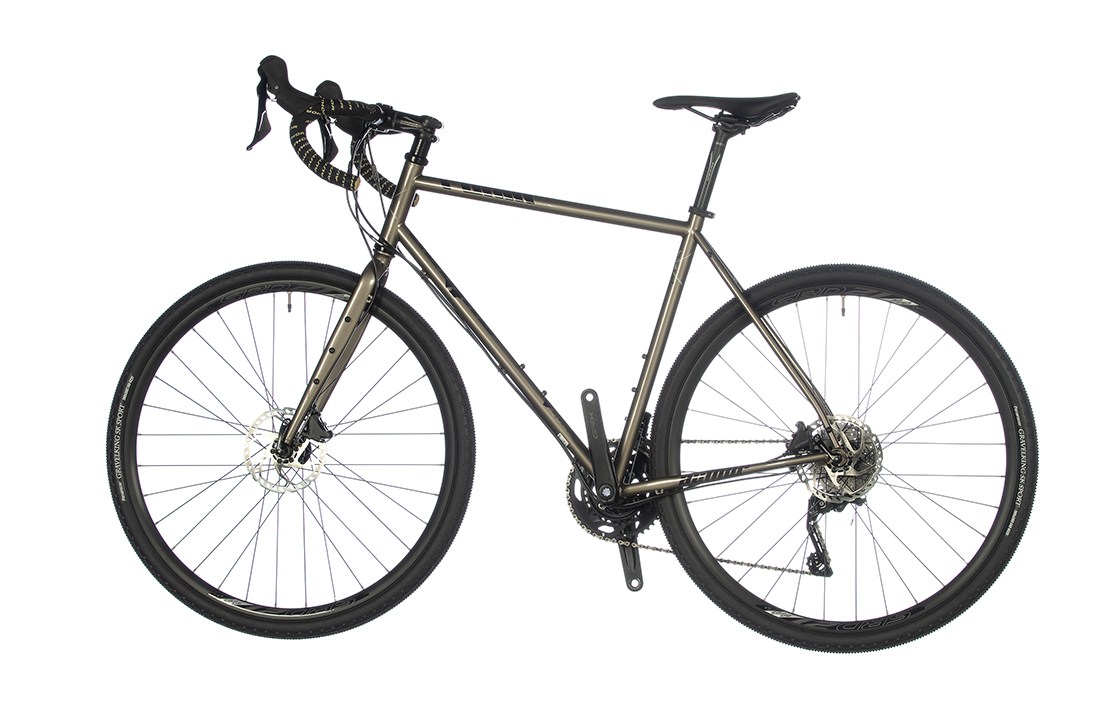

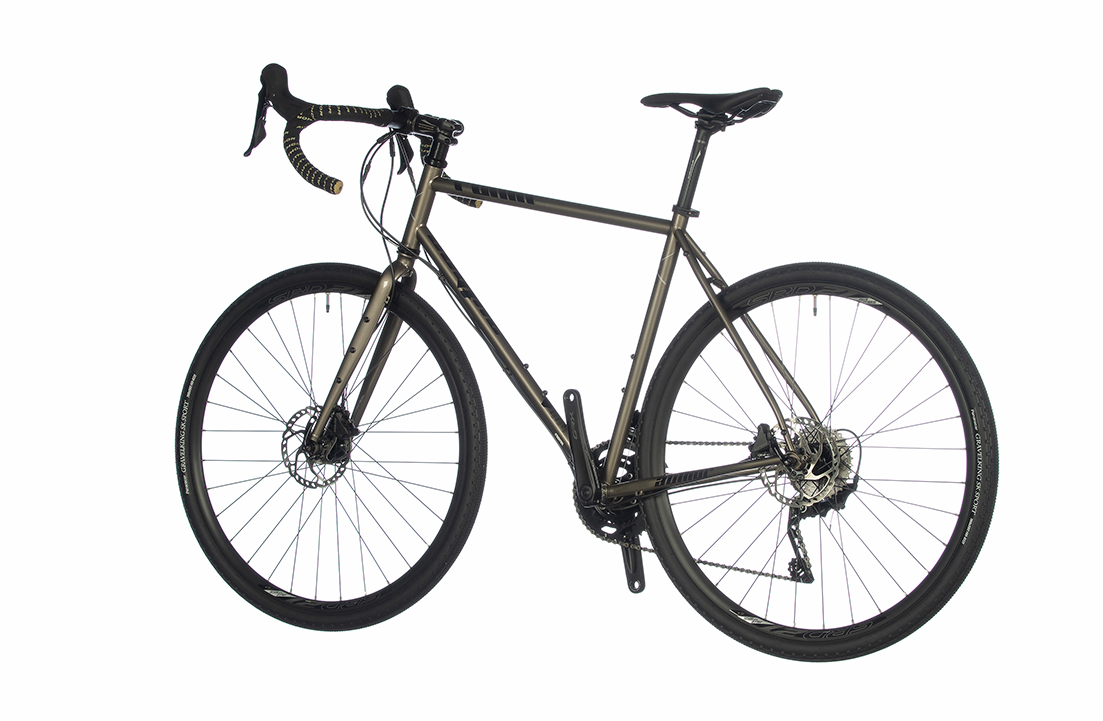

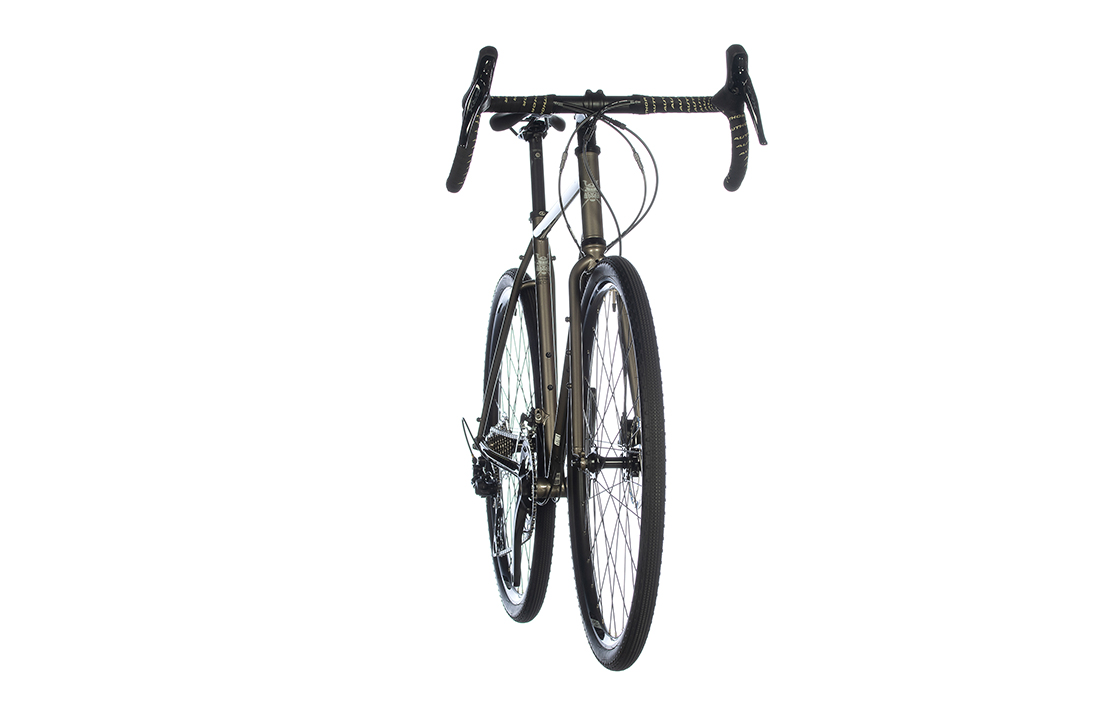

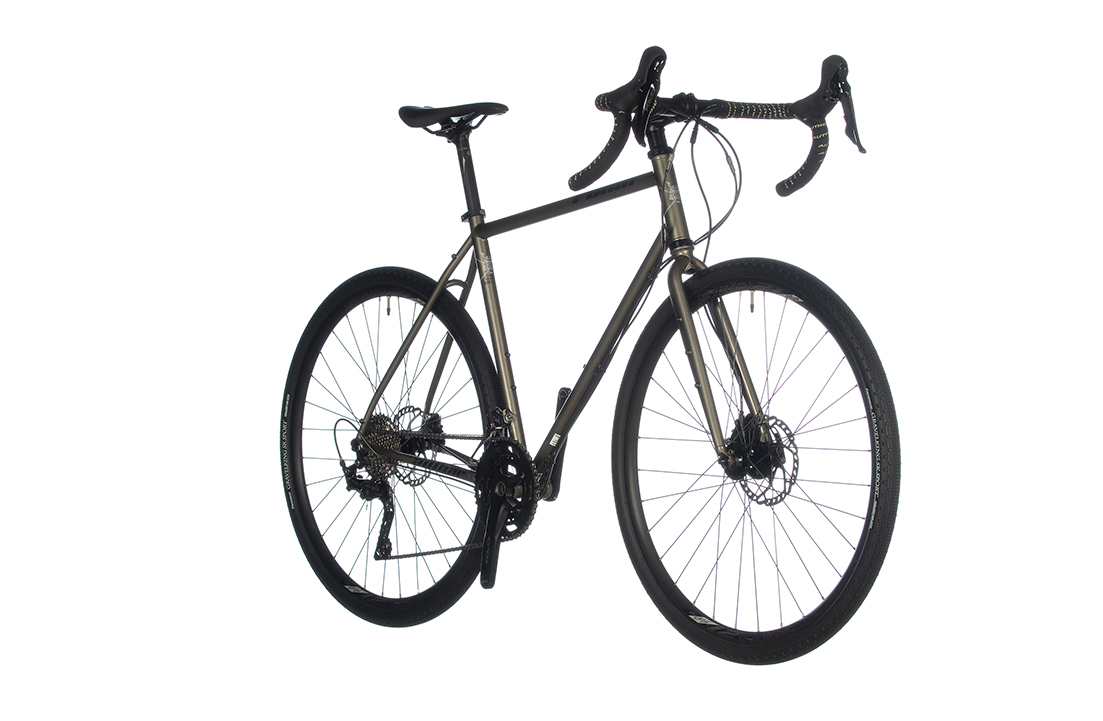

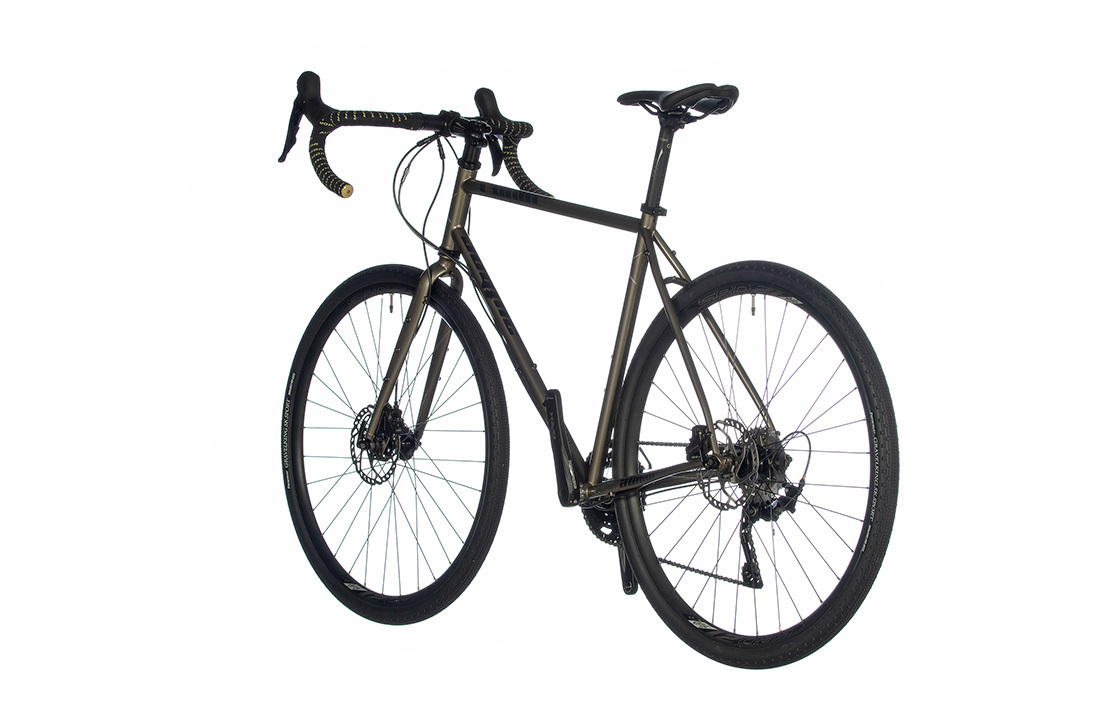

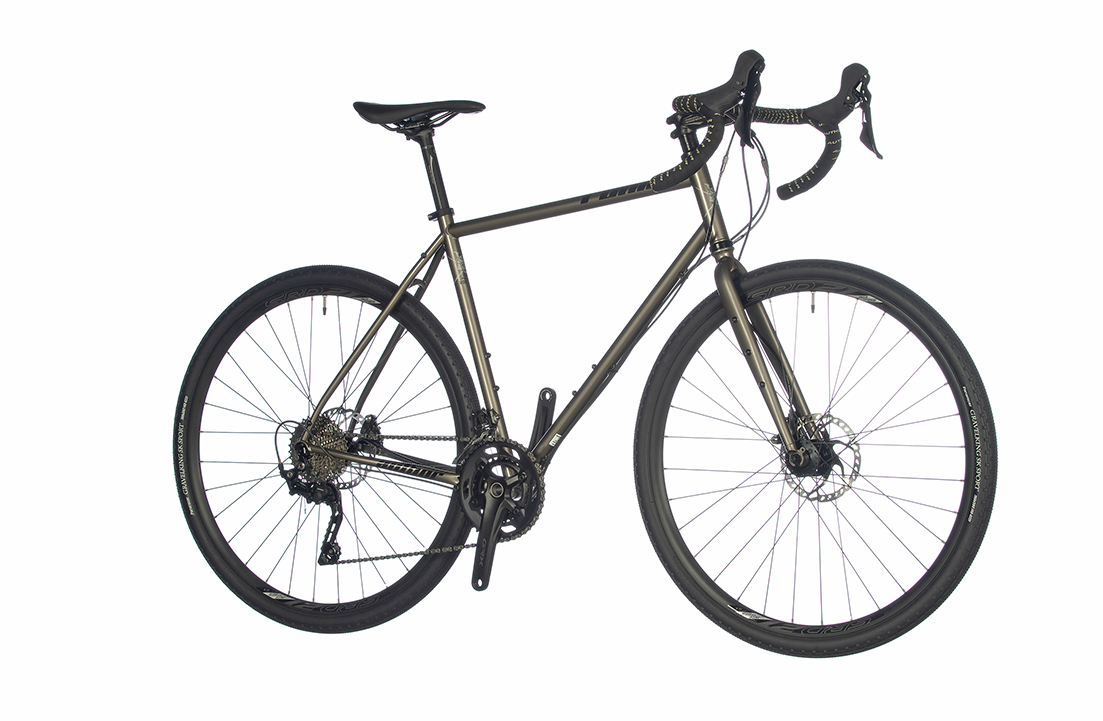

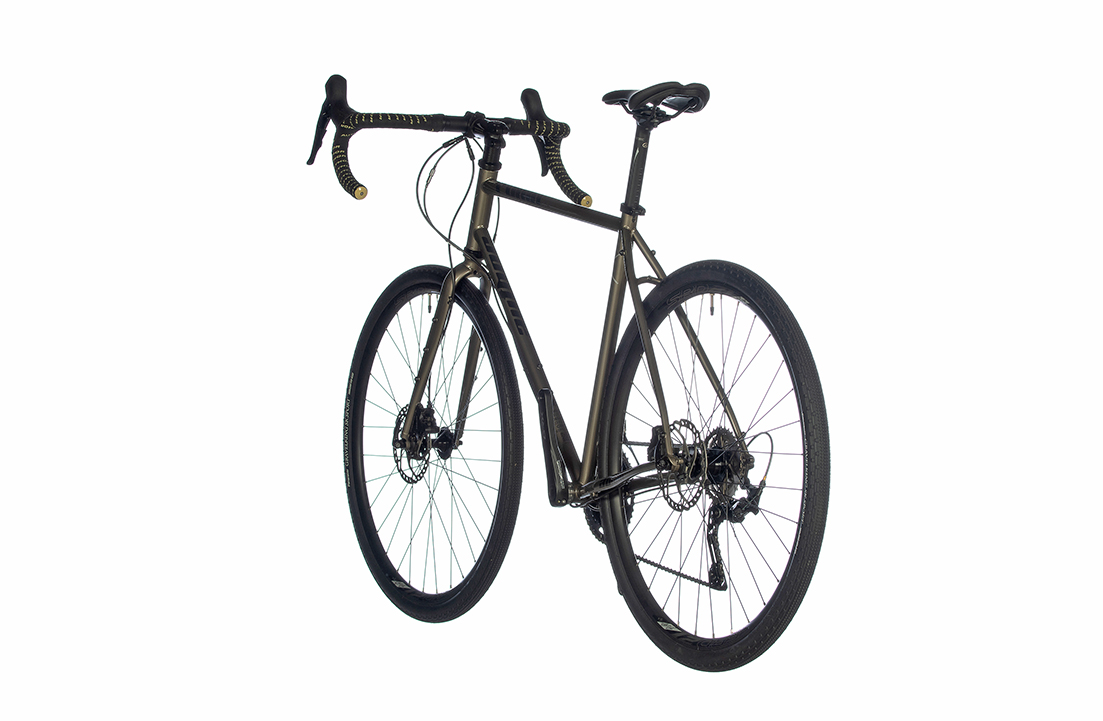

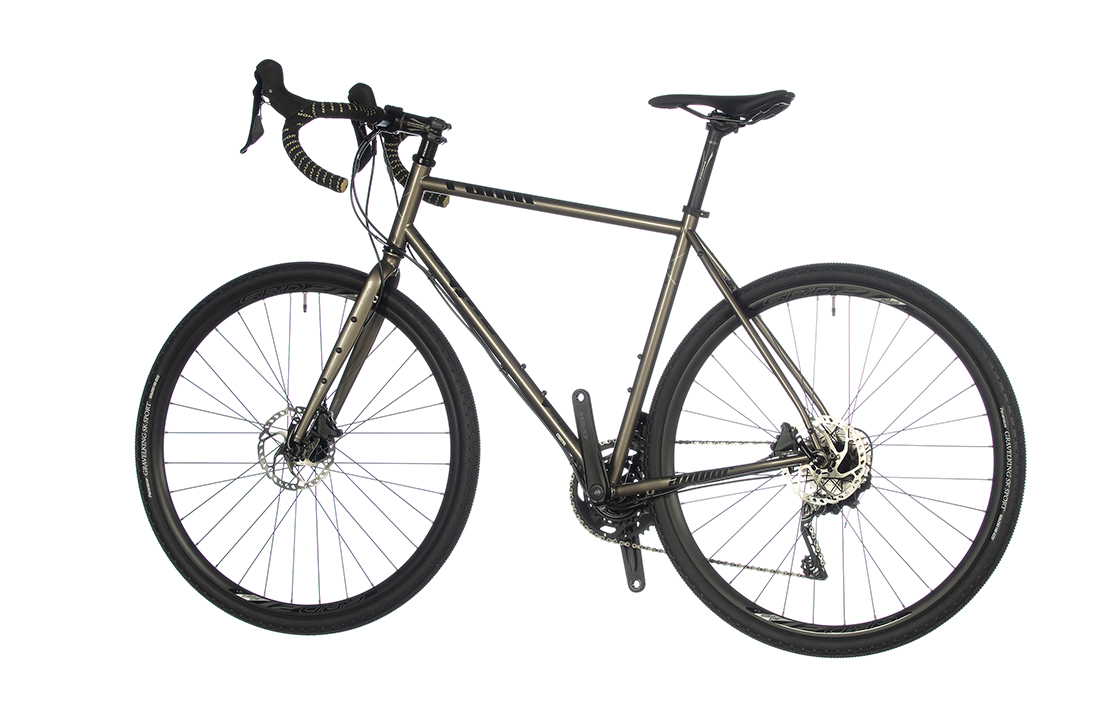

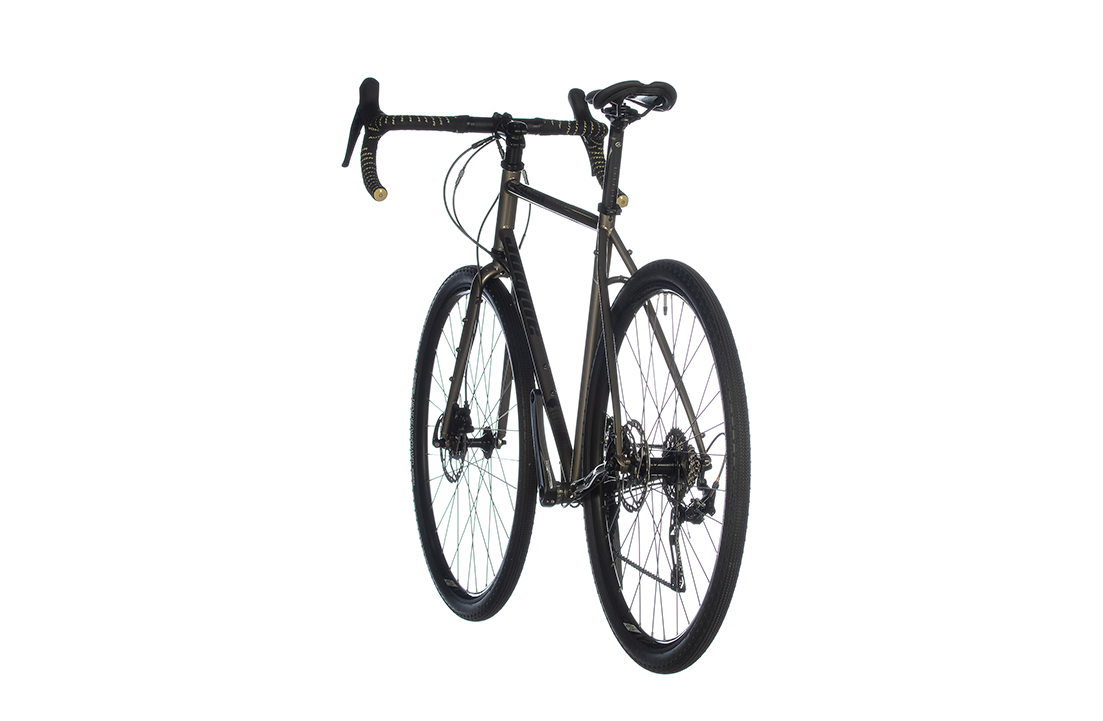

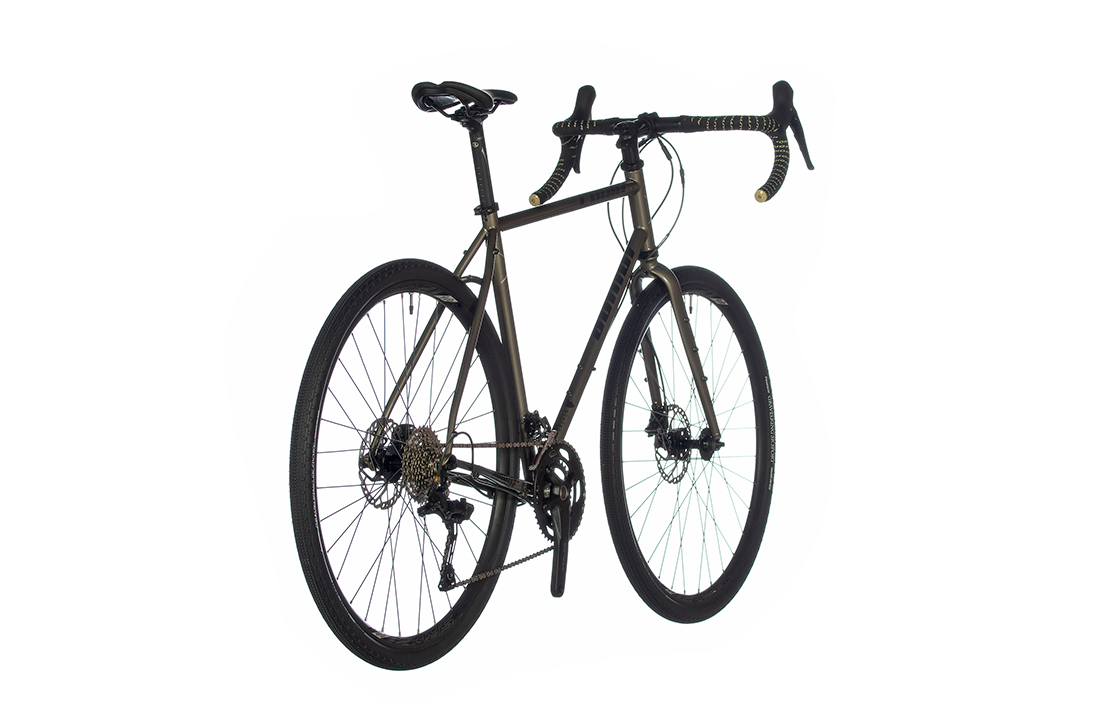

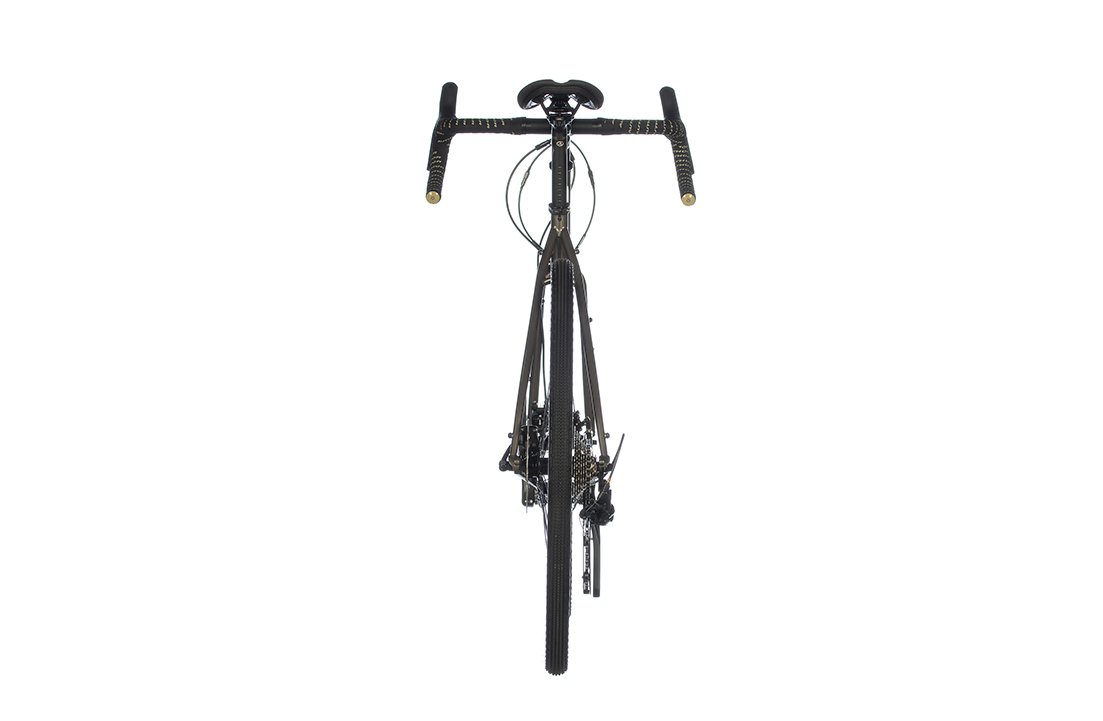

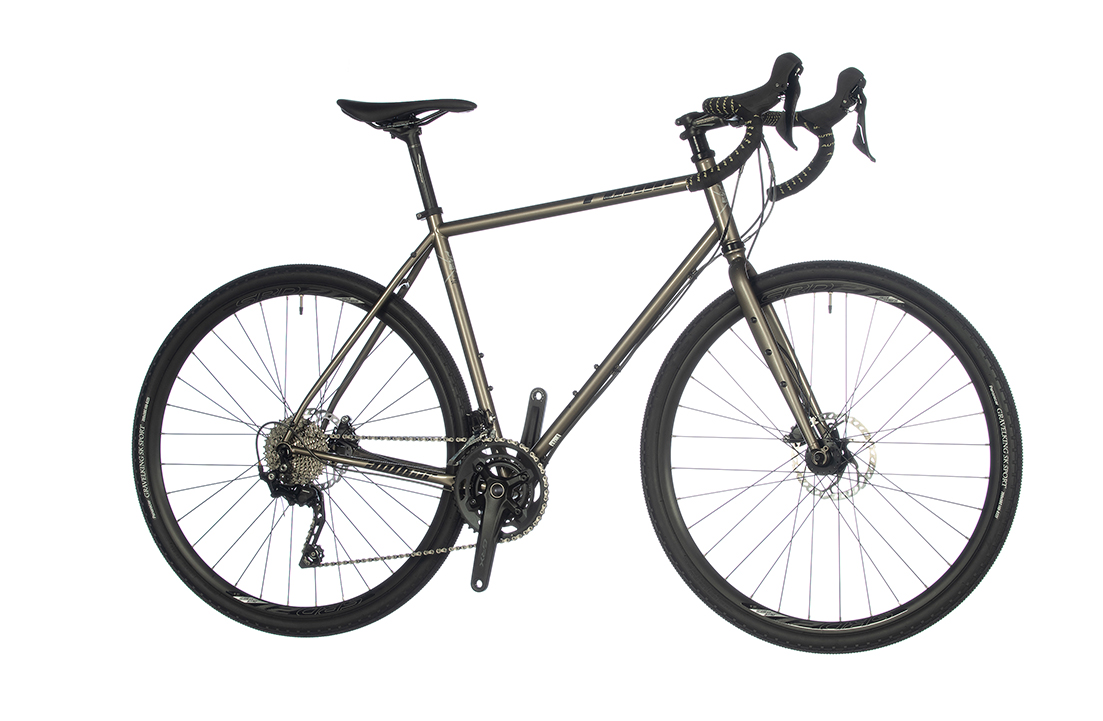

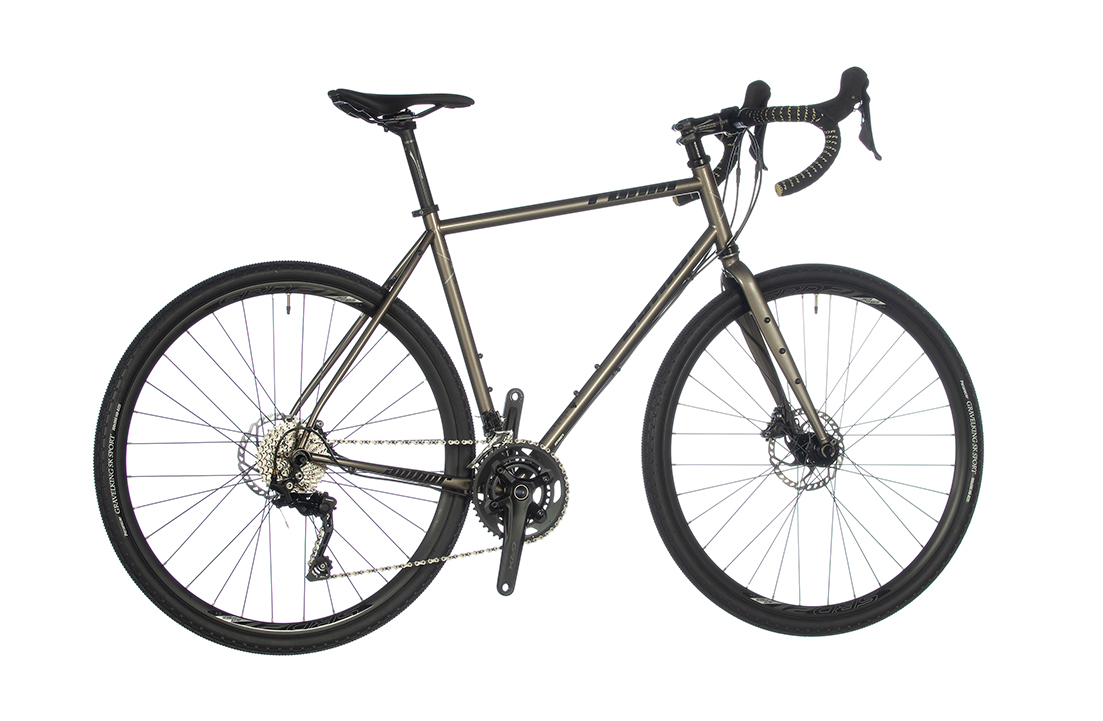

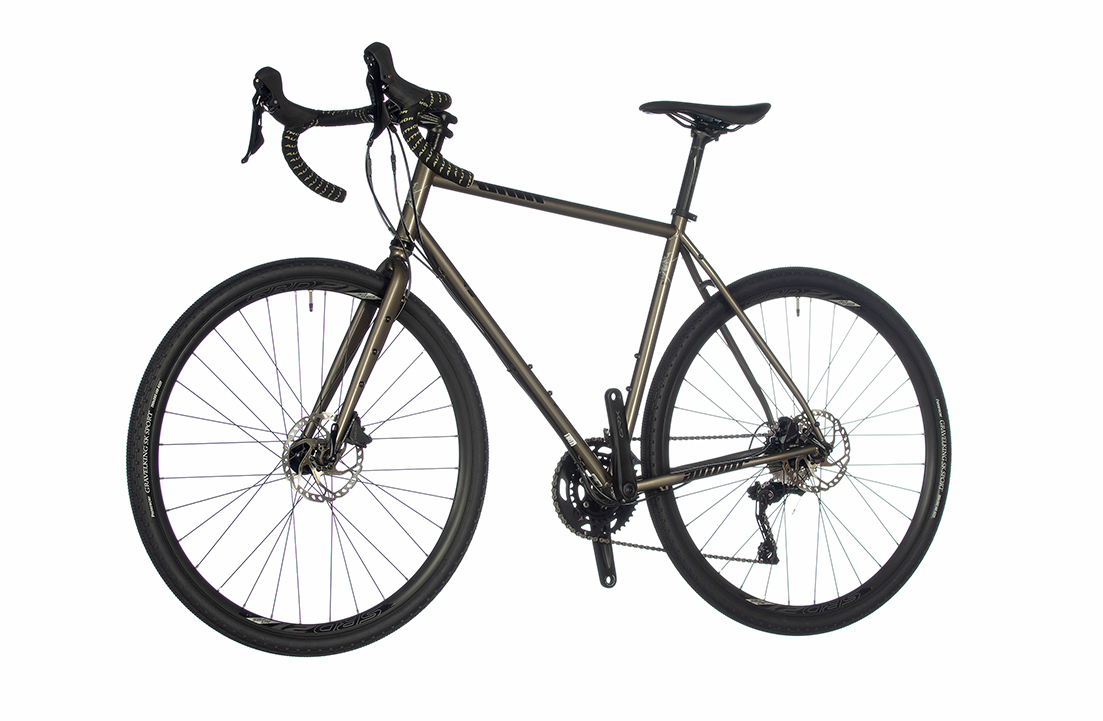

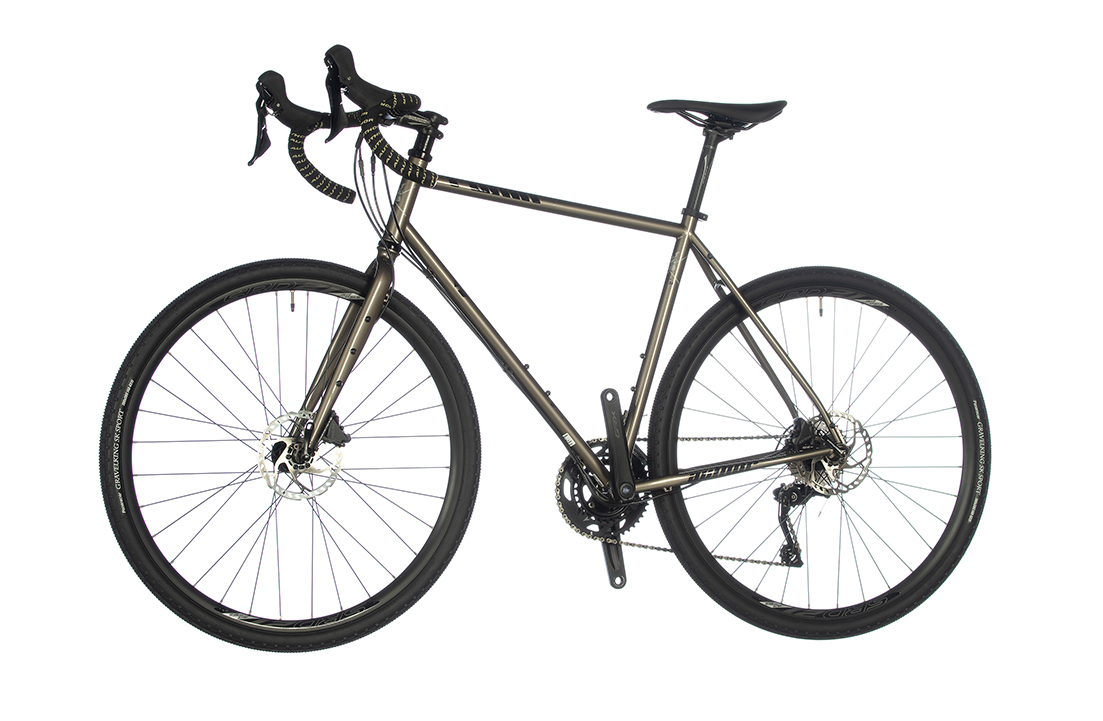

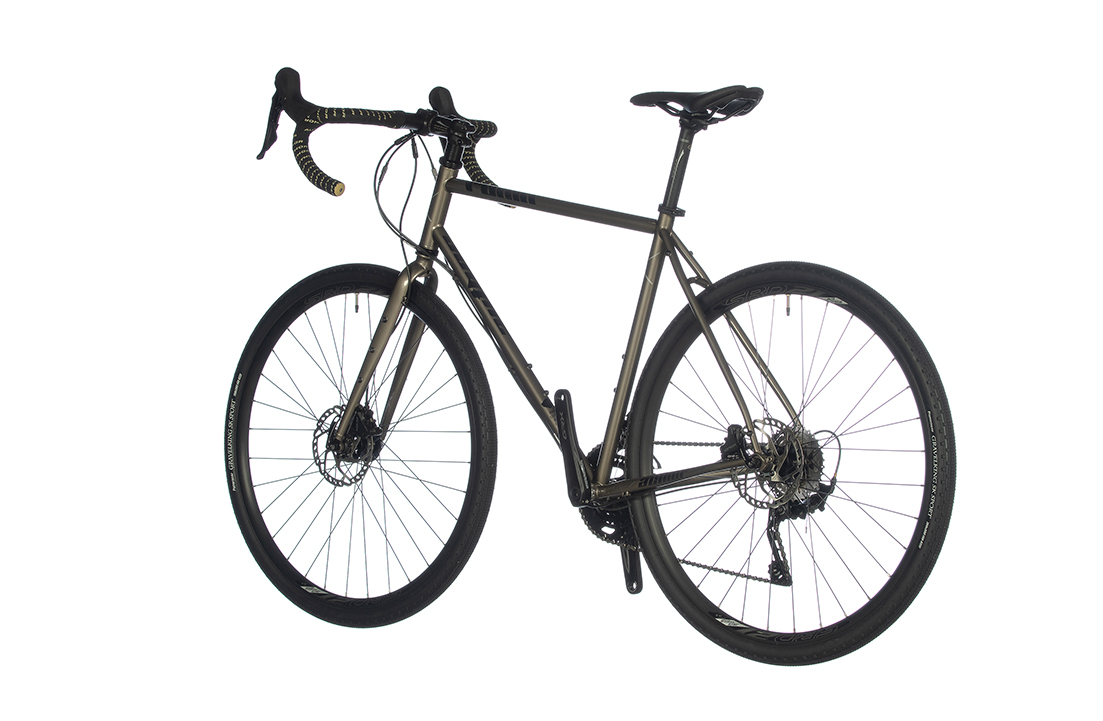

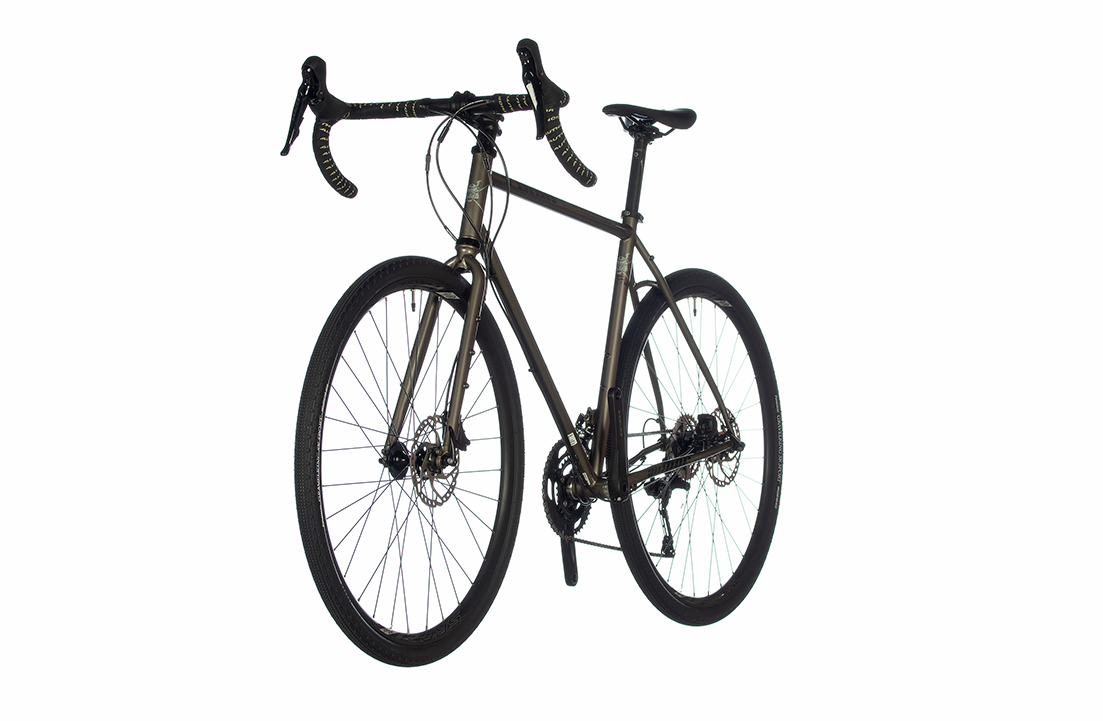

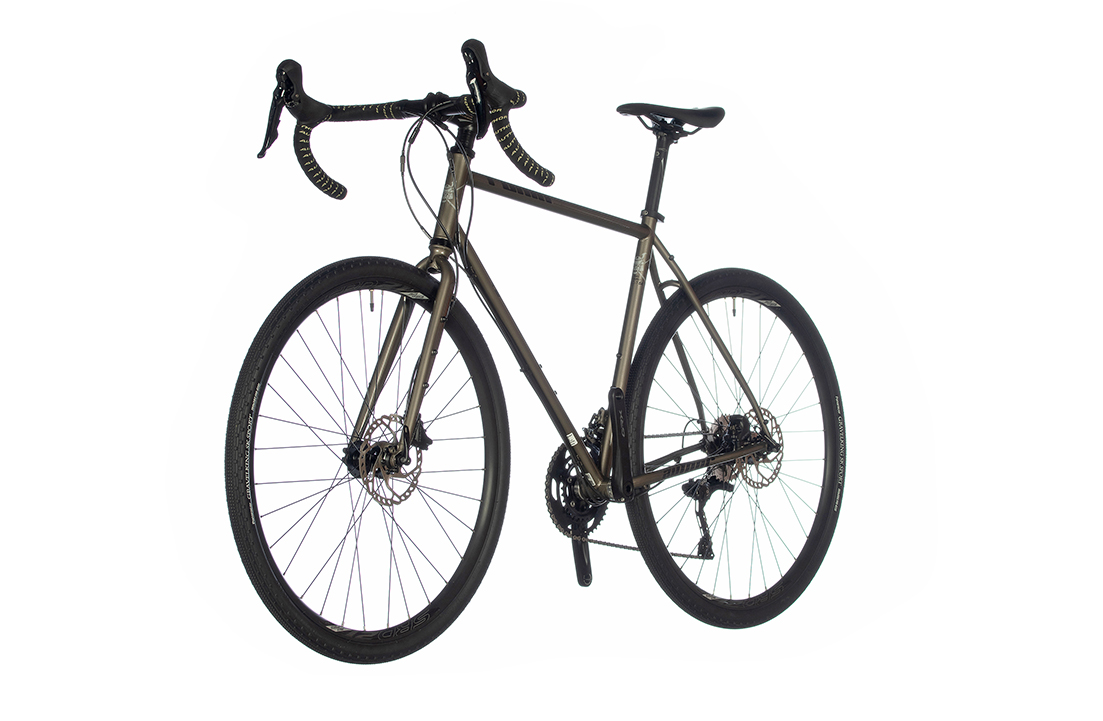

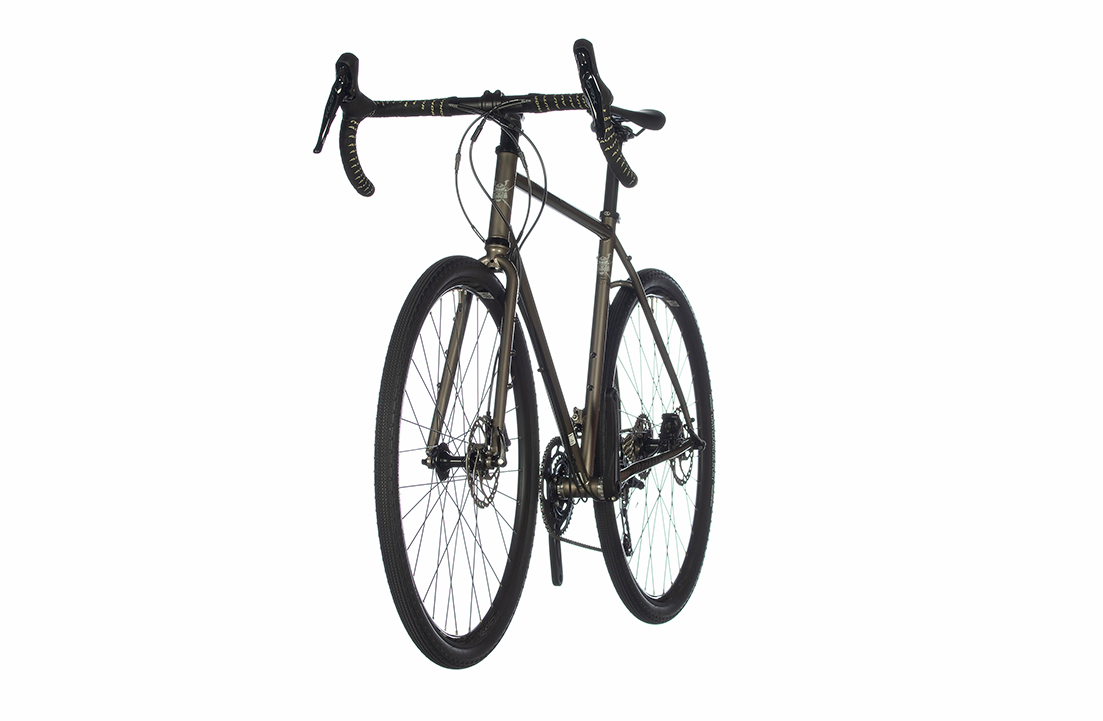

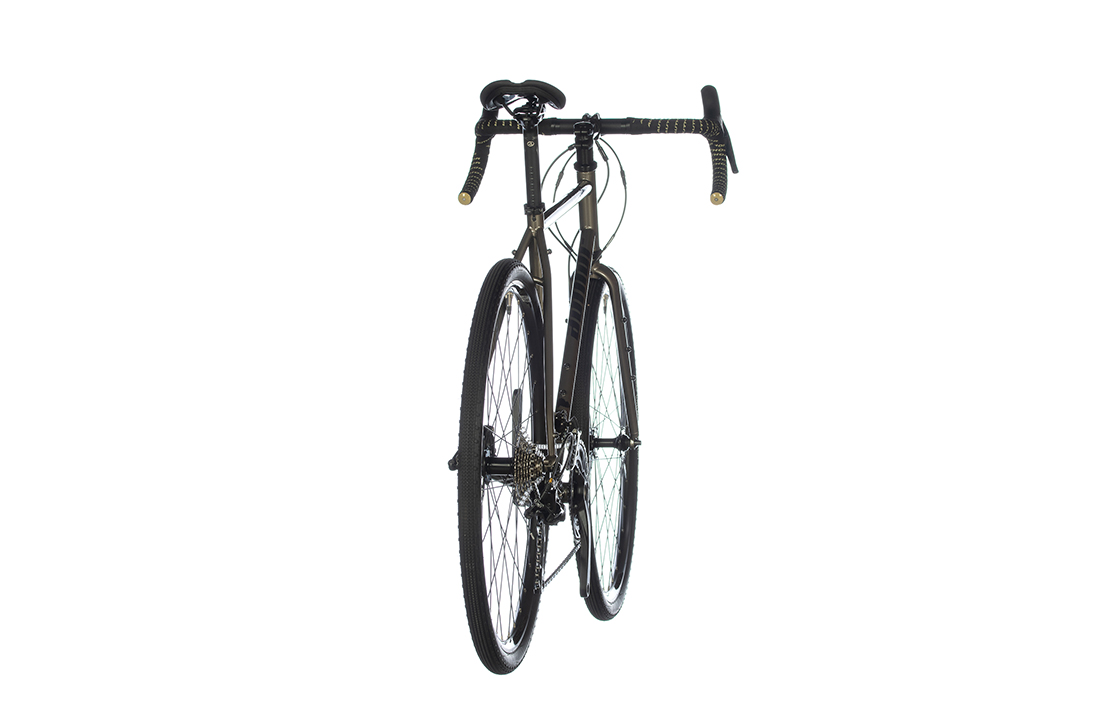

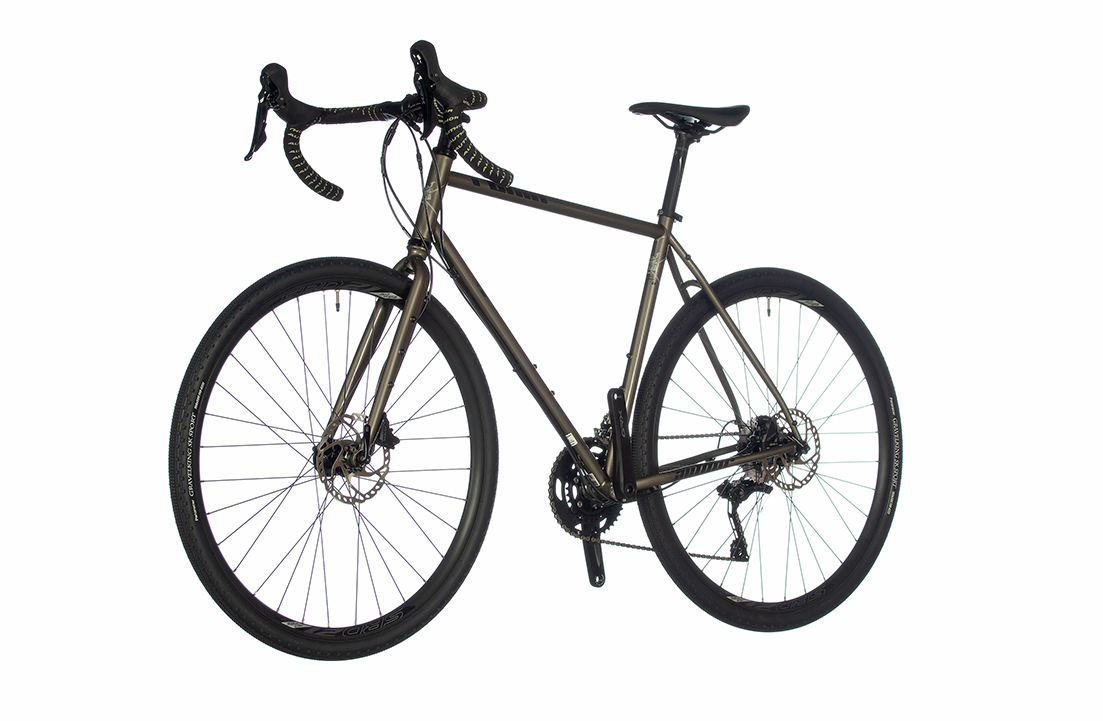

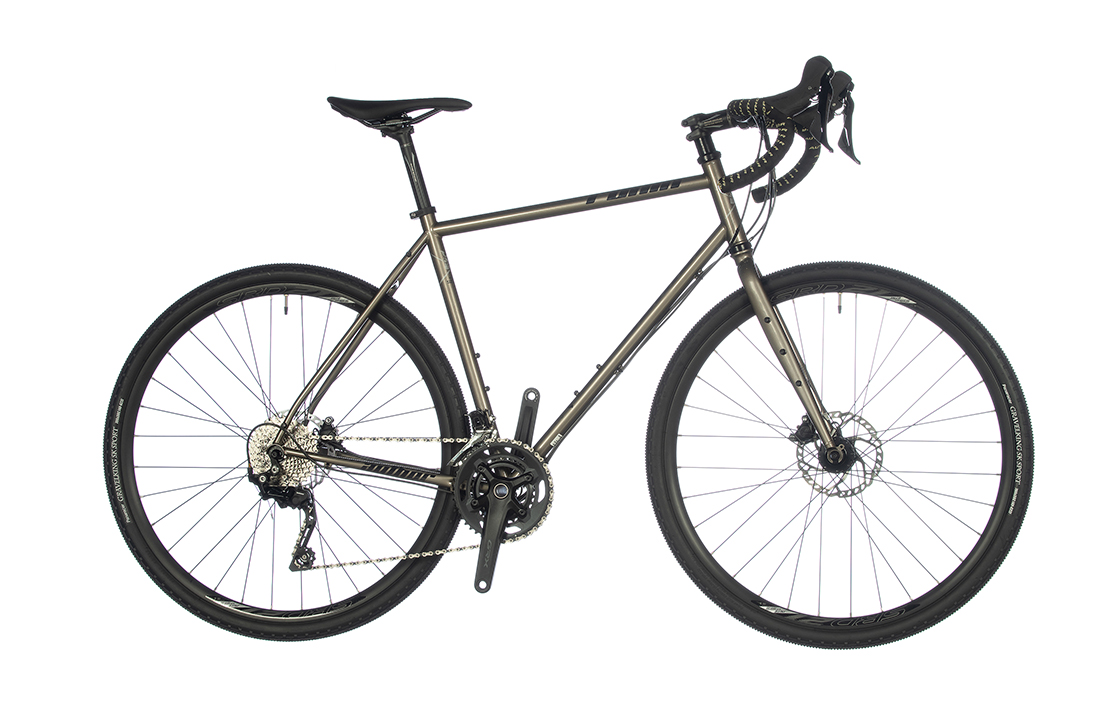

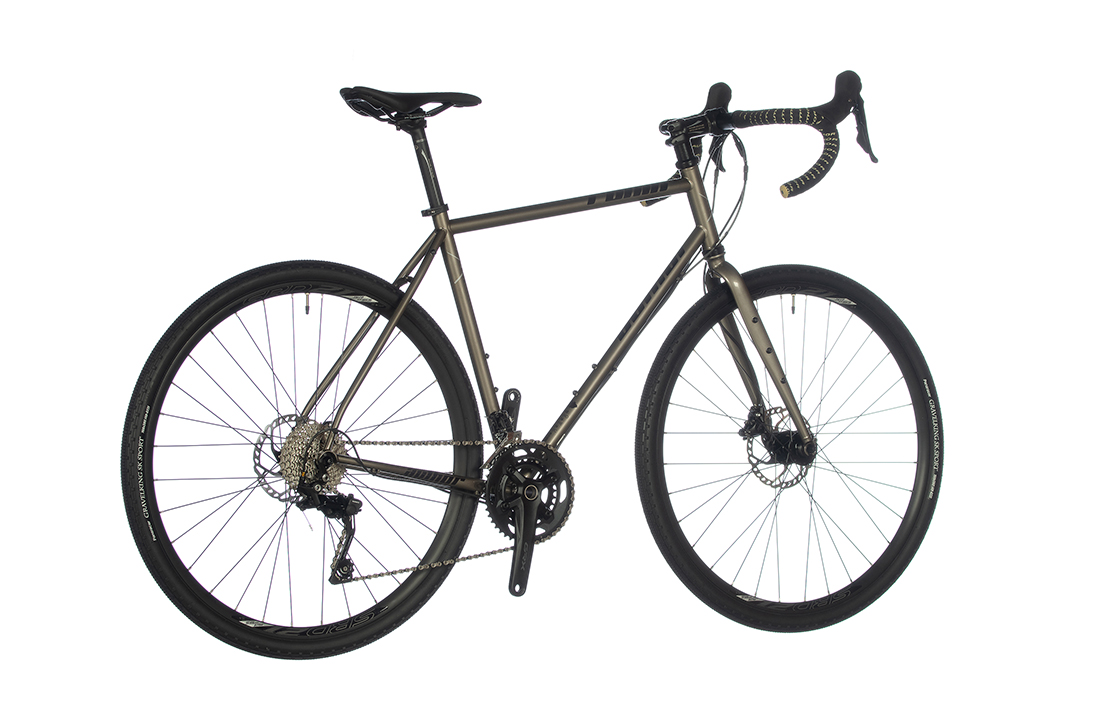

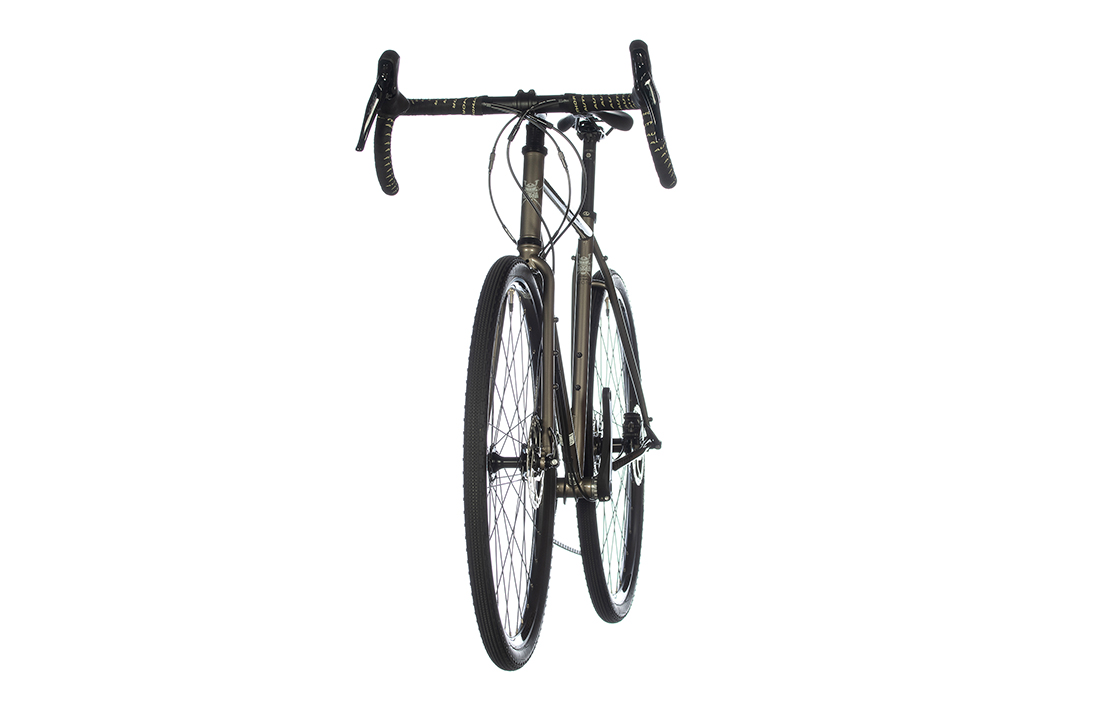

AUTHOR Ronin 2021-22Archivní model 2021-22

Colour variants
Triple butted cromoly frame,SHIMANO GRX 600/400, 20 speedSHIMANO GRX 400 hydraulic disc brakes
other models
Interested in other model`s year?

Technical specification

Size500, 520, 540, 560, 580 mm
Frametriple butted cromoly
Front forkcromoly 700C
Head partsPRESTINE 1-1/8"
Chain WheelSHIMANO GRX 600 46-30 teeth 172.5 / 175 mm cranks
BBPartsSHIMANO BB-RS500 BB unit
Front derailleurSHIMANO GRX 400
Rear derailleurSHIMANO GRX 400
ShiftersSHIMANO GRX 400 (20)
Free wheelSHIMANO HG500-10 11-34 (10)
ChainKMC X10
HubsQUANDO Road Disc 32 holes
BrakesSHIMANO GRX 400 disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 400
RimsJALCO SRD 21 32 holes
Spokesblack stainless steel1.8 mm
TiresPANARACER Gravel King SK Sport 700 × 38c
HandlebarPROMAX 420 / 440 / 460 mm
TapesAUTHOR suede / gel
StemAUTHOR
Seat postAUTHOR (27.2)
Seat clampAUTHOR (29.8)
SaddleAUTHOR Guru
Speed20
Weight11,8 kg / 54 cm

Geometry and sizes

Size 500 520 540 560 580
Min. figure [cm] 160 168 176 186 193
Max. figure [cm] 170 178 188 195 205
S/T c-t [mm] 500 520 540 560 580
S/T c-c [mm] 460 480 500 520 540
T/T h [mm] 530 545 560 580 595
T/T a [mm] 515 529 542 560 573
H/T [mm] 120 140 160 180 200
C/S [mm] 425 425 425 425 425
W/B [mm] 1015 1021 1032 1042 1046
S/T ang. [°] 74.5 74 73.5 73 72.5
H/T ang. [°] 70.5 71 71 71.5 72
F/L [mm] 408 408 408 408 408
B/B drop [mm] 70 70 69 68 68
B/B width [mm] 68 68 68 68 68
Reach [mm] 374 378 382 390 393
Stack [mm] 562 583 601 617 642
F/R [mm] 45 45 45 45 45
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Ronin 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

silver50 = UA#42941602   52 = UA#42941603   54 = UA#42941604   56 = UA#42941605   58 = UA#42941606
