AUTHOR Bicycle Revolt 2015
  » Bicycles » mountain bike » mtb 27.5

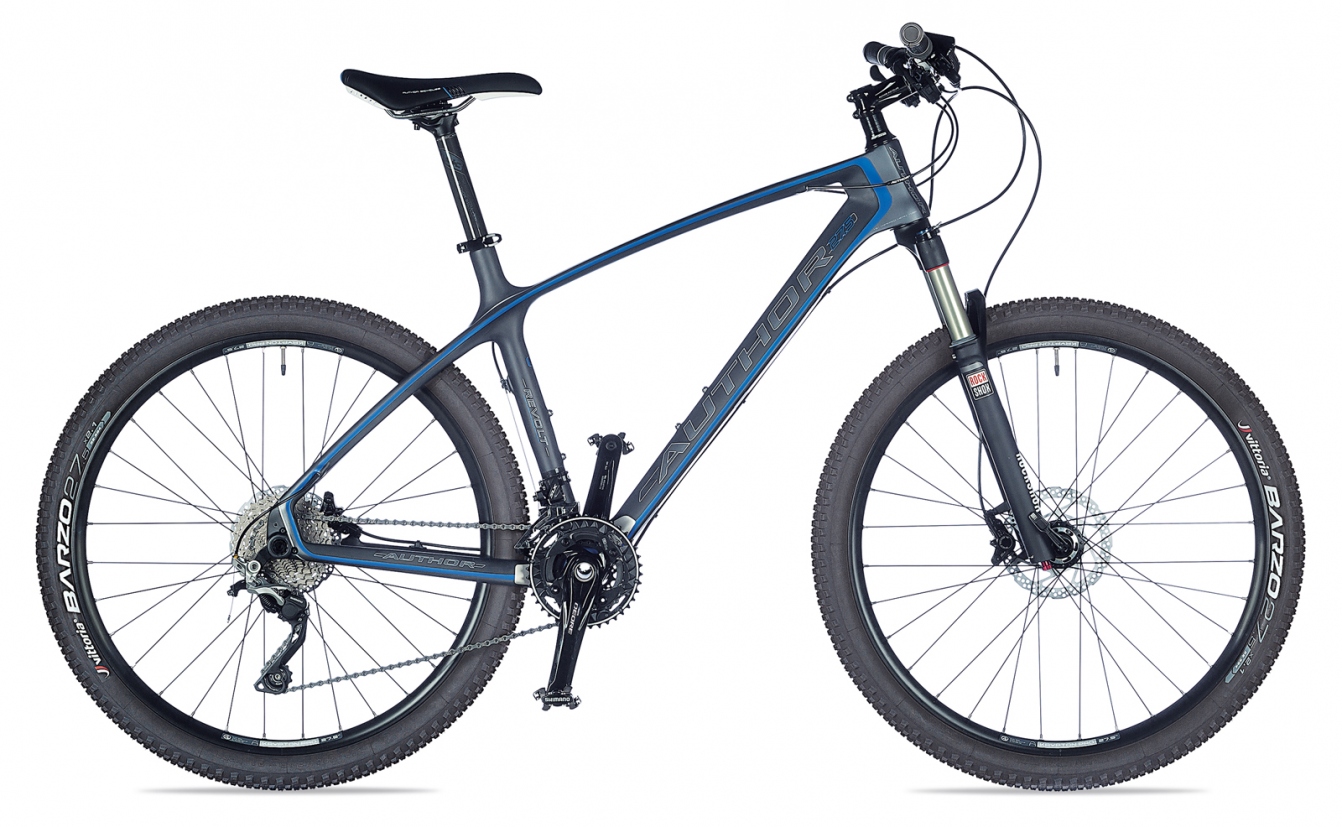

AUTHOR Revolt 2015Archivní model 2015

Lightweight carbon frameAir remote lock out fork ROCK SHOX Recon GoldDisc hydraulic brakes SHIMANO M615
SOLD OUT

Mountain bike Author REVOLT on hi-tech carbon frame and air, ROCK SHOX Recon Gold fork with lock out unit.

More details about cranks, handlebars and stem sizes are now available in TECHNOLOGIES.

other models
Interested in other model`s year?

Technical specification

Size16", 17.5", 19", 20.5"
FrameAUTHOR C carbon monocoque 27.5"
Front forkROCK SHOX Recon Gold TK 27 15 Solo Air air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSHIMANO Deore 40-30-22 teeth 170 / 175 mm cranks
BBPartsSHIMANO Deore BB unit
Front derailleurSHIMANO SLX (34.9)
Rear derailleurSHIMANO XT "clutch"
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG50-10 11-36 (10)
ChainSHIMANO HG54
HubsFront - AUTHOR Xenon Disc 32 holes, Rear - 142 x 12 mm thru axle 32 holes
BrakesSHIMANO M615 disc hydraulic (6" rotors)
Brakes leversSHIMANO M615
RimsAUTHOR Krypton Pro 27.5 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Barzo kevlar 27.5" x 2.10"
PedalsSHIMANO M520 clipless
HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Summit CR
Speed30
Weight11.9 kg / 19"

Geometry and sizes

Size 16" 17,5" 19" 20,5"
Min. figure [cm] 150 162 174 184
Max. figure [cm] 165 175 185 196
S/T c-t [mm] 412 445 486 526
S/T c-c [mm] 0 0 0 0
T/T h [mm] 577 591 607 622
T/T a [mm] 556 569 581 594
H/T [mm] 101 106 116 126
C/S [mm] 425 425 425 425
W/B [mm] 1067 1081 1092 1108
S/T ang. [°] 73 73 72.5 72.5
H/T ang. [°] 70 70 70 70
F/L [mm] 488 488 488 488
B/B drop [mm] 38 38 38 38
B/B width [mm] 73 73 73 73
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Revolt 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
