AUTHOR Patriot Trail 2.0 2015Archivní model 2015

Original alloy frame platformAir lock out fork XFUSION Velvet RLRear air shock XFUSION O2 RLX AV

SOLD OUT

Full supension bike Author PATRIOT TRAIL 2.0 with double butted alloy frame and air, lock out X-FUSION Velvet RL fork.

Interested in other model`s year?

2015 2016

Technical specification

Size	S, M, L, XL
Frame	double butted alloy 6061 27.5"
Shocker	air shock X-FUSION O2 RLX AV 200 / 50 mm (rear travel 120 mm)
Front fork	X-FUSION Velvet RL 27.5 air, lock out 15 mm thru axle 1.5" tapered steerer (120 mm)
Head parts	PRESTINE Integrated 1.5" tapered
Chain Wheel	SHIMANO XT 38-24 teeth 170 / 175 mm cranks
BBParts	SHIMANO XT BB unit
Front derailleur	SHIMANO SLX (direct mount)
Rear derailleur	SHIMANO XT "clutch"
Shifters	SHIMANO SLX (20)
Free wheel	SHIMANO HG50-10 11-36 (10)
Chain	SHIMANO HG54
Hubs	AG Lab Disc 15 mm front thru axle 142 x 12 mm rear thru axle 32 holes
Brakes	TEKTRO Orion disc hydraulic (7" rotors)

Brakes levers	TEKTRO Orion
Rims	AG Lab Krypton Pro 27.5 32 holes
Spokes	black stainless steel 2.0 mm butted
Tires	MAXXIS Ardent kevlar 27.5" x 2.25"
Pedals	HT-PA12
Handlebar	SPANK Oozy Limited Bar 15 mm 740 mm
Grips	AG Lab GripLock
Stem	SPANK Oozy
Seat post	KIND SHOCK LEVi remote control adjustable (30.9)
Seat clamp	AG Lab (34.9)
Saddle	AUTHOR Summit
Speed	20
Weight	14,3 kg / M

maxmin

~~215 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

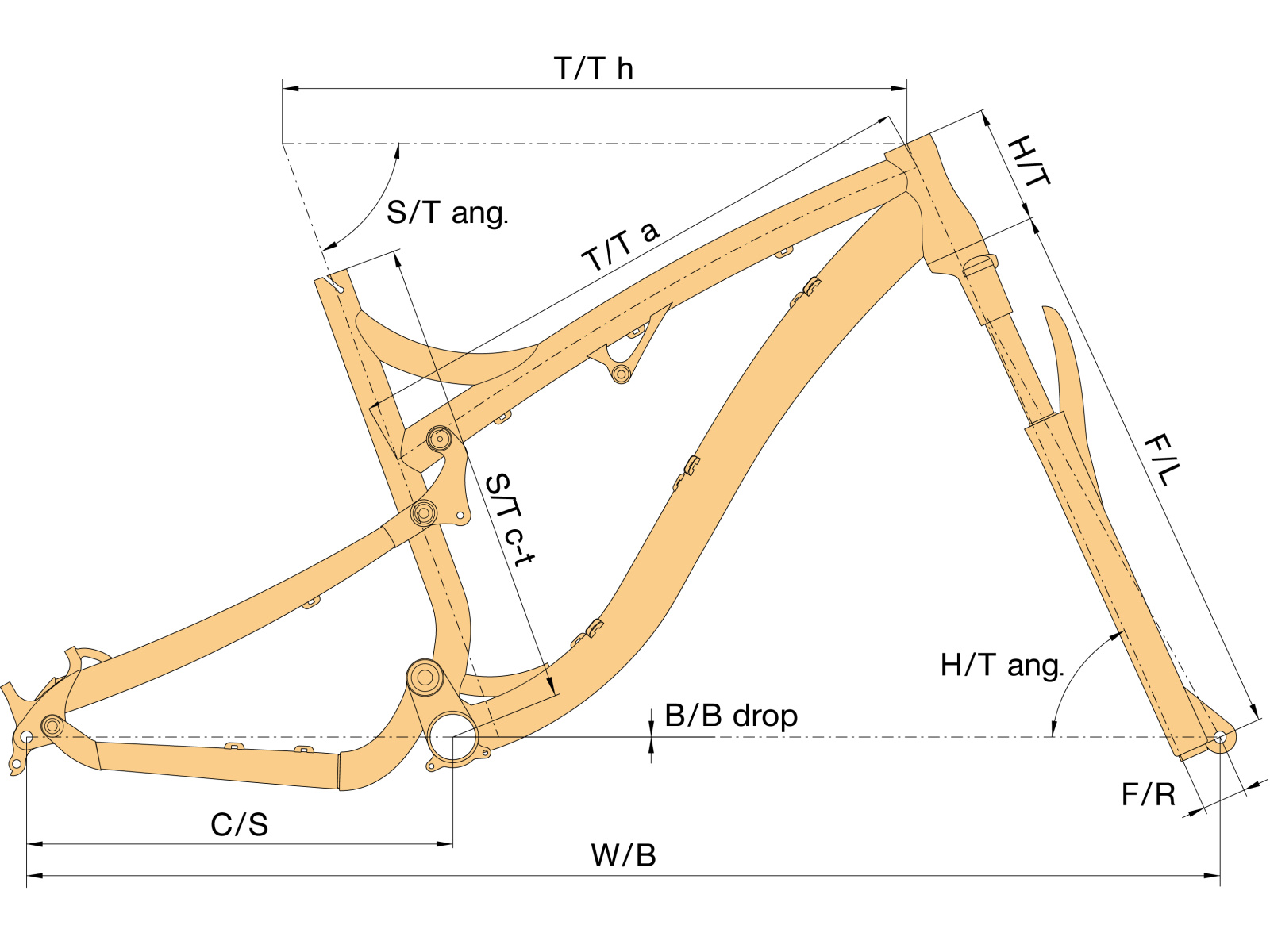

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
