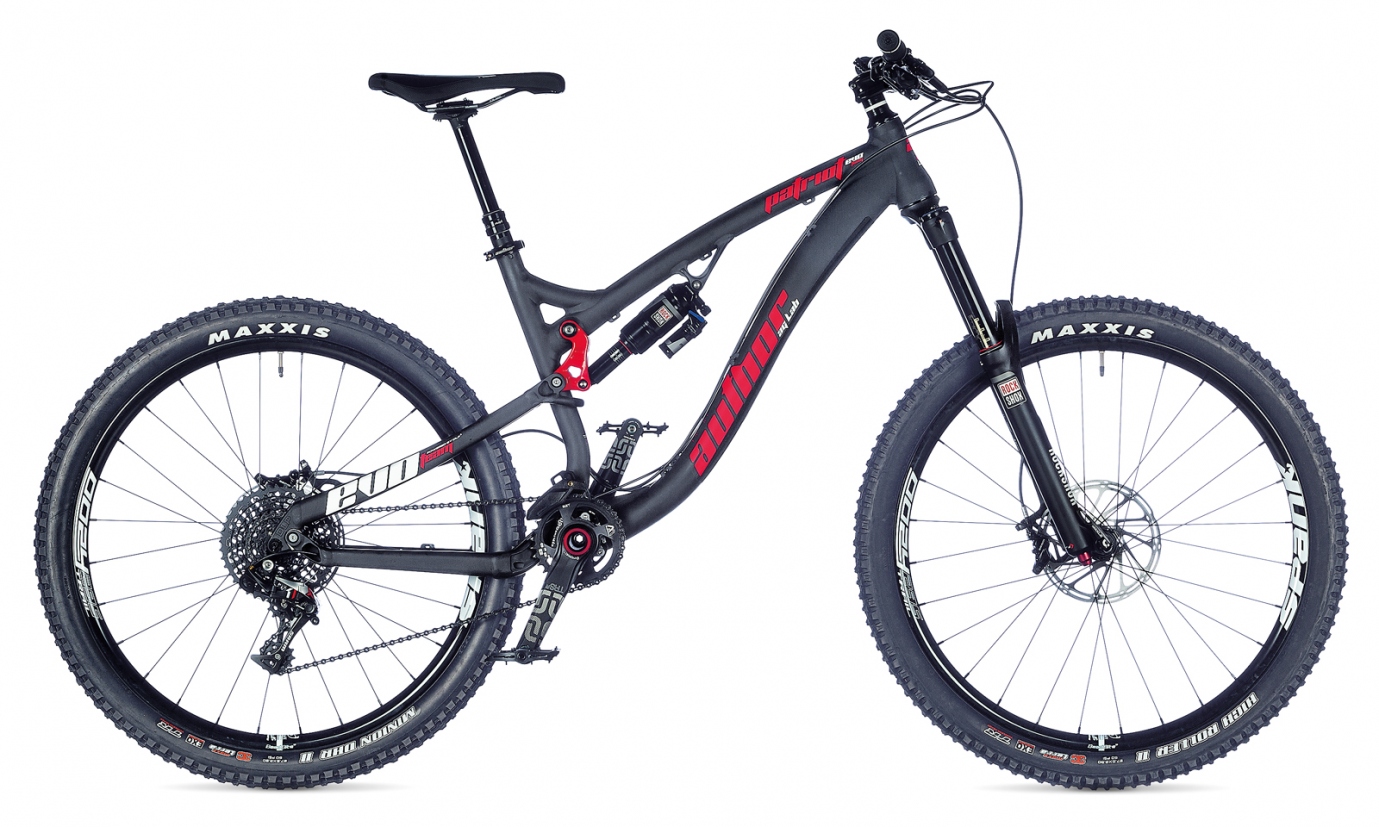

AUTHOR Bicycle Patriot Evo Team 2015

AUTHOR Patriot Evo Team 2015Archivní model 2015

Original alloy frame platformAir lock out fork ROCK SHOX PikeRear air shock ROCK SHOX Monarch Plus
SOLD OUT

Full suspension bike Author PATRIOT EVO TEAM with double butted alloy frame, air lock out ROCK SHOX Pike RCT3 fork and original DLP system.

It's here! New Patriot EVO with a 160 mm travel is an uncompromising enduro machine that won´t be stopped by anything. This bike is newly built on a tougher frame, which uses the profile tubes from his downhill fellow Ninja DH. Better specification will be hardly found. The combination of components from Sram, Spank, e*13 Rock Shox and Maxxis creates a whole, which wants to ride uphill as well as downhill. Regardless of the terrain difficulty. A great proof is a domination of Patriots in Enduro series 2014, including overall winning of Jiri Fikejz, who won the most races exactly on this machine!

Interested in other model`s year?

Technical specification

SizeS, M, L, XL
Framedouble butted alloy 6061 27.5"
Shockerair shock ROCK SHOX Monarch Plus RC3 DB 216 / 63 mm (rear travel 160 mm)
Front forkROCK SHOX Pike RCT3 27 15 SA air, lock out 15 mm thru axle 1.5" tapered steerer (160 mm)
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelE13 TRS Race 32 teeth 170 / 175 mm cranks
BBPartsE13 TRS Race BB30 PF
Front derailleurE13 chain guide
Rear derailleurSRAM X0 (11)
ShiftersSRAM X0 Trigger (11)
Free wheelSRAM XG-1195 10-42 (11)
ChainKMC DLC black
HubsSPANK Oozy Trail 295 15 mm front thru axle 142 x 12 mm rear thru axle 28 holes
BrakesAVID Guide RS disc hydraulic (7" rotors)
Brakes leversAVID Guide RS
RimsSPANK Oozy Trail 295 28 holes
SpokesSPANK Oozy Trail 295
TiresMAXXIS Minion DHR II kevlar 27.5" x 2.30" UST
PedalsHT-PA12A
HandlebarSPANK Oozy Limited Bar 15 mm 740 mm
GripsAG Lab GripLock
StemSPANK Oozy
Seat postROCK SHOX Reverb Stealth remote control adjustable (30.9)
Seat clampAG Lab (34.9)
SaddleAG Lab Throne Trail CR
Speed11
Weight13,8 kg / M

Geometry and sizes

Size S M L XL
Min. figure [cm] 155 170 180 200
Max. figure [cm] 170 185 200 215
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 590 610 630 645
T/T a [mm] 565 585 600 615
H/T [mm] 110 120 120 130
C/S [mm] 430 430 430 430
W/B [mm] 1160 1180 1200 1215
S/T ang. [°] 74 74 74 74
H/T ang. [°] 66 66 66 66
F/L [mm] 550 550 550 550
B/B drop [mm] 0 0 0 0
B/B width [mm] 73 73 73 73
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 42 42 42 42
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
215 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Patriot Evo Team 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
