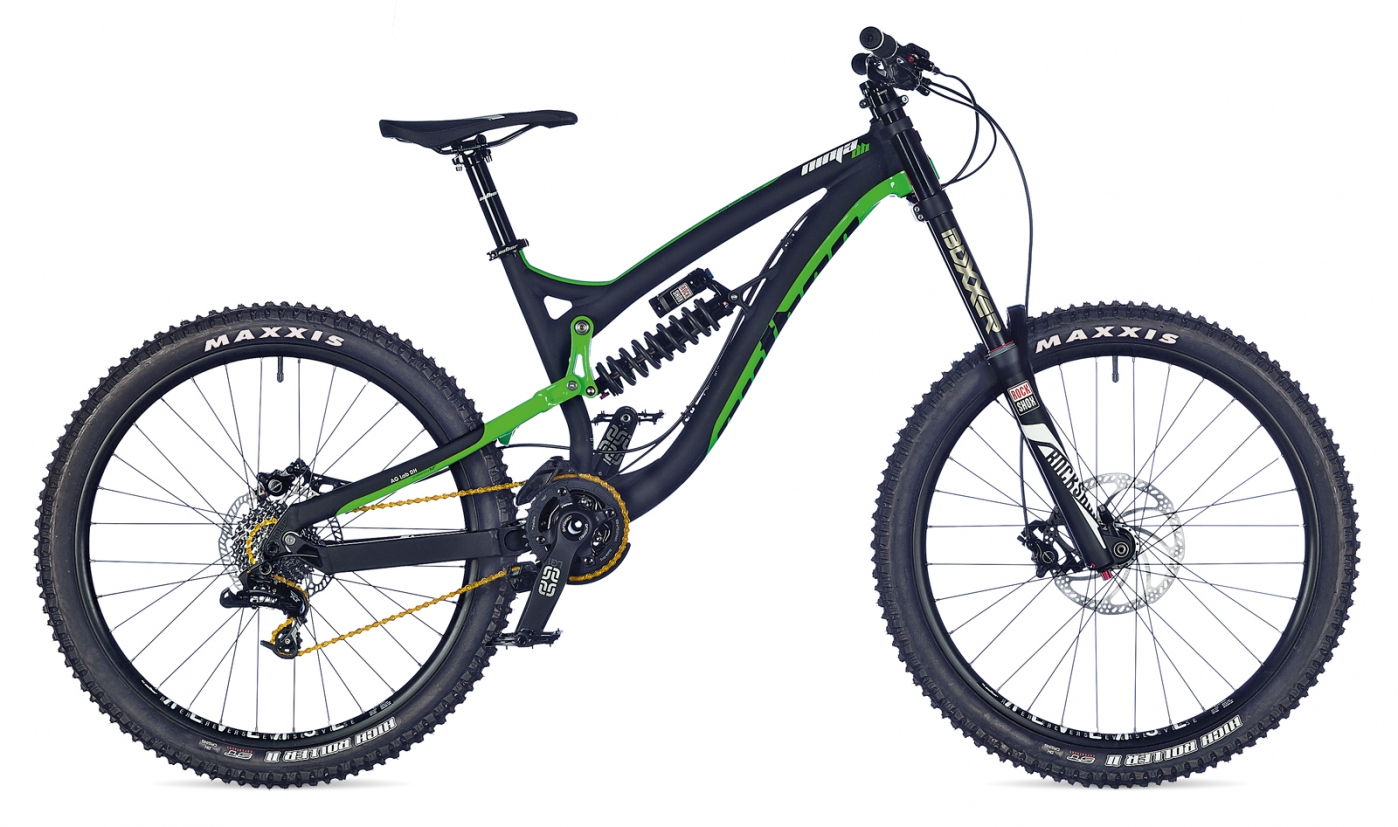

Full suspension bike Author NINJA DH with strong alloy frame and coil ROCK SHOX Boxxer RC fork.
Ninja DH is an affordable downhill bike built on the same frame as Ninja DH Team. This frame is completely redesigned for 2015, got a new stiffer rear triangle and geometry adapted to 27.5 "650b wheels. Thanks to its price, the bicycle is suitable for beginners without any necessary additional investments. On this bike you can race or just enjoy riding in bikeparks. New on Ninja DH for 2015 is Rock Shox fork Boxxer RC 27 and coil shock Kage RC! New are also Maxxis tires with a DH compound!
| Size | S, M, L |
|---|---|
| Frame | alloy 6061 27.5" |
| Shocker | coil shock ROCK SHOX Kage RC 240 / 76 mm (rear travel 200 mm) |
| Front fork | ROCK SHOX Boxxer RC 27 coil 20 mm thru axle (200 mm) |
| Head parts | PRESTINE Integrated 1-1/8" |
| Chain Wheel | E13 LG1 Single 36 teeth 165 mm cranks |
| BBParts | E13 LG1 Single BB30 PF |
| Front derailleur | E13 chain guide |
| Rear derailleur | SRAM X7 |
| Shifters | SRAM X5 Trigger (9) |
| Free wheel | SRAM PG-950 11-32 (9) |
| Chain | KMC X9 gold |
| Hubs | AG Lab Disc 20 mm front thru axle 157 x 12 mm rear thru axle 32 holes |
| Brakes | TEKTRO Orion disc hydraulic (8" / 7" rotors) |
| Brakes levers | TEKTRO Orion |
|---|---|
| Rims | AG Lab Reverse 32 holes |
| Spokes | black stainless steel 2.0 mm butted |
| Tires | MAXXIS High Roller II 27.5" x 2.40" |
| Pedals | HT-PA12A |
| Handlebar | SPANK Spoon 20 mm 760 mm |
| Grips | AG Lab GripLock |
| Stem | SPANK Spike Director |
| Seat post | AG Lab alloy (30.9) |
| Seat clamp | AG Lab (34.9) |
| Saddle | AG Lab Throne DH / FR |
| Speed | 9 |
| Weight | 18.5 kg / M |
| Size | S | M | L |
|---|---|---|---|
| Min. figure | 155 | 170 | 180 |
| Max. figure | 175 | 185 | 205 |
| S/T c-t | 395 | 410 | 420 |
| S/T c-c | 0 | 0 | 0 |
| T/T h | 590 | 610 | 625 |
| T/T a | 560 | 580 | 590 |
| H/T | 120 | 120 | 120 |
| C/S | 445 | 445 | 445 |
| W/B | 1190 | 1210 | 1225 |
| S/T ang. | 67 | 67 | 67 |
| H/T ang. | 64 | 64 | 64 |
| F/L | 581 | 581 | 581 |
| B/B drop | -5 | -5 | -5 |
| B/B width | 83 | 83 | 83 |
| Reach | 0 | 0 | 0 |
| Stack | 0 | 0 | 0 |
| F/R | 48 | 48 | 48 |
| Handlebars | 0 | 0 | 0 |
| Stem | 0 | 0 | 0 |
| Cranks | 0 | 0 | 0 |
The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.
