AUTHOR Introvert 2015Archivní model 2015

Lightweight carbon frameAir remote lock out fork FOX 32 FloatWheel set MAVIC

SOLD OUT

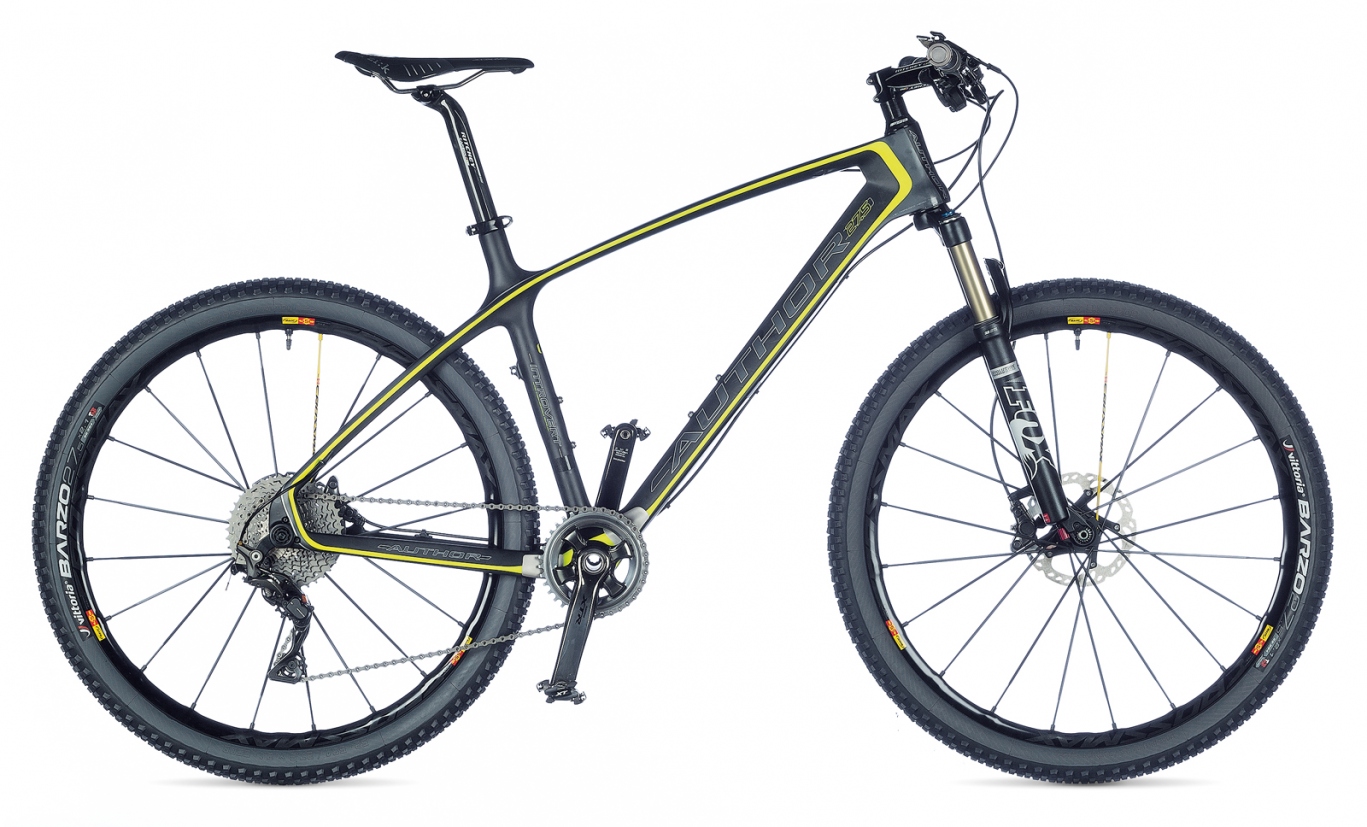

Mountain bike Author INTROVERT with lighten hi-tech carbon frame and air, remote FOX 32 Float fork with lock out unit.

More details about cranks, handlebars and stem sizes are available in TECHNOLOGIES.

other models

Interested in other model`s year?

2015 2016 2017 2018

Technical specification

Size	16", 17.5", 19", 20.5"
Frame	AUTHOR A carbon monocoque 27.5"
Front fork	FOX 32 Float 27.5 CTD Remote O/C 100 air, remote lock out 15 mm thru axle 1.5" tapered steerer (100 mm)
Head parts	FSA Orbit 1.5B 1.5" tapered
Chain Wheel	SHIMANO XTR 36 teeth 170 / 175 mm cranks
BBParts	SHIMANO XTR BB unit
Front derailleur	SHIMANO XTR (34.9)
Rear derailleur	SHIMANO XTR
Shifters	SHIMANO XTR (11)
Free wheel	SHIMANO M9000 11-40 (11)
Chain	SHIMANO M9000
Hubs	MAVIC Crossmax SL 27.5 TNT wheel set 15 mm thru front axle 142 x 12 mm thru rear axle 20 holes
Brakes	SHIMANO XTR disc hydraulic (6" rotors)
Brakes levers	SHIMANO XTR

Wheel set	MAVIC Crossmax SL 27.5 TNT wheel set 20 holes
Spokes	MAVIC
Tires	VITTORIA Barzo kevlar TNT 27.5" x 2.10"
Pedals	SHIMANO M780 clipless
Handlebar	RITCHEY WCS Flat carbon 0 mm 680 mm
Grips	AUTHOR Pro Lock
Stem	RITCHEY WCS 4-Axis
Seat post	RITCHEY WCS 1B carbon (31.6)
Seat clamp	AUTHOR (34.9)
Saddle	FIZIK Antares R3
Speed	11
Weight	9.3 kg / 19"

maxmin

~~196 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
