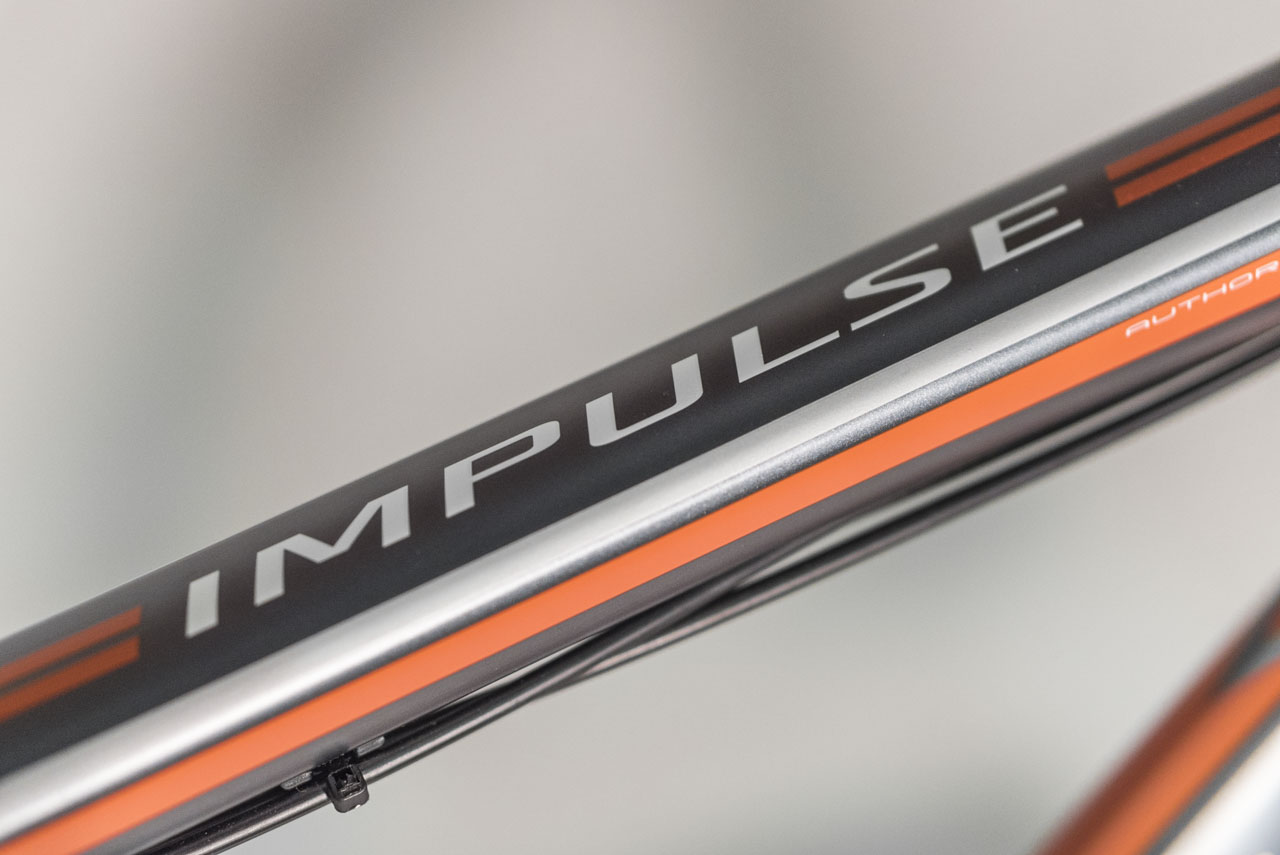

author impulse 2016 09 viewde
author impulse 2016 08 viewde
author impulse 2016 07 viewde
author impulse 2016 06 viewde
author impulse 2016 05 viewde
author impulse 2016 04 viewde
author impulse 2016 03 viewde
AUTHOR Bicycle Impulse 2016AUTHOR Bicycle Impulse 2016author impulse 2016 02 viewdeauthor impulse 2016 01 viewdeauthor impulse 2016 17 viewdeauthor impulse 2016 16 viewdeauthor impulse 2016 15 viewdeauthor impulse 2016 14 viewdeauthor impulse 2016 13 viewdeauthor impulse 2016 12 viewdeauthor impulse 2016 11 viewdeauthor impulse 2016 10 viewdeauthor impulse 2016 09 viewdeauthor impulse 2016 08 viewdeauthor impulse 2016 07 viewdeauthor impulse 2016 06 viewdeauthor impulse 2016 05 viewdeauthor impulse 2016 04 viewdeauthor impulse 2016 03 viewde
  » Bicycles » mountain bike » mtb 27.5

AUTHOR Impulse 2016Archivní model 2016

Colour variants
Alloy frameSuspension fork RST GilaHydraulic disc brakes TEKTRO
other models
Interested in other model`s year?

Technical specification

Size15", 17", 19", 21"

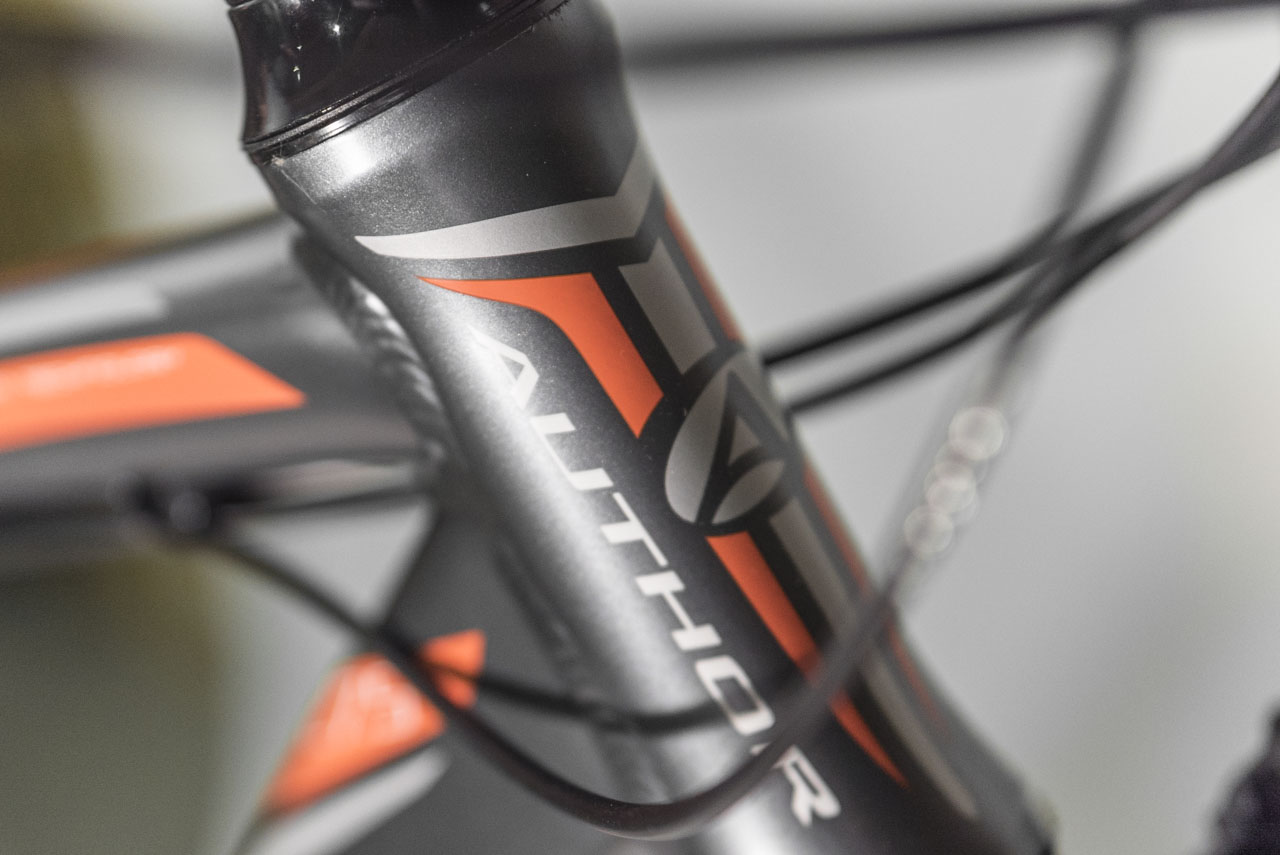

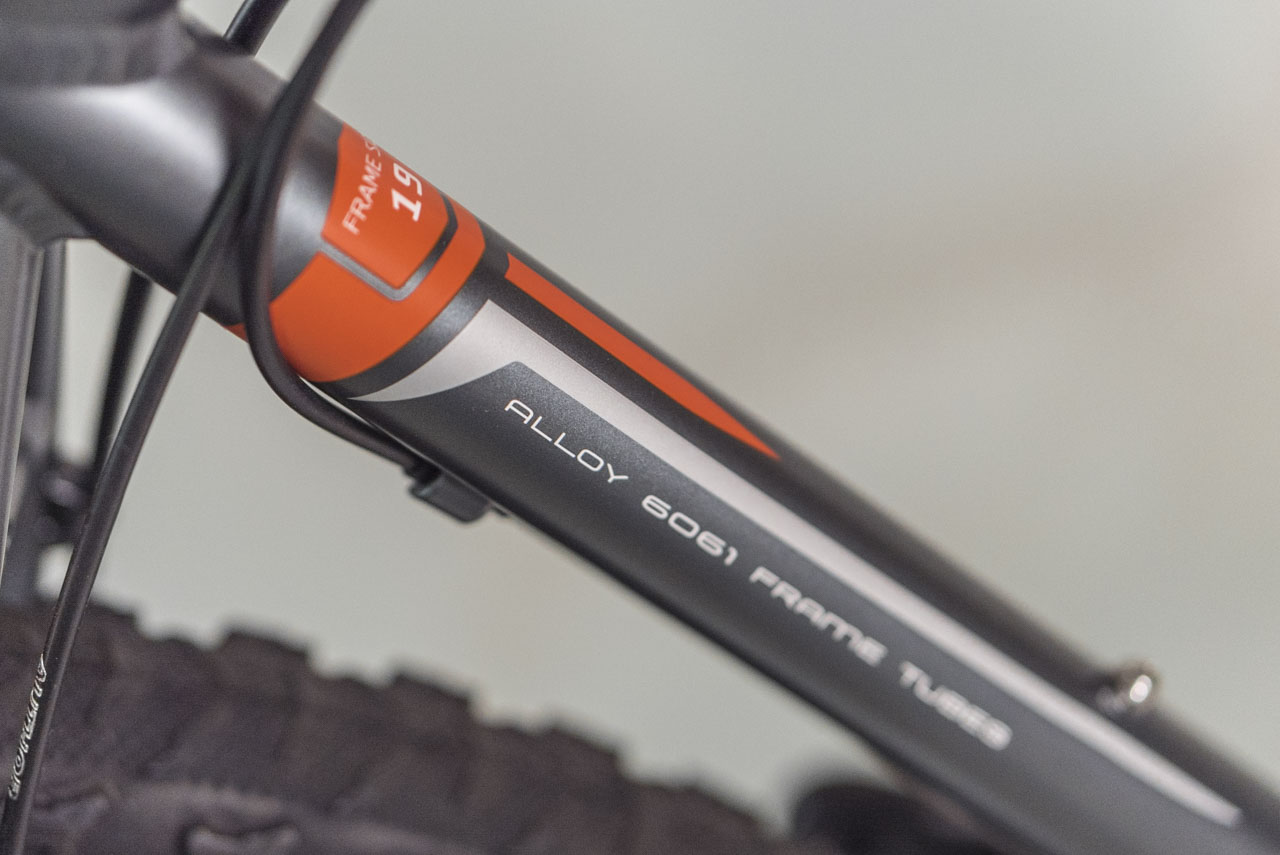

Framealloy 6061 27.5"
Front forkRST Gila 27.5 ML lock out (100 mm)
Head partsPRESTINE Integrated 1-1/8"

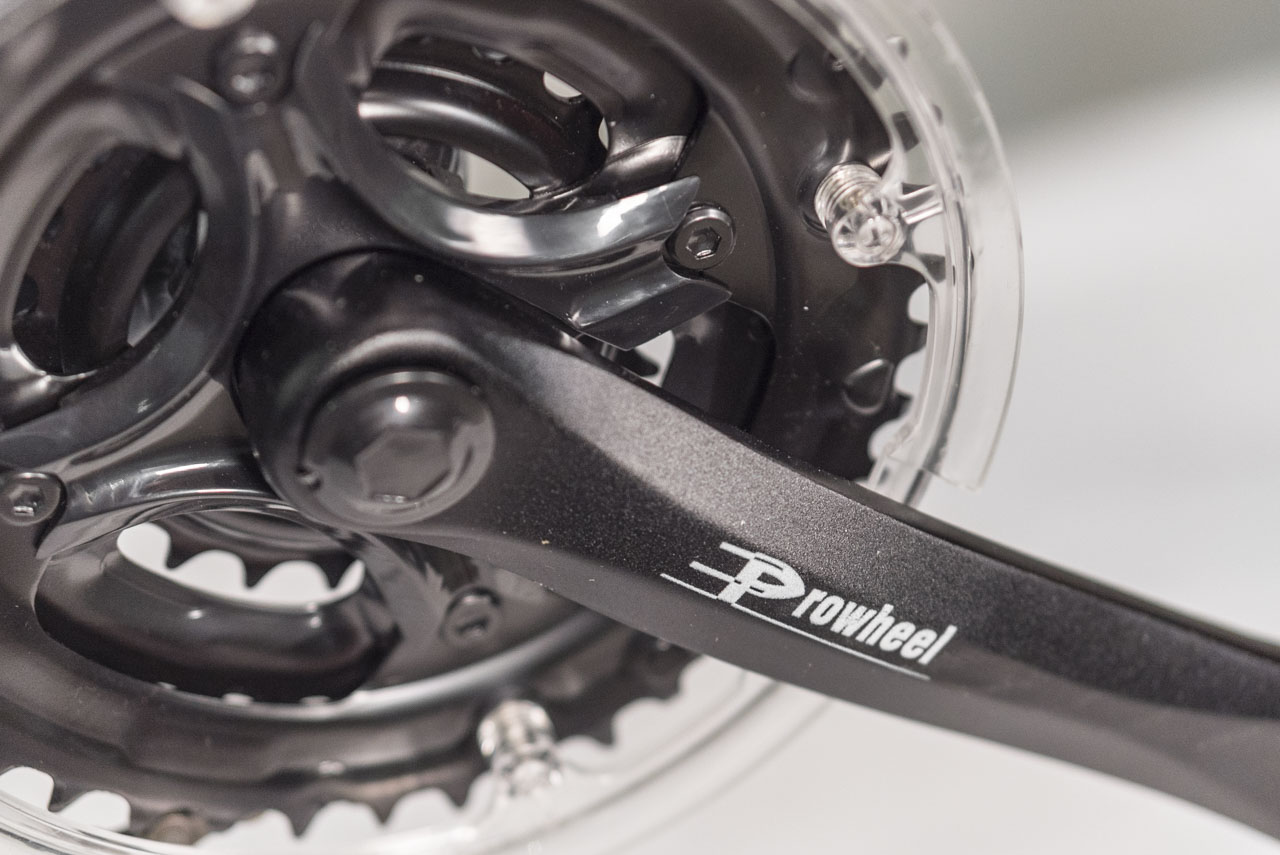

Chain WheelPROWHEEL 42-34-24 teeth 170 / 175 mm cranks
BBPartsVP COMP cartridge

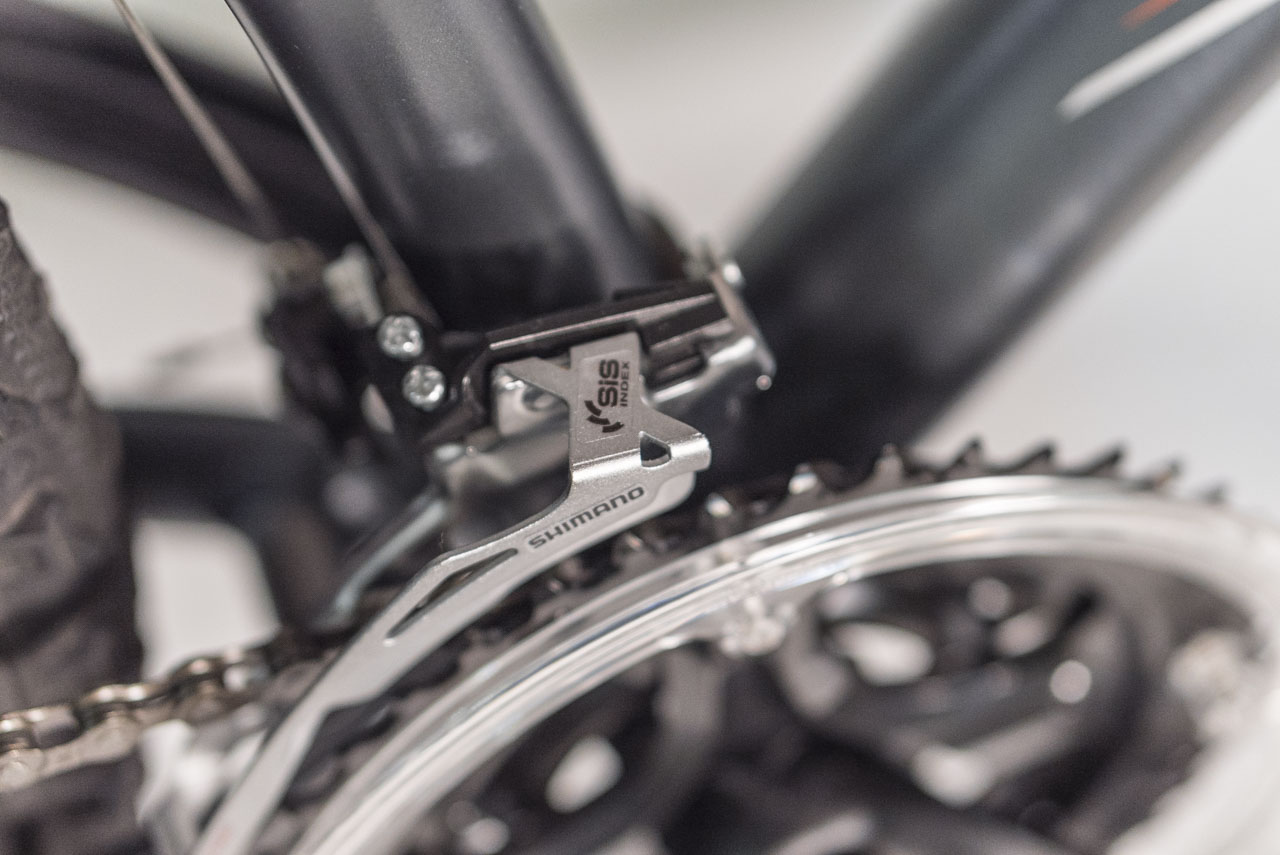

Front derailleurSHIMANO M190 (34.9)

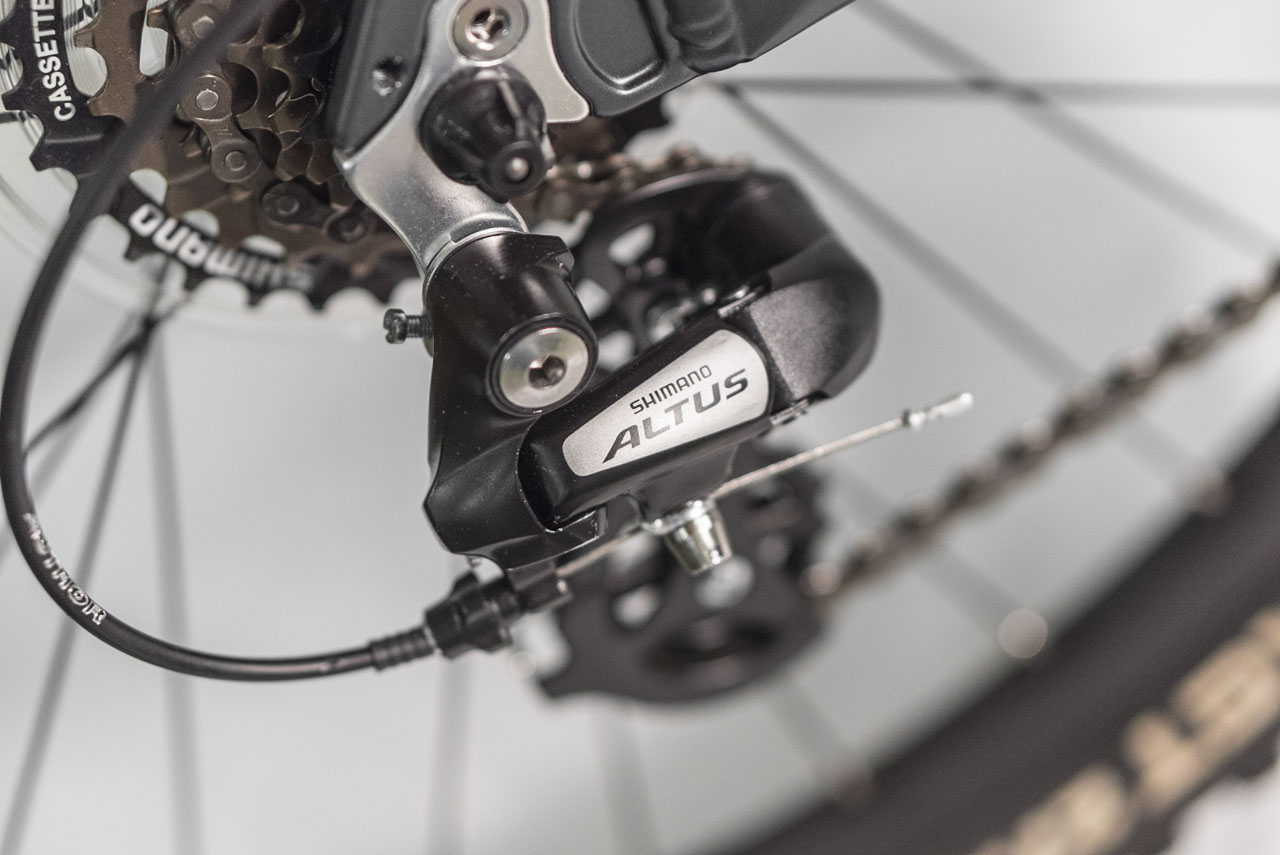

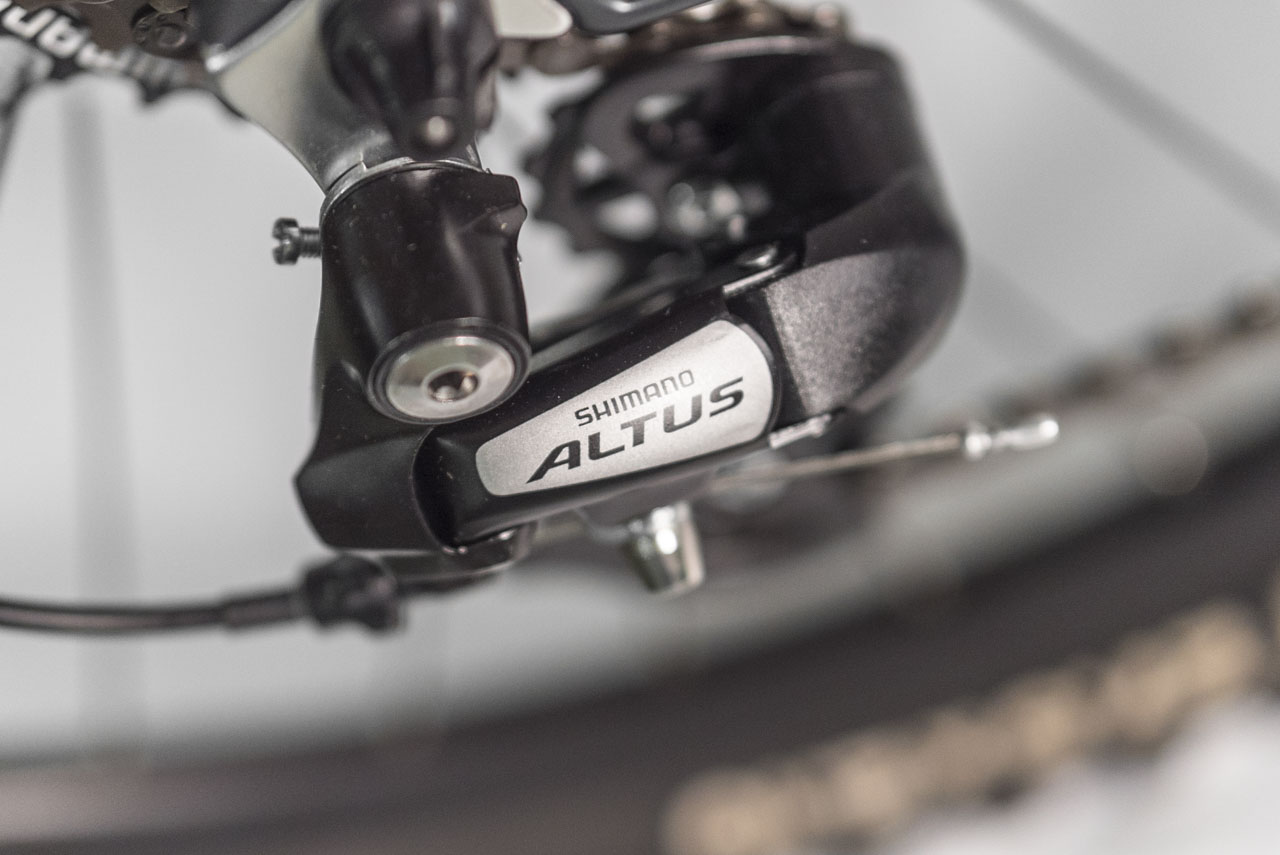

Rear derailleurSHIMANO Altus
ShiftersSHIMANO Altus (21)

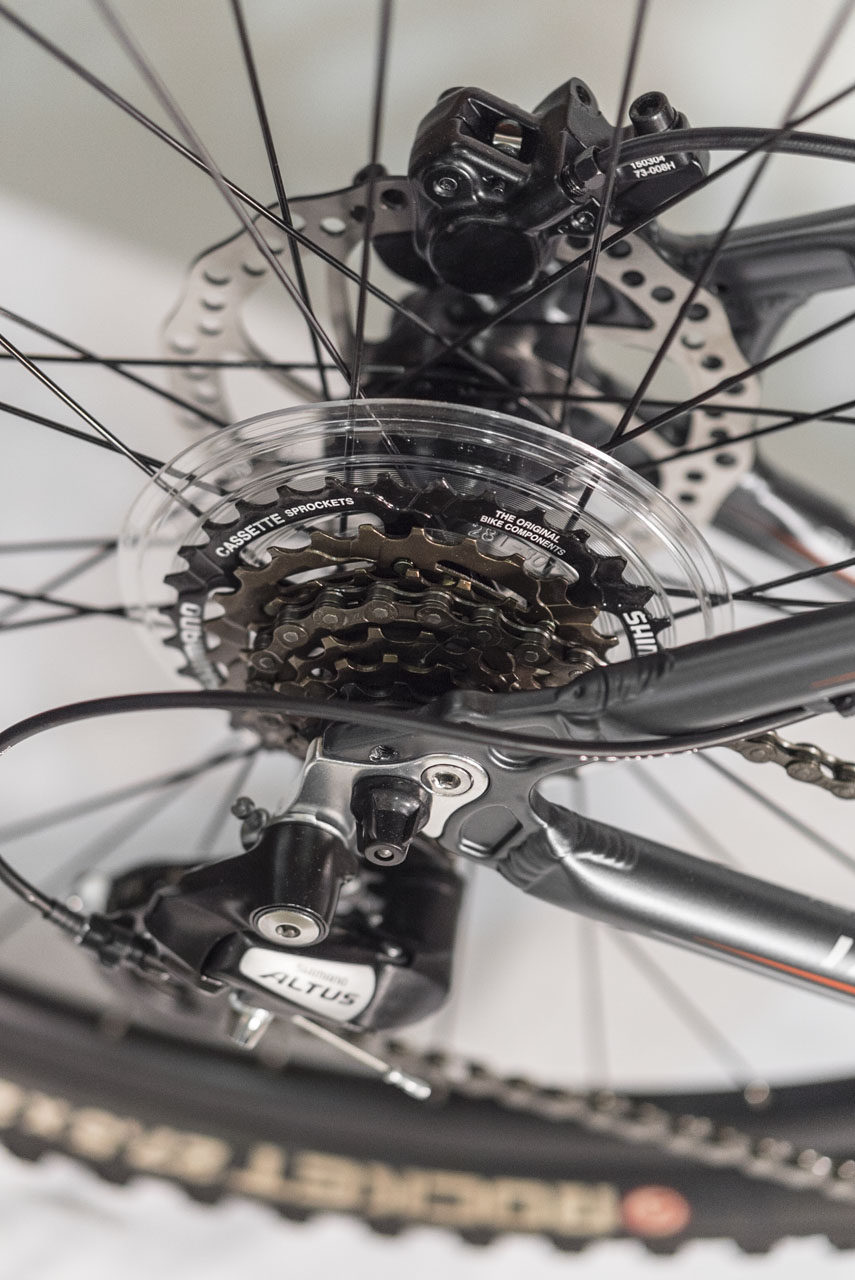

Free wheelSHIMANO HG20-7 12-32 (7)

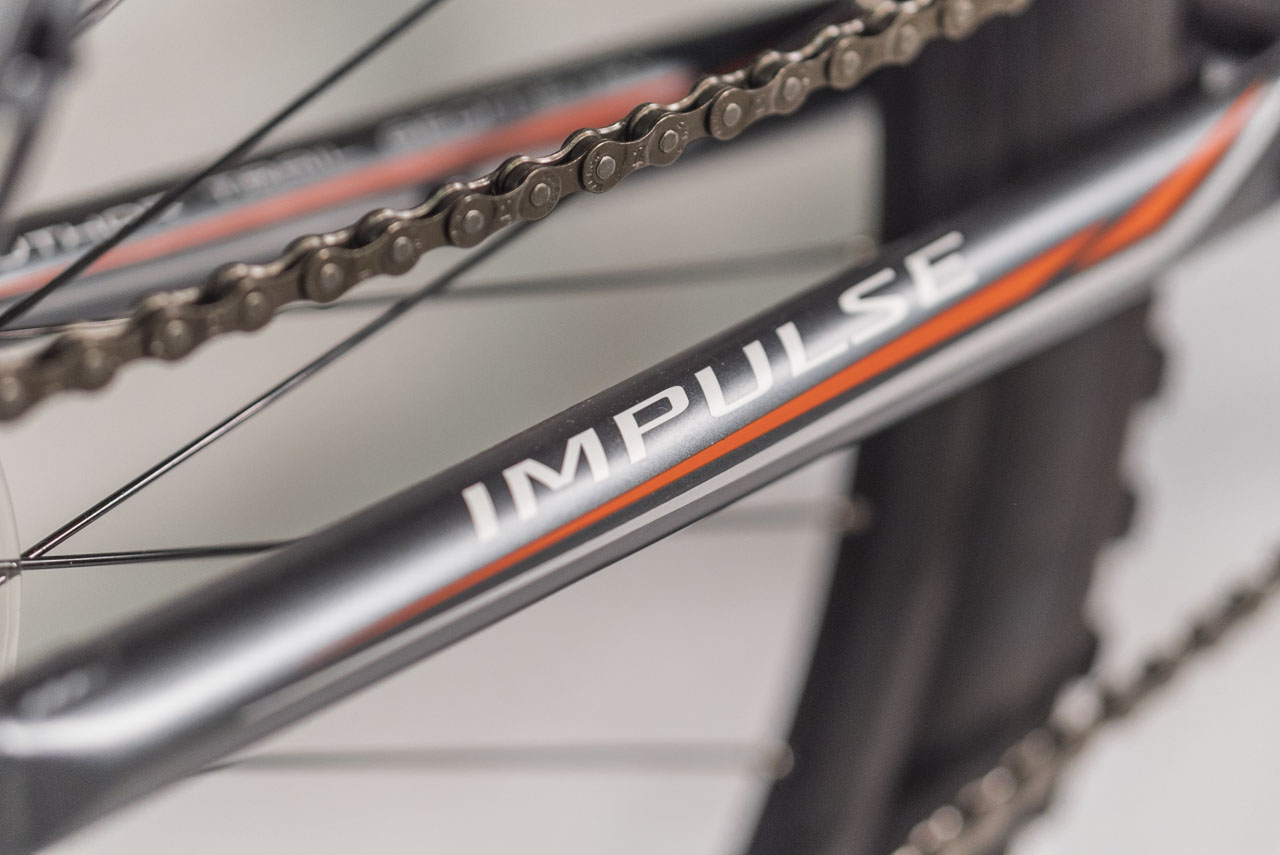

ChainKMC Z51
HubsQUANDO Disc 32 holes

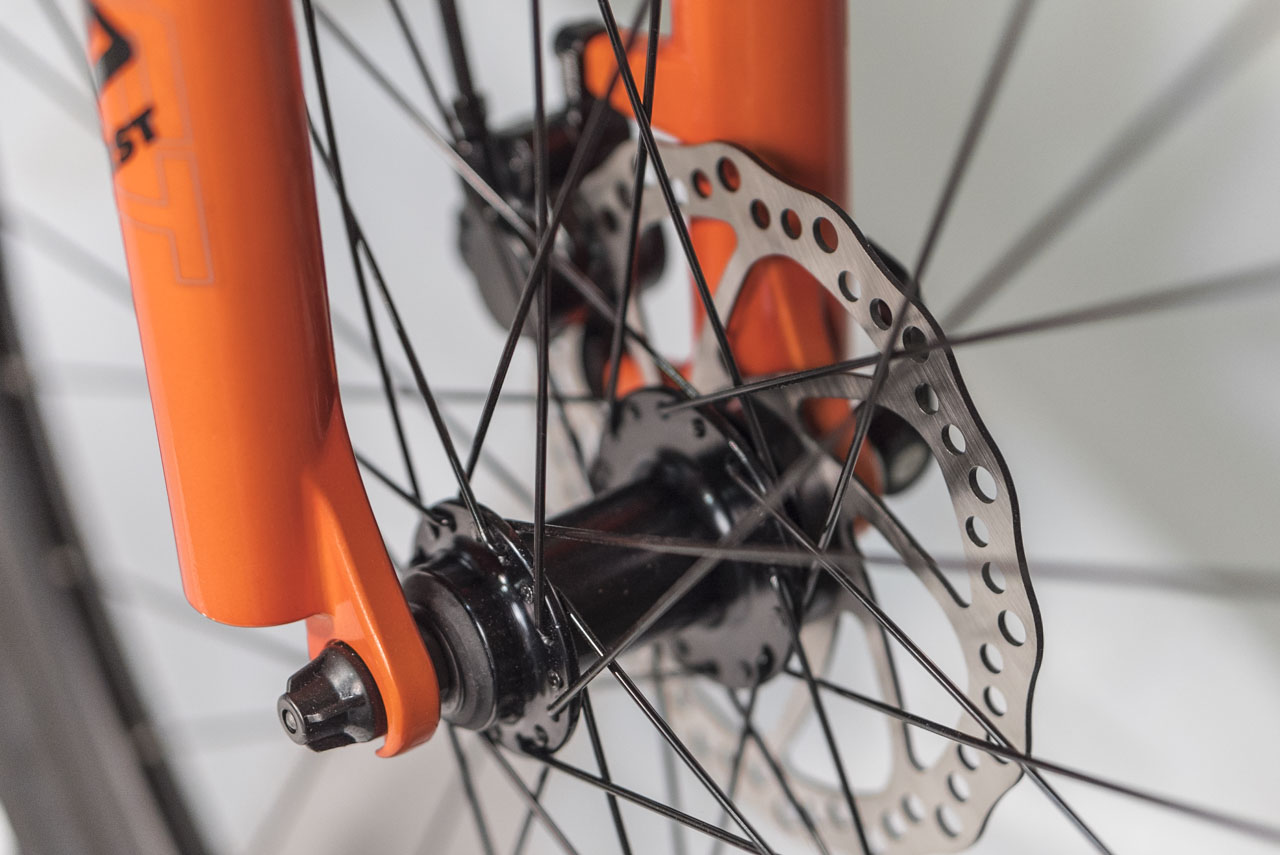

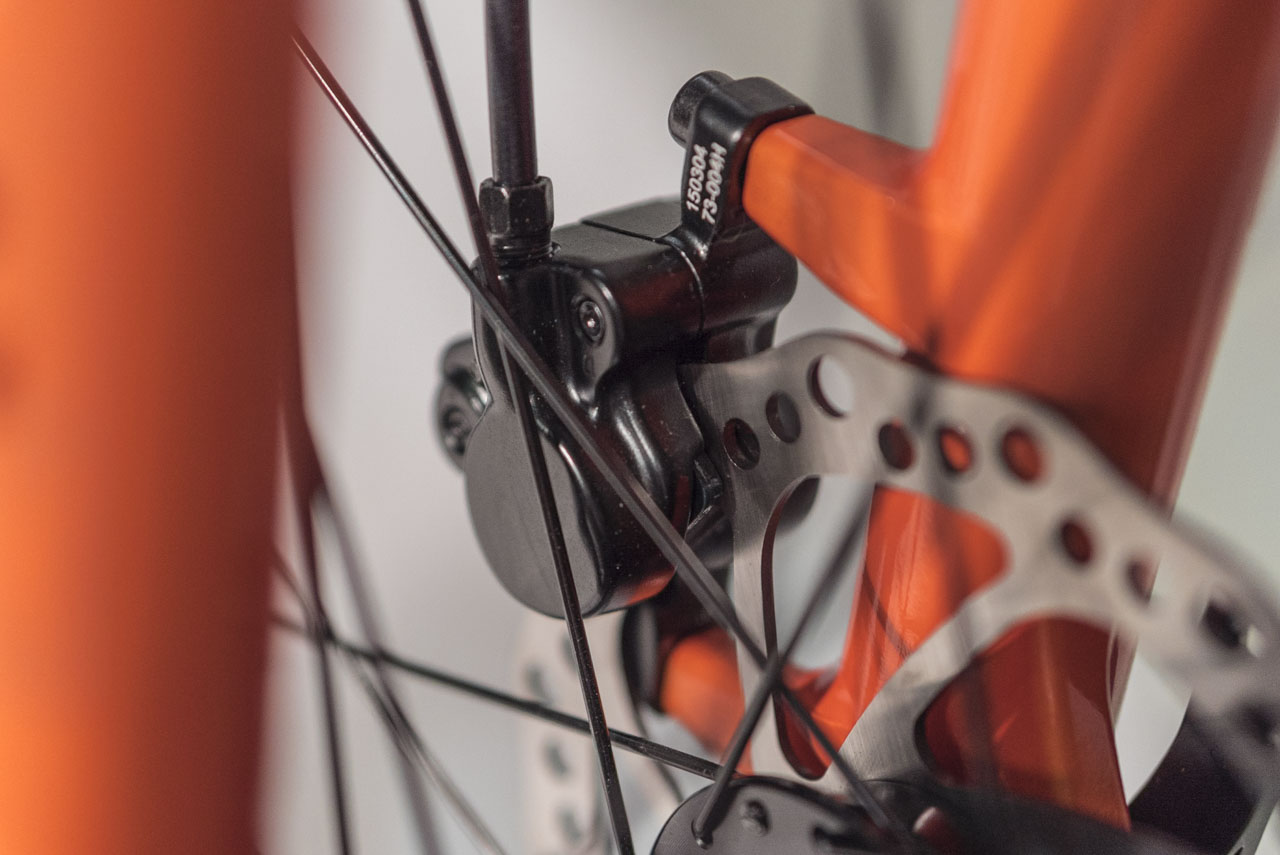

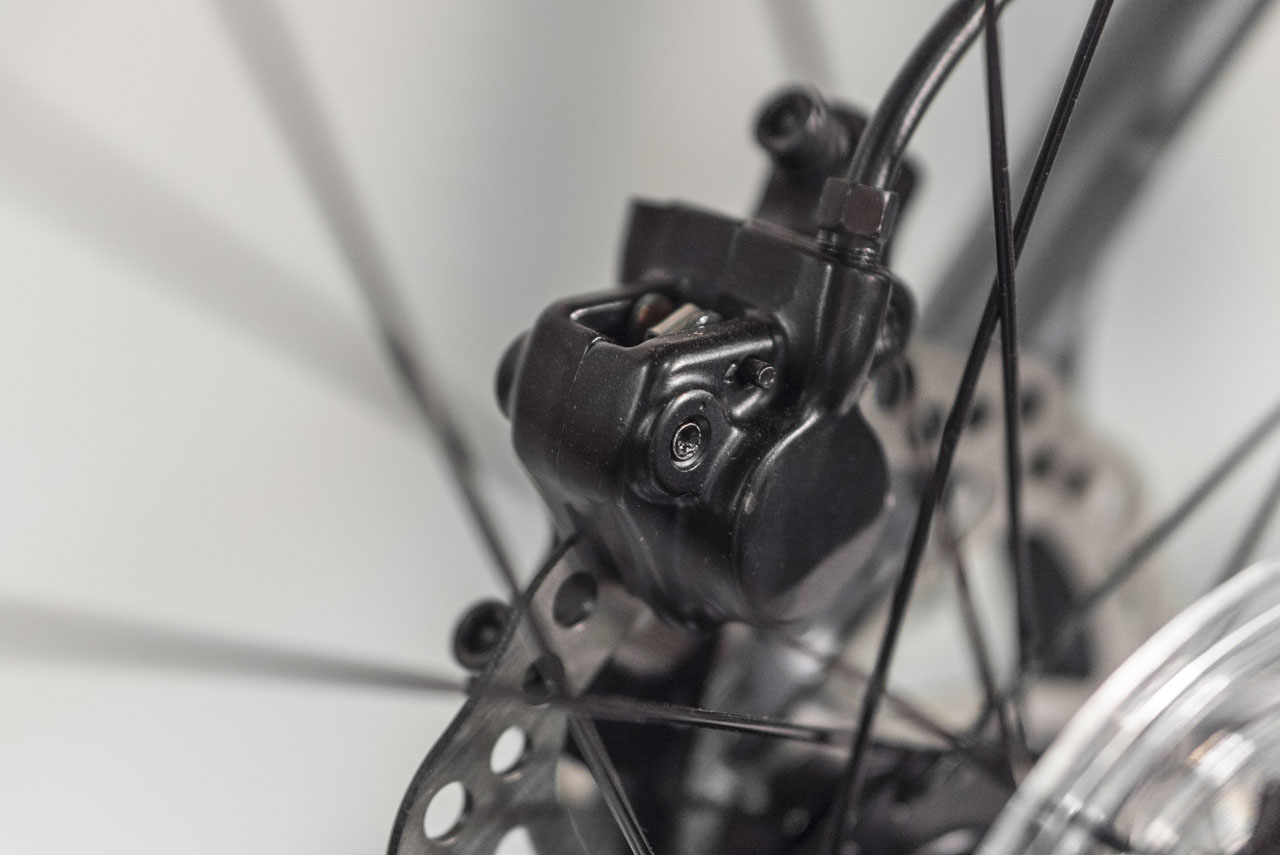

BrakesTEKTRO Auriga disc hydraulic (6" rotors)

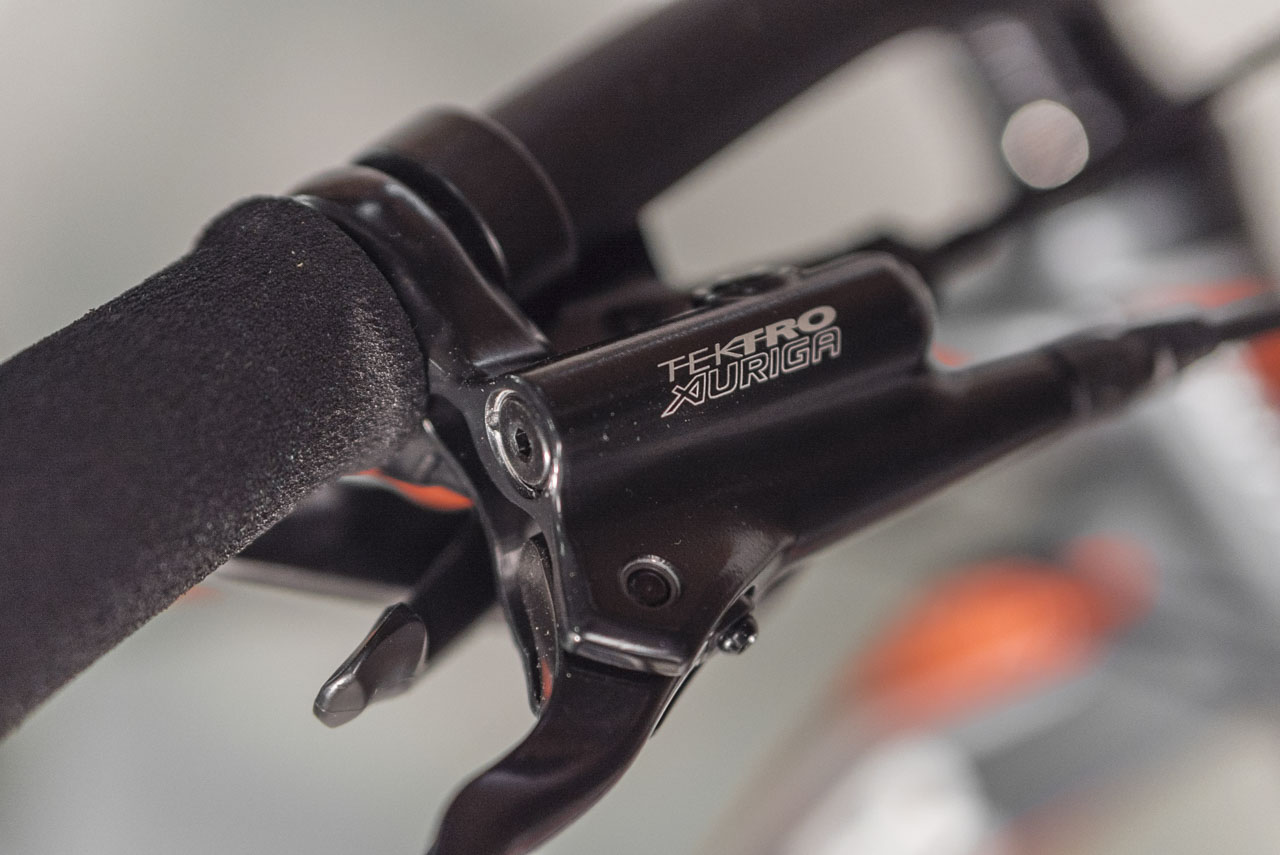

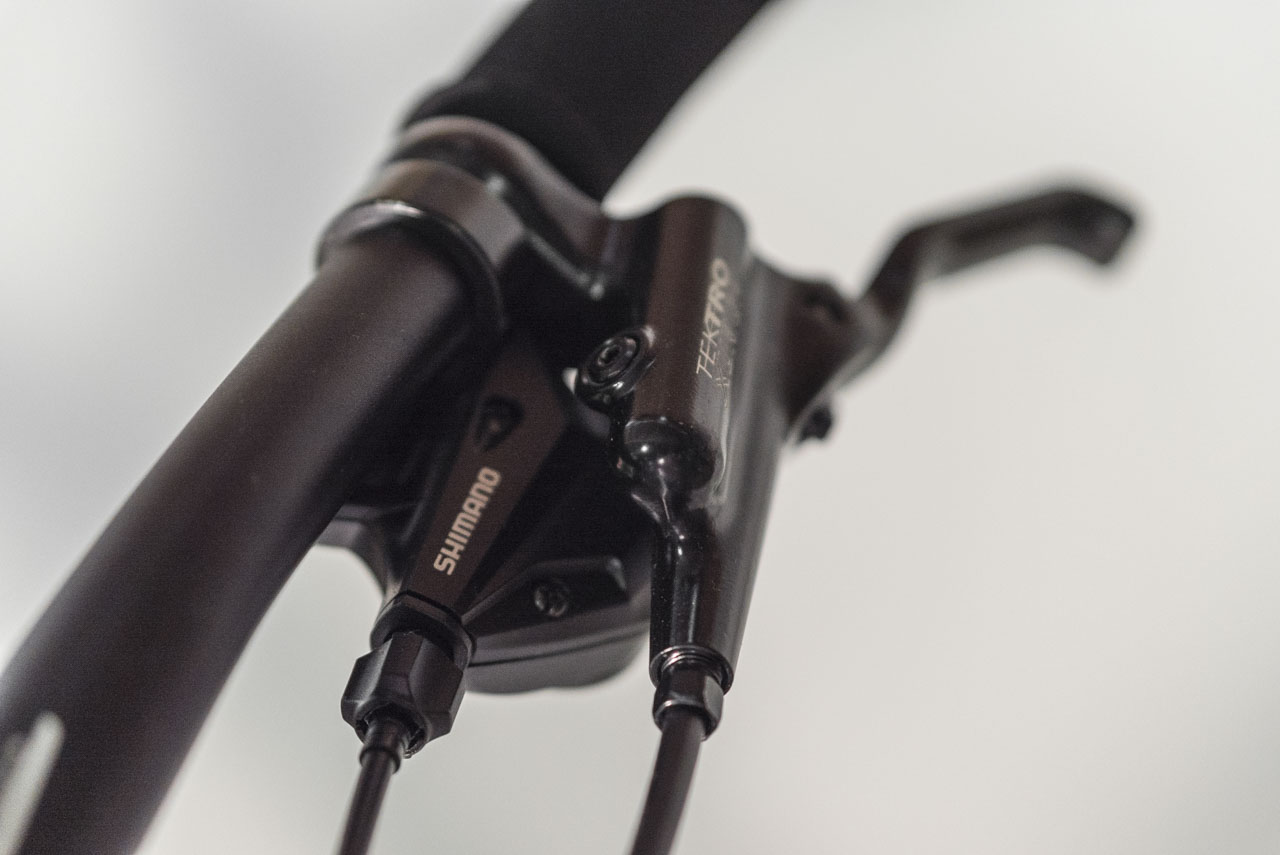

Brakes leversTEKTRO Auriga
RimsAUTHOR Radon 27.5 32 holes
Spokesblack steel
TiresAUTHOR Rocket 27.5" x 2.10"
Pedalsresin

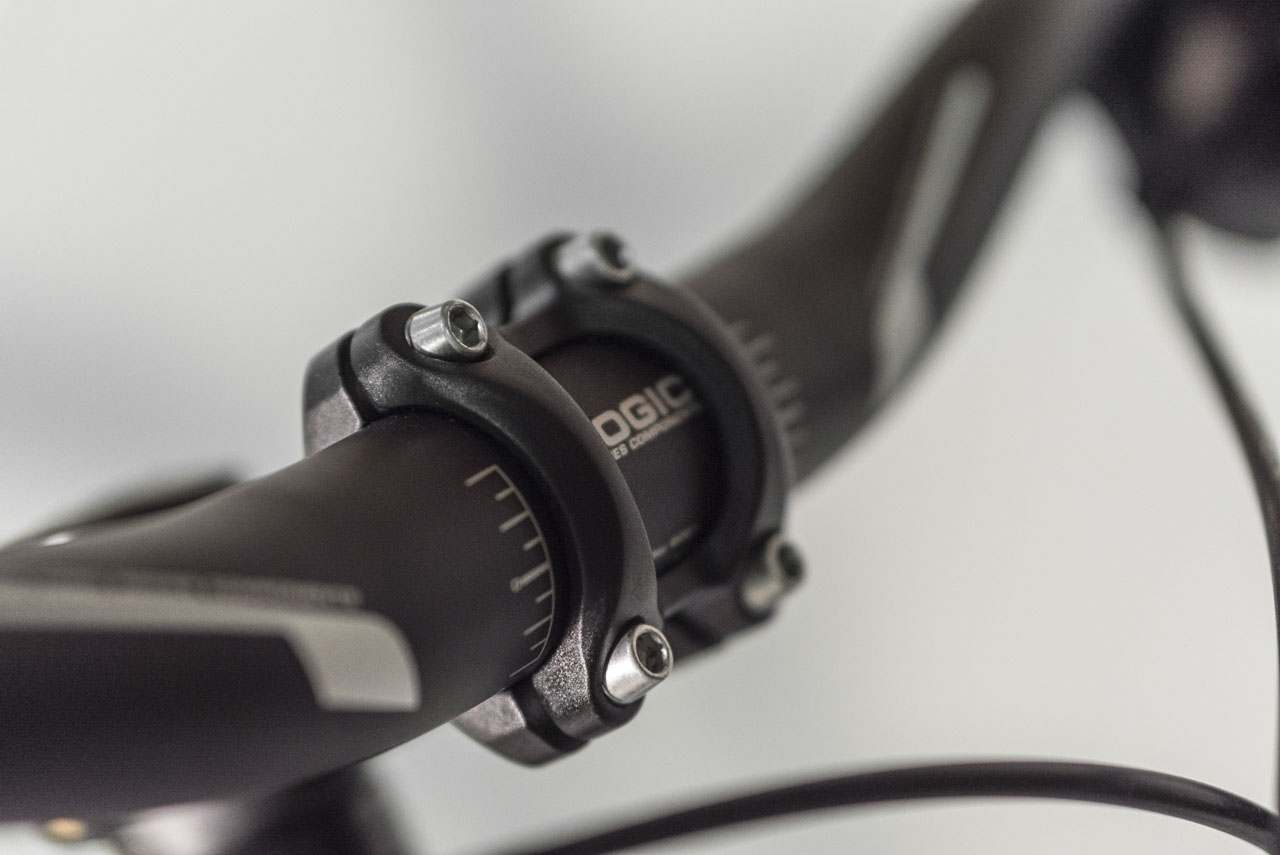

HandlebarAUTHOR 25 mm 660 / 680 mm
GripsAUTHOR high density foam

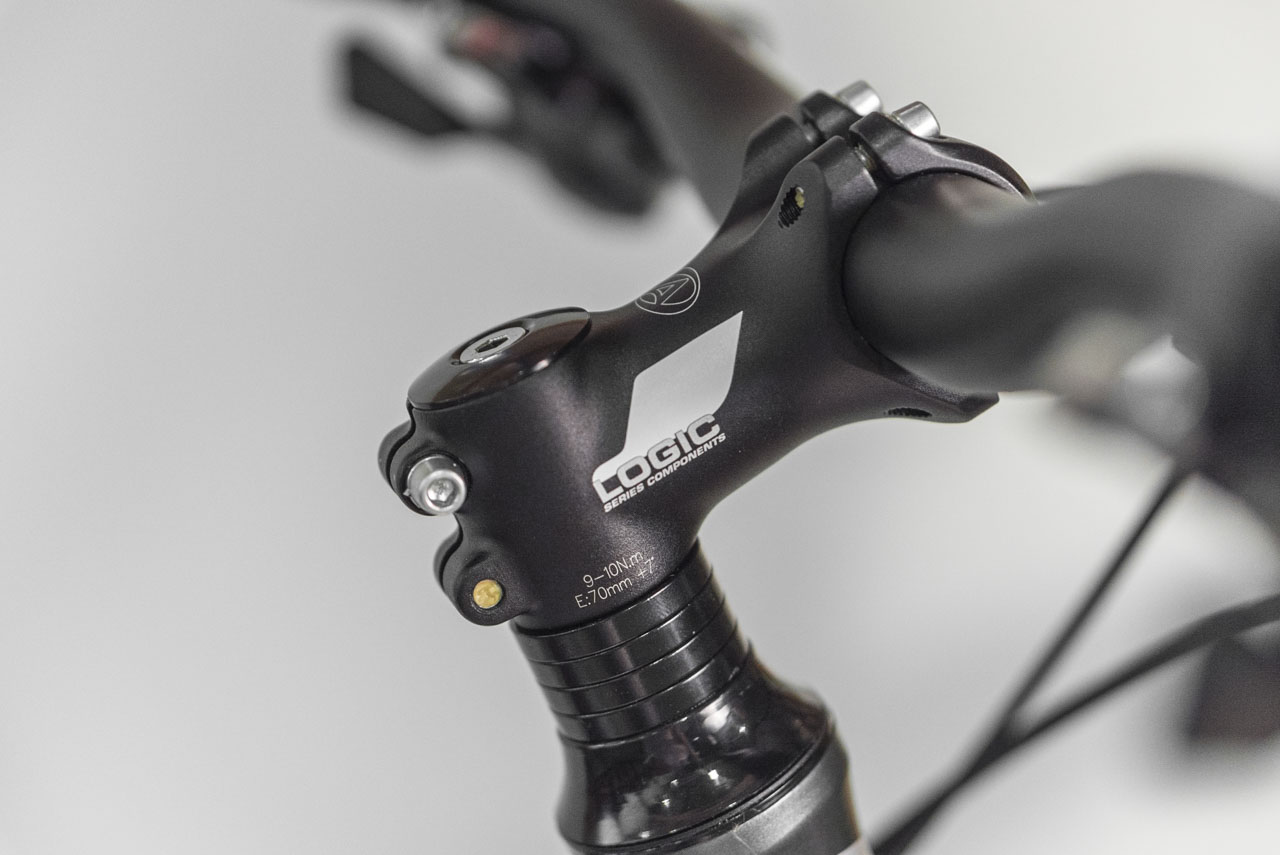

StemAUTHOR alloy
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Courier
Speed21
Weight14.3 kg / 19"

Geometry and sizes

Size 15" 17" 19" 21"
Min. figure [cm] 145 155 170 182
Max. figure [cm] 158 172 185 195
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 570 590 615 635
T/T a [mm] 537 554 578 602
H/T [mm] 115 125 130 140
C/S [mm] 435 435 435 435
W/B [mm] 1058 1081 1106 1126
S/T ang. [°] 73 73 73 73
H/T ang. [°] 69 69 69 69
F/L [mm] 495 495 495 495
B/B drop [mm] 35 35 35 35
B/B width [mm] 68 68 68 68
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 44 44 44 44
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Impulse 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

grey-matt / orange15" = UA#42862601   17" = UA#42862602   19" = UA#42862603   21" = UA#42862604

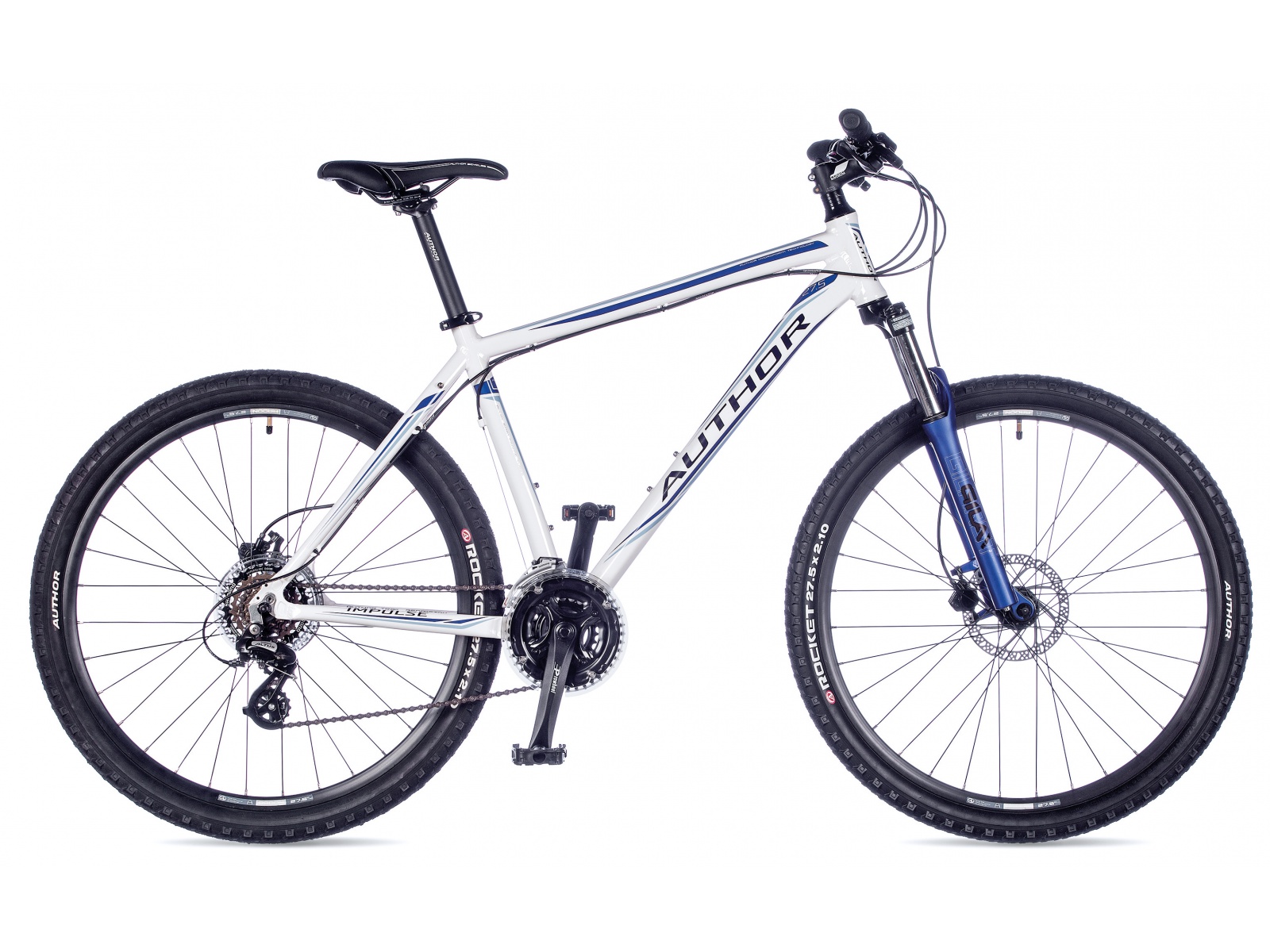

white / blue17" = UA#42862612   19" = UA#42862613   21" = UA#42862614
