  » Bicycles » gravel » bike models

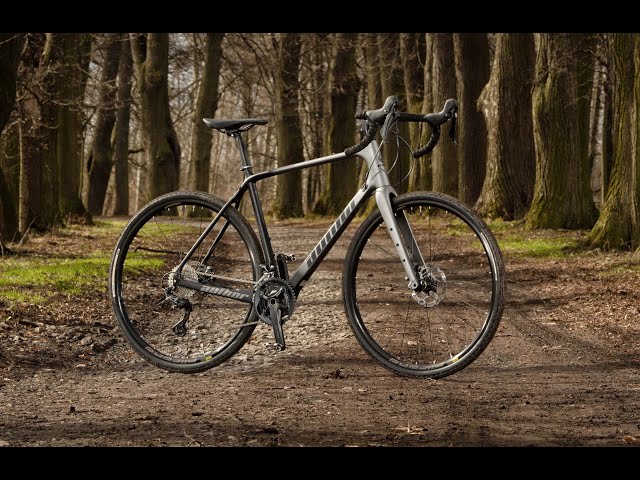

Guru 2023-24Archivní model 2023-24

Colour variants
3
Carbon frame and fork, 12mm axlesSHIMANO GRX 810/600 components, 22 speedMAVIC ALLROAD DISC CL UST wheel setsHydraulic disc brakes SHIMANO GRX 400PANARACER Gravel King SK Sport TLC 700 × 38C tiresRITCHEY Comp cockpitAUTHOR Guru gravel saddle
Buy nowprice 77 990 Kč
other models
Interested in other model`s year?

Technical specification

Size480, 500, 520, 540, 560 mm
FrameAUTHOR carbon Toray T700 / M40 monocoque gravel
Front forkAUTHOR carbon Toray T700 monocoque gravel, 1.5" tapered
Head partsFSA Orbit C-40 1.5" tapered
Chain WheelSHIMANO GRX 600, 46-30 teeth, 172.5 / 175 mm cranks
BBPartsSHIMANO BB-RS500, BB unit
Front derailleurSHIMANO GRX 810
Rear derailleurSHIMANO GRX 810
ShiftersSHIMANO GRX 600 (22)
Free wheelSHIMANO HG701-11, 11-34 (11)
ChainKMC X11 EL
HubsMAVIC Allroad UST Disc CL wheel set, 24 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
BrakesSHIMANO GRX 400, disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 600
RimsMAVIC Allroad UST Disc CL wheel set, 24 holes
Wheel setMAVIC Allroad UST Disc CL wheel set 20 holes
SpokesMAVIC
TiresPANARACER Gravel King SK aramid 700 × 38C (40-622)
HandlebarRITCHEY Road ErgoMax, 420 / 440 / 460 mm
TapesAUTHOR microfiber / gel
StemRITCHEY Comp 4-Axis
Seat postRITCHEY Comp (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Guru CR
Speed22
Weight9,2 kg / 54 cm

Geometry and sizes

Size 480 500 520 51 cm (M) 540 54 cm (L) 560 57 cm (XL)
Min. figure [cm] 152 160 168 170 176 177 183 184
Max. figure [cm] 162 170 178 180 185 187 193 194
S/T c-t [mm] 480 500 520 510 540 540 560 570
S/T c-c [mm] 432 452 472 0 492 0 512 0
T/T h [mm] 514 534 550 567 565 585 580 602
T/T a [mm] 499 514 529 0 542 0 558 0
H/T [mm] 120 140 155 150 180 170 195 190
C/S [mm] 425 425 425 435 425 435 425 435
W/B [mm] 1005 1007 1015 1049 1026 1069 1041 1086
S/T ang. [°] 75 73.5 73 73.5 72.5 73.5 72.5 73.5
H/T ang. [°] 70.8 71.2 71.5 71 71.5 71 71.5 71
F/L [mm] 401 401 401 408 401 408 401 408
B/B drop [mm] 77 75 75 74 72 74 72 74
B/B width [mm] 86 86 86 73 86 73 86 73
Reach [mm] 366 365 371 394 373 406 384 417
Stack [mm] 551 571 586 586 607 603 621 624
F/R [mm] 52 52 52 47 52 47 52 47
Handlebars [mm] 0 0 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Guru 2023-24

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
