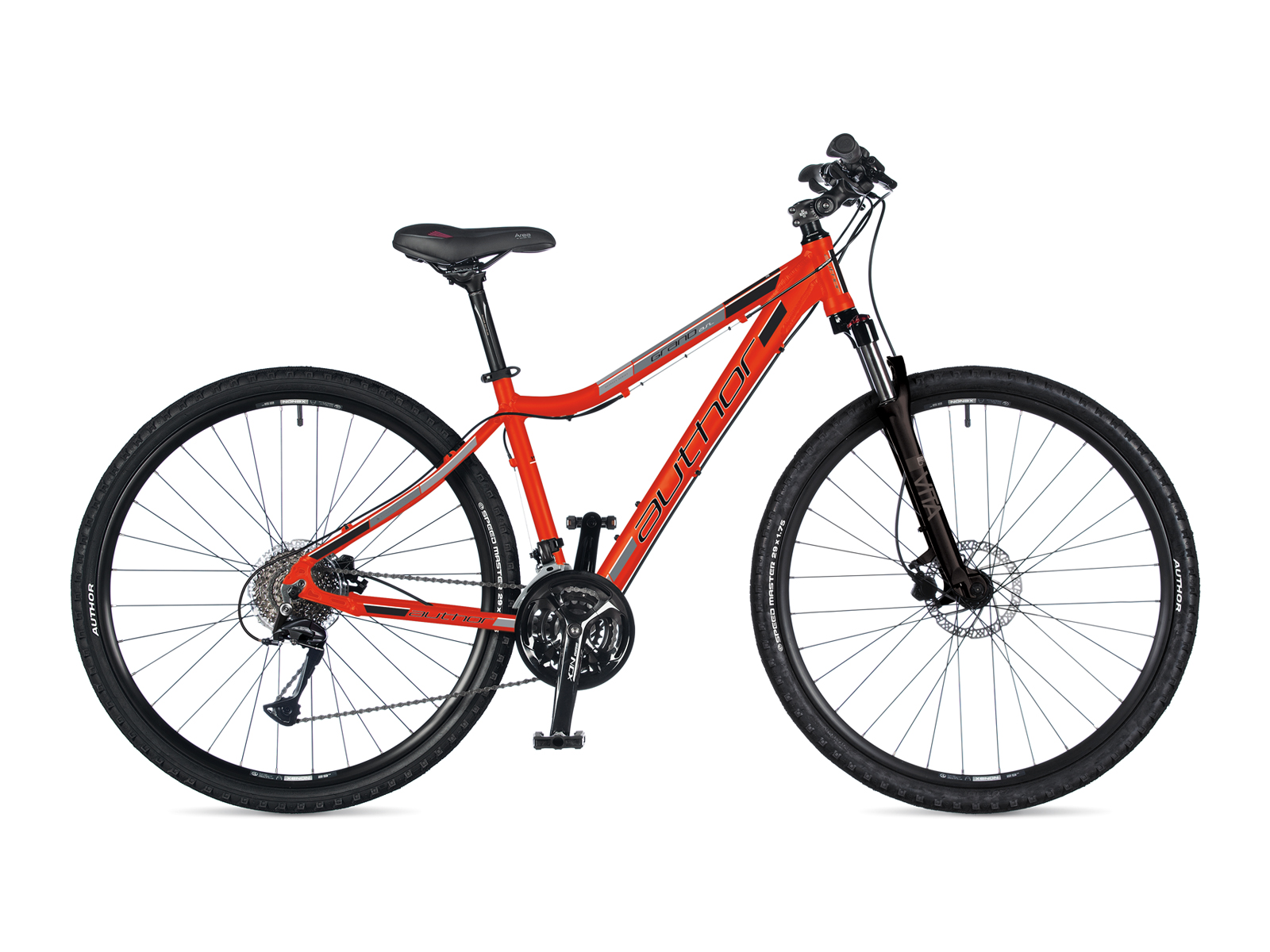

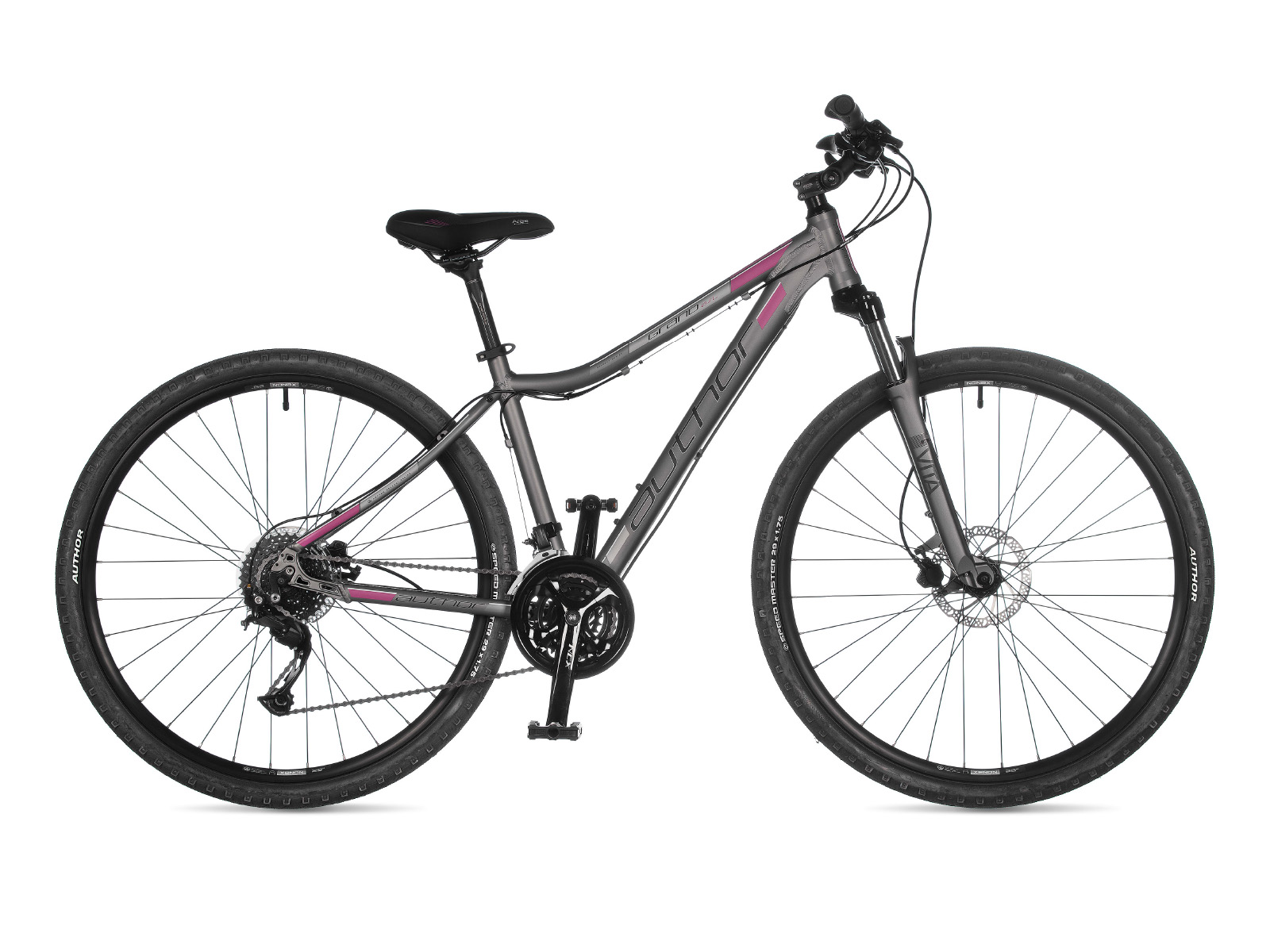

Grand ASL 2023-24

~~Colour variants~~

Alloy ASL frameLock out fork RST Vita TnLHydraulic disc brakes TEKTROSHIMANO components, 27 speedAUTHOR Speed Master 29" × 1.75" tiresAUTHOR ErgoGrip Lock comfortable gripsAUTHOR Area Gel saddle

~~Buy now~~special price 17 990 Kč

original price ~~20 990 Kč~~

Technical specification

Size	15", 17", 19"

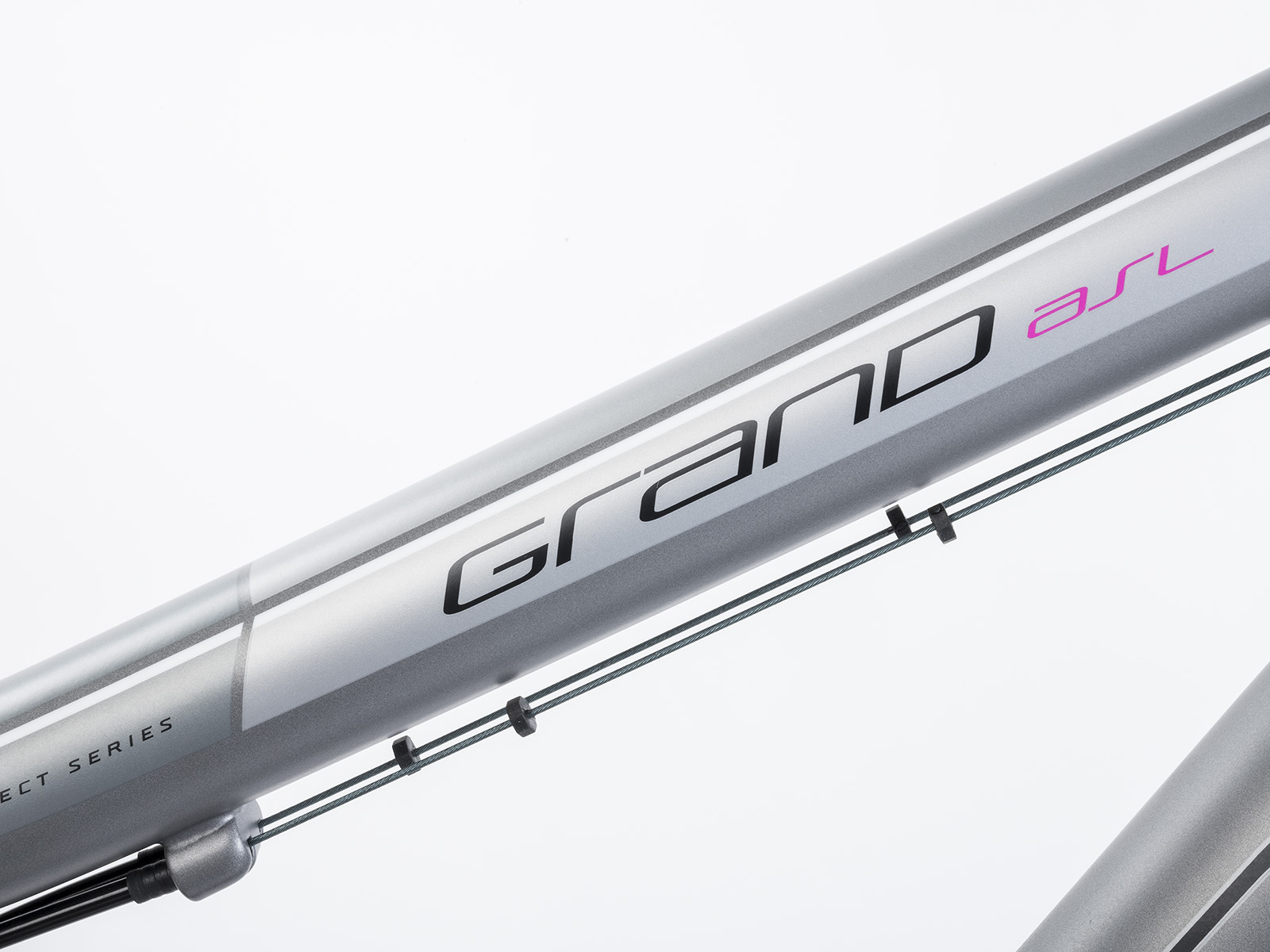

Frame	alloy 6061 29" (ASL)

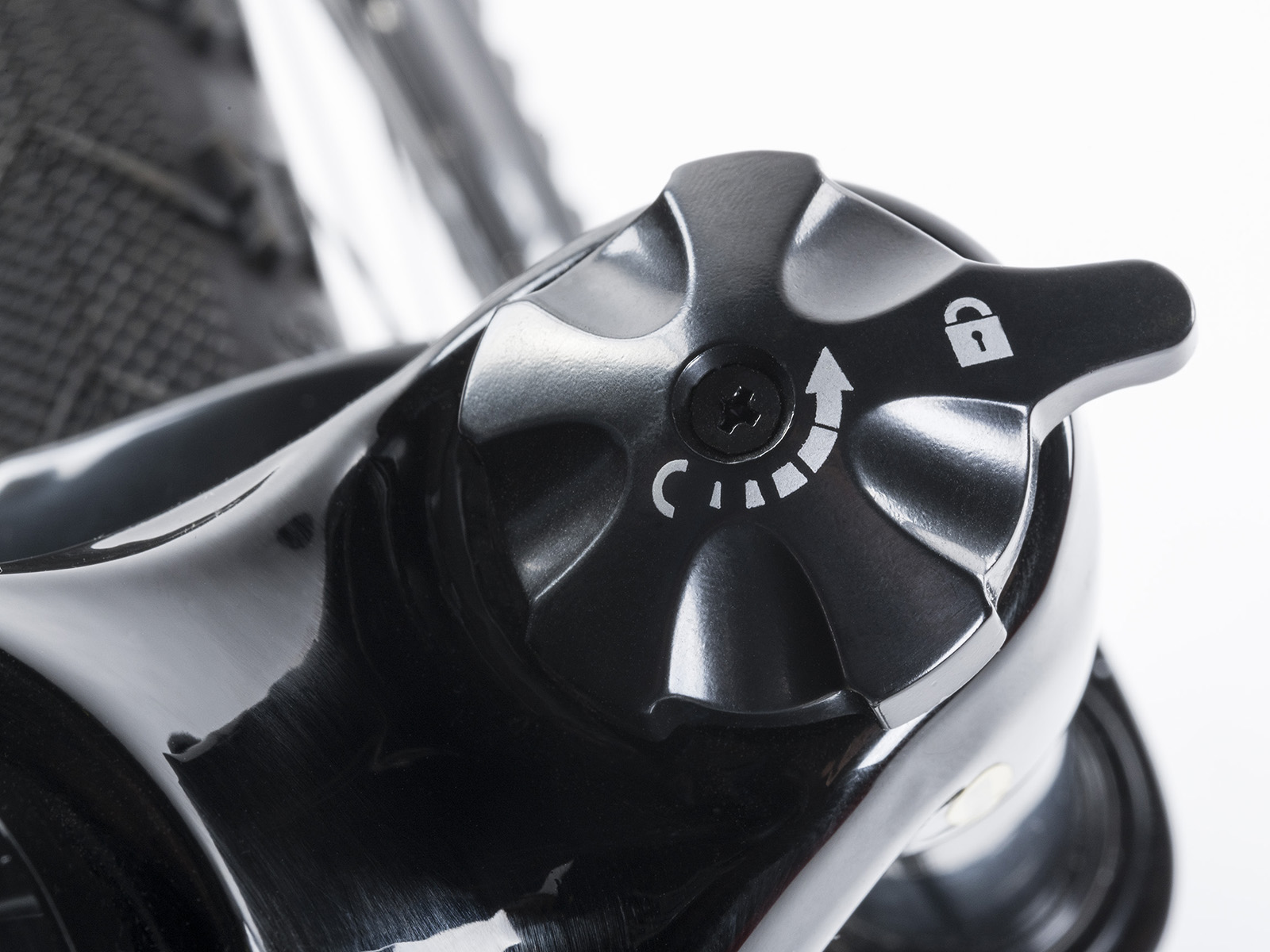

Front fork	RST Vita TnL oil, lock out (80 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	PROWHEEL Burner, 44-32-22 teeth, 170 / 175 mm cranks
BBParts	VP COMP, cartridge
Front derailleur	SHIMANO Altus (31.8)

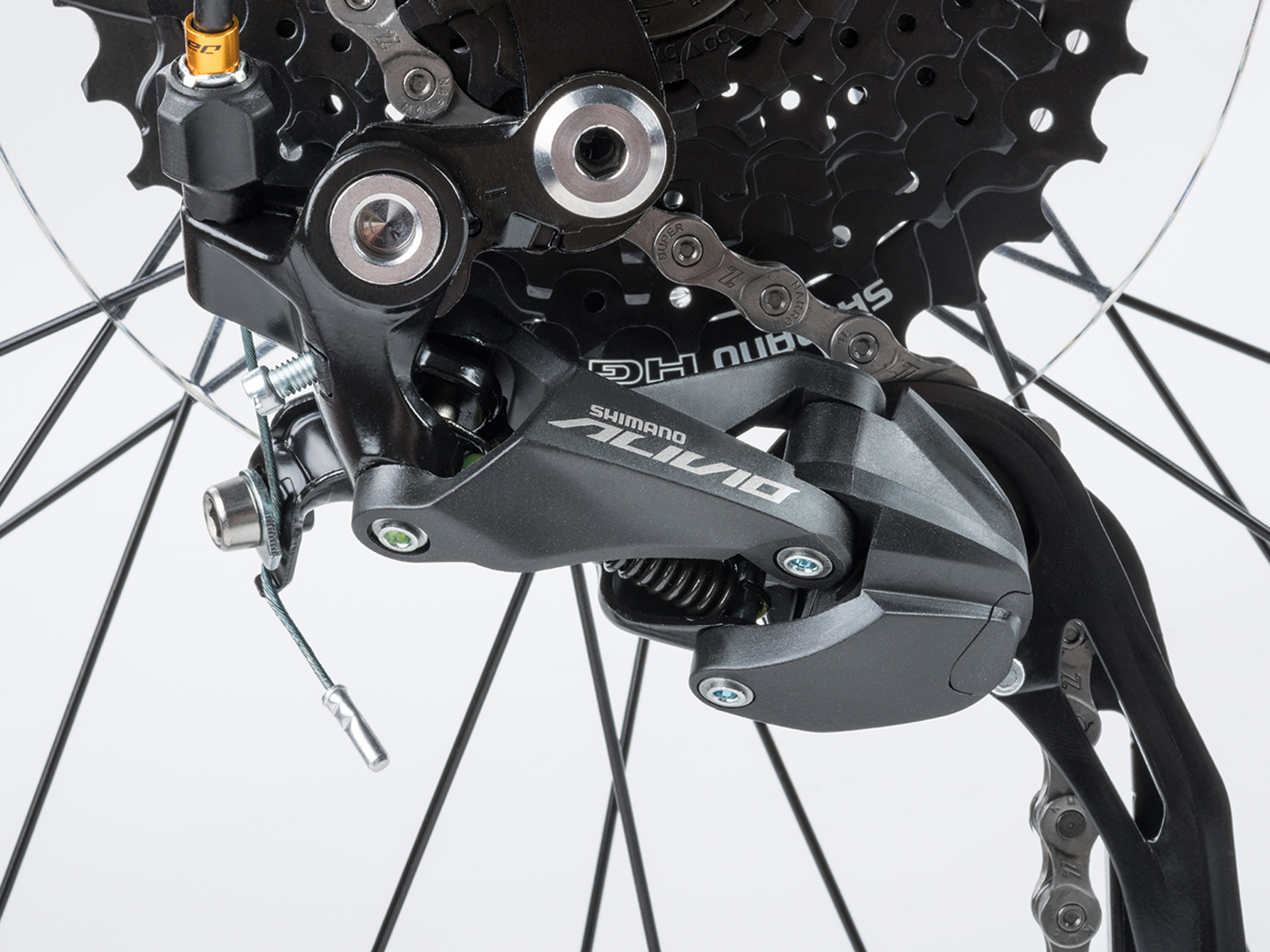

Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (27)
Free wheel	SHIMANO HG200-9, 11-36 (9)
Chain	KMC Z9
Hubs	QUANDO Disc, 32 holes

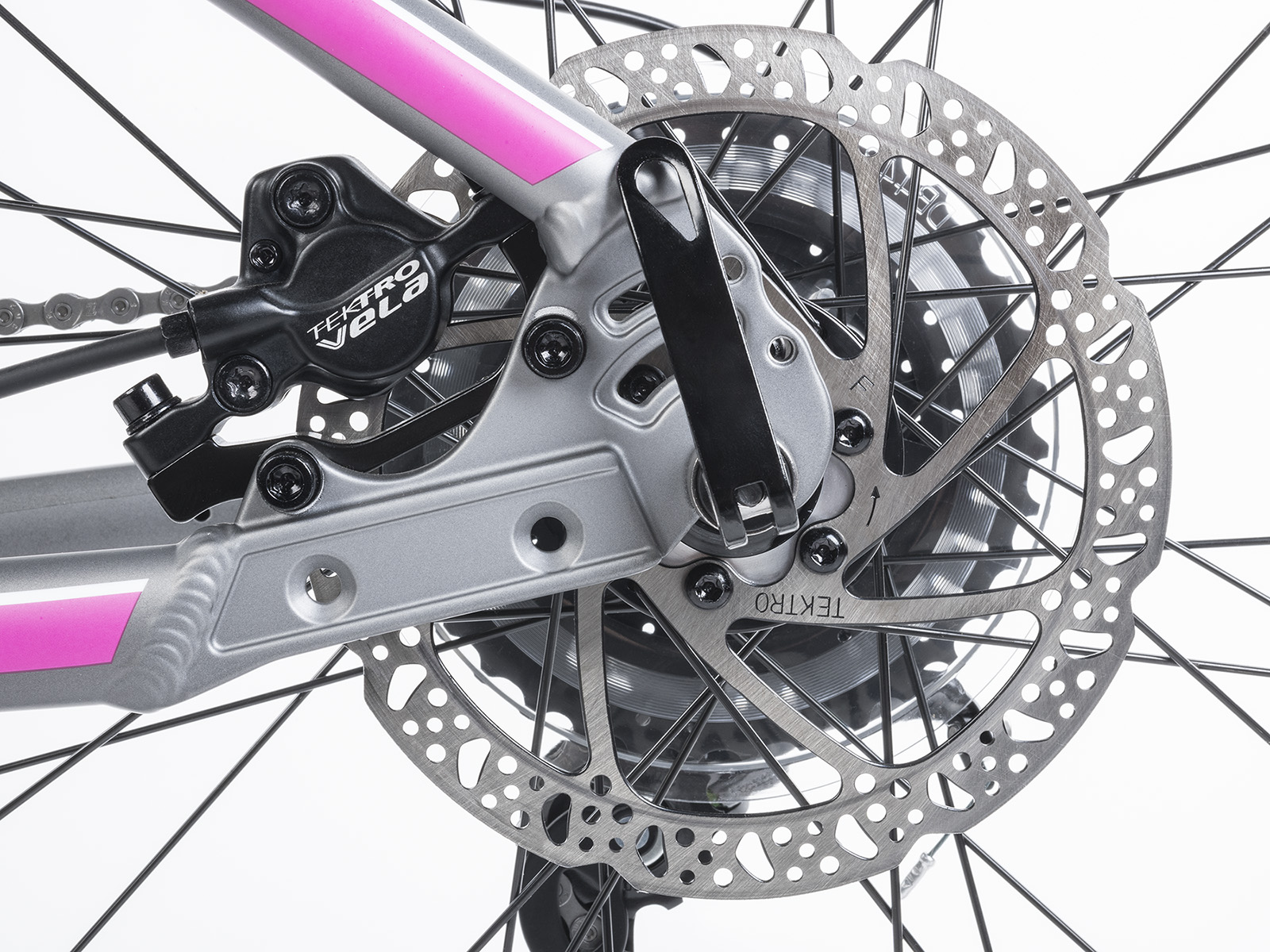

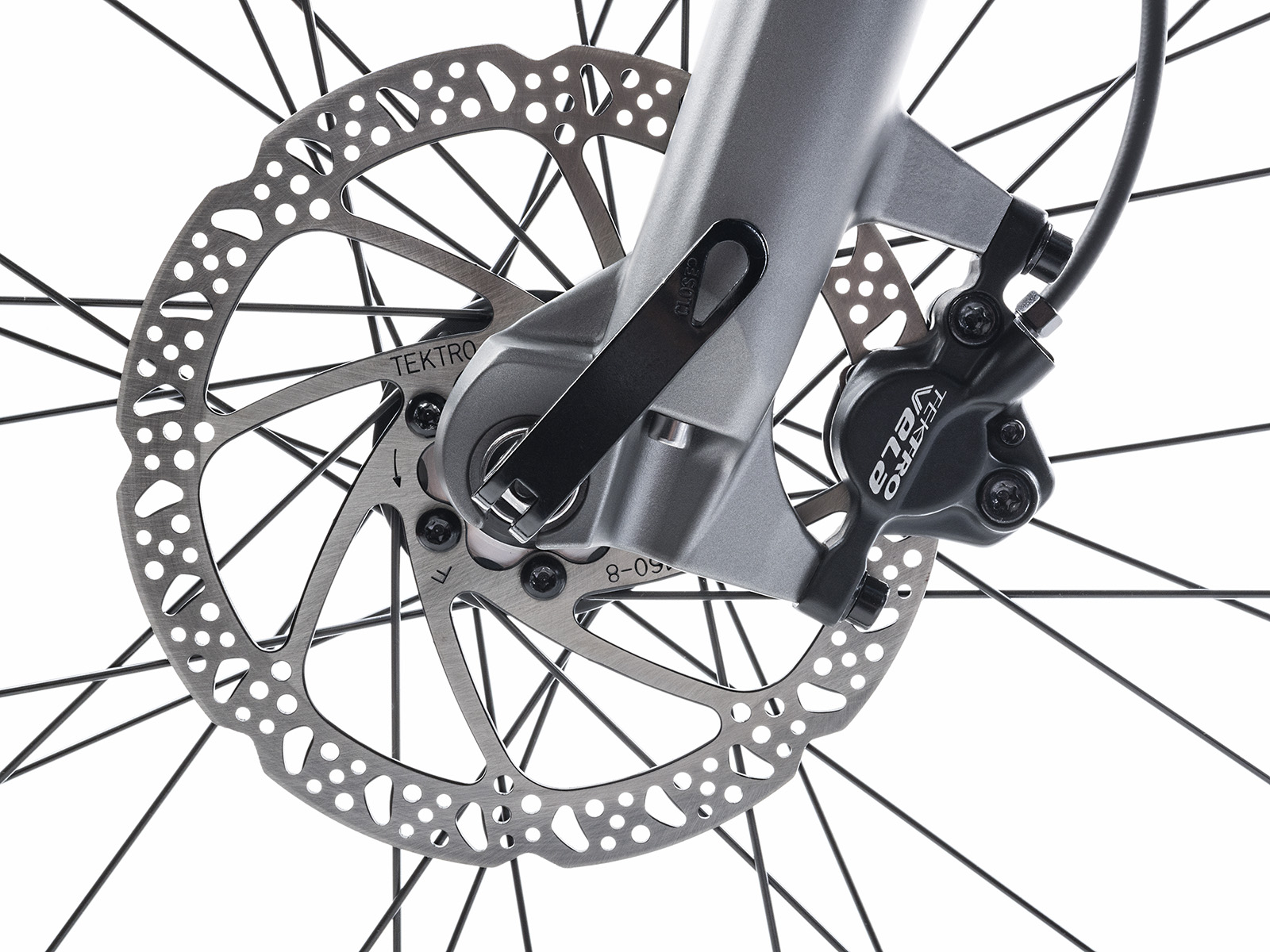

Brakes	TEKTRO HD-T280, disc hydraulic (6" rotors)

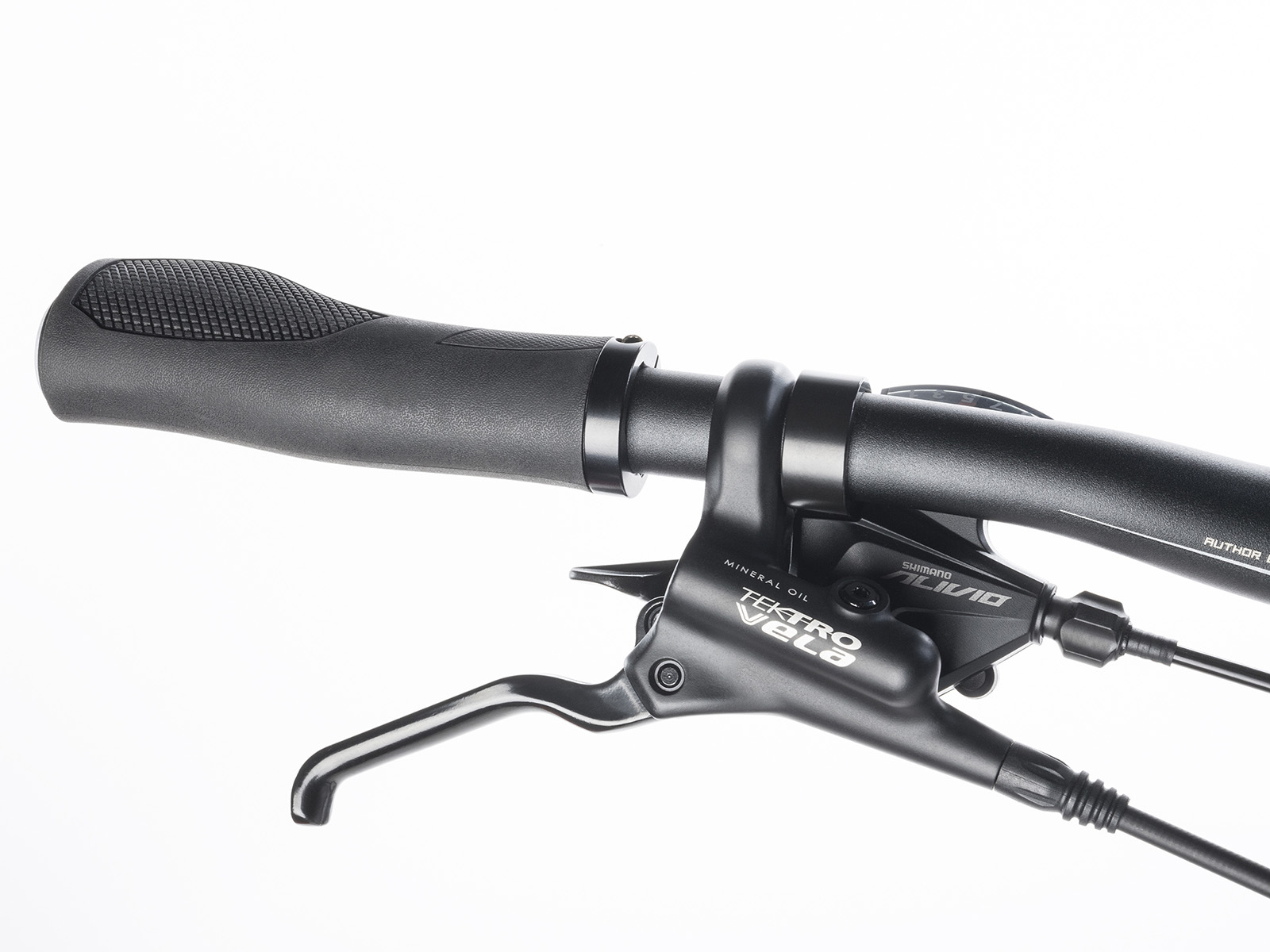

Brakes levers	HD-T280

Rims	AUTHOR Xenon 29, 32 holes
Spokes	black stainless steel 2.0 mm

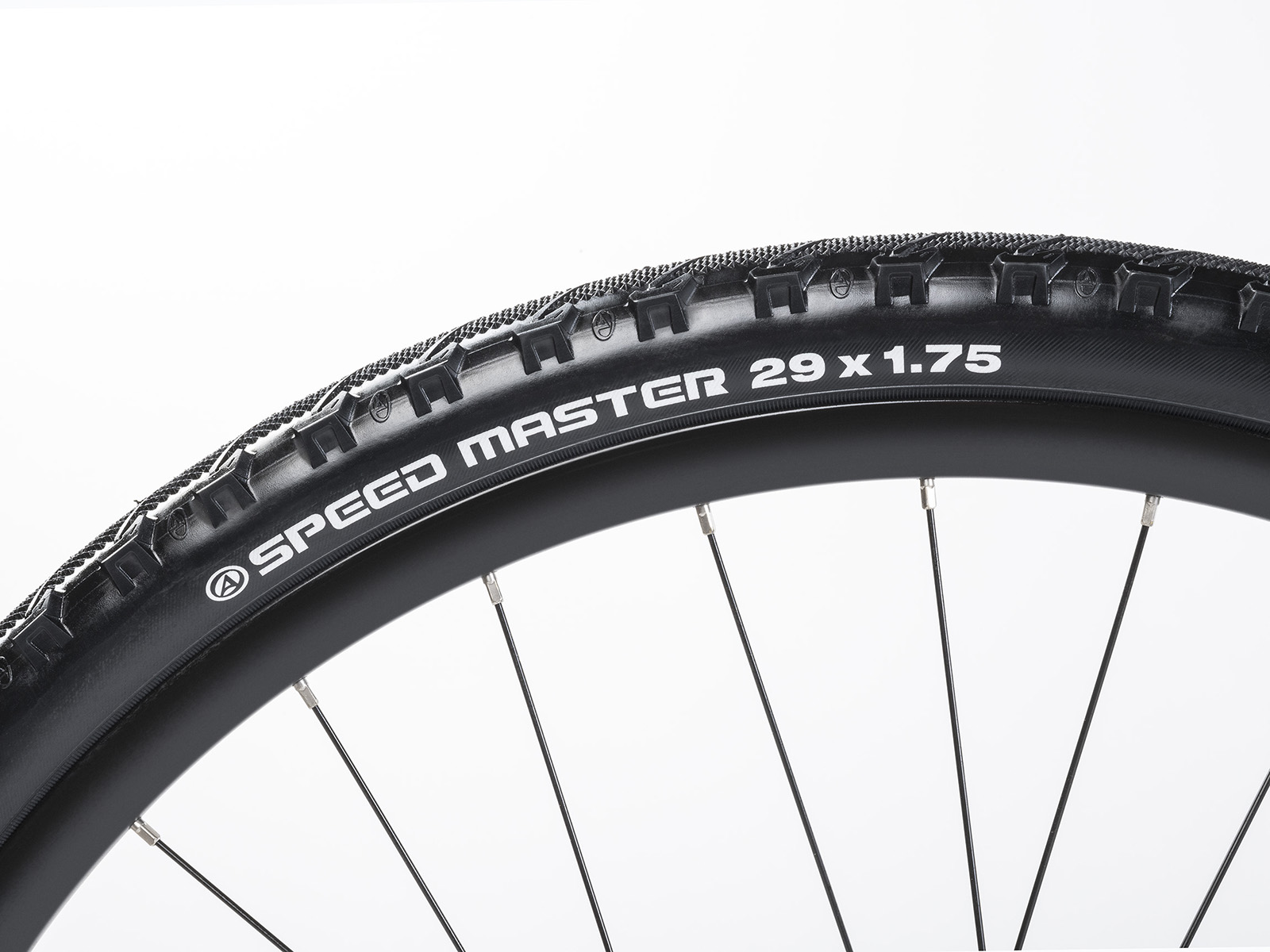

Tires	AUTHOR Speed Master 29" × 1.75"
Pedals	AUTHOR Non Slip alloy
Handlebar	AUTHOR 25 mm, 660 / 680 mm
Grips	AUTHOR ErgoGrip Lock

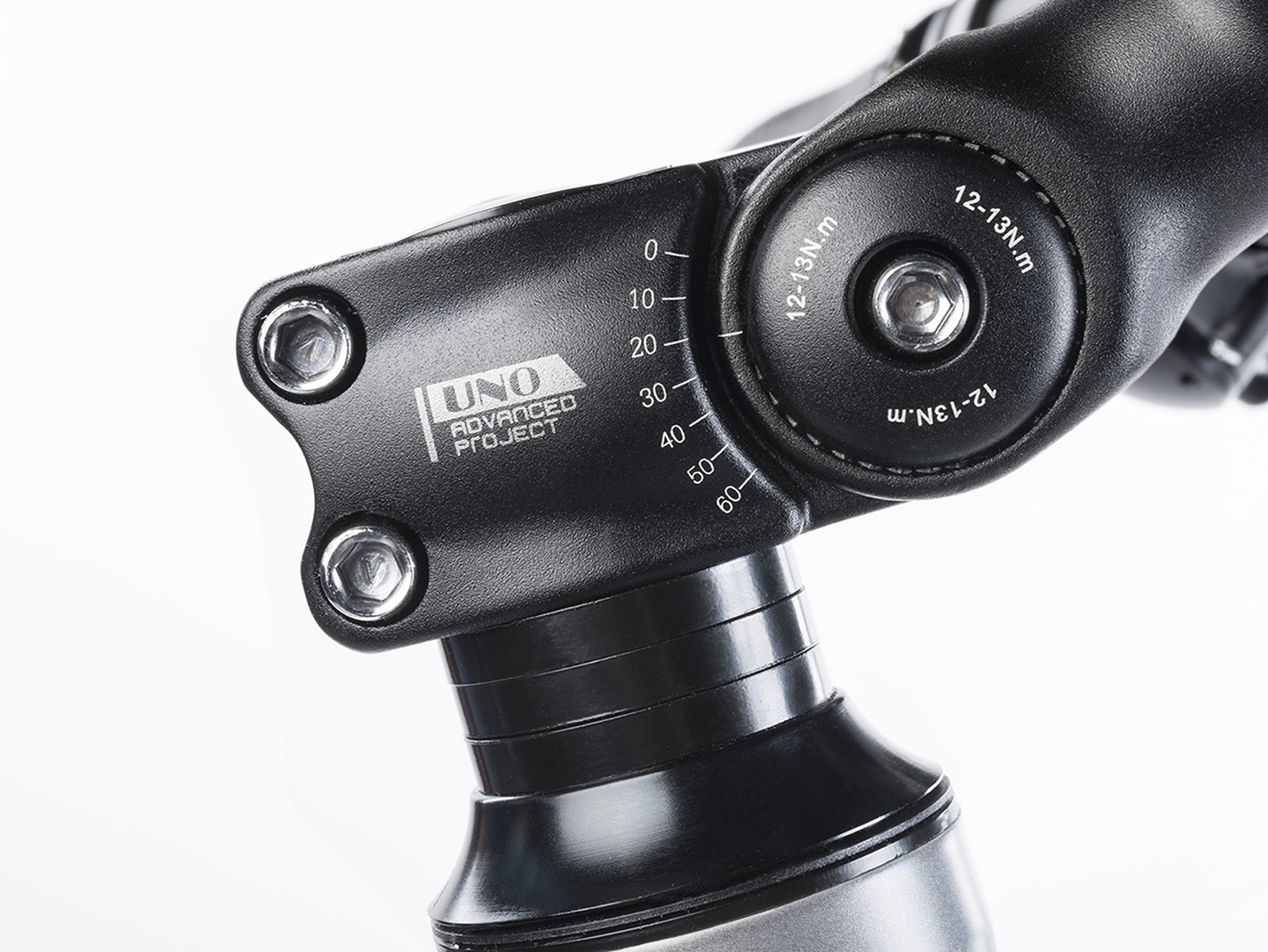

Stem	UNO adjustable
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)

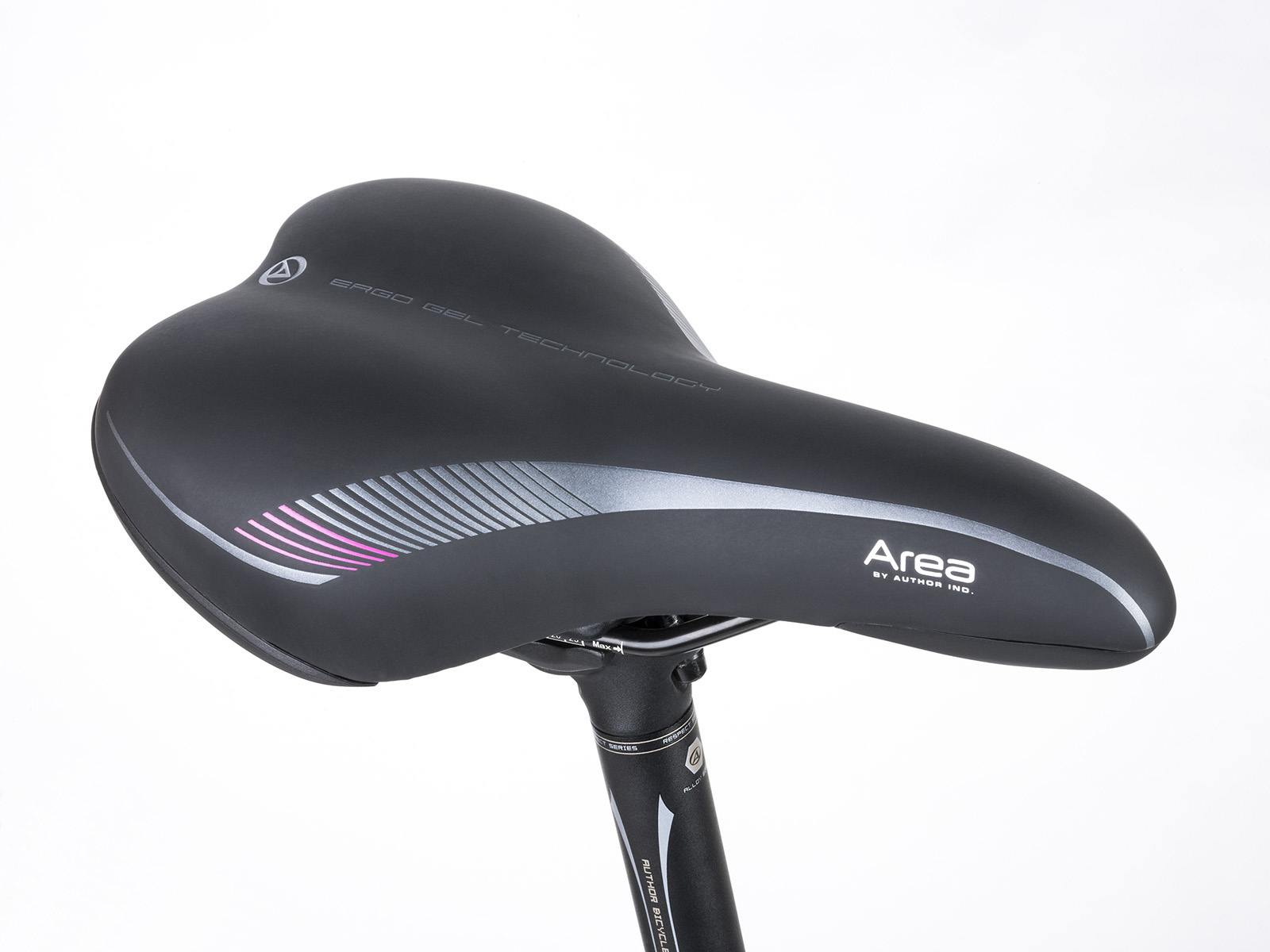

Saddle	AUTHOR Area Gel
Speed	27
Weight	14,5 kg / 17"

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	550	570	590
T/T a ~~[mm]~~	536	549	566
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1057	1077	1098
S/T ang. ~~[°]~~	73.5	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5	70.5
F/L ~~[mm]~~	490	490	490
B/B drop ~~[mm]~~	60	60	60
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	0	0	0
Stack ~~[mm]~~	0	0	0
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability
