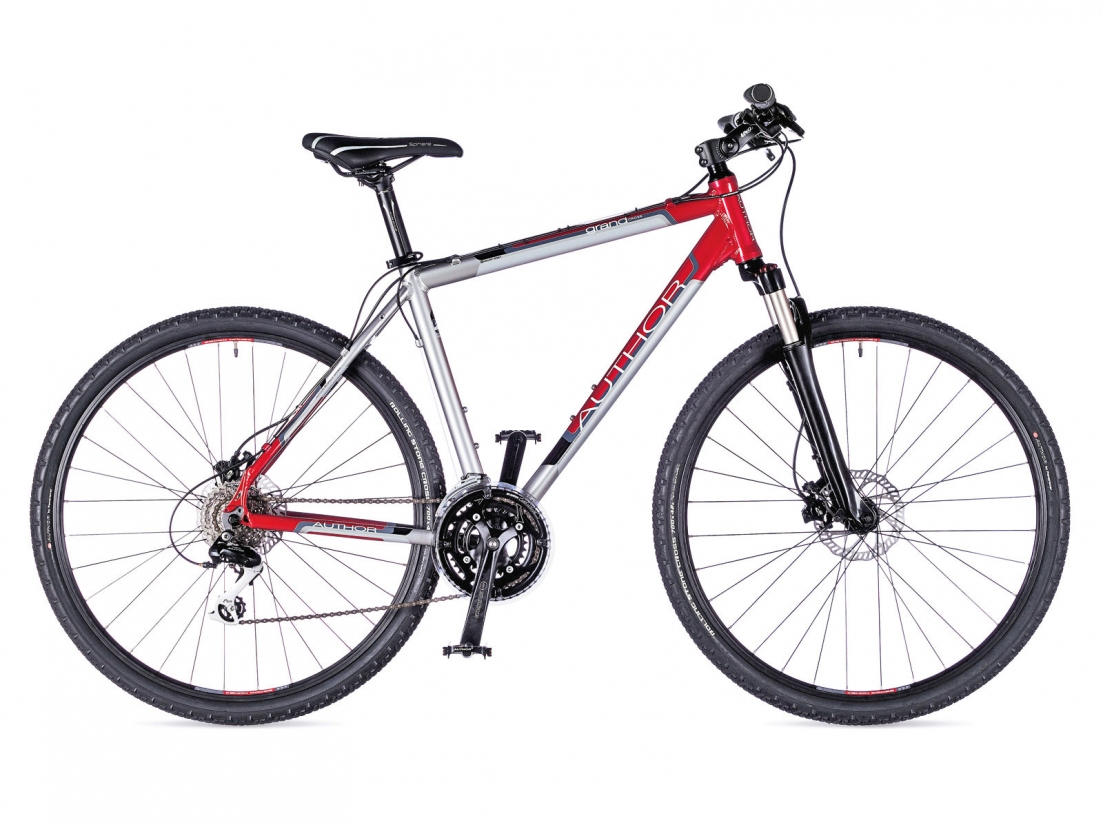

Technical specification

Size16", 18", 20", 22", 24"
Framealloy 6061 700c
Front forkRST Vita TnL oil, lock out (60 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSUNTOUR NEX-T208 48-38-28 teeth 170 / 175 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO M191 (34.9)
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Acera (24)
Free wheelSHIMANO HG-41-8 11-32 (8)
ChainSHIMANO HG-50
HubsQUANDO Disc 32 holes
BrakesTEKTRO HDC 300 disc hydraulic (6" rotors)
Brakes leversTEKTRO HDC 300
RimsAUTHOR Xenon Cross black 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR PANARACER Rolling Stone Cross 700 x 42c
PedalsAUTHOR alloy
HandlebarAUTHOR 20 mm 620 / 640 mm
GripsAUTHOR ErgoGrip
StemUNO adjustable
Seat postAUTHOR alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Sphere Gel
Speed24
Weight13,7 kg / 20"

Geometry and sizes

Size 16" 18" 20" 22" 24"
Min. figure [cm] 150 164 174 184 194
Max. figure [cm] 166 176 186 196 205
S/T c-t [mm] 406 457 508 559 610
S/T c-c [mm] 0 0 0 0 0
T/T h [mm] 553 568 583 605 617
T/T a [mm] 534 544 559 583 602
H/T [mm] 120 130 145 160 175
C/S [mm] 440 440 440 440 440
W/B [mm] 1046 1062 1077 1100 1113
S/T ang. [°] 73 73 73 73 73
H/T ang. [°] 71 71 71 71 71
F/L [mm] 470 470 470 470 470
B/B drop [mm] 45 45 45 45 45
B/B width [mm] 0 0 0 0 0
Reach [mm] 0 0 0 0 0
Stack [mm] 0 0 0 0 0
F/R [mm] 46 46 46 46 46
Handlebars [mm] 0 0 0 0 0
Stem [mm] 0 0 0 0 0
Cranks [mm] 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
