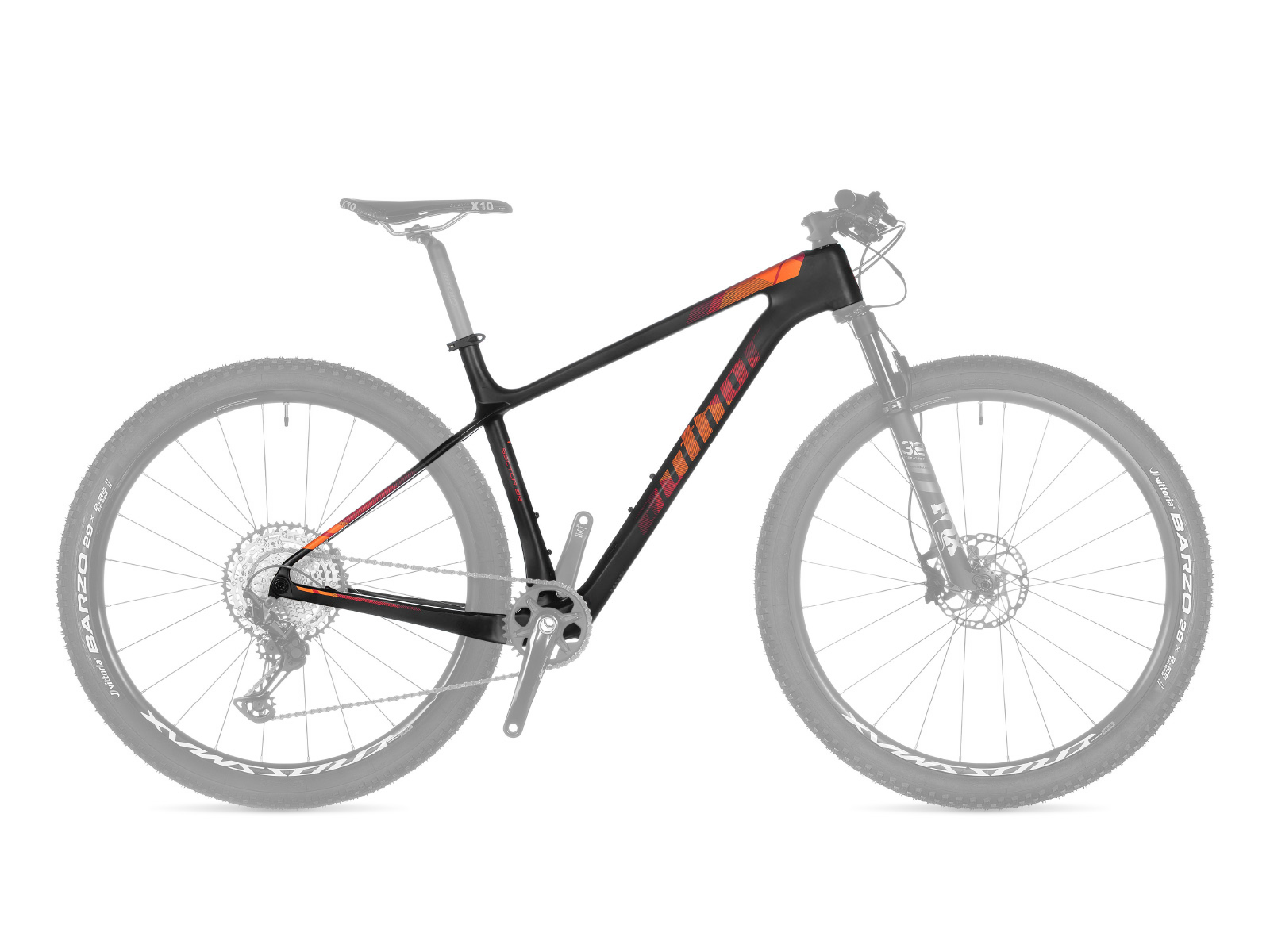

Frame Sector 29 2023-24

~~Colour variants~~

AUTHOR High Modulus Carbon monocoque frameFrame sizes 17", 19" and 21"Boost 12 × 148 mm rear stayICR (Inner Cable Routing) ready

ONLY frame set!
Frame set contains frame itself, rear thru axle Boost 12 × 148 mm, Head set 1,5" tapered PF, seat clamp and RD hanger.
It is compatible with Boost rear stay, so 12 × 148 mm a it has 1,5" tapered head tube ready for 1,5" Drop In head set, seat post 31,6 mm, ICR – Inner Cable Routing for both derraileurs and rear brake cables. Ready for 1× or 2×, in case of 2× it is Side Swing type FD, E-type mount, front pull, Flat Mount rear stay brake´s interface. Di2 battery space in down tube.

# 17"# 19"# 21"# carbon # orange # red

other models

Interested in other model`s year?

2021-22 2023-24

Technical specification

Size	17", 19", 21"
Frame	AUTHOR carbon Toray T700/800 monocoque 29"

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	171	179	188
Max. figure ~~[cm]~~	181	189	202
S/T c-t ~~[mm]~~	435	485	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	611	638	668
T/T a ~~[mm]~~	589	607	641
H/T ~~[mm]~~	95	100	120
C/S ~~[mm]~~	435	435	435
W/B ~~[mm]~~	1118	1145	1177
S/T ang. ~~[°]~~	73	73	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	506	506	506
B/B drop ~~[mm]~~	65	65	65
B/B width ~~[mm]~~	92	92	92
Reach ~~[mm]~~	425	450	475
Stack ~~[mm]~~	609	613	632
F/R ~~[mm]~~	51	51	51
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

carbon-matt / red / orange

17" = UA#39903102 19" = UA#39903103 21" = UA#39903104
