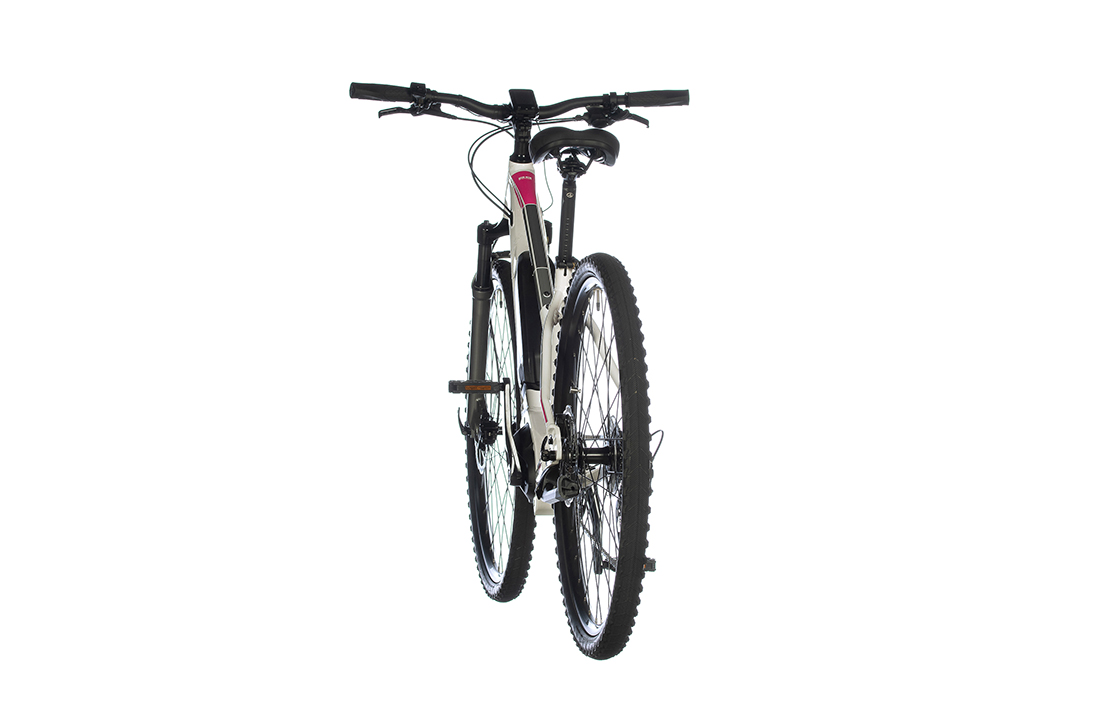

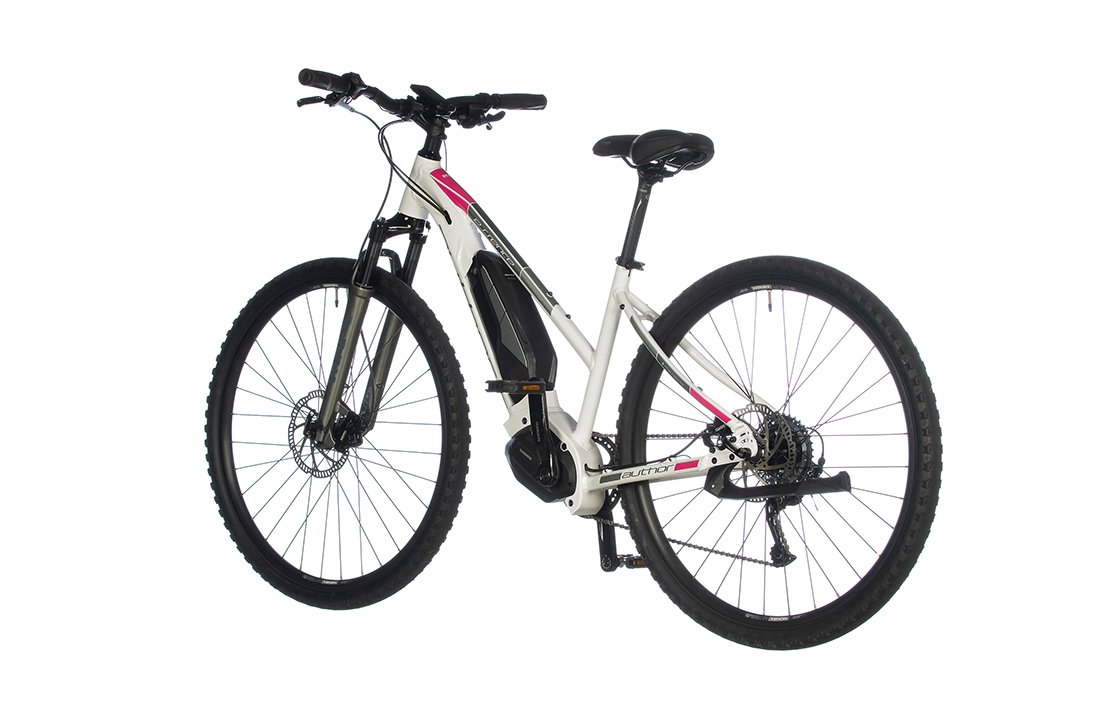

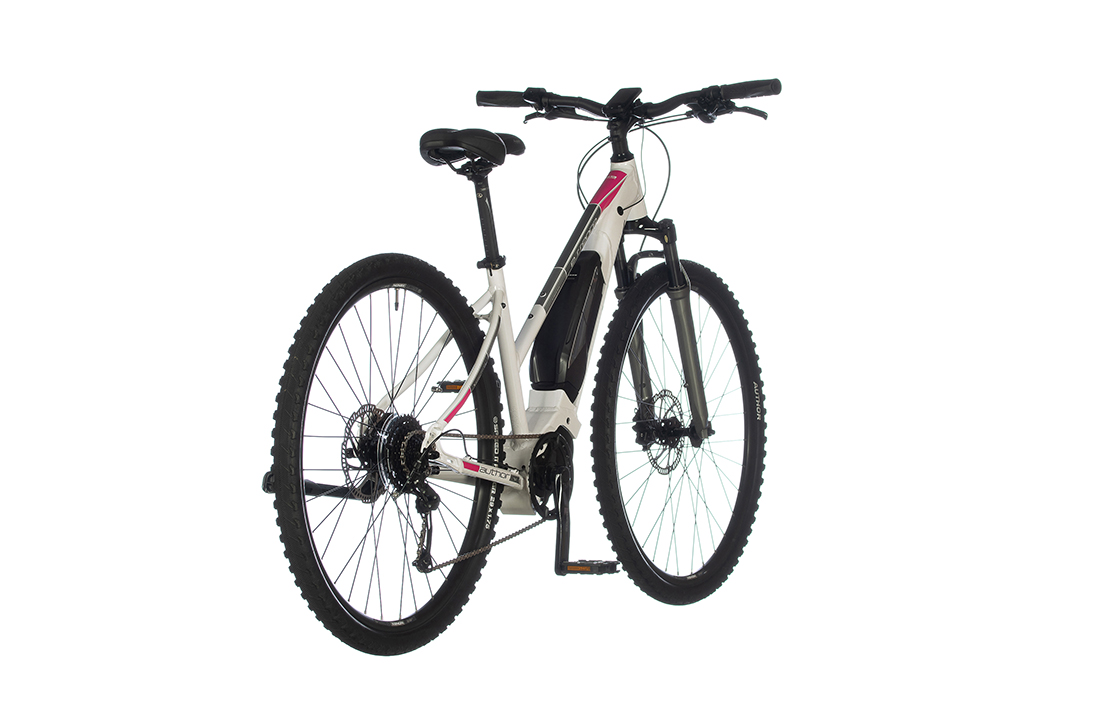

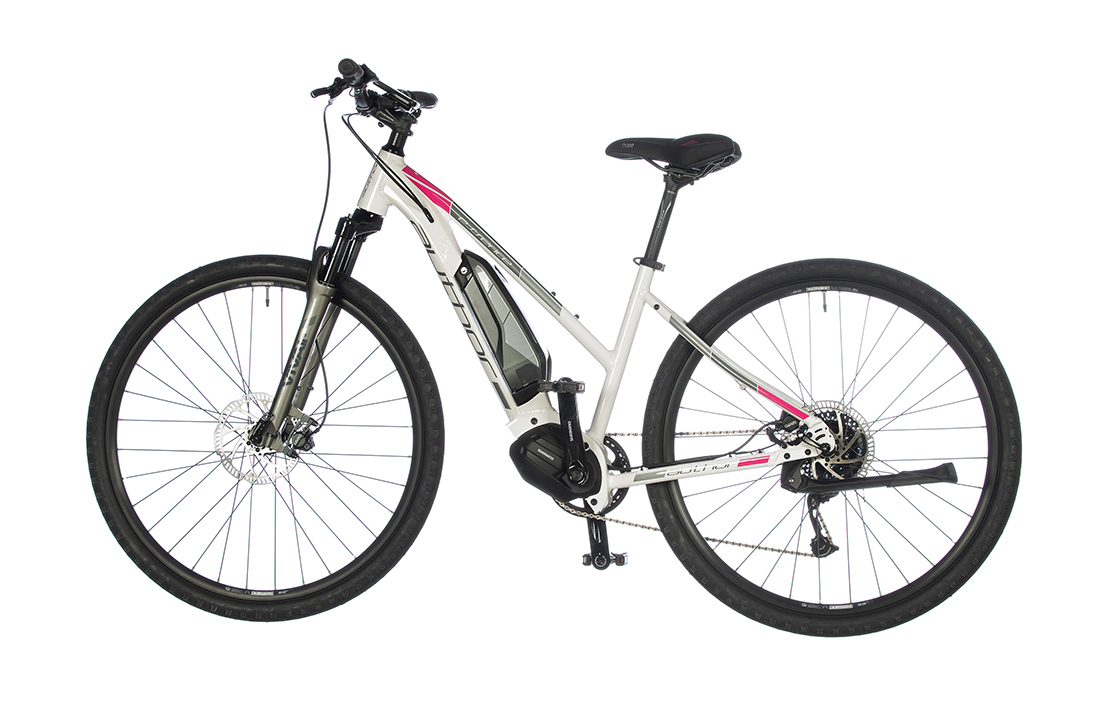

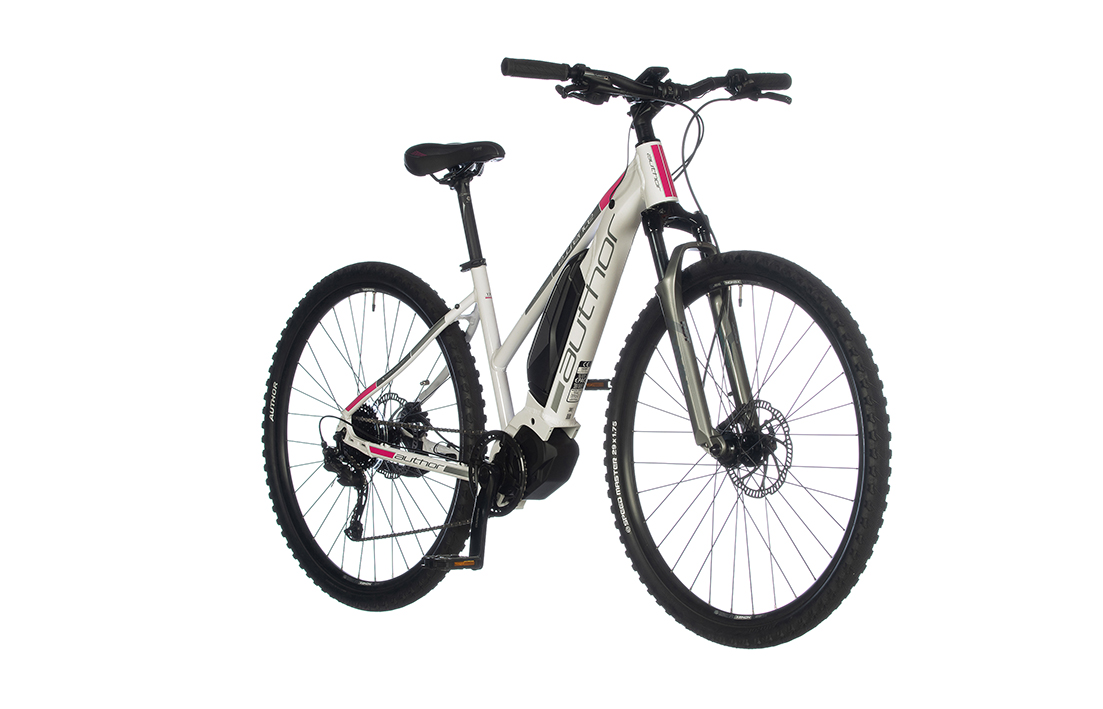

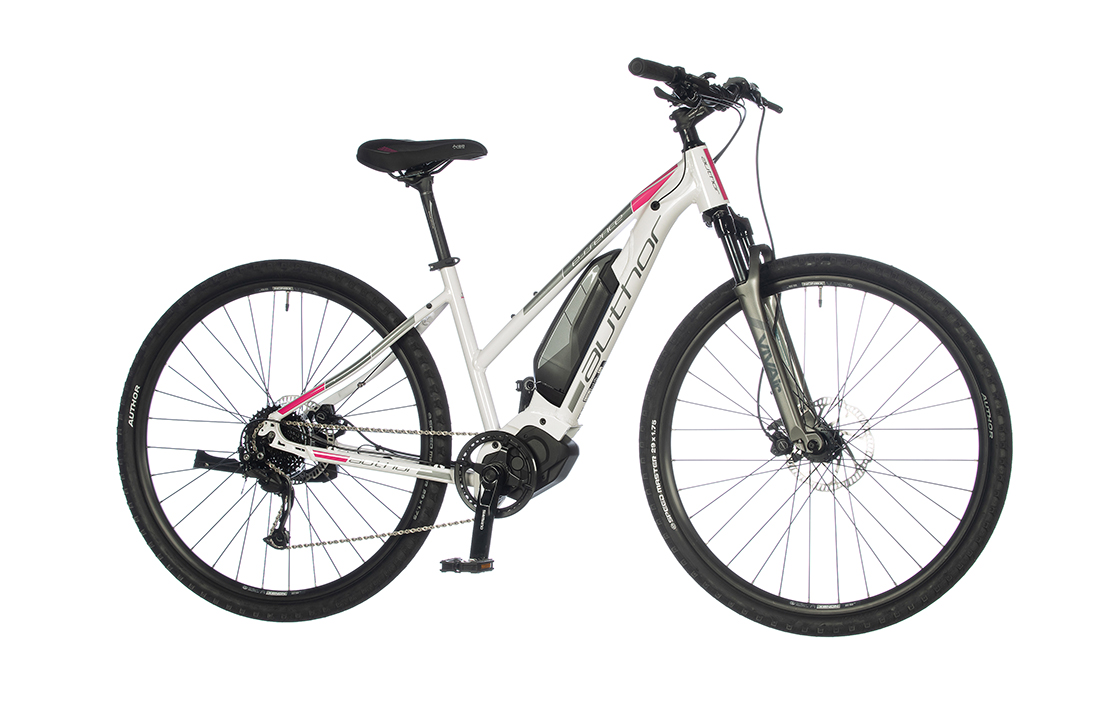

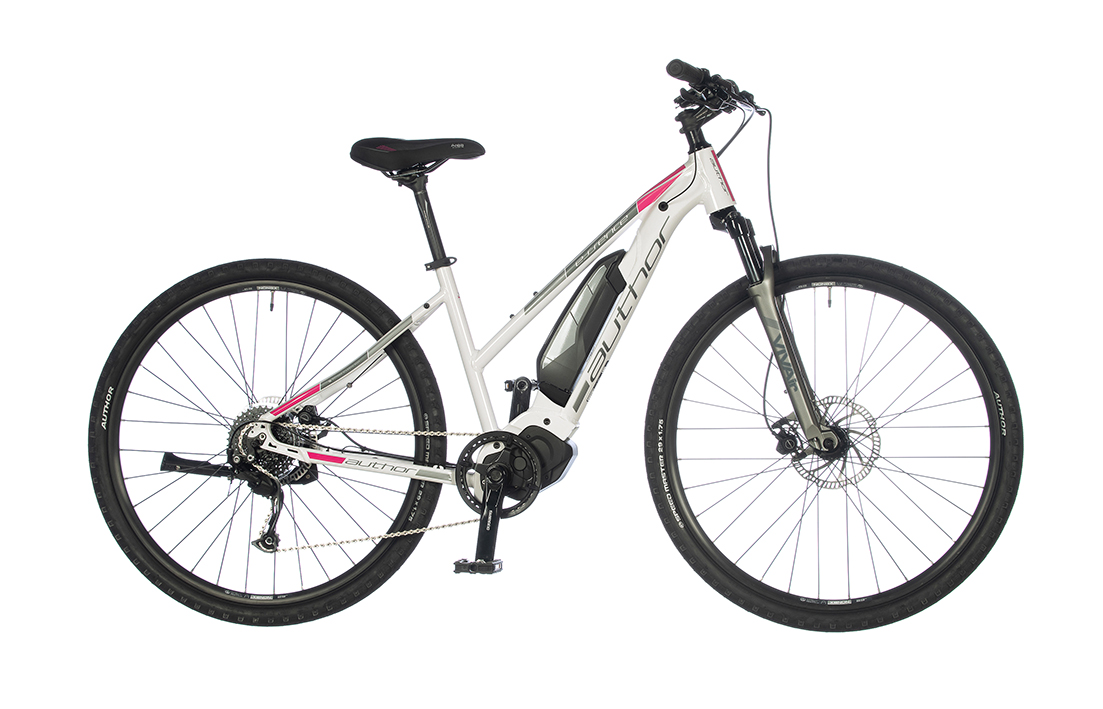

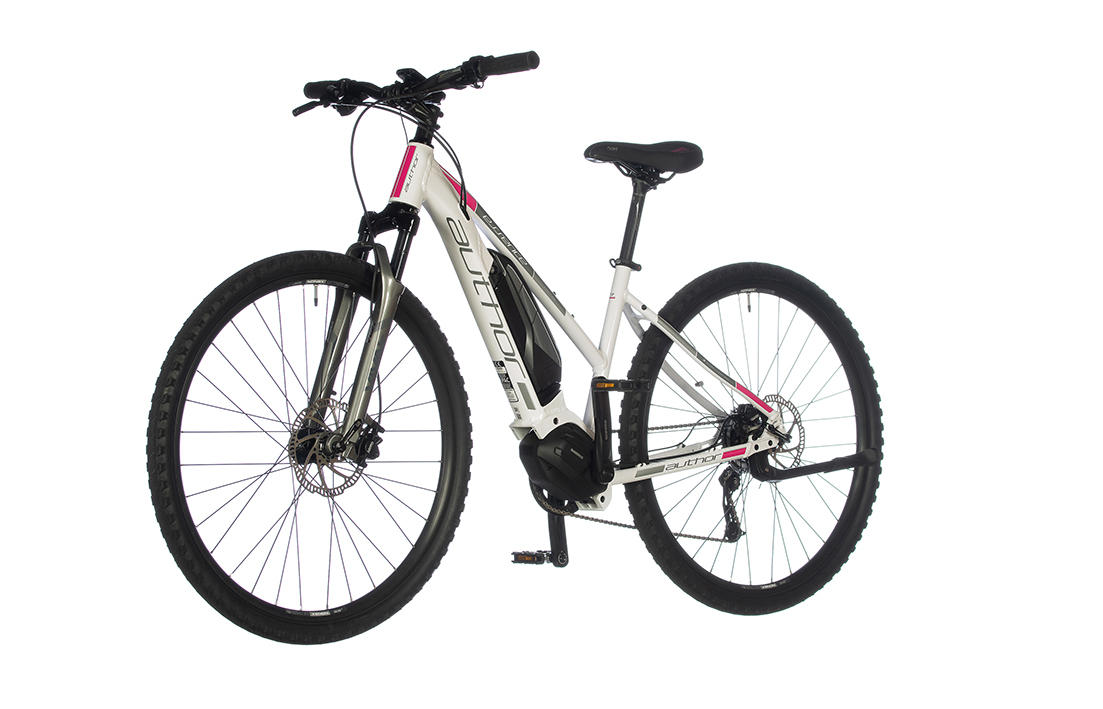

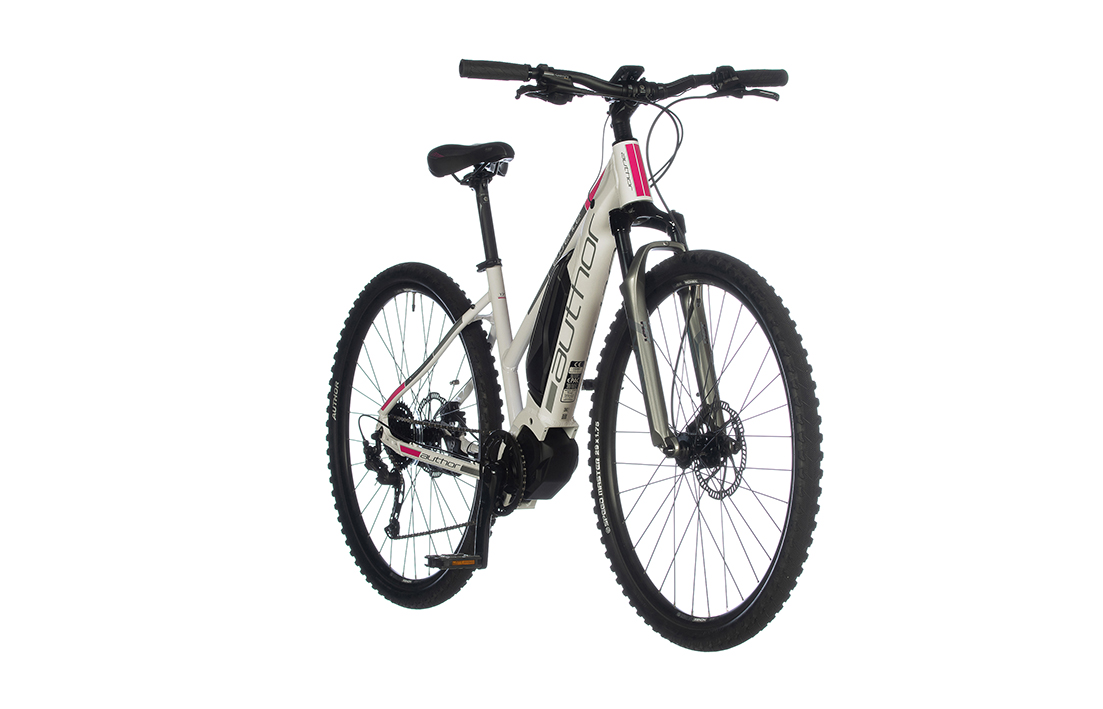

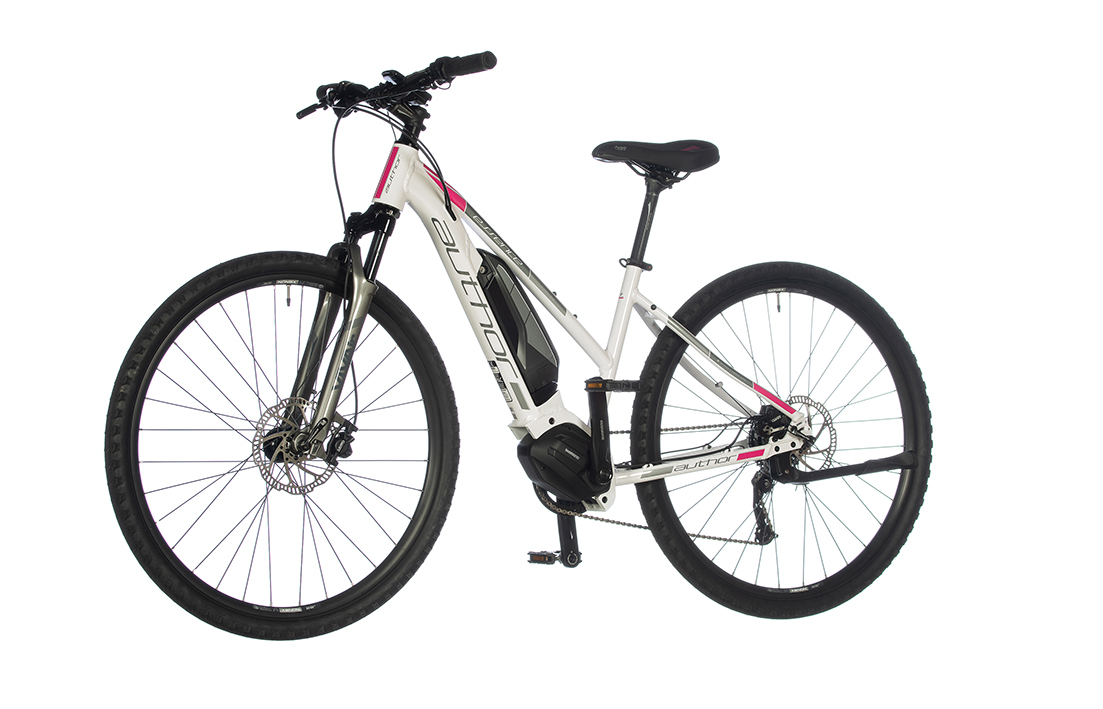

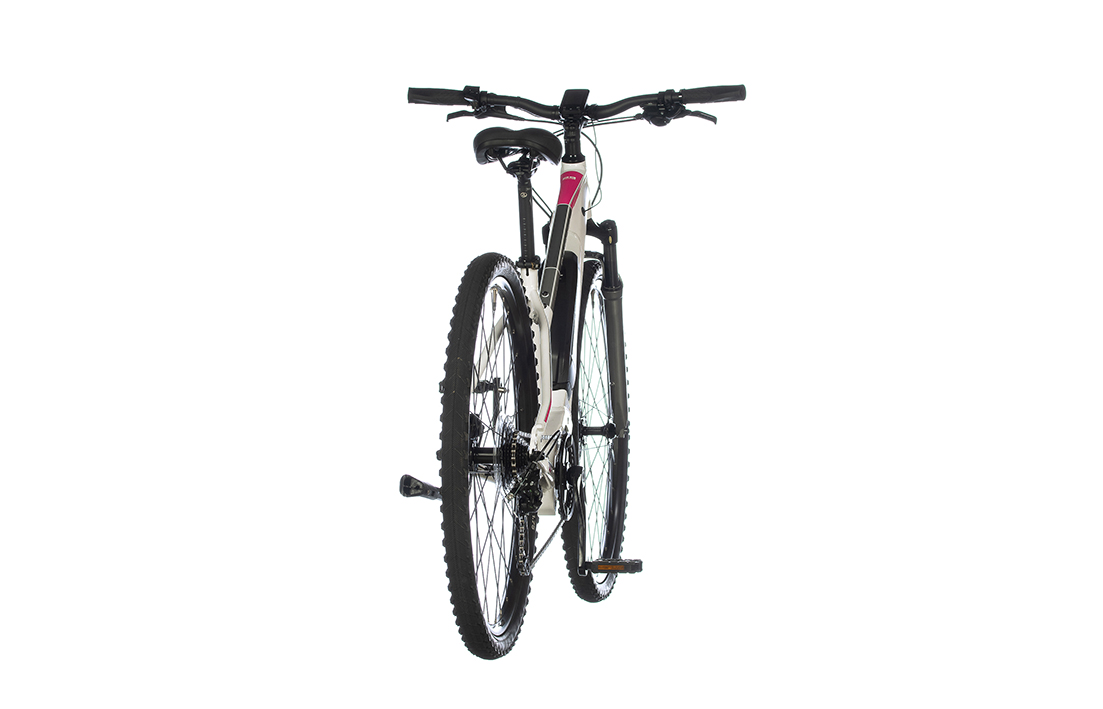

AUTHOR Essence 2021-22
AUTHOR Essence 2021-22essence aut5544essence aut5546essence aut5547essence aut5550essence aut5551essence aut5552essence aut5554essence aut5555essence aut5557essence aut5558essence aut5561essence aut5562essence aut5565essence aut5556
  » Bicycles » E-Bike » e-cross 29
  » Bicycles » ladies » e-bike ladies

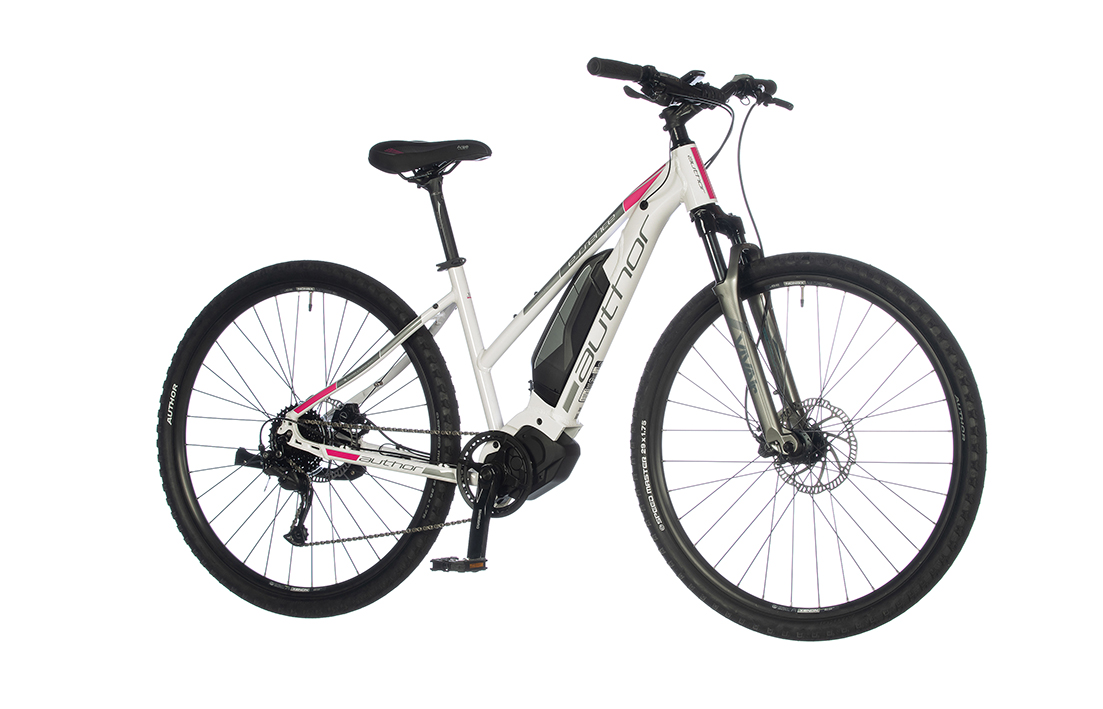

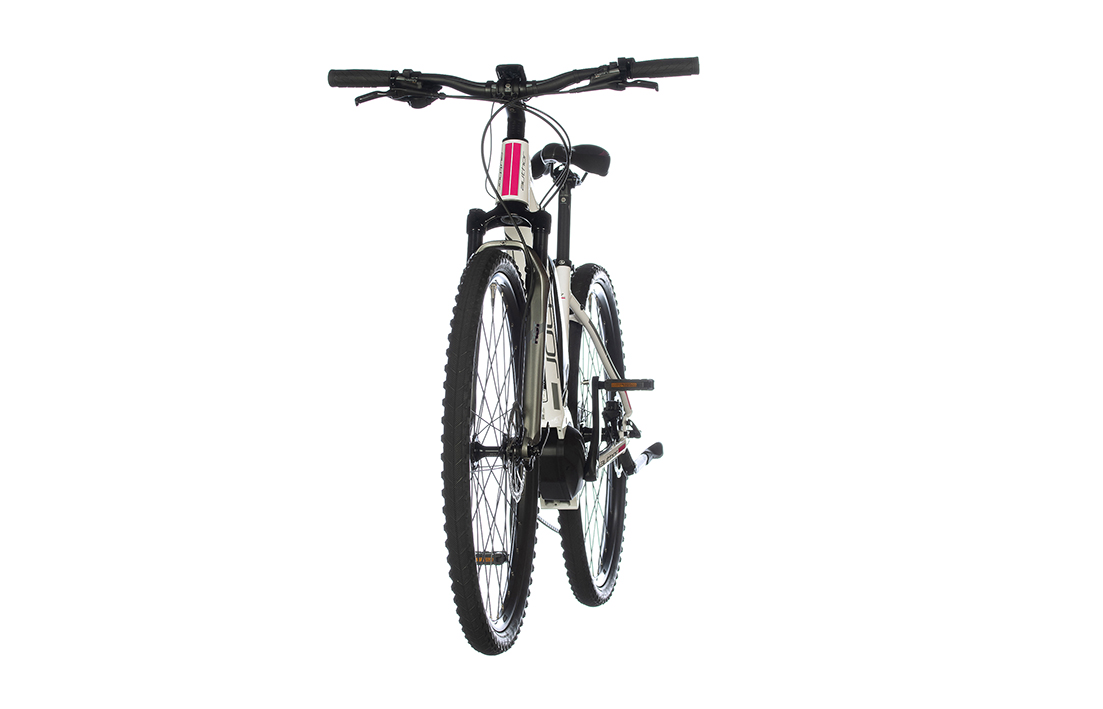

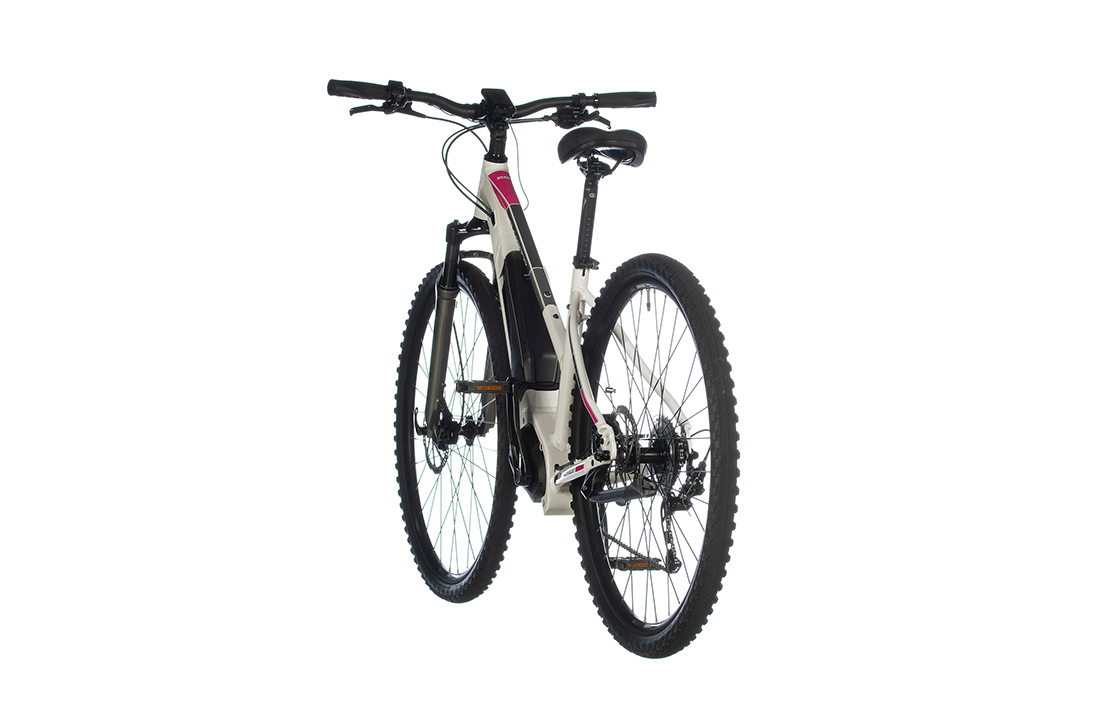

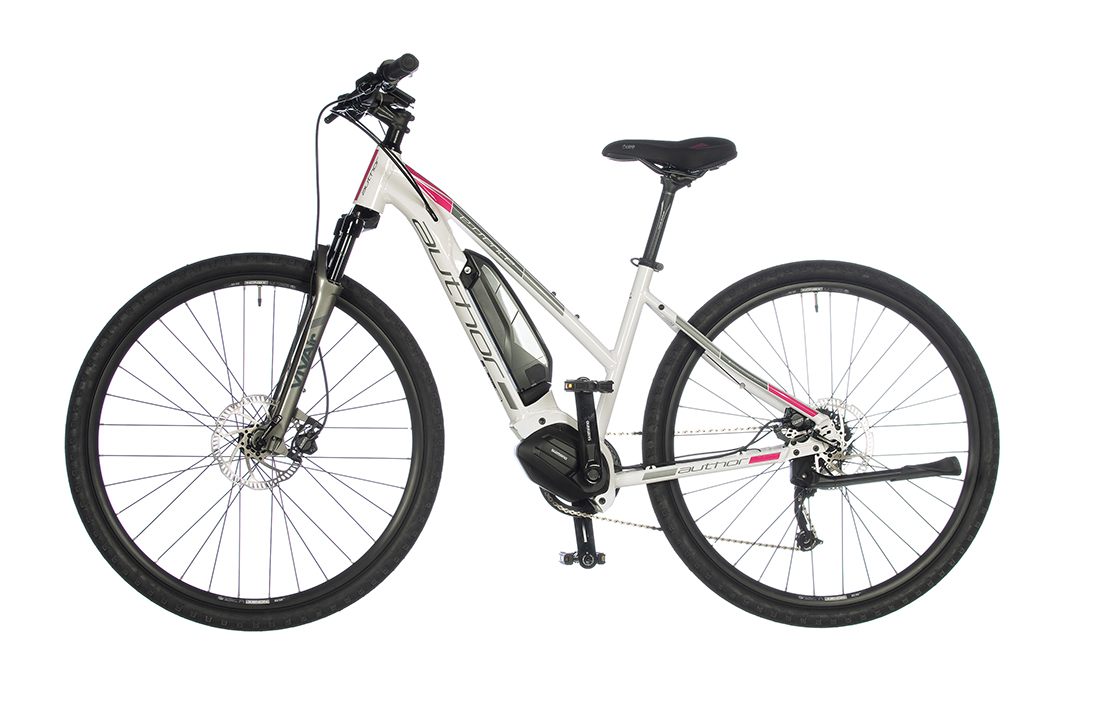

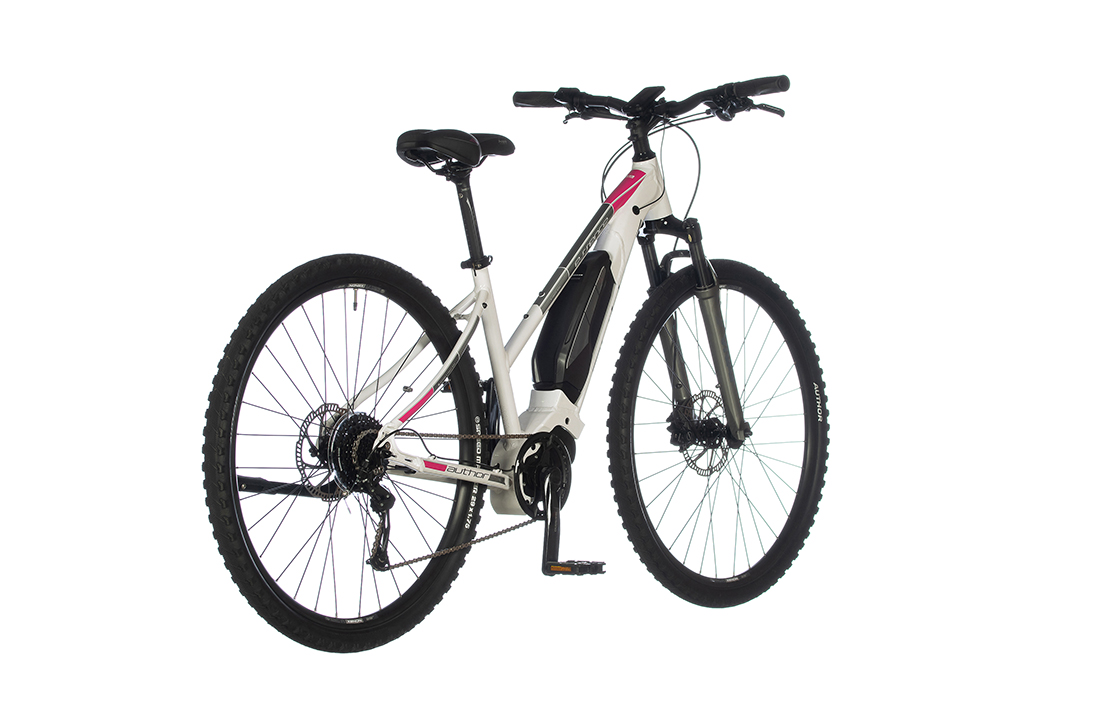

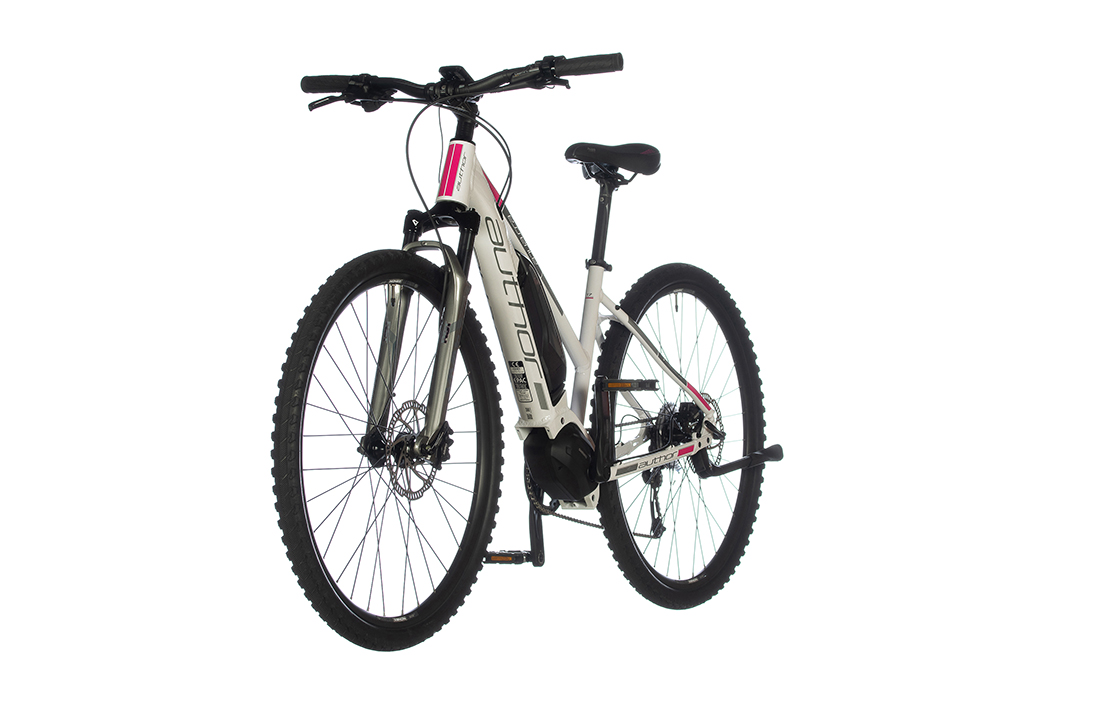

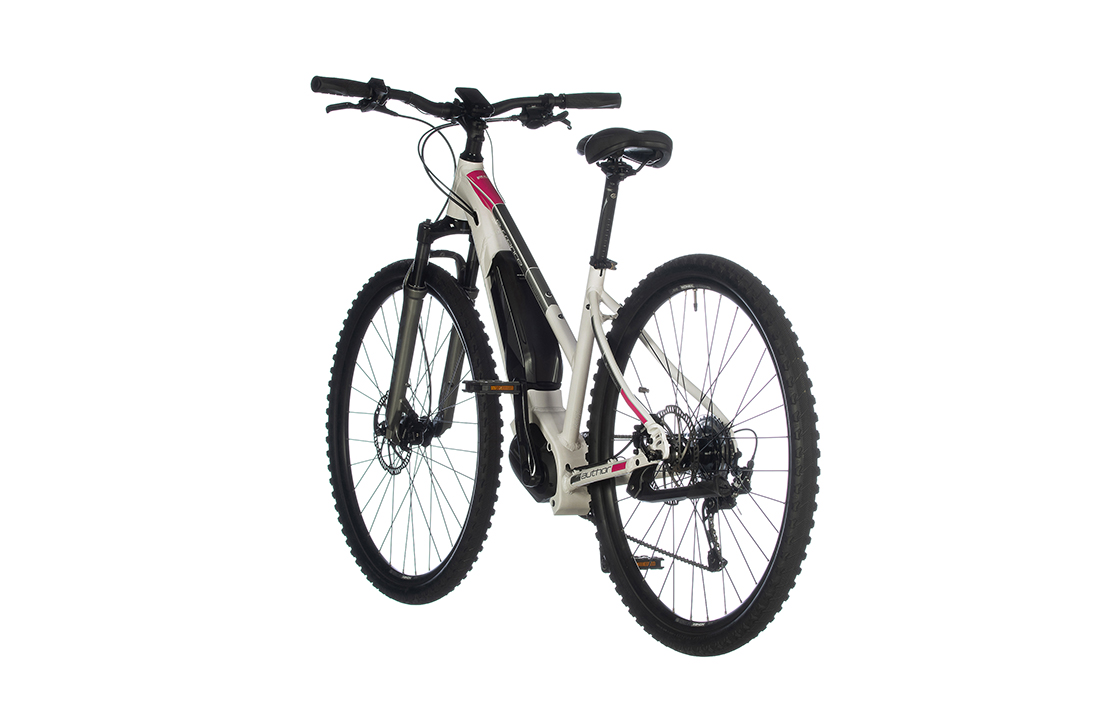

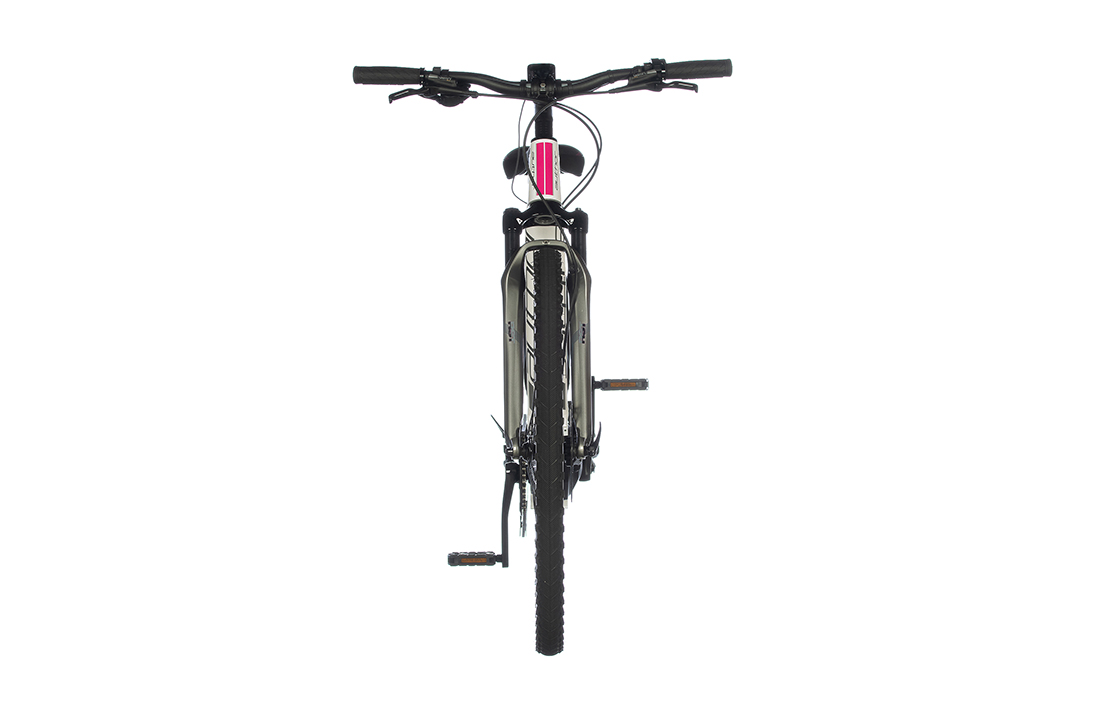

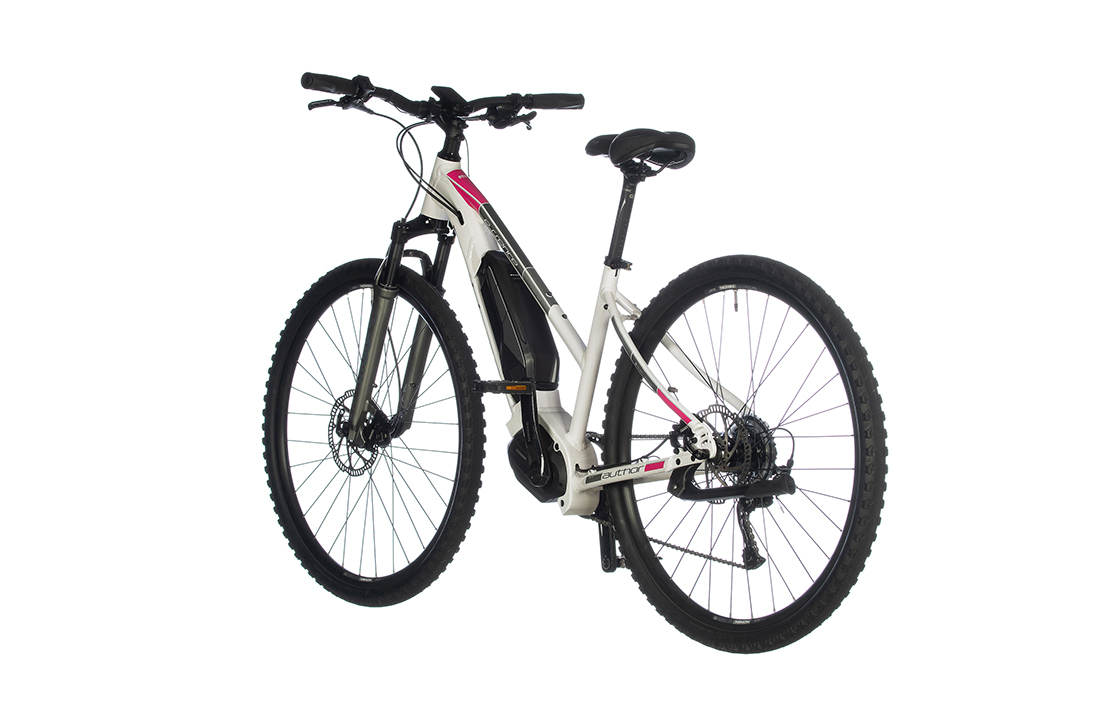

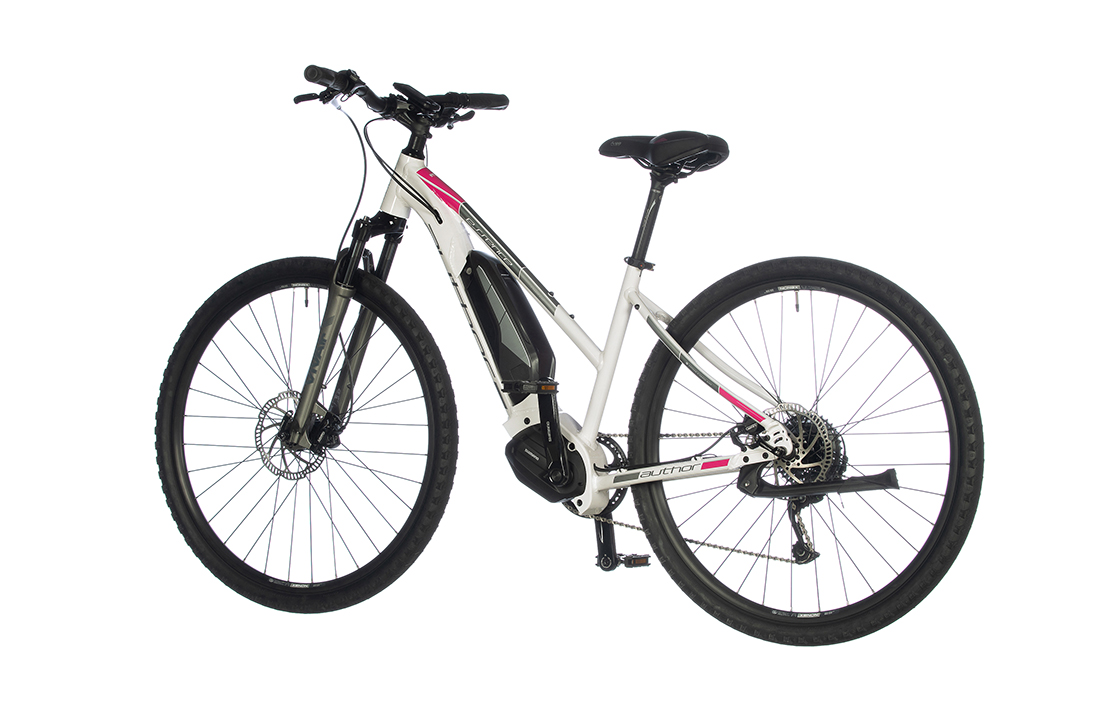

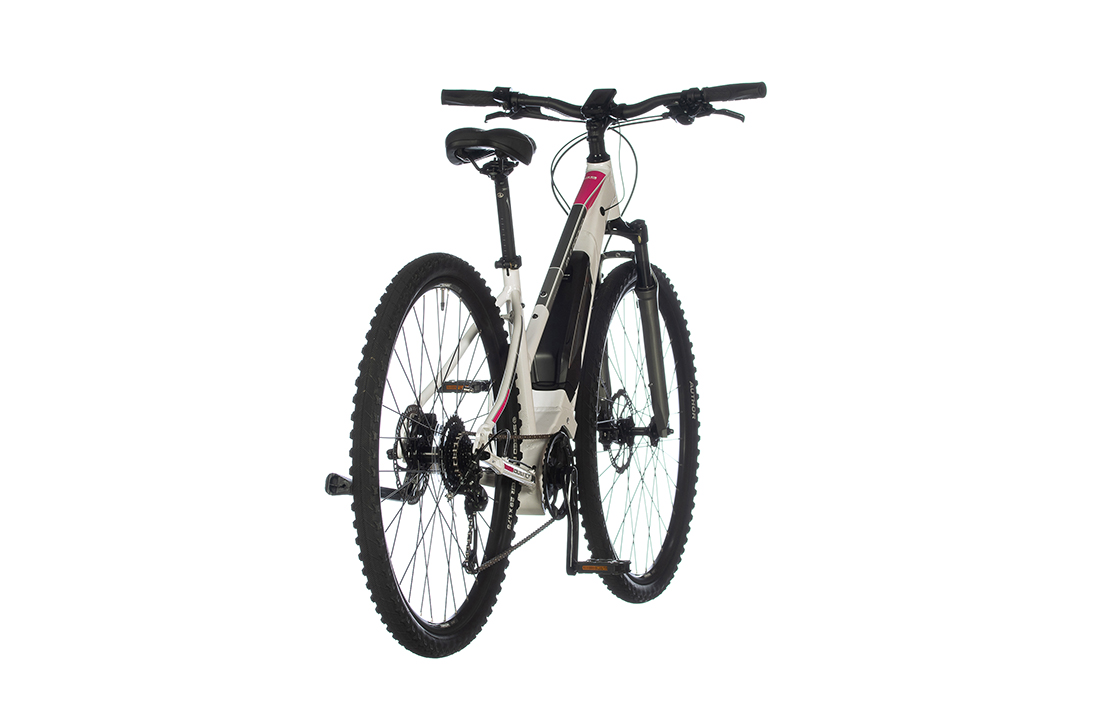

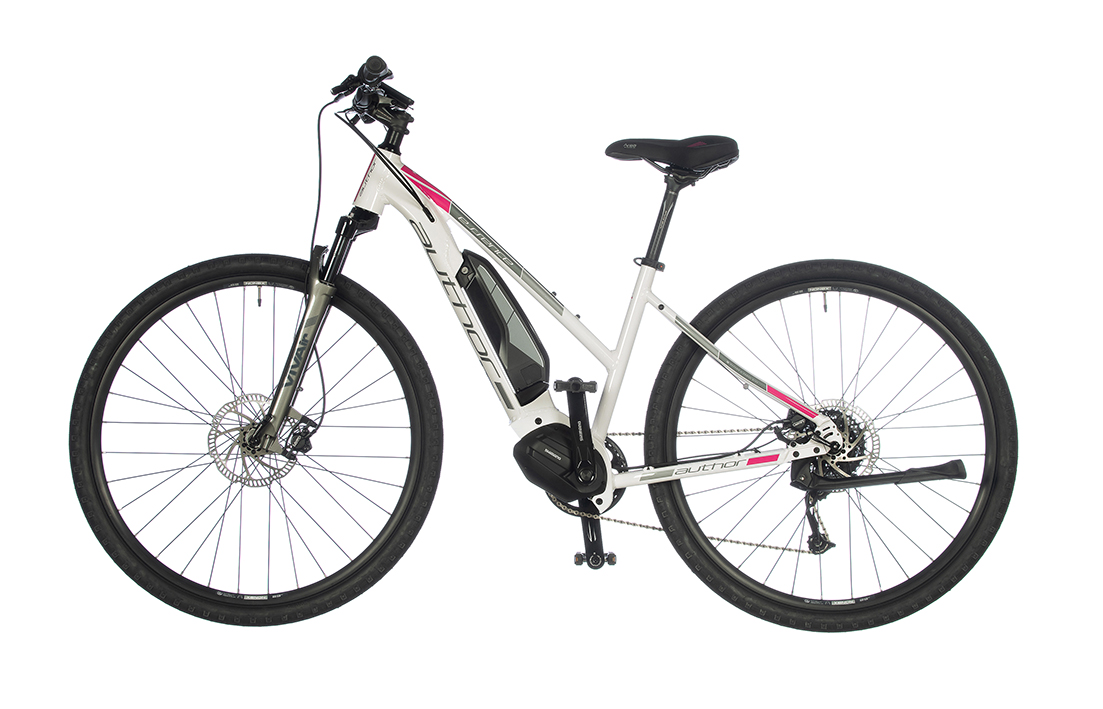

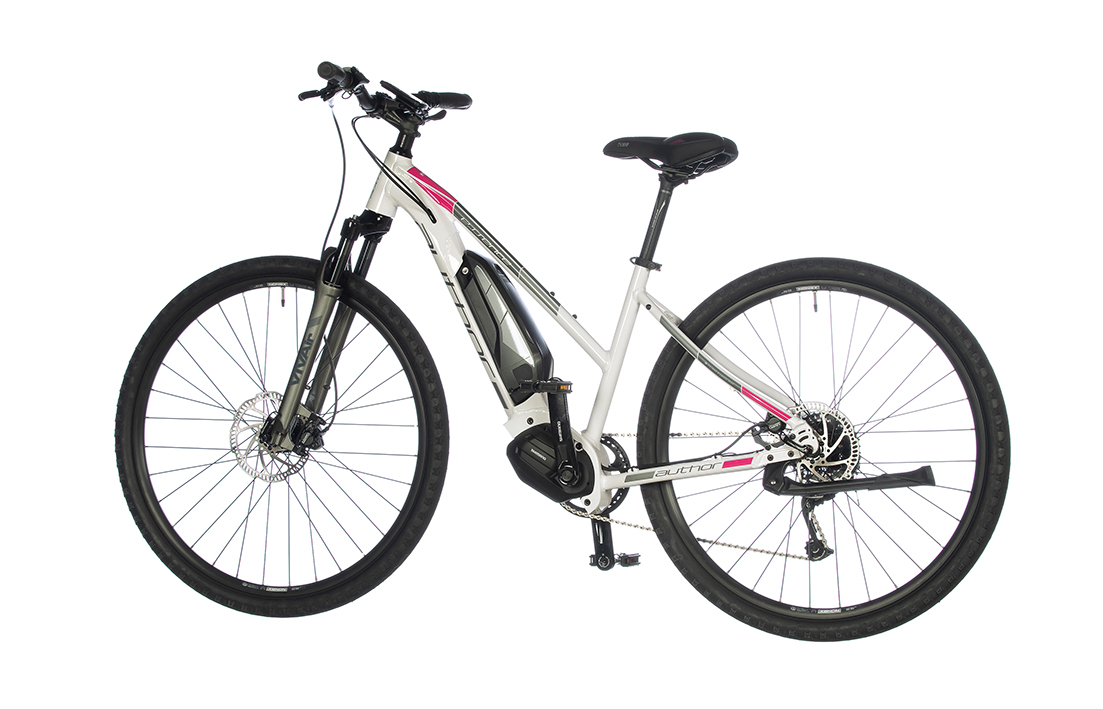

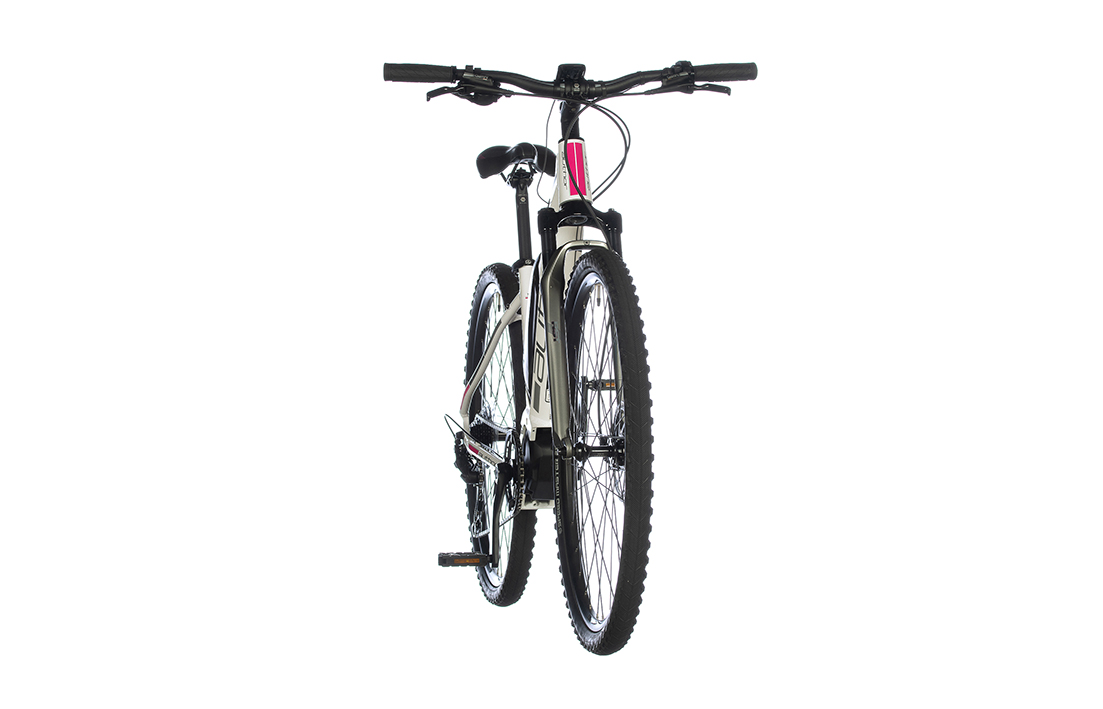

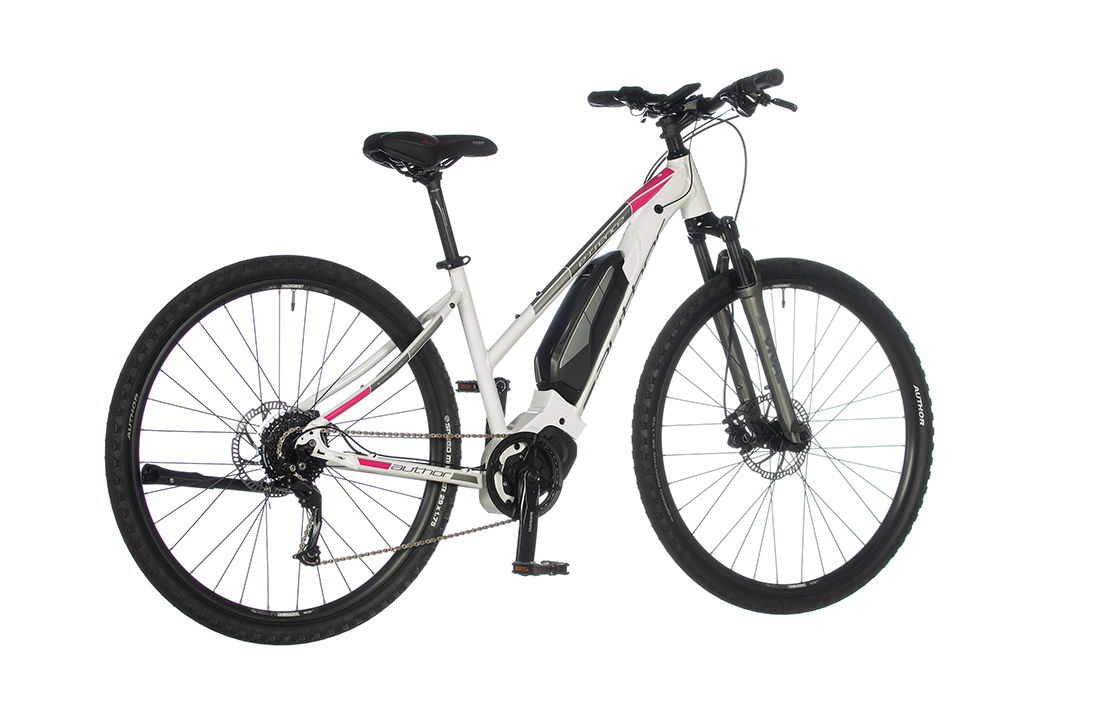

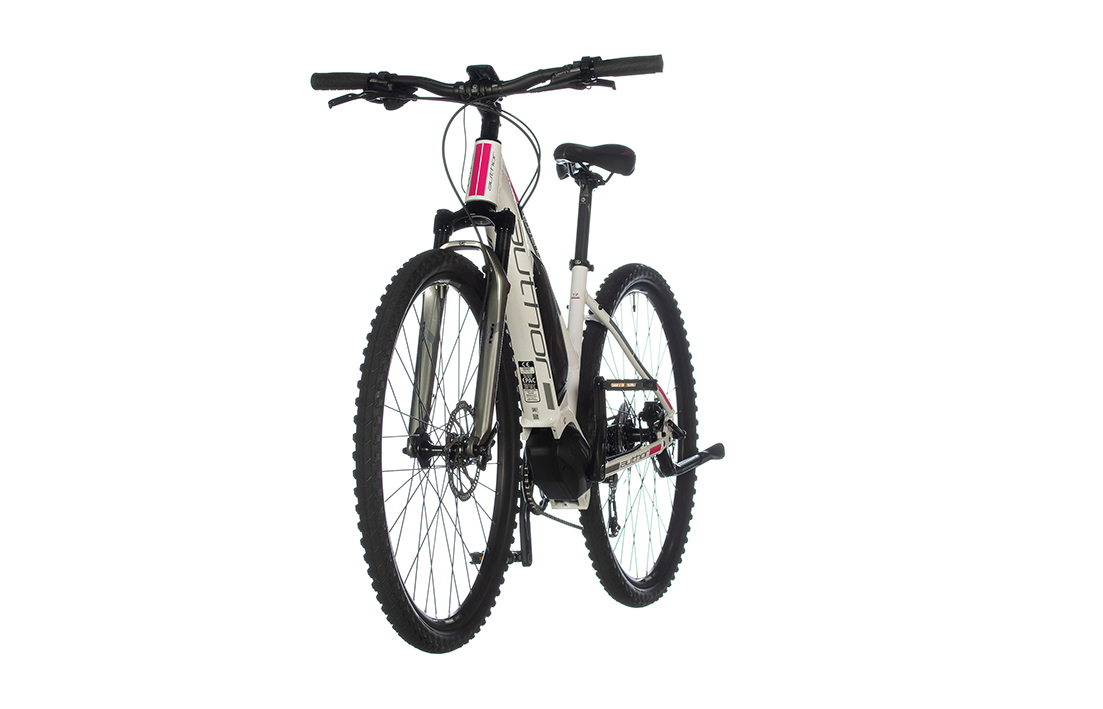

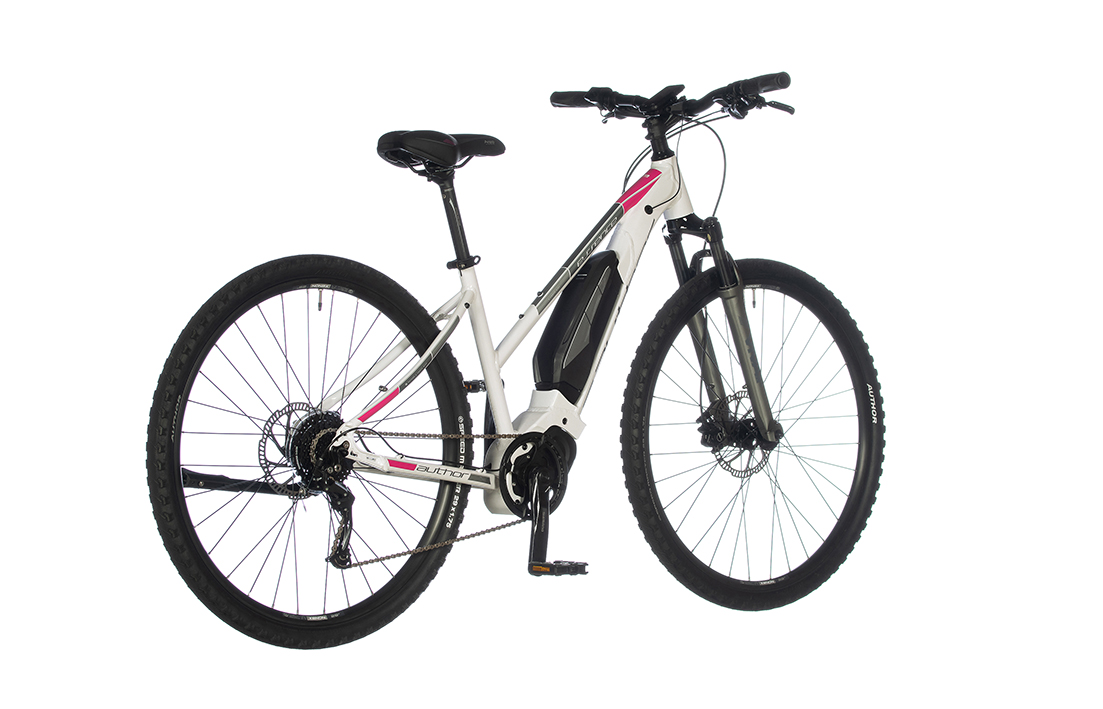

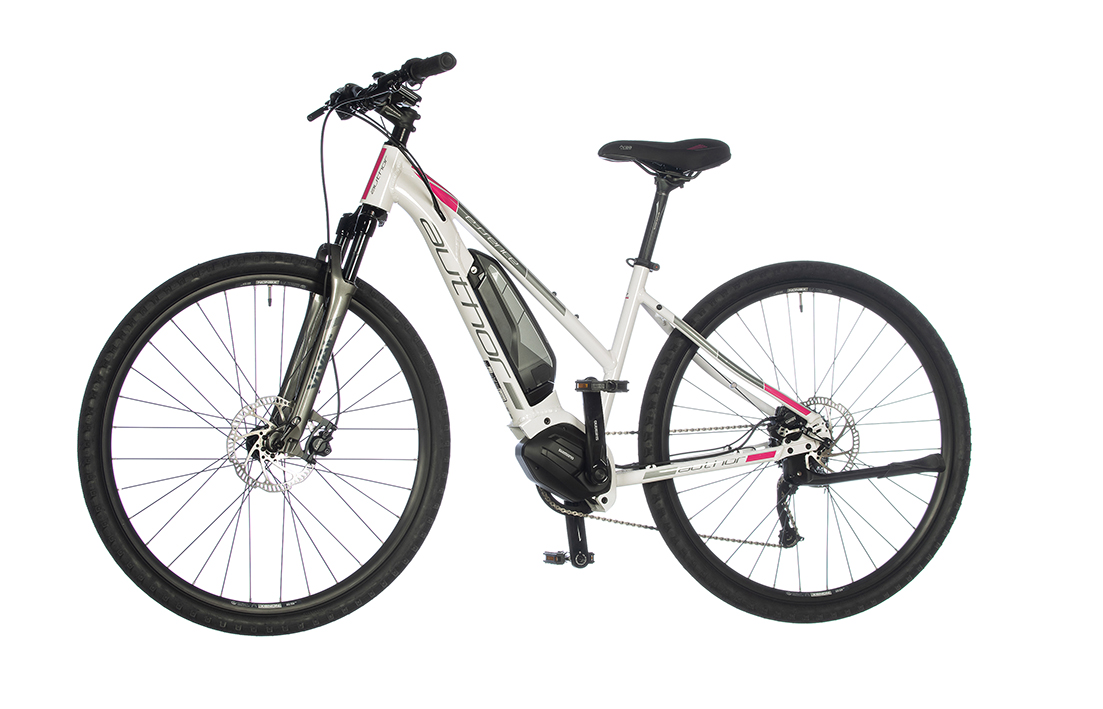

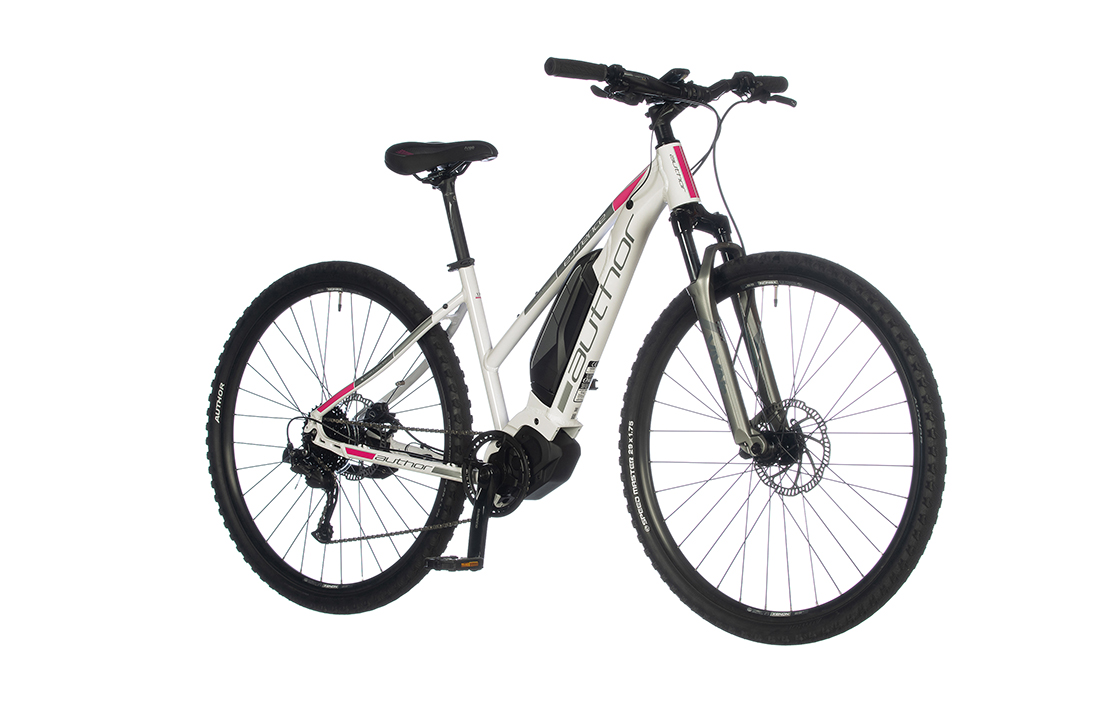

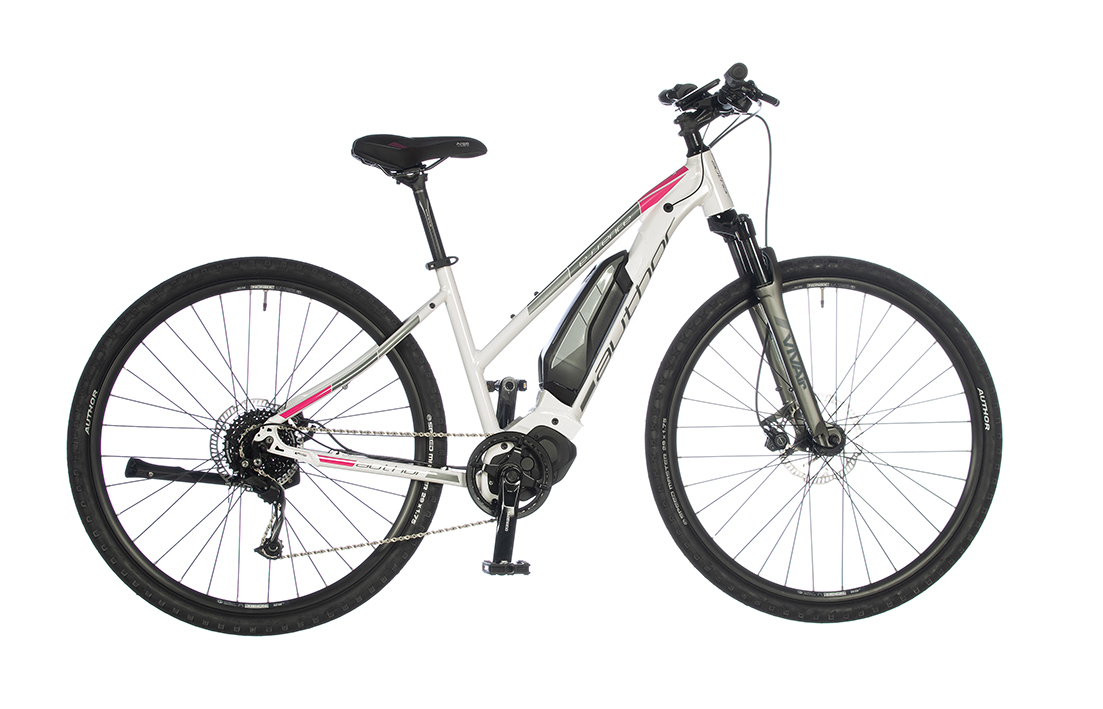

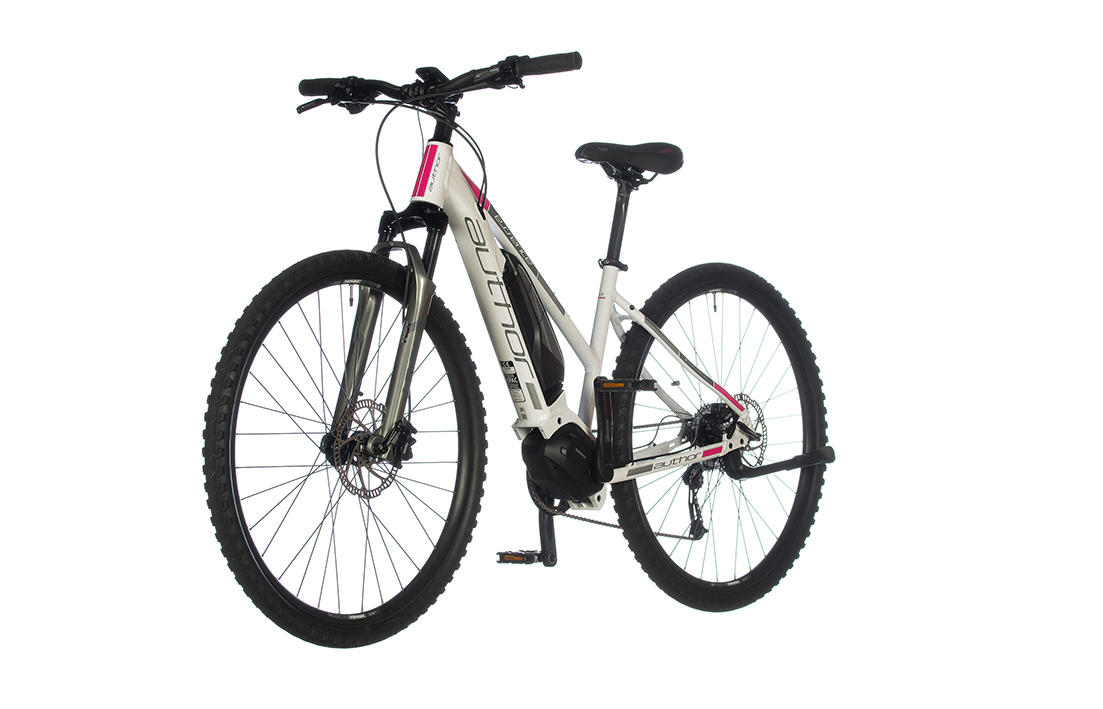

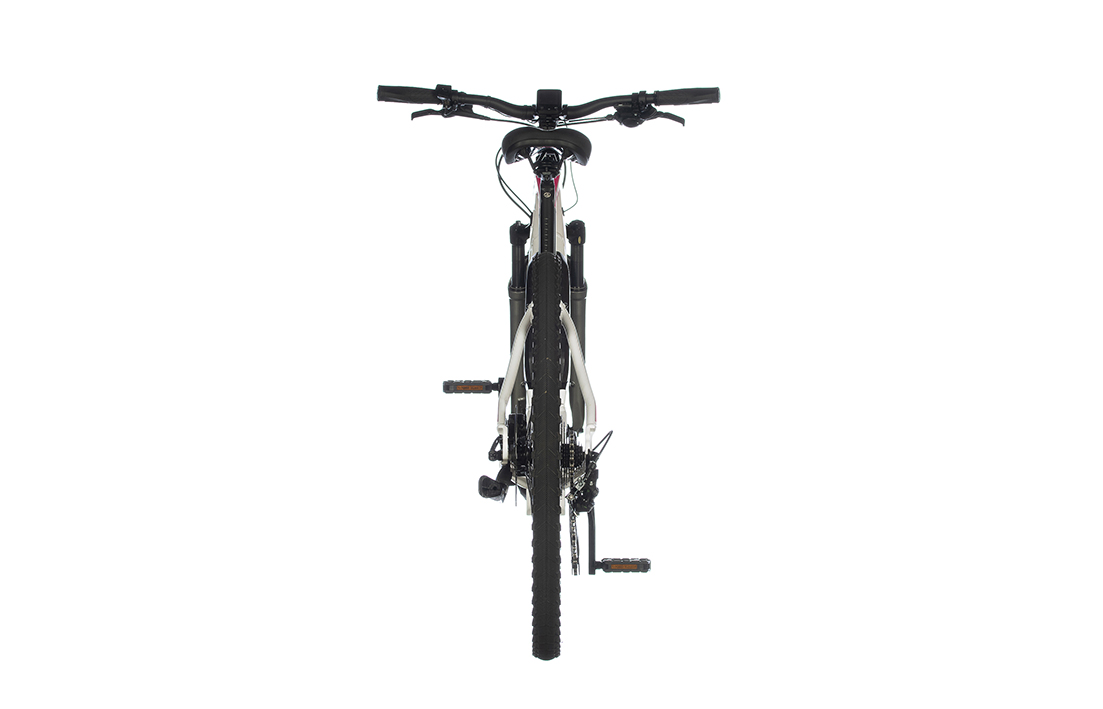

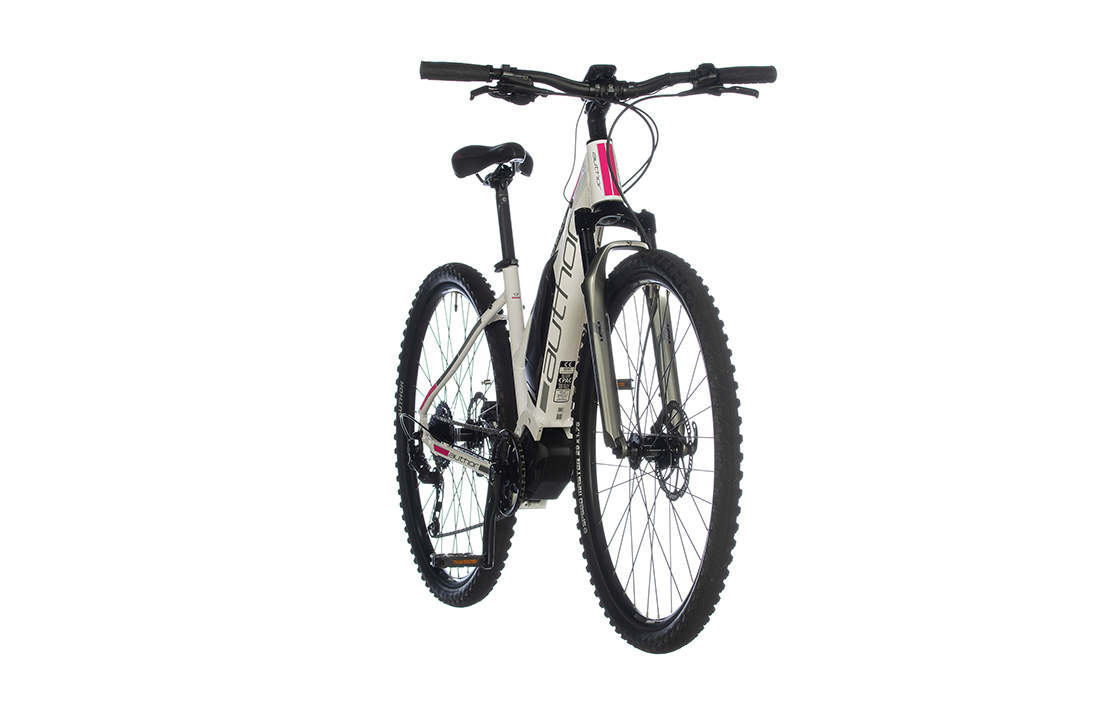

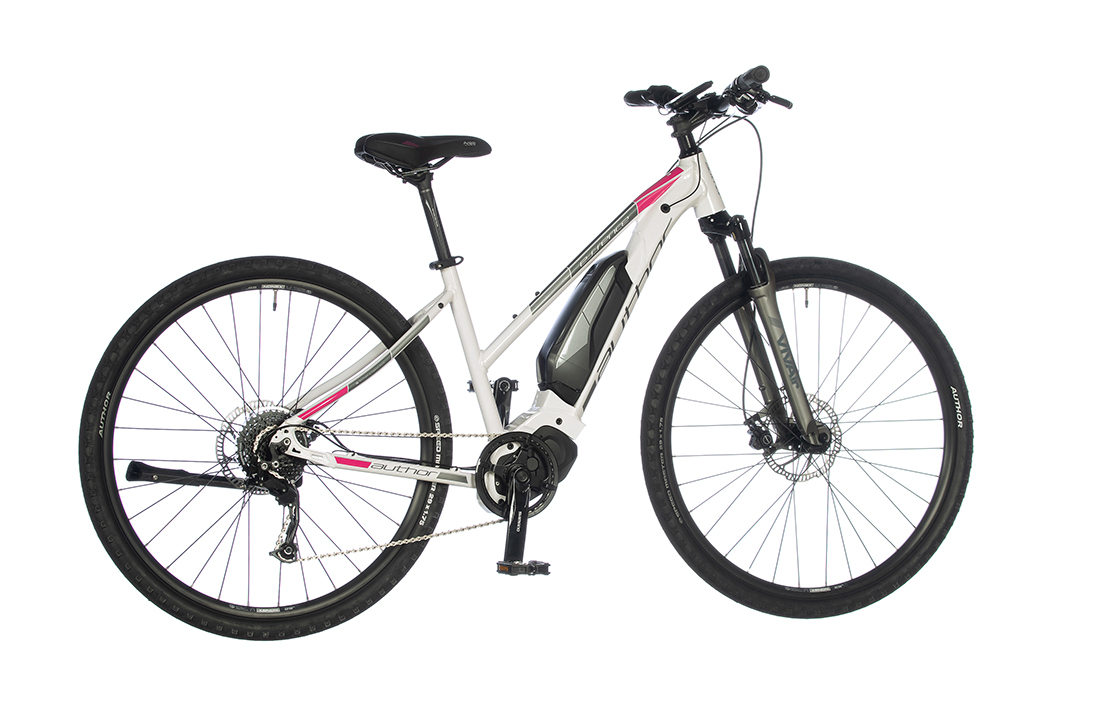

AUTHOR Essence 2021-22Archivní model 2021-22

Colour variants
1
SHIMANO STEPS E5000 center motor, 250 WSHIMANO E8010 battery 36 V, 14 Ah, 500 WNew SHIMANO ALIVIO rear derailleuer and shifting, 9 speed
special price 59 900 Kč
original price  63 990 Kč SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size17", 19"
Framedouble butted hydroformed alloy 6061 29" (L)
Front forkRST ViV Air TnL air, lock out (80 mm)
EngineSHIMANO Steps E-5000, 250 W
BatterySHIMANO E-8010 Li-Ion, 36 V, 14 Ah, 504 Wh
DisplaySHIMANO Steps E-6100, LCD
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSHIMANO Steps E-5010 38 teeth 170 / 175 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (9)
Free wheelSHIMANO HG200-9 11-36 (9)
ChainKMC e9T
HubsAUTHOR Radon 32 holes
BrakesTEKTRO Gemini disc hydraulic (7" rotors)
Brakes leversTEKTRO Gemini WS
RimsAUTHOR Xenon 29 32 holes
Spokesblack stainless steel 2.2 mm
TiresVITTORIA Barzo 29" × 2.10"
PedalsAUTHOR Non Slip alloy
HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Area Gel
Speed9
Weight20,7 kg / 17"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 155 167
Max. figure [cm] 169 182
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 565 585
T/T a [mm] 545 564
H/T [mm] 120 130
C/S [mm] 489 489
W/B [mm] 1112 1132
S/T ang. [°] 73.5 73.5
H/T ang. [°] 70.5 70.5
F/L [mm] 490 490
B/B drop [mm] 60 60
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 44 44
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
182 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Essence 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
