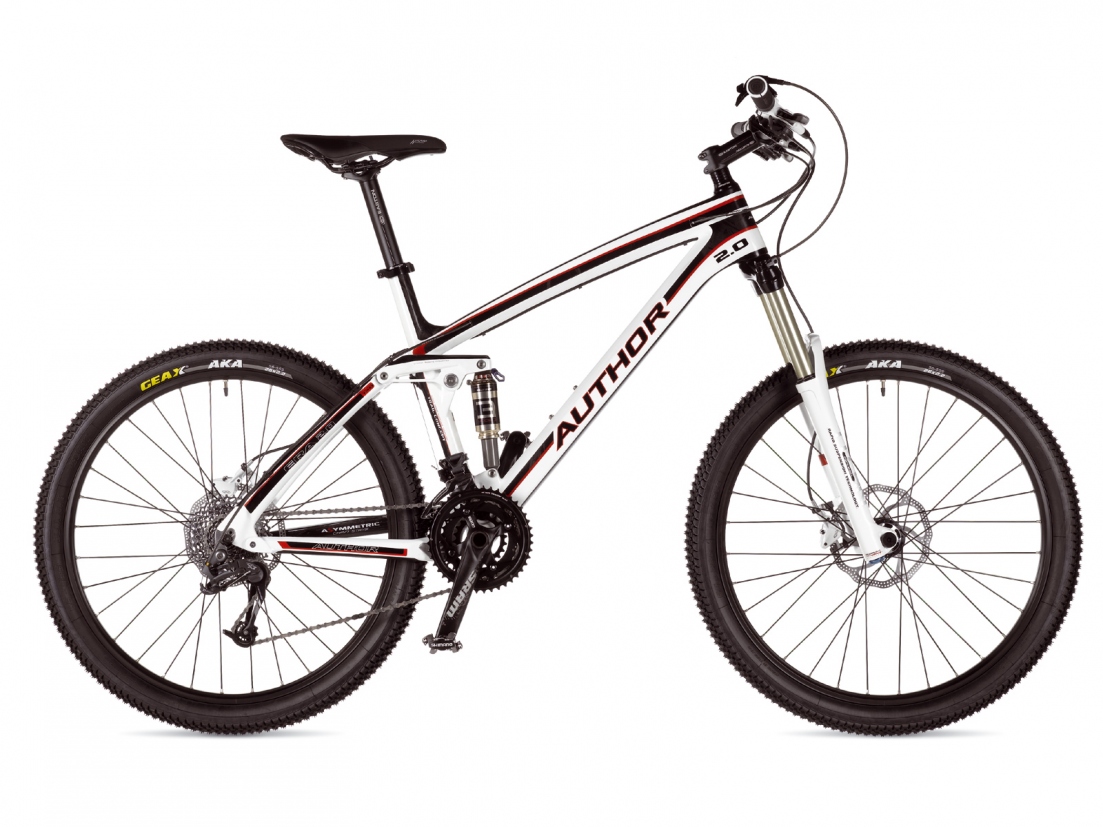

AUTHOR Bicycle Era 2.0 2013
  » Bicycles » mountain bike

AUTHOR Era 2.0 2013Archivní model 2013

SOLD OUT
Interested in other model`s year?

Technical specification

Size17", 19", 21"
FrameAUTHOR C carbon monocoque, suspension oil-air shocker SUNTOUR Epicon LORP lock out, 190 / 50 mm (rear travel 130 mm)
Front forkRST Titan 15 Air air, remote lock out 15 mm thru axle 1.5" tapered steerer (130 mm)
Head partsFSA Orbit 1.5B 1.5" tapered
Chain WheelSRAM S1000 44-33-22 teeth 170 / 175 mm cranks
BBPartsSRAM GXP
Front derailleurSRAM X7 (34.9)
Rear derailleurSRAM X7
ShiftersSRAM X7 Trigger (30)
Free wheelSRAM PG-1050 12-36 (10)
ChainSRAM PC-1031
HubsAUTHOR Helium / Xenon Disc 15 mm thru axle 32 holes
BrakesAVID Elixir 5 disc hydraulic (7" rotors)
Brakes leversAVID Elixir 5
RimsAUTHOR Neon Pro 32 holes
Spokesblack stainless steel 2.2 mm butted
TiresGEAX AKA Kevlar 26" x 2.20"
PedalsSHIMANO M520 clipless
HandlebarEASTON EA30 20 mm 635 mm
GripsAUTHOR GripLock
StemEASTON EA50
Seat postEASTON EA30 (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Nisene III
Speed30
Weight13,4 Kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 165 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 435 482 535
S/T c-c [mm] 0 0 0
T/T h [mm] 580 600 615
T/T a [mm] 0 0 0
H/T [mm] 120 125 130
C/S [mm] 425 425 425
W/B [mm] 1085 1105 1120
S/T ang. [°] 73.5 73.5 73.5
H/T ang. [°] 70 70 70
F/L [mm] 505 505 505
B/B drop [mm] 0 0 0
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 38 38 38
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Era 2.0 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
