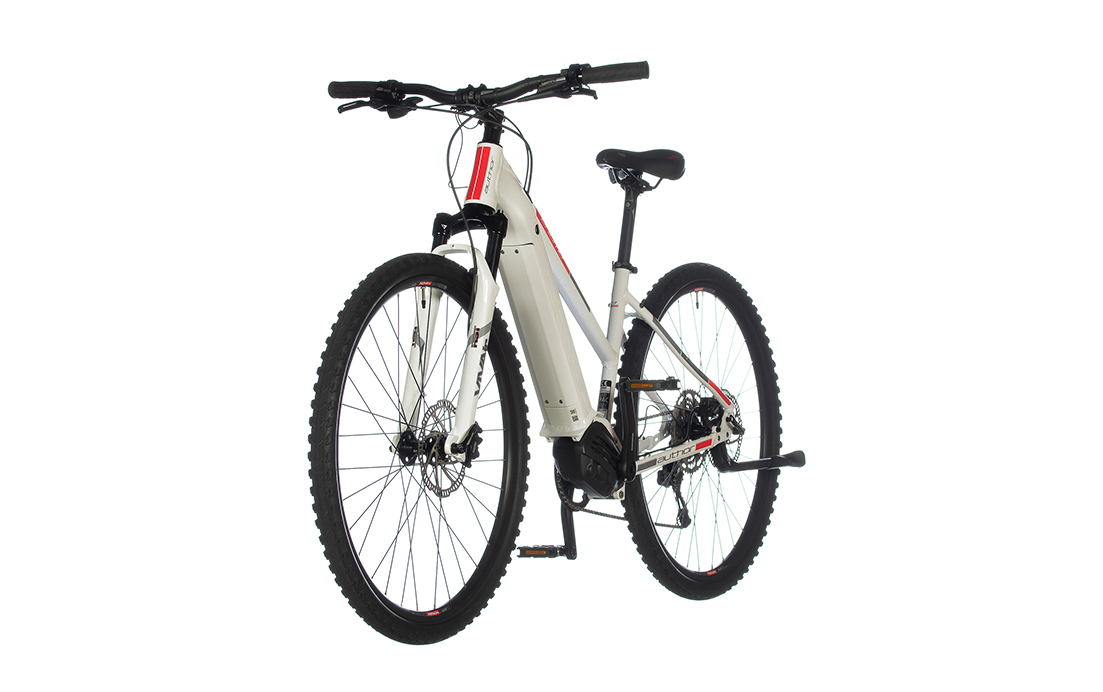

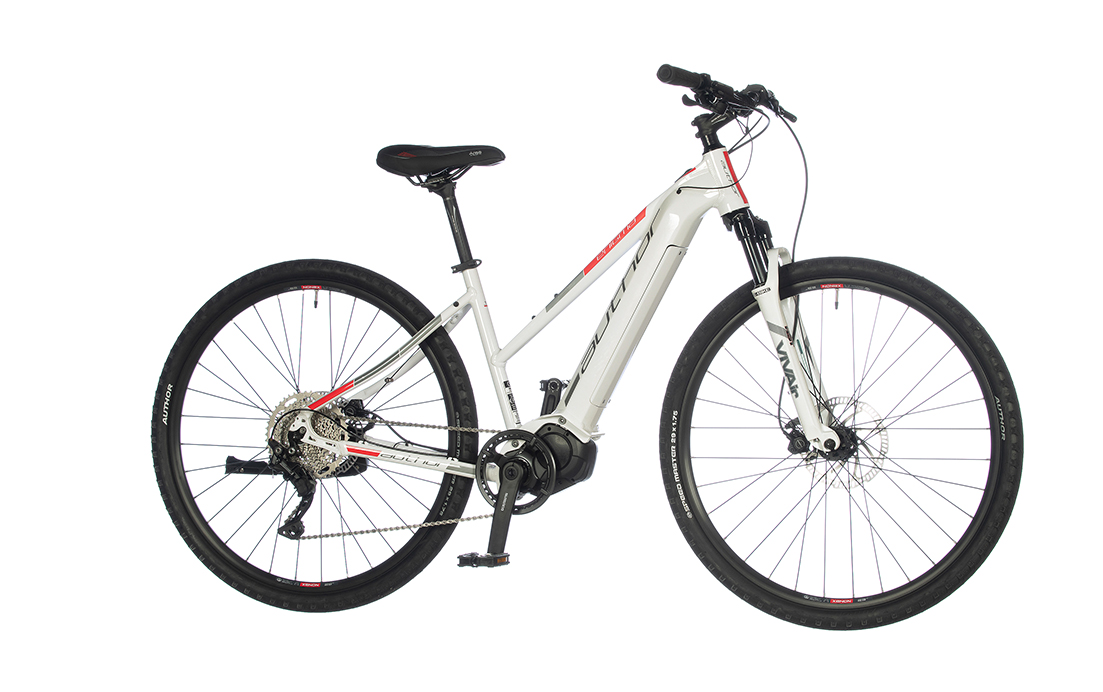

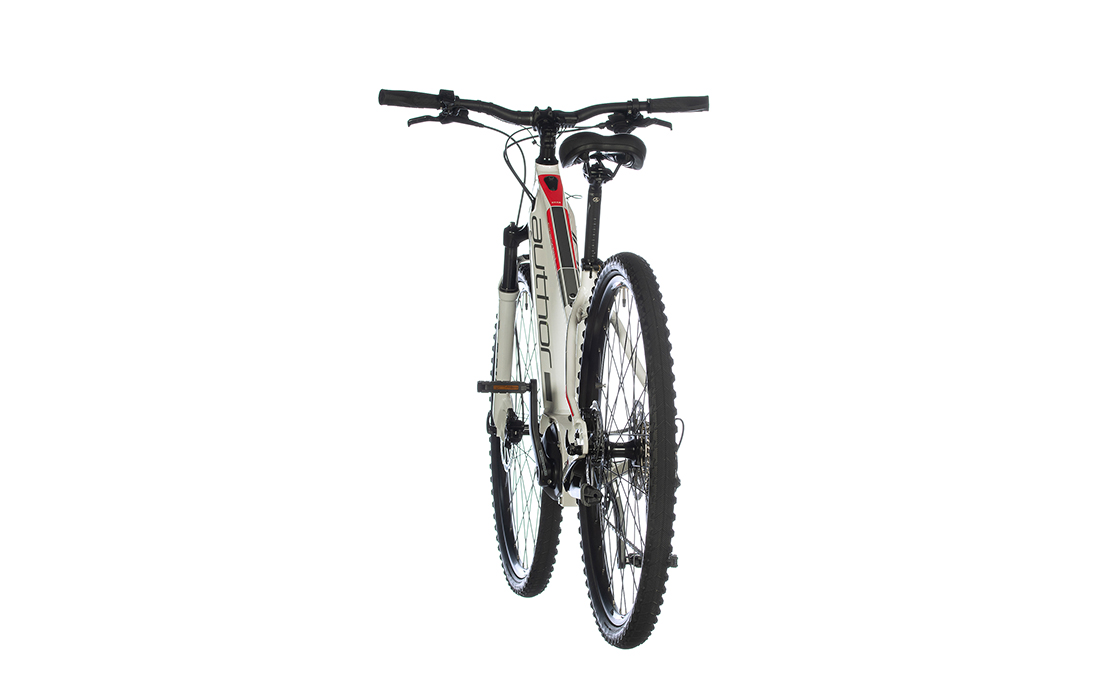

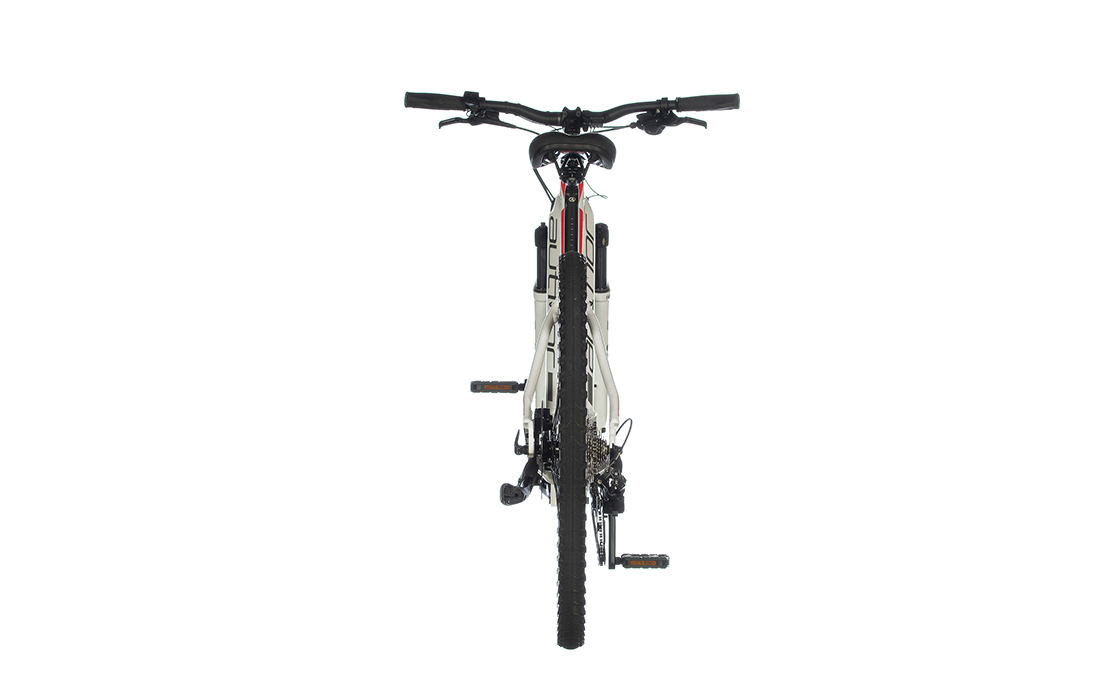

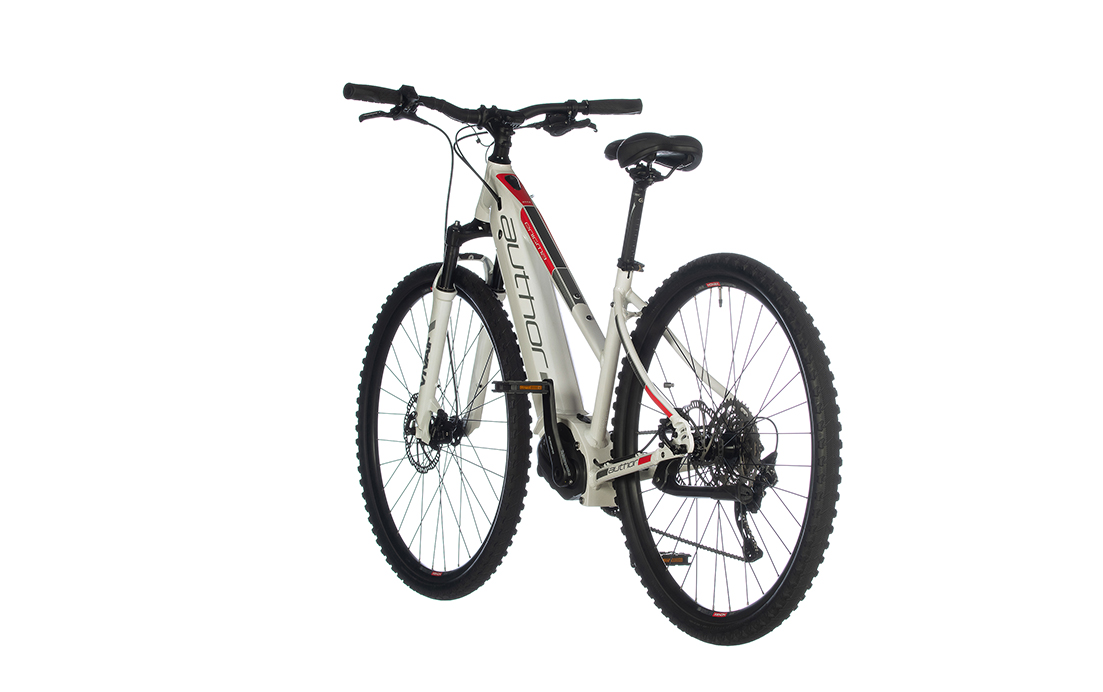

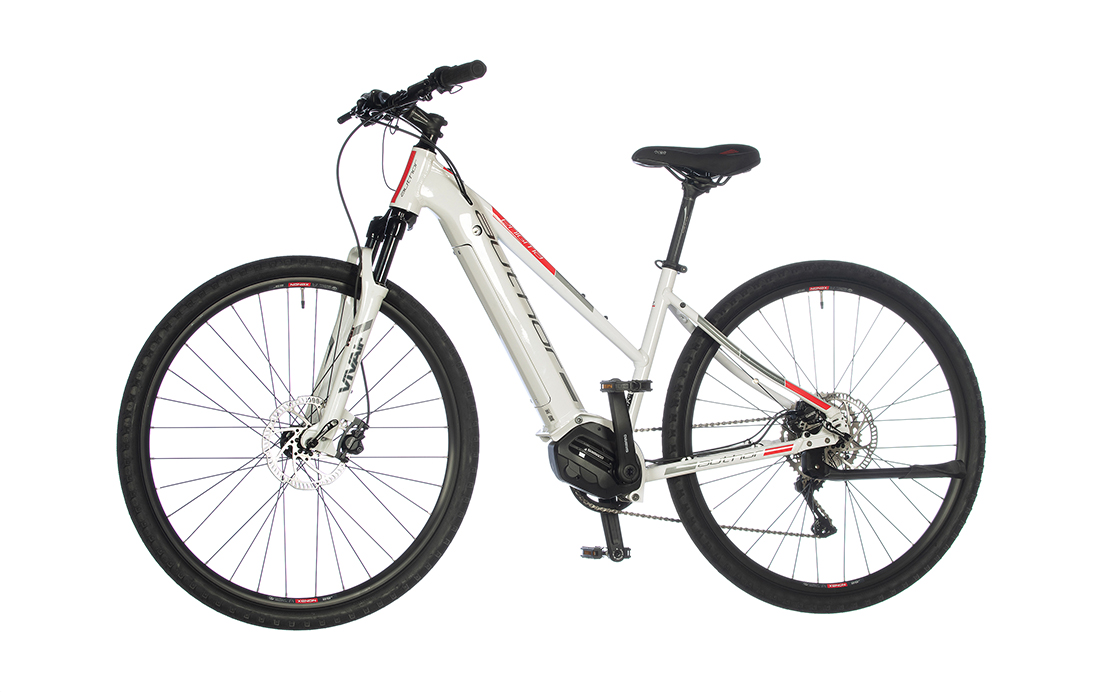

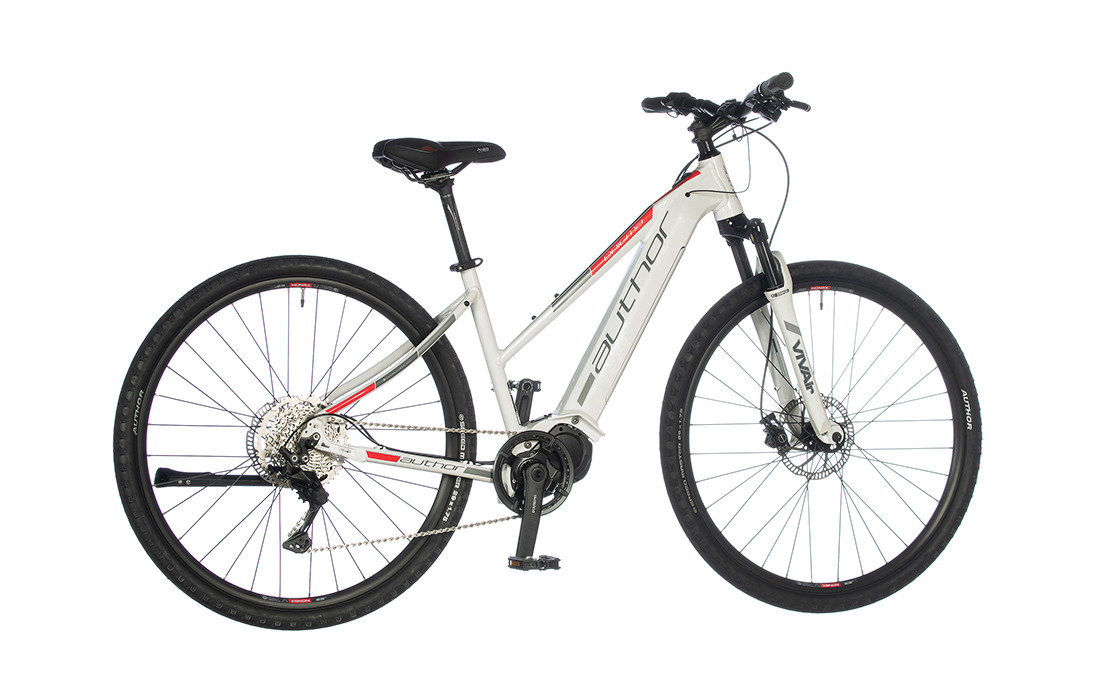

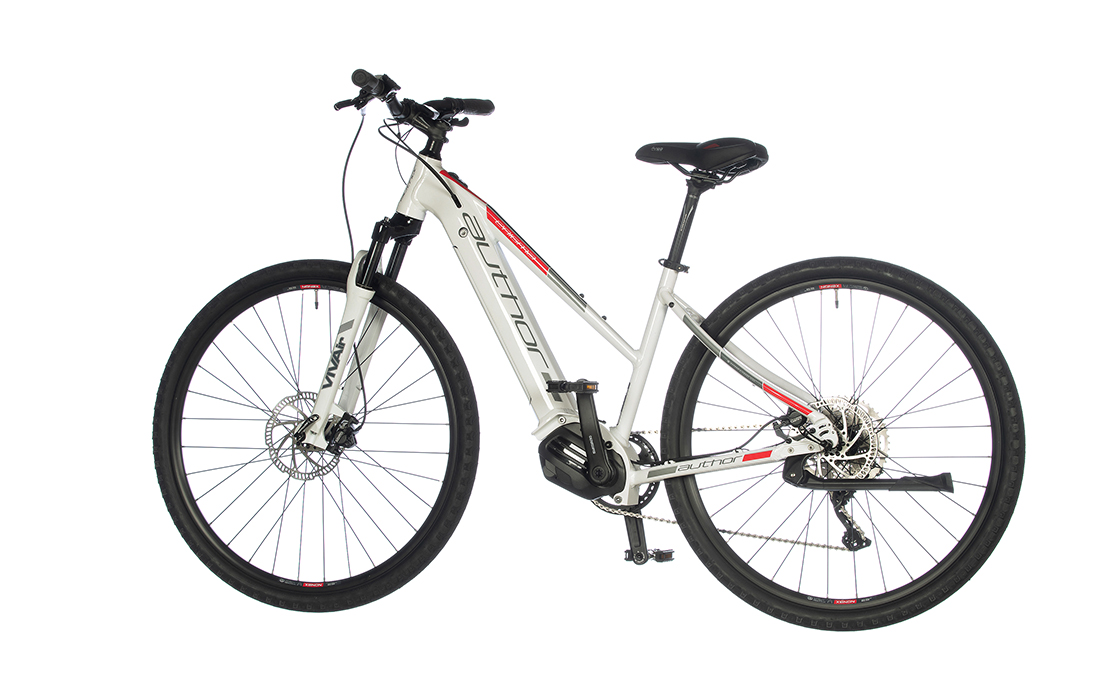

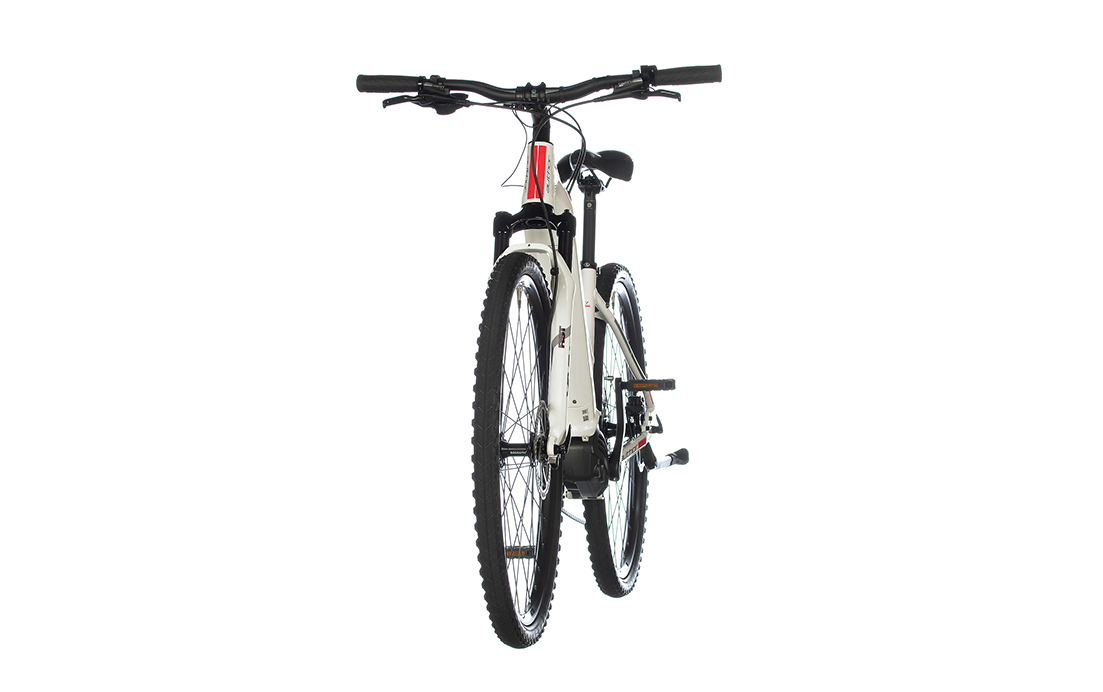

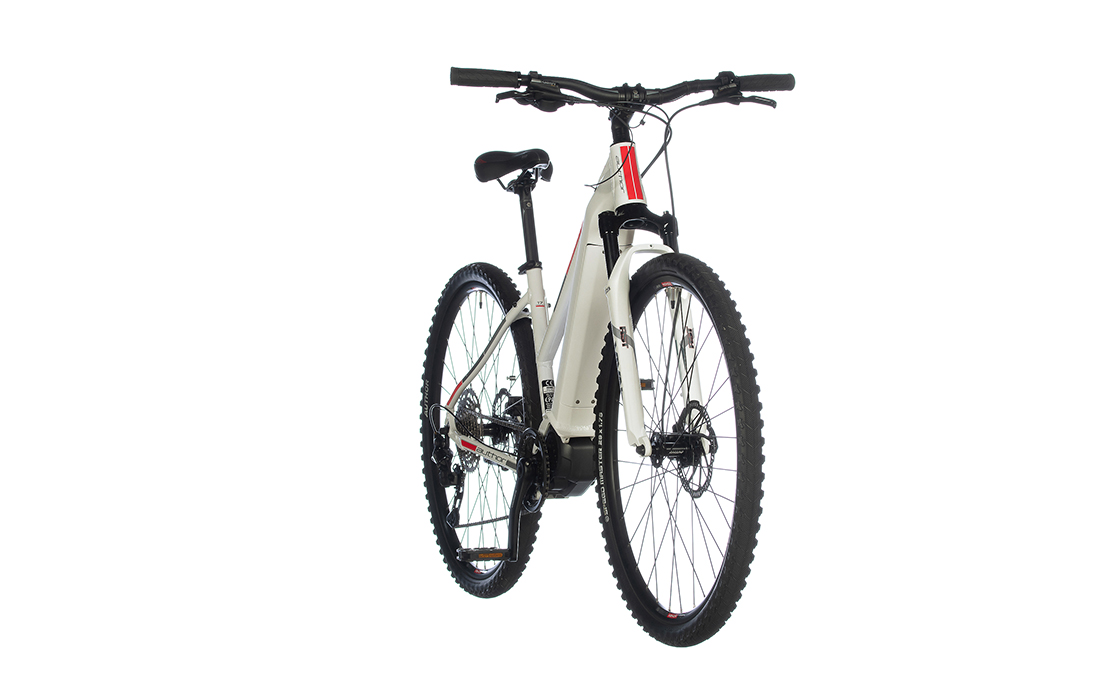

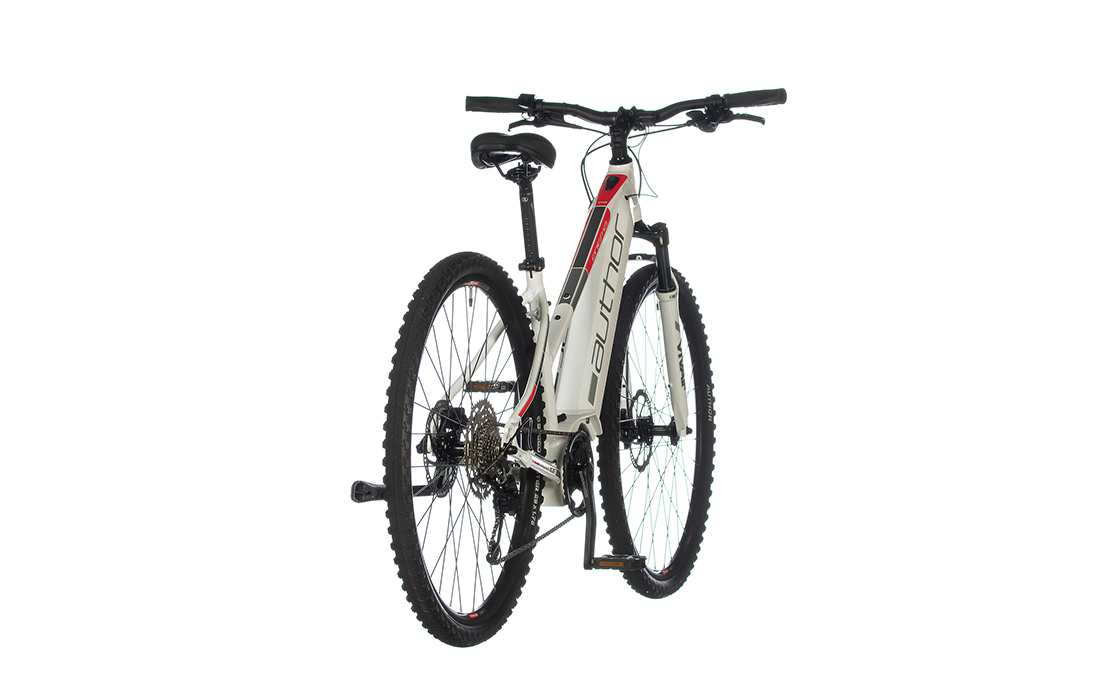

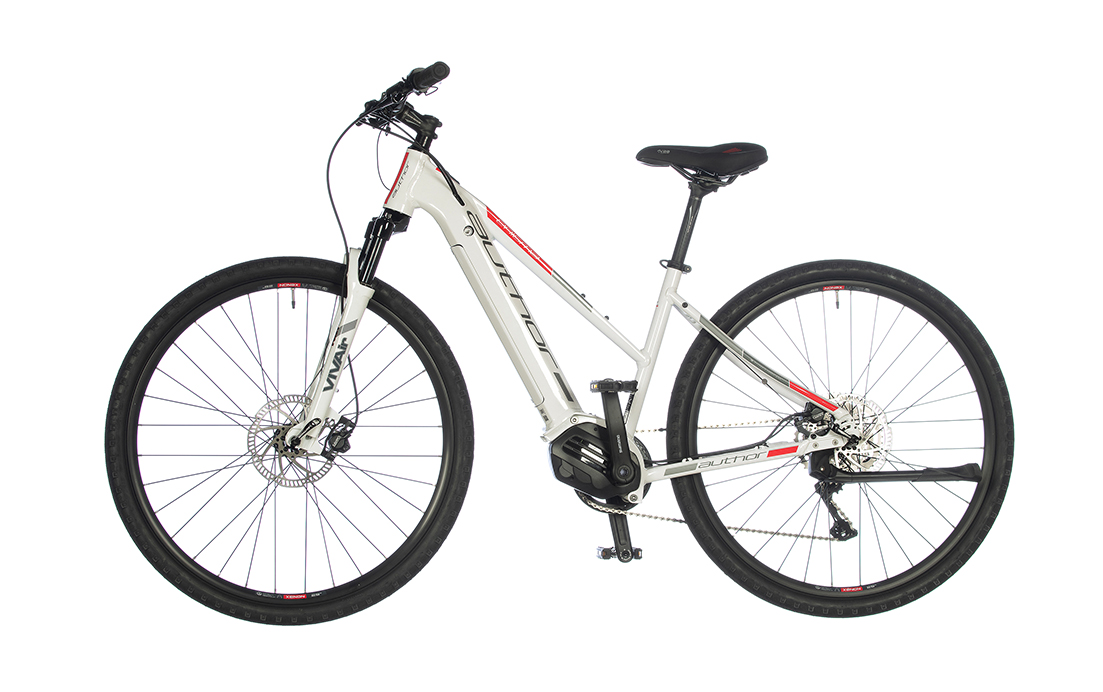

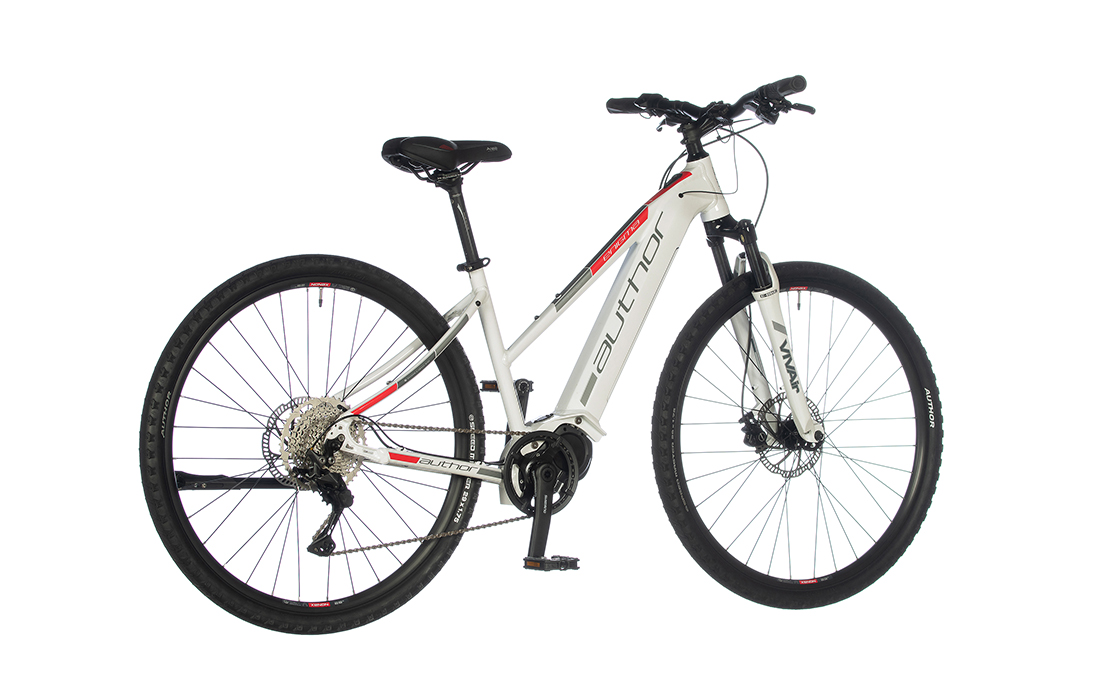

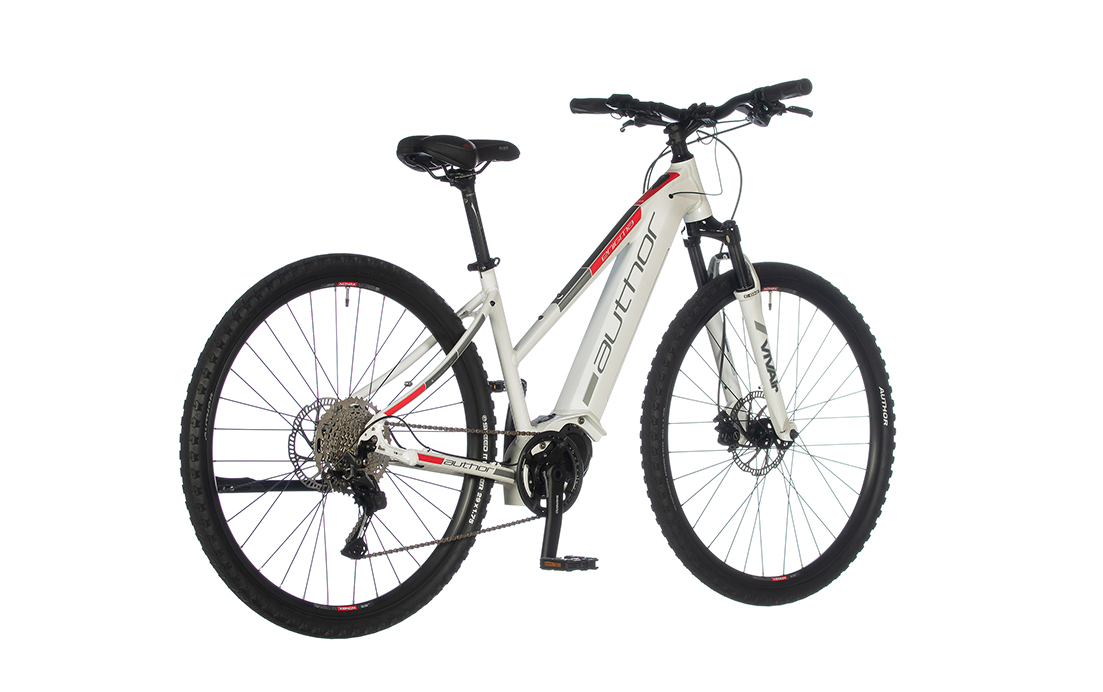

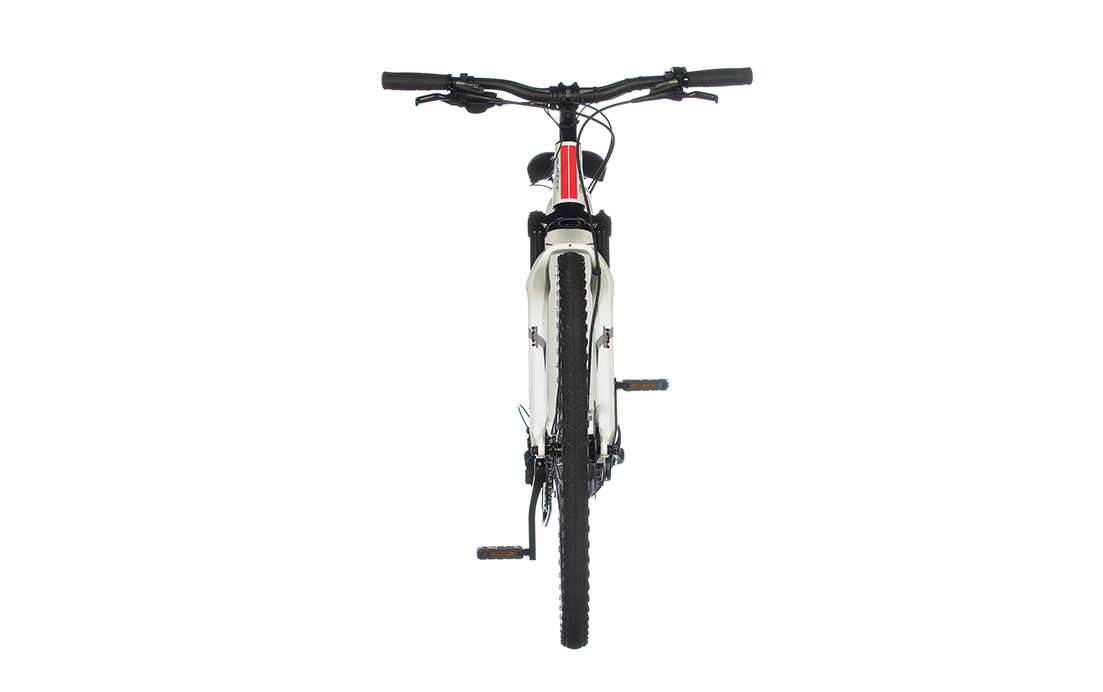

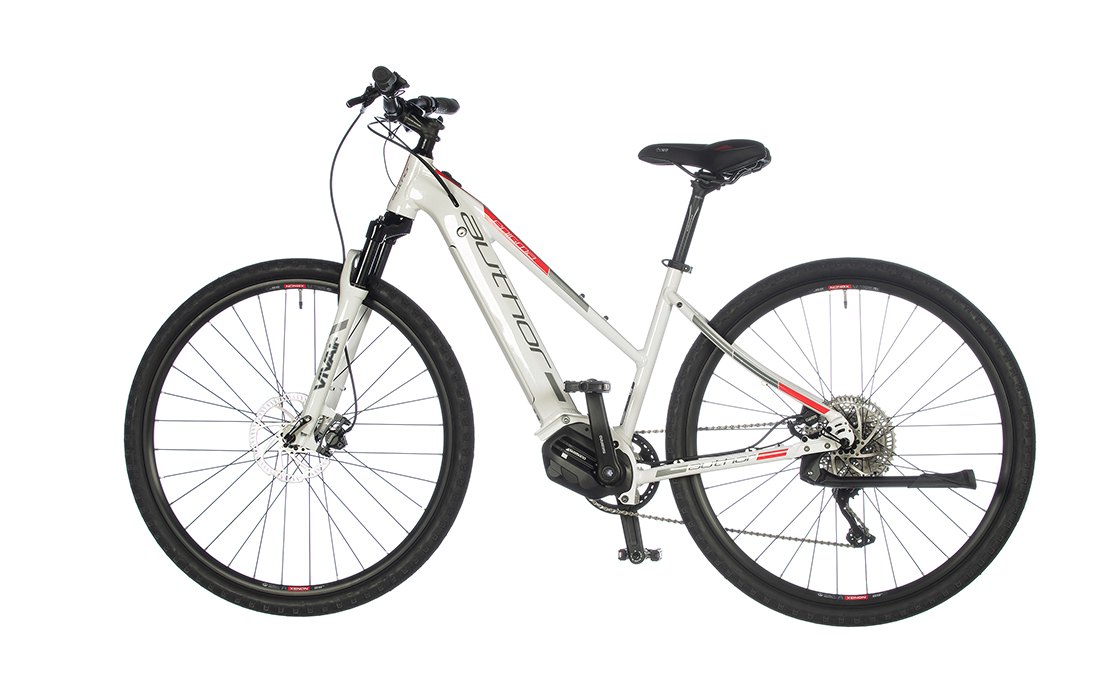

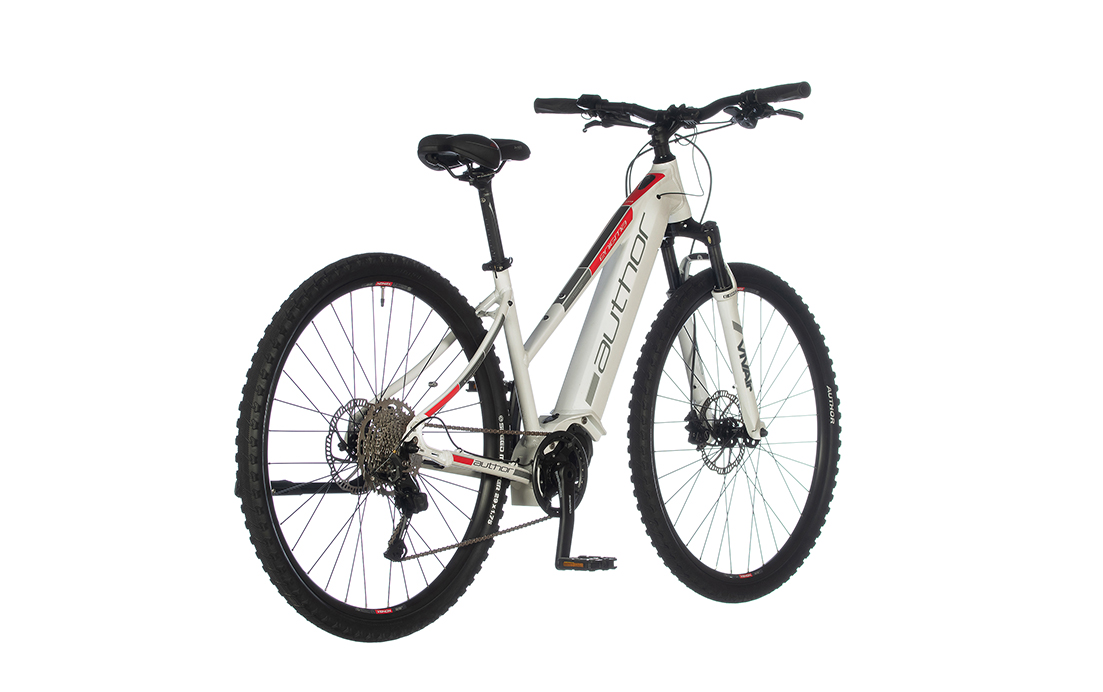

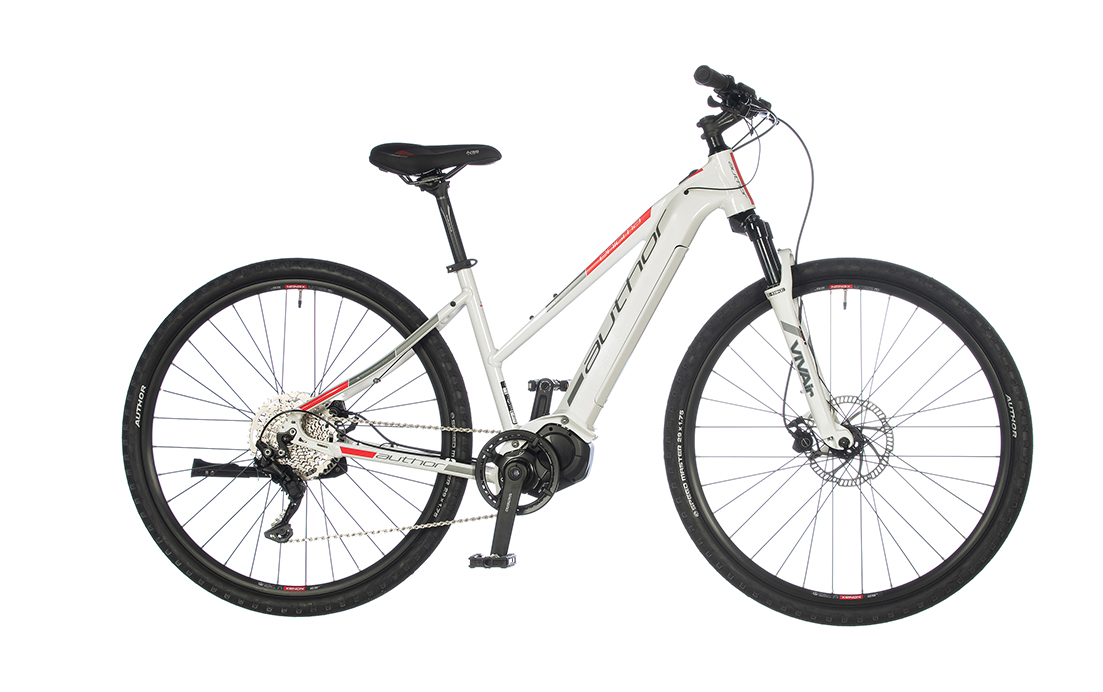

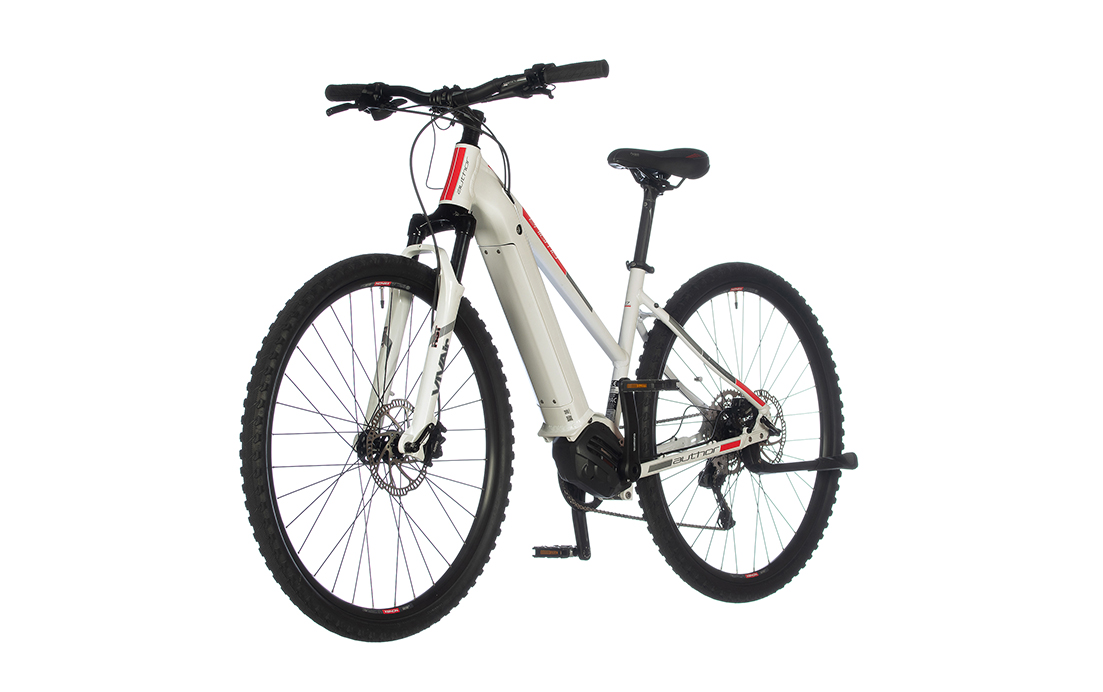

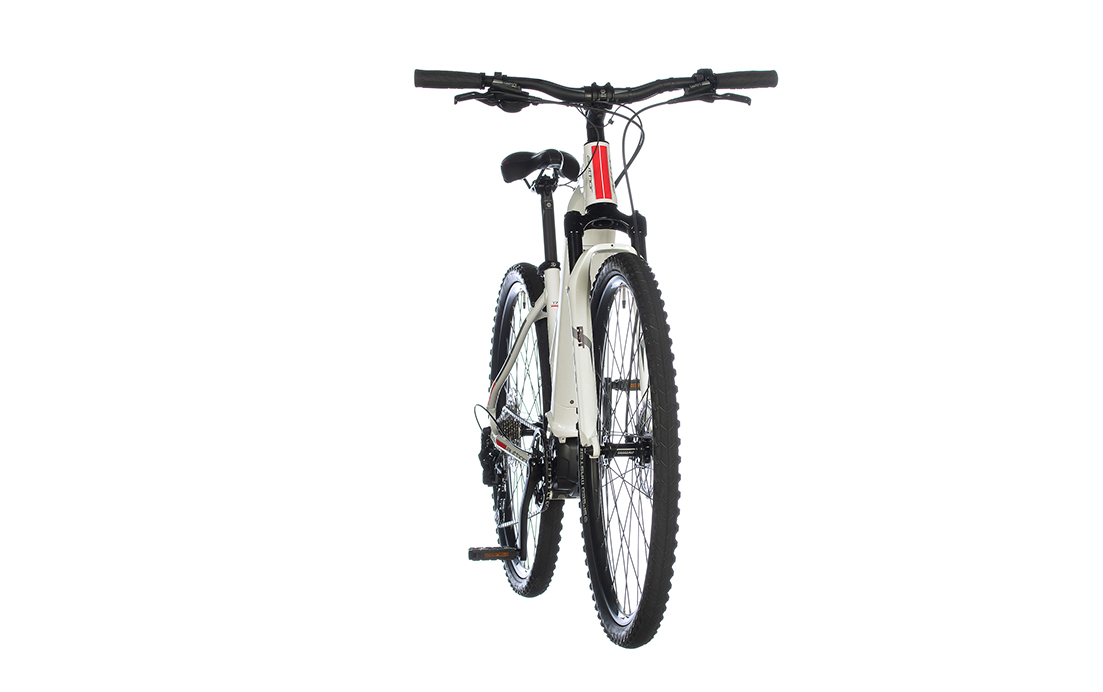

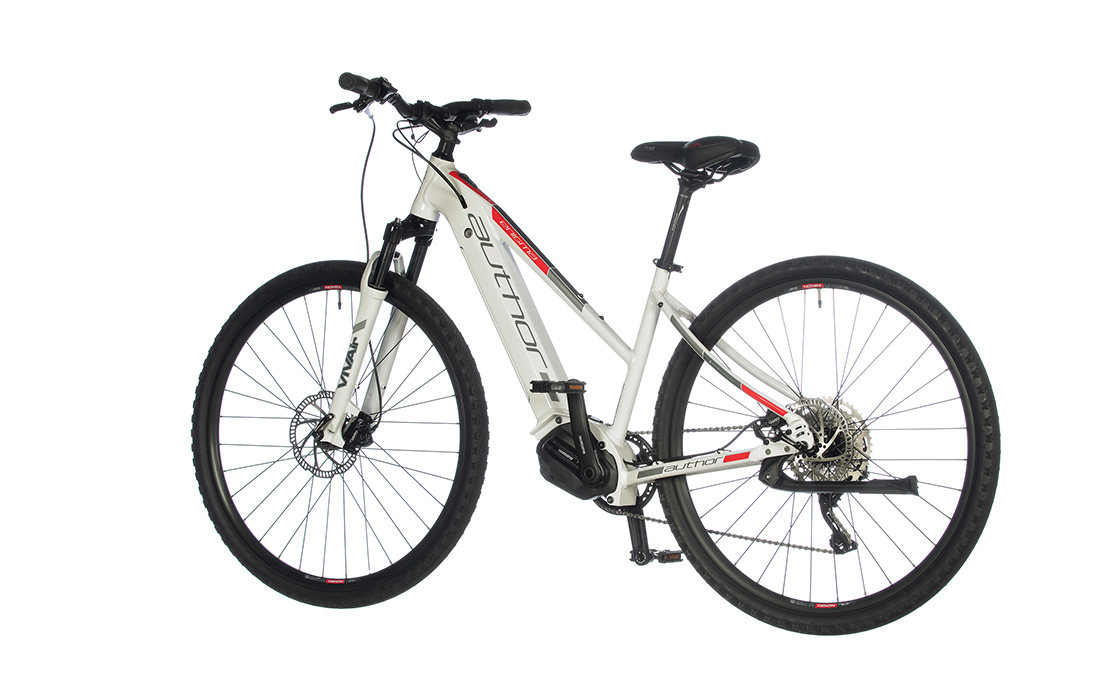

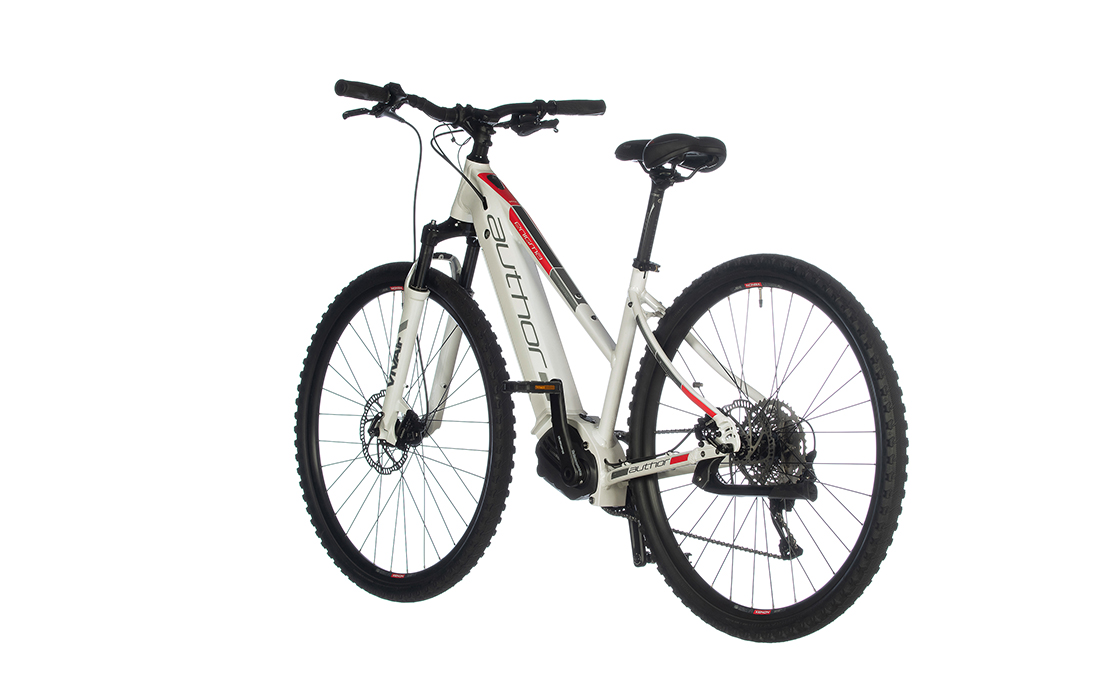

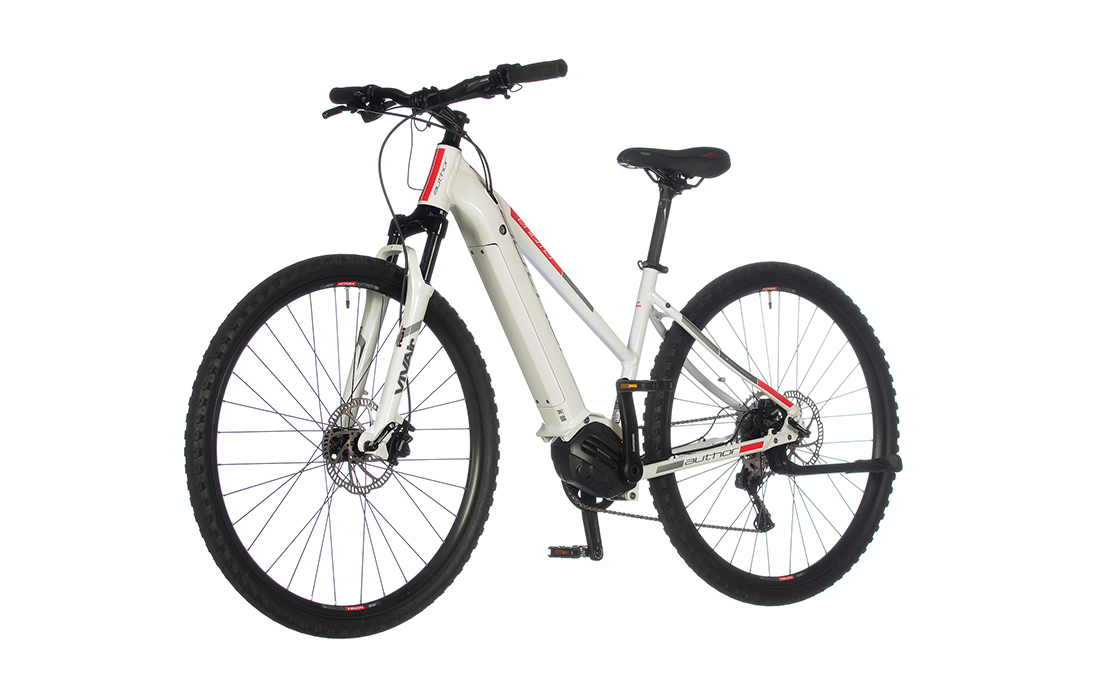

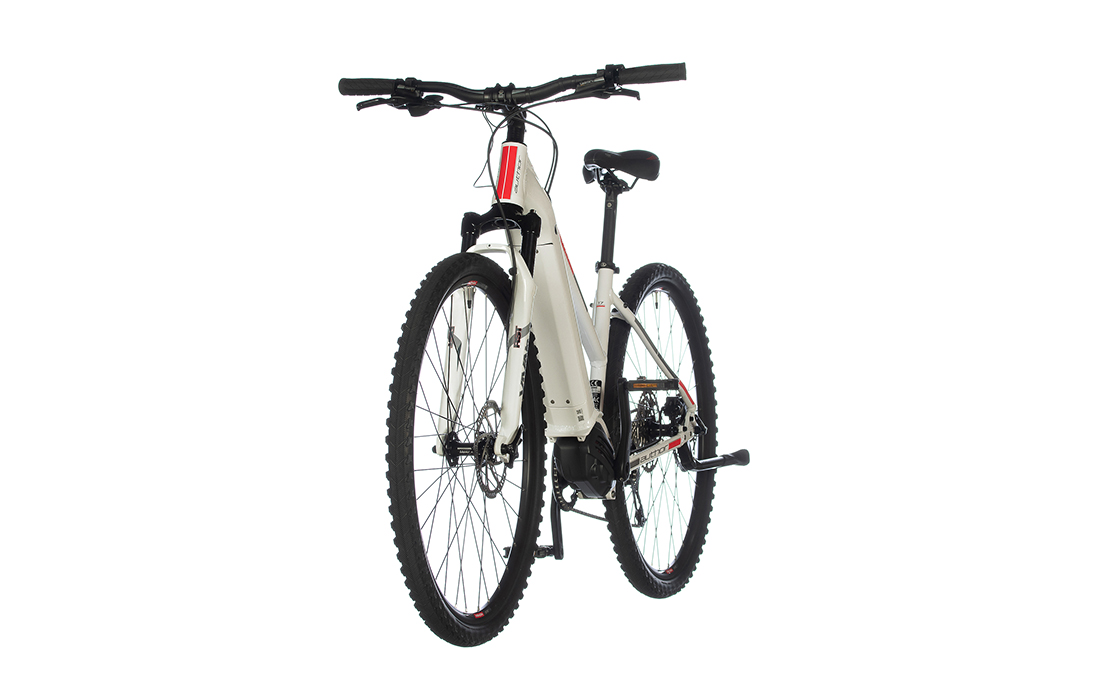

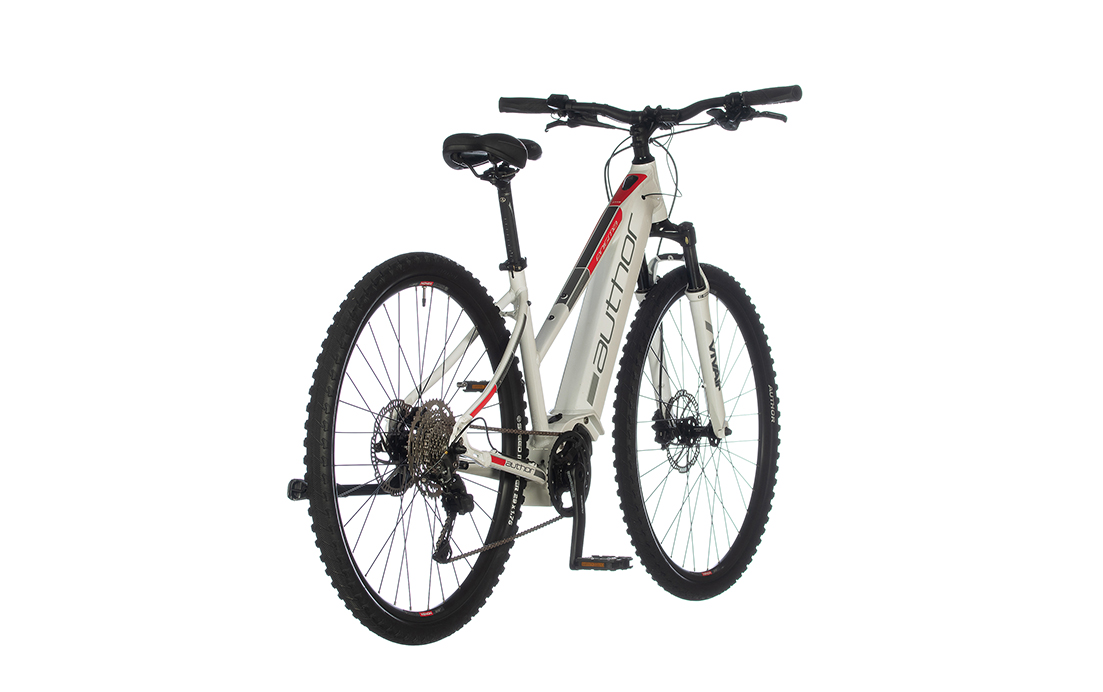

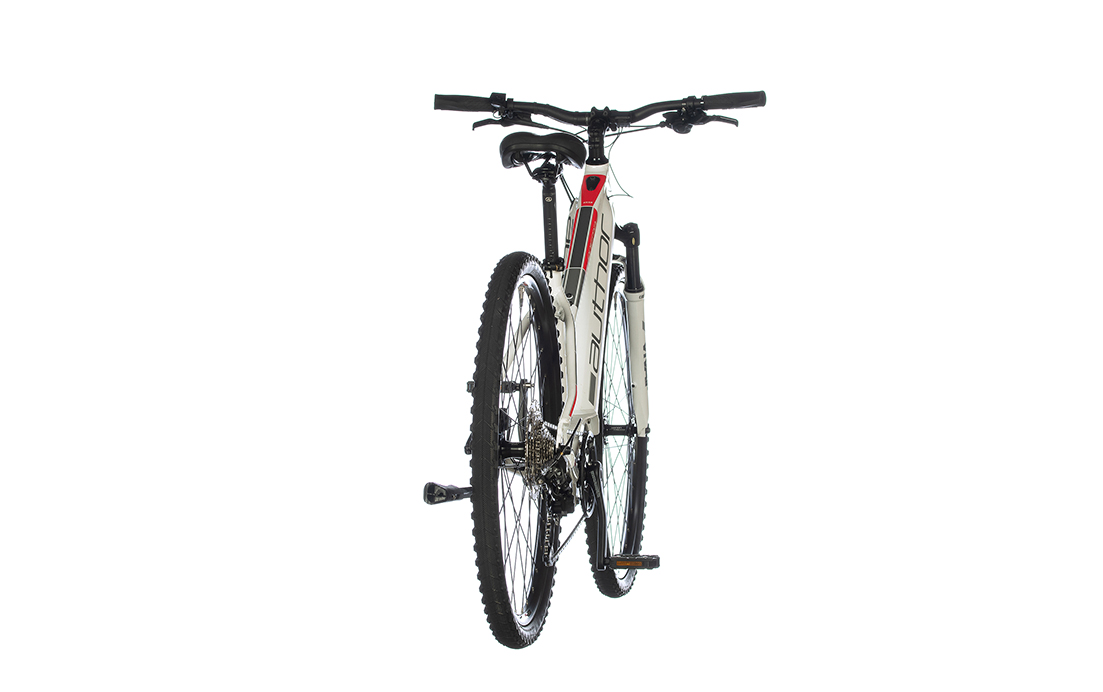

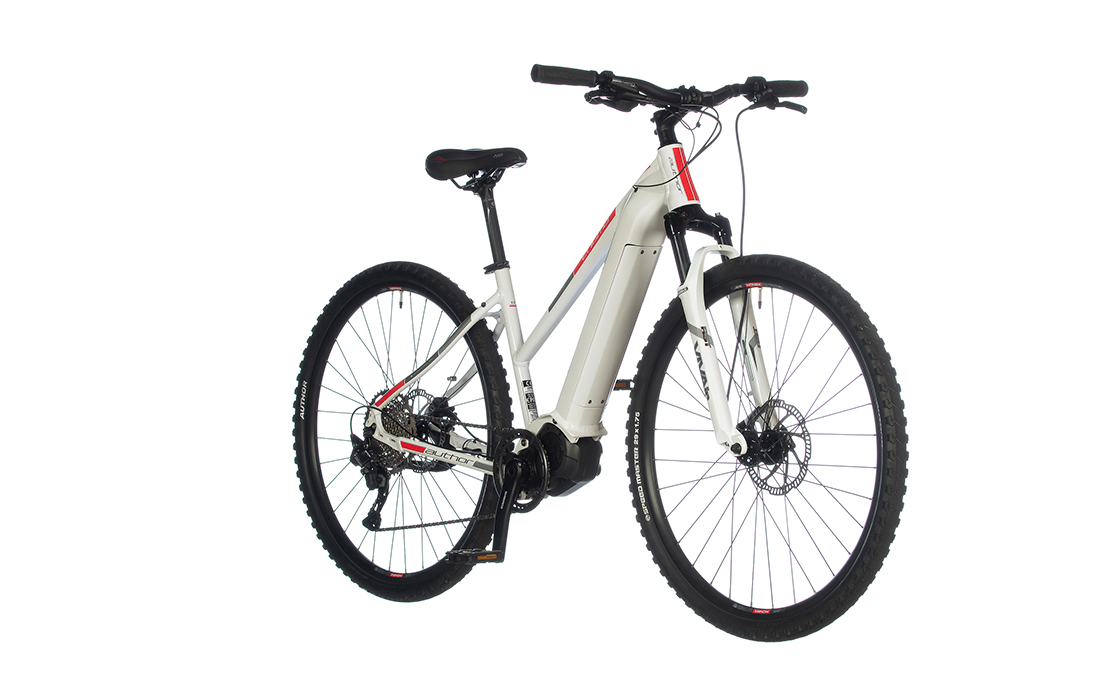

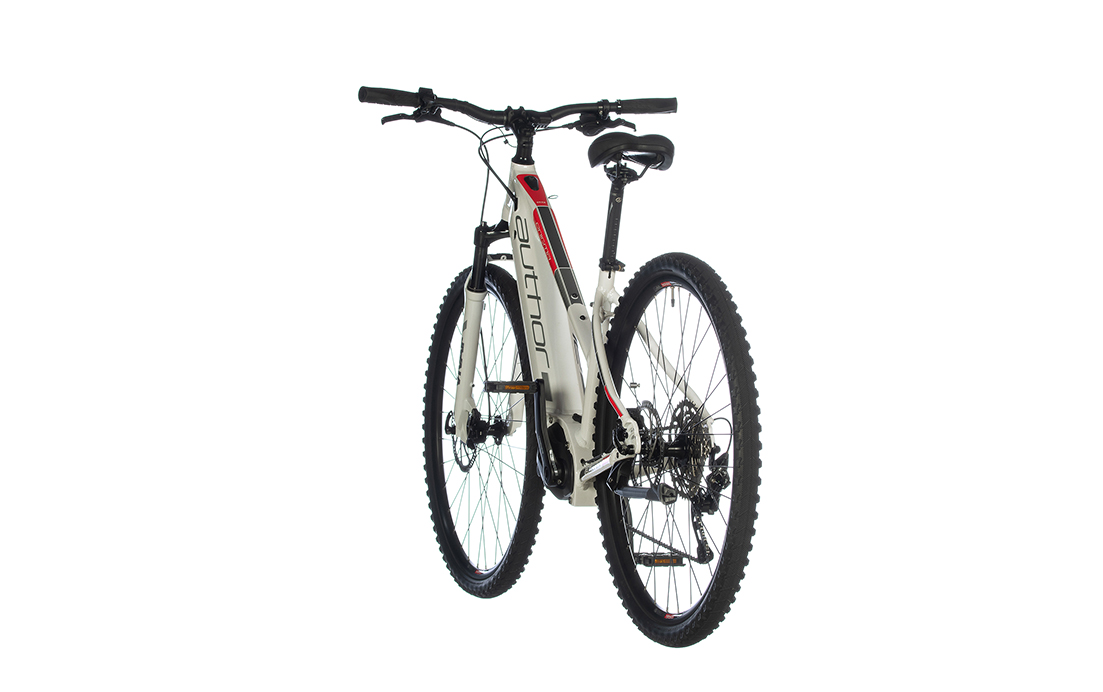

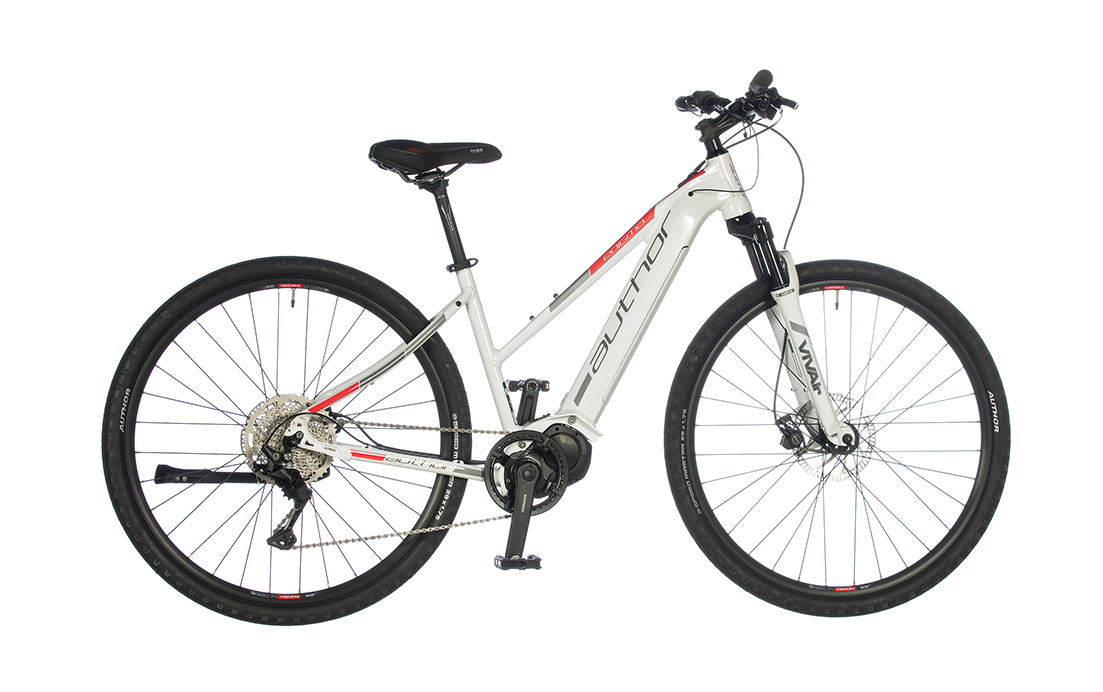

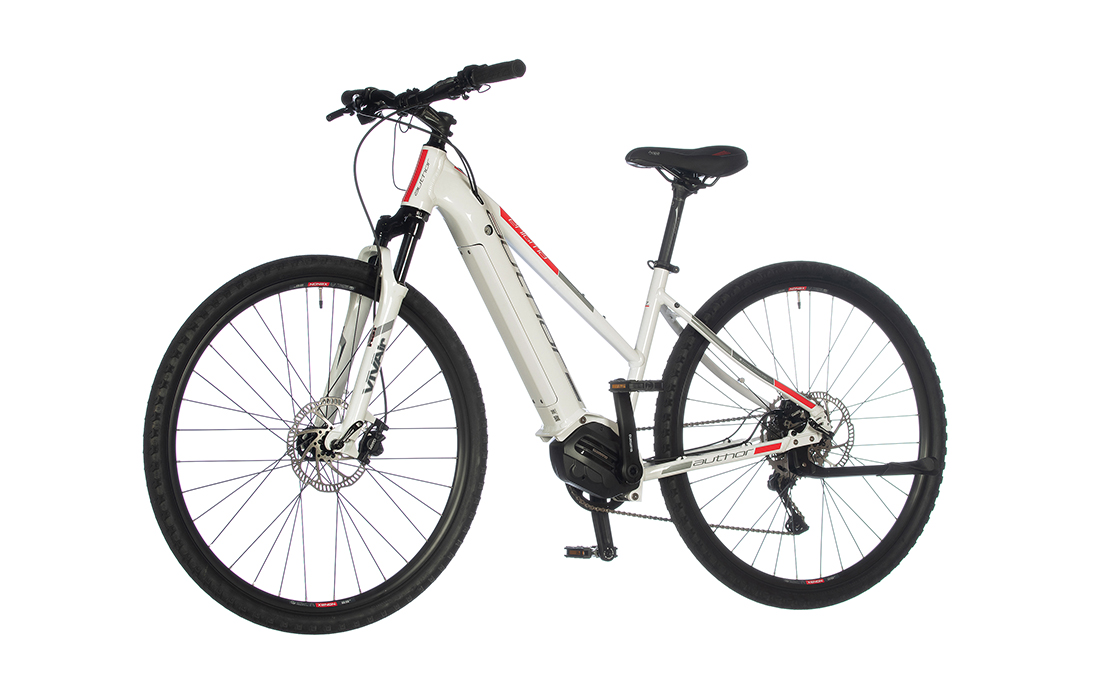

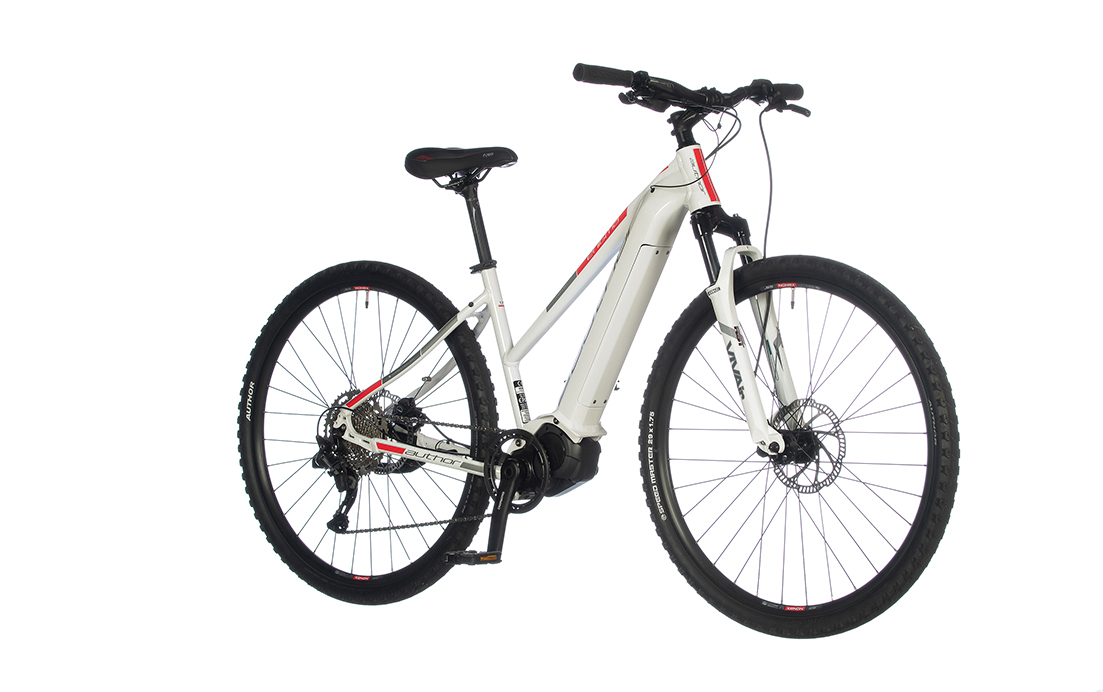

AUTHOR Enigma 2021-22Archivní model 2021-22

Colour variants
1
SHIMANO STEPS E6100 center, 250 WSHIMANO E8035 integrated battery 36 V, 14 Ah, 500 WhNew SHIMANO DEORE rear derailleuer and shifting, 10 speed
price 69 990 Kč
SOLD OUT
other models

Technical specification

Size17", 19"
Framedouble butted hydroformed alloy 6061 29" (9) (integrated battery)
Front forkRST ViV Air TnL air, lock out 1.5" tapered column (80 mm)
EngineSHIMANO Steps E-6100, 250 W
BatterySHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
DisplaySHIMANO Steps E-7000, LCD
Head partsAUTHOR Integrated 1,5"
Chain WheelSHIMANO Steps E-6100 38 teeth 170 / 175 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (10)
Free wheelSHIMANO CS-M4100-10 11-46 (10)
ChainKMC e10T
HubsAUTHOR Xenon 32 holes
BrakesTEKTRO Gemini disc hydraulic (7" rotors)
Brakes leversTEKTRO Gemini WS
RimsAUTHOR Xenon 29 32 holes
Spokesblack stainless steel 2.2 mm
TiresVITTORIA Barzo 29" × 2.10"
PedalsAUTHOR Non Slip alloy
HandlebarAUTHOR 15 mm 660 / 680 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Area Gel
Speed10
Weight21,7 kg / 17"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 155 167
Max. figure [cm] 169 182
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 575 585
T/T a [mm] 609 620
H/T [mm] 125 130
C/S [mm] 460 460
W/B [mm] 1093 1103
S/T ang. [°] 73.5 73.5
H/T ang. [°] 70.5 70.5
F/L [mm] 490 490
B/B drop [mm] 60 60
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 44 44
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Enigma 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

white / red / silver17" = UA#42940502   19" = UA#42940503
