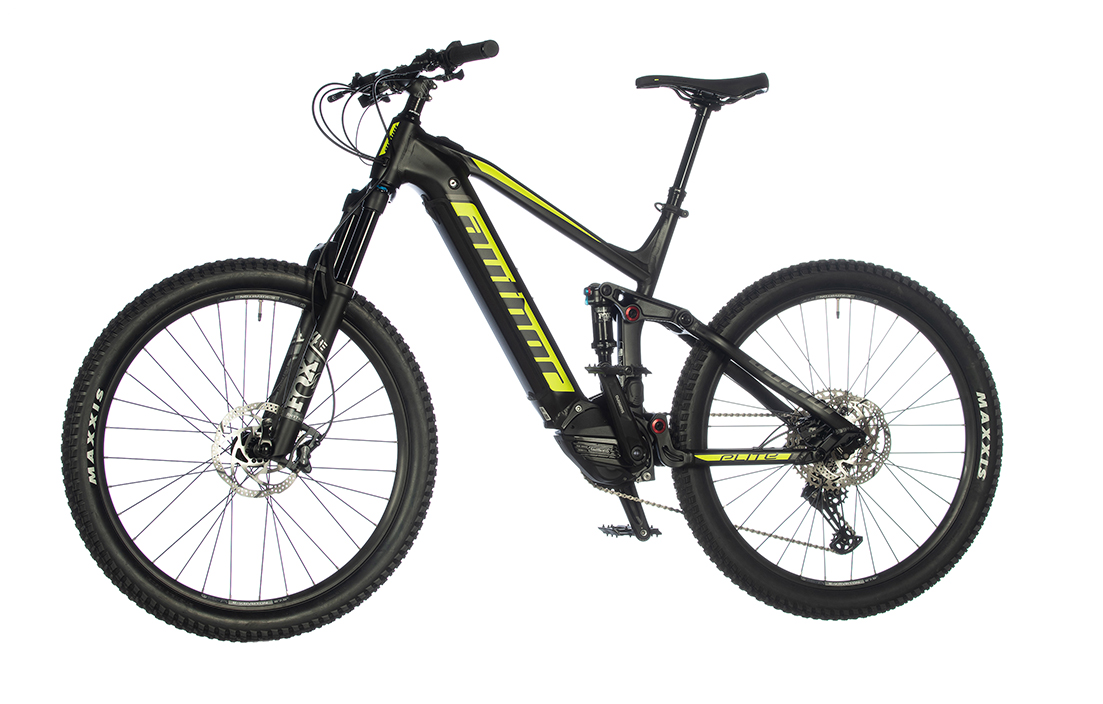

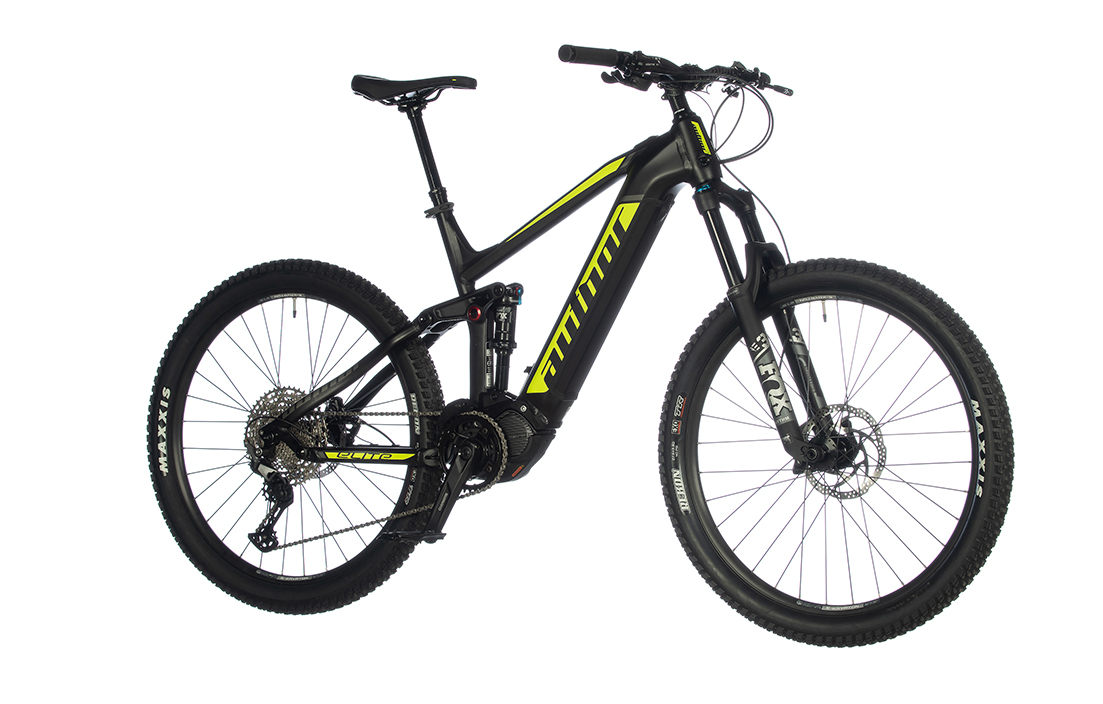

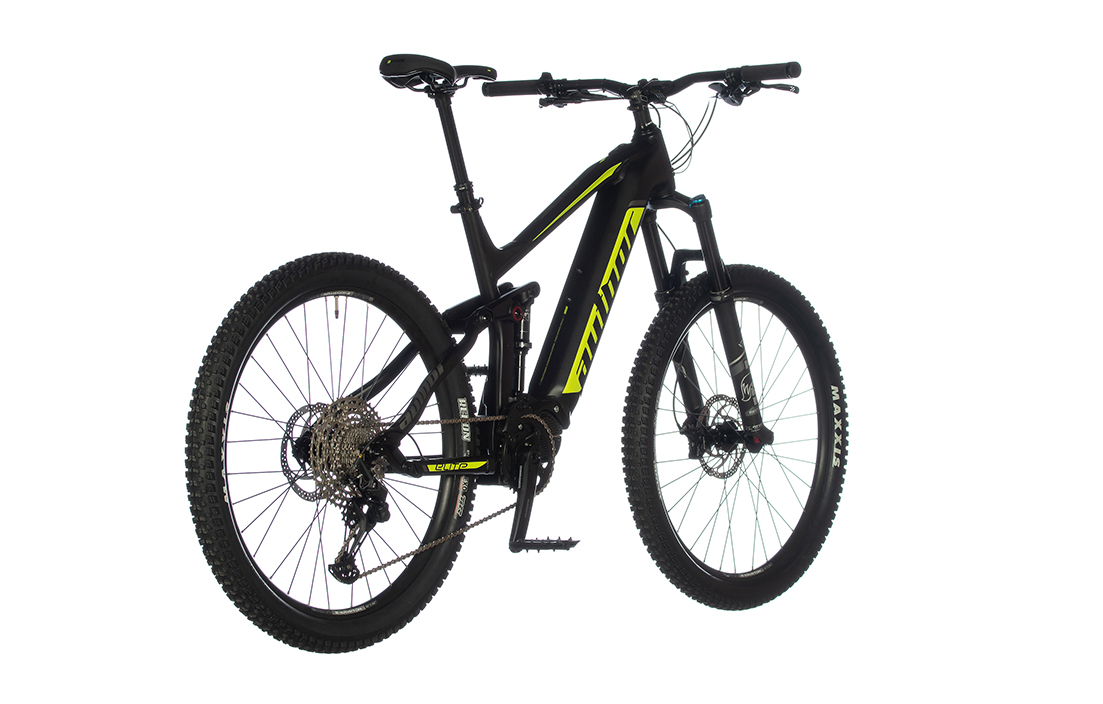

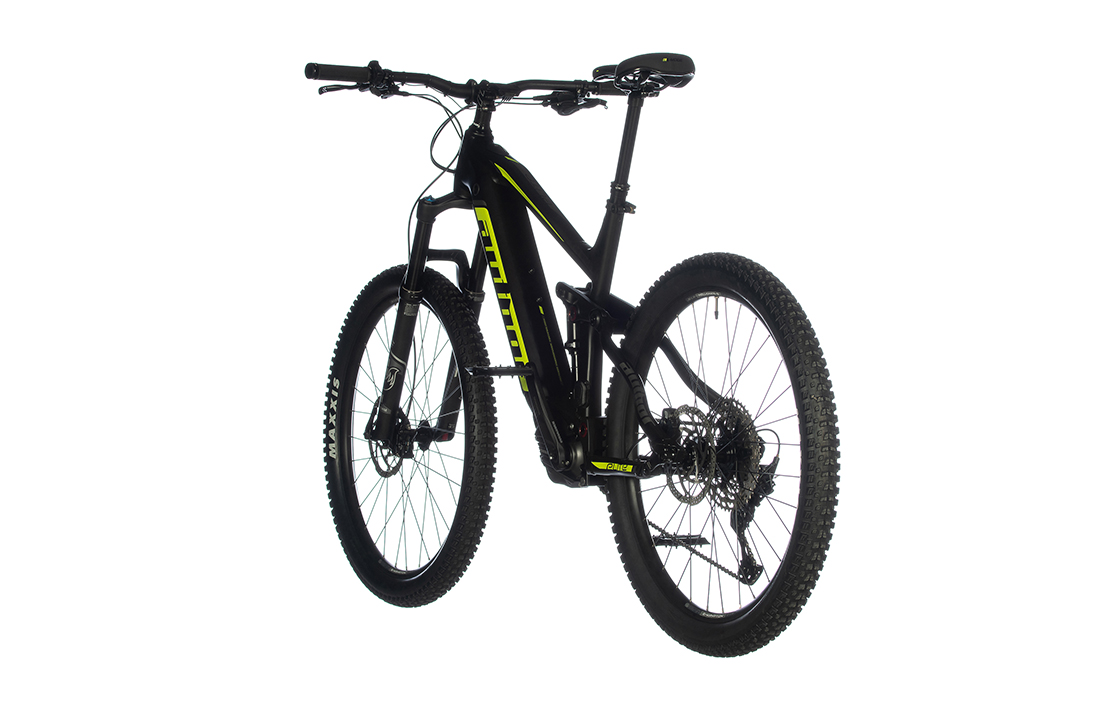

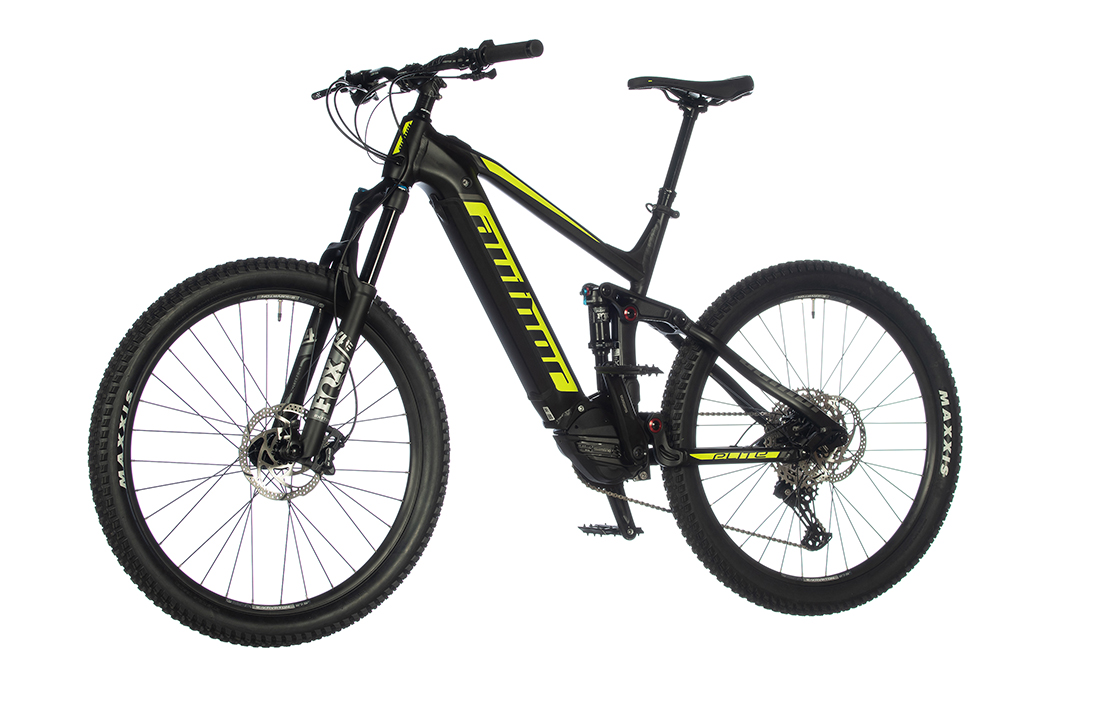

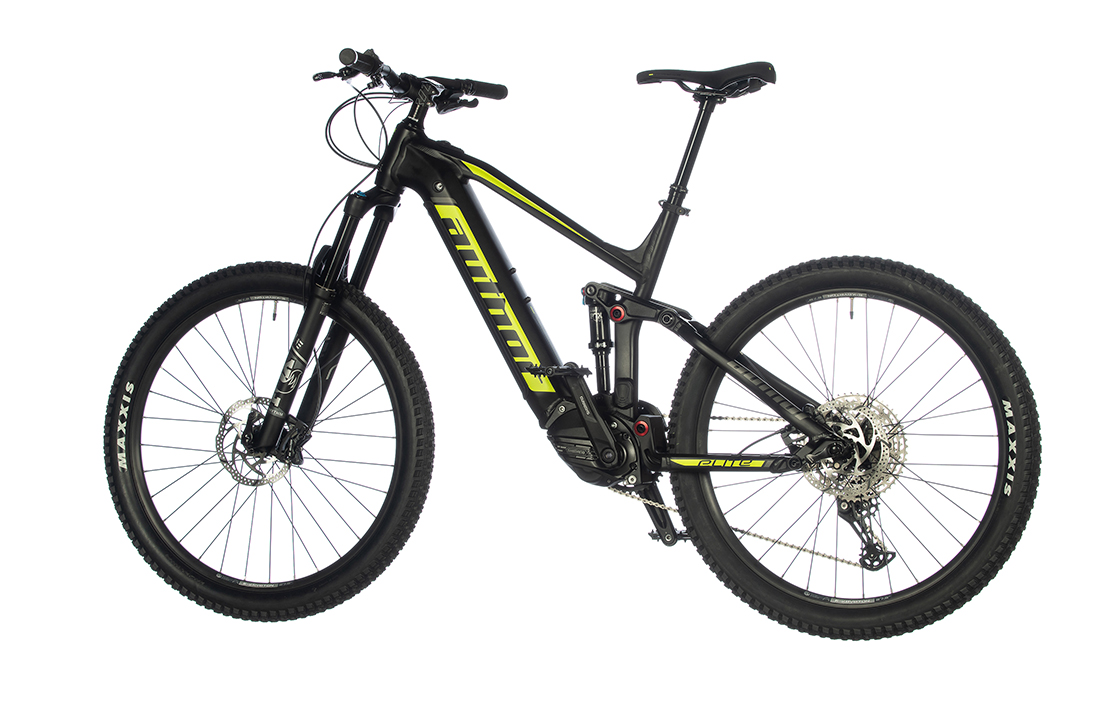

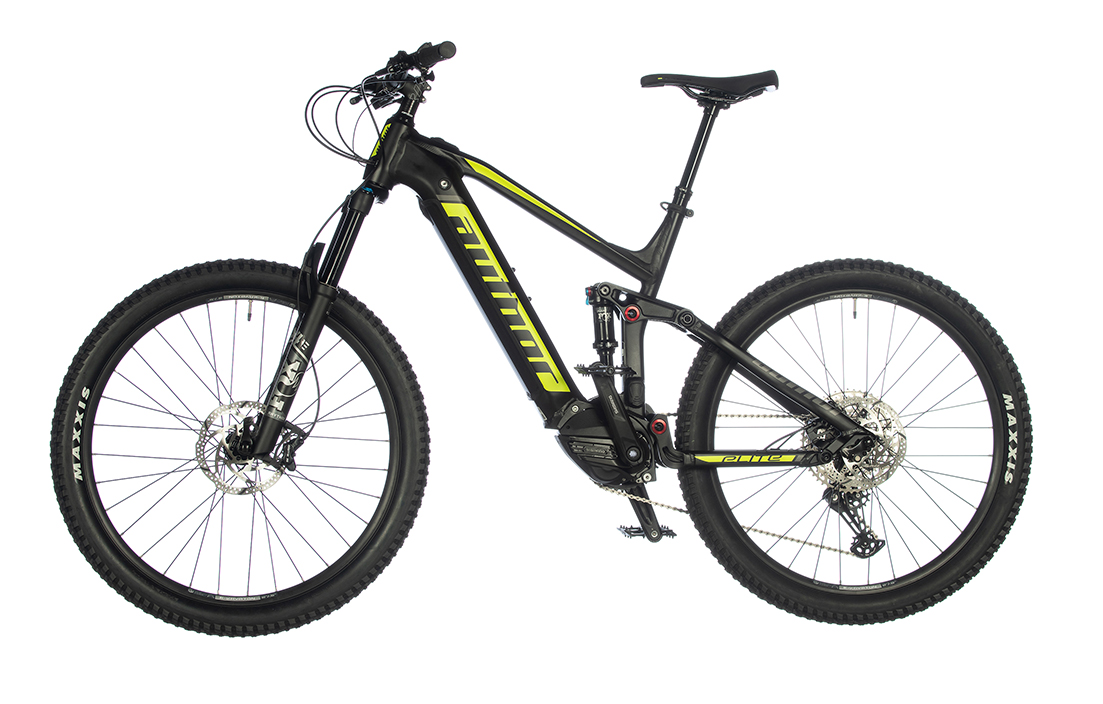

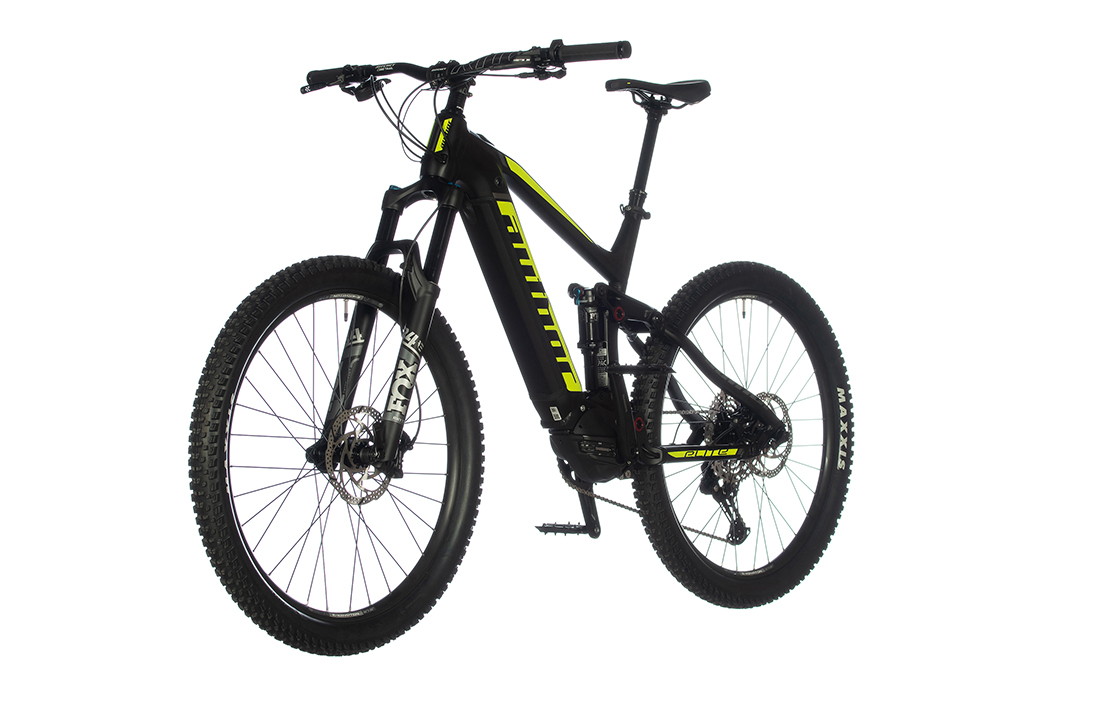

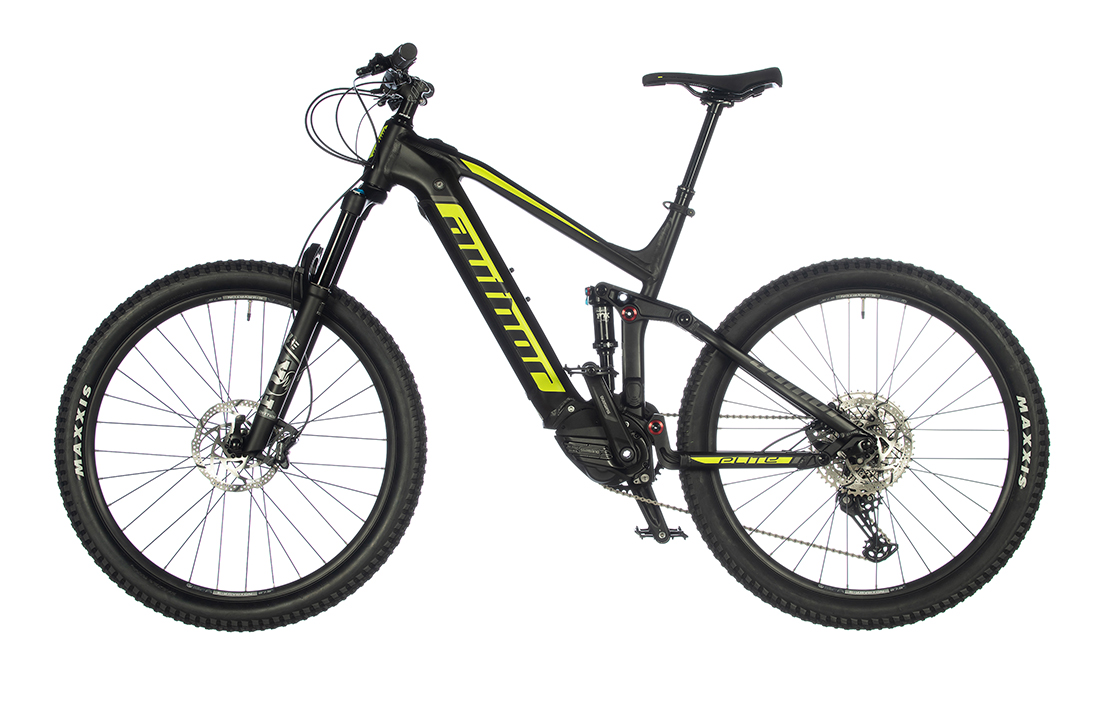

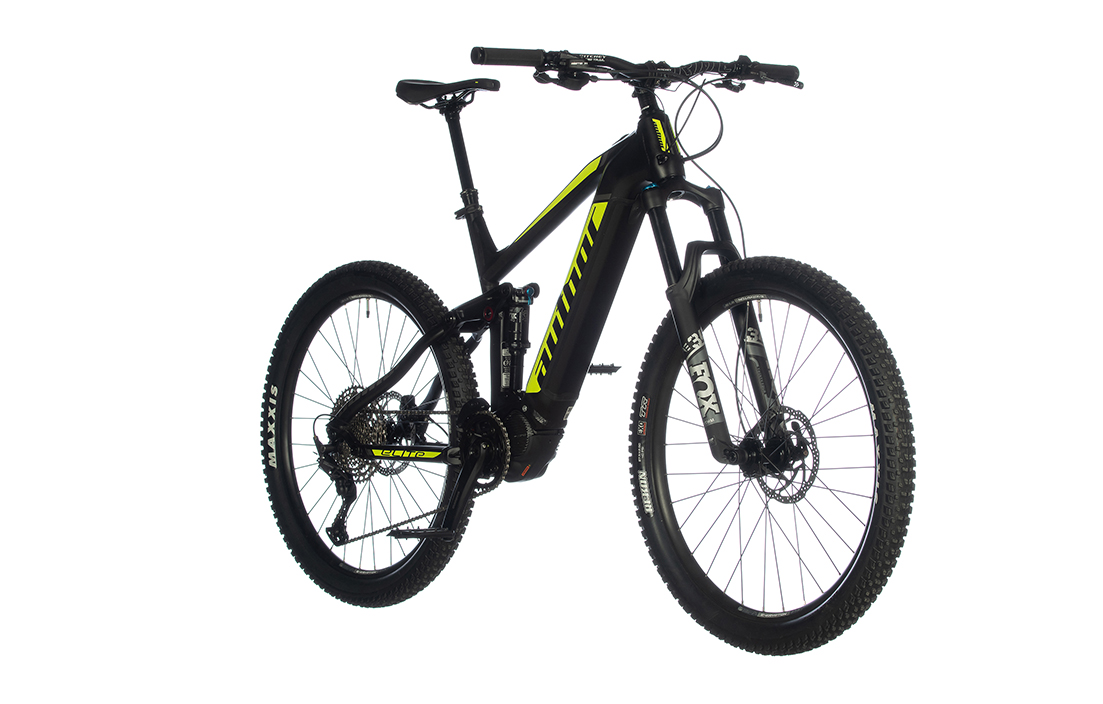

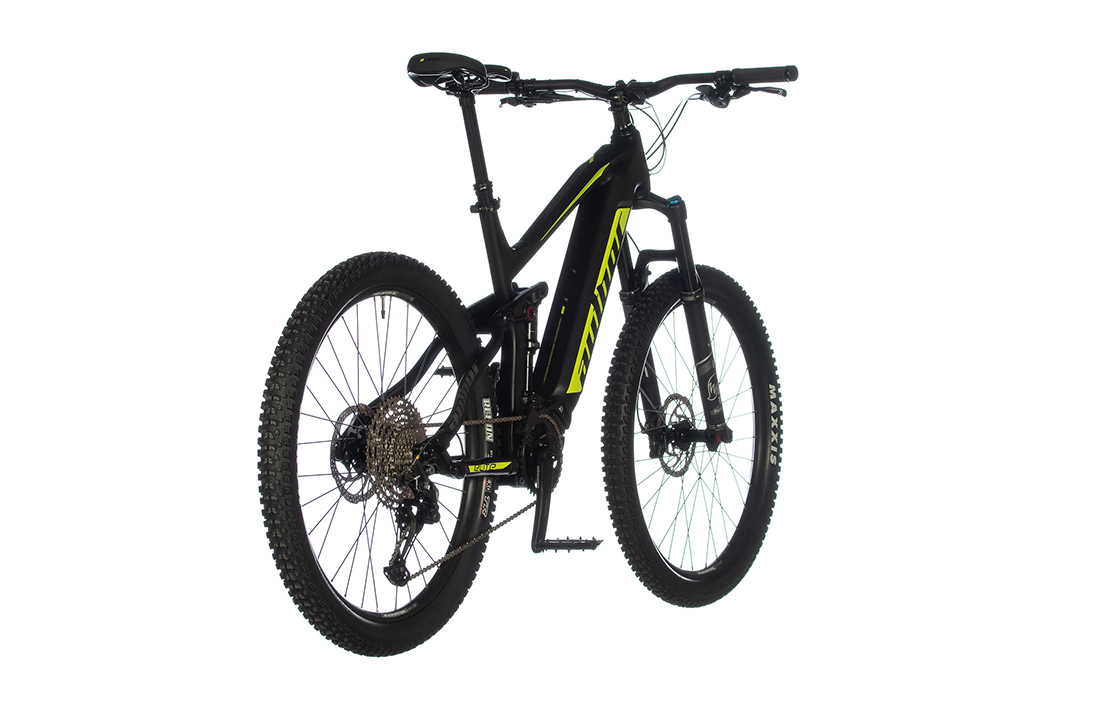

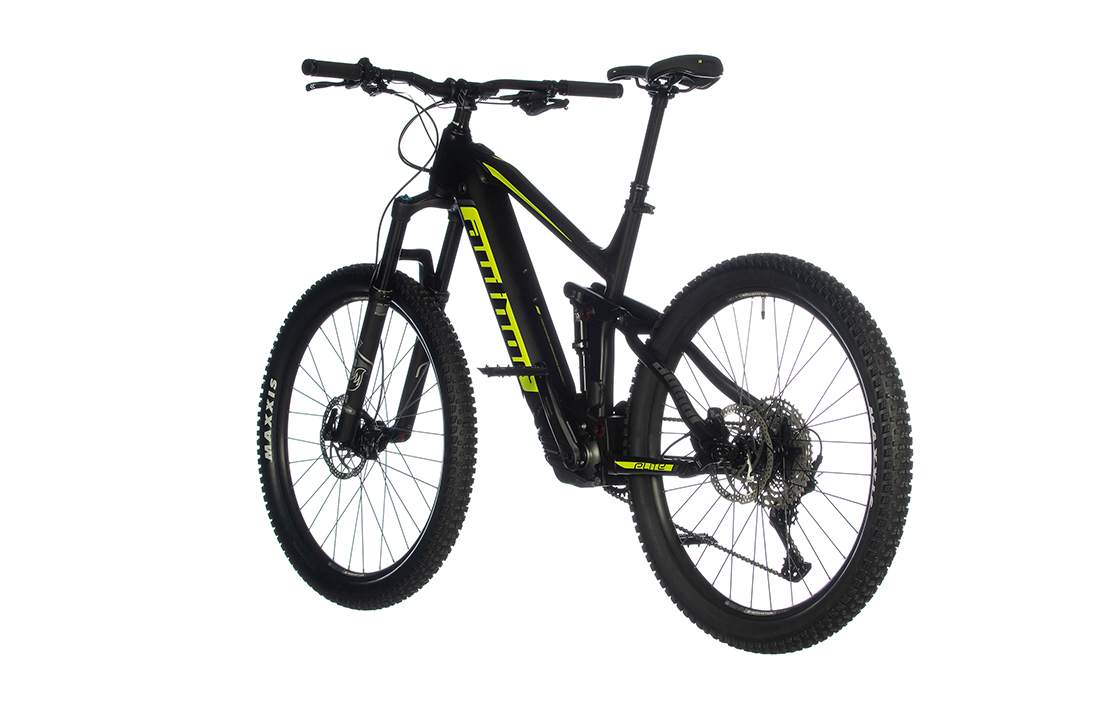

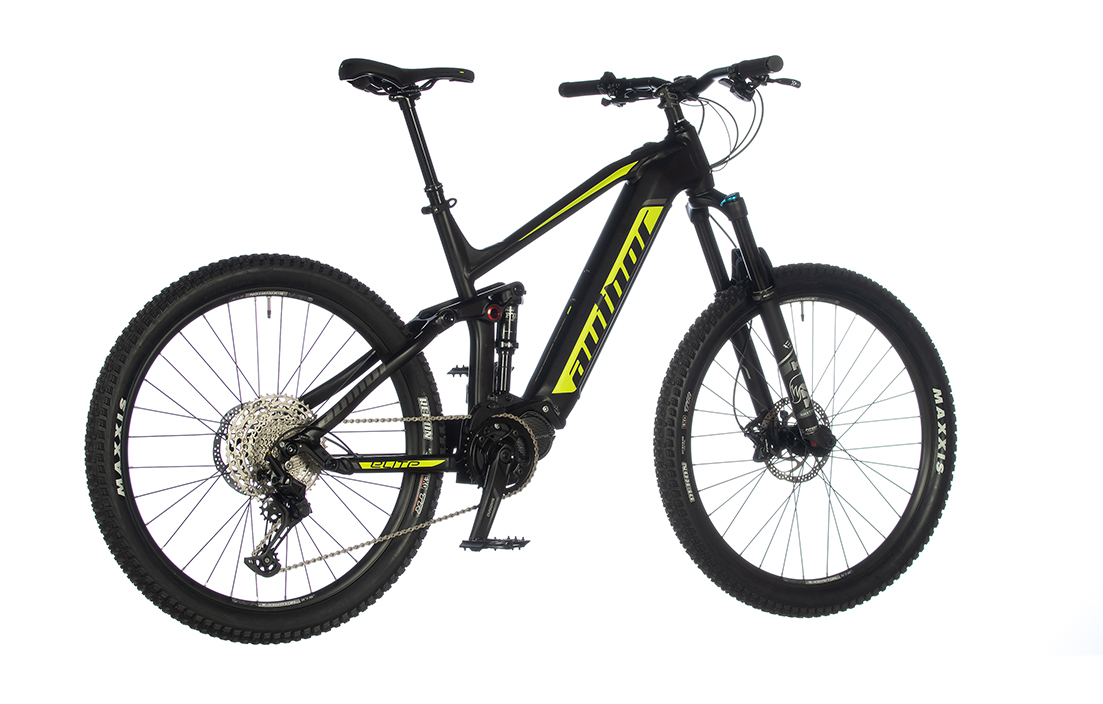

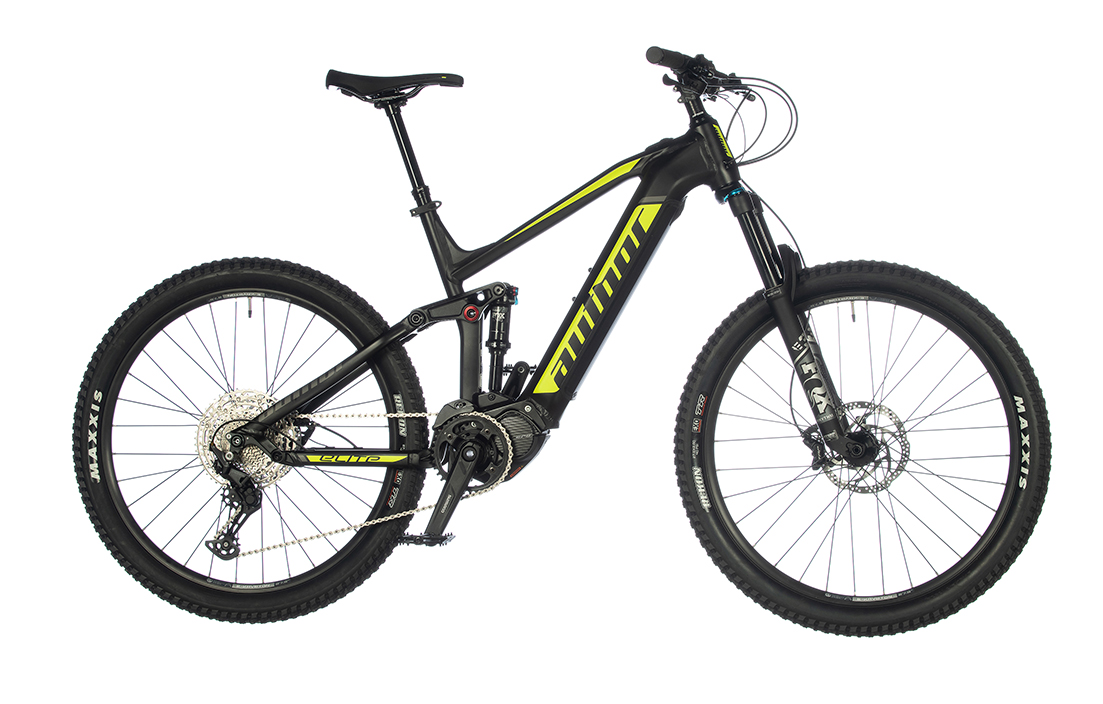

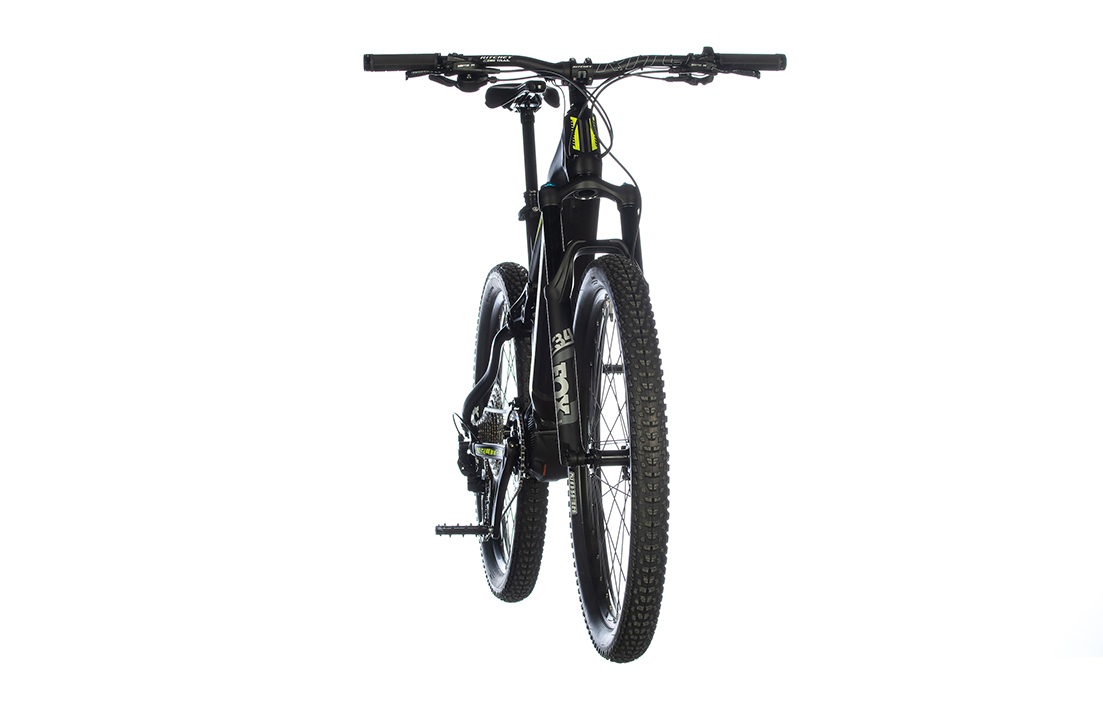

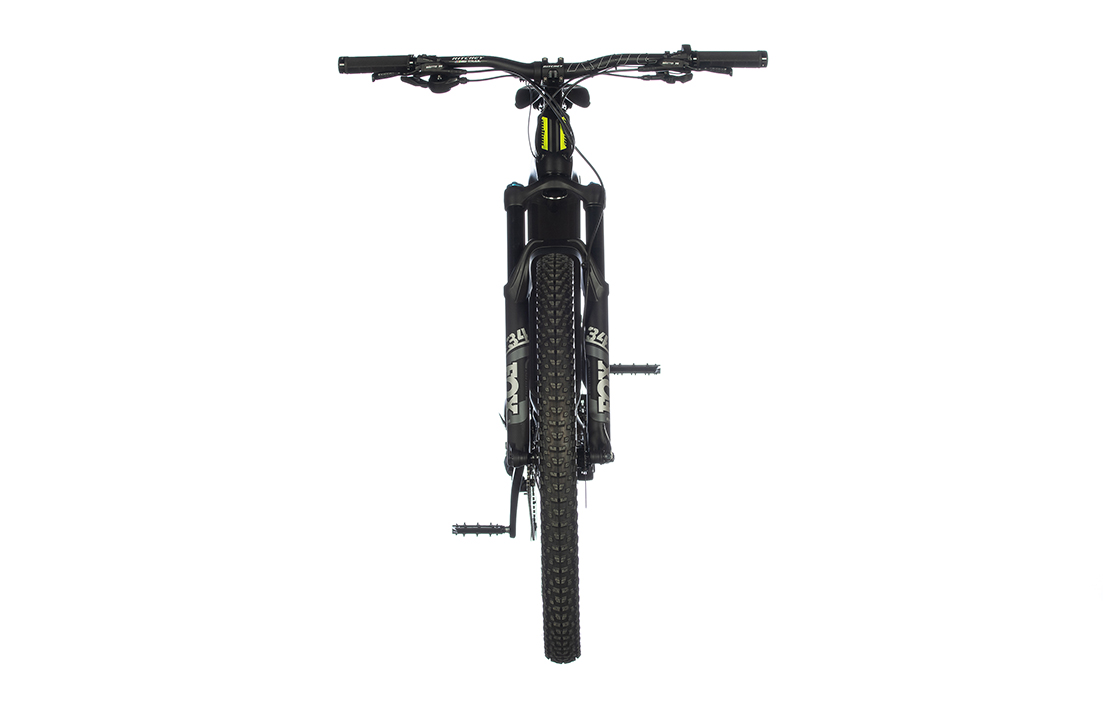

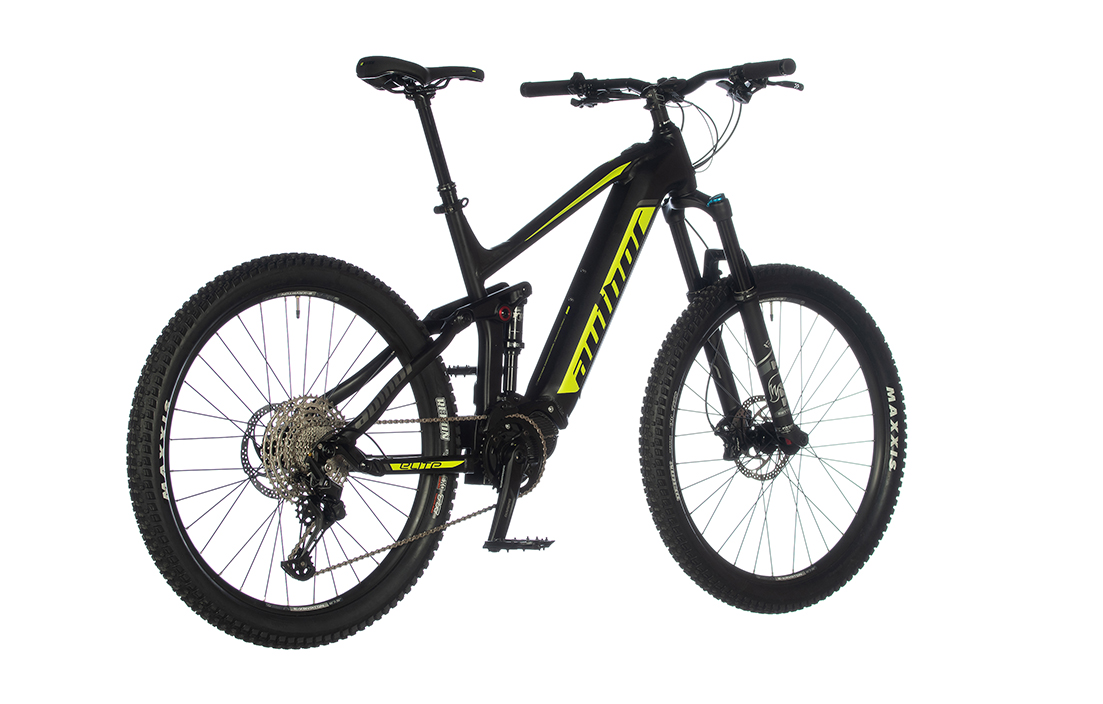

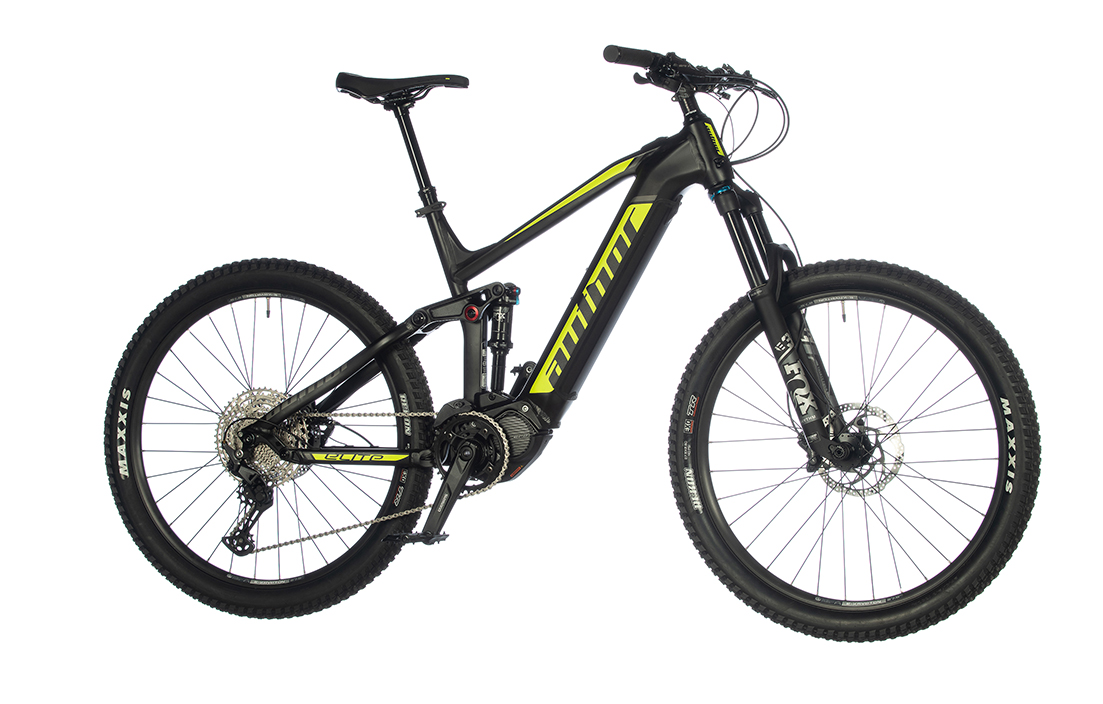

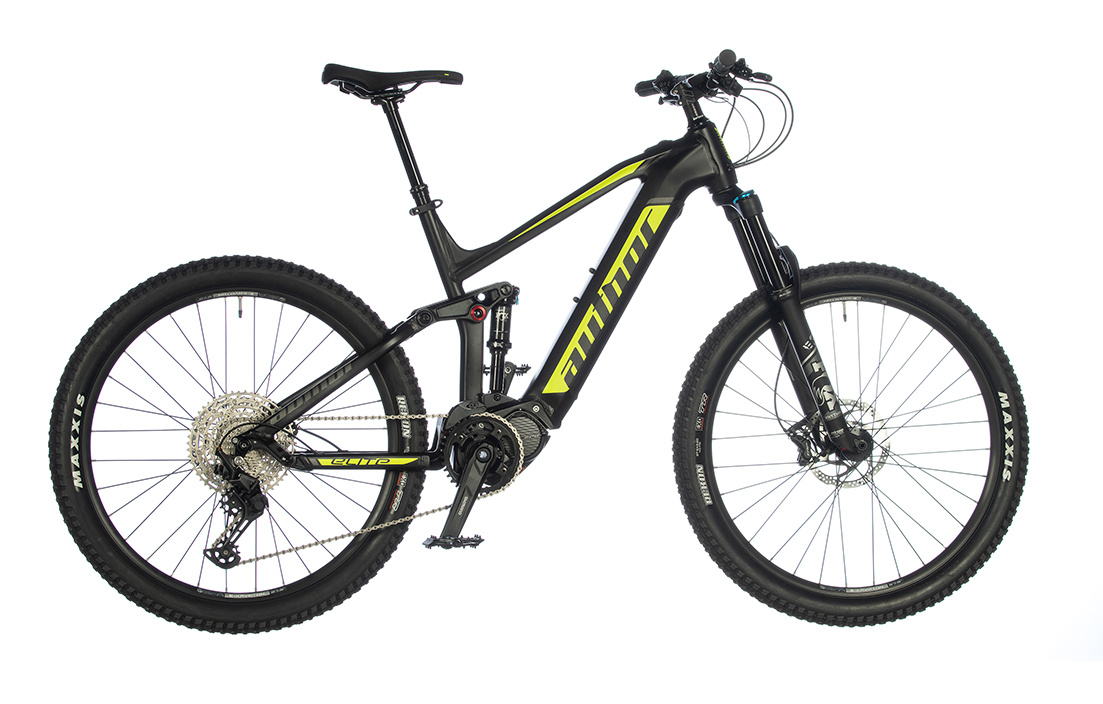

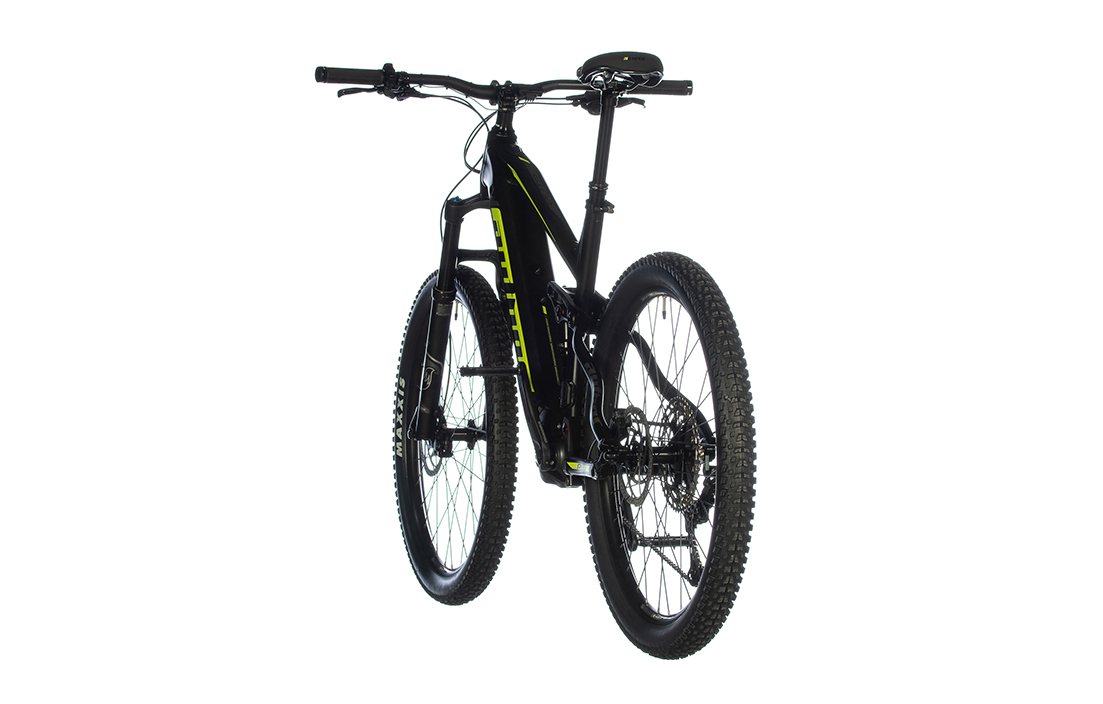

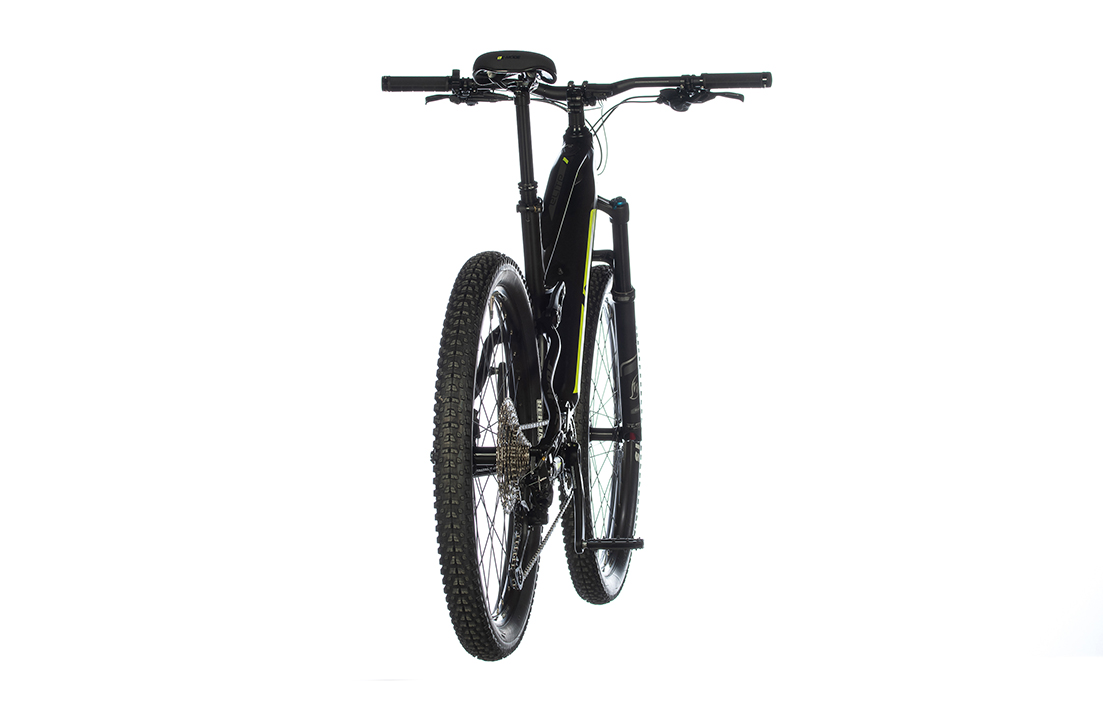

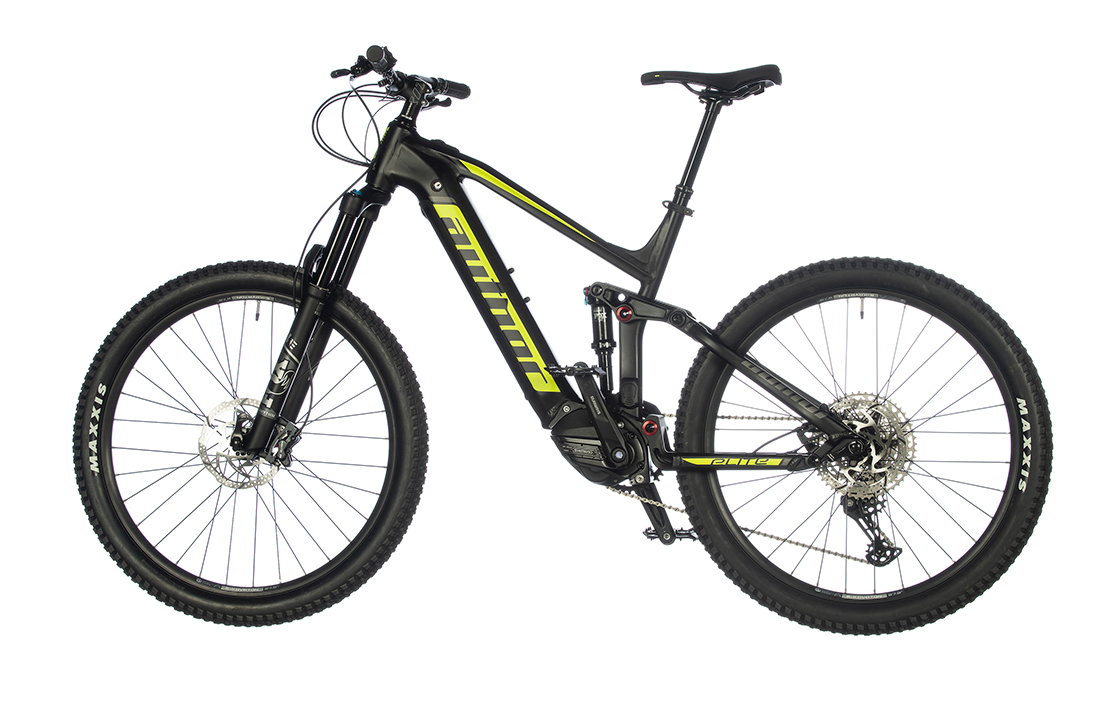

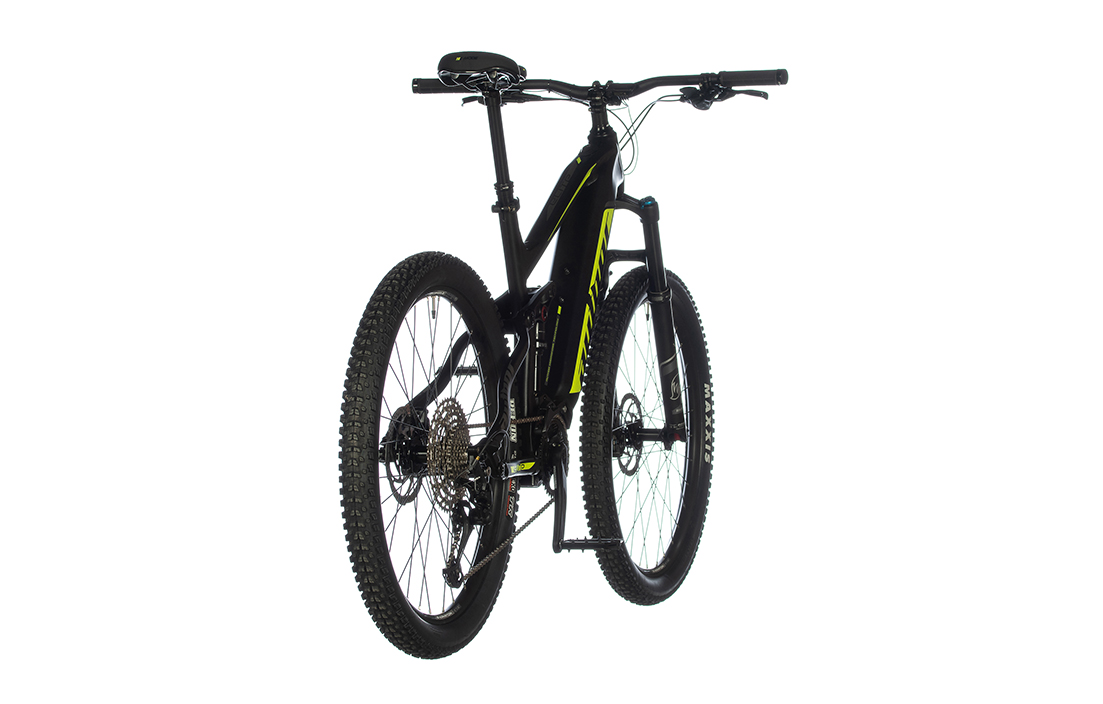

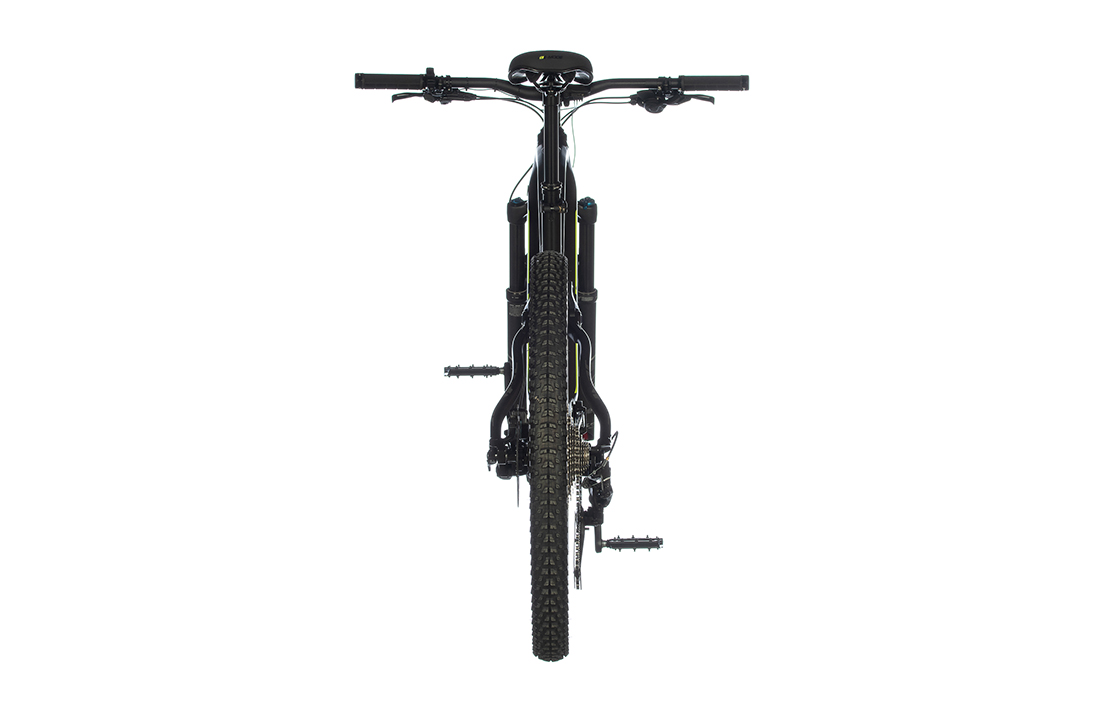

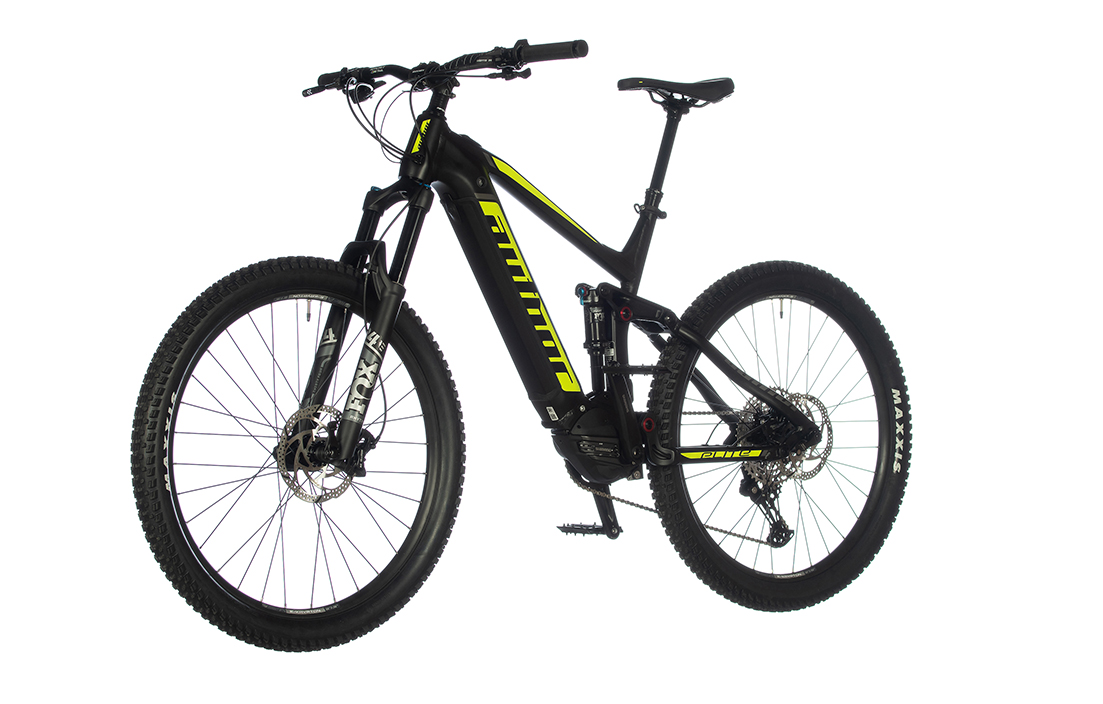

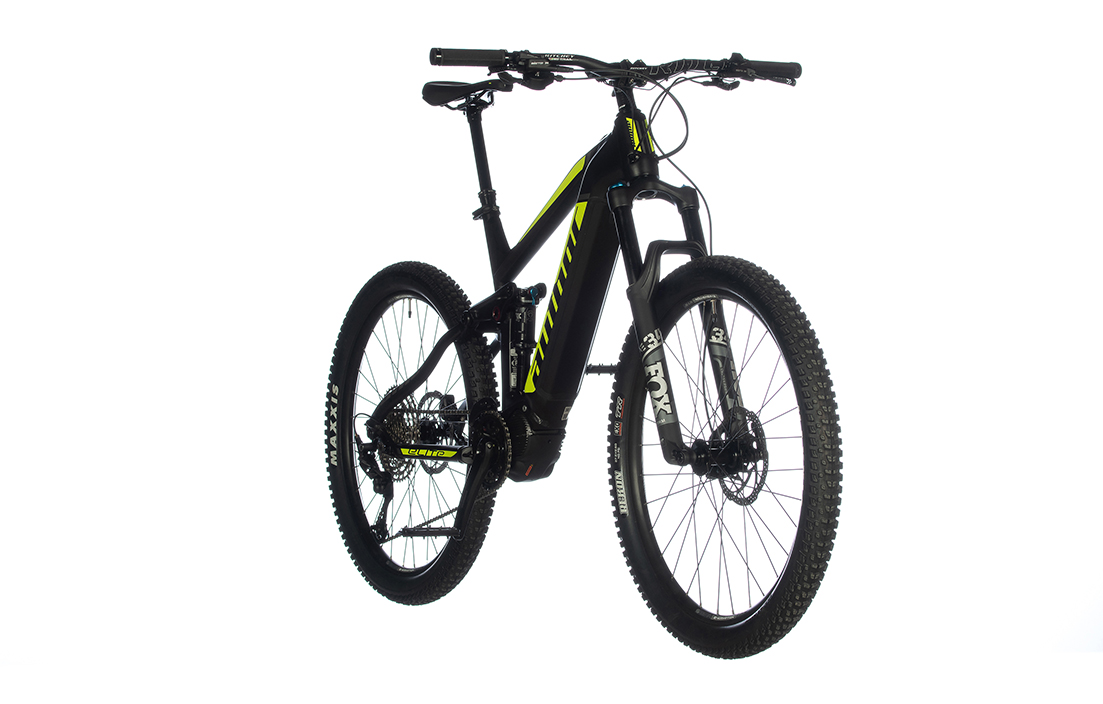

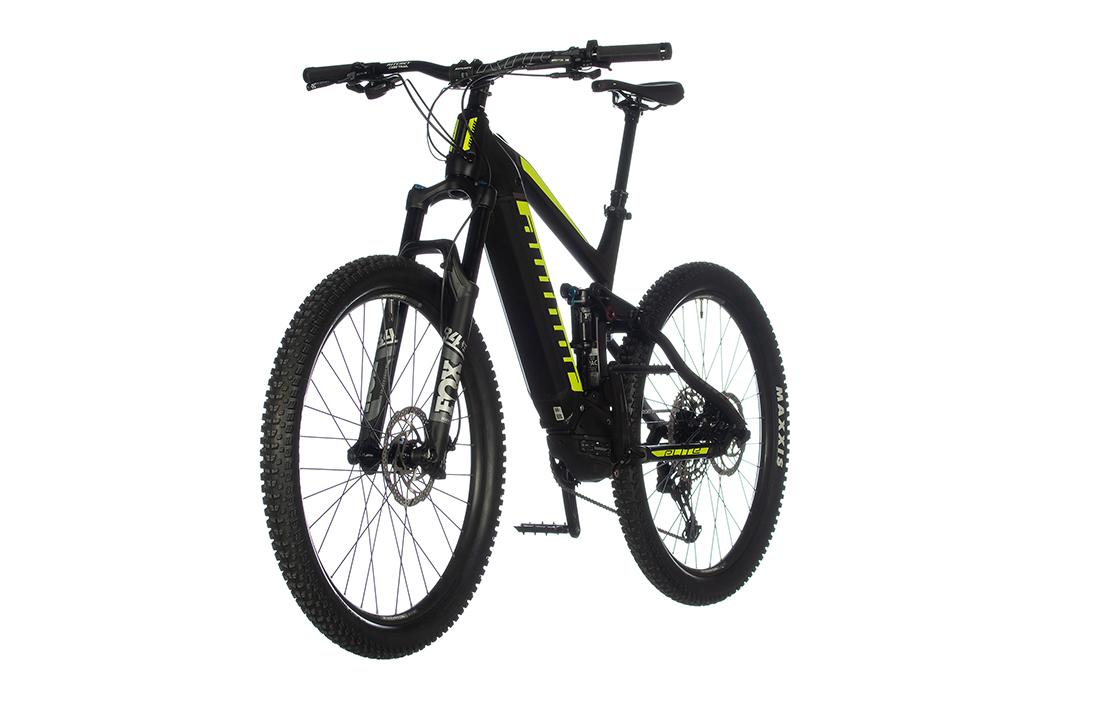

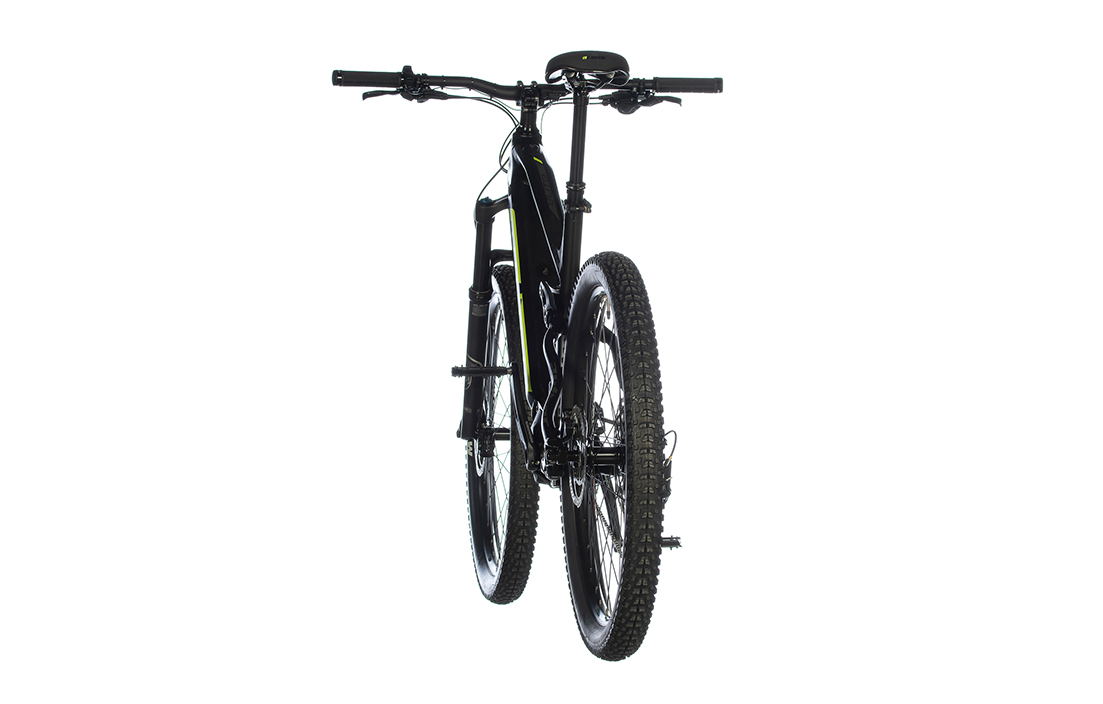

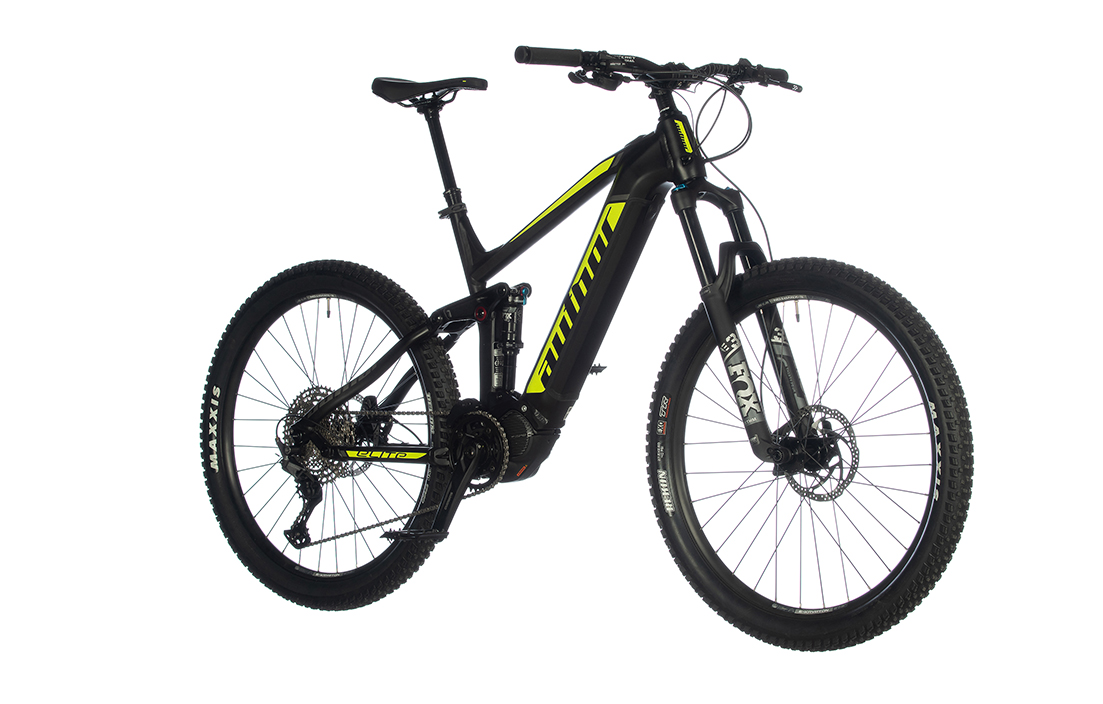

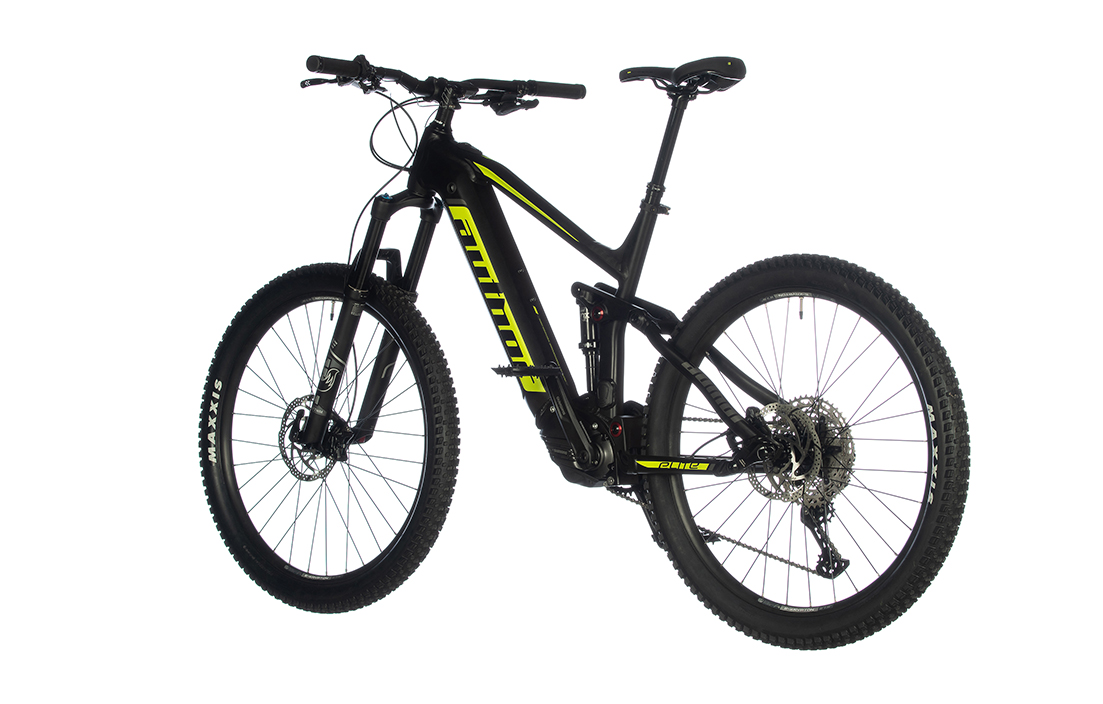

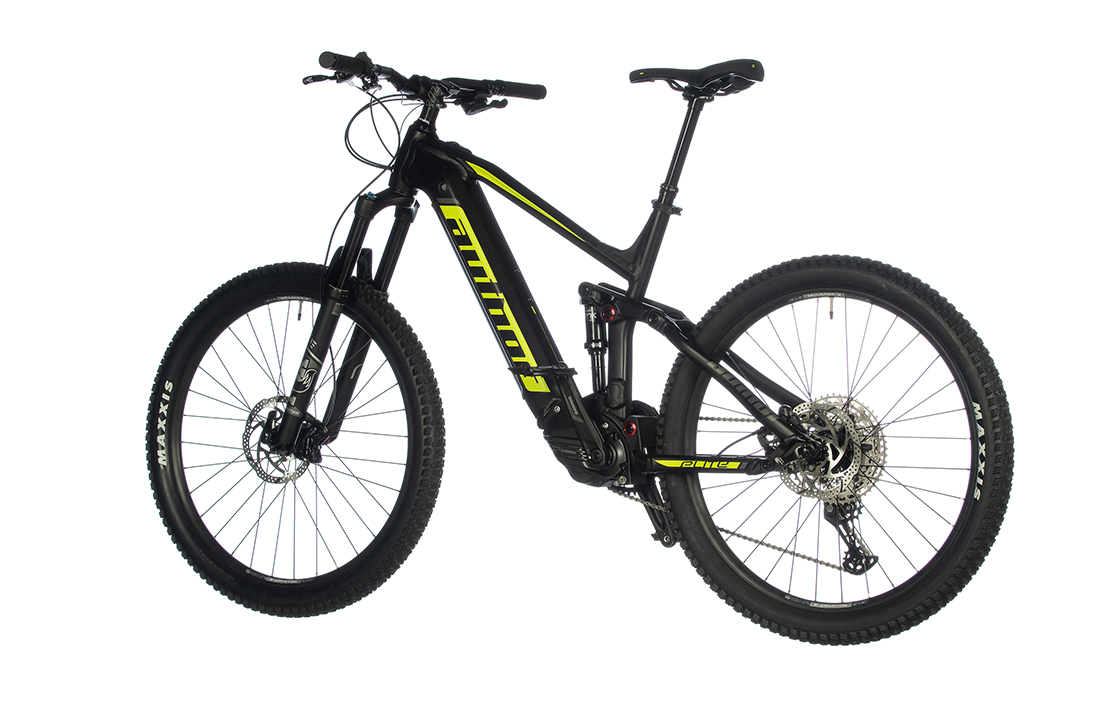

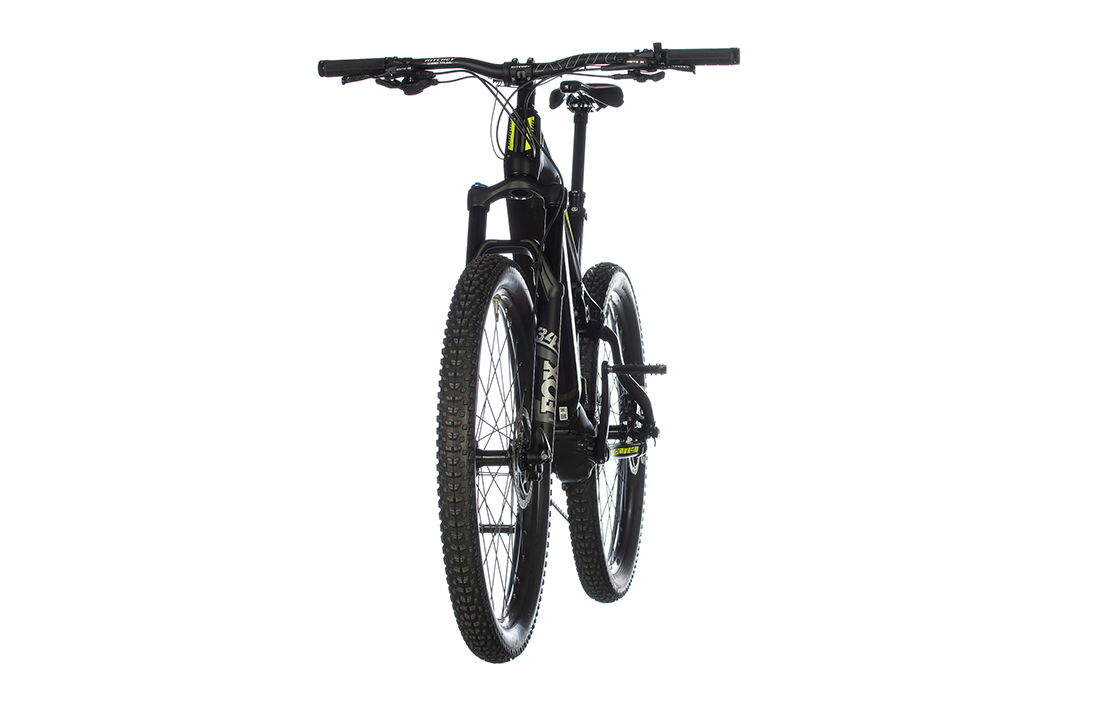

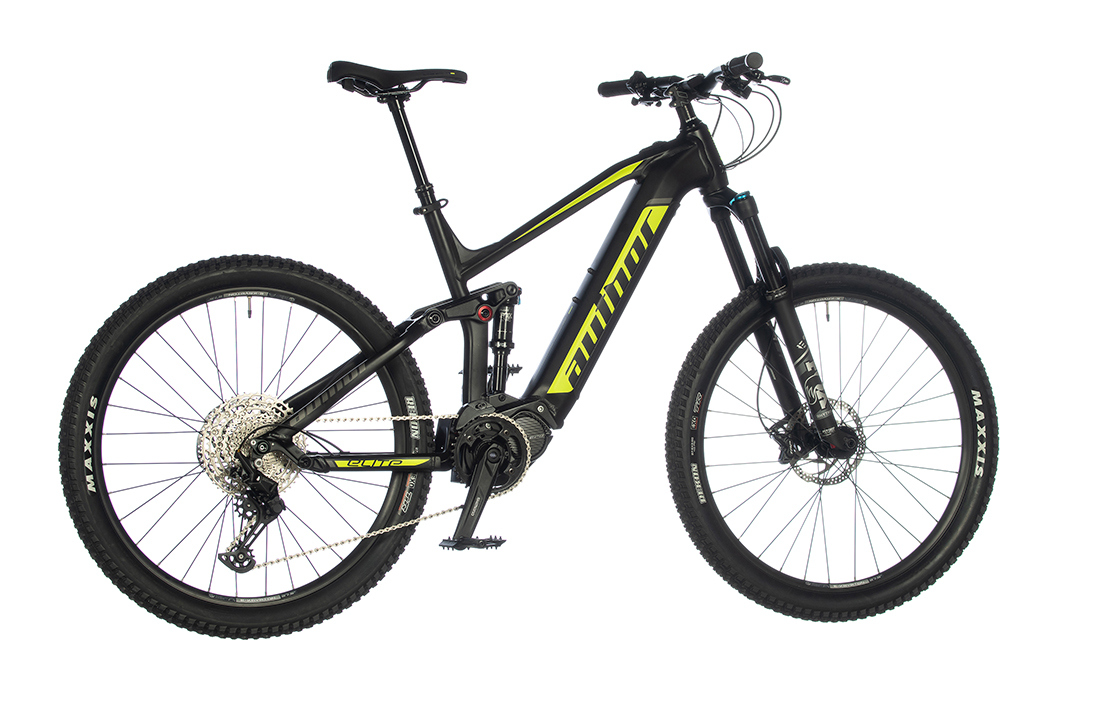

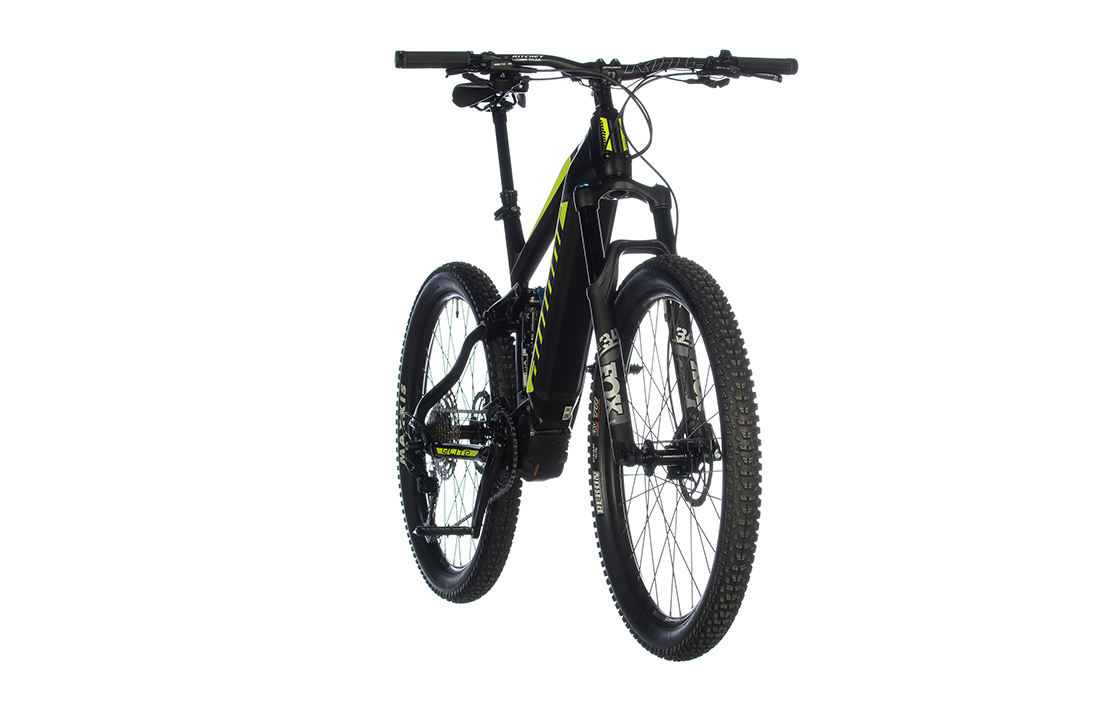

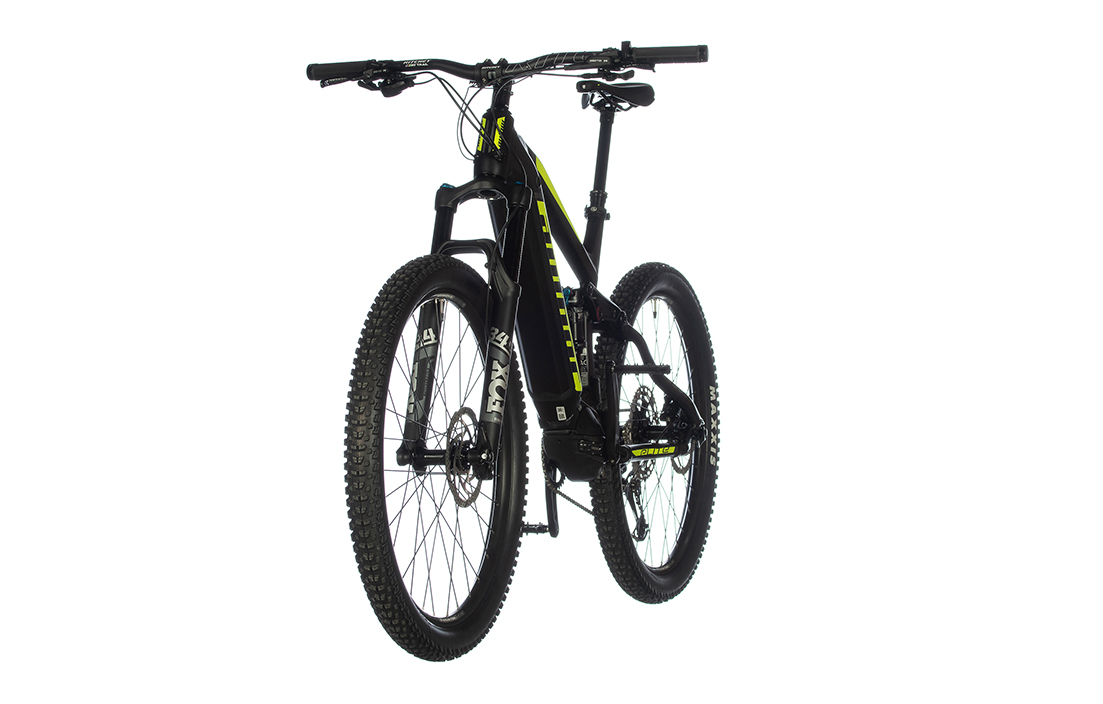

AUTHOR Elite 27,5 2021-22
AUTHOR Elite 27,5 2021-22elite aut5799 viewdeelite aut5825 viewdeelite aut5823 viewdeelite aut5822 viewdeelite aut5821 viewdeelite aut5817 viewdeelite aut5812 viewdeelite aut5811 viewdeelite aut5809 viewdeelite aut5808 viewdeelite aut5807 viewdeelite aut5806 viewdeelite aut5803 viewdeelite aut5801 viewdeelite aut5800 viewdeelite aut5780 viewdeelite aut5798 viewdeelite aut5797 viewdeelite aut5796 viewdeelite aut5794 viewdeelite aut5792 viewdeelite aut5791 viewdeelite aut5790 viewdeelite aut5789 viewdeelite aut5788 viewdeelite aut5787 viewdeelite aut5783 viewdeelite aut5782 viewdeelite aut5781 viewde
  » Bicycles » E-Bike » e-mtb 27.5

AUTHOR Elite 27,5 2021-22Archivní model 2021-22

Colour variants
3
Light suspension hydroformed frameFOX fork and shockerSHIMANO EP800 top class motor and baterry
Buy nowspecial price 109 990 Kč
original price  129 990 Kč
other models

Technical specification

Size17", 19"
Framealloyl 6061 27.5+" suspension (integrated battery), air shock FOX DPS Perfomance Float 205 / 57.5 mm (rear travel 140 mm)
Front forkFOX 34 Rhythm Float air, lock out 15 mm thru axle, 1.5" tapered column (140 mm)
EngineSHIMANO Steps E-P800, 250 W
BatterySHIMANO E-8036 Li-Ion, 36 V, 17,5 Ah, 630 Wh
DisplaySHIMANO Steps E-P8000, LCD
Head partsAUTHOR Integrated 1,5"
Chain WheelSHIMANO Steps E-M600 38 teeth 170 / 175 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (11)
Free wheelSHIMANO CS-M5100-11 11-51 (11)
ChainKMC e11T
HubsQUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
BrakesTRP Slate T4 disc hydraulic (7" rotors)
Brakes leversTRP Slate T4
RimsAUTHOR E-Krypton 27.5 32 holes
Spokesblack stainless steel 2.2 mm
TiresMAXXIS Recon aramid 27.5" × 2.60"
PedalsHT platform
HandlebarRITCHEY MTN Rizer Trail WCS 15 mm 760 / 780 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postKIND SHOCK RAGEi suspension travel 125 mm / 150 mm (30.9)
Seat clampAUTHOR (34.9)
SaddleAUTHOR E-Mode
Speed11
Weight24,3 kg / 19"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 168 178
Max. figure [cm] 179 189
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 590 610
T/T a [mm] 548 566
H/T [mm] 130 130
C/S [mm] 450 450
W/B [mm] 1176 1185
S/T ang. [°] 74 74
H/T ang. [°] 67 67
F/L [mm] 564 564
B/B drop [mm] 15 15
B/B width [mm] 0 0
Reach [mm] 408 428
Stack [mm] 634 634
F/R [mm] 51 51
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
189 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Elite 27,5 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
17"1 shop42940102
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
⟲  In other storesin 2 daysdealers
19"2 stores42940103
 ▪   Cyklo sport Stratílekin stockbuy nowHradec Králové601 379 902, cyklohk@stratilek.czmap
 ▪   Cyklosport Kerdain stockbuy nowLiberec 10602 411 149 , cyklosport@kerda.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

black-matt / yellow-neon17" = UA#42940102   19" = UA#42940103
