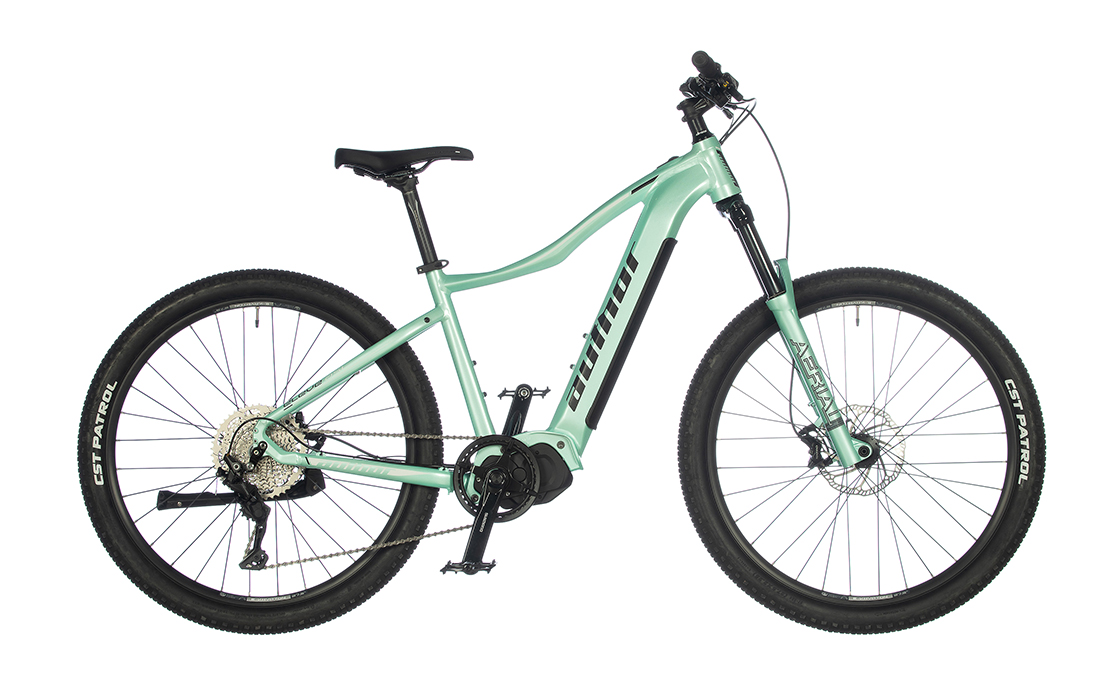

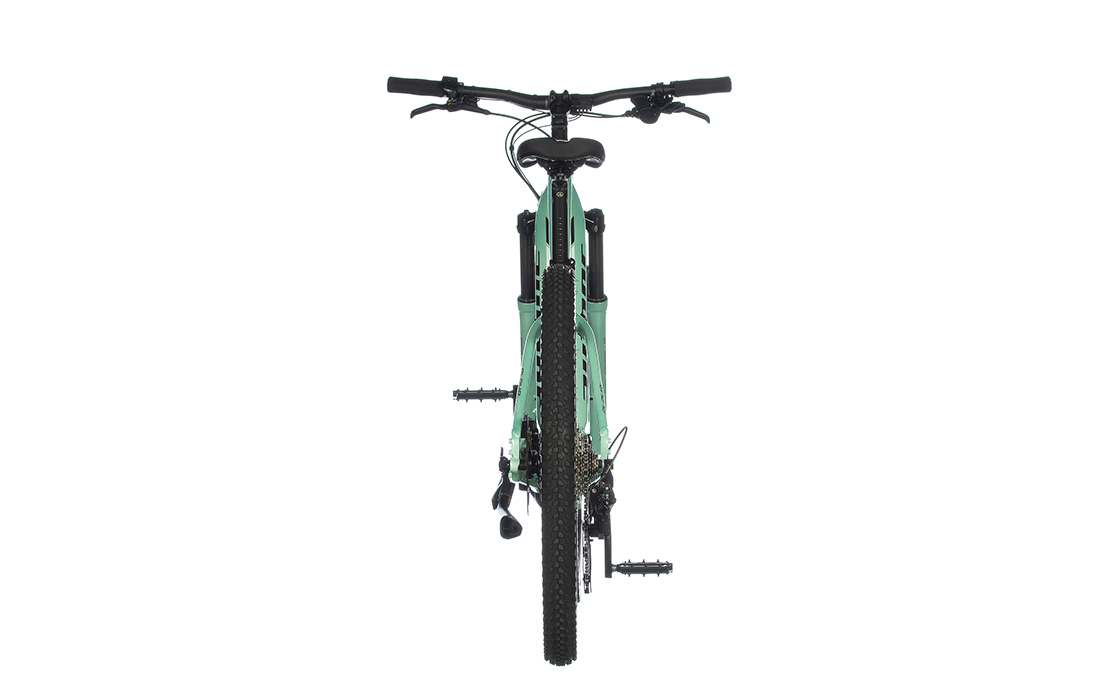

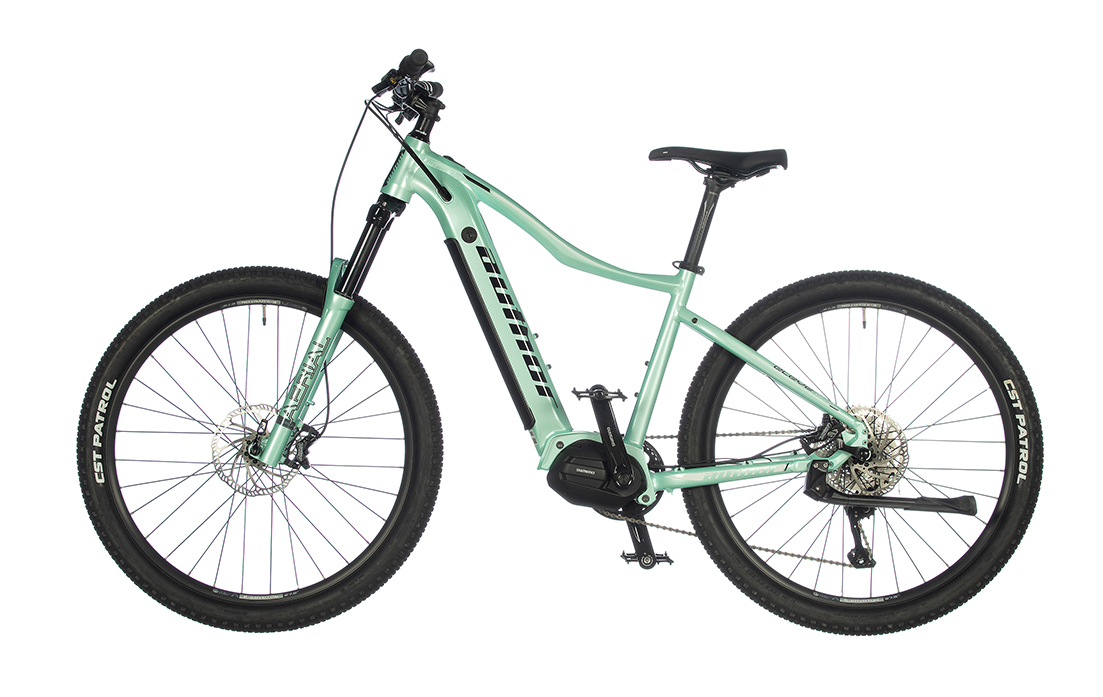

AUTHOR Eleve 27,5 ASL 2021-22Archivní model 2021-22

Colour variants
2
SHIAMO Steps motor and E8035 SHIMANO bateryLight alloy hydroformed frameRST Aerial air fork
Buy nowprice 72 990 Kč
other models
Interested in other model`s year?

Technical specification

Size17", 19"
Framedouble butted hydroformed alloy 6061 27.5" (integrated battery)
Front forkRST Aerial 110-15 TnL air, lock out 15 mm thru axle boost, 1.5" tapered column (120 mm)
EngineSHIMANO Steps E-5000, 250 W
BatterySHIMANO E-8035 Li-Ion, 36 V, 14 Ah, 504 Wh
DisplaySHIMANO Steps E-7000, LCD
Head partsAUTHOR Integrated 1,5"
Chain WheelSHIMANO Steps E-5010 38 teeth 170 / 175 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (10)
Free wheelSHIMANO CS-M4100-10 11-46 (10)
ChainKMC e10T
HubsQUANDO 15 × 110 mm thru front axle 12 × 148 mm thru rear axle 32 holes
BrakesTEKTRO Orion disc hydraulic (7" rotors)
Brakes leversTEKTRO Orion
RimsAUTHOR E-Krypton 27.5 32 holes
Spokesblack stainless steel 2.2 mm
TiresCST Patrol 27.5" × 2.25"
PedalsHT platform
HandlebarAUTHOR 15 mm 680 / 700 mm
GripsAUTHOR high density foam
StemAUTHOR alloy
Seat postAUTHOR alloy (30.9)
Seat clampAUTHOR (34.9)
SaddleAUTHOR E-Donna
Speed10
Weight22,2 kg / 17"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 158 169
Max. figure [cm] 172 184
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 600 620
T/T a [mm] 584 597
H/T [mm] 120 130
C/S [mm] 460 460
W/B [mm] 1155 1176
S/T ang. [°] 73 73
H/T ang. [°] 68 68
F/L [mm] 540 540
B/B drop [mm] 51 51
B/B width [mm] 0 0
Reach [mm] 402 419
Stack [mm] 647 656
F/R [mm] 43 43
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Eleve 27,5 ASL 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
17"1 shop42939402
 ▪   CykloCentrum Havlíčkův Brod in stockbuy nowHavlíčkův Brod725 121 448, brod@cyklocentrum.czmap
19"4 stores42939403
 ▪   CykloCentrum Brnoin stockbuy nowBrno702 144 752, brno@cyklocentrum.czmap
 ▪   CykloCentrum České Budějovice in stockbuy nowČeské Budějovice725 121 449, budejovice@cyklocentrum.czmap
 ▪   Bike Sportin stockbuy nowChrudim608 430 492, info@bike-sport-shop.czmap
 ▪   CykloCentrum Praha Holešovicein stockbuy nowPraha 7725 085 309, holesovice@cyklocentrum.czmap
17"1 shop42939412
 ▪   CykloCentrum Brnoin stockbuy nowBrno702 144 752, brno@cyklocentrum.czmap
19"2 stores42939413
 ▪   Bike Sportin stockbuy nowChrudim608 430 492, info@bike-sport-shop.czmap
 ▪   CykloCentrum Havlíčkův Brod in stockbuy nowHavlíčkův Brod725 121 448, brod@cyklocentrum.czmap
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

white / silver / pink17" = UA#42939402   19" = UA#42939403
green17" = UA#42939412   19" = UA#42939413
