  » Bicycles » E-Bike » e-mtb 27.5
  » Bicycles » ladies » e-bike ladies

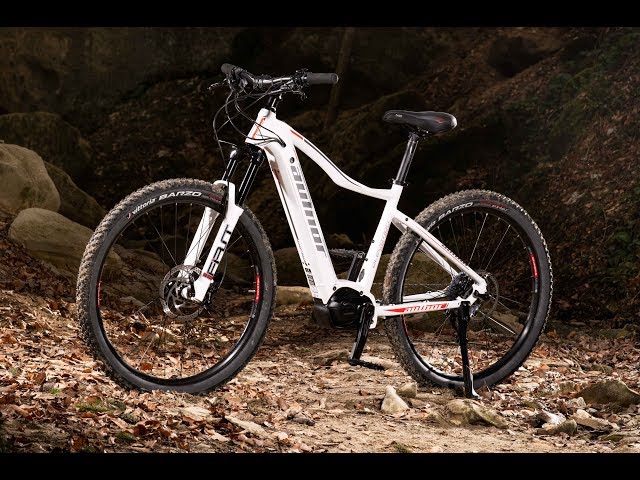

AUTHOR Elevation ASL 27,5 2020Archivní model 2020

Colour variants
4
Alloy frame integrated batterySHIMANO STEPS engineHigh capacity SHIMANO battery
Buy nowspecial price 72 990 Kč
original price  79 990 Kč
other models
Interested in other model`s year?

Technical specification

Size17", 19"
Framedouble butted hydroformed alloy 6061 27.5"
Front forkRST F1RST 27.5 15 TRL air 15 mm thru axle remote lock out (120 mm)
EngineSHIMANO Steps DUE-7000, 250 W
BatterySHIMANO BT-E8035 Li-lon, 36 V, 14 Ah, 500 Wh
DisplayLCD SC-E7000
Head partsFSA Integrated 1-1/8"
Chain WheelSHIMANO Steps E8000 38 teeth 170 / 175 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Deore
ShiftersSHIMANO Deore (10)
Free wheelSHIMANO HG50-10 11-36 (10)
ChainKMC e10T
HubsAUTHOR Helium 15 / Xenon 12 15 × 100 mm thru front axle 12 × 142 mm thru rear axle 32 holes
BrakesTRP Slate 4 disc hydraulic (7" rotors)
Brakes leversTRP Slate 4
RimsAUTHOR E-Krypton 27.5 32 holes
Spokesstainless steel hi-ten 2.2 mm black
TiresVITTORIA Barzo G2.0 kevlar 27.5" × 2.25"
PedalsHT platform
HandlebarAUTHOR 15 mm 680 / 700 mm
GripsAUTHOR Pro Lock
StemAUTHOR alloy
Seat postAUTHOR alloy (30.9)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Fenix
Speed10
Weight10 kg /17"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 158 169 182
Max. figure [cm] 172 184 200
S/T c-t [mm] 432 483 535
S/T c-c [mm] 0 0 0
T/T h [mm] 600 620 640
T/T a [mm] 578 596 617
H/T [mm] 120 130 135
C/S [mm] 465 465 465
W/B [mm] 1149 1170 1191
S/T ang. [°] 73 73.5 73
H/T ang. [°] 68 68 68
F/L [mm] 515 515 515
B/B drop [mm] 51 51 51
B/B width [mm] 0 0 0
Reach [mm] 409 426 444
Stack [mm] 626 636 640
F/R [mm] 43 43 43
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Elevation ASL 27,5 2020

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Availability

Colour variantSizeIn storesPurchaseCityContacts on sellerModel code
19"1 shop42928703
 ▪   CykloCentrum Havlíčkův Brod in stockbuy nowHavlíčkův Brod725 121 448, brod@cyklocentrum.czmap
⟲  In other storesin 2 daysdealers
Poznámka: Stav dostupnosti kola se aktualizuje 1× denně v ranních hodinách.

Product options

white / silver / red17" = UA#42928702   19" = UA#42928703
