AUTHOR Elevation 2017

Technical specification

Size	17", 19", 21"
Frame	double butted hydroformed alloy 6061 27.5"
Front fork	RST F1RST 27.5 15 TRL air, remote lock out 15 mm thru axle (120 mm)
Engine	SHIMANO Steps DU-E6001, 250W
Battery	SHIMANO BT-E8010 Li-lon, 36V, 14 Ah, 500 Wh
Display	LCD SC-E6010
Head parts	FSA Integrated 1-1/8"
Chain Wheel	SHIMANO Steps E6000, 38 teeth, 170/ 175mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO XT
Shifters	SHIMANO Deore (10)
Free wheel	SHIMANO HG50-10, 11-36 teeth, 10 speed
Chain	KMC X10e
Hubs	AUTHOR Helium 15 / Xenon 12, 15 x 100mm thru front axle, 12 x 142mm thru rear axle , 32 holes
Brakes	TRP Slate 4 disc hydraulic (7" rotors)

Brakes levers	TRP Slate 4
Rims	AUTHOR Krypton 27.5 32 holes
Spokes	black stainless steel 2.0mm
Tires	VITTORIA e-Goma kevlar 27.5" x 2.40"
Pedals	HT platmorm
Handlebar	AUTHOR 15mm/ 700-720mm
Grips	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (30.9)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Navigator
Speed	10
Weight	20.4 kg / 19"

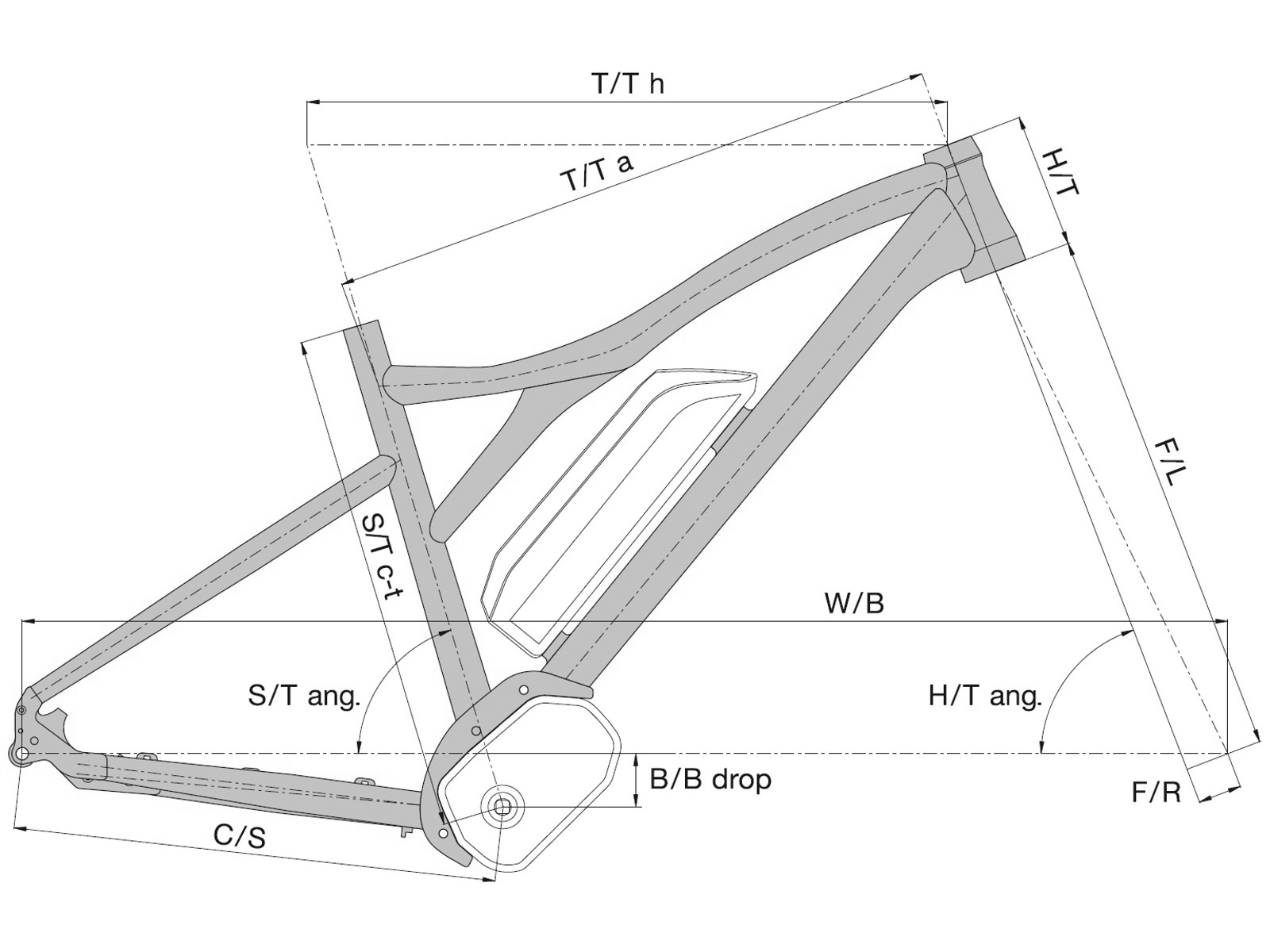

Geometry and sizes

Size	17"	19"	21"
Min. figure ~~[cm]~~	158	169	182
Max. figure ~~[cm]~~	172	184	200
S/T c-t ~~[mm]~~	432	483	535
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	590	615	635
T/T a ~~[mm]~~	573	592	611
H/T ~~[mm]~~	130	130	140
C/S ~~[mm]~~	465	465	465
W/B ~~[mm]~~	1133	1158	1173
S/T ang. ~~[°]~~	73.5	73.5	73
H/T ang. ~~[°]~~	69	69	69
F/L ~~[mm]~~	510	510	510
B/B drop ~~[mm]~~	51	51	51
B/B width ~~[mm]~~	0	0	0
Reach ~~[mm]~~	0	0	0
Stack ~~[mm]~~	0	0	0
F/R ~~[mm]~~	42	42	42
Handlebars ~~[mm]~~	700	720	720
Stem ~~[mm]~~	60	60	70
Cranks ~~[mm]~~	170	175	175

maxmin

~~200 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
