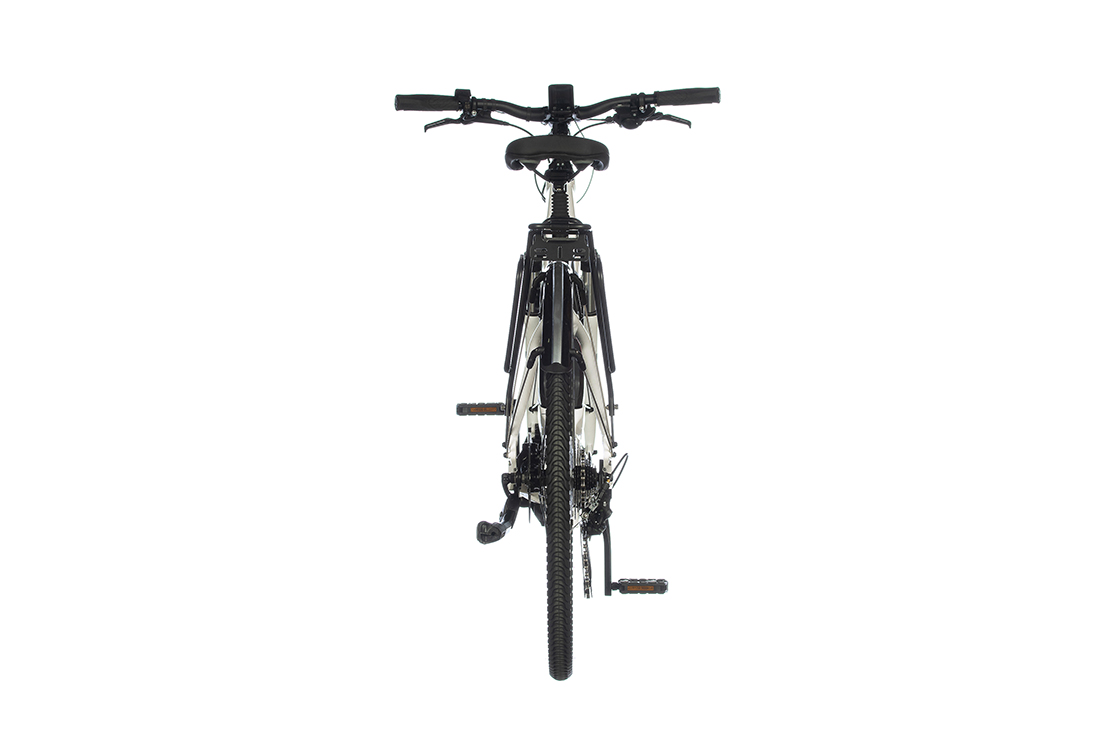

AUTHOR Electra 2021-22
AUTHOR Electra 2021-22electra aut5517electra aut5518electra aut5520electra aut5522electra aut5524electra aut5526electra aut5527electra aut5529electra aut5530electra aut5531electra aut5532electra aut5534electra aut5538electra aut5539electra aut5540electra aut5543
  » Bicycles » E-Bike » e-city
  » Bicycles » ladies » e-bike ladies

AUTHOR Electra 2021-22Archivní model 2021-22

Colour variants
2
Alloy low step thru frameSHIMANO STEPS E5000 centre motorSHIMANO E8010 battery, 36 V, 14 Ah, 500 Wh
price 56 990 Kč
SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size17", 19"
Framealloy 6061 700c (L)
Front forkRST Nova TnL lock out (60 mm)
EngineSHIMANO Steps E-5000, 250 W
BatterySHIMANO E-8010 Li-Ion, 36 V, 14 Ah, 504 Wh
DisplaySHIMANO Steps E-6100, LCD
Head partsPRESTINE Integrated 1-1/8"
Chain WheelSHIMANO Steps E-5010 38 teeth 170 mm cranks
BBPartsSHIMANO Steps
Rear derailleurSHIMANO Alivio
ShiftersSHIMANO Alivio (9)
Free wheelSHIMANO HG200-9 11-36 (9)
ChainKMC e9T
HubsAUTHOR Radon 36 holes
BrakesTEKTRO Vela disc hydraulic (6" rotors)
Brakes leversTEKTRO Vela
RimsAUTHOR Radon Cross 36 holes
Spokesblack stainless steel 2.0 mm
TiresCST reflexive stripes 700 × 40c
PedalsAUTHOR Non Slip alloy
HandlebarAUTHOR 25 mm 640 mm
GripsAUTHOR Pro Lock
StemUNO adjustable
Seat postUNO suspension (27.2)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Queen Sofa
Speed9
Weight22,8 kg / 17"

Geometry and sizes

Size 17" 19"
Min. figure [cm] 155 167
Max. figure [cm] 169 182
S/T c-t [mm] 432 483
S/T c-c [mm] 0 0
T/T h [mm] 580 590
T/T a [mm] 569 572
H/T [mm] 160 170
C/S [mm] 475 475
W/B [mm] 1120 1131
S/T ang. [°] 73 73
H/T ang. [°] 69 69
F/L [mm] 470 470
B/B drop [mm] 60 60
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 45 45
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
182 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Electra 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

white / silver / red17" = UA#42940702   19" = UA#42940703
