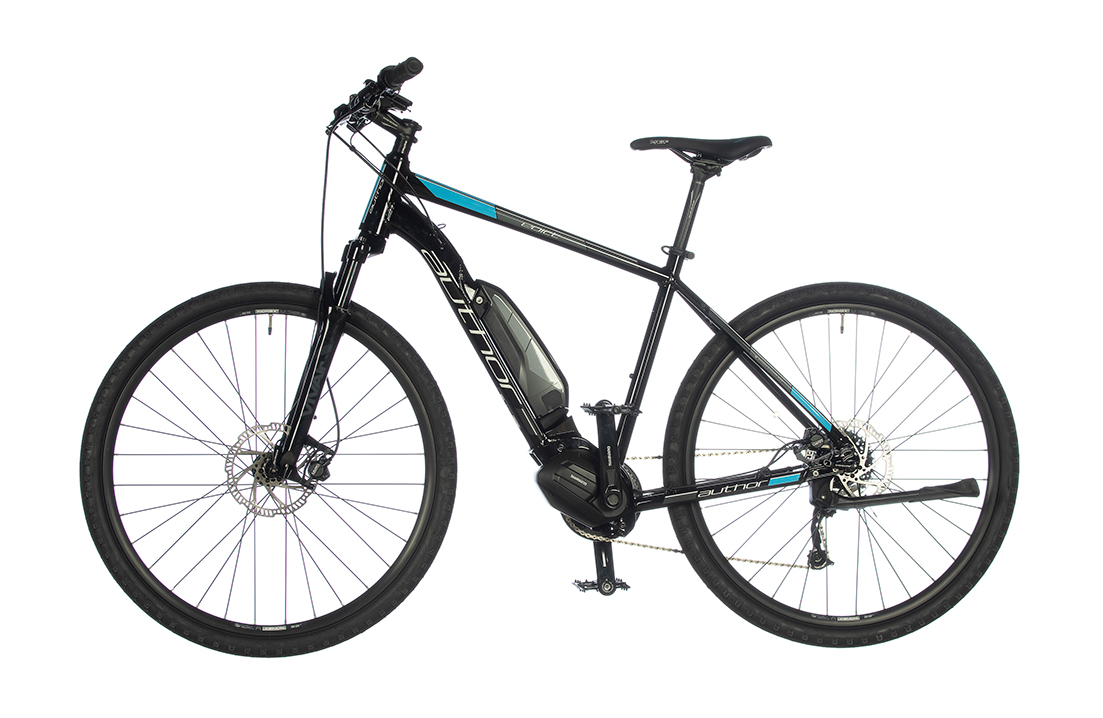

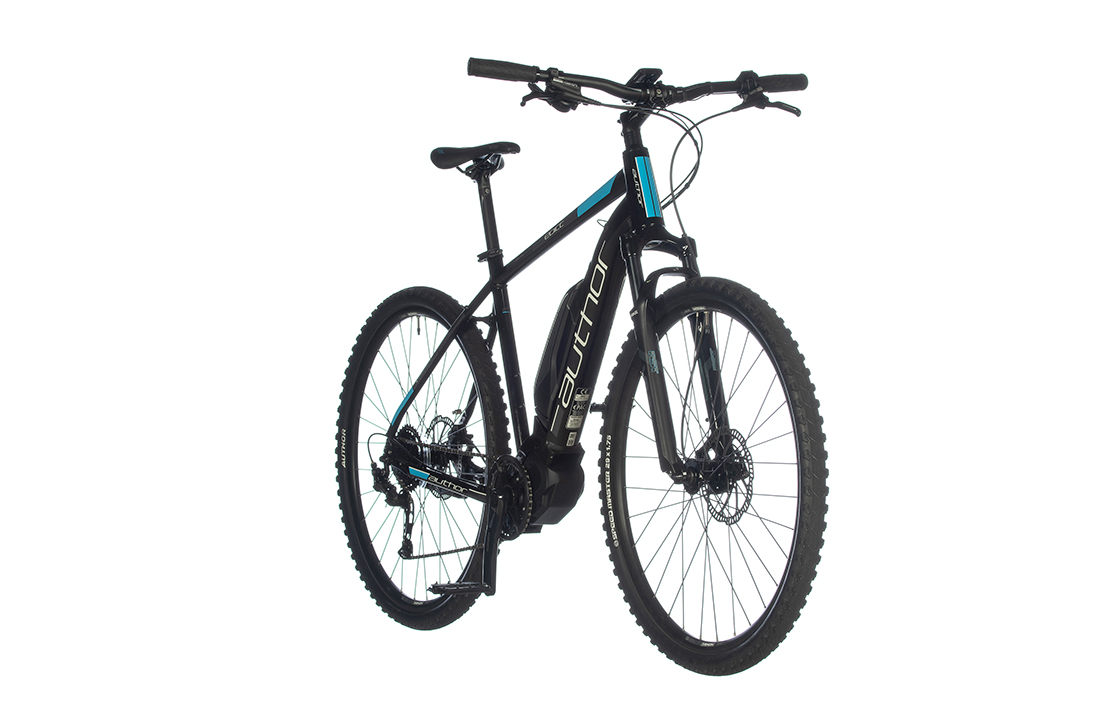

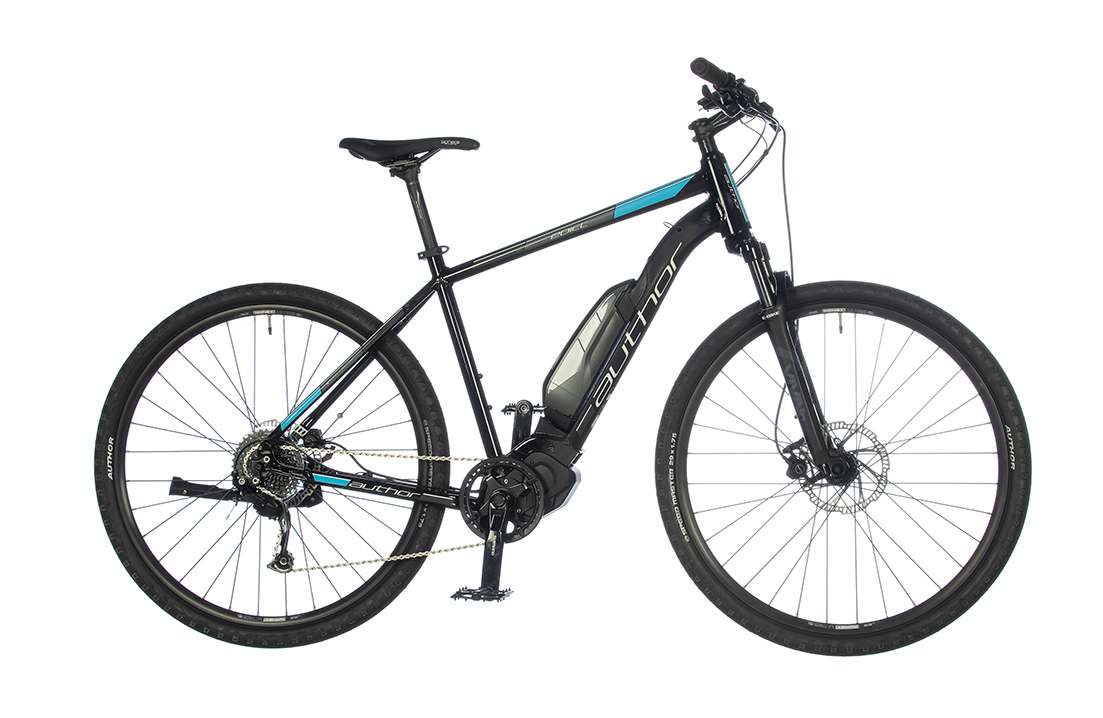

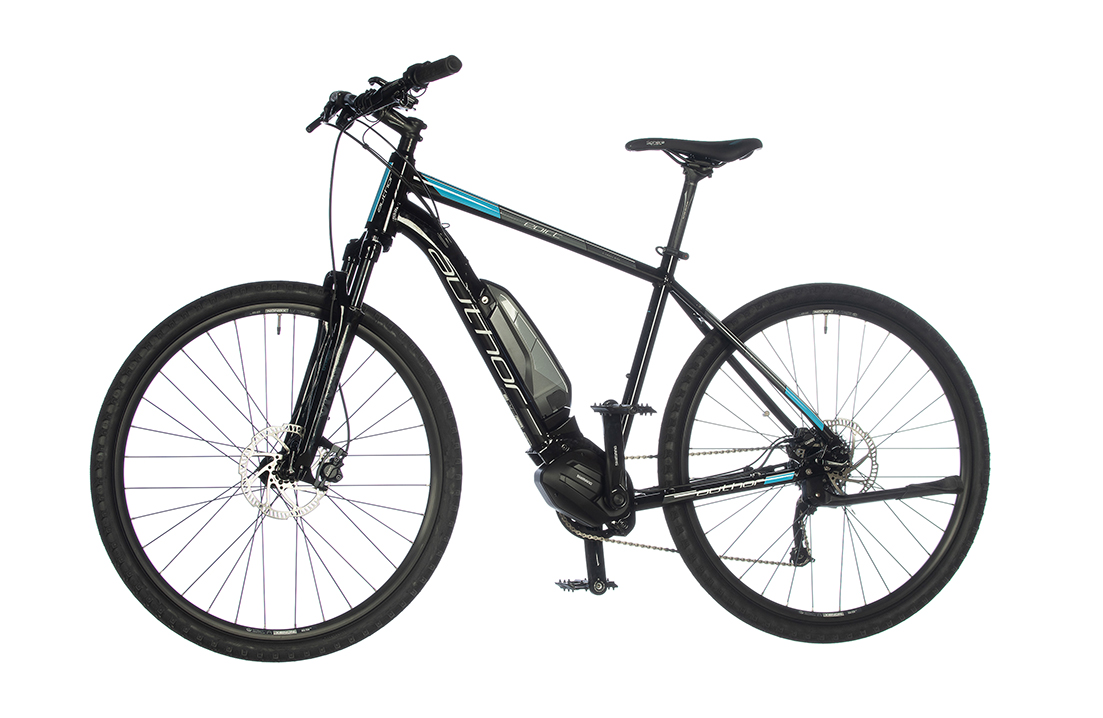

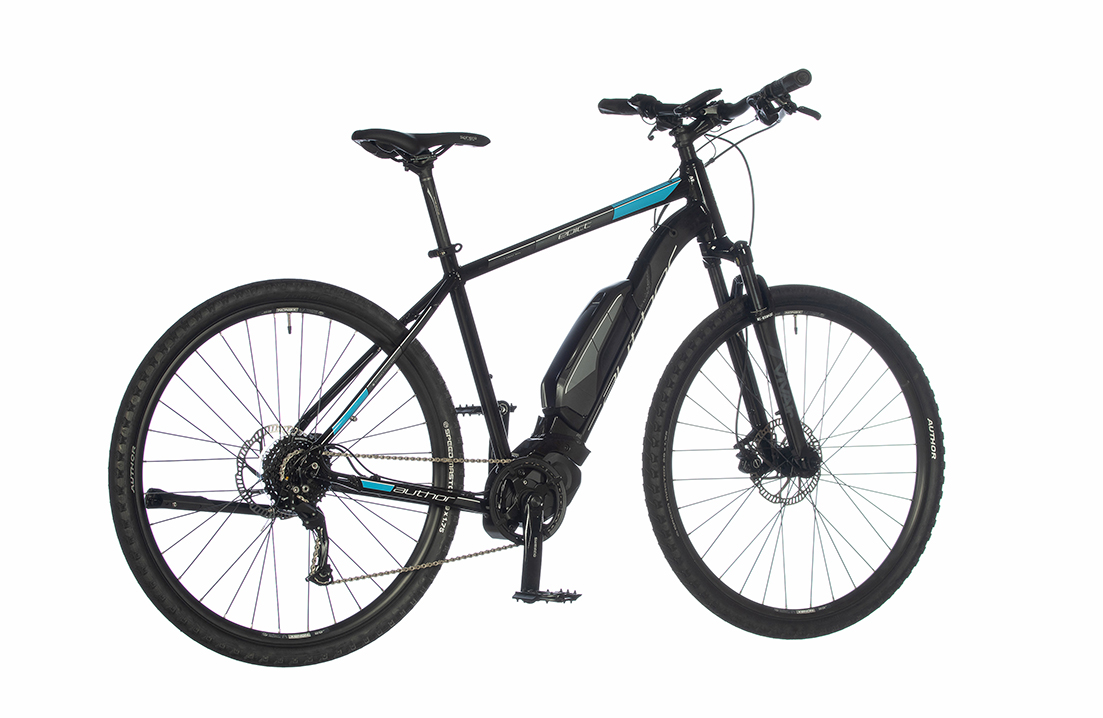

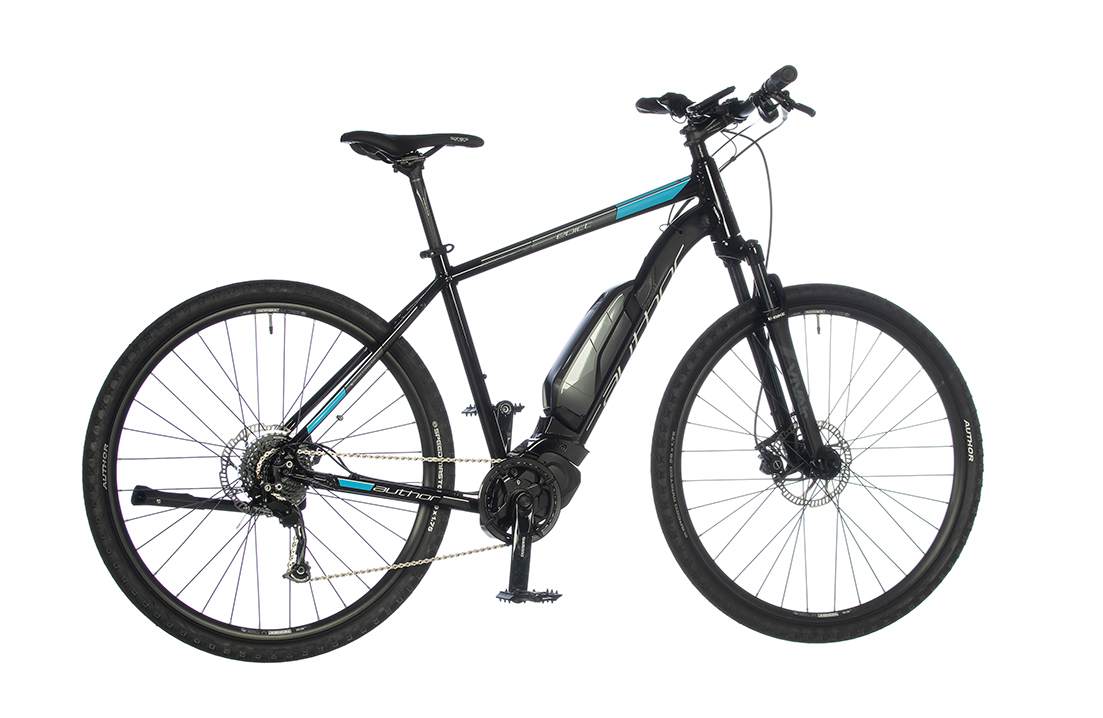

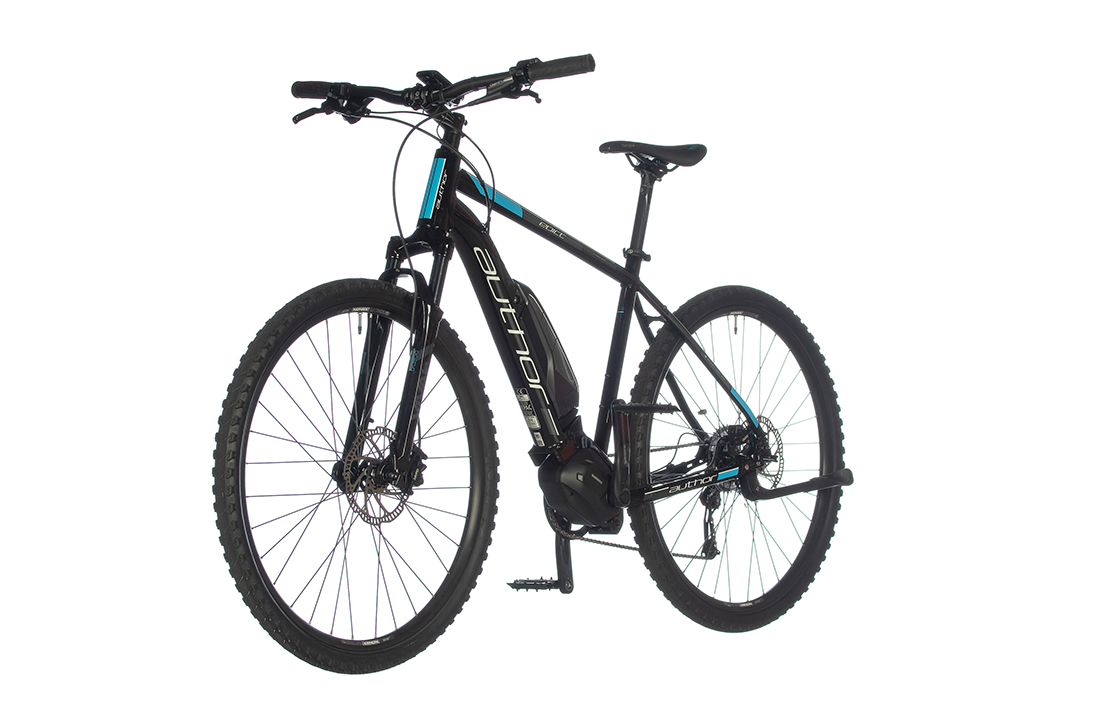

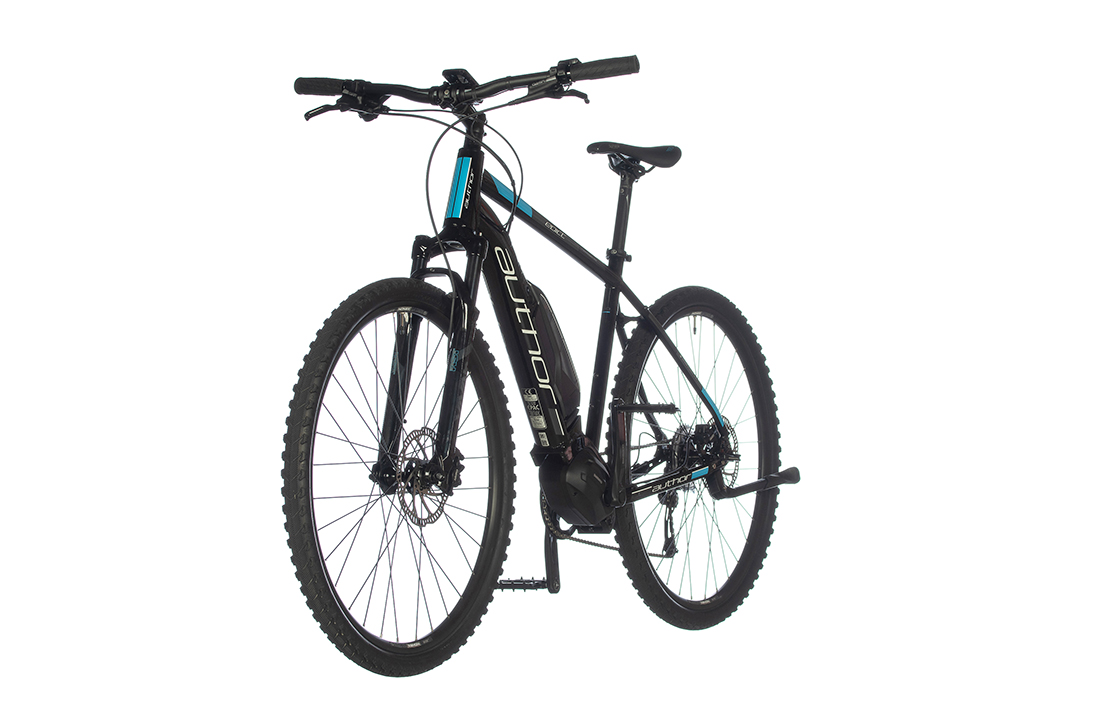

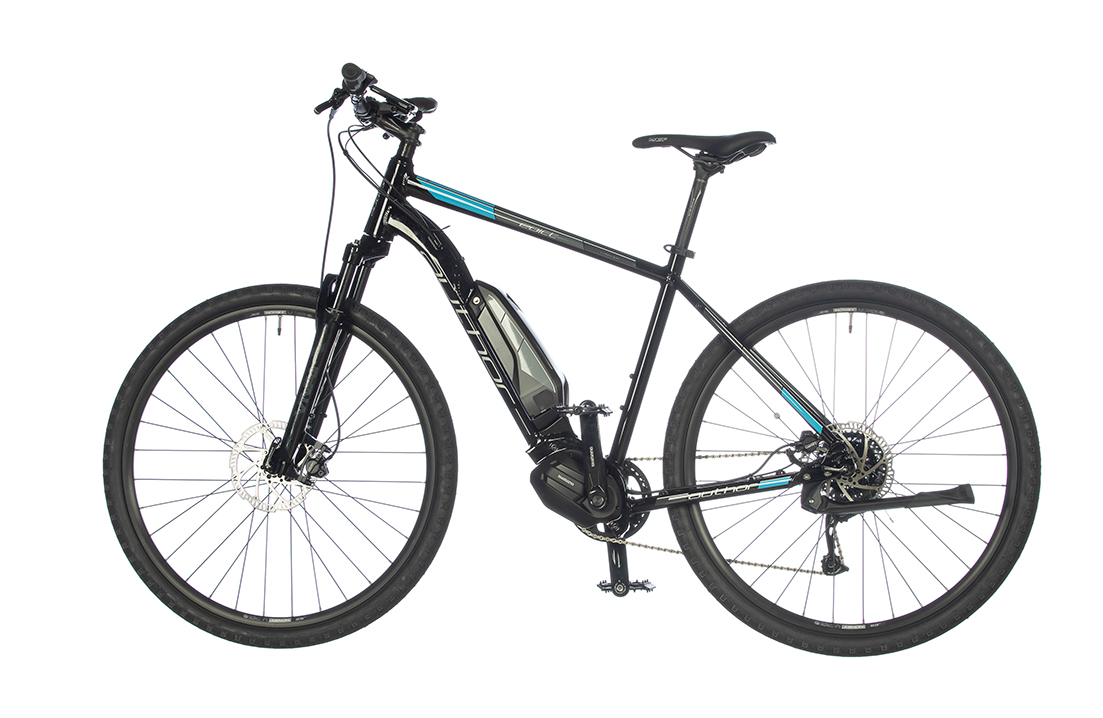

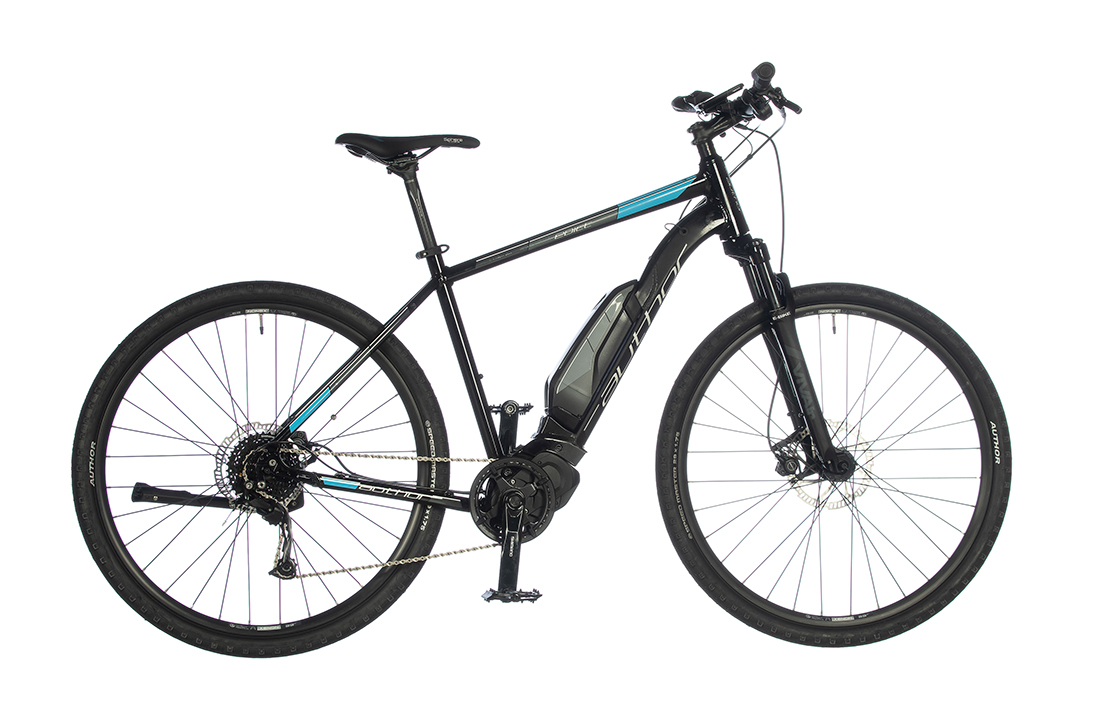

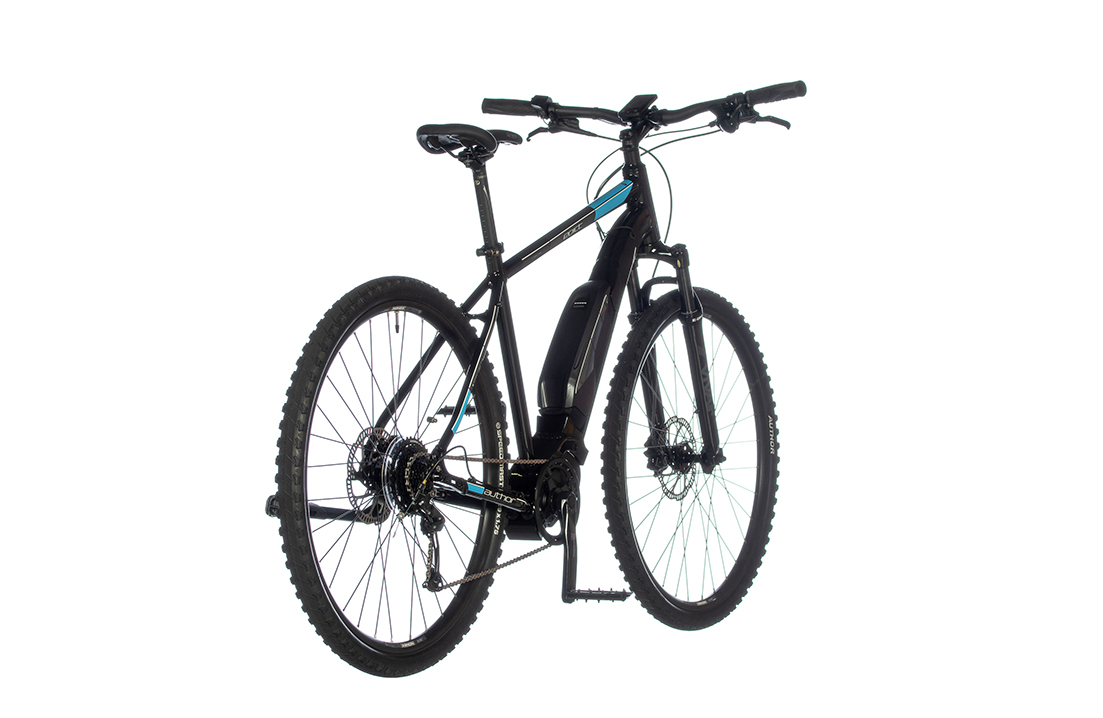

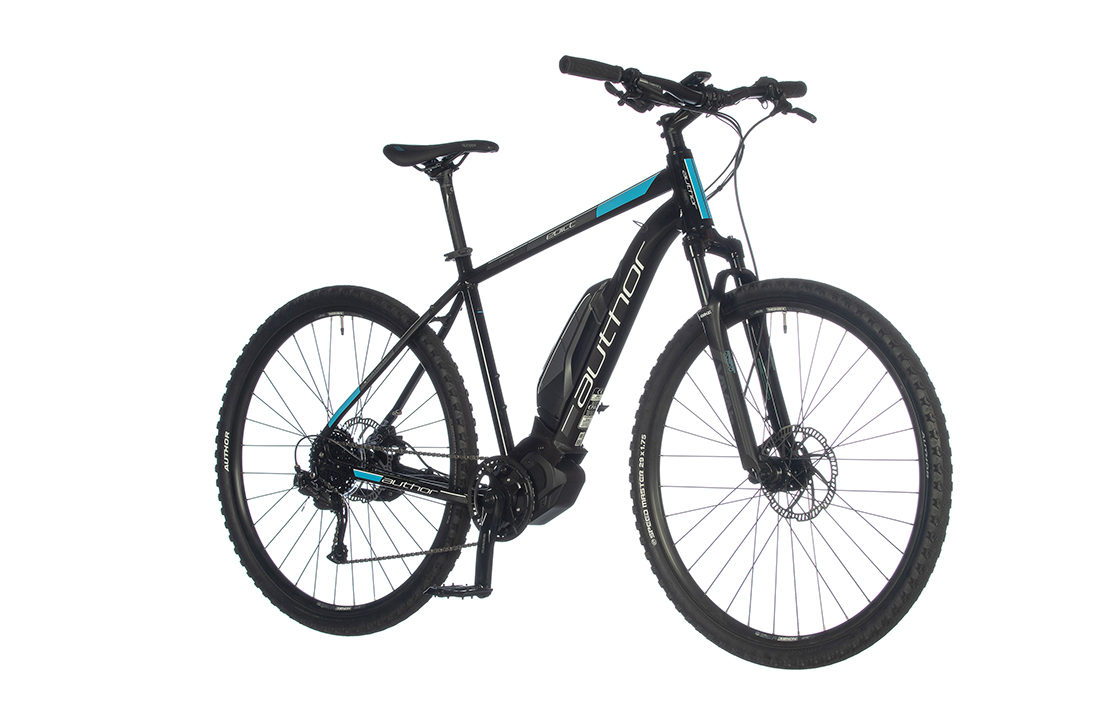

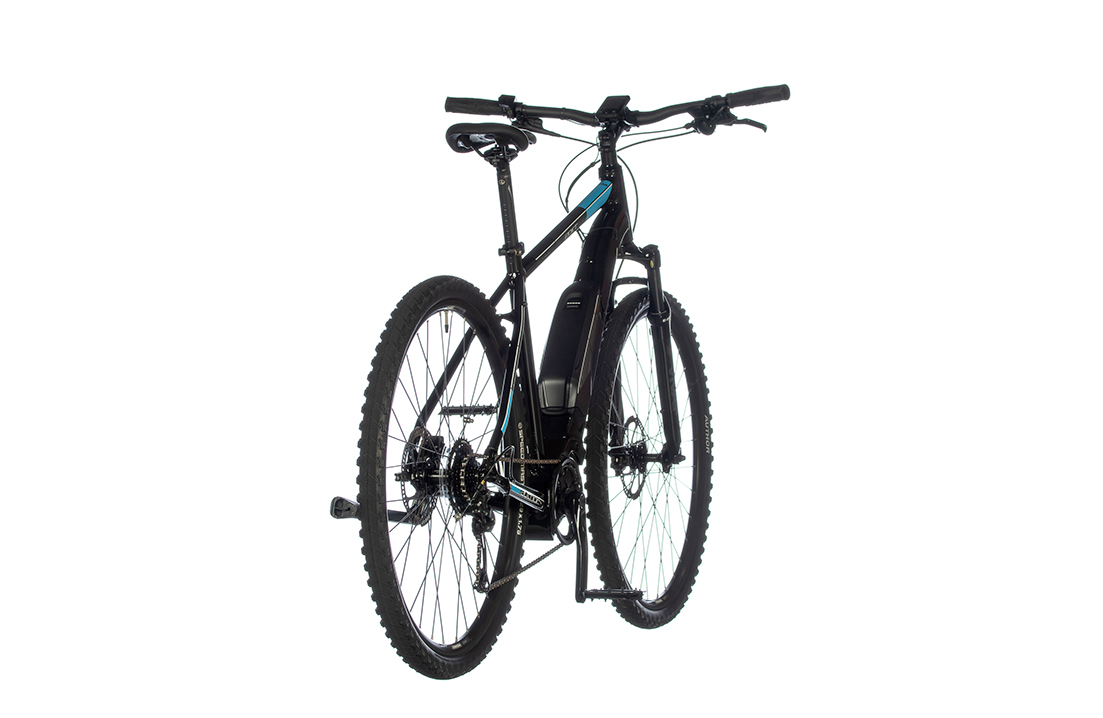

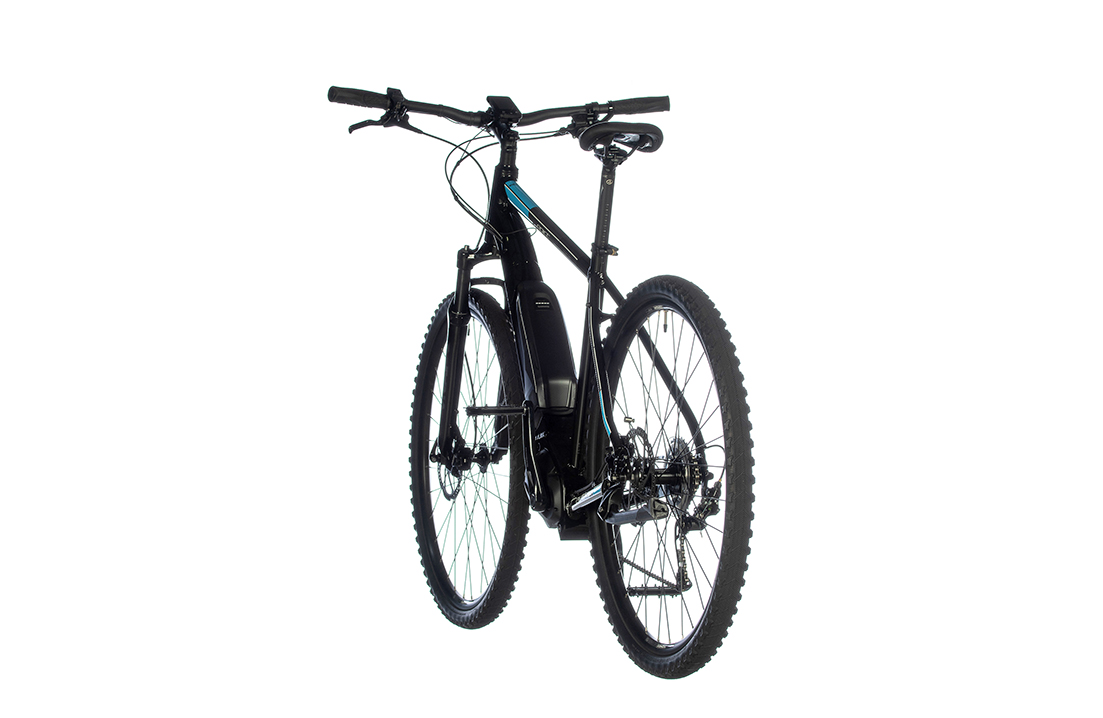

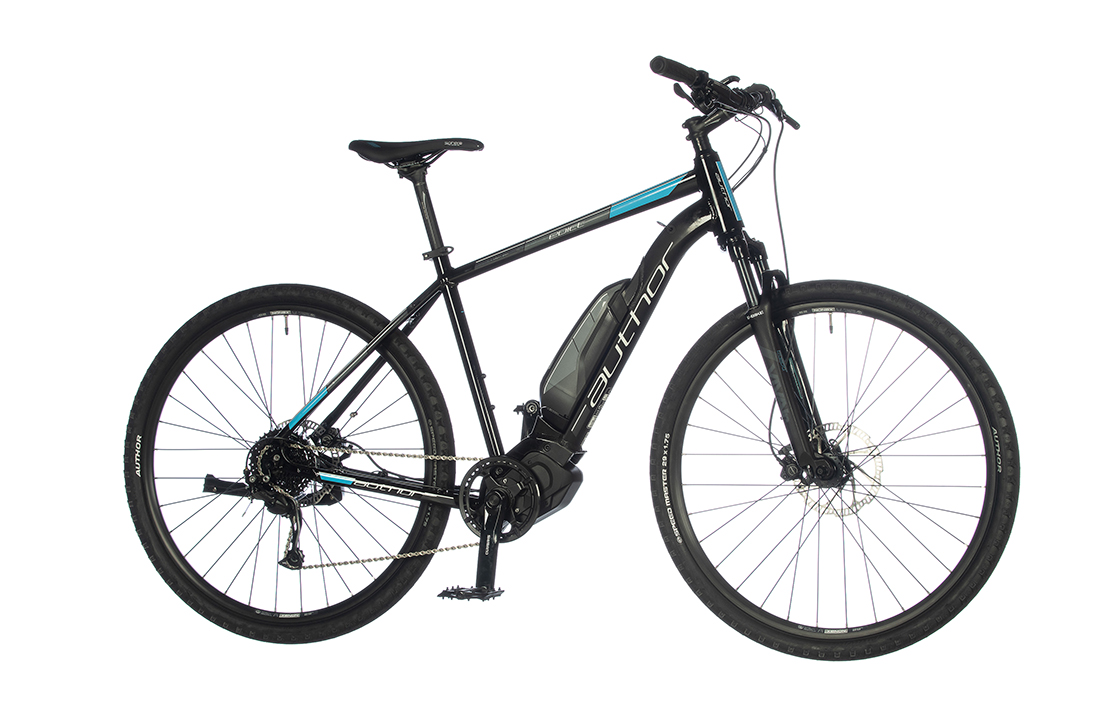

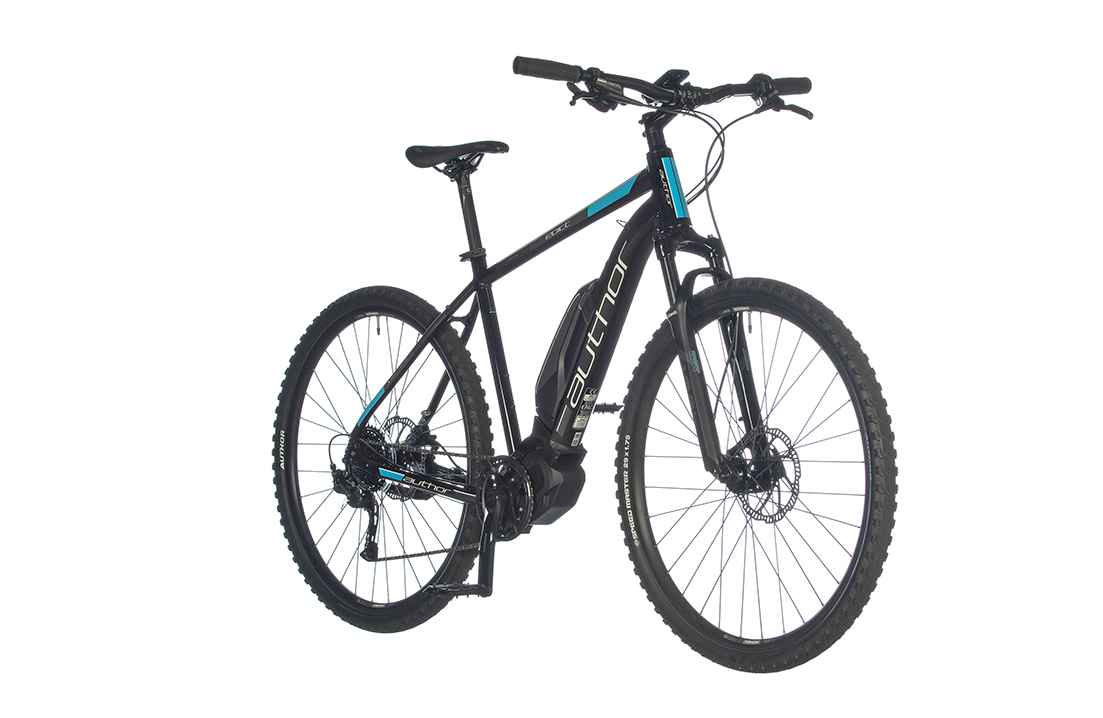

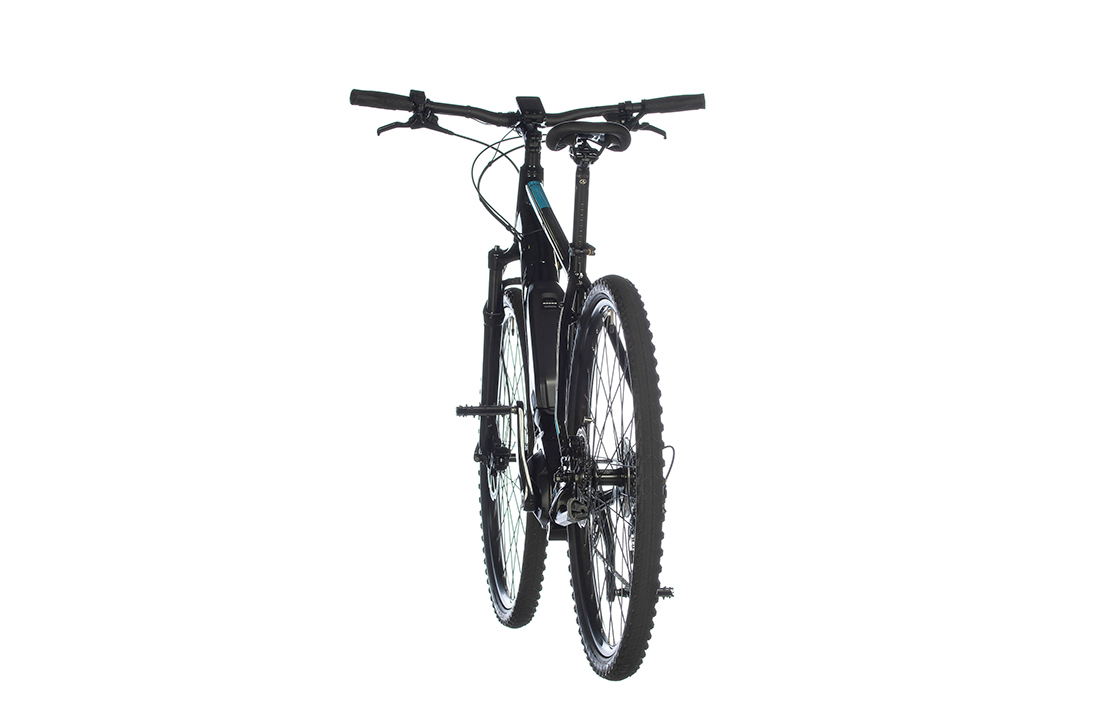

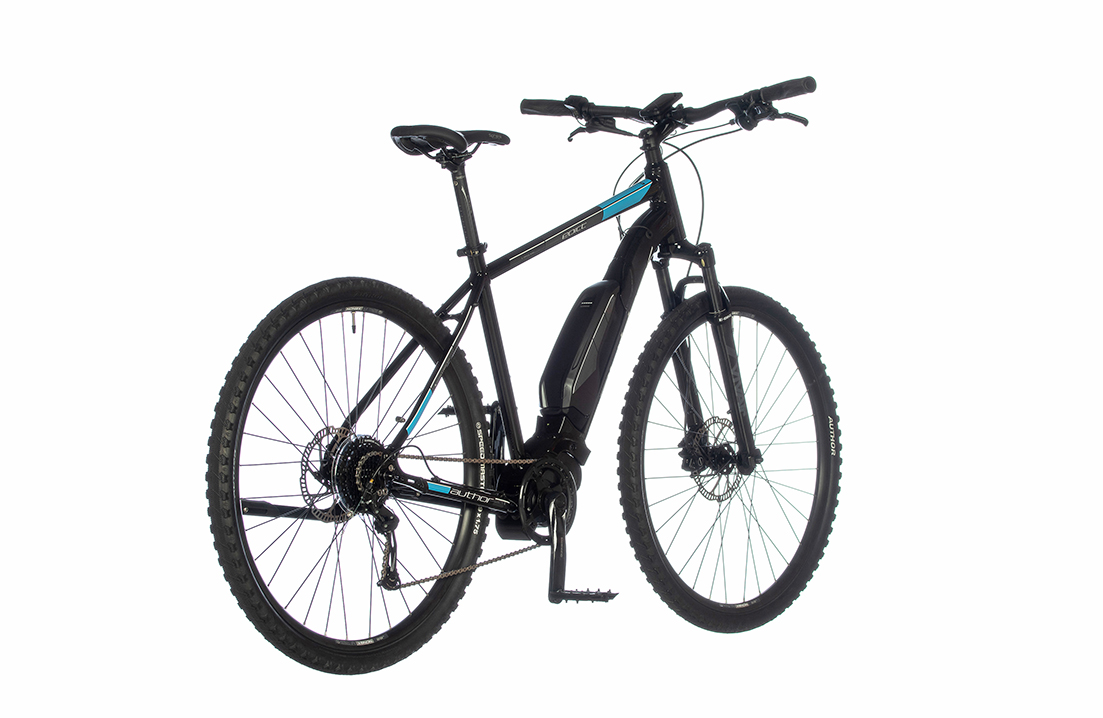

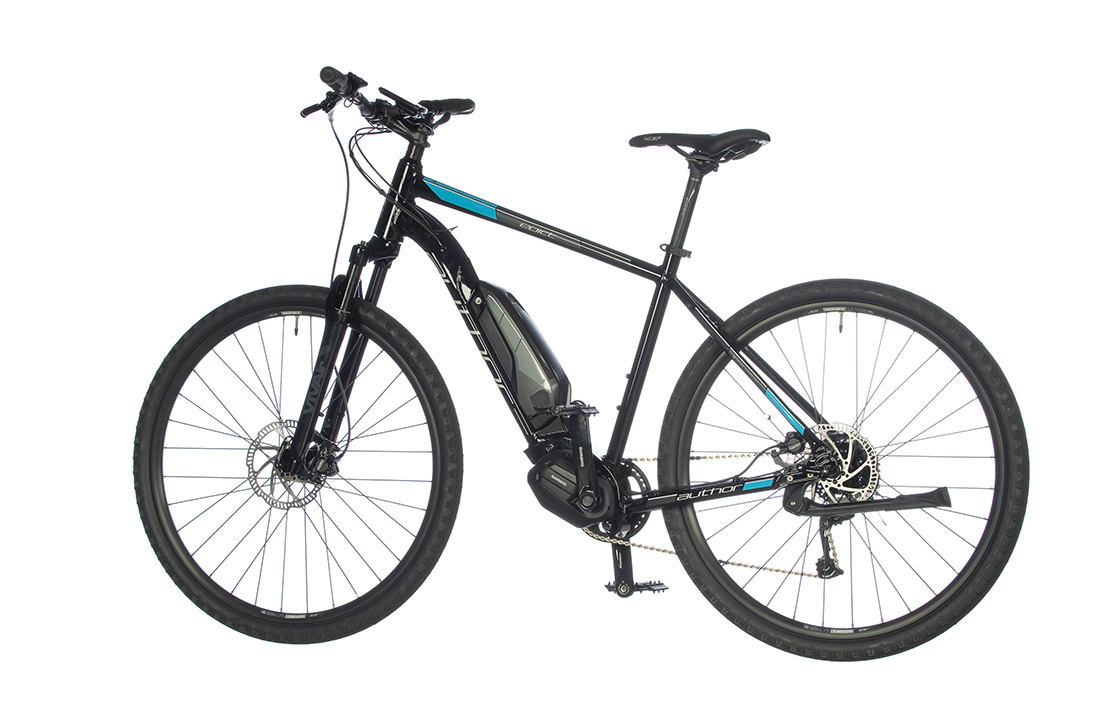

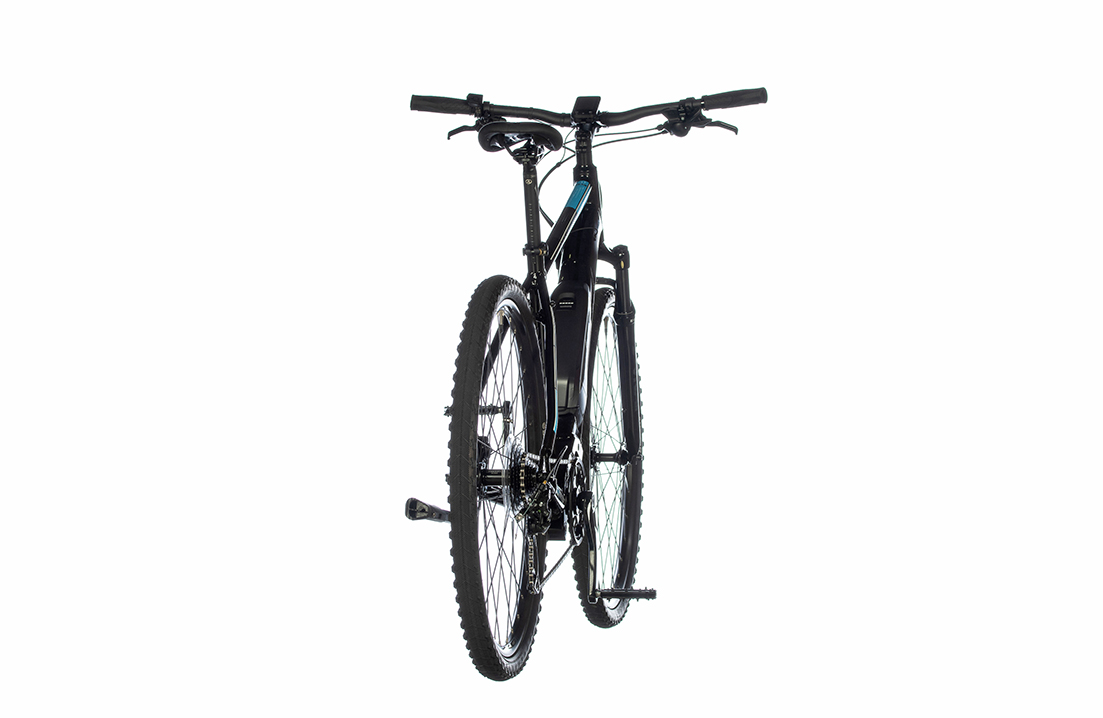

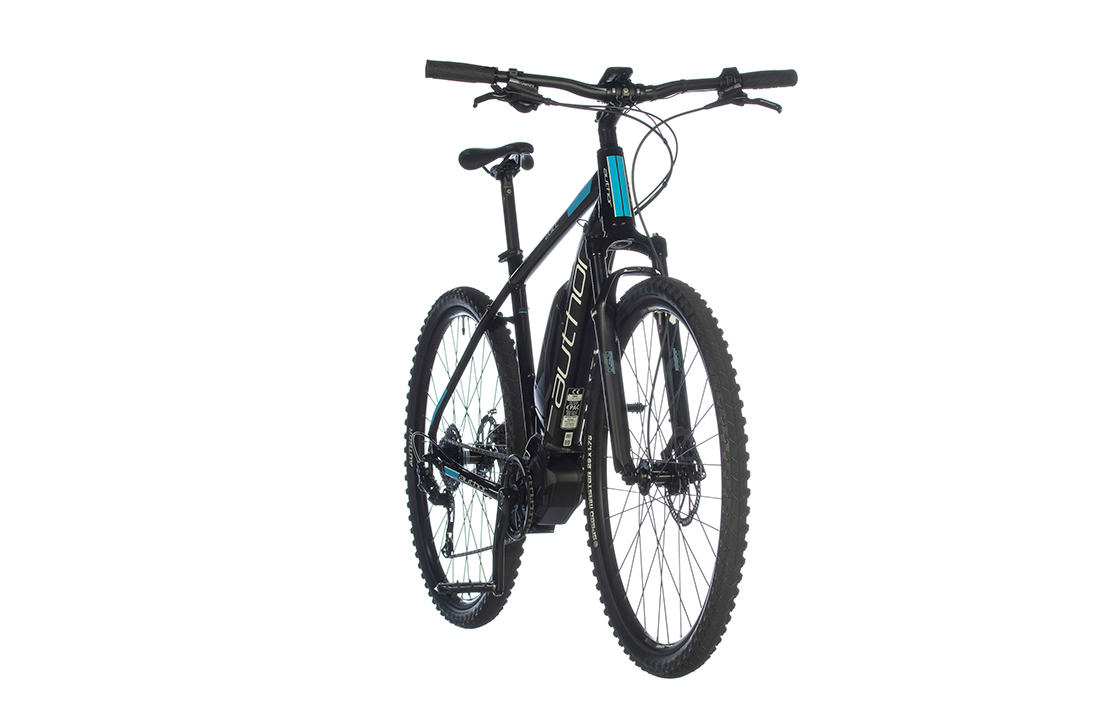

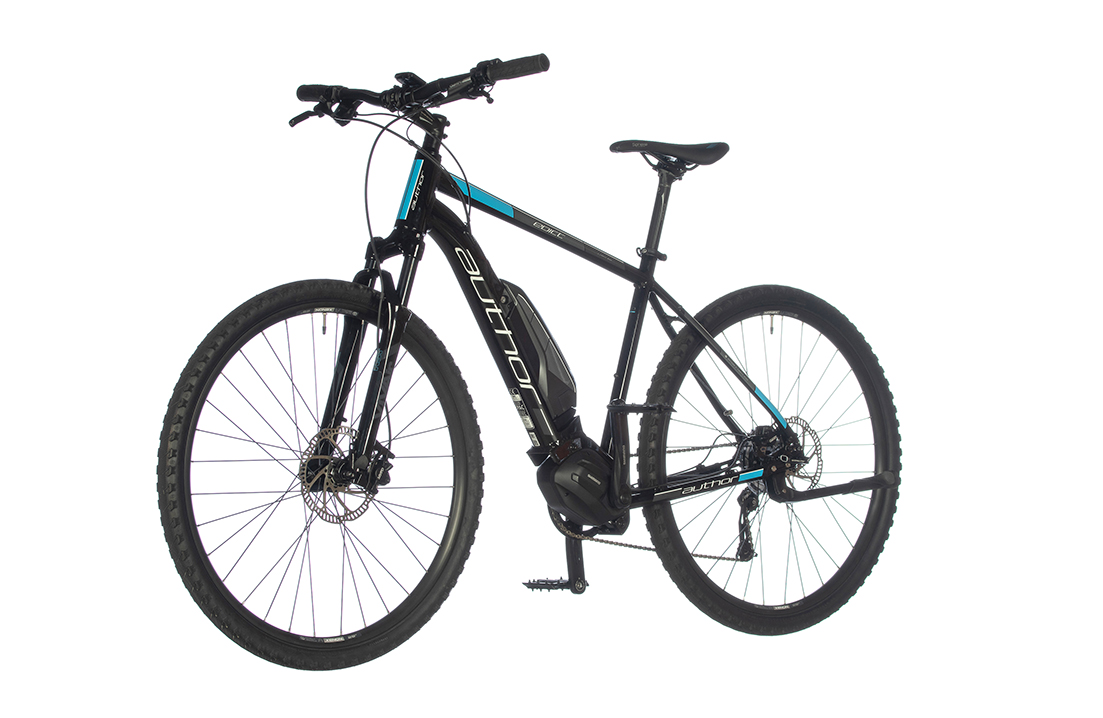

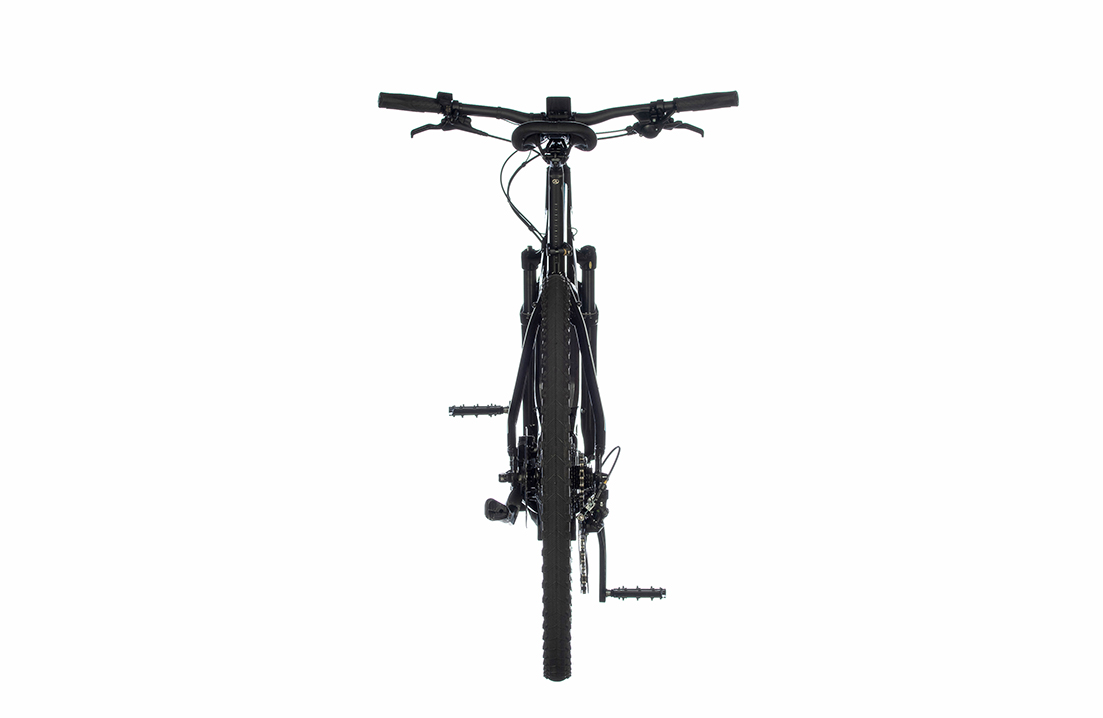

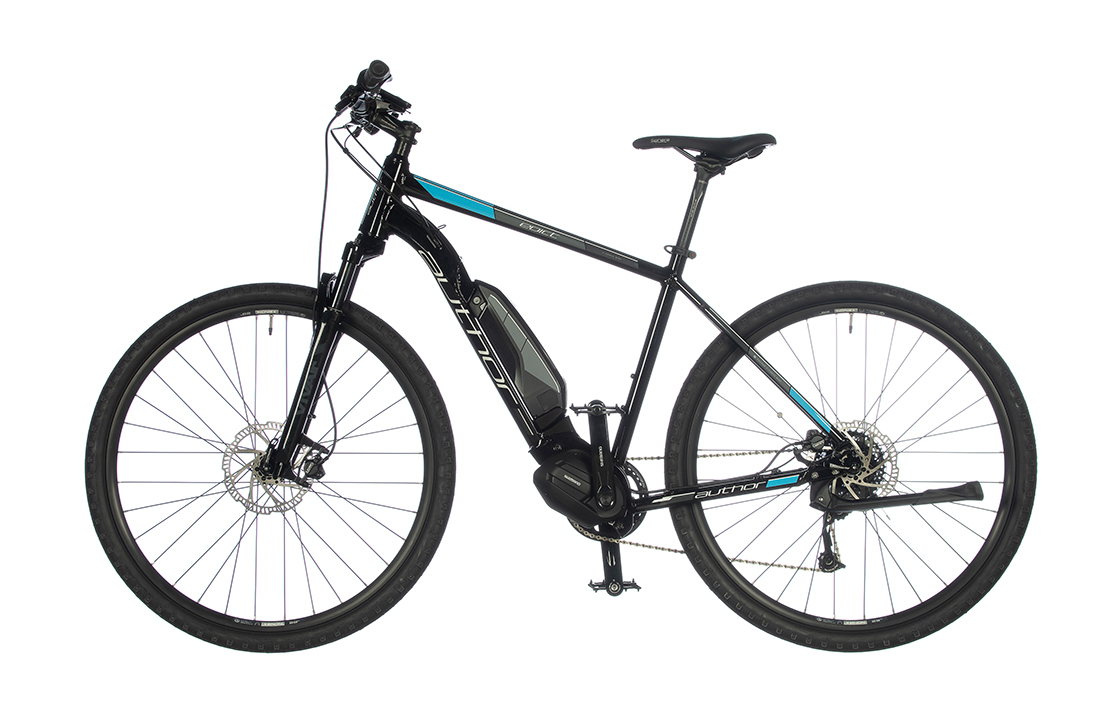

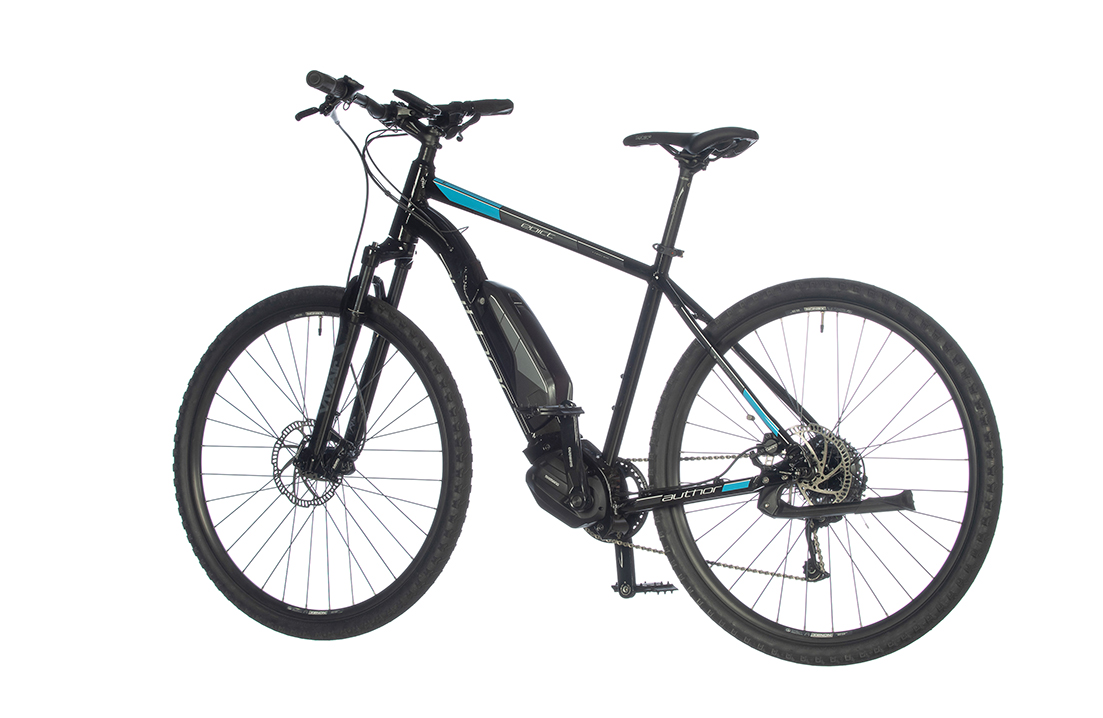

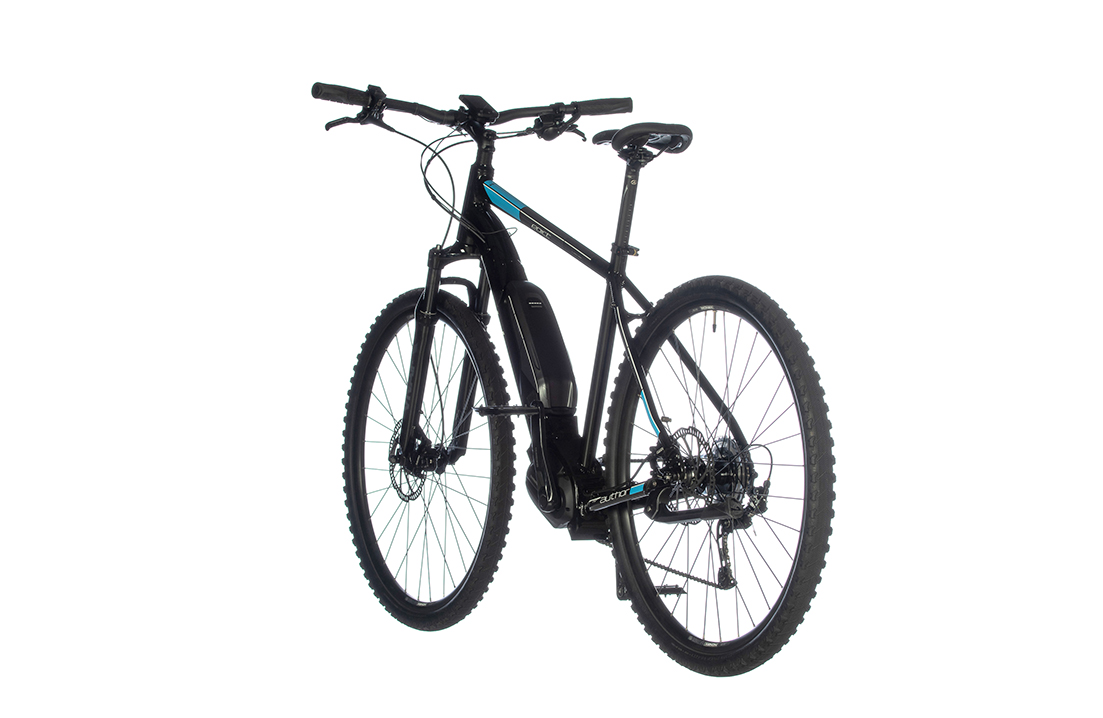

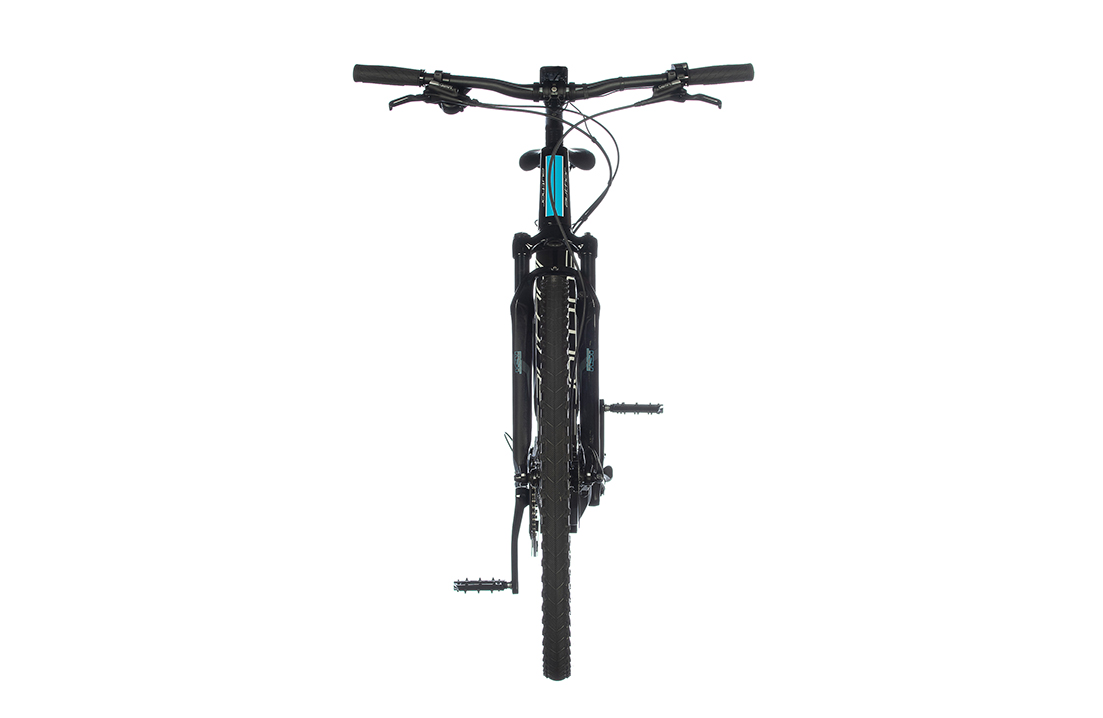

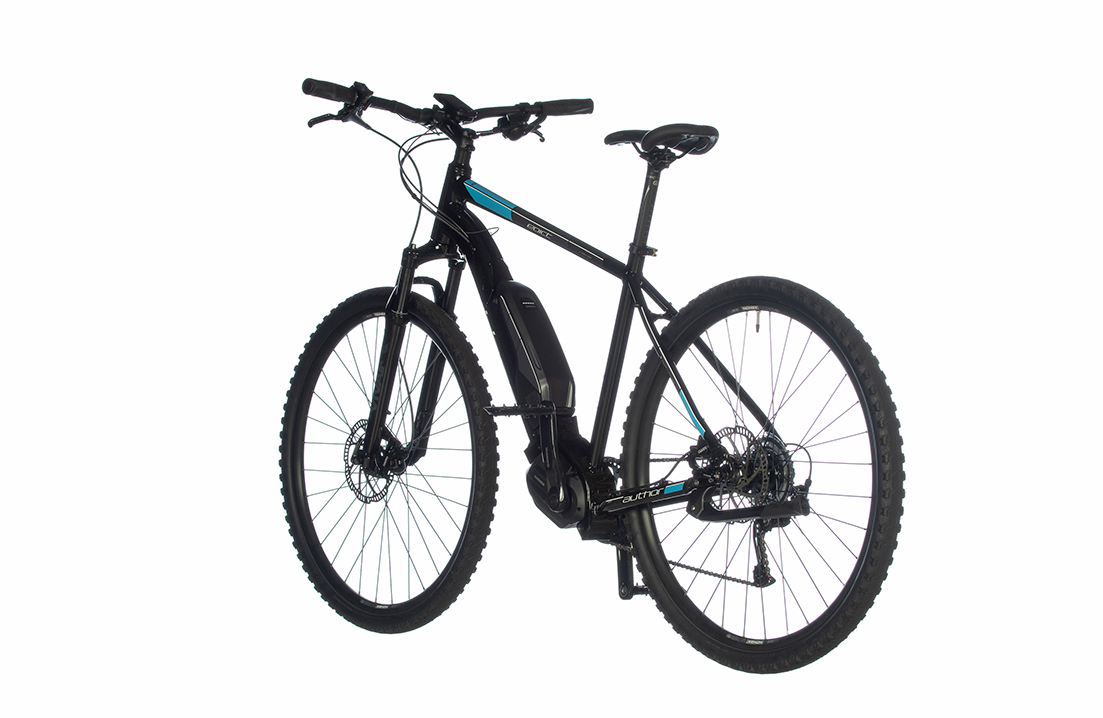

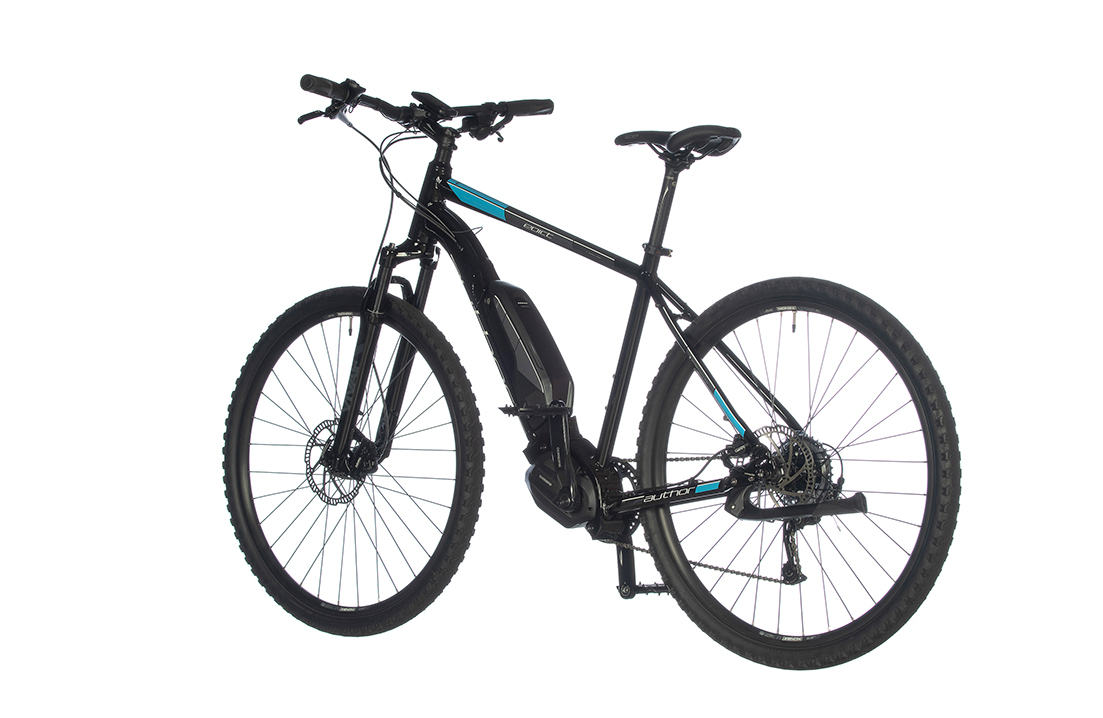

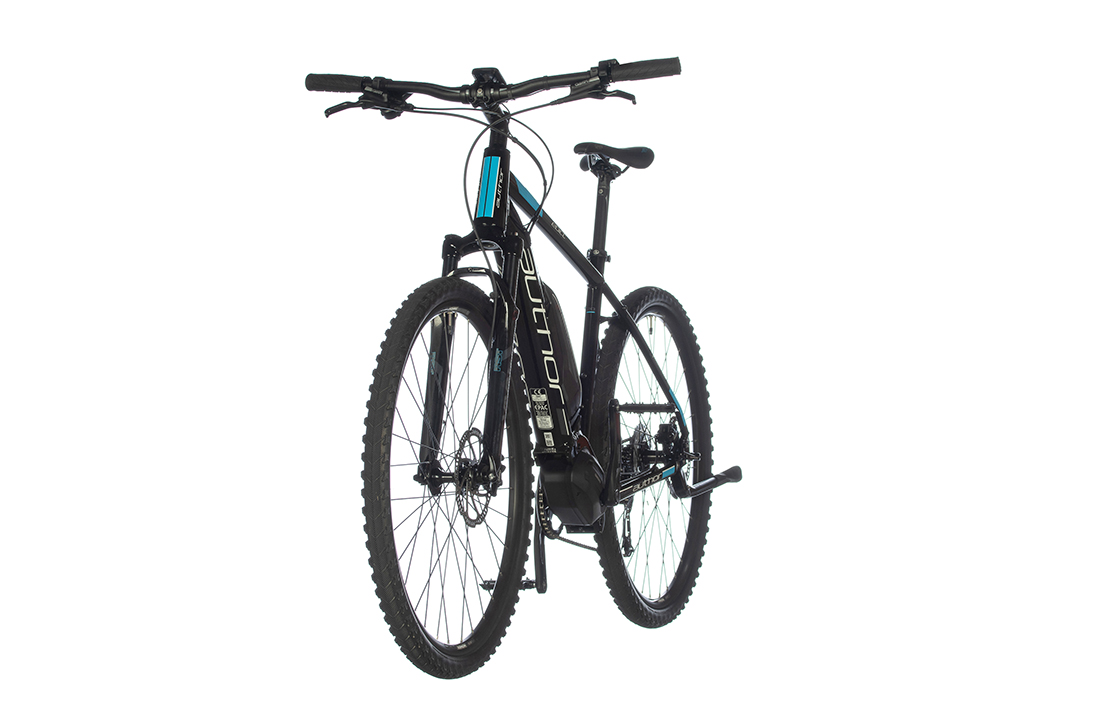

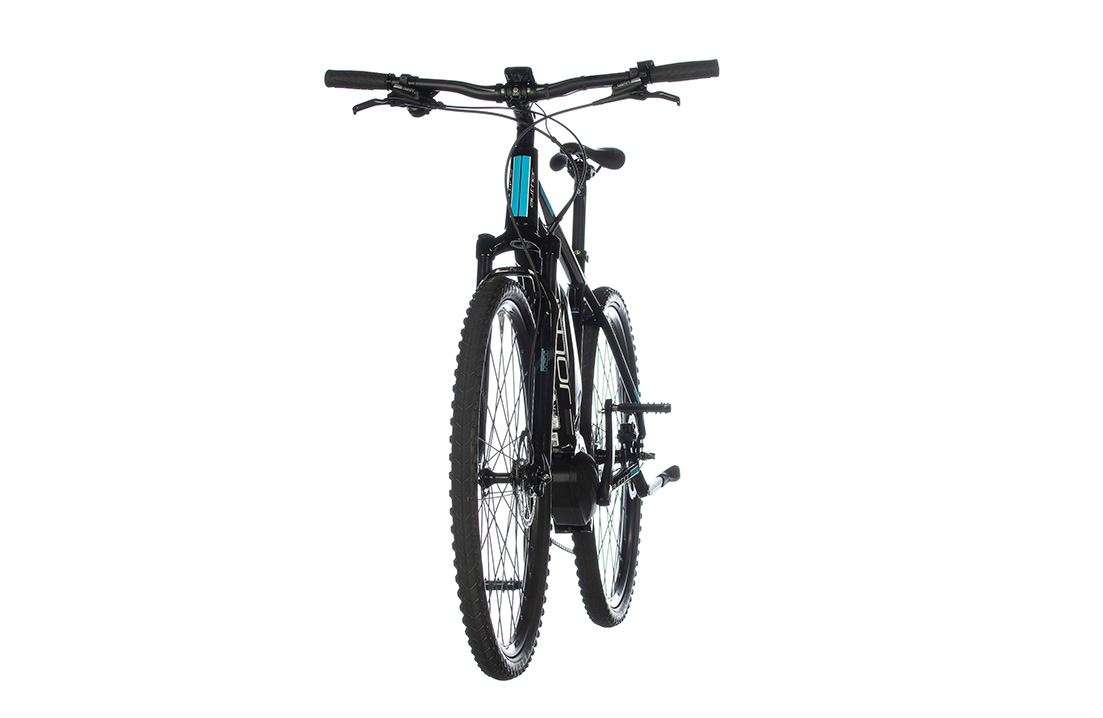

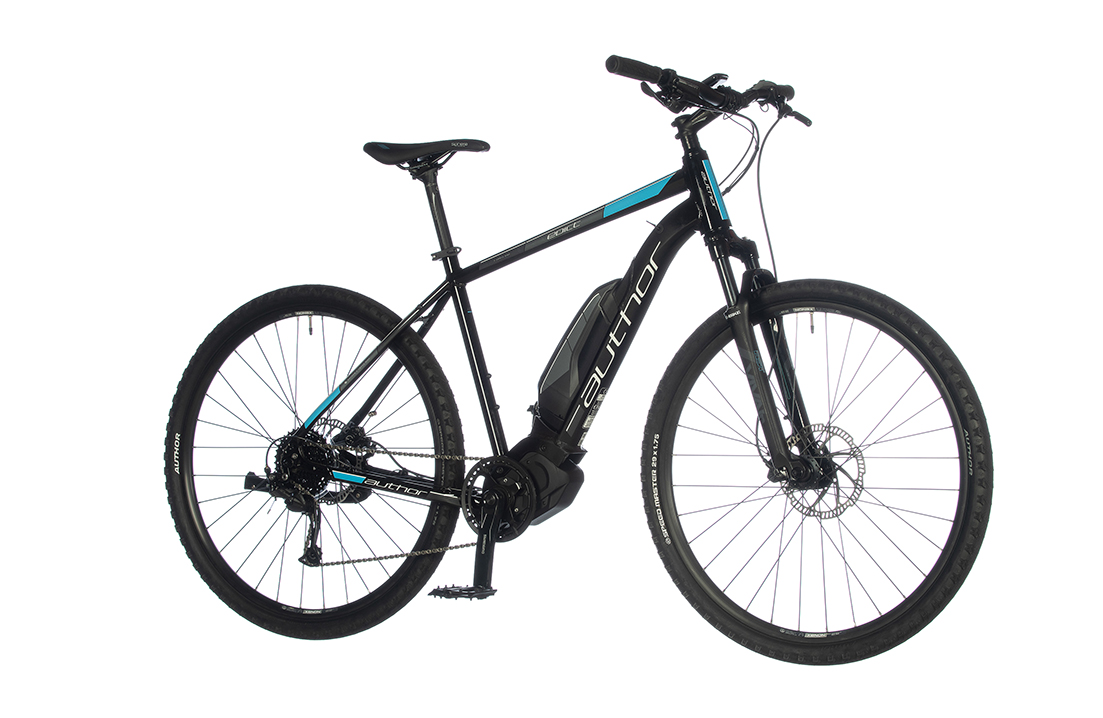

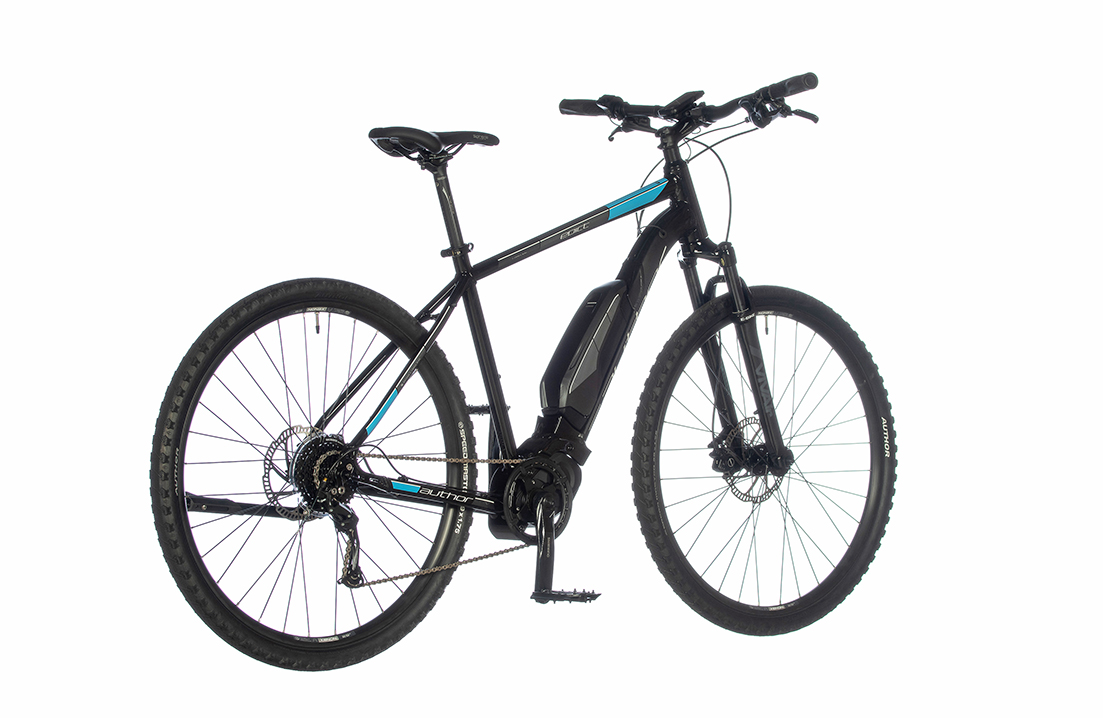

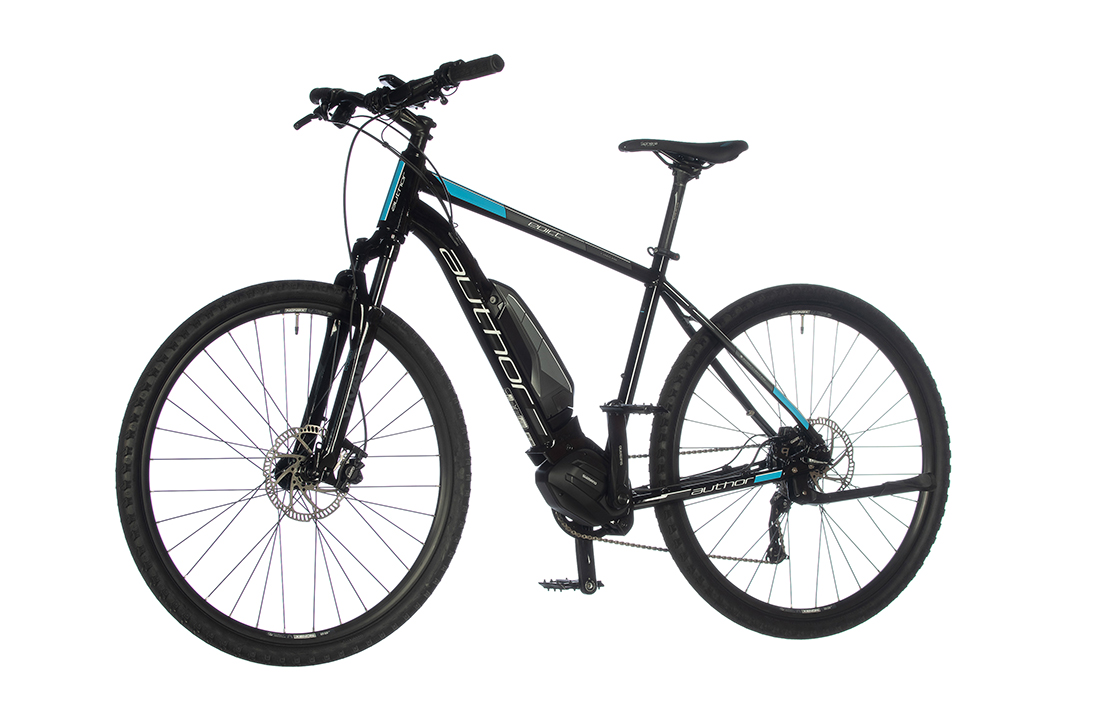

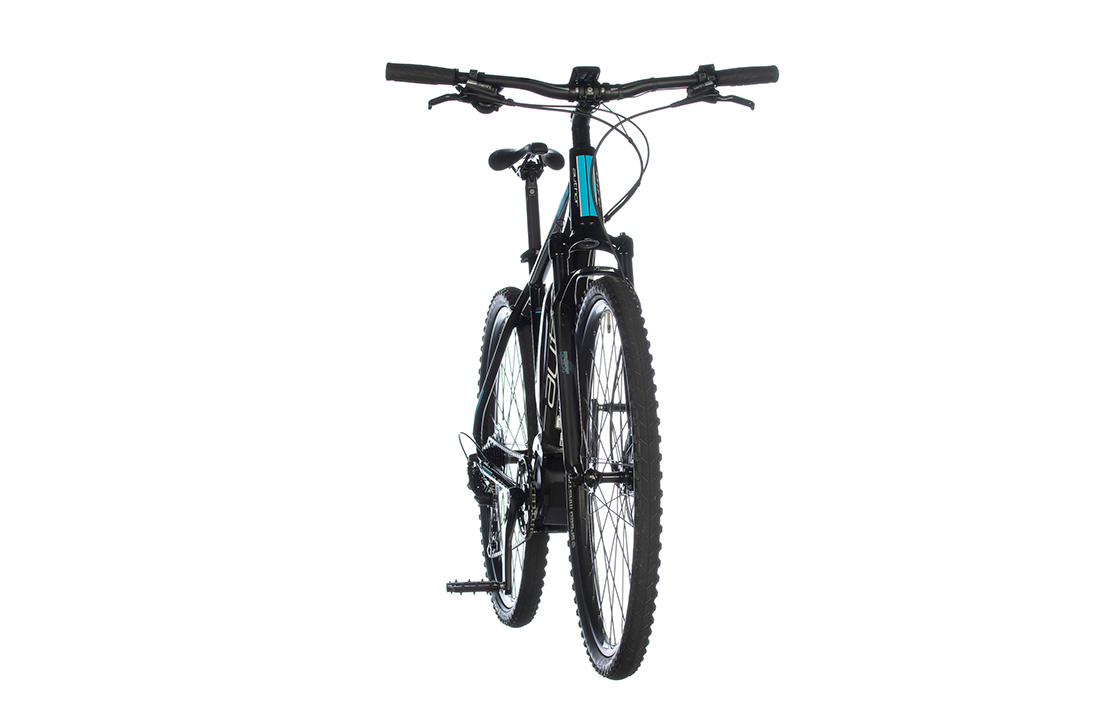

AUTHOR Edict 2021-22

Technical specification

Size	18", 20", 22"
Frame	double butted hydroformed alloy 6061 29"
Front fork	RST ViV Air TnL air, lock out (80 mm)
Engine	SHIMANO Steps E-5000, 250 W
Battery	SHIMANO E-8010 Li-Ion, 36 V, 14 Ah, 504 Wh
Display	SHIMANO Steps E-6100, LCD
Head parts	AUTHOR Integrated 1-1/8"
Chain Wheel	SHIMANO Steps E-5010 38 teeth 170 / 175 mm cranks
BBParts	SHIMANO Steps
Rear derailleur	SHIMANO Alivio
Shifters	SHIMANO Alivio (9)
Free wheel	SHIMANO HG200-9 11-36 (9)
Chain	KMC e9T
Hubs	AUTHOR Radon 32 holes
Brakes	TEKTRO Gemini disc hydraulic (7" rotors)

Brakes levers	TEKTRO Gemini
Rims	AUTHOR Xenon 29 32 holes
Spokes	black stainless steel 2.2 mm
Tires	VITTORIA Barzo 29" × 2.10"
Pedals	HT platform
Handlebar	AUTHOR 15 mm 700 / 720 mm
Grips	AUTHOR Pro Lock
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Sphere Gel
Speed	9
Weight	20,7 kg / 20"

Geometry and sizes

Size	16"	18"	20"	22"
Min. figure ~~[cm]~~	150	165	175	185
Max. figure ~~[cm]~~	168	178	188	200
S/T c-t ~~[mm]~~	406	457	508	559
S/T c-c ~~[mm]~~	0	0	0	0
T/T h ~~[mm]~~	560	580	600	620
T/T a ~~[mm]~~	540	556	574	595
H/T ~~[mm]~~	110	130	150	160
C/S ~~[mm]~~	489	489	489	489
W/B ~~[mm]~~	1095	1116	1136	1157
S/T ang. ~~[°]~~	73	73	73	73
H/T ang. ~~[°]~~	71	71	71	71
F/L ~~[mm]~~	490	490	490	490
B/B drop ~~[mm]~~	60	60	60	60
B/B width ~~[mm]~~	0	0	0	0
Reach ~~[mm]~~	0	0	0	0
Stack ~~[mm]~~	0	0	0	0
F/R ~~[mm]~~	44	44	44	44
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
