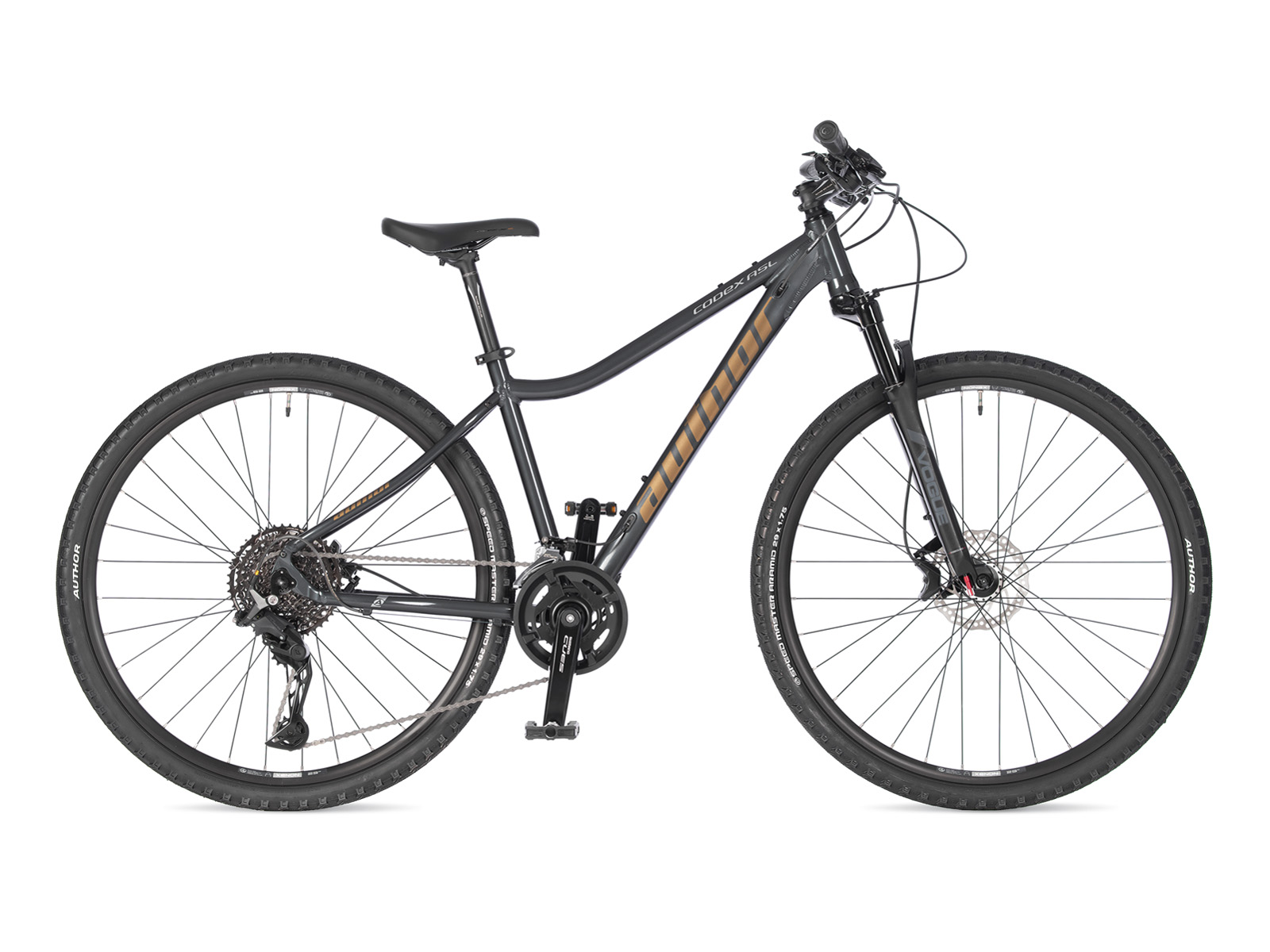

Codex ASL 2025

~~Colour variants~~

Tripple butted alloy ASL frameRST Vogue Air fork, remote lock outSHIMANO CUES components, 22 speedHydraulic disc brakes TEKTROAUTHOR Speed Master 29" × 1.75" foldable tiresAUTHOR Microtech ErgoGrip comfortable gripsAUTHOR Fenix saddle

~~Buy now~~price 33 990 Kč

Technical specification

Size	15", 17", 19"
Frame	triple butted alloy 6061 29" (ASL)
Front fork	RST Vogue Air TRL, air, remote lock out (80 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	SHIMANO Cues 4000, 40-26 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-MT500, BB unit
Front derailleur	SHIMANO Cues 6000 (31.8)
Rear derailleur	SHIMANO Cues 6000
Shifters	SHIMANO Cues 6000 (22)
Free wheel	SHIMANO CS-LG400-11, 11-45 (11)
Chain	KMC XGlide
Hubs	AUTHOR Xenon, 32 holes
Brakes	TEKTRO HD-M530, disc hydraulic (6" rotors)

Brakes levers	TEKTRO HD-M530
Rims	AUTHOR Xenon 29, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	AUTHOR Speed Master, aramid, 29" × 1.75"
Pedals	AUTHOR Non Slip alloy
Handlebar	AUTHOR alloy, 15 mm, 660 / 680 mm
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Fenix
Speed	22

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	550	570	590
T/T a ~~[mm]~~	536	549	566
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1057	1077	1098
S/T ang. ~~[°]~~	73.5	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5	70.5
F/L ~~[mm]~~	490	490	490
B/B drop ~~[mm]~~	60	60	60
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	370	386	404
Stack ~~[mm]~~	609	619	628
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
