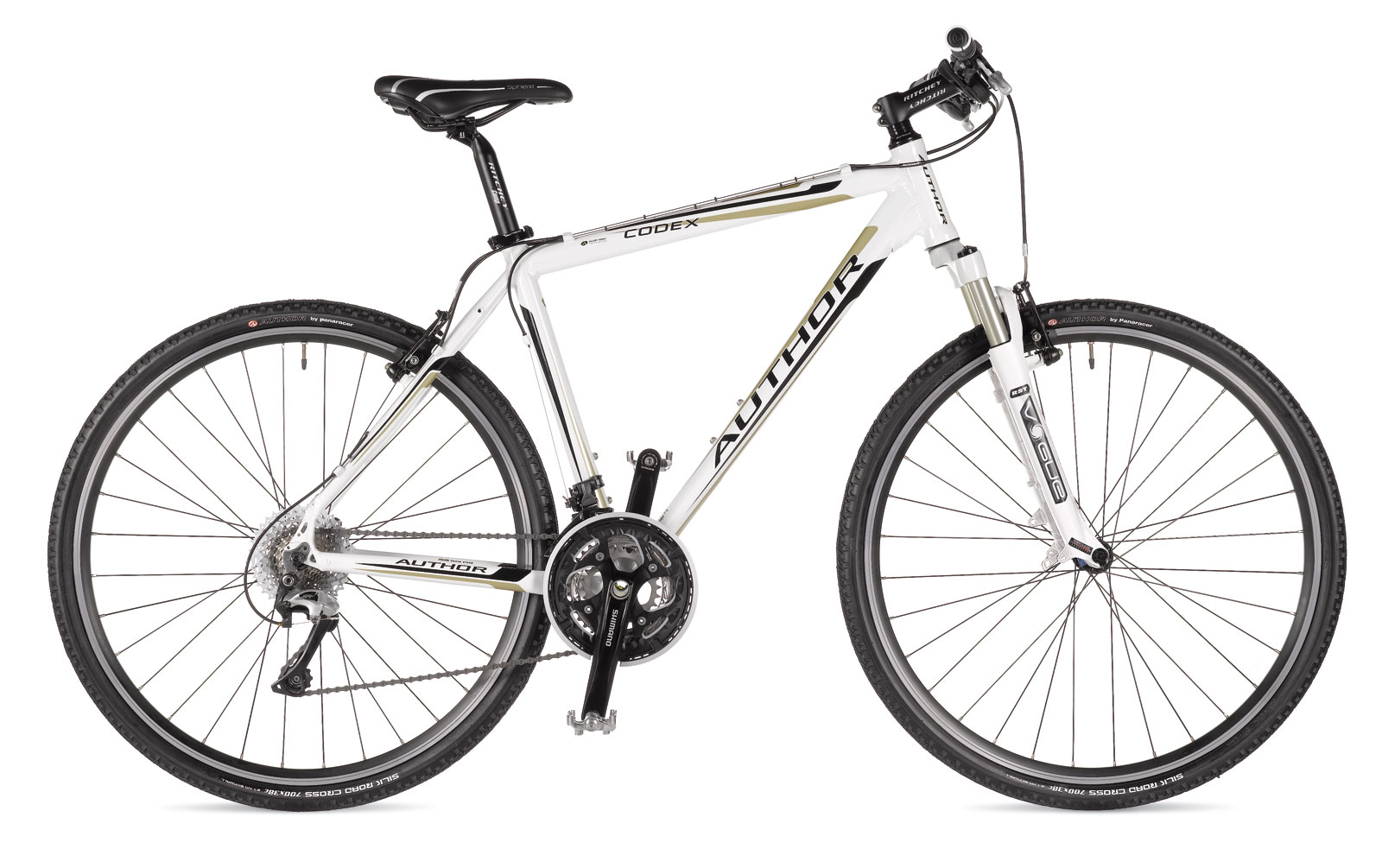

AUTHOR Codex 2012Archivní model 2012

Technical specification

Size18", 20", 22"
Frametriple butted alloy 6061 700c
Front forkRST Vogue Air Elite air, lock out (60 mm)
Head partsAUTHOR Integrated 1-1/8"
Chain WheelSHIMANO T551-10 48-36-26 teeth 170 / 175 mm cranks
BBPartsSHIMANO T551-10 BB unit
Front derailleurSHIMANO XT (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO SLX (30)
Free wheelSHIMANO HG-81-10 11-36 (10)
ChainSHIMANO HG-74
HubsSHIMANO Deore 32 holes
BrakesTEKTRO M530
Brakes leversTEKTRO CL-530
RimsAUTHOR Argon Cross 32 holes
Spokesblack stainless steel 2.0 mm
TiresAUTHOR PANARACER Silk Road Cross 700 x 38c
PedalsAUTHOR oneside clipless
HandlebarRITCHEY Comp 20 mm 620 / 670 mm
GripsAUTHOR GripLock
StemRITCHEY
Seat postRITCHEY Comp 2B (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Sphere Gel
Speed30
Weight12,3 Kg / 20"

Geometry and sizes

Size 18" 20" 22"
Min. figure [cm] 164 174 184
Max. figure [cm] 176 186 196
S/T c-t [mm] 457 508 559
S/T c-c [mm] 0 0 0
T/T h [mm] 560 583 605
T/T a [mm] 537 559 583
H/T [mm] 130 145 160
C/S [mm] 440 440 440
W/B [mm] 1054 1077 1100
S/T ang. [°] 73 73 73
H/T ang. [°] 71 71 71
F/L [mm] 470 470 470
B/B drop [mm] 45 45 45
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 46 46 46
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Codex 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
