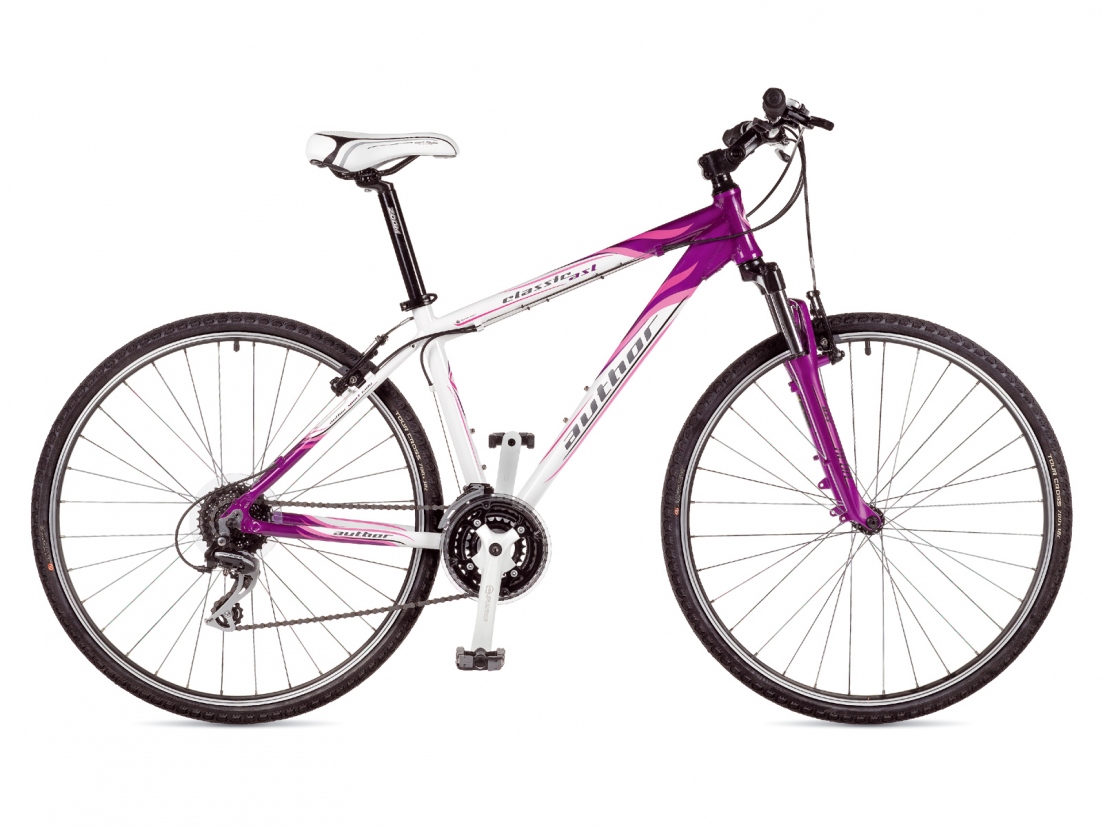

AUTHOR Bicycle Classic ASL 2013
Interested in other model`s year?

Technical specification

Size17", 19.5"
Framealloy 6061 700c (ASL)
Front forkRST Neon ML mechanical lock out (60 mm)
Head partsFSA Integrated 1-1/8"
Chain WheelSUNTOUR NEX-T102 42-34-24 teeth 170 mm cranks
BBPartsSUNTOUR XCM cartridge
Front derailleurSHIMANO TX51 (34.9)
Rear derailleurSHIMANO Acera
ShiftersSHIMANO Acera (24)
Free wheelSHIMANO HG-31-8 11-32 (8)
ChainKMC Z72
HubsQUANDO 32 holes
BrakesTEKTRO 855AL
Brakes leversSHIMANO Acera
RimsAUTHOR Xenon Cross 32 holes
Spokessteel
TiresAUTHOR Tour 700 x 38c
PedalsAUTHOR Nonslip resin
HandlebarKALIN steel 20 mm 620 / 640 mm
GripsAUTHOR high density foam
StemZOOM adjustable
Seat postZOOM alloy (31.6)
Seat clampAUTHOR (34.9)
SaddleAUTHOR Soft Touch
Speed24
Weight13,2 Kg / 17"

Geometry and sizes

Size 17" 19,5"
Min. figure [cm] 155 170
Max. figure [cm] 172 185
S/T c-t [mm] 432 495
S/T c-c [mm] 0 0
T/T h [mm] 575 590
T/T a [mm] 553 566
H/T [mm] 120 130
C/S [mm] 440 440
W/B [mm] 1071 1086
S/T ang. [°] 73 73
H/T ang. [°] 71 71
F/L [mm] 470 470
B/B drop [mm] 45 45
B/B width [mm] 0 0
Reach [mm] 0 0
Stack [mm] 0 0
F/R [mm] 48 48
Handlebars [mm] 0 0
Stem [mm] 0 0
Cranks [mm] 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Classic ASL 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
