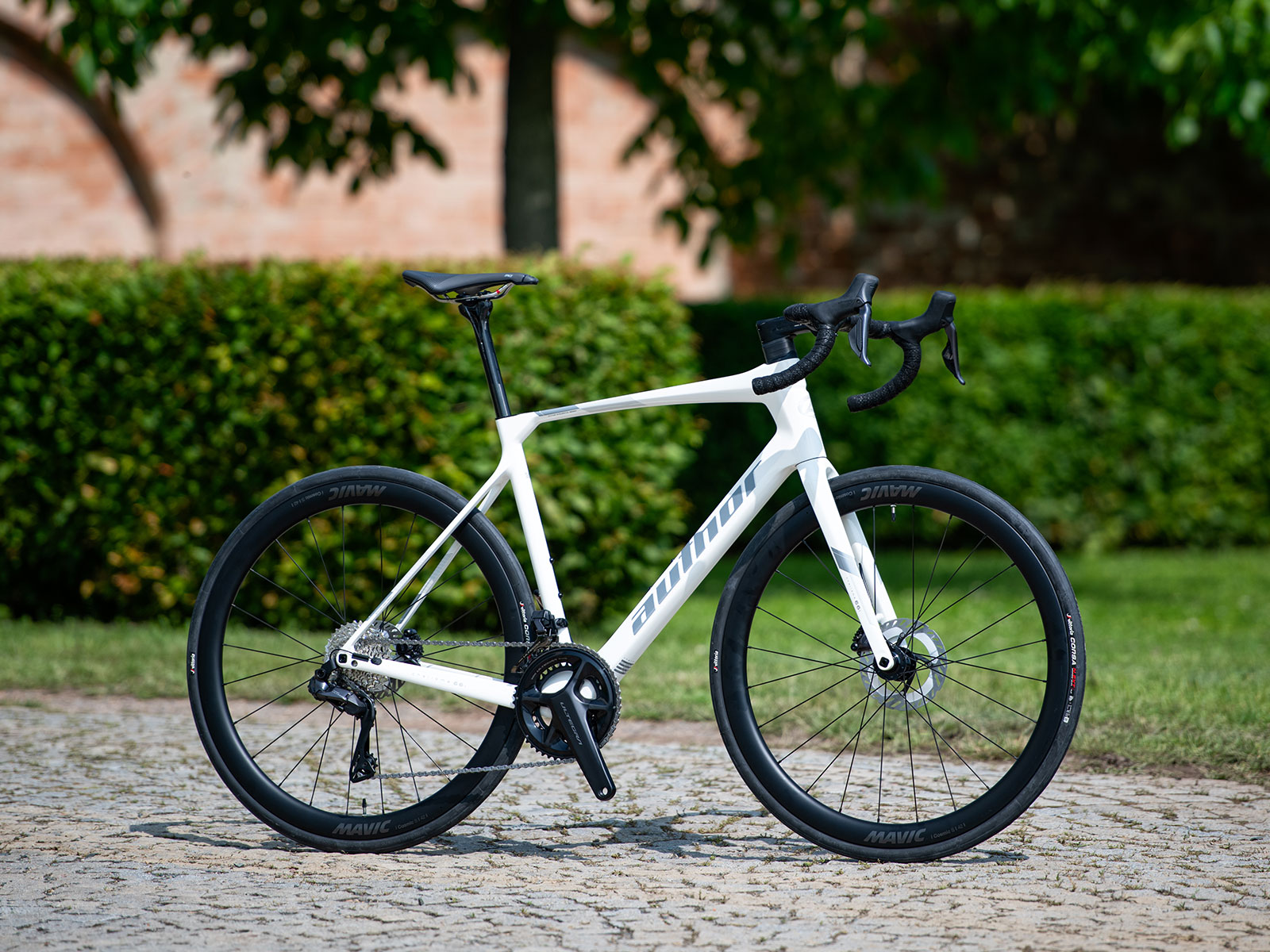

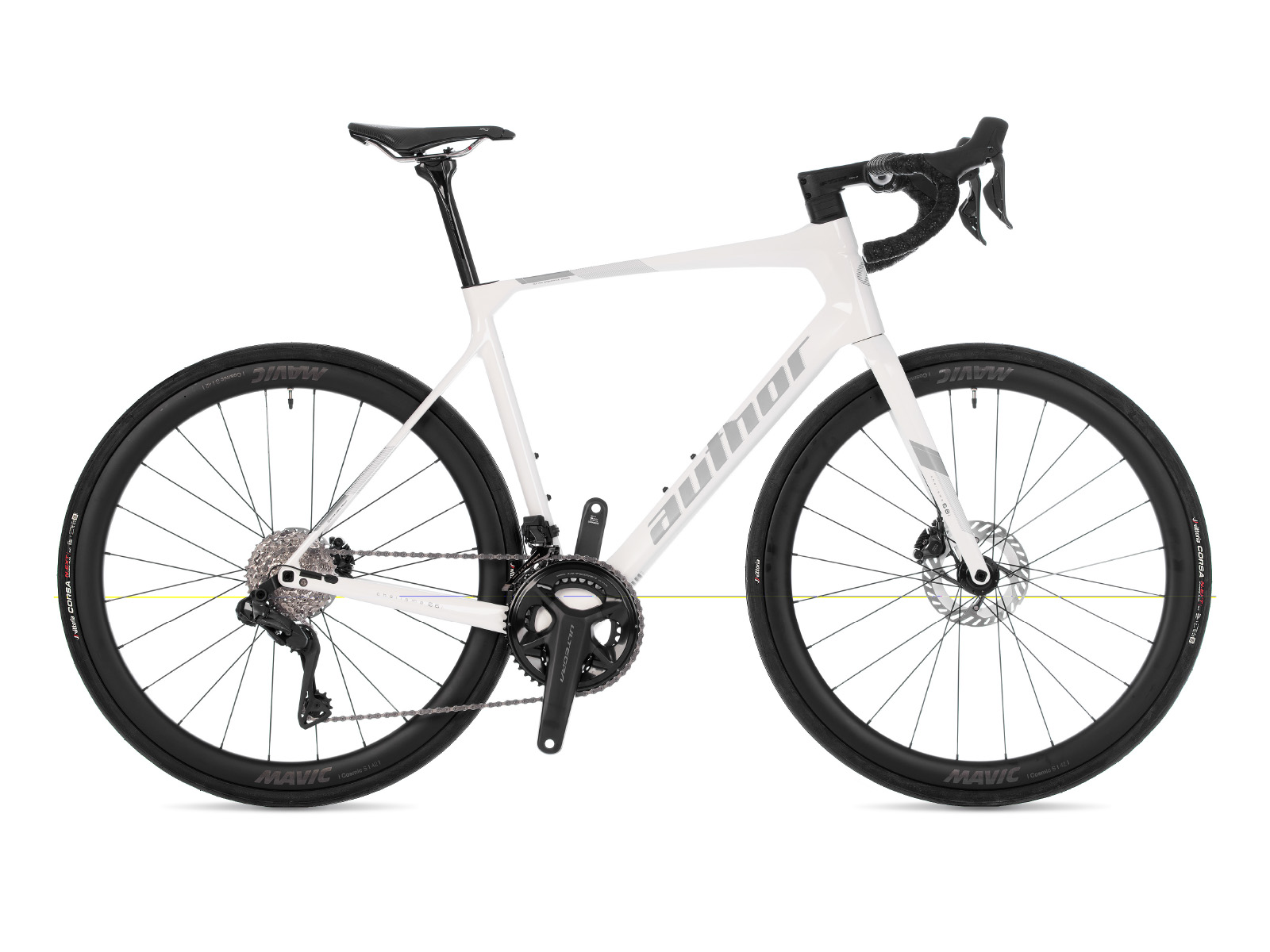

Charisma 66i 2025Archivní model 2025

~~Colour variants~~

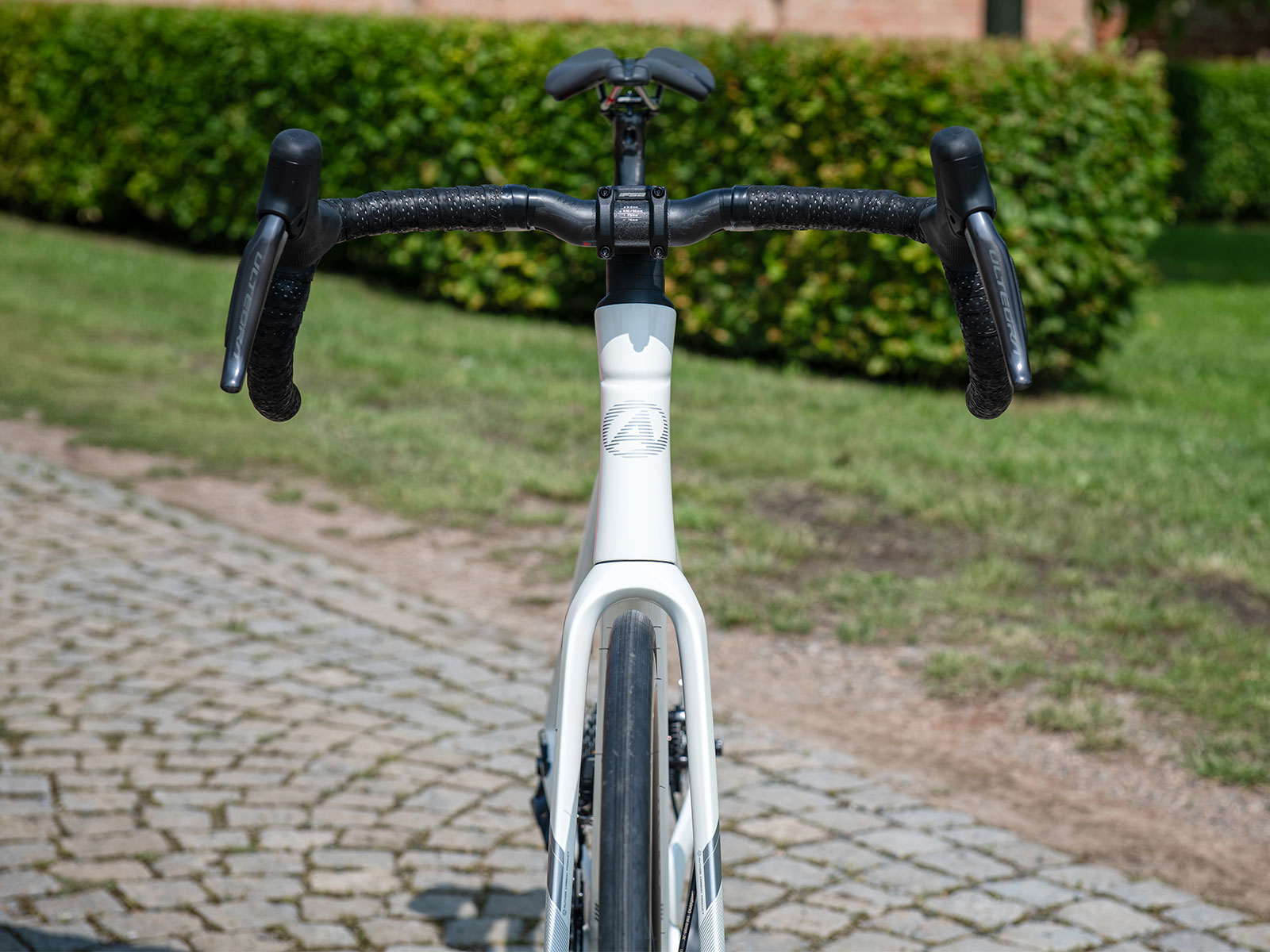

New carbon frame with fully Integrated Cable Routing included stem and head setLightweight full carbon forkSHIMANO Ultegra Di2 components and hydraulic brakes, 24 speedMAVIC Cosmic S 42 Disc CL UST wheel setFSA cockpit, carbon seat post and ICR head setVITTORIA Corsa N.EXT TLR, 700 × 28c foldable tiresJak vybrat kolo

~~Buy now~~special price 109 990 Kč

original price ~~136 990 Kč~~

Technical specification

Size	48 cm (S), 50 cm (M), 52 cm (L), 55 cm (XL)

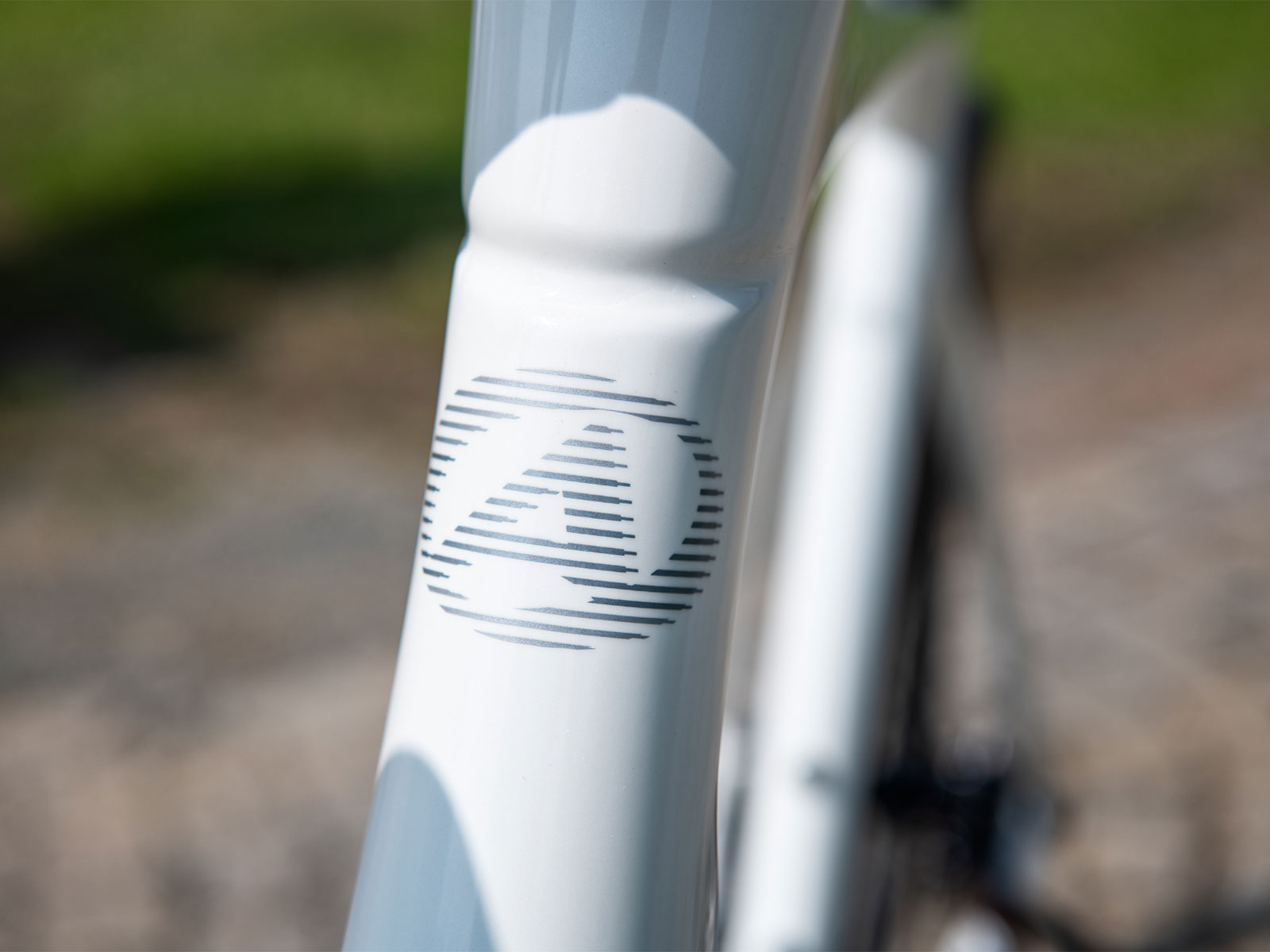

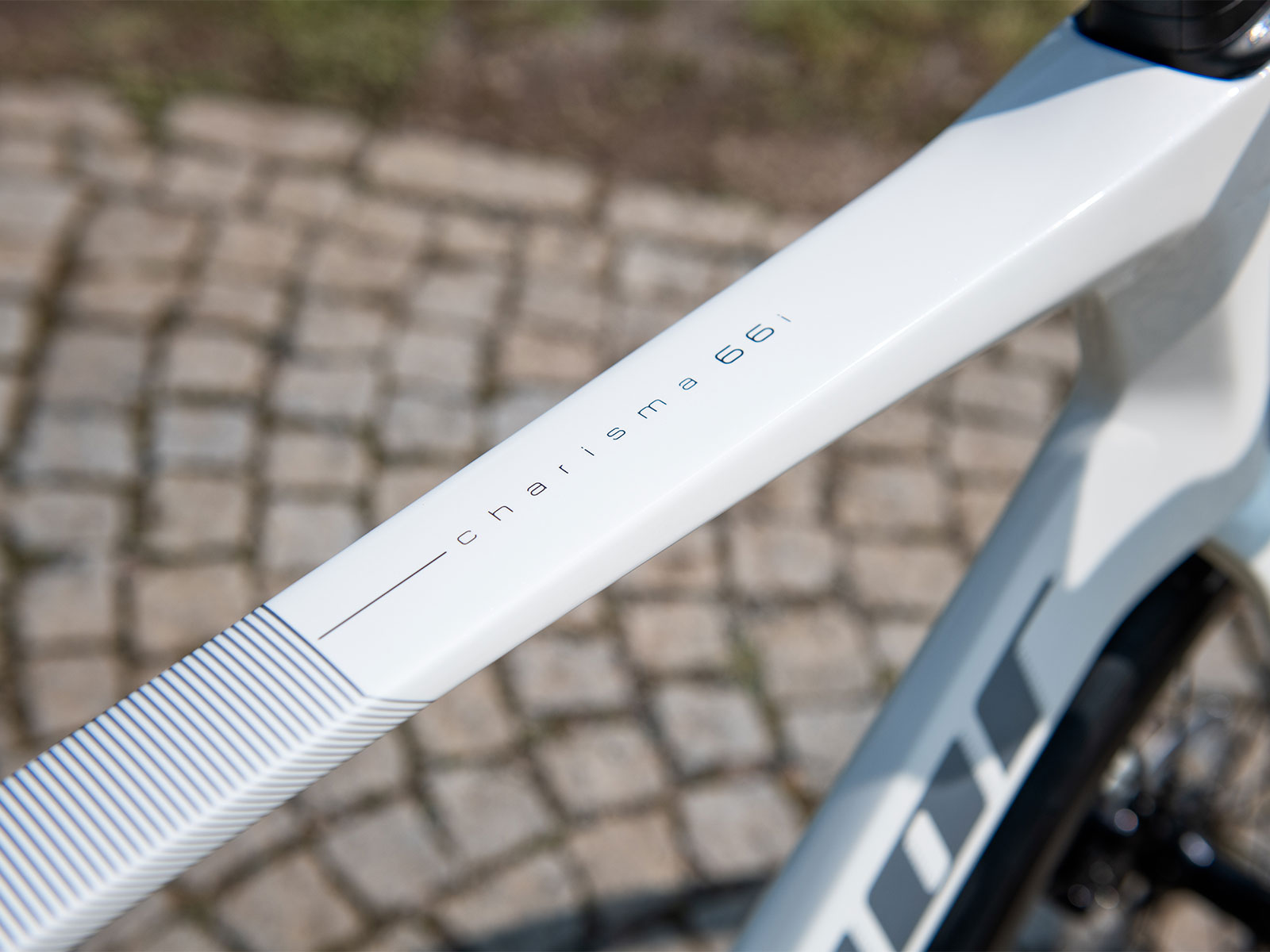

Frame	AUTHOR carbon Toray T800 monocoque, max tyre size 700 × 35c
Front fork	AUTHOR carbon Toray T800 monocoque, 1.5" tapered
Head parts	FSA No. 55R ACR / STD 1,5"

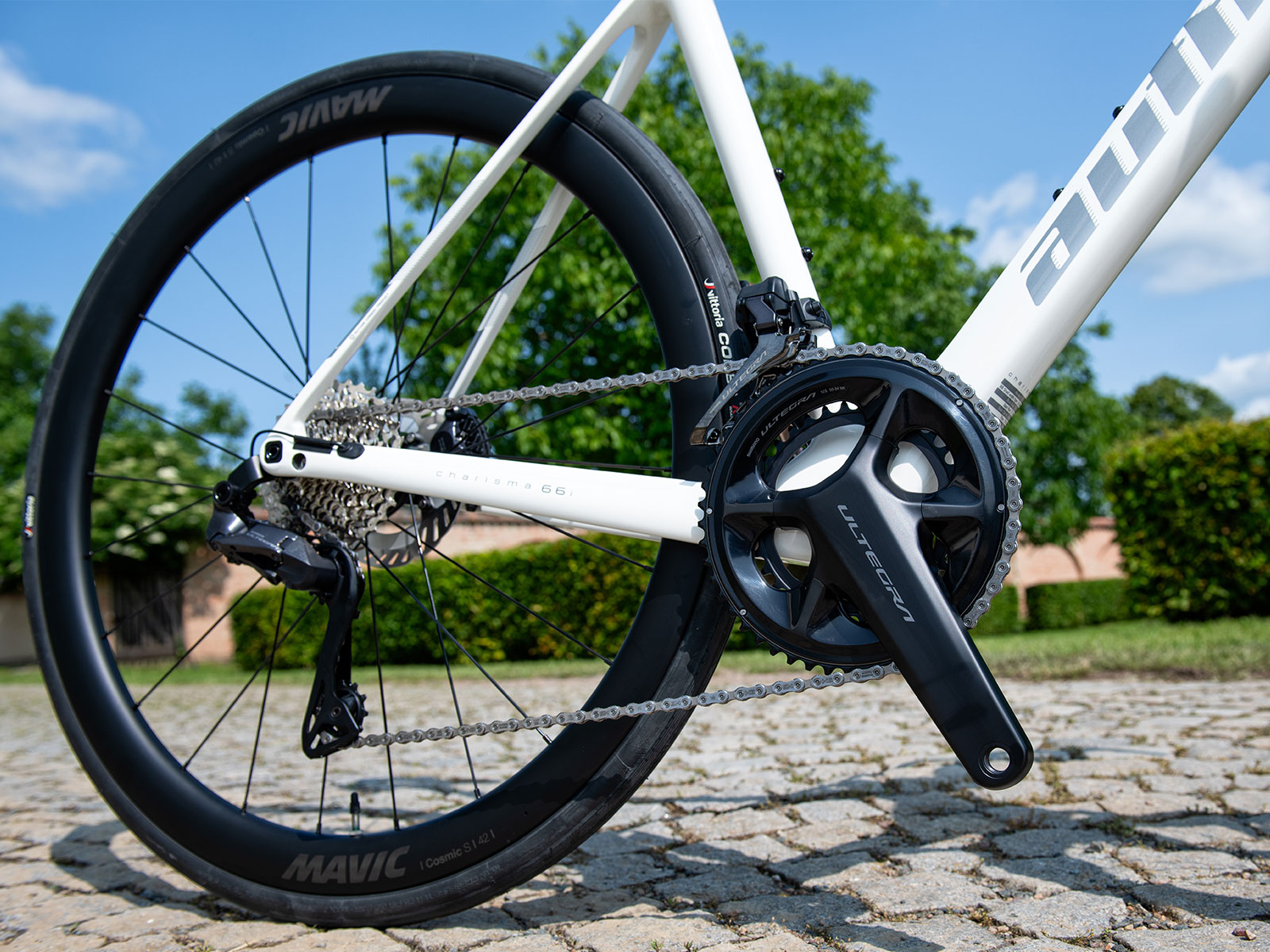

Chain Wheel	SHIMANO Ultegra, 50-34 teeth, 170 / 172,5 / 175 mm cranks
BBParts	SHIMANO BB-72, BB unit
Front derailleur	SHIMANO Ultegra Di2

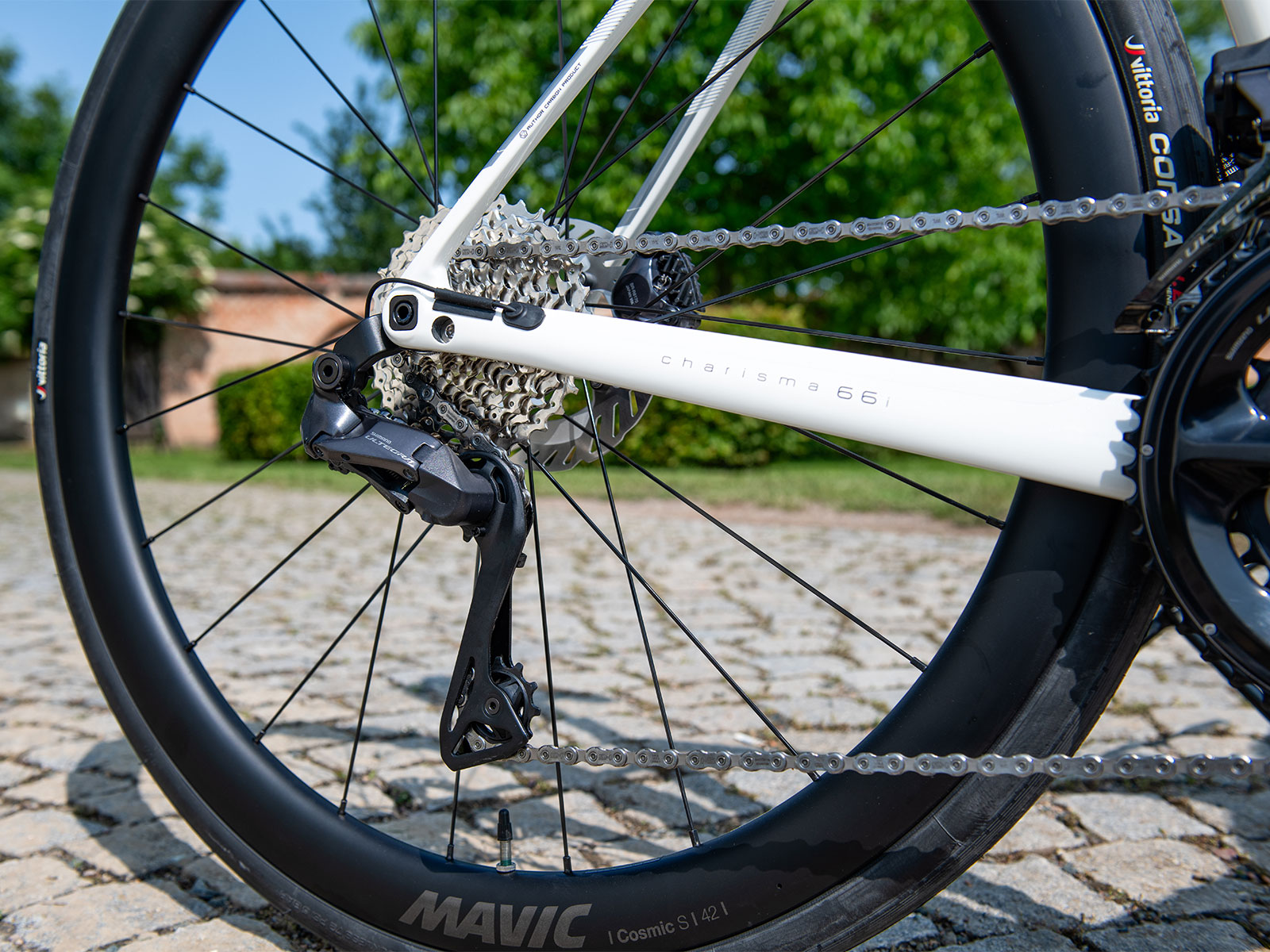

Rear derailleur	SHIMANO Ultegra Di2
Shifters	SHIMANO Utegra Di2 (24)
Free wheel	SHIMANO CS-R7100-12, 11-34 (12)
Chain	SHIMANO CN-M7100

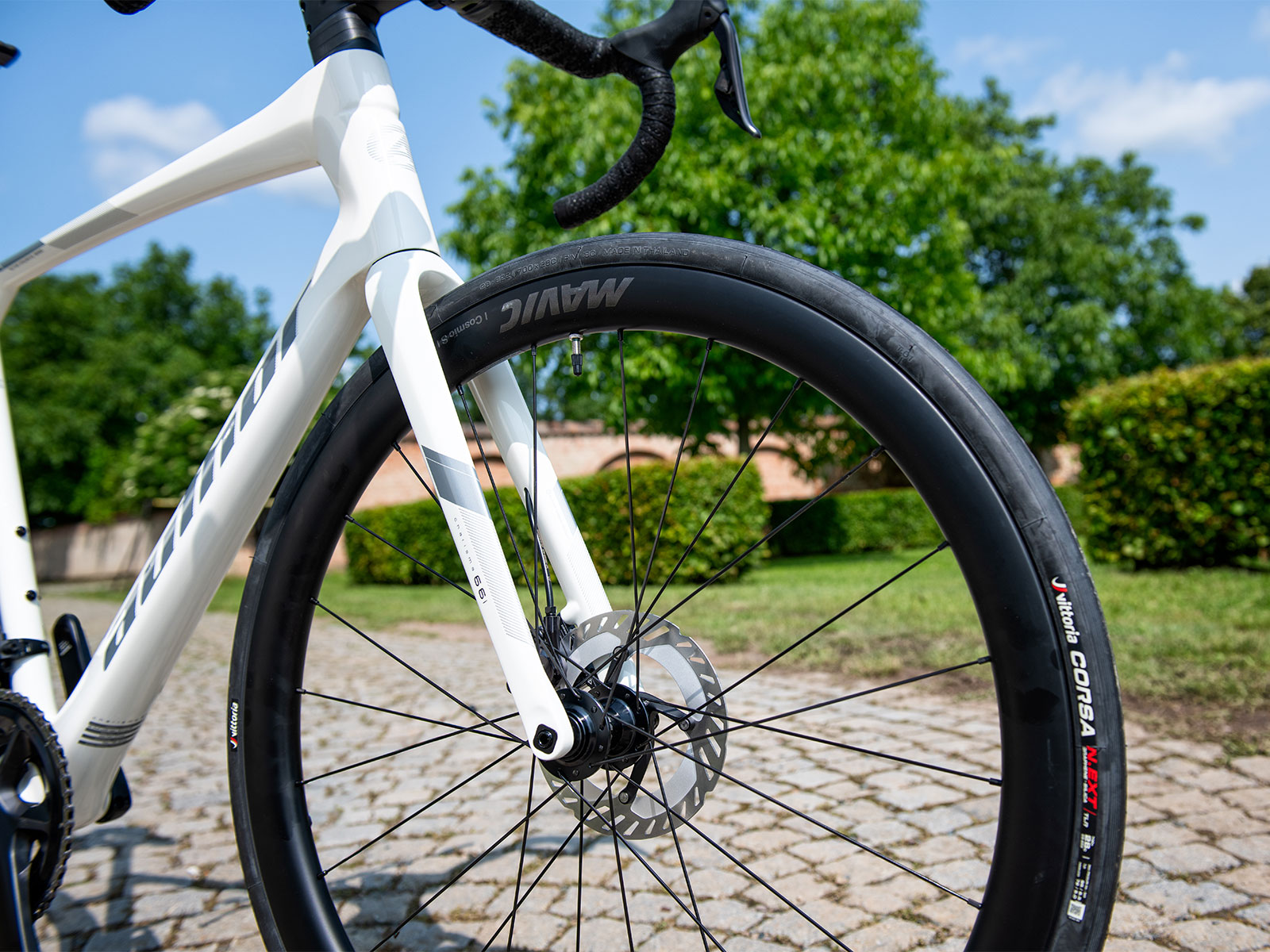

Hubs	MAVIC Cosmic S 42 Disc CL UST, wheel set, 24 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle

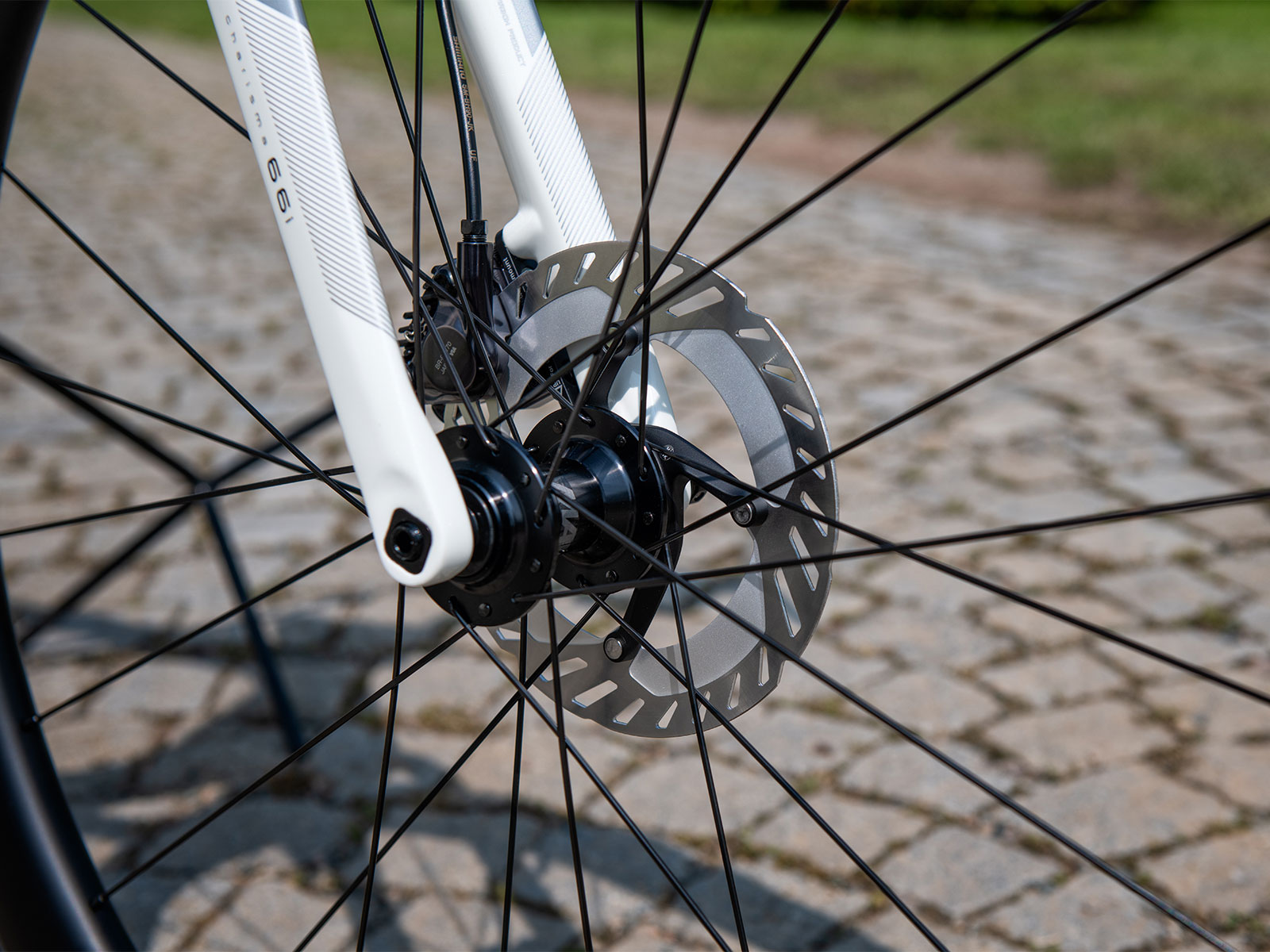

Brakes	SHIMANO R8170, disc hydraulic (160/140 mm rotors)

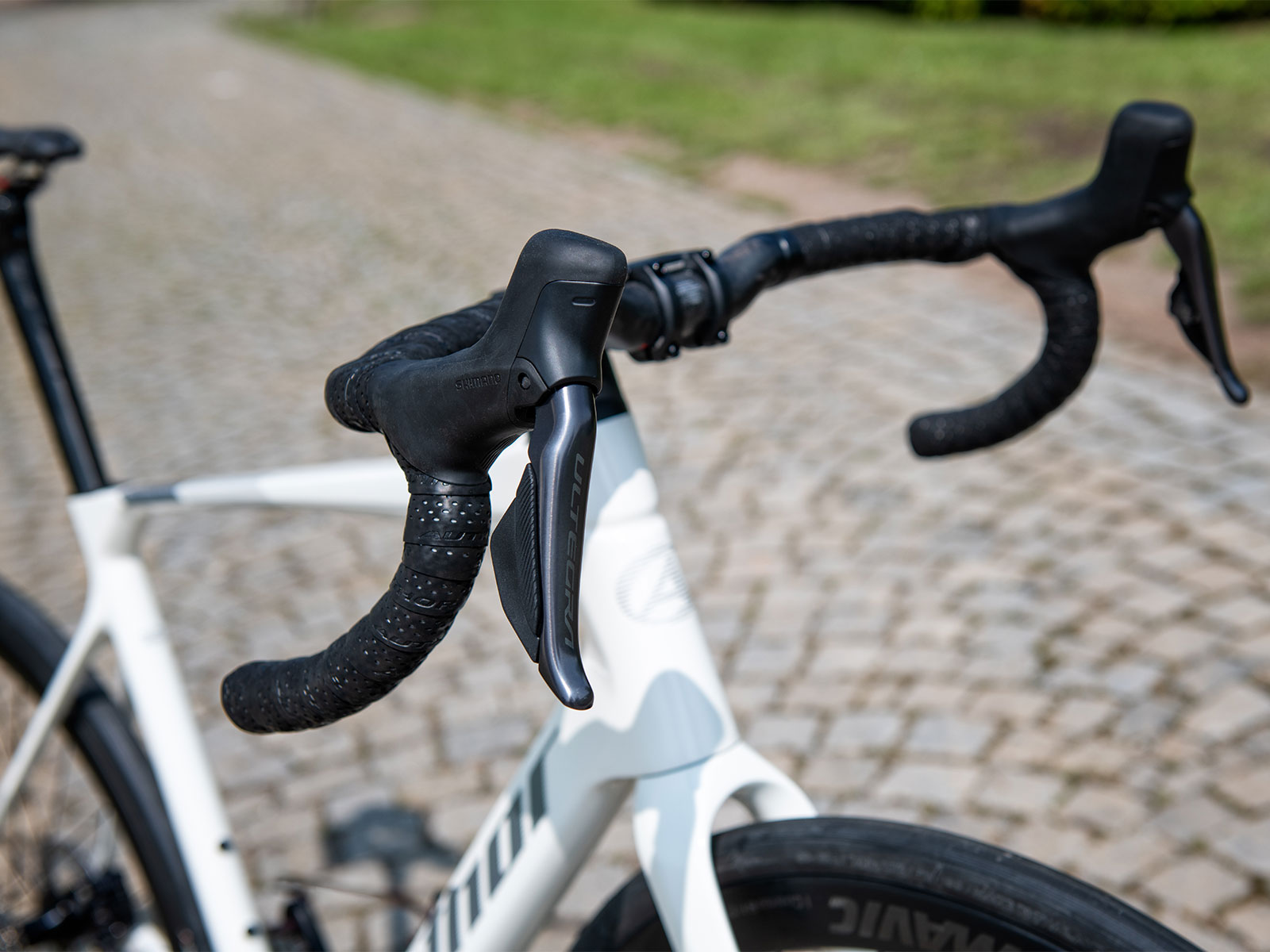

Brakes levers	SHIMANO ST-R8170
Rims	MAVIC Cosmic S 42 Disc CL UST, wheel set, 24 holes
Spokes	MAVIC
Tires	VITTORIA Corsa N.EXT TRL, folding, 700 × 28c

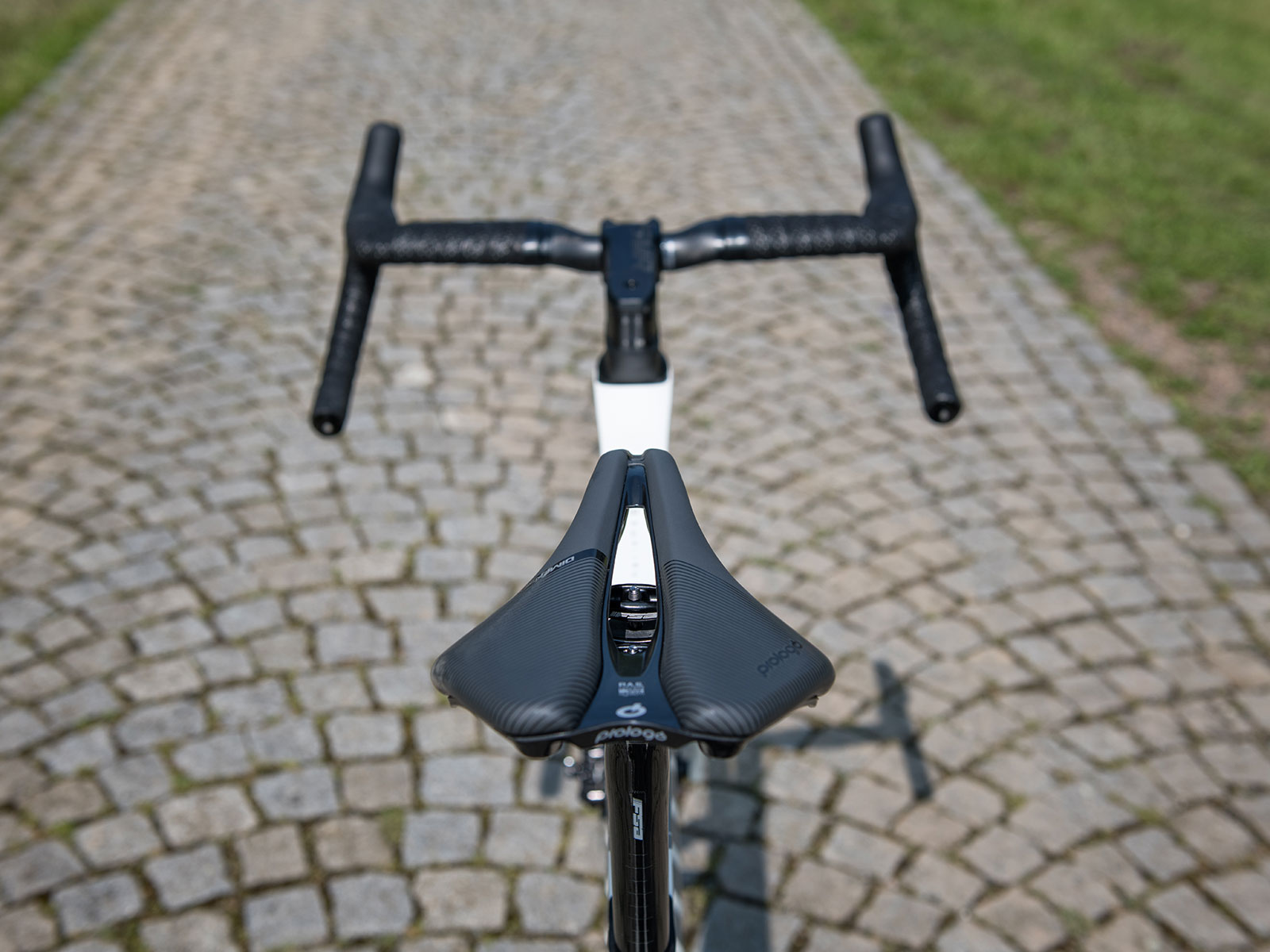

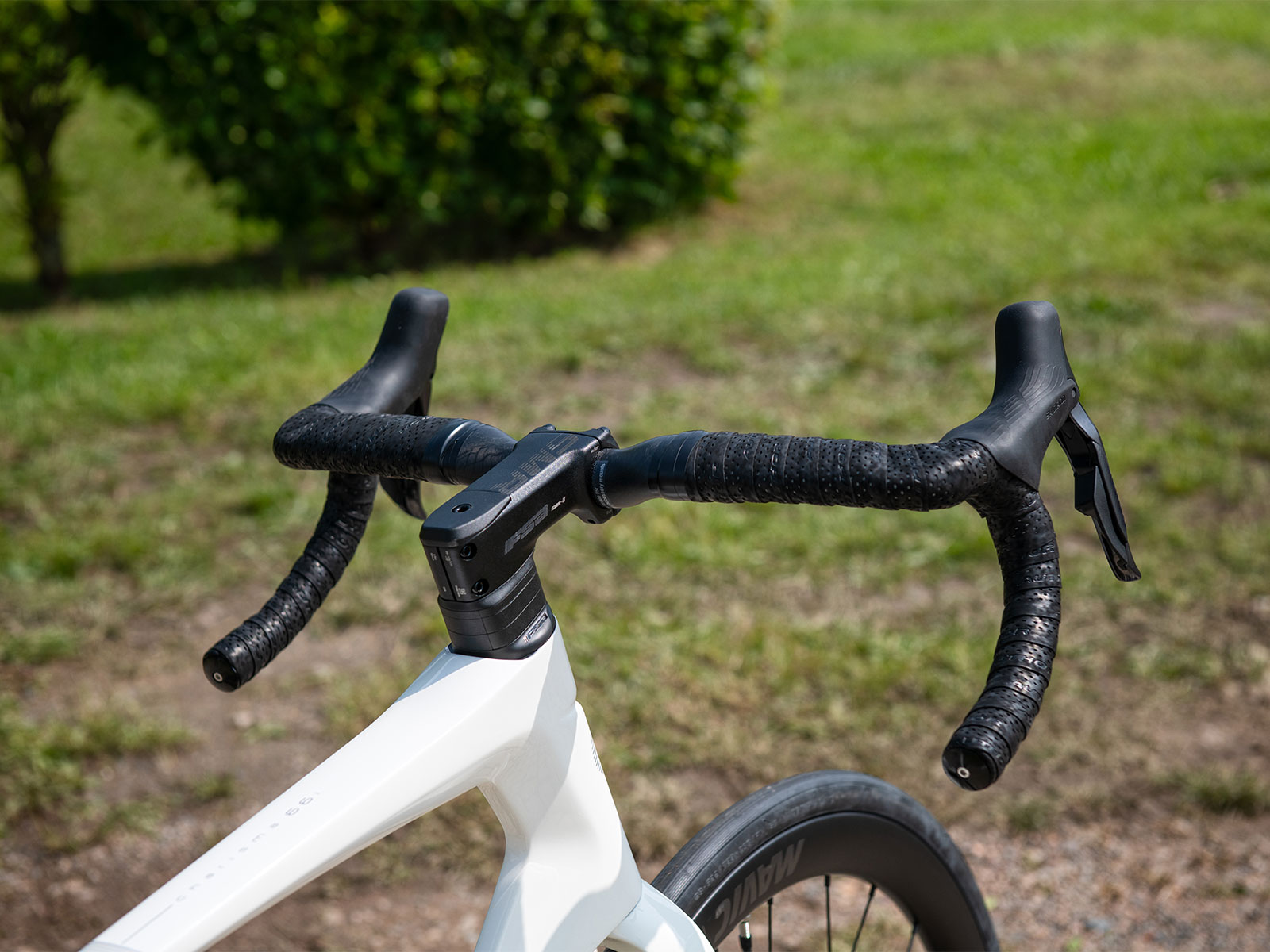

Handlebar	FSA K-Wing AGX, 420 / 440 mm
Grips/Bar tapes	AUTHOR microfiber / gel
Stem	FSA NS SMR-II

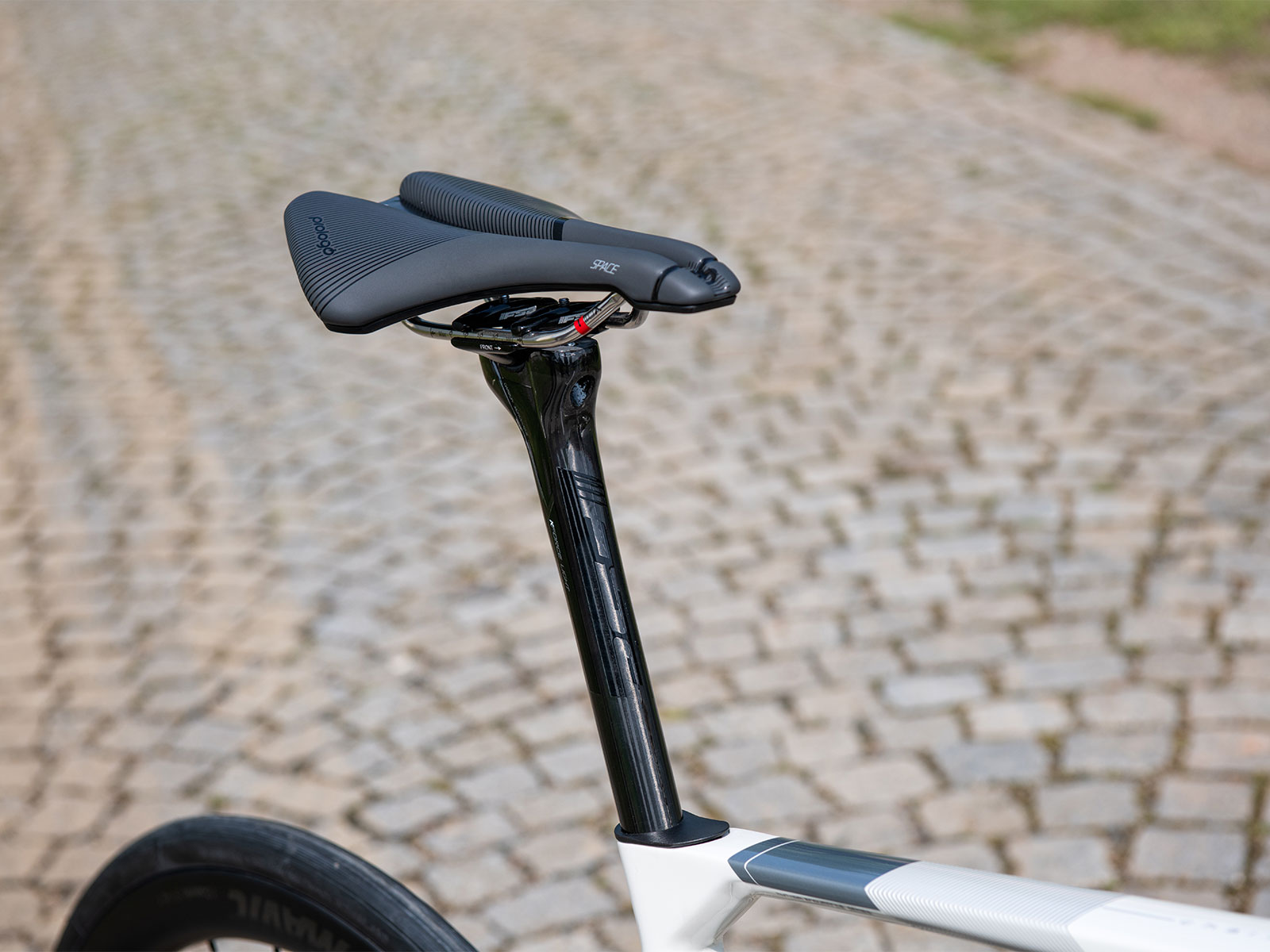

Seat post	FSA K-Force SBO karbon (27.2)
Saddle	PROLOGO Dimension SPACE Tirox
Speed	24
Weight	7,9 kg / 52 cm

Geometry and sizes

Size	48 cm (S)	50 cm (M)	52 cm (L)	55 cm (XL)
Min. figure ~~[cm]~~	160	168	176	186
Max. figure ~~[cm]~~	170	178	188	195
S/T c-t ~~[mm]~~	480	500	520	550
S/T c-c ~~[mm]~~	466	486	506	536
T/T h ~~[mm]~~	525	540	555	570
T/T a ~~[mm]~~	509	524	537	552
H/T ~~[mm]~~	145	160	180	205
C/S ~~[mm]~~	420	420	420	420
W/B ~~[mm]~~	993	1003	1009	1020
S/T ang. ~~[°]~~	74	74	73.5	73.5
H/T ang. ~~[°]~~	71.5	72	72.5	73
F/L ~~[mm]~~	380	380	380	380
B/B drop ~~[mm]~~	75	75	75	75
B/B width ~~[mm]~~	86	86	86	86
Reach ~~[mm]~~	365	375	379	387
Stack ~~[mm]~~	558	574	593	619
F/R ~~[mm]~~	50	50	50	50
Handlebars ~~[mm]~~	0	0	0	0
Stem ~~[mm]~~	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
