AUTHOR Charisma 55i 2025
  » Bicycles » road » bike models

Charisma 55i 2025

Colour variants
New carbon frame with fully Integrated Cable Routing included stem and head setLightweight full carbon forkSHIMANO 105 Di2 components and hydraulic brakes, 24 speedMAVIC Ksyrium S Disc UST wheel setFSA cockpit with ICR head set includedVITTORIA Zaffiro Pro, 700 × 30C foldable tiresPROLOGO Dimension Space T4.0 saddle
price 97 990 Kč
other models

Technical specification

Size48 cm (S), 50 cm (M), 52 cm (L), 55 cm (XL)
FrameAUTHOR carbon Toray T700 monocoque
Front forkAUTHOR carbon Toray T700 monocoque, 1.5" tapered
Head partsFSA
Chain WheelSHIMANO 105, 50-34 teeth, 170 / 172,5 / 175 mm cranks
BBPartsSHIMANO BB-72, BB unit
Front derailleurSHIMANO 105 Di2
Rear derailleurSHIMANO 105 Di2
ShiftersSHIMANO 105 Di2 (24)
Free wheelSHIMANO CS-HG710-12, 11-36 (12)
ChainSHIMANO CN-M7100
HubsMAVIC Ksyrium S Disc UST, wheel set, 24 holes, 12 × 100 mm thru front axle, 12 × 142 mm rear axle
BrakesSHIMANO R7170, disc hydraulic (160/140 mm rotors)
Brakes leversSHIMANO ST-R7170
RimsMAVIC Ksyrium S Disc UST, wheel set, 24 holes
SpokesMAVIC
TiresVITTORIA Zaffiro Pro V, folding, 700 × 30c
HandlebarFSA A-Wing Pro, 420 / 440 mm
TapesAUTHOR microfiber / gel
StemFSA NS SMR-II
Seat postRITCHEY Comp Carbon Zero (27.2)
SaddlePROLOGO Dimension SPACE T4.0
Speed24

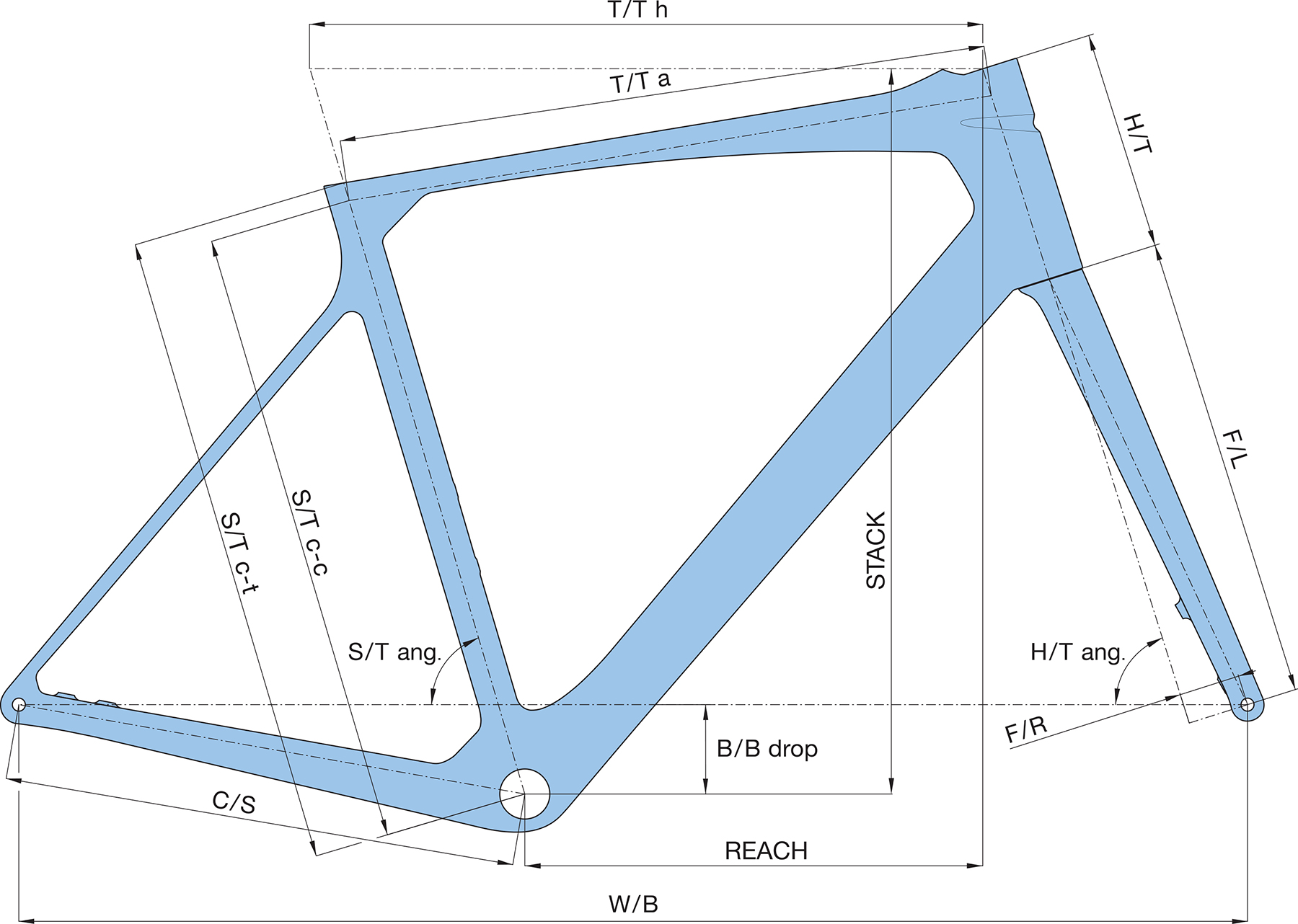

Geometry and sizes

Size 48 cm (S) 50 cm (M) 52 cm (L) 55 cm (XL)
Min. figure [cm] 160 168 176 186
Max. figure [cm] 170 178 188 195
S/T c-t [mm] 480 500 520 550
S/T c-c [mm] 466 486 506 536
T/T h [mm] 525 540 555 570
T/T a [mm] 509 524 537 552
H/T [mm] 145 160 180 205
C/S [mm] 420 420 420 420
W/B [mm] 993 1003 1009 1020
S/T ang. [°] 74 74 73.5 73.5
H/T ang. [°] 71.5 72 72.5 73
F/L [mm] 380 380 380 380
B/B drop [mm] 75 75 75 75
B/B width [mm] 86 86 86 86
Reach [mm] 365 375 379 387
Stack [mm] 558 574 593 619
F/R [mm] 50 50 50 50
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
Charisma 55i 2025

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
