AUTHOR Bicycle CA 77 2013
  » Bicycles » road » bike models

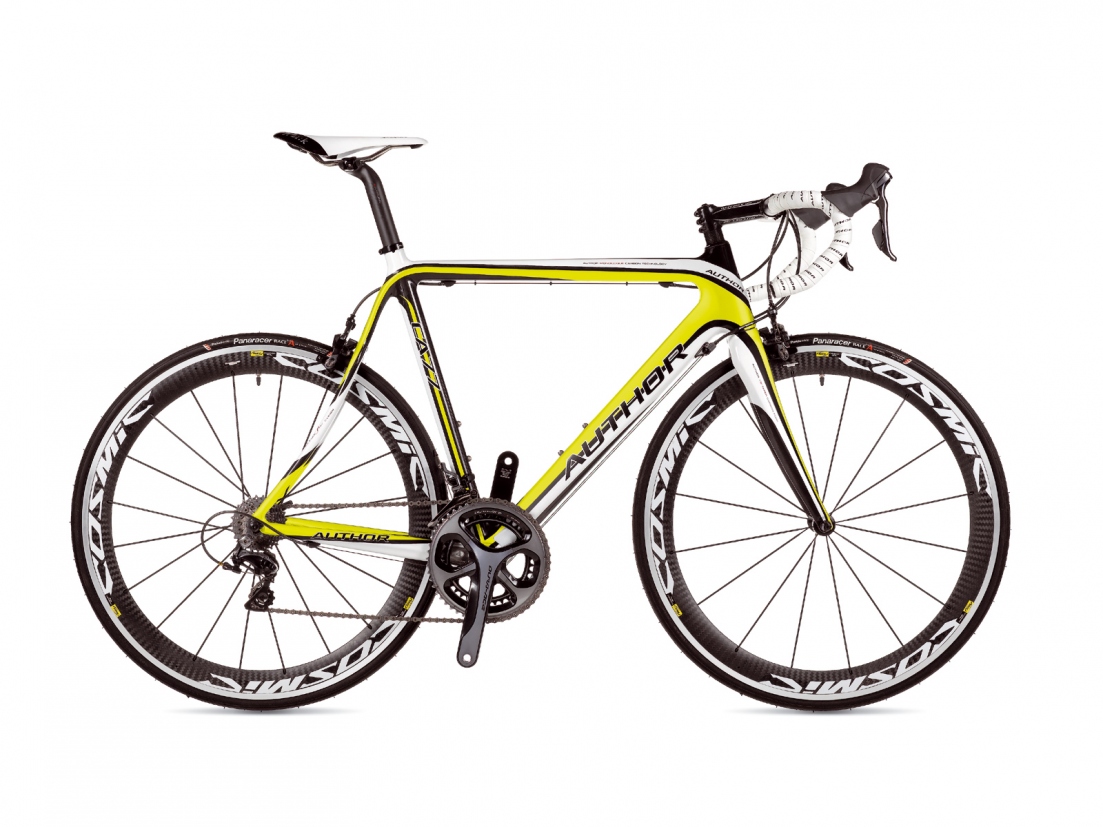

AUTHOR CA 77 2013Archivní model 2013

SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size48, 50, 52, 54, 56, 58 cm
FrameAUTHOR A carbon monocoque
Front forkAUTHOR carbon monocoque
Head partsFSA Orbit C-40 1.5" tapered
Chain WheelSHIMANO Dura Ace 53-39 zubů 170 / 172.5 / 175 / 177.5 mm cranks
BBPartsSHIMANO Dura Ace BB unit
Front derailleurSHIMANO Dura Ace (34.9)
Rear derailleurSHIMANO Dura Ace
ShiftersSHIMANO Dura Ace (22)
Free wheelSHIMANO CS-9000 11-25 (11)
ChainSHIMANO CN-9000
HubsMAVIC COSMIC CARBONE SL Wheel Set 20 / 20 holes
BrakesSHIMANO Dura Ace
Brakes leversSHIMANO Dura Ace
RimsMAVIC COSMIC CARBONE SL Wheel Set 16 / 20 holes
SpokesMAVIC COSMIC CARBONE SL
TiresPANARACER Race Type A Kevlar 700 x 23c
HandlebarRITCHEY Logic II SL Carbon Road 420 / 440 mm
StemRITCHEY WCS C-260 carbon
Seat postRITCHEY SL 1B Carbon Road (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Antares k:ium
Speed22
Weight6,9 Kg / 54 cm

Geometry and sizes

Size 48 50 52 54 56 58
Min. figure [cm] 154 160 168 176 186 193
Max. figure [cm] 162 170 178 188 195 202
S/T c-t [mm] 520 540 560 580 600 620
S/T c-c [mm] 480 500 520 540 560 580
T/T h [mm] 0 0 0 0 0 0
T/T a [mm] 543 548 563 573 584 590
H/T [mm] 110 120 135 155 175 195
C/S [mm] 410 410 410 410 410 410
W/B [mm] 977 979 992 995 1005 1011
S/T ang. [°] 73 73.3 73.4 73 73 73
H/T ang. [°] 73.3 73.3 73.4 74 74 74
F/L [mm] 365 365 365 365 365 365
B/B drop [mm] 67 67 67 64 64 64
B/B width [mm] 0 0 0 0 0 0
Reach [mm] 0 0 0 0 0 0
Stack [mm] 0 0 0 0 0 0
F/R [mm] 43 43 43 43 43 43
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR CA 77 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
